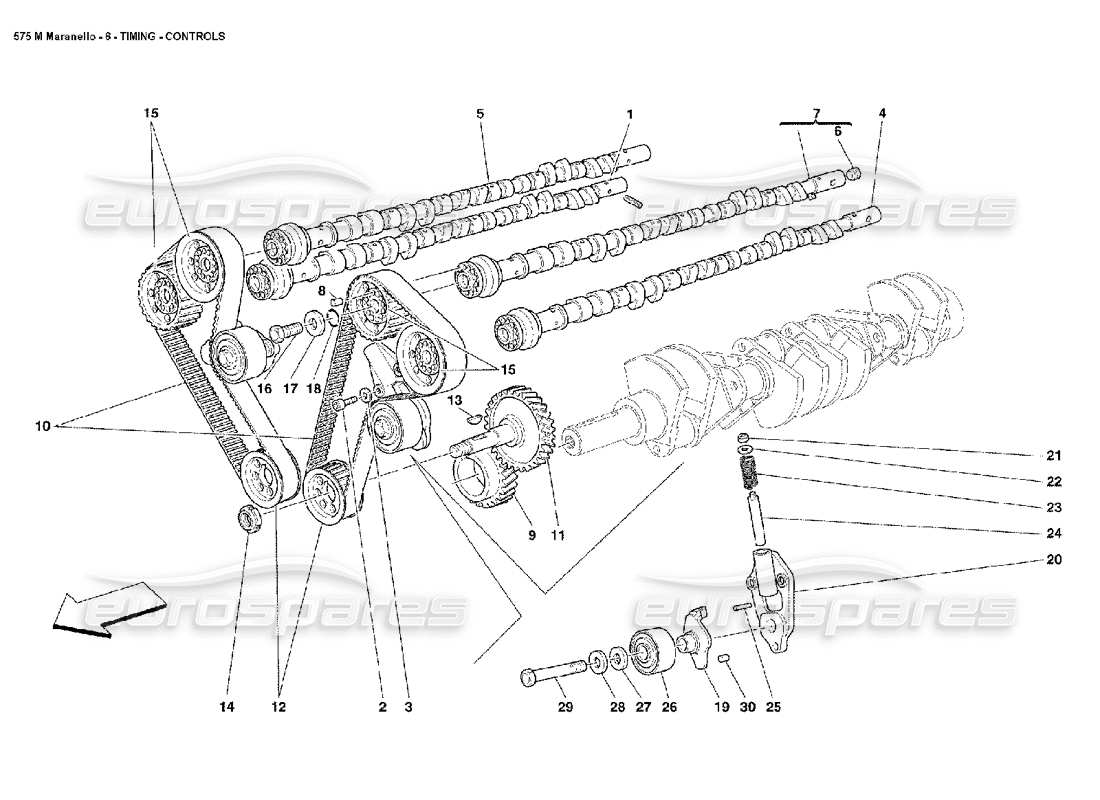

Ferrari 575M Maranello Timing Controls Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Price
                                                      # 001
                                                      MPN: 184688
                                                      COMPLETE RH EXHAUST CAM SHAFT
                                                      -Valid till stock exhaustion
                                                      Supersession
                                                      Supersession
                                                      # 001
                                                      MPN: 208371
                                                      COMPLETE RH EXHAUST CAM SHAFT
                                                      from £553.71
                                                      from £553.71
                                                      This part replaces part number 184688
                                                      # 002
                                                      MPN: 14306424
                                                      SCREW
                                                      from £0.47
                                                      from £0.47
                                                      This part replaces part number 14306324 - and 2 more. Click to view details
                                                      # 003
                                                      MPN: 11193874
                                                      WASHER
                                                      from £0.47
                                                      from £0.47
                                                      This part replaces part number 11193879 which we have in stock
                                                      # 004
                                                      MPN: 184692
                                                      COMPLETE LH EXHAUST CAM SHAFT
                                                      -Valid till stock exhaustion
                                                      Supersession
                                                      Supersession
                                                      # 004
                                                      MPN: 208373
                                                      COMPLETE LH EXHAUST CAM SHAFT
                                                      from £556.43
                                                      from £556.43
                                                      This part replaces part number 184692
                                                      # 005
                                                      MPN: 184686
                                                      COMPLETE RH INDUCTION DISTRIBUTION CAM SHAFT
                                                      Supersession
                                                      Supersession
                                                      # 005
                                                      MPN: 208369
                                                      COMPLETE RH INDUCTION DISTRIBUTION CAM SHAFT
                                                      -Valid till stock exhaustion
                                                      from £556.43
                                                      from £556.43
                                                      This part replaces part number 184686
                                                      # 006
                                                      MPN: 10269550
                                                      THREADED PLUG
                                                      from £1.59
                                                      from £1.59
                                                      # 007
                                                      MPN: 184690
                                                      COMPLETE LH INDUCTION DISTRIBUTION CAM SHAFT
                                                      -Valid till stock exhaustion
                                                      Supersession
                                                      Supersession
                                                      # 007
                                                      MPN: 208372
                                                      COMPLETE LH INDUCTION DISTRIBUTION CAM SHAFT
                                                      from £556.43
                                                      from £556.43
                                                      This part replaces part number 184690
                                                      # 008
                                                      MPN: 114803
                                                      DOWEL
                                                      from £12.01
                                                      from £12.01
                                                      # 009
                                                      MPN: 168702
                                                      DRIVING GEAR
                                                      from £62.32
                                                      from £62.32
                                                      # 010
                                                      MPN: 187744
                                                      TIMING CONTROL BELT
                                                      from £33.52
                                                      from £33.52
                                                      This part replaces part number 148515
                                                      # 011
                                                      MPN: 168701
                                                      DRIVEN GEAR
                                                      from £110.95
                                                      from £110.95
                                                      # 012
                                                      MPN: 149928
                                                      CONTROL TIMING GEAR
                                                      from £76.66
                                                      from £76.66
                                                      # 013
                                                      MPN: 10206320
                                                      DISC KEY
                                                      from £0.77
                                                      from £0.77
                                                      # 014
                                                      MPN: 104919
                                                      RING NUT
                                                      from £3.08
                                                      from £3.08
                                                      # 015
                                                      MPN: 159382
                                                      DRIVEN GEAR
                                                      from £51.08
                                                      from £51.08
                                                      This part replaces part number 149927 which we have in stock - and 2 more. Click to view details
                                                      # 016
                                                      MPN: 146540
                                                      SCREW
                                                      from £9.06
                                                      from £9.06
                                                      This part replaces part number 16326431 - and 3 more. Click to view details
                                                      # 017
                                                      MPN: 114802
                                                      WASHER
                                                      from £6.15
                                                      from £6.15
                                                      # 018
                                                      MPN: 114808
                                                      SEAL RING
                                                      from £2.25
                                                      from £2.25
                                                      # 019
                                                      MPN: 171060
                                                      PLATE
                                                      from £51.36
                                                      from £51.36
                                                      # 020
                                                      MPN: 149346
                                                      BELT TIGHTENER BODY
                                                      from £133.28
                                                      from £133.28
                                                      # 021
                                                      MPN: 102948
                                                      NUT
                                                      from £0.47
                                                      from £0.47
                                                      This part replaces part number 12574211 - and 4 more. Click to view details
                                                      # 022
                                                      MPN: 121558
                                                      WASHER
                                                      from £0.94
                                                      from £0.94
                                                      # 023
                                                      MPN: 121249
                                                      SPRING FOR BELT STRETCHER
                                                      from £11.87
                                                      from £11.87
                                                      # 024
                                                      MPN: 121047
                                                      PIN
                                                      from £7.90
                                                      from £7.90
                                                      # 025
                                                      MPN: 13933570
                                                      PIN
                                                      from £0.47
                                                      from £0.47

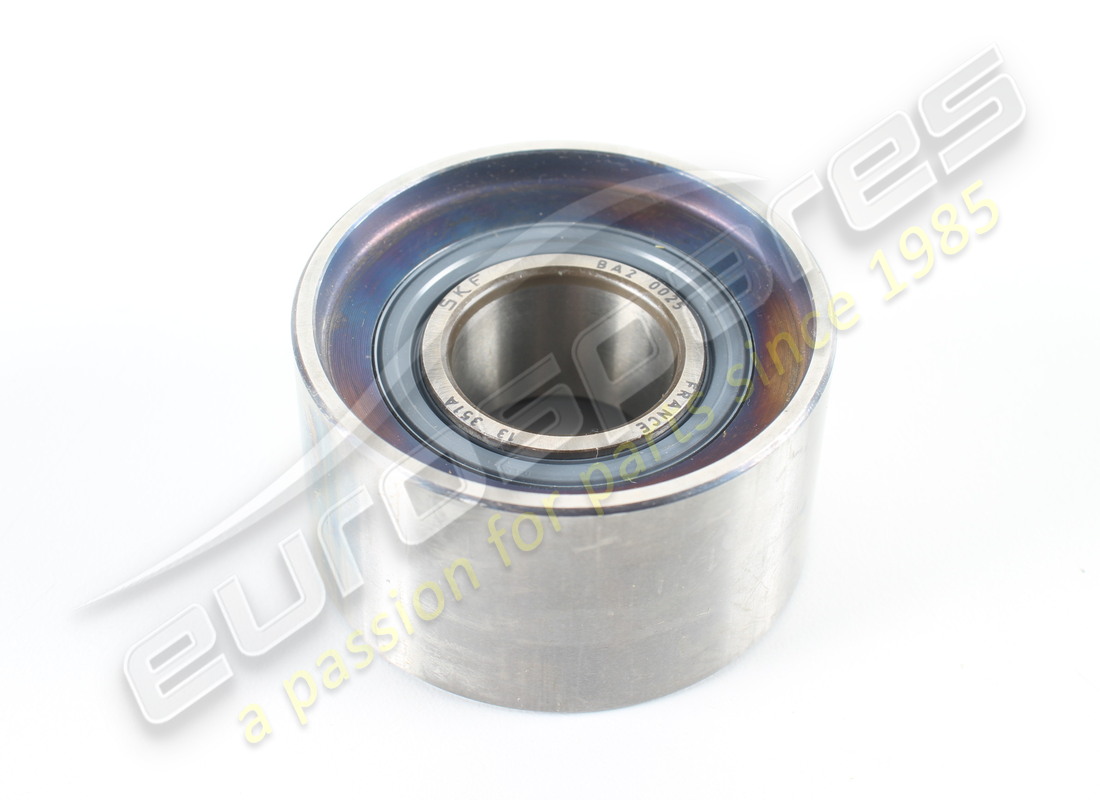

                                                      # 026
                                                      MPN: 171057
                                                      PULLEY
                                                      from £151.17
                                                      from £151.17
                                                      # 027
                                                      MPN: 111460
                                                      SPACER
                                                      from £12.87
                                                      from £12.87
                                                      # 028
                                                      MPN: 102824
                                                      WASHER
                                                      from £14.96
                                                      from £14.96
                                                      # 029
                                                      MPN: 149461
                                                      SCREW
                                                      from £57.75
                                                      from £57.75
                                                      # 030
                                                      MPN: 125717
                                                      DOWEL
                                                      from £1.60
                                                      from £1.60
