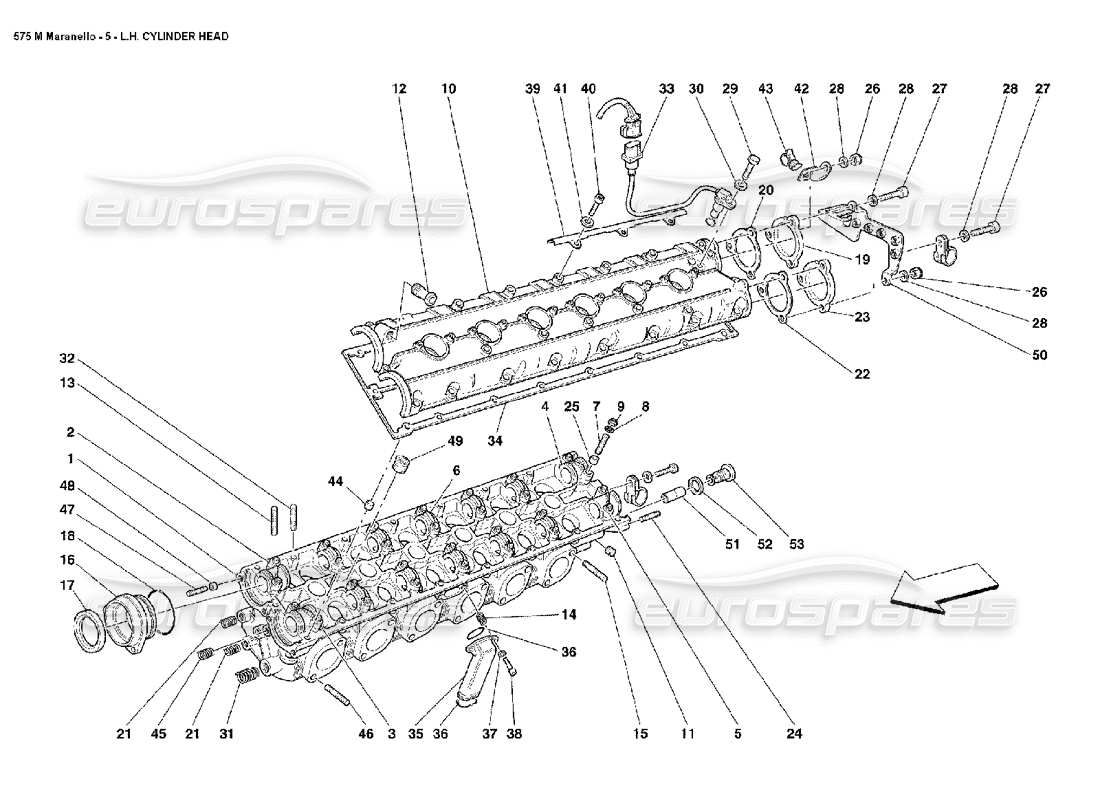

Ferrari 575M Maranello L.H. Cylinder Head Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                            #
                                                                                            Part number
                                                                                            Description
                                                                                            Price
                                                                                            # 000
                                                                                            MPN: 194326
                                                                                            COMPLETE LH CYLINDERS HEAD
                                                                                            from £7,993.79
                                                                                            from £7,993.79
                                                                                            # 001
                                                                                            MPN: 180536
                                                                                            LH HEAD
                                                                                            -With complete cylinder head
                                                                                            # 002
                                                                                            MPN: 154203
                                                                                            RIGHT FRONT CAP
                                                                                            -With complete cylinder head
                                                                                            # 003
                                                                                            MPN: 154205
                                                                                            LEFT FRONT CAP
                                                                                            -With complete cylinder head
                                                                                            # 004
                                                                                            MPN: 154206
                                                                                            RIGHT REAR CAP
                                                                                            -With complete cylinder head
                                                                                            # 005
                                                                                            MPN: 154204
                                                                                            LEFT REAR CAP
                                                                                            -With complete cylinder head
                                                                                            # 006
                                                                                            MPN: 154207
                                                                                            INTERMEDIATE CAP
                                                                                            -With complete cylinder head
                                                                                            # 007
                                                                                            MPN: 13541424
                                                                                            STUD
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 13541421
                                                                                            # 008
                                                                                            MPN: 11197774
                                                                                            WASHER
                                                                                            from £0.50
                                                                                            from £0.50
                                                                                            This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                            # 009
                                                                                            MPN: 15896214
                                                                                            NUT
                                                                                            from £0.50
                                                                                            from £0.50
                                                                                            This part replaces part number 15896211
                                                                                            # 010
                                                                                            MPN: 180481
                                                                                            LH CYLINDERS HEAD COVER
                                                                                            - With complete cylinder head
                                                                                            # 011
                                                                                            MPN: 14326101
                                                                                            THREADED PLUG
                                                                                            from £0.61
                                                                                            from £0.61
                                                                                            # 011
                                                                                            MPN: 14326150
                                                                                            THREADED PLUG
                                                                                            - Not as spare part - Replaced by 14326101
                                                                                            from £0.53
                                                                                            from £0.53
                                                                                            This part replaces part number 12326150
                                                                                            # 012
                                                                                            MPN: 154525
                                                                                            THREADED UNION
                                                                                            from £25.54
                                                                                            from £25.54
                                                                                            # 013
                                                                                            MPN: 13541124
                                                                                            STUD
                                                                                            from £11.95
                                                                                            from £11.95
                                                                                            This part replaces part number 13541121
                                                                                            # 014
                                                                                            MPN: 13525170
                                                                                            THREADED INSERT
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            # 015
                                                                                            MPN: 13516824
                                                                                            STUD
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 13516821
                                                                                            # 016
                                                                                            MPN: 182409
                                                                                            FRONT COVER
                                                                                            from £32.27
                                                                                            from £32.27
                                                                                            # 017
                                                                                            MPN: 163987
                                                                                            SEALING RING
                                                                                            from £9.95
                                                                                            from £9.95
                                                                                            This part replaces part number 136526
                                                                                            # 018
                                                                                            MPN: 158349
                                                                                            O.R. GASKET
                                                                                            from £2.51
                                                                                            from £2.51
                                                                                            # 019
                                                                                            MPN: 182126
                                                                                            REAR SMALL COVER
                                                                                            from £18.48
                                                                                            from £18.48
                                                                                            # 020
                                                                                            MPN: 182127
                                                                                            COVER GASKET
                                                                                            from £5.40
                                                                                            from £5.40
                                                                                            # 021
                                                                                            MPN: 13525770
                                                                                            THREADED INSERT
                                                                                            from £1.59
                                                                                            from £1.59
                                                                                            This part replaces part number 103830
                                                                                            # 022
                                                                                            MPN: 182406
                                                                                            COVER GASKET
                                                                                            from £5.40
                                                                                            from £5.40
                                                                                            # 023
                                                                                            MPN: 182407
                                                                                            REAR SMALL COVER
                                                                                            from £59.39
                                                                                            from £59.39
                                                                                            # 024
                                                                                            MPN: 13541124
                                                                                            STUD
                                                                                            from £11.95
                                                                                            from £11.95
                                                                                            This part replaces part number 13541121
                                                                                            # 025
                                                                                            MPN: 102725
                                                                                            DOWEL
                                                                                            from £0.61
                                                                                            from £0.61
                                                                                            # 026
                                                                                            MPN: 102948
                                                                                            NUT
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 12574211 - and 4 more. Click to view details
                                                                                            # 027
                                                                                            MPN: 14432224
                                                                                            SCREW
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 14432221
                                                                                            # 028
                                                                                            MPN: 12604274
                                                                                            WASHER
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 12604271 - and 1 more. Click to view details
                                                                                            # 029
                                                                                            MPN: 14305724
                                                                                            SCREW
                                                                                            from £0.54
                                                                                            from £0.54
                                                                                            This part replaces part number 11567624 - and 2 more. Click to view details
                                                                                            # 030
                                                                                            MPN: 12601274
                                                                                            WASHER
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                            # 031
                                                                                            MPN: 13524670
                                                                                            THREADED INSERT
                                                                                            from £0.71
                                                                                            from £0.71
                                                                                            # 032
                                                                                            MPN: 11500224
                                                                                            STUD
                                                                                            from £0.48
                                                                                            from £0.48
                                                                                            This part replaces part number 11500221 - and 1 more. Click to view details
                                                                                            # 033
                                                                                            MPN: 183842
                                                                                            COMPLETE PHASE SENSOR
                                                                                            from £74.66
                                                                                            from £74.66
                                                                                            # 034
                                                                                            MPN: 182931
                                                                                            COVER GASKET
                                                                                            from £24.78
                                                                                            from £24.78
                                                                                            # 035
                                                                                            MPN: 154647
                                                                                            OIL EXHAUST DUCTING
                                                                                            from £27.93
                                                                                            from £27.93
                                                                                            # 036
                                                                                            MPN: 142599
                                                                                            O.R. GASKET
                                                                                            from £0.58
                                                                                            from £0.58
                                                                                            # 037
                                                                                            MPN: 12601174
                                                                                            WASHER
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 12601173 - and 5 more. Click to view details
                                                                                            # 038
                                                                                            MPN: 14304224
                                                                                            SCREW
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            # 039
                                                                                            MPN: 182703
                                                                                            CABLES SUPPORTING
                                                                                            from £5.88
                                                                                            from £5.88
                                                                                            # 040
                                                                                            MPN: 156834
                                                                                            SCREW
                                                                                            from £1.59
                                                                                            from £1.59
                                                                                            # 041
                                                                                            MPN: 12601274
                                                                                            WASHER
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                            # 042
                                                                                            MPN: 178556
                                                                                            LH BRACKET
                                                                                            from £3.19
                                                                                            from £3.19
                                                                                            # 043
                                                                                            MPN: 164565
                                                                                            FIXING CLIP
                                                                                            from £0.71
                                                                                            from £0.71
                                                                                            # 044
                                                                                            MPN: 102725
                                                                                            DOWEL
                                                                                            from £0.66
                                                                                            from £0.66
                                                                                            # 045
                                                                                            MPN: 13525470
                                                                                            THREADED INSERT
                                                                                            from £0.51
                                                                                            from £0.51
                                                                                            This part replaces part number 107333
                                                                                            # 046
                                                                                            MPN: 13517024
                                                                                            STUD
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            # 047
                                                                                            MPN: 13539324
                                                                                            STUD
                                                                                            - Not as spare part - Replaced by 13539424
                                                                                            from £0.74
                                                                                            from £0.74
                                                                                            # 047
                                                                                            MPN: 13539424
                                                                                            STUD
                                                                                            from £1.18
                                                                                            from £1.18
                                                                                            # 048
                                                                                            MPN: 182434
                                                                                            CENTERING DOWEL
                                                                                            from £1.04
                                                                                            from £1.04
                                                                                            # 049
                                                                                            MPN: 127635
                                                                                            THREADED PLUG
                                                                                            from £1.52
                                                                                            from £1.52
                                                                                            This part replaces part number 183447
                                                                                            # 050
                                                                                            MPN: 185305
                                                                                            RH BRACKET
                                                                                            from £6.90
                                                                                            from £6.90
                                                                                            # 051
                                                                                            MPN: 156862
                                                                                            NONRETURN VALVE
                                                                                            from £5.28
                                                                                            from £5.28
                                                                                            # 052
                                                                                            MPN: 10298460
                                                                                            GASKET
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 93353
                                                                                            # 053
                                                                                            MPN: 163714
                                                                                            PLUG
                                                                                            from £17.11
                                                                                            from £17.11
