ferrari 575m maranello rh cylinder head parts diagram

004 - RH cylinder head

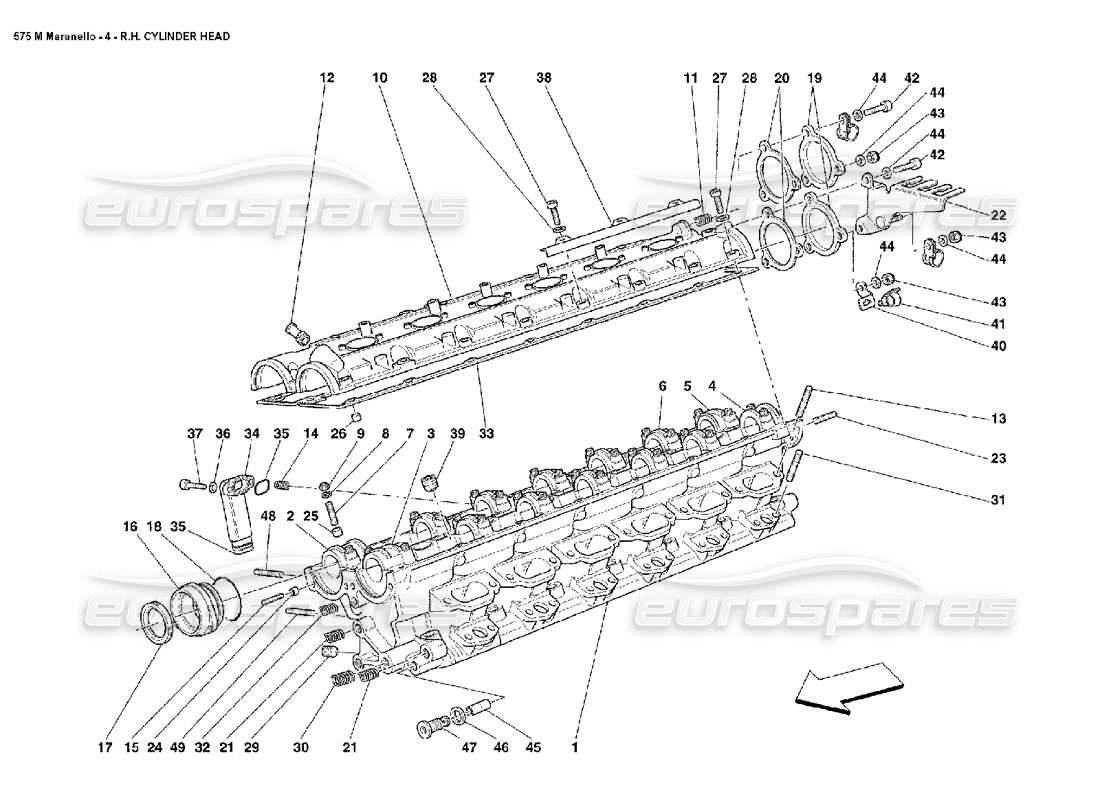

Ferrari 575M Maranello R.H. Cylinder Head Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                  #
                                                                                  Part number
                                                                                  Description
                                                                                  Price
                                                                                  # 000
                                                                                  MPN: 194325
                                                                                  COMPLETE RH CYLINDERS HEAD
                                                                                  from £5,522.81
                                                                                  from £5,522.81
                                                                                  This part replaces part number 180535
                                                                                  # 001
                                                                                  MPN: 180535
                                                                                  RH HEAD
                                                                                  - With complete cylinder head
                                                                                  Supersession
                                                                                  Supersession

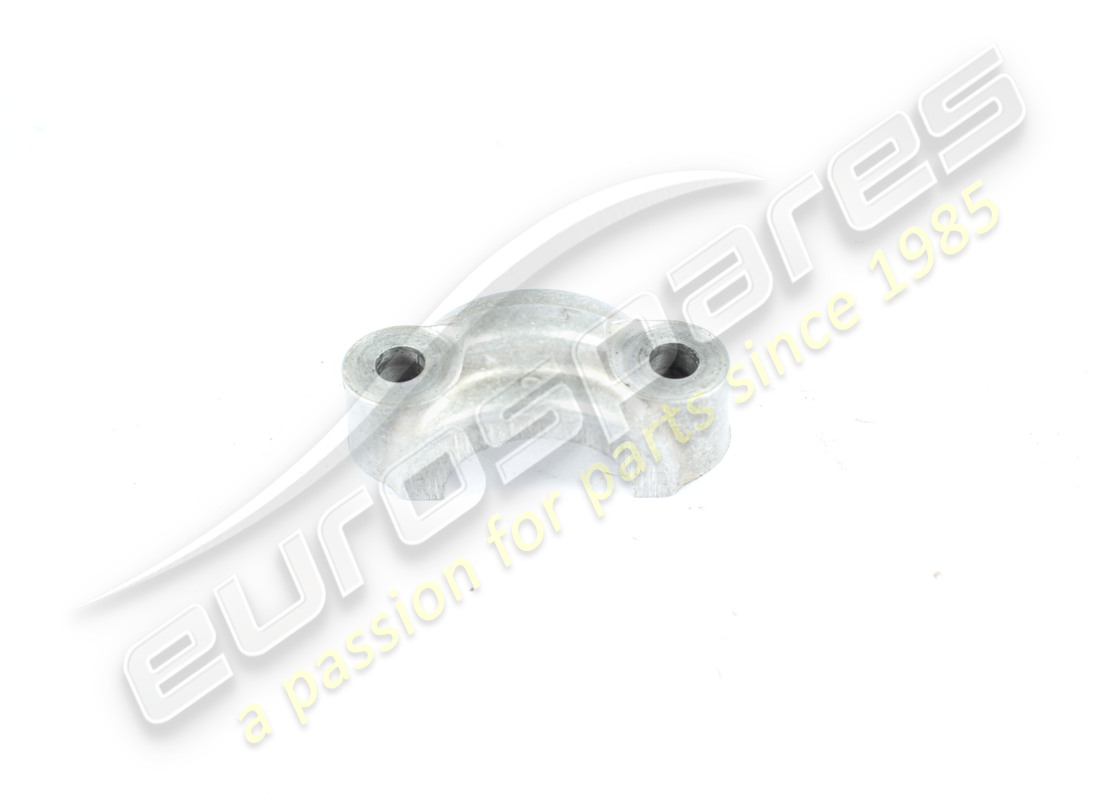

                                                                                  # 002
                                                                                  MPN: 154203
                                                                                  RIGHT FRONT CAP
                                                                                  - With complete cylinder head
                                                                                  # 003
                                                                                  MPN: 154205
                                                                                  LEFT FRONT CAP
                                                                                  - With complete cylinder head
                                                                                  # 004
                                                                                  MPN: 154204
                                                                                  LEFT REAR CAP
                                                                                  - With complete cylinder head
                                                                                  # 005
                                                                                  MPN: 154206
                                                                                  RIGHT REAR CAP
                                                                                  - With complete cylinder head
                                                                                  # 006
                                                                                  MPN: 154207
                                                                                  INTERMEDIATE CAP
                                                                                  - With complete cylinder head

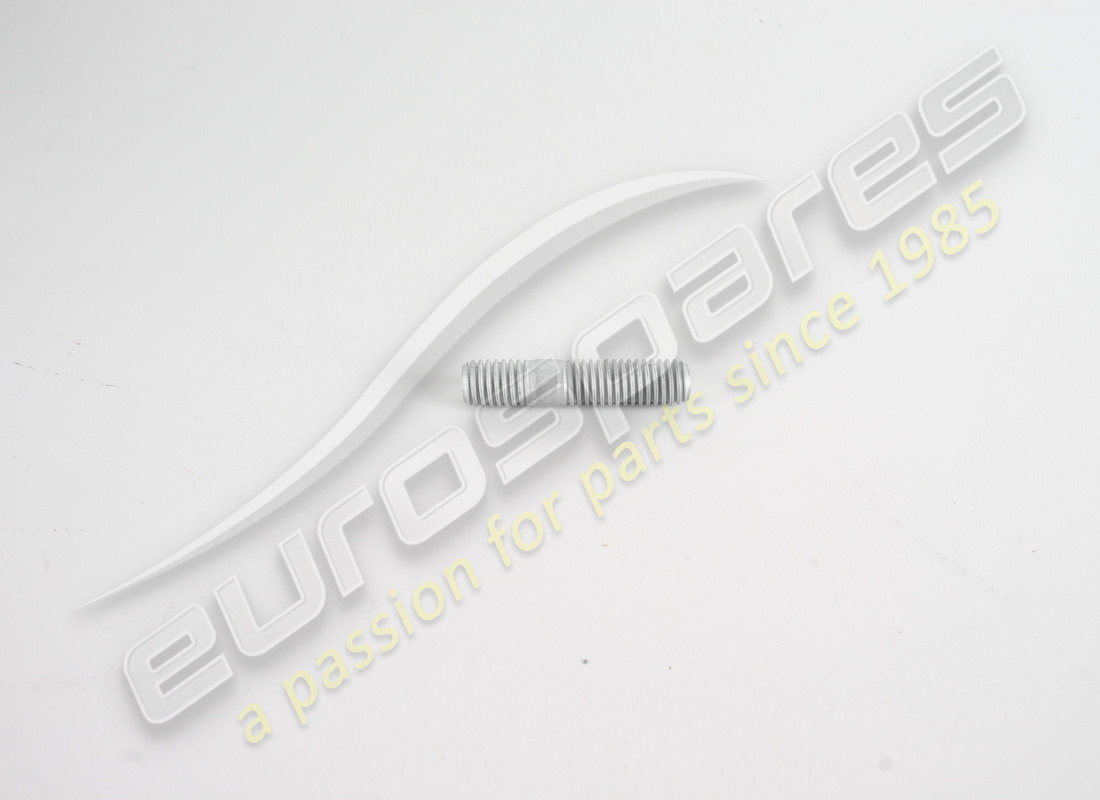

                                                                                  # 007
                                                                                  MPN: 13541424
                                                                                  STUD
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 13541421
                                                                                  # 008
                                                                                  MPN: 11197774
                                                                                  WASHER
                                                                                  from £0.50
                                                                                  from £0.50
                                                                                  This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                  # 009
                                                                                  MPN: 15896214
                                                                                  NUT
                                                                                  from £0.50
                                                                                  from £0.50
                                                                                  This part replaces part number 15896211
                                                                                  # 010
                                                                                  MPN: 180483
                                                                                  RH CYLINDERS HEAD COVER
                                                                                  - With complete cylinder head
                                                                                  # 011
                                                                                  MPN: 13525570
                                                                                  THREADED INSERT
                                                                                  from £3.26
                                                                                  from £3.26
                                                                                  This part replaces part number 109668
                                                                                  # 012
                                                                                  MPN: 154525
                                                                                  THREADED UNION
                                                                                  from £25.54
                                                                                  from £25.54
                                                                                  # 013
                                                                                  MPN: 13541124
                                                                                  STUD
                                                                                  from £11.95
                                                                                  from £11.95
                                                                                  This part replaces part number 13541121
                                                                                  # 014
                                                                                  MPN: 13525170
                                                                                  THREADED INSERT
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  # 015
                                                                                  MPN: 13539324
                                                                                  STUD
                                                                                  - Not as spare part - Replaced by 13539424
                                                                                  from £0.74
                                                                                  from £0.74
                                                                                  # 015
                                                                                  MPN: 13539424
                                                                                  STUD
                                                                                  from £1.18
                                                                                  from £1.18
                                                                                  # 016
                                                                                  MPN: 182409
                                                                                  FRONT COVER
                                                                                  from £32.27
                                                                                  from £32.27
                                                                                  # 017

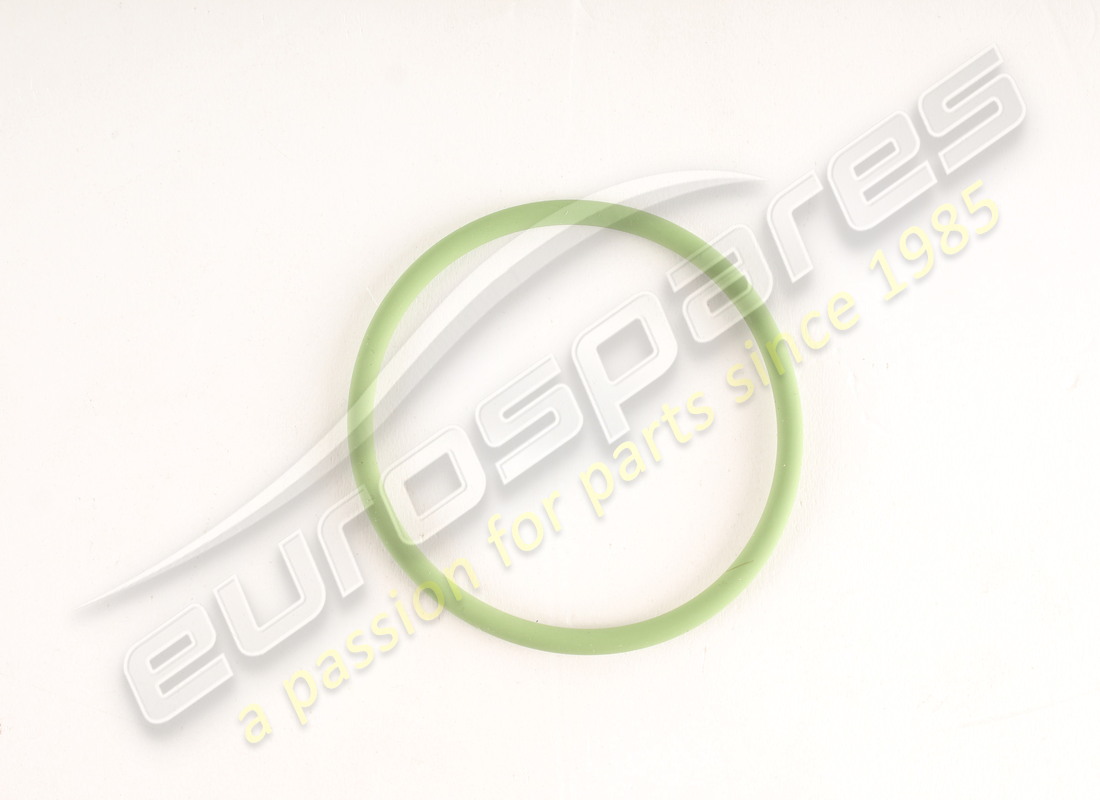

                                                                                  MPN: 163987
                                                                                  SEALING RING
                                                                                  from £9.95
                                                                                  from £9.95
                                                                                  This part replaces part number 136526
                                                                                  # 018

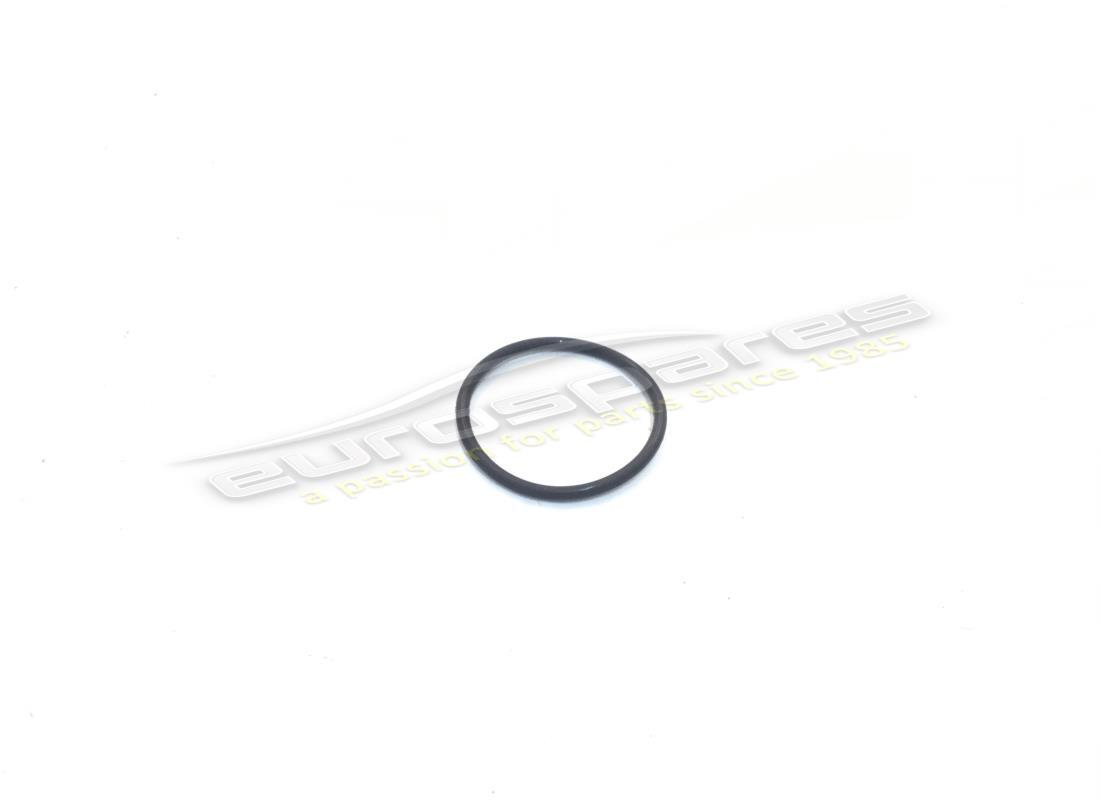

                                                                                  MPN: 158349
                                                                                  O.R. GASKET
                                                                                  from £2.51
                                                                                  from £2.51
                                                                                  # 019
                                                                                  MPN: 182126
                                                                                  REAR SMALL COVER
                                                                                  from £18.48
                                                                                  from £18.48
                                                                                  # 020
                                                                                  MPN: 182127
                                                                                  COVER GASKET
                                                                                  from £5.40
                                                                                  from £5.40
                                                                                  # 021
                                                                                  MPN: 13525770
                                                                                  THREADED INSERT
                                                                                  from £1.59
                                                                                  from £1.59
                                                                                  This part replaces part number 103830
                                                                                  # 022
                                                                                  MPN: 185306
                                                                                  LH BRACKET
                                                                                  from £10.85
                                                                                  from £10.85
                                                                                  # 023
                                                                                  MPN: 13541124
                                                                                  STUD
                                                                                  from £11.95
                                                                                  from £11.95
                                                                                  This part replaces part number 13541121
                                                                                  # 024
                                                                                  MPN: 182434
                                                                                  CENTERING DOWEL
                                                                                  from £1.04
                                                                                  from £1.04
                                                                                  # 025
                                                                                  MPN: 102725
                                                                                  DOWEL
                                                                                  from £0.61
                                                                                  from £0.61
                                                                                  # 026
                                                                                  MPN: 102725
                                                                                  DOWEL
                                                                                  from £0.66
                                                                                  from £0.66
                                                                                  # 027
                                                                                  MPN: 156834
                                                                                  SCREW
                                                                                  from £1.59
                                                                                  from £1.59
                                                                                  # 028
                                                                                  MPN: 12601274
                                                                                  WASHER
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                  # 029
                                                                                  MPN: 14326101
                                                                                  THREADED PLUG
                                                                                  from £0.61
                                                                                  from £0.61
                                                                                  # 029
                                                                                  MPN: 14326150
                                                                                  THREADED PLUG
                                                                                  - Not as spare part - Replaced by 14326101
                                                                                  from £0.53
                                                                                  from £0.53
                                                                                  This part replaces part number 12326150
                                                                                  # 030
                                                                                  MPN: 13524670
                                                                                  THREADED INSERT
                                                                                  from £0.71
                                                                                  from £0.71
                                                                                  # 031
                                                                                  MPN: 11500224
                                                                                  STUD
                                                                                  from £0.48
                                                                                  from £0.48
                                                                                  This part replaces part number 11500221 - and 1 more. Click to view details
                                                                                  # 032
                                                                                  MPN: 13525470
                                                                                  THREADED INSERT
                                                                                  from £0.51
                                                                                  from £0.51
                                                                                  This part replaces part number 107333

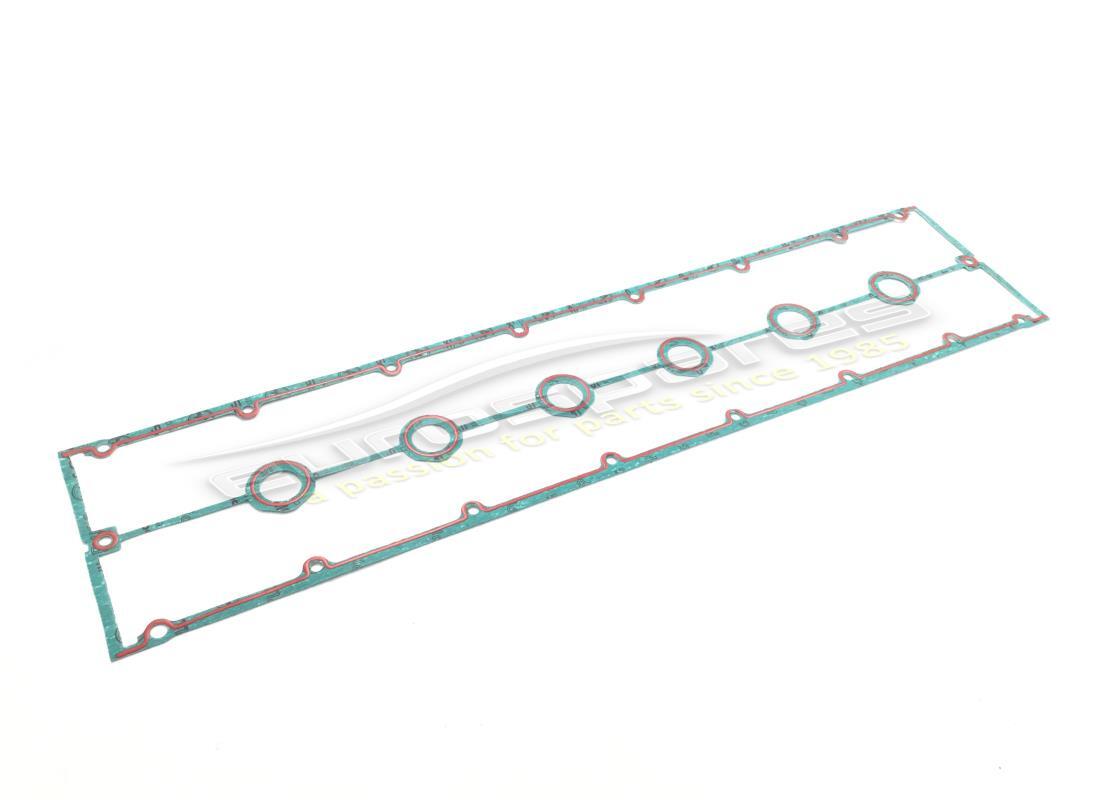

                                                                                  # 033
                                                                                  MPN: 182931
                                                                                  COVER GASKET
                                                                                  from £24.78
                                                                                  from £24.78
                                                                                  # 034
                                                                                  MPN: 154647
                                                                                  OIL EXHAUST DUCTING
                                                                                  from £27.93
                                                                                  from £27.93

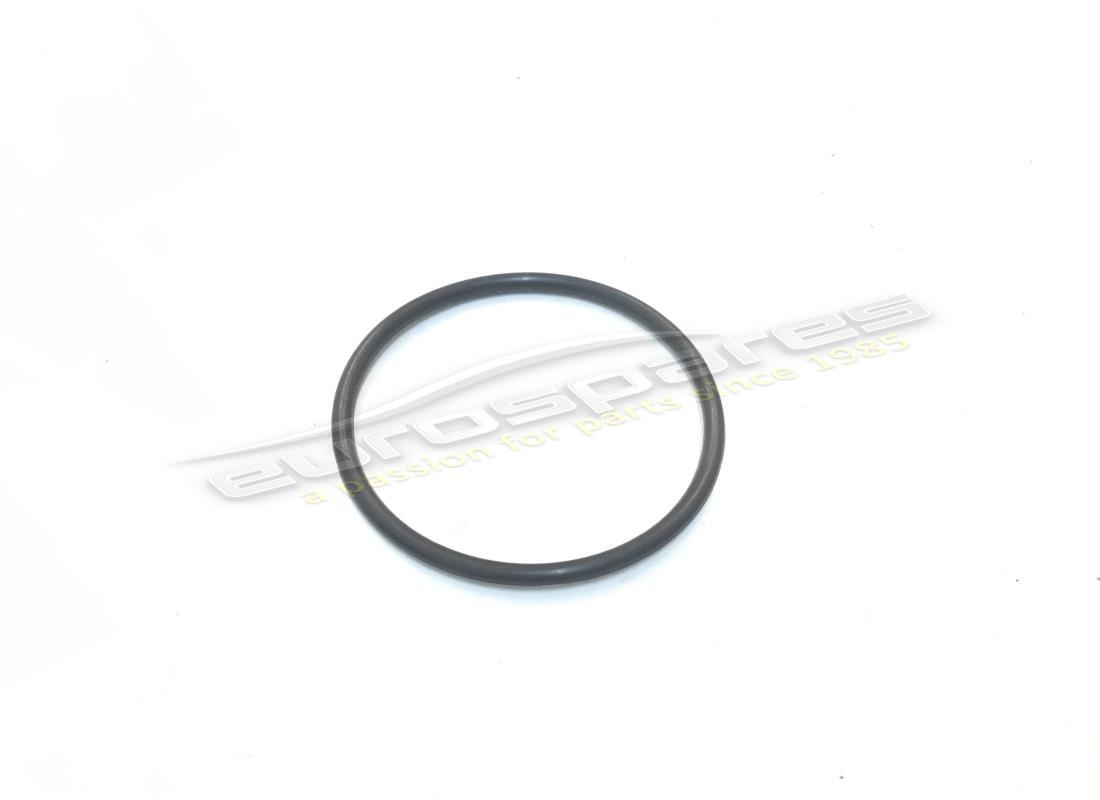

                                                                                  # 035
                                                                                  MPN: 142599
                                                                                  O.R. GASKET
                                                                                  from £0.58
                                                                                  from £0.58
                                                                                  # 036
                                                                                  MPN: 12601174
                                                                                  WASHER
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 12601173 - and 5 more. Click to view details
                                                                                  # 037
                                                                                  MPN: 14304224
                                                                                  SCREW
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  # 038
                                                                                  MPN: 182703
                                                                                  CABLES SUPPORTING
                                                                                  - Bracket
                                                                                  from £5.88
                                                                                  from £5.88
                                                                                  # 039
                                                                                  MPN: 127635
                                                                                  THREADED PLUG
                                                                                  from £1.52
                                                                                  from £1.52
                                                                                  This part replaces part number 183447
                                                                                  # 040
                                                                                  MPN: 178555
                                                                                  RH BRACKET
                                                                                  from £5.89
                                                                                  from £5.89
                                                                                  # 041
                                                                                  MPN: 164565
                                                                                  FIXING CLIP
                                                                                  from £0.71
                                                                                  from £0.71
                                                                                  # 042
                                                                                  MPN: 14432224
                                                                                  SCREW
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 14432221
                                                                                  # 043
                                                                                  MPN: 102948
                                                                                  NUT
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 12574211 - and 4 more. Click to view details
                                                                                  # 044
                                                                                  MPN: 12604274
                                                                                  WASHER
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 12604271 - and 1 more. Click to view details
                                                                                  # 045
                                                                                  MPN: 156862
                                                                                  NONRETURN VALVE
                                                                                  from £5.28
                                                                                  from £5.28
                                                                                  # 046
                                                                                  MPN: 10298460
                                                                                  GASKET
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 93353
                                                                                  # 047
                                                                                  MPN: 163714
                                                                                  PLUG
                                                                                  from £17.11
                                                                                  from £17.11
                                                                                  # 048
                                                                                  MPN: 13516824
                                                                                  STUD
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 13516821
                                                                                  # 049
                                                                                  MPN: 13517024
                                                                                  STUD
                                                                                  from £0.47
                                                                                  from £0.47
