ferrari 575m maranello driving shaft connecting rods and pistons parts diagram

003 - driving shaft connecting rods and pistons

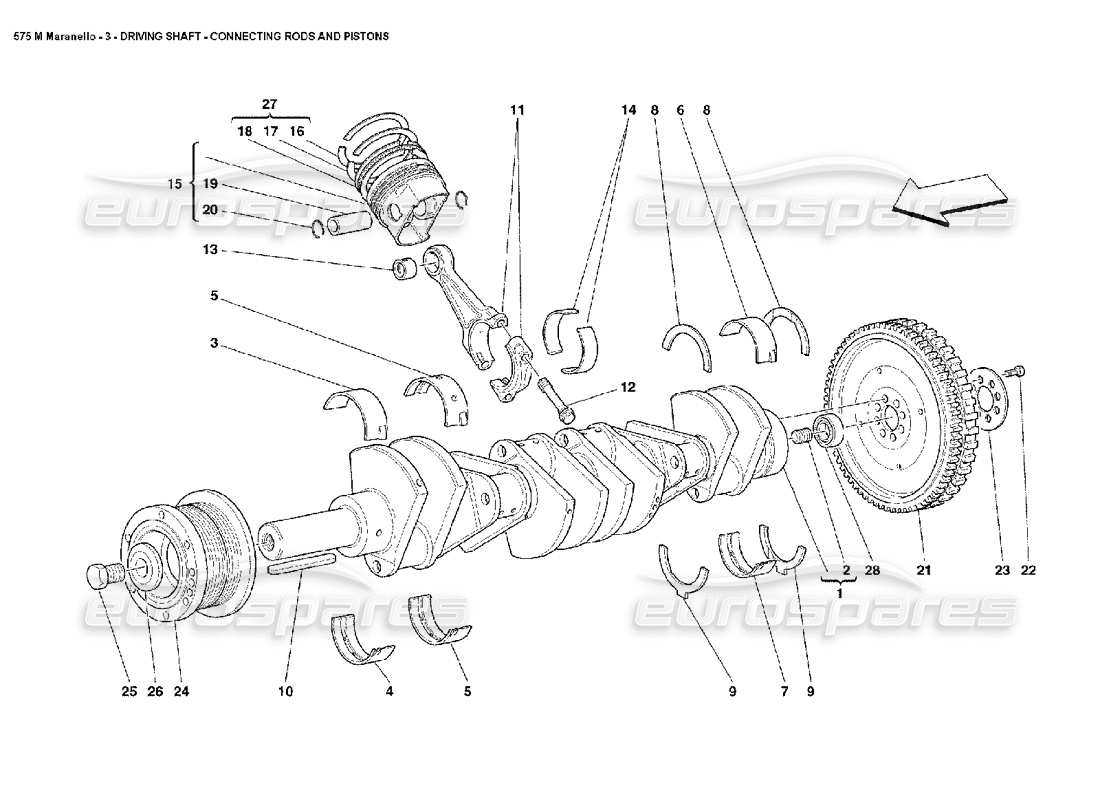

Ferrari 575M Maranello Driving Shaft Connecting Rods and Pistons Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Price
                                  # 001
                                  MPN: 182735
                                  crankshaft
                                  from £1,859.85
                                  from £1,859.85
                                  # 002
                                  MPN: 176396
                                  THREADED PLUG
                                  from £3.36
                                  from £3.36
                                  # 003
                                  -

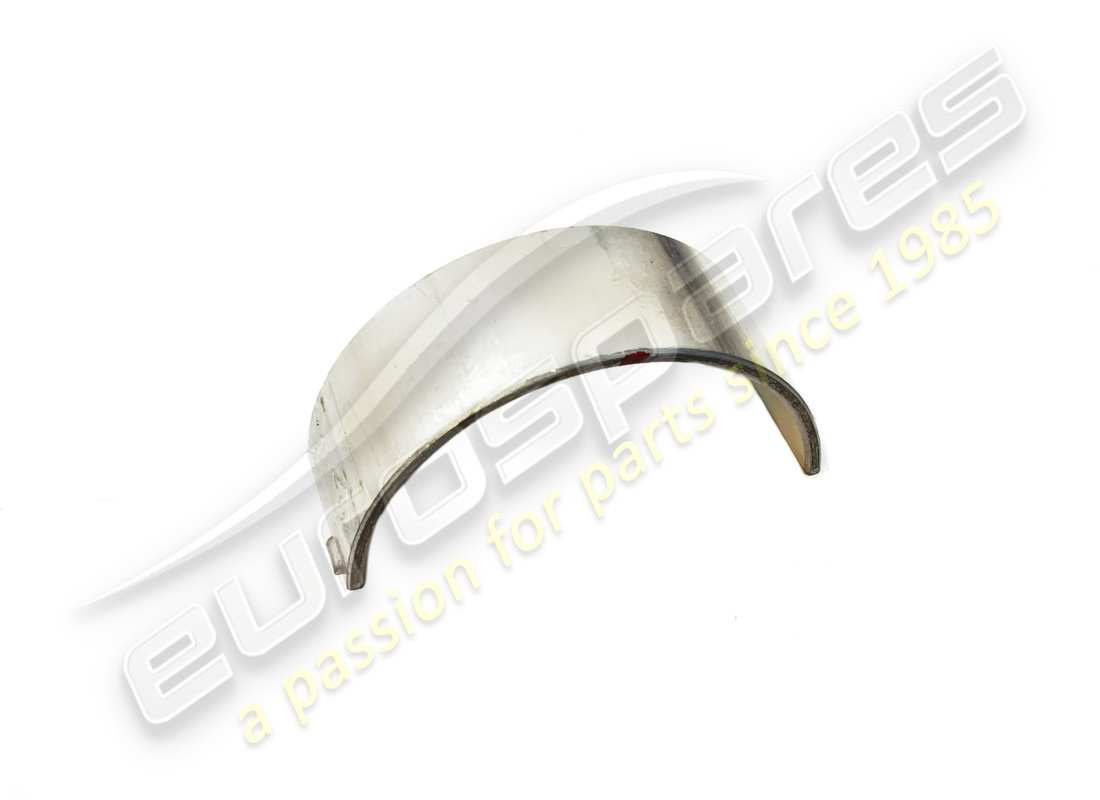

                                  UPPER FRONT HALF BEARING
                                  # 003
                                  MPN: 173485
                                  HALF BEARINGS COMPLETE SERIES
                                  - 1 st UNDERSIZE mm. 0,254
                                  from £1,167.16
                                  from £1,167.16
                                  # 003
                                  MPN: 173486
                                  HALF BEARINGS COMPLETE SERIES
                                  - 2 nd UNDERSIZE mm. 0,508
                                  from £1,167.16
                                  from £1,167.16
                                  # 003
                                  MPN: 194251
                                  HALF BEARINGS COMPLETE SERIES
                                  - nominal - Red
                                  from £591.66
                                  from £591.66
                                  # 004
                                  -
                                  LOWER FRONT HALF BEARING
                                  # 005
                                  -
                                  INTERMEDIATE FRONT HALF BEARING
                                  # 006
                                  -
                                  UPPER REAR HALF BEARING
                                  # 007
                                  -
                                  UPPER REAR HALF BEARING
                                  # 008
                                  MPN: 164111
                                  UPPER SHIM
                                  from £71.58
                                  from £71.58
                                  # 008
                                  MPN: 164112
                                  UPPER SHIM
                                  - 1st OVERSIZE mm. 0,127 - Not as spare part - With the half bearings complete series
                                  # 008
                                  MPN: 164113
                                  UPPER SHIM
                                  - 2nd OVERSIZE mm. 0,254 - Not as spare part - With the half
                                  # 009
                                  MPN: 164108
                                  LOWER SHIM
                                  - Not as spare part - With the half bearings complete series
                                  from £71.58
                                  from £71.58
                                  # 009
                                  MPN: 164109
                                  LOWER SHIM
                                  - 1st OVERSIZE mm. 0,127 - Not as spare part - With the half bearings complete series
                                  # 009
                                  MPN: 164110
                                  LOWER SHIM
                                  - 2nd OVERSIZE mm. 0,254 - Not as spare part - With the half - bearings complete series
                                  # 010
                                  MPN: 144876
                                  Key
                                  from £1.81
                                  from £1.81
                                  # 011
                                  -
                                  COMPLETE ROD WITH CAP
                                  # 011
                                  MPN: 184426
                                  COMPLETE CONNECTING ROD AND CAP
                                  - With the assembly complete - complete connecting rod with cap
                                  from £157.30
                                  from £157.30
                                  # 012
                                  MPN: 177159
                                  CONNECTING ROD TIGHTENING SCREW
                                  from £22.16
                                  from £22.16
                                  # 013
                                  MPN: 184909
                                  BUSHING
                                  from £23.11
                                  from £23.11
                                  # 014
                                  MPN: 173550
                                  CONNECTING ROD HALF BEARING
                                  - Red
                                  from £9.82
                                  from £9.82
                                  # 015
                                  MPN: 189515
                                  PISTON WITH RINGS
                                  from £230.03
                                  from £230.03
                                  # 016
                                  MPN: 180445
                                  SEAL RING
                                  - 1st groove - With complete series 194252
                                  # 017
                                  MPN: 180446
                                  SEAL RING
                                  - 2nd groove - With complete series 194252
                                  # 018
                                  MPN: 180447
                                  OIL SCRAPING RING
                                  - 3rd groove - With complete series 194252
                                  # 019
                                  MPN: 154717
                                  PIN
                                  from £11.41
                                  from £11.41
                                  # 020
                                  MPN: 189521
                                  STOP RING
                                  Supersession
                                  Supersession
                                  # 021
                                  MPN: 193051
                                  engine flywheel
                                  from £446.75
                                  from £446.75
                                  This part replaces part number 173760 - and 2 more. Click to view details
                                  # 022
                                  MPN: 201755
                                  SCREW
                                  from £1.16
                                  from £1.16
                                  This part replaces part number 103875
                                  # 022
                                  MPN: 201755
                                  SCREW
                                  from £1.16
                                  from £1.16
                                  This part replaces part number 103875
                                  # 023
                                  MPN: 103876
                                  WASHER
                                  from £2.74
                                  from £2.74
                                  This part replaces part number 12833 - and 1 more. Click to view details
                                  # 024
                                  MPN: 168565
                                  torsion damper
                                  from £1,390.09
                                  from £1,390.09
                                  This part replaces part number 155410
                                  # 025
                                  MPN: 140925
                                  SCREW
                                  from £33.93
                                  from £33.93
                                  # 026
                                  MPN: 140922
                                  WASHER
                                  from £6.89
                                  from £6.89
                                  # 027
                                  MPN: 194252
                                  PISTONS RINGS SET
                                  from £180.35
                                  from £180.35
                                  # 028
                                  MPN: 103877
                                  PILOT BEARING
                                  from £18.43
                                  from £18.43
                                  This part replaces part number 24940440
