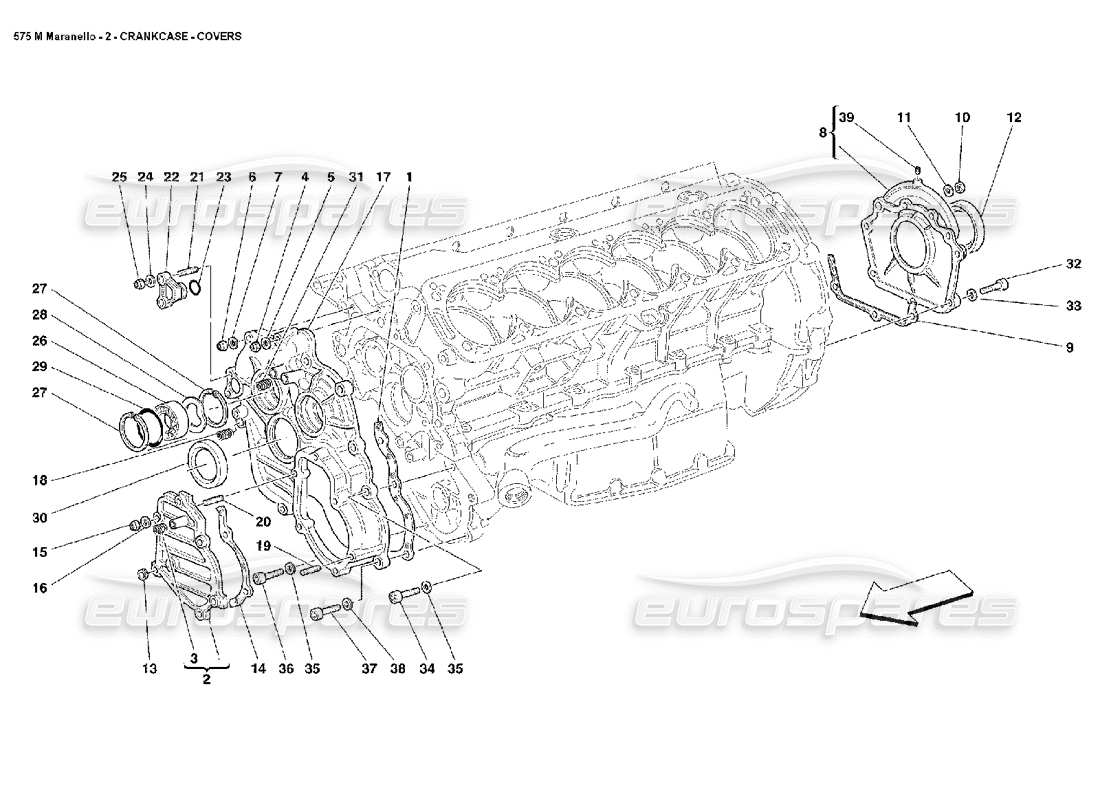

Ferrari 575M Maranello Crankcase Covers Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                              #
                                                                              Part number
                                                                              Description
                                                                              Price
                                                                              # 001
                                                                              MPN: 154527
                                                                              GASKET
                                                                              from £28.18
                                                                              from £28.18
                                                                              # 002
                                                                              MPN: 157120

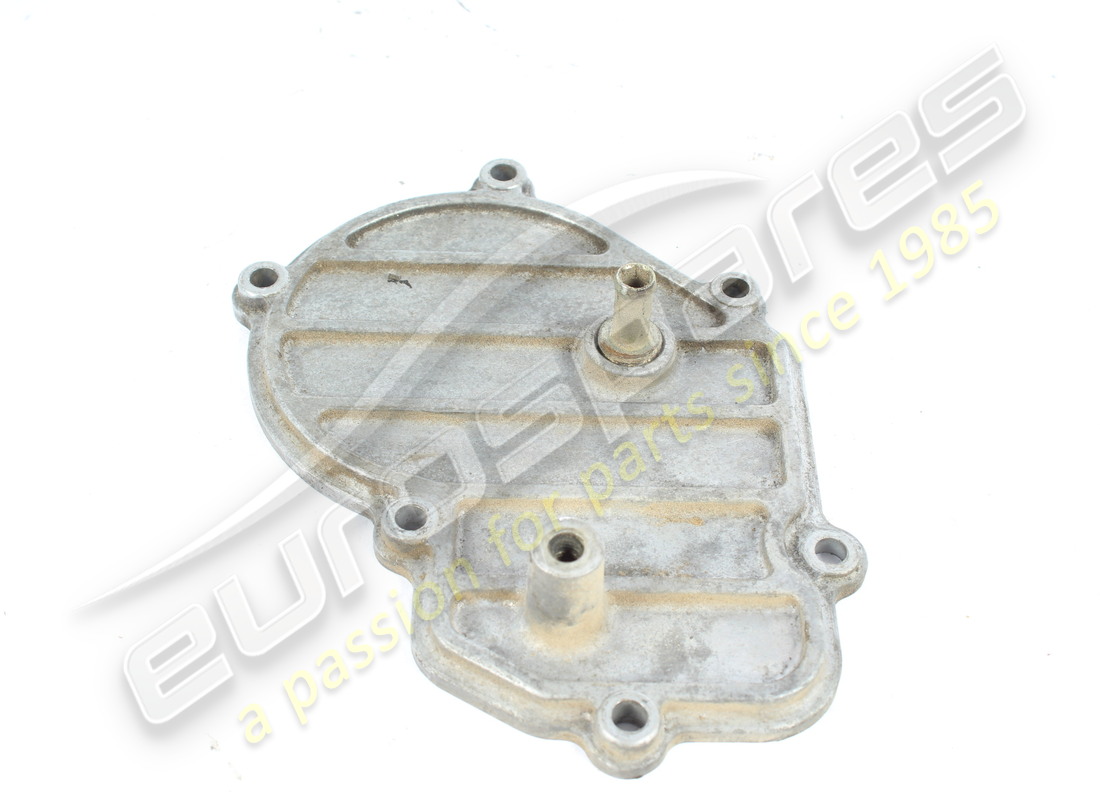

                                                                              FRONT COVER
                                                                              from £56.42
                                                                              from £56.42
                                                                              This part replaces part number 153212 - and 2 more. Click to view details
                                                                              # 003
                                                                              MPN: 13525570
                                                                              THREADED INSERT
                                                                              from £3.26
                                                                              from £3.26
                                                                              This part replaces part number 109668
                                                                              # 004
                                                                              MPN: 101139
                                                                              NUT
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 16104425
                                                                              # 005
                                                                              MPN: 12601374
                                                                              WASHER
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 10615474 - and 6 more. Click to view details
                                                                              # 006
                                                                              MPN: 102741
                                                                              NUT
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 12575411 - and 1 more. Click to view details
                                                                              # 007
                                                                              MPN: 12601274
                                                                              WASHER
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 12601221 - and 5 more. Click to view details
                                                                              # 008
                                                                              MPN: 141343
                                                                              REAR COVER
                                                                              from £147.75
                                                                              from £147.75
                                                                              # 009
                                                                              MPN: 141291
                                                                              GASKET
                                                                              from £20.73
                                                                              from £20.73
                                                                              # 010
                                                                              MPN: 15896214
                                                                              NUT
                                                                              from £0.53
                                                                              from £0.53
                                                                              This part replaces part number 15896211
                                                                              # 011
                                                                              MPN: 12620474
                                                                              WASHER
                                                                              -Not as SPARE PART - Replaced by 200323
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 12620479 - and 1 more. Click to view details
                                                                              # 012
                                                                              MPN: 200323
                                                                              REAR MAIN OIL SEAL
                                                                              from £20.59
                                                                              from £20.59
                                                                              This part replaces part number 163989 - and 1 more. Click to view details
                                                                              # 012
                                                                              MPN: 200323
                                                                              REAR MAIN OIL SEAL
                                                                              from £20.59
                                                                              from £20.59
                                                                              This part replaces part number 163989 - and 1 more. Click to view details
                                                                              # 013
                                                                              MPN: 10269550
                                                                              THREADED PLUG
                                                                              from £1.59
                                                                              from £1.59
                                                                              # 014
                                                                              MPN: 157121
                                                                              GASKET
                                                                              from £5.40
                                                                              from £5.40
                                                                              # 015
                                                                              MPN: 102741
                                                                              NUT
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 12575411 - and 1 more. Click to view details
                                                                              # 016
                                                                              MPN: 12601274
                                                                              WASHER
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 12601221 - and 5 more. Click to view details
                                                                              # 017
                                                                              MPN: 157119
                                                                              FRONT COVER
                                                                              from £900.93
                                                                              from £900.93
                                                                              This part replaces part number 154528 which we have in stock
                                                                              # 018
                                                                              MPN: 13525470
                                                                              THREADED INSERT
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 107333
                                                                              # 019
                                                                              MPN: 13541024
                                                                              STUD
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 13541021
                                                                              # 020
                                                                              MPN: 13540824
                                                                              STUD
                                                                              from £14.21
                                                                              from £14.21
                                                                              This part replaces part number 13540821
                                                                              # 021
                                                                              MPN: 13541024
                                                                              STUD
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 13541021
                                                                              # 022
                                                                              MPN: 151159
                                                                              PLUG
                                                                              from £10.50
                                                                              from £10.50
                                                                              PLUG Genuine Ferrari Part - Used In stock
                                                                              Removed from 550 engine 50818
                                                                              # 023
                                                                              MPN: 109724
                                                                              GASKET
                                                                              from £0.65
                                                                              from £0.65
                                                                              # 024
                                                                              MPN: 12601274
                                                                              WASHER
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 12601221 - and 5 more. Click to view details
                                                                              # 025
                                                                              MPN: 102741
                                                                              NUT
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 12575411 - and 1 more. Click to view details
                                                                              # 026
                                                                              MPN: 170787

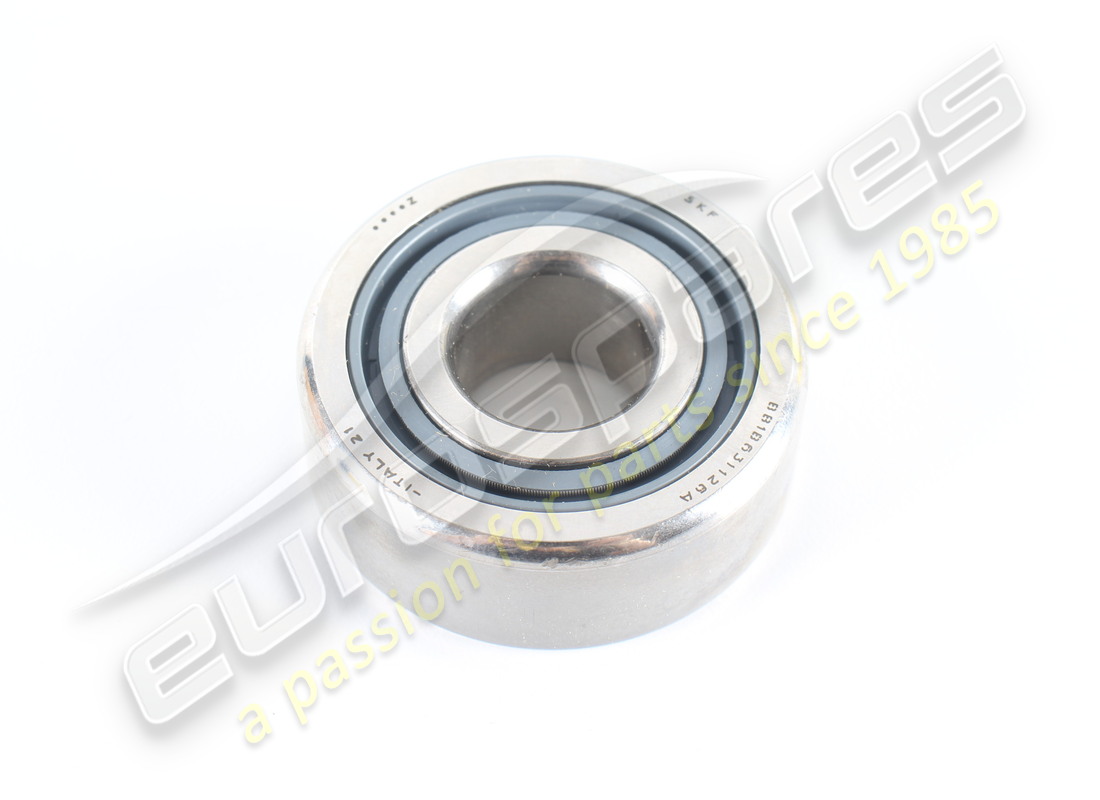

                                                                              BEARING
                                                                              from £34.92
                                                                              from £34.92
                                                                              This part replaces part number 144690 - and 2 more. Click to view details
                                                                              # 027
                                                                              MPN: 11060576
                                                                              FLEXIBLE RING
                                                                              from £1.11
                                                                              from £1.11
                                                                              This part replaces part number 11060575
                                                                              # 028
                                                                              MPN: 133377
                                                                              WASHER
                                                                              from £8.35
                                                                              from £8.35
                                                                              # 029
                                                                              MPN: 136140
                                                                              GASKET
                                                                              from £0.70
                                                                              from £0.70
                                                                              # 030
                                                                              MPN: 134714
                                                                              OIL SEAL
                                                                              from £10.35
                                                                              from £10.35
                                                                              This part replaces part number 110314
                                                                              # 031
                                                                              MPN: 13525570
                                                                              THREADED INSERT
                                                                              from £3.26
                                                                              from £3.26
                                                                              This part replaces part number 109668
                                                                              # 032
                                                                              MPN: 14305424
                                                                              SCREW
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 14305421 - and 2 more. Click to view details
                                                                              # 033
                                                                              MPN: 11197774
                                                                              WASHER
                                                                              from £0.54
                                                                              from £0.54
                                                                              This part replaces part number 11197770 - and 3 more. Click to view details
                                                                              # 034
                                                                              MPN: 14305424
                                                                              SCREW
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 14305421 - and 2 more. Click to view details
                                                                              # 035
                                                                              MPN: 11197774
                                                                              WASHER
                                                                              from £0.53
                                                                              from £0.53
                                                                              This part replaces part number 11197770 - and 3 more. Click to view details
                                                                              # 037
                                                                              MPN: 14306524
                                                                              SCREW
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 14306521
                                                                              # 038
                                                                              MPN: 11193874
                                                                              WASHER
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 11193879 which we have in stock
                                                                              # 039
                                                                              MPN: 10275550
                                                                              THREADED PLUG
                                                                              from £0.80
                                                                              from £0.80
                                                                              Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
