Ferrari 550 Maranello Seat and Safety Belts -Sport Parts Diagram

122 - Seat and Safety Belts -Sport

Ferrari 550 Maranello Seat and Safety Belts -Sport Parts Diagram

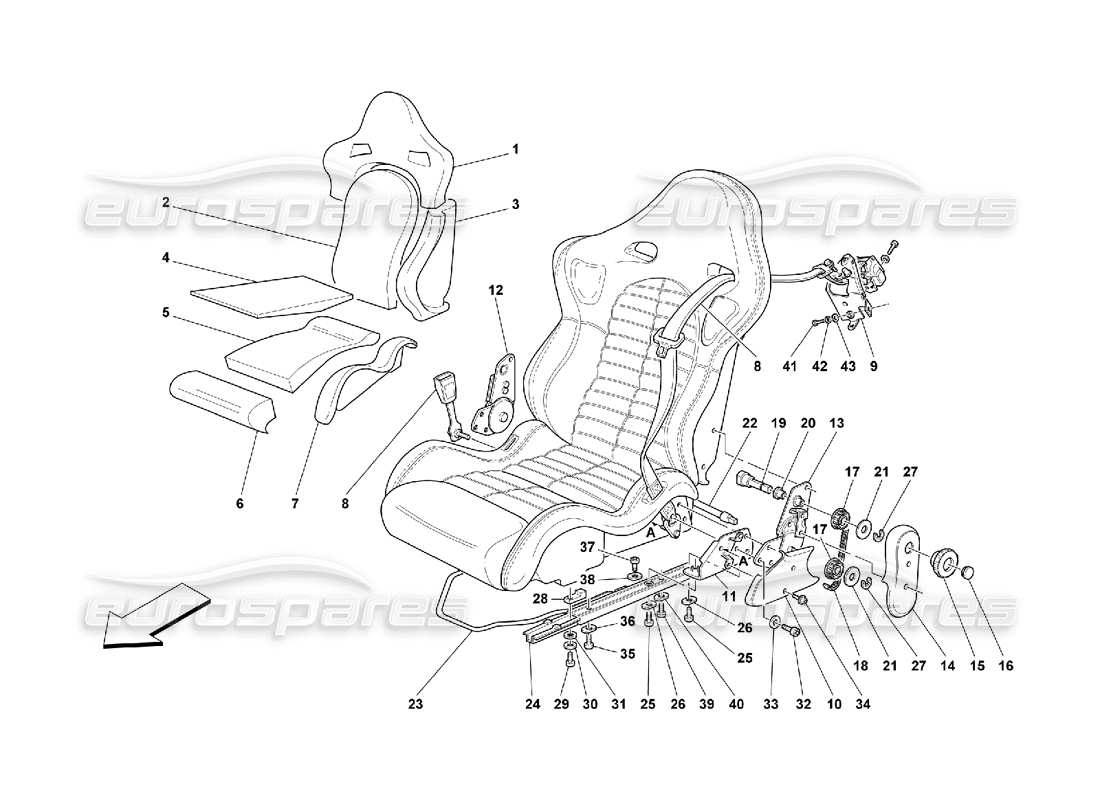

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                    #
                                                                                    Part number
                                                                                    Description
                                                                                    Price
                                                                                    # 00
                                                                                    MPN: 65497922
                                                                                    LH BROWN CARBON LARGE SEAT
                                                                                    This part replaces part number 654979..
                                                                                    # 000
                                                                                    MPN: 643348..
                                                                                    CUSHION COMPLETE RH LATERAL UPHOLSTERY
                                                                                    - Leather - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 000
                                                                                    MPN: 643991..
                                                                                    CUSHION COMPLETE LH LATERAL UPHOLSTERY
                                                                                    - Leather - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 000
                                                                                    MPN: 645320..
                                                                                    CALF-REST COMPLETE UPHOLSTERY
                                                                                    - Leather - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 000
                                                                                    MPN: 654979..
                                                                                    LH FRONT SEAT LARGE
                                                                                    - Red Tissue - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 000
                                                                                    MPN: 654980..
                                                                                    LH FRONT SEAT LARGE
                                                                                    - Black Tissue - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 000
                                                                                    MPN: 654981..
                                                                                    LH FRONT SEAT LARGE
                                                                                    - Beige Tissue - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 000
                                                                                    MPN: 654982..
                                                                                    LH FRONT SEAT LARGE
                                                                                    - Yellow Tissue - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 000
                                                                                    MPN: 654983..
                                                                                    LH FRONT SEAT LARGE
                                                                                    - Leather - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 000
                                                                                    MPN: 654984..
                                                                                    LH FRONT SEAT NARROW
                                                                                    - Red Tissue - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 000
                                                                                    MPN: 654985..
                                                                                    LH FRONT SEAT NARROW
                                                                                    - Black Tissue - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 000
                                                                                    MPN: 654986..
                                                                                    LH FRONT SEAT NARROW
                                                                                    - Beige Tissue - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 000
                                                                                    MPN: 654987..
                                                                                    LH FRONT SEAT NARROW
                                                                                    - Yellow Tissue - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 000
                                                                                    MPN: 654988..
                                                                                    LH FRONT SEAT NARROW
                                                                                    - Leather - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 000
                                                                                    MPN: 654990..
                                                                                    RH FRONT SEAT LARGE
                                                                                    - Red Tissue - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 000
                                                                                    MPN: 654991..
                                                                                    RH FRONT SEAT LARGE
                                                                                    - Black Tissue - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 000
                                                                                    MPN: 654992..
                                                                                    RH FRONT SEAT LARGE
                                                                                    - Beige Tissue - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 000
                                                                                    MPN: 654993..
                                                                                    RH FRONT SEAT LARGE
                                                                                    - Yellow Tissue - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 000
                                                                                    MPN: 654994..
                                                                                    RH FRONT SEAT LARGE
                                                                                    - Leather - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 000
                                                                                    MPN: 654995..
                                                                                    RH FRONT SEAT NARROW
                                                                                    - Red Tissue - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 000
                                                                                    MPN: 654996..
                                                                                    RH FRONT SEAT NARROW
                                                                                    - Black Tissue - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 000
                                                                                    MPN: 654997..
                                                                                    RH FRONT SEAT NARROW
                                                                                    - Beige Tissue - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 000
                                                                                    MPN: 654998..
                                                                                    RH FRONT SEAT NARROW
                                                                                    - Yellow Tissue - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 000
                                                                                    MPN: 654999..
                                                                                    RH FRONT SEAT NARROW
                                                                                    - Leather - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 001
                                                                                    MPN: 65087100
                                                                                    SEAT BACK UPPER AND LATERAL FOAM
                                                                                    from £103.38
                                                                                    from £103.38
                                                                                    # 002
                                                                                    MPN: 65194800
                                                                                    SEAT BACK CENTRAL FOAM
                                                                                    from £53.87
                                                                                    from £53.87
                                                                                    # 003
                                                                                    MPN: 64605400
                                                                                    SEAT BACK RH LATERAL FOAM LARGE
                                                                                    # 003
                                                                                    MPN: 64605500
                                                                                    SEAT BACK LH LATERAL FOAM LARGE
                                                                                    # 003
                                                                                    MPN: 64605600
                                                                                    SEAT BACK RH LATERAL FOAM NARROW
                                                                                    # 003
                                                                                    MPN: 64605700
                                                                                    SEAT BACK LH LATERAL FOAM NARROW
                                                                                    # 004
                                                                                    MPN: 64347800
                                                                                    CUSHION UPPER CENTRAL FOAM LARGE
                                                                                    from £25.92
                                                                                    from £25.92
                                                                                    # 004
                                                                                    MPN: 64679100
                                                                                    CUSHION UPPER CENTRAL FOAM NARROW
                                                                                    from £19.51
                                                                                    from £19.51
                                                                                    # 005
                                                                                    MPN: 64605800
                                                                                    CUSHION LOWER CENTRAL FOAM
                                                                                    from £28.11
                                                                                    from £28.11
                                                                                    # 006
                                                                                    MPN: 65383300
                                                                                    CALF-REST FOAM
                                                                                    from £21.42
                                                                                    from £21.42
                                                                                    This part replaces part number 64184705
                                                                                    # 007
                                                                                    MPN: 64334700
                                                                                    CUSHION RH LATERAL FOAM LARGE
                                                                                    # 007
                                                                                    MPN: 64399000
                                                                                    CUSHION LH LATERAL FOAM LARGE
                                                                                    from £47.24
                                                                                    from £47.24
                                                                                    # 007
                                                                                    MPN: 64605900
                                                                                    CUSHION LH LATERAL FOAM NARROW
                                                                                    # 007
                                                                                    MPN: 64606000
                                                                                    CUSHION LH LATERAL FOAM NARROW
                                                                                    from £47.24
                                                                                    from £47.24
                                                                                    # 008
                                                                                    MPN: 65194400
                                                                                    SAFETY BELTS ASSEMBLY
                                                                                    - Not for USA, CDN, AUS and J
                                                                                    from £420.00
                                                                                    from £420.00
                                                                                    # 008
                                                                                    MPN: 65208500
                                                                                    SAFETY BELTS ASSEMBLY
                                                                                    - Valid for USA and CDN
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 008
                                                                                    MPN: 65459500
                                                                                    SAFETY BELTS ASSEMBLY
                                                                                    - Valid for AUS and J
                                                                                    from £407.43
                                                                                    from £407.43
                                                                                    # 009
                                                                                    MPN: 65217600
                                                                                    RH BRACKET
                                                                                    from £17.52
                                                                                    from £17.52
                                                                                    This part replaces part number 64597700 - and 1 more. Click to view details
                                                                                    # 009
                                                                                    MPN: 65217800
                                                                                    LH BRACKET
                                                                                    from £17.52
                                                                                    from £17.52
                                                                                    This part replaces part number 64591500 - and 1 more. Click to view details
                                                                                    # 010
                                                                                    MPN: 64347200
                                                                                    LH SEAT OUTER TRANSMISSION COVER
                                                                                    from £176.85
                                                                                    from £176.85
                                                                                    # 010
                                                                                    MPN: 64348600
                                                                                    RH SEAT OUTER TRANSMISSION COVER
                                                                                    from £243.69
                                                                                    from £243.69
                                                                                    # 010
                                                                                    MPN: 65088200
                                                                                    LH SEAT INNER TRANSMISSION COVER
                                                                                    from £108.23
                                                                                    from £108.23
                                                                                    # 010
                                                                                    MPN: 65089400
                                                                                    RH SEAT INNER TRANSMISSION COVER
                                                                                    from £108.23
                                                                                    from £108.23
                                                                                    # 010
                                                                                    MPN: 65602100
                                                                                    LH SEAT OUTER TRANSMISSION COVER
                                                                                    (CARBON)
                                                                                    from £253.92
                                                                                    from £253.92
                                                                                    # 010
                                                                                    MPN: 65602200
                                                                                    RH SEAT OUTER TRANSMISSION COVER
                                                                                    (CARBON)
                                                                                    from £253.92
                                                                                    from £253.92
                                                                                    # 010
                                                                                    MPN: 65602500
                                                                                    RH SEAT INNER TRANSMISSION COVER
                                                                                    (CARBON)
                                                                                    from £253.92
                                                                                    from £253.92
                                                                                    # 010
                                                                                    MPN: 65602600
                                                                                    LH SEAT INNER TRANSMISSION COVER
                                                                                    (CARBON)
                                                                                    from £253.92
                                                                                    from £253.92
                                                                                    # 011
                                                                                    MPN: 65087400
                                                                                    LH SEAT INNER BRACKET
                                                                                    from £16.54
                                                                                    from £16.54
                                                                                    # 011
                                                                                    MPN: 65087900
                                                                                    LH SEAT OUTER BRACKET
                                                                                    from £16.54
                                                                                    from £16.54
                                                                                    # 011
                                                                                    MPN: 65088700
                                                                                    RH SEAT INNER BRACKET
                                                                                    from £95.84
                                                                                    from £95.84
                                                                                    # 011
                                                                                    MPN: 65089100
                                                                                    RH SEAT OUTER BRACKET
                                                                                    from £95.84
                                                                                    from £95.84
                                                                                    # 012
                                                                                    MPN: 64346900
                                                                                    LH SEAT BACK INNER ADJUSTER
                                                                                    from £38.76
                                                                                    from £38.76
                                                                                    # 012
                                                                                    MPN: 64348500
                                                                                    RH SEAT BACK INNER ADJUSTER
                                                                                    from £38.76
                                                                                    from £38.76
                                                                                    # 013
                                                                                    MPN: 64328700
                                                                                    LH SEAT BACK OUTER ADJUSTER
                                                                                    from £104.36
                                                                                    from £104.36
                                                                                    # 013
                                                                                    MPN: 64329300
                                                                                    RH SEAT BACK OUTER ADJUSTER
                                                                                    from £64.04
                                                                                    from £64.04
                                                                                    # 014
                                                                                    MPN: 64347400
                                                                                    LH SEAT OUTER ARTICULATED JOINT COVER
                                                                                    from £176.85
                                                                                    from £176.85
                                                                                    # 014
                                                                                    MPN: 64348900
                                                                                    RH SEAT OUTER ARTICULATED JOINT COVER
                                                                                    from £221.32
                                                                                    from £221.32
                                                                                    # 014
                                                                                    MPN: 65088100
                                                                                    LH SEAT INNER ARTICULATED JOINT COVER
                                                                                    from £104.96
                                                                                    from £104.96
                                                                                    # 014
                                                                                    MPN: 65089300
                                                                                    RH SEAT INNER ARTICULATED JOINT COVER
                                                                                    from £160.67
                                                                                    from £160.67

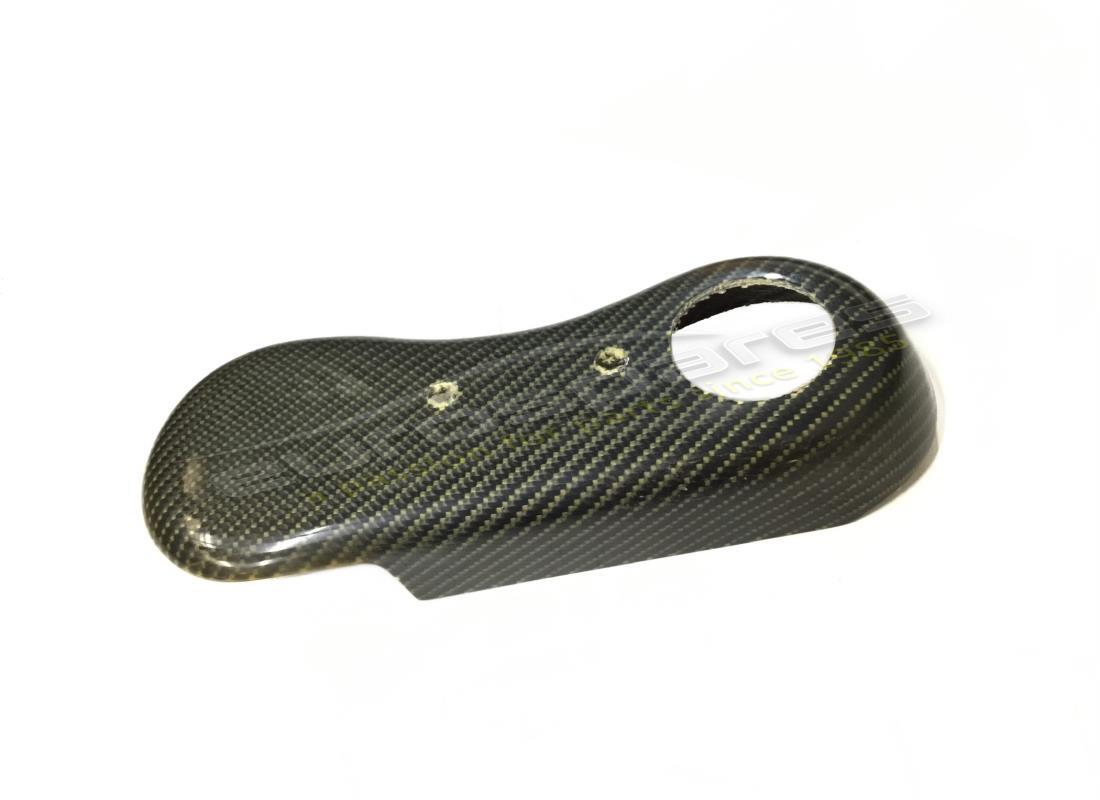

                                                                                    # 014
                                                                                    MPN: 65601000
                                                                                    RH SEAT OUTER ARTICULATED JOINT COVER
                                                                                    (CARBON)
                                                                                    from £253.92
                                                                                    from £253.92
                                                                                    # 014
                                                                                    MPN: 65602000
                                                                                    LH SEAT OUTER ARTICULATED JOINT COVER
                                                                                    (CARBON)
                                                                                    from £253.92
                                                                                    from £253.92
                                                                                    # 014
                                                                                    MPN: 65602300
                                                                                    LH SEAT INNER ARTICULATED JOINT COVER
                                                                                    (CARBON)
                                                                                    from £253.92
                                                                                    from £253.92
                                                                                    # 014
                                                                                    MPN: 65602400
                                                                                    RH SEAT INNER ARTICULATED JOINT COVER
                                                                                    (CARBON)
                                                                                    from £253.92
                                                                                    from £253.92

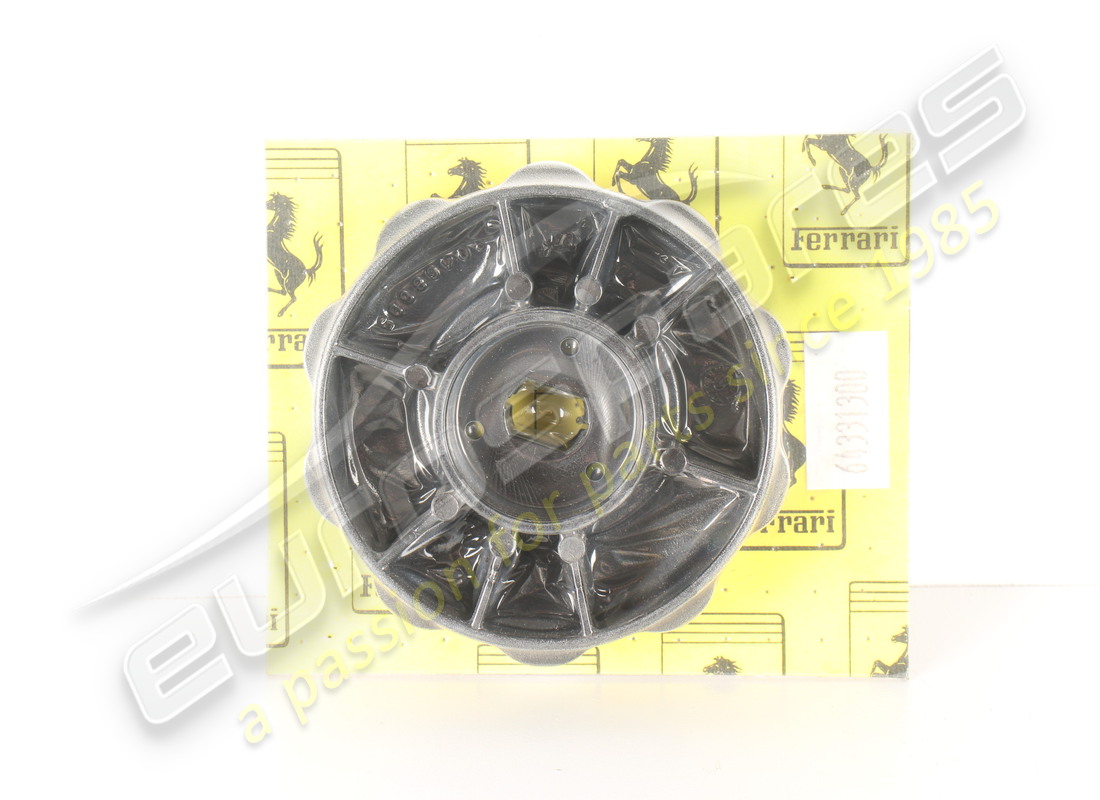

                                                                                    # 015
                                                                                    MPN: 64331300
                                                                                    SEAT BACK ADJUSTING KNOB
                                                                                    from £1.71
                                                                                    from £1.71
                                                                                    # 016
                                                                                    MPN: 64330800
                                                                                    PLUG FOR KNOB
                                                                                    from £1.06
                                                                                    from £1.06
                                                                                    # 017
                                                                                    MPN: 64330700
                                                                                    ARTICULATED JOINT CONTROL PULLEY
                                                                                    from £11.14
                                                                                    from £11.14
                                                                                    # 018
                                                                                    MPN: 64347100
                                                                                    PULLEYS CONNECTING BELT
                                                                                    from £26.49
                                                                                    from £26.49
                                                                                    # 019
                                                                                    MPN: 64328200
                                                                                    PIN
                                                                                    from £17.59
                                                                                    from £17.59
                                                                                    # 020
                                                                                    MPN: 64347000
                                                                                    SELF-LUBRICATING BUSHING
                                                                                    from £2.80
                                                                                    from £2.80
                                                                                    # 021
                                                                                    MPN: 64347700
                                                                                    WASHER
                                                                                    from £3.33
                                                                                    from £3.33
                                                                                    # 022
                                                                                    MPN: 64347600
                                                                                    ARTICULATED JOINT CONNECTION ROD
                                                                                    from £15.21
                                                                                    from £15.21
                                                                                    # 023
                                                                                    MPN: 65086100
                                                                                    GUIDE CONTROL FORK
                                                                                    from £61.14
                                                                                    from £61.14
                                                                                    # 024
                                                                                    MPN: 65085800
                                                                                    RH GUIDE
                                                                                    from £137.78
                                                                                    from £137.78
                                                                                    # 024
                                                                                    MPN: 65085900
                                                                                    LH GUIDE
                                                                                    from £165.11
                                                                                    from £165.11
                                                                                    # 025
                                                                                    MPN: 14306374
                                                                                    SCREW
                                                                                    from £0.51
                                                                                    from £0.51
                                                                                    This part replaces part number 14306334
                                                                                    # 026
                                                                                    MPN: 63395300
                                                                                    ELASTIC PLATE
                                                                                    from £0.61
                                                                                    from £0.61
                                                                                    # 027
                                                                                    MPN: 16160976
                                                                                    FLEXIBLE RING
                                                                                    from £0.48
                                                                                    from £0.48
                                                                                    # 028
                                                                                    MPN: 65086000
                                                                                    STOP BRACKET
                                                                                    from £23.17
                                                                                    from £23.17
                                                                                    # 029
                                                                                    MPN: 10977524
                                                                                    SCREW
                                                                                    from £0.51
                                                                                    from £0.51
                                                                                    # 030
                                                                                    MPN: 160957
                                                                                    WASHER
                                                                                    from £0.51
                                                                                    from £0.51
                                                                                    This part replaces part number 10615476
                                                                                    # 031
                                                                                    MPN: 12644424
                                                                                    WASHER
                                                                                    from £0.53
                                                                                    from £0.53
                                                                                    This part replaces part number 12644401 - and 1 more. Click to view details
                                                                                    # 032
                                                                                    MPN: 63929800
                                                                                    SCREW
                                                                                    from £5.37
                                                                                    from £5.37
                                                                                    # 033
                                                                                    MPN: 14496578
                                                                                    WASHER
                                                                                    from £0.48
                                                                                    from £0.48
                                                                                    This part replaces part number 14496506 - and 1 more. Click to view details
                                                                                    # 034
                                                                                    MPN: 64460500
                                                                                    SCREW
                                                                                    from £0.77
                                                                                    from £0.77
                                                                                    # 035
                                                                                    MPN: 14306374
                                                                                    SCREW
                                                                                    from £0.51
                                                                                    from £0.51
                                                                                    This part replaces part number 14306334
                                                                                    # 036
                                                                                    MPN: 63395300
                                                                                    ELASTIC PLATE
                                                                                    from £0.61
                                                                                    from £0.61
                                                                                    # 037
                                                                                    MPN: 20293306
                                                                                    SCREW
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 038
                                                                                    MPN: 63395300
                                                                                    ELASTIC PLATE
                                                                                    from £0.61
                                                                                    from £0.61
                                                                                    # 039
                                                                                    MPN: 20293306
                                                                                    SCREW
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 040
                                                                                    MPN: 63395300
                                                                                    ELASTIC PLATE
                                                                                    from £0.61
                                                                                    from £0.61
                                                                                    # 041
                                                                                    MPN: 16043434
                                                                                    SCREW
                                                                                    from £0.50
                                                                                    from £0.50
                                                                                    This part replaces part number 13825824 - and 1 more. Click to view details
                                                                                    # 042
                                                                                    MPN: 11194074
                                                                                    WASHER
                                                                                    from £0.53
                                                                                    from £0.53
                                                                                    This part replaces part number 11194077 - and 1 more. Click to view details
                                                                                    # 043
                                                                                    MPN: 12646724
                                                                                    WASHER
                                                                                    from £0.53
                                                                                    from £0.53
                                                                                    This part replaces part number 12601571 - and 3 more. Click to view details
