108 - Engine Compartment Fire-Proof Insulations -Valid for GD

Ferrari 550 Maranello Engine Compartment Fire-Proof Insulations -Valid for GD Parts Diagram

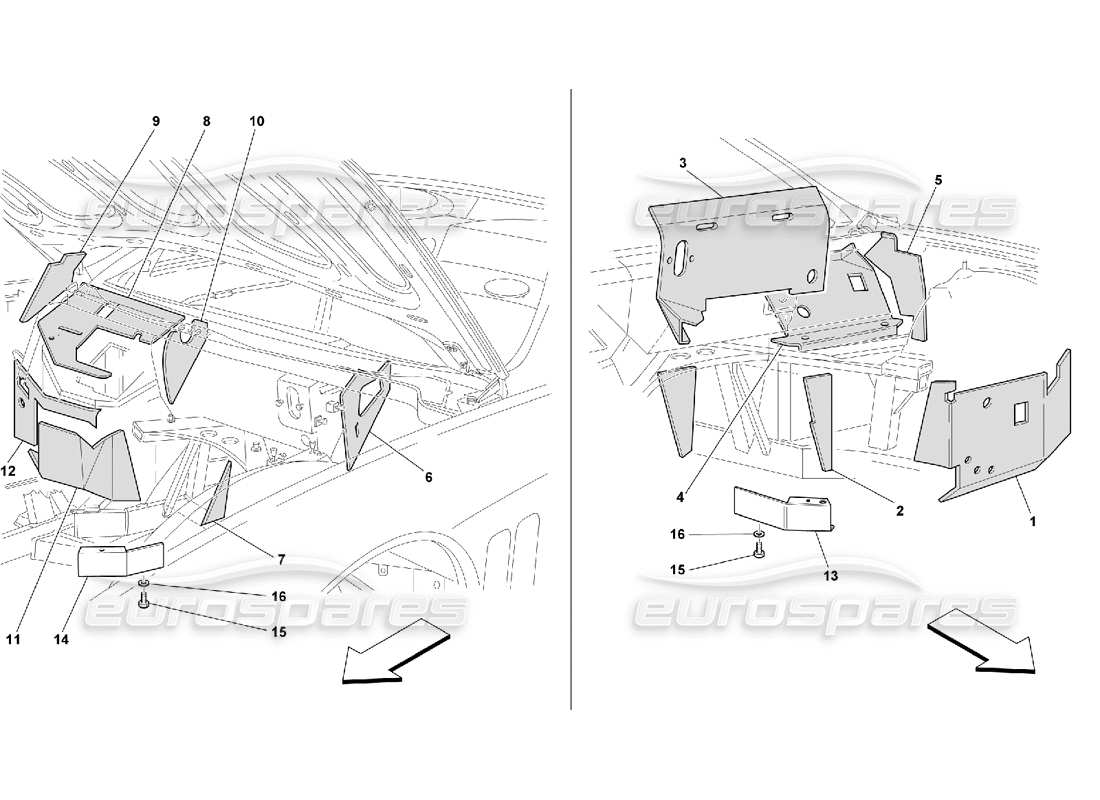

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Price
                                  # 000
                                  MPN: 65204600
                                  SERIES OF OUTER FIRE-PROOF INSULATION
                                  from £1,100.28
                                  from £1,100.28
                                  # 001
                                  MPN: 65205300
                                  RH FIRE-PROOF LOWER FRONT INSULATION
                                  from £179.04
                                  from £179.04
                                  # 002
                                  MPN: 65205200
                                  TUNNEL RH LATERAL INSULATION
                                  from £179.04
                                  from £179.04
                                  # 003
                                  MPN: 65204700
                                  OUTER WALL FRONT INSULATION FOR A.C. UNIT
                                  from £179.04
                                  from £179.04
                                  # 004
                                  MPN: 65205000
                                  UPPER RH FRONT ANTI-HEAT INSULATION
                                  from £179.04
                                  from £179.04
                                  # 005
                                  MPN: 65205800
                                  RH OUTER FRONT FIRE-PROOF INSULATION
                                  from £32.33
                                  from £32.33
                                  # 006
                                  MPN: 65205400
                                  A.C. UNIT LH OUTER FIRE-PROOF INSULATION
                                  from £20.93
                                  from £20.93
                                  # 007
                                  MPN: 65205600
                                  TUNNEL LH LATERAL INSULATION
                                  from £126.59
                                  from £126.59
                                  # 008
                                  MPN: 65204800
                                  CENTRAL LH FRONT FIRE-PROOF INSULATION
                                  from £283.37
                                  from £283.37
                                  # 009
                                  MPN: 65205700
                                  LH OUTER FRONT FIRE-PROOF INSULATION
                                  from £32.33
                                  from £32.33
                                  # 010
                                  MPN: 65205100
                                  RH OUTER FIRE-PROOF INSULATION FOR A.C. UNIT
                                  from £15.80
                                  from £15.80
                                  # 011
                                  MPN: 65205500
                                  LOWER RH FIRE-PROOF FRONT INSULATION
                                  from £231.20
                                  from £231.20
                                  # 012
                                  MPN: 65204900
                                  UPPER LH FRONT FIRE-PROOF INSULATION
                                  from £283.37
                                  from £283.37
                                  # 013
                                  MPN: 65141000
                                  LH HEAT PROTECTION SHIELD
                                  from £26.55
                                  from £26.55
                                  # 014
                                  MPN: 65140900
                                  RH HEAT PROTECTION SHIELD
                                  from £26.55
                                  from £26.55
                                  # 015
                                  MPN: 10902124
                                  SCREW
                                  from £0.50
                                  from £0.50
                                  This part replaces part number 10902111 - and 1 more. Click to view details
                                  # 016
                                  MPN: 14488670
                                  WASHER
                                  (minimum order quantity = 20)
                                  from £0.71
                                  from £0.71
                                  Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
