107 - Engine Compartment Fire-Proof Insulations -Not for GD

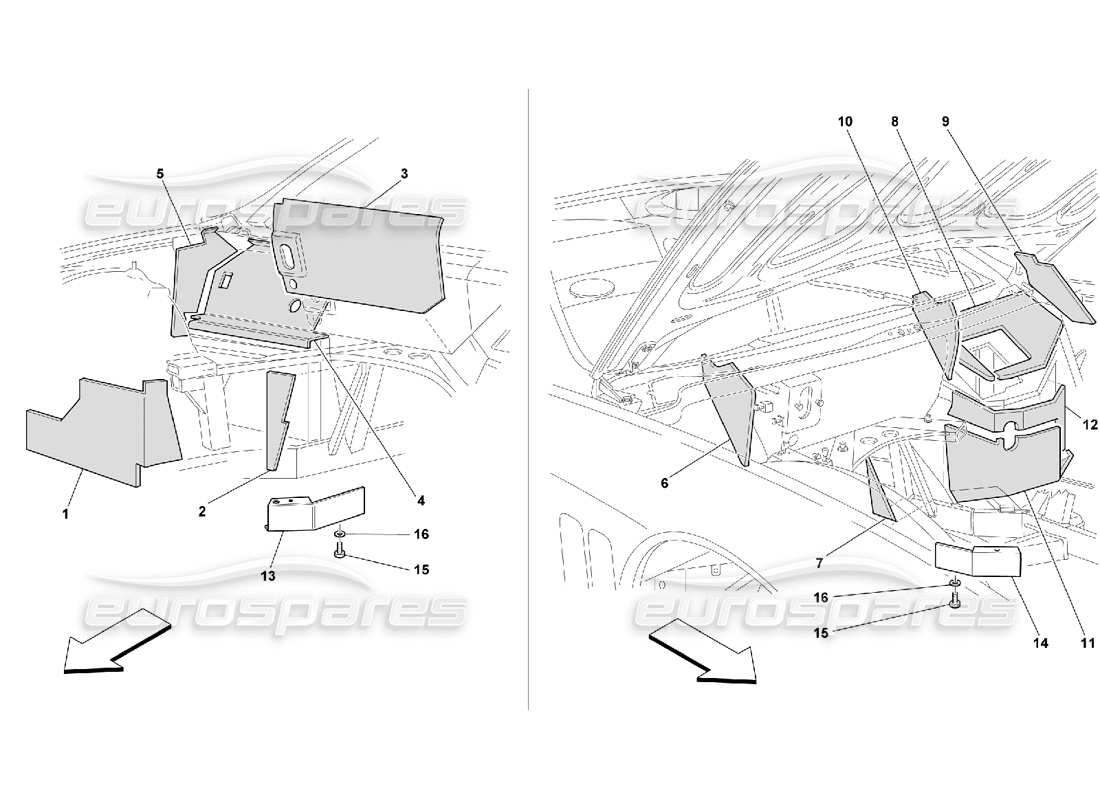

Ferrari 550 Maranello Engine Compartment Fire-Proof Insulations -Not for GD Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 65143300
SERIES OF OUTER FIRE-PROOF INSULATION
from £983.84
from £983.84
# 001
MPN: 65143200
RH FIRE-PROOF LOWER FRONT INSULATION
from £315.06
from £315.06
# 002
MPN: 64990400
TUNNEL RH LATERAL INSULATION
from £126.59
from £126.59
# 003
MPN: 64989700
OUTER WALL FRONT INSULATION FOR A.C. UNIT
# 004
MPN: 64990000
UPPER RH FRONT ANTI-HEAT INSULATION
from £241.77
from £241.77
# 005
MPN: 64991000
RH OUTER FRONT FIRE-PROOF INSULATION
from £161.94
from £161.94
# 006
MPN: 64990100
RH OUTER FIRE-PROOF INSULATION FOR A.C. UNIT
from £182.57
from £182.57
# 007
MPN: 64990800
TUNNEL LH LATERAL INSULATION
from £19.44
from £19.44
# 008
MPN: 64989800
CENTRAL LH FRONT FIRE-PROOF INSULATION
from £234.42
from £234.42
# 009
MPN: 64990900
LH OUTER FRONT FIRE-PROOF INSULATION
from £113.42
from £113.42
# 010
MPN: 64990600
A.C. UNIT LH OUTER FIRE-PROOF INSULATION
from £114.87
from £114.87
# 011
MPN: 64990700
LOWER LH FIRE-PROOF FRONT INSULATION
from £315.06
from £315.06
# 012
MPN: 64989900
UPPER LH FRONT FIRE-PROOF INSULATION
from £241.77
from £241.77
# 013
MPN: 65140900
RH HEAT PROTECTION SHIELD
from £25.70
from £25.70
# 014
MPN: 65141000
LH HEAT PROTECTION SHIELD
from £25.70
from £25.70
# 015
MPN: 10902124
SCREW
from £0.50
from £0.50
This part replaces part number 10902111 - and 1 more. Click to view details
# 016
MPN: 14488670
WASHER
(minimum order quantity = 20)
from £0.71
from £0.71
