058 - Tools Equipment and Fixings

Ferrari 550 Maranello Tools Equipment and Fixings Parts Diagram

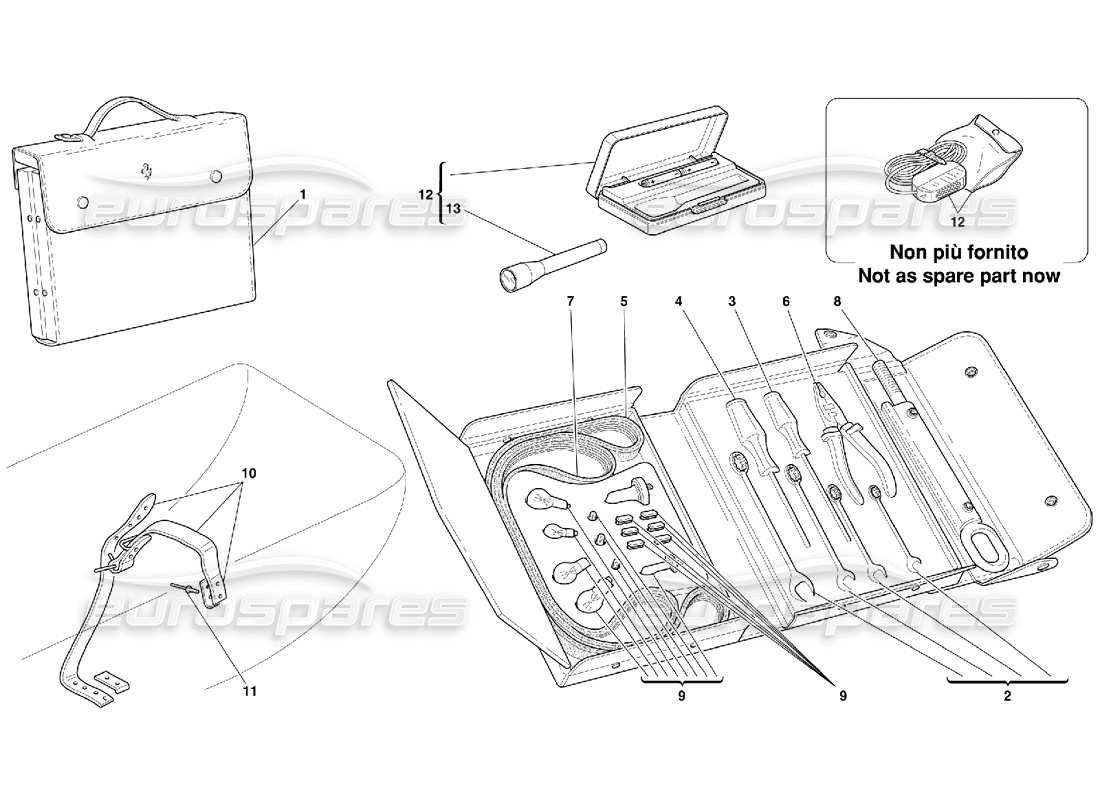

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Price
        # 000
        MPN: 169156

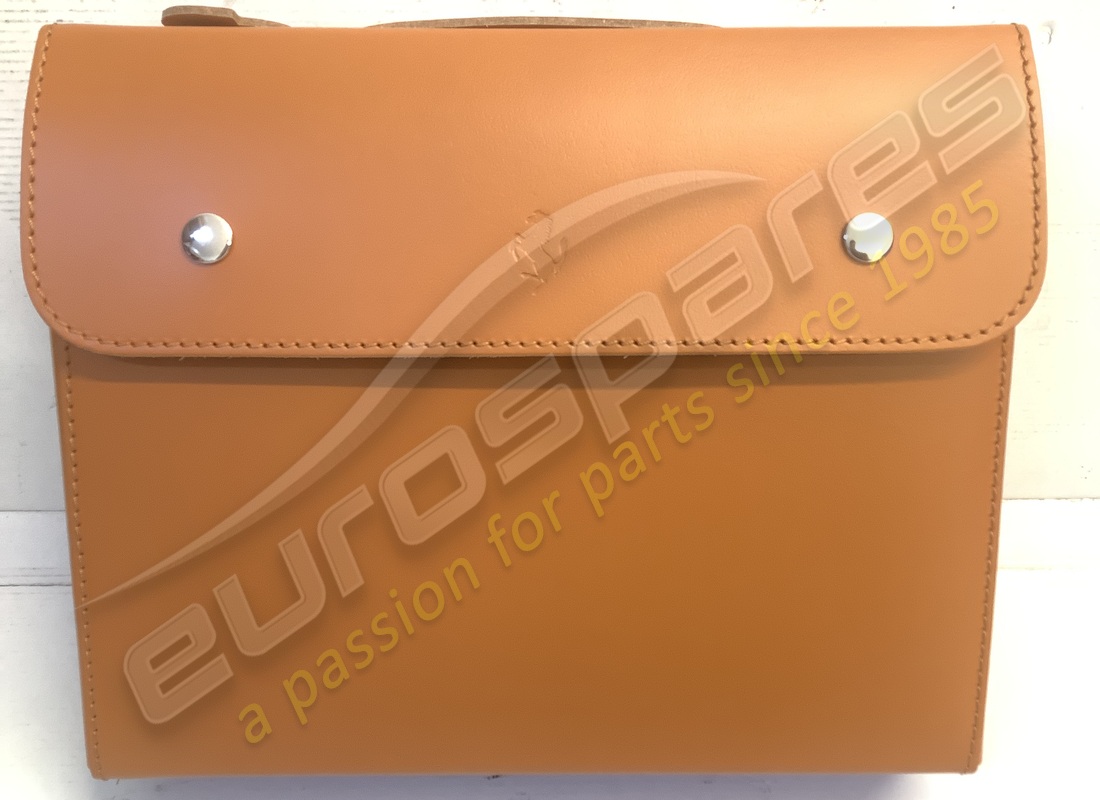

        COMPLETE TOOL KIT BAG
        - Not for USA and CDN - Valid till car Ass. Nr. 31851
        from £807.68
        from £807.68
        # 000
        MPN: 179720

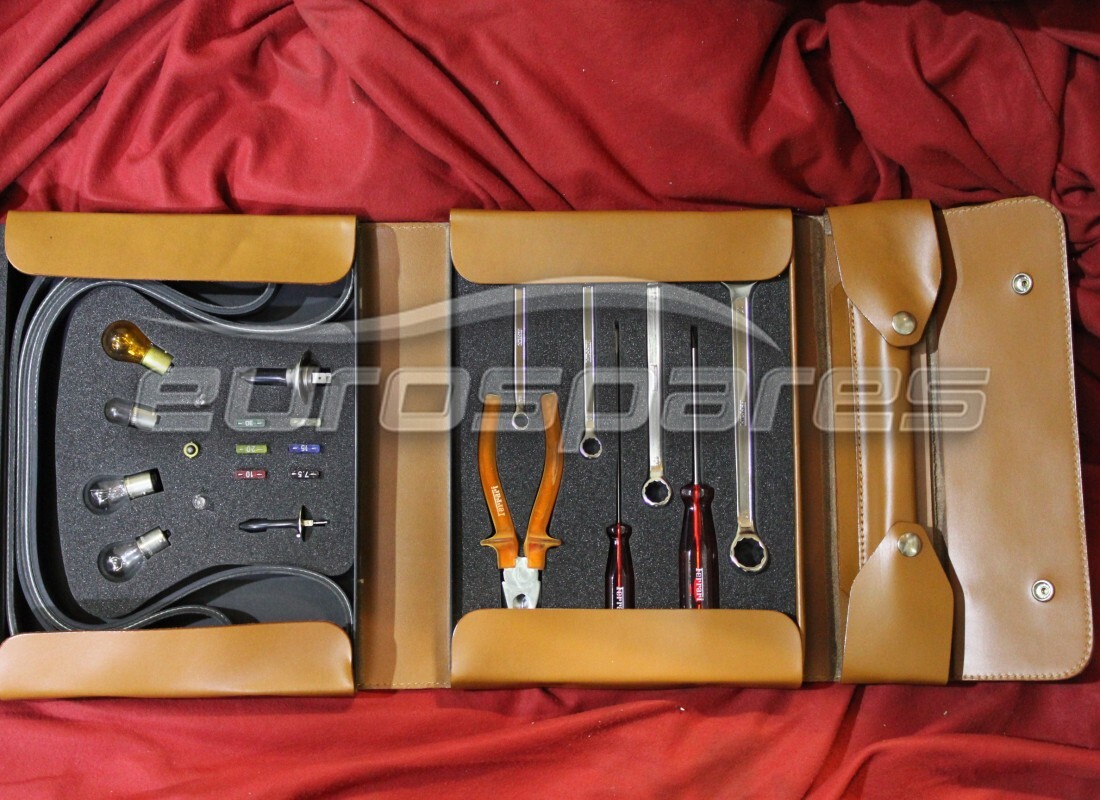

        TOOL KIT
        - Not for USA and CDN - Valid from car Ass. Nr. 31852
        from £718.77
        from £718.77
        # 000
        MPN: 179737
        COMPLETE TOOL KIT BAG
        - Valid for USA and CDN - Valid from car Ass. Nr. 31852
        from £1,089.92
        from £1,089.92
        # 002
        -
        WRENCH SET 8/17
        # 003
        -
        MM. 125 SCREWDRIVER FOR SLOT SCREW
        # 004
        -
        MM. 100 SCREWDRIVER FOR CROSS SLOT SCREW
        # 005
        MPN: 201444
        BELT FOR ALTERNATOR AND COMPRESSOR
        - See Tab. 53 Pos. 34 - Valid from engine Nr. 51923
        from £11.58
        from £11.58
        This part replaces part number 171092
        # 006
        -
        MM. 160 CUTTING PLIERS
        # 007
        MPN: 199834
        Water & Power Steering Belt
        Use on Exhaustion of 171093
        from £15.68
        from £15.68
        This part replaces part number 171093
        # 007
        MPN: 199834
        BELT FOR HYDRAULIC SERVO
        - CONTROL PUMP - See Tab. 46 Pos. 21 - Valid till engine Nr. 51922
        from £15.68
        from £15.68
        This part replaces part number 171093
        # 007
        MPN: 199834
        BELT FOR HYDRAULIC SERVO
        - CONTROL PUMP - See Tab. 46 Pos. 21 - Valid from engine Nr. 51923
        from £15.68
        from £15.68
        This part replaces part number 171093
        # 008
        MPN: 169395
        TOW HOOK
        from £109.22
        from £109.22
        # 009
        MPN: 101525
        BULB
        from £2.15
        from £2.15
        This part replaces part number 101528
        # 009
        MPN: 10857790
        BULB 12V-5W
        from £1.14
        from £1.14
        This part replaces part number 101524
        # 009
        MPN: 125240
        FUSE 7,5 AMP.
        from £0.47
        from £0.47
        This part replaces part number 11054890 - and 1 more. Click to view details
        # 009
        MPN: 125241
        FUSE 10 AMP.
        from £0.47
        from £0.47
        This part replaces part number 11054990 - and 1 more. Click to view details
        # 009
        MPN: 125242
        FUSE 15 AMP.
        from £0.47
        from £0.47
        This part replaces part number 11055090 - and 1 more. Click to view details
        # 009
        MPN: 125243
        FUSE 20 AMP.
        from £0.47
        from £0.47
        This part replaces part number 11055190 - and 1 more. Click to view details
        # 009
        MPN: 126031
        FUSE 25 AMP.
        from £0.47
        from £0.47
        This part replaces part number MC3742/5
        # 009
        MPN: 131941
        FUSE 30 AMP.
        from £0.47
        from £0.47
        This part replaces part number MC3742/6
        # 009
        MPN: 14142390
        BULB 12V-4W
        - Not for USA and CDN
        from £1.05
        from £1.05
        # 009
        MPN: 14144190
        PARKING LIGHT 12V-5W BULB
        from £0.50
        from £0.50
        # 009
        MPN: 14144690
        BULB 12V-5/21W
        from £2.41
        from £2.41
        # 009
        MPN: 14145890
        BULB 12V FOR SIDE-MARKER
        - Valid for USA and CDN
        from £0.47
        from £0.47
        # 009
        MPN: 14148190
        BULB 12V-21W
        from £2.03
        from £2.03
        # 009
        MPN: 14151095
        H1 12V-55W BULB
        from £8.03
        from £8.03
        # 009
        MPN: 152567
        ORANGE 12V-21W BULB
        - Not for USA and CDN
        from £2.04
        from £2.04
        # 009
        MPN: 152568
        BIPOLAR ORANGE BULB
        - Valid for USA and CDN
        from £1.36
        from £1.36
        # 009
        MPN: 169374
        H7 12V-55W BULB
        from £11.60
        from £11.60
        This part replaces part number 169407
        # 010
        MPN: 65123200
        BELT FOR TOOL BAG
        from £27.12
        from £27.12
        This part replaces part number 65122100
        # 011
        MPN: 61741600
        RIVET
        from £0.47
        from £0.47
        # 012
        MPN: 182261
        BOX COMPLETE EMERGENCY LIGHT
        - Valid from car Ass. Nr. 33847
        from £72.60
        from £72.60
        This part replaces part number 142397
        # 012
        MPN: 40179202
        EMERGENCY LIGHT
        from £309.75
        from £309.75
        # 013
        MPN: 180720
        EMERGENCY LIGHT
        - Valid from car Ass. Nr. 33847
        from £1,372.50
        from £1,372.50
