050 - Front Suspension - Wishbones and Stabilizer Bar

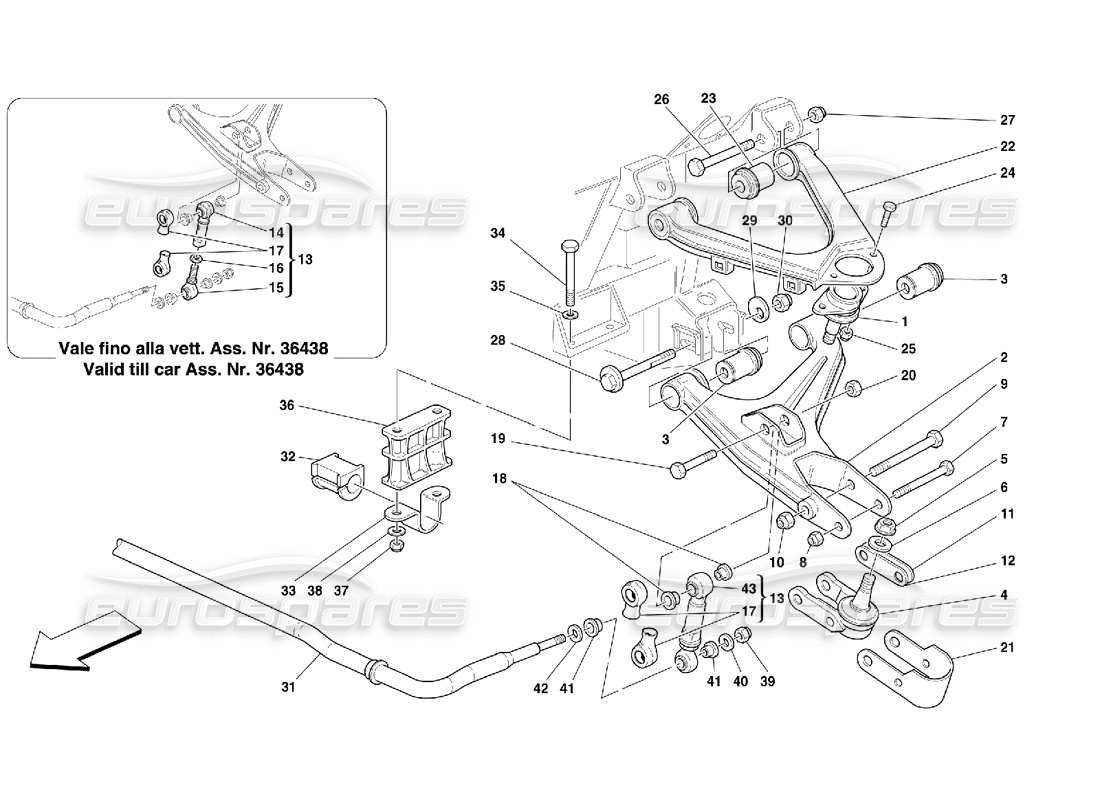

Ferrari 550 Maranello Front Suspension - Wishbones and Stabilizer Bar Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 132776

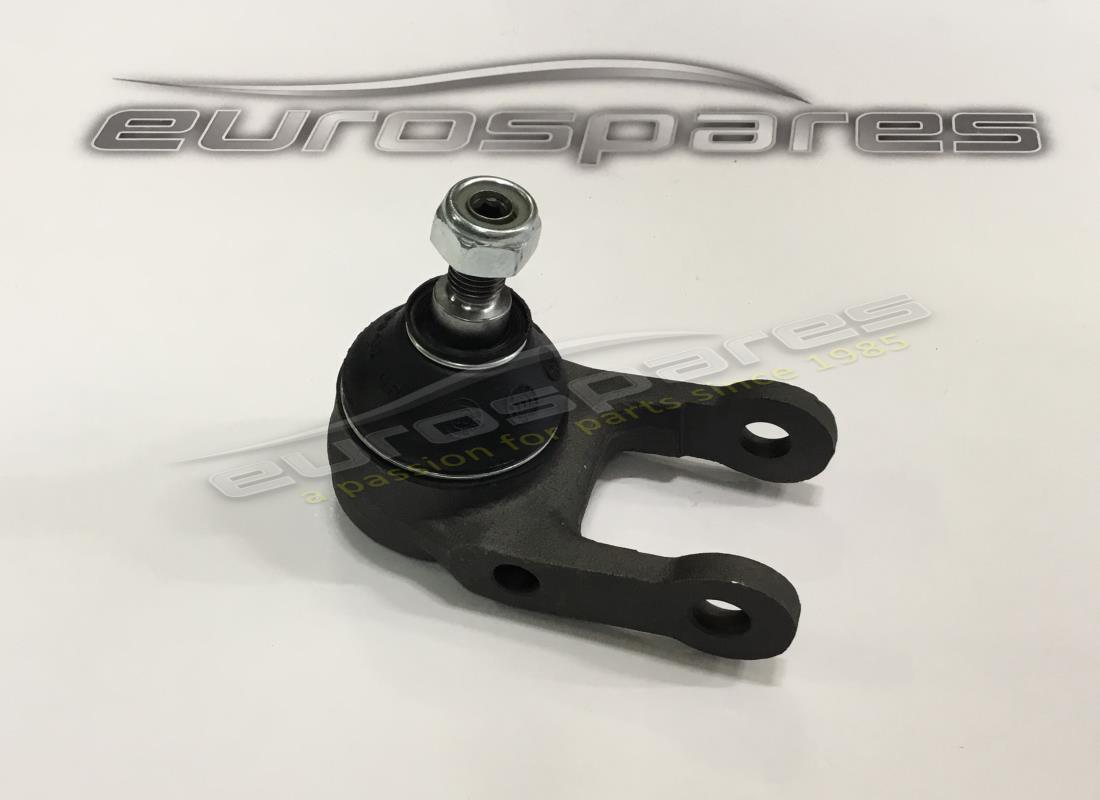

UPPER BALL JOINT
from £53.17
from £53.17
# 002
MPN: 168388

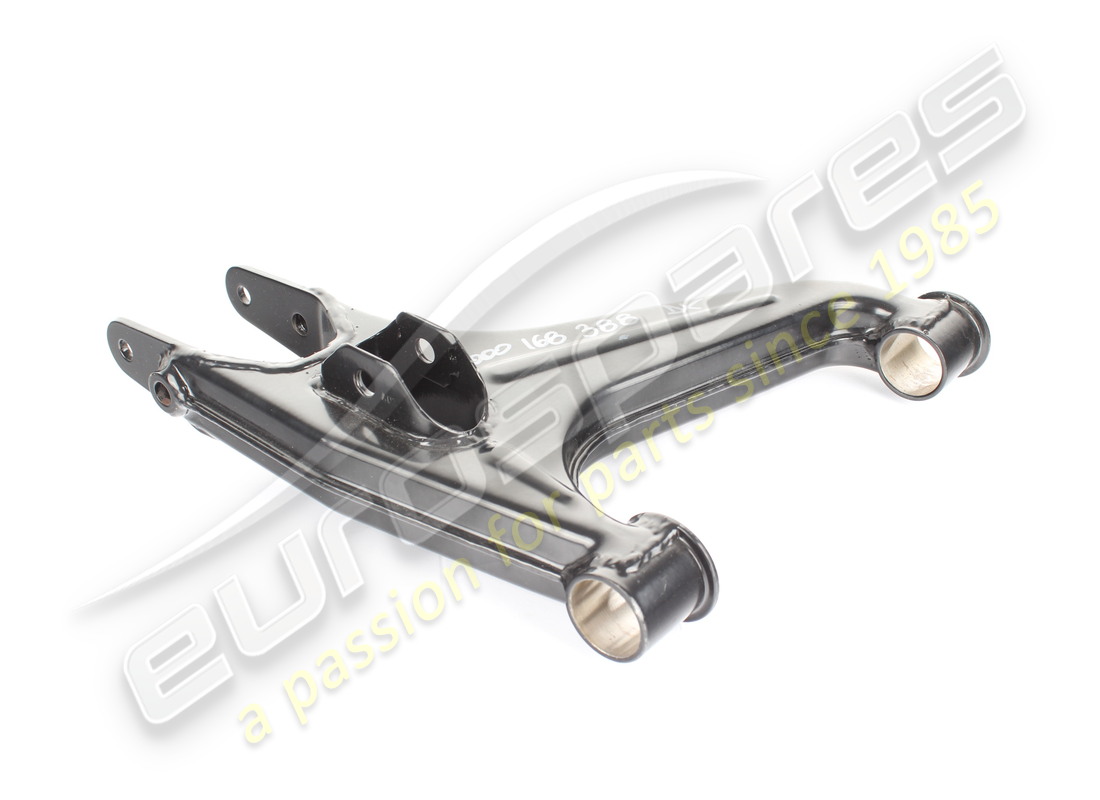

RH LOWER LEVER
from £210.61
from £210.61
This part replaces part number 154624 - and 4 more. Click to view details
# 002
MPN: 168727
LH LOWER LEVER
from £264.11
from £264.11
This part replaces part number 154623 - and 4 more. Click to view details
# 003
MPN: 169326
FLAMBLOCK FOR LOWER FORK
from £72.03
from £72.03
# 004
MPN: 154396

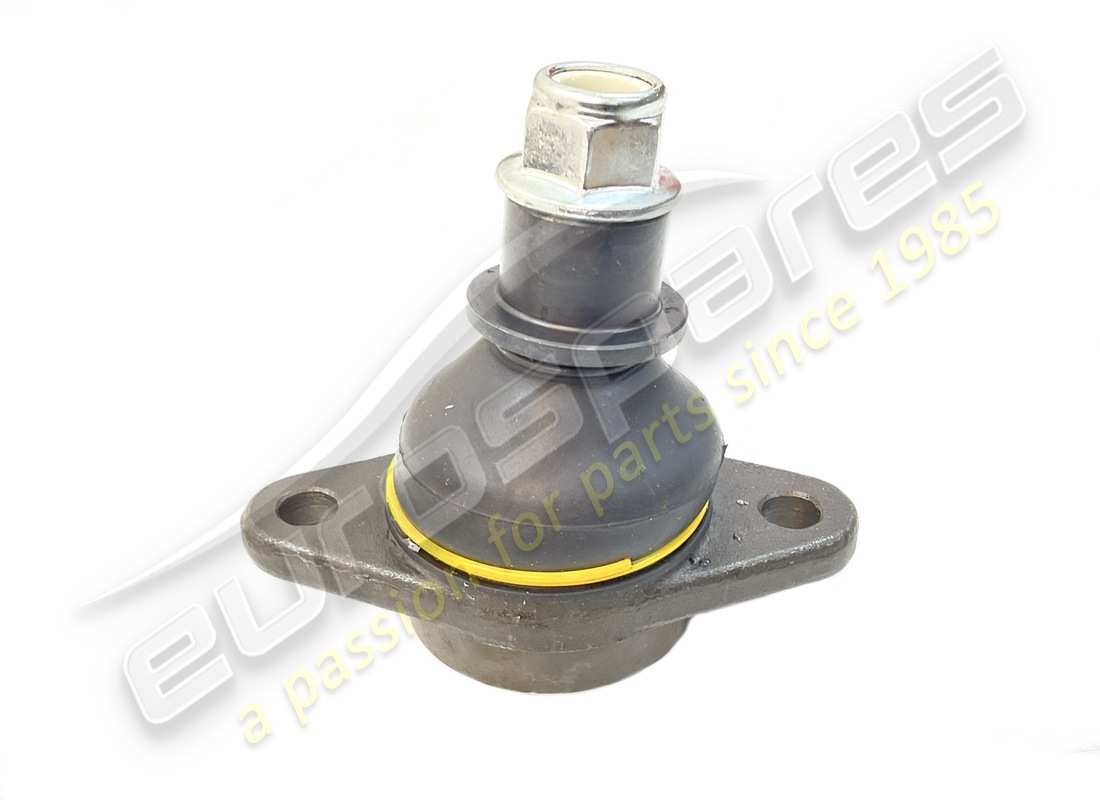

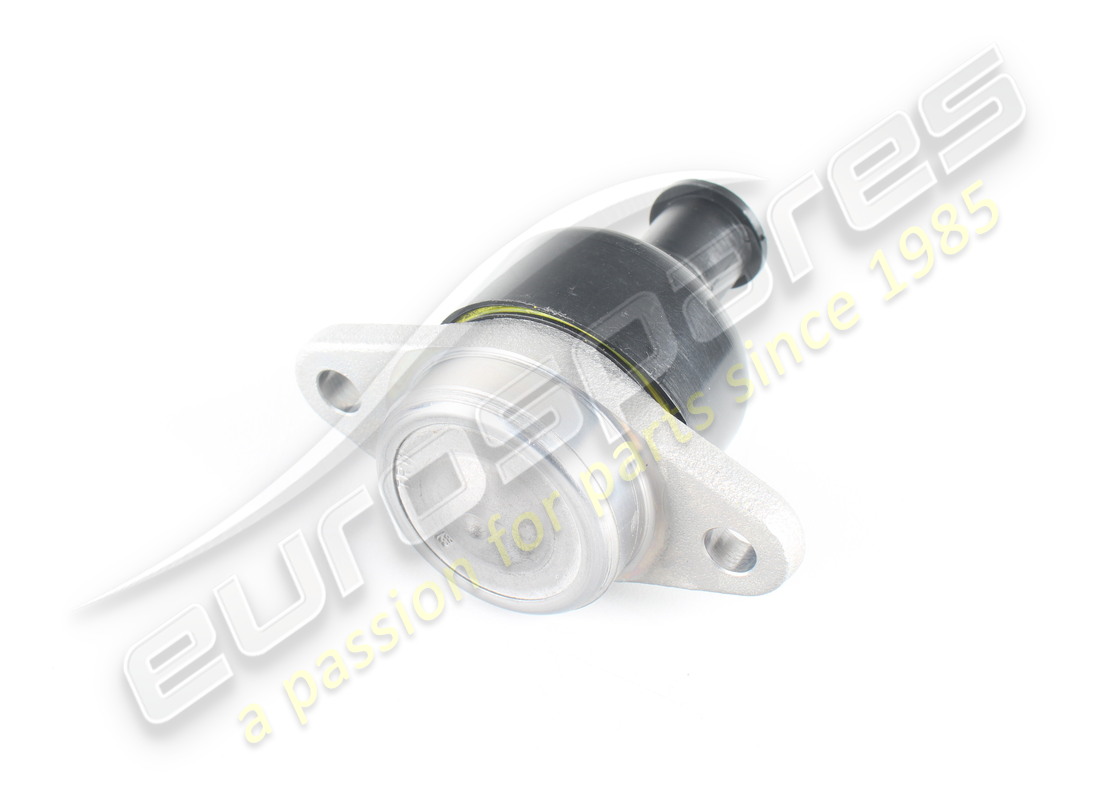

LOWER BALL JOINT
from £50.00
from £50.00
# 005
MPN: 149807
NUT
from £0.61
from £0.61
# 006
MPN: 155002
WASHER
from £6.73
from £6.73
# 007
MPN: 15971734
SCREW
from £25.41
from £25.41
This part replaces part number 151308
# 008
MPN: 104114
NUT
Supersession
Supersession
This part replaces part number 15503711 - and 1 more. Click to view details
# 009
MPN: 153504
SCREW
from £14.18
from £14.18
# 010
MPN: 148020
NUT SETTING PLATE
from £2.48
from £2.48
This part replaces part number 102825 - and 3 more. Click to view details
# 012
MPN: 101022
SETTING PLATE - MM. 1.50
- Possible fitting
from £1.22
from £1.22
This part replaces part number 153963
# 012
MPN: 115073
SETTING PLATE - MM. 1.20
- Possible fitting
from £1.08
from £1.08
This part replaces part number 153964
# 012
MPN: 164484
SETTING PLATE - MM. 1.00
- Possible fitting
from £18.94
from £18.94
# 012
MPN: 164485
SETTING PLATE - MM. 2.00
- Possible fitting
from £2.16
from £2.16
# 013
MPN: 152868

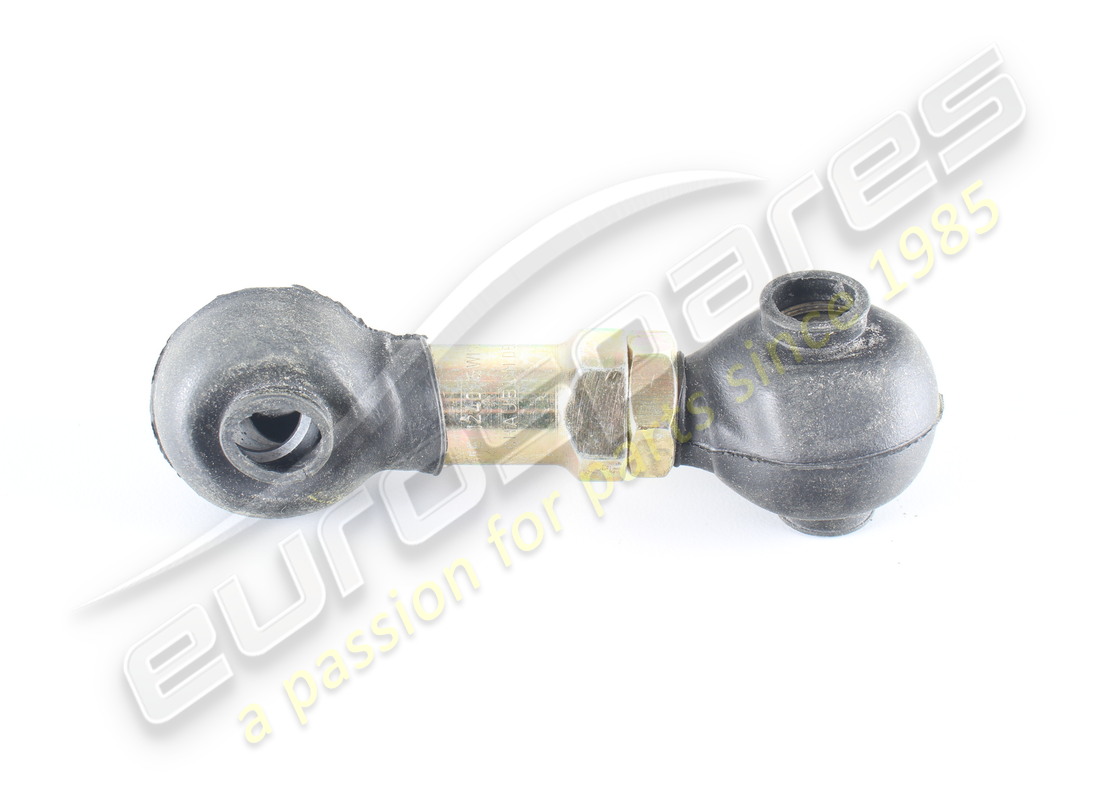

RH COMPLETE TIE ROD
- Valid till car Ass. Nr. 36438
from £154.86
from £154.86
# 013
MPN: 152869
LH COMPLETE TIE ROD
- Valid till car Ass. Nr. 36438
from £386.66
from £386.66
# 013
MPN: 183711
RH COMPLETE TIE ROD
- Valid from car Ass. Nr. 36439
from £183.42
from £183.42
# 013
MPN: 183712
LH COMPLETE TIE ROD
- Valid from car Ass. Nr. 36439
from £183.42
from £183.42
# 014
MPN: 152871
FEMALE BALL JOINT TIE ROD
- Valid till car Ass. Nr. 36438
from £212.84
from £212.84
# 015
MPN: 152870
MALE BALL JOINT TIE ROD
- Valid till car Ass. Nr. 36438
from £212.84
from £212.84
# 016
MPN: 10717311
NUT
- Valid till car Ass. Nr. 36438
from £0.53
from £0.53
# 017
MPN: 148772
PROTECTION
from £7.73
from £7.73
# 018
MPN: 148773

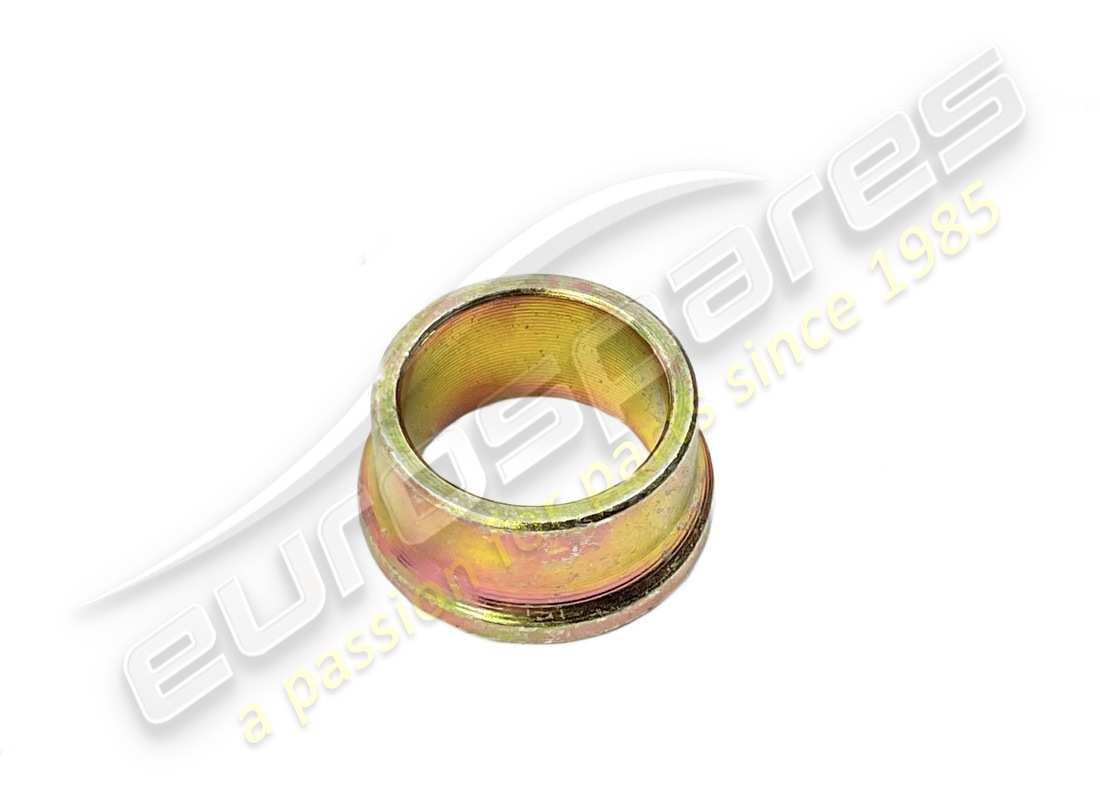

SPACER
from £5.33
from £5.33
# 019
MPN: 15540921
SCREW
from £1.53
from £1.53
# 020
MPN: 148020
NUT
from £2.48
from £2.48
This part replaces part number 102825 - and 3 more. Click to view details
# 021
MPN: 157812
BALL JOINT PROTECTION
from £44.09
from £44.09
# 022
MPN: 168711

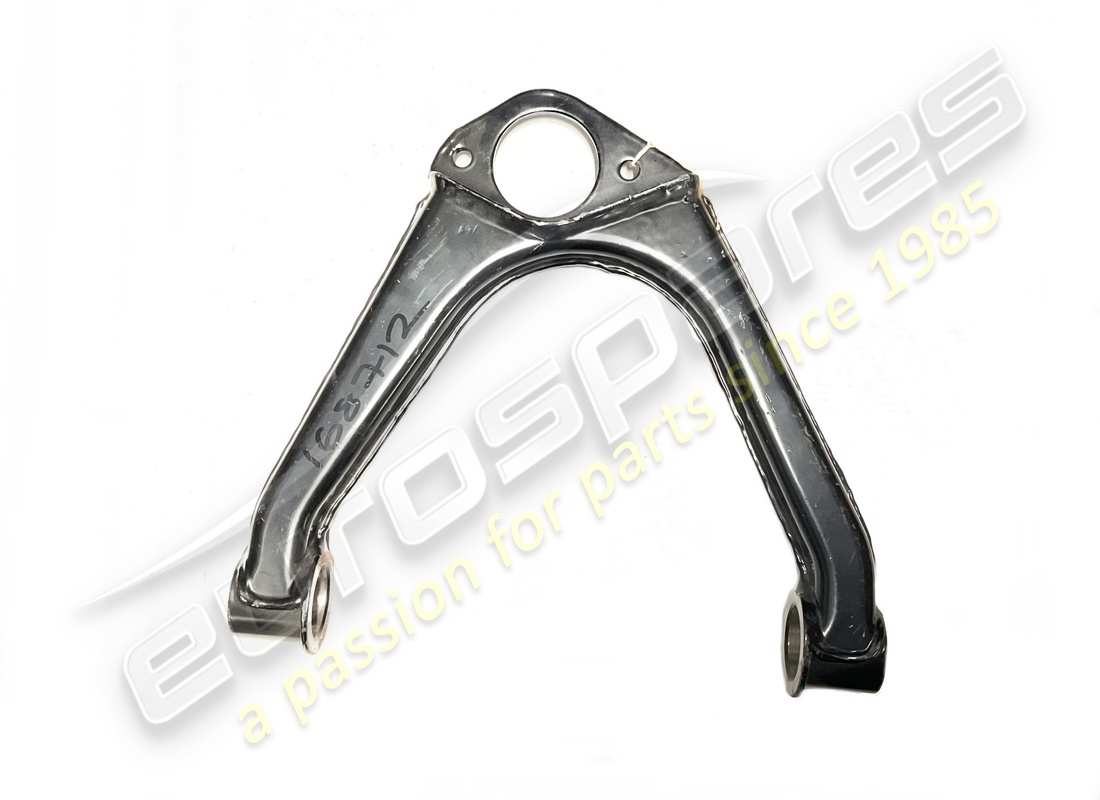

RH UPPER LEVER
- Valid till car Ass. Nr. 27043
from £247.57
from £247.57
# 022
MPN: 168712
LH UPPER LEVER
- Valid till car Ass. Nr. 27043
from £247.57
from £247.57
# 022
MPN: 175800
RH UPPER LEVER
- Valid from car Ass. Nr. 27044
from £227.75
from £227.75
# 022
MPN: 175801
LH UPPER LEVER
- Valid from car Ass. Nr. 27044
from £227.75
from £227.75
# 023
MPN: 163038

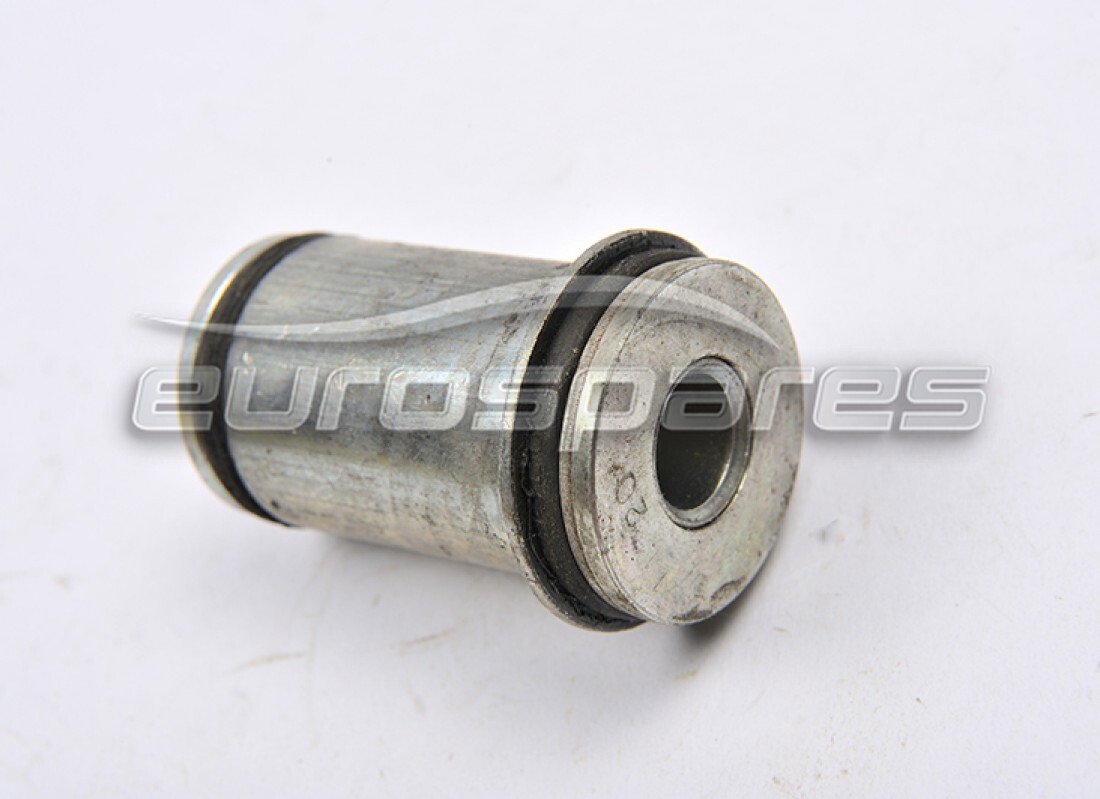

BUSHES
from £38.54
from £38.54
This part replaces part number 157701
# 024
MPN: 16043624
SCREW
from £0.51
from £0.51
This part replaces part number 106526 - and 1 more. Click to view details
# 025
MPN: 104030
NUT
from £0.53
from £0.53
This part replaces part number 16104125
# 026
MPN: 106419
SCREW
from £10.77
from £10.77
This part replaces part number 100808 - and 11 more. Click to view details
# 027
MPN: 102825
NUT
from £0.51
from £0.51
This part replaces part number 95900617
# 028
MPN: 150789
ECCENTRIC SCREW
from £37.94
from £37.94
# 029
MPN: 150790
ECCENTRIC WASHER
- Valid till stock exhaustion
from £5.00
from £5.00
# 029
MPN: 175077
ECCENTRIC WASHER
- Valid after stock exhaustion of 150790
from £7.33
from £7.33
This part replaces part number 150790 which we have in stock - and 2 more. Click to view details
# 030
MPN: 150238
NUT
from £0.47
from £0.47
This part replaces part number 12575821 - and 2 more. Click to view details
# 031
MPN: 163204
FRONT ANTI-ROLL BAR -Ø 27
from £556.99
from £556.99
# 032
MPN: 208324
BAR BUFFER - Æ 27
from £20.45
from £20.45
This part replaces part number 163212
# 034
MPN: 16045024
SCREW
(minimum order quantity = 10)
from £0.54
from £0.54
This part replaces part number 125924 - and 1 more. Click to view details
# 035
MPN: 14496524
WASHER
from £0.53
from £0.53
This part replaces part number 14496525 - and 1 more. Click to view details
# 036
MPN: 158048
COMPLETE SPACER
from £63.16
from £63.16
This part replaces part number 157526 - and 3 more. Click to view details
# 037
MPN: 104030
NUT
from £0.53
from £0.53
This part replaces part number 16104125
# 038
MPN: 14496524
WASHER
from £0.53
from £0.53
This part replaces part number 14496525 - and 1 more. Click to view details
# 039
MPN: 148020
NUT
from £2.48
from £2.48
This part replaces part number 102825 - and 3 more. Click to view details
# 040
MPN: 152249
WASHER
from £0.53
from £0.53
# 041
MPN: 148773
SPACER BUSHING
from £5.33
from £5.33
# 042
MPN: 149063
WASHER
from £1.09
from £1.09
# 043
MPN: 183831
RH BALL JOINT TIE ROD
- Valid from car Ass. Nr. 36439
from £142.86
from £142.86
# 043
MPN: 183832
LH BALL JOINT TIE ROD
- Valid from car Ass. Nr. 36439
from £142.86
from £142.86
