047 - Steering Column

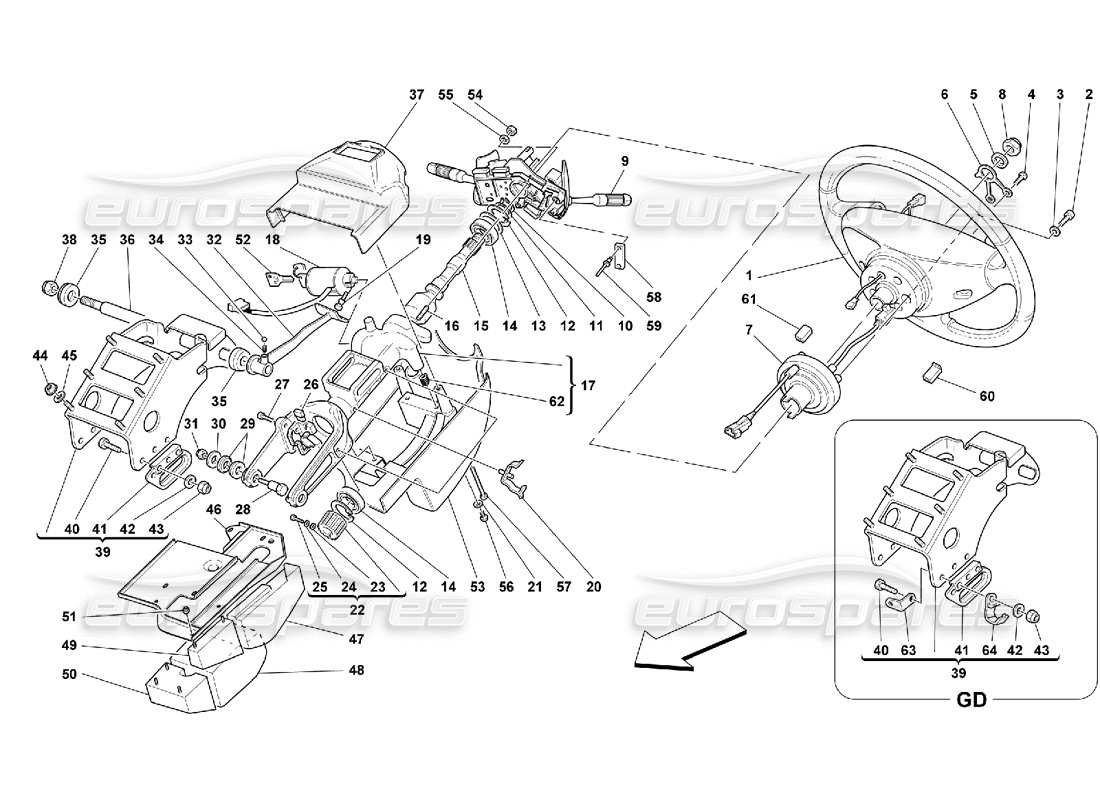

Ferrari 550 Maranello Steering Column Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                            #
                                                                                                            Part number
                                                                                                            Description
                                                                                                            Price

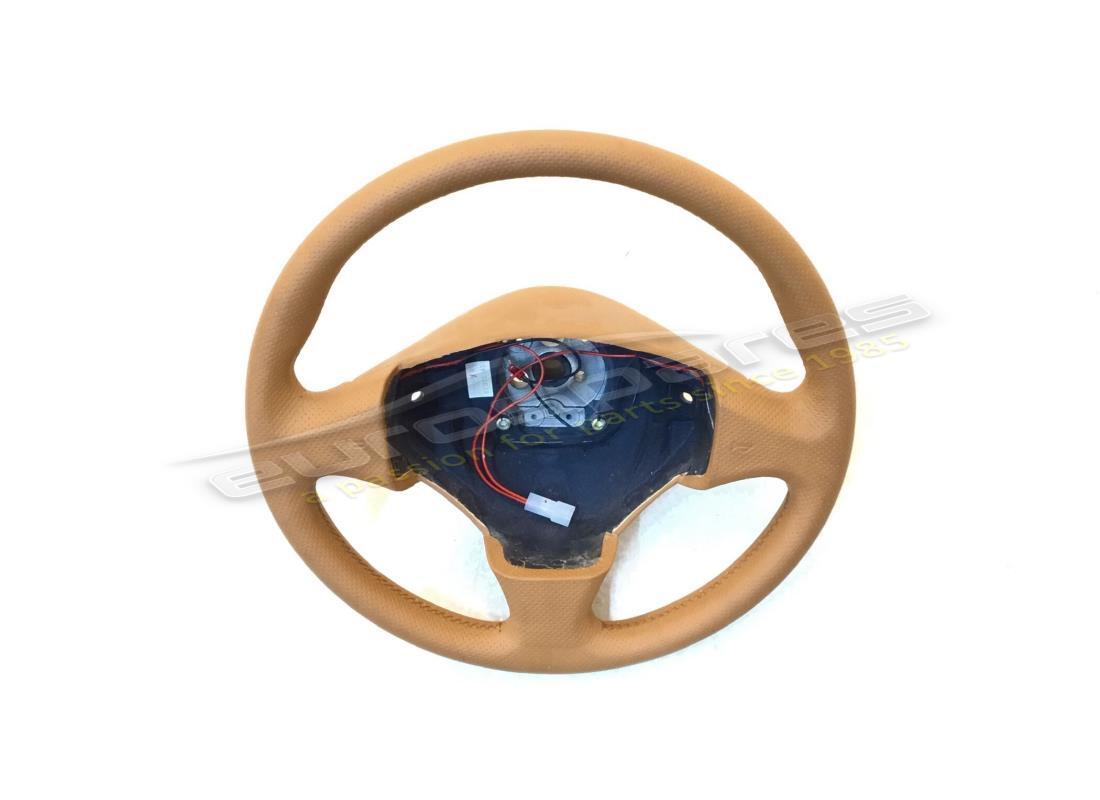

                                                                                                            # 001
                                                                                                            MPN: 165021
                                                                                                            COMPLETE STEERING WHEEL
                                                                                                            (black)
                                                                                                            from £834.75
                                                                                                            from £834.75
                                                                                                            This part replaces part number 165022 - and 2 more. Click to view details
                                                                                                            # 001
                                                                                                            MPN: 175687
                                                                                                            COMPLETE STEERING WHEEL
                                                                                                            - Valid for USA, CDN, AUS and J - Valid after stock exhaustion of 165021 - Not as spare part now - Replaced by 658422..
                                                                                                            from £760.80
                                                                                                            from £760.80
                                                                                                            This part replaces part number 165021 which we have in stock - and 1 more. Click to view details
                                                                                                            # 001
                                                                                                            MPN: 65842200
                                                                                                            STEERING WHEEL
                                                                                                            See also 175687
                                                                                                            from £796.46
                                                                                                            from £796.46
                                                                                                            # 001
                                                                                                            MPN: 65842202
                                                                                                            COMPLETE STEERING WHEEL
                                                                                                            Dark Blue
                                                                                                            from £796.46
                                                                                                            from £796.46
                                                                                                            # 002
                                                                                                            MPN: 13271914
                                                                                                            SCREW
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 13271911 - and 1 more. Click to view details
                                                                                                            # 003
                                                                                                            MPN: 10615274
                                                                                                            WASHER
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 10615270 - and 2 more. Click to view details
                                                                                                            # 004
                                                                                                            MPN: 11021111
                                                                                                            SCREW
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 131745 which we have in stock
                                                                                                            # 005
                                                                                                            MPN: 10730921
                                                                                                            WASHER
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 006
                                                                                                            MPN: 157639
                                                                                                            SPRING
                                                                                                            from £4.90
                                                                                                            from £4.90
                                                                                                            # 007
                                                                                                            MPN: 169471
                                                                                                            SPIRAL CONTACT
                                                                                                            from £111.07
                                                                                                            from £111.07
                                                                                                            This part replaces part number 155394
                                                                                                            # 008
                                                                                                            MPN: 101648
                                                                                                            NUT
                                                                                                            from £1.71
                                                                                                            from £1.71
                                                                                                            This part replaces part number 106082
                                                                                                            # 009
                                                                                                            MPN: 159411
                                                                                                            UNHOOK DEVIATION ASSEMBLY
                                                                                                            from £750.00
                                                                                                            from £750.00
                                                                                                            This part replaces part number 164446 - and 8 more. Click to view details
                                                                                                            # 010
                                                                                                            MPN: 11066876
                                                                                                            SEEGER RING
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 11066875
                                                                                                            # 011
                                                                                                            MPN: 134070
                                                                                                            SEEGER RING
                                                                                                            from £1.82
                                                                                                            from £1.82
                                                                                                            # 011
                                                                                                            MPN: 134071
                                                                                                            DITTO, THICKNESS MM. 1.1
                                                                                                            from £0.83
                                                                                                            from £0.83
                                                                                                            # 011
                                                                                                            MPN: 134072
                                                                                                            DITTO, THICKNESS MM. 1.2
                                                                                                            from £0.83
                                                                                                            from £0.83
                                                                                                            # 011
                                                                                                            MPN: 134073
                                                                                                            DITTO, THICKNESS MM. 1.3
                                                                                                            from £0.94
                                                                                                            from £0.94
                                                                                                            # 011
                                                                                                            MPN: 134074
                                                                                                            DITTO, THICKNESS MM. 1.4
                                                                                                            from £4.13
                                                                                                            from £4.13
                                                                                                            # 012
                                                                                                            MPN: 11060076
                                                                                                            SEEGER RING
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 013
                                                                                                            MPN: 134065
                                                                                                            BEARING THRUST WASHER THINCKNESS MM. 1.0
                                                                                                            from £0.97
                                                                                                            from £0.97
                                                                                                            # 013
                                                                                                            MPN: 134066
                                                                                                            DITTO, THICKNESS MM. 1.1
                                                                                                            from £0.54
                                                                                                            from £0.54
                                                                                                            # 013
                                                                                                            MPN: 134067
                                                                                                            DITTO, THICKNESS MM. 1.2
                                                                                                            from £0.83
                                                                                                            from £0.83
                                                                                                            # 013
                                                                                                            MPN: 134068
                                                                                                            DITTO, THICKNESS MM. 1.3
                                                                                                            from £0.76
                                                                                                            from £0.76
                                                                                                            # 013
                                                                                                            MPN: 134069
                                                                                                            DITTO, THICKNESS MM. 1.4
                                                                                                            from £1.23
                                                                                                            from £1.23
                                                                                                            # 014
                                                                                                            MPN: 134061
                                                                                                            BEARING
                                                                                                            from £6.96
                                                                                                            from £6.96
                                                                                                            This part replaces part number 119213
                                                                                                            # 015
                                                                                                            MPN: 157968
                                                                                                            UPPER SHAFT FOR STEERING CONTROL
                                                                                                            from £270.48
                                                                                                            from £270.48
                                                                                                            This part replaces part number 151522
                                                                                                            # 016
                                                                                                            MPN: 11001224
                                                                                                            STUD
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 11001221
                                                                                                            # 017
                                                                                                            MPN: 161530
                                                                                                            COLUMN SUPPORT
                                                                                                            - Valid till car Ass. Nr. 30647
                                                                                                            from £718.99
                                                                                                            from £718.99
                                                                                                            # 017
                                                                                                            MPN: 175817
                                                                                                            COLUMN SUPPORT
                                                                                                            - Valid from car Ass. Nr. 30648
                                                                                                            from £551.25
                                                                                                            from £551.25
                                                                                                            # 018
                                                                                                            MPN: 162546
                                                                                                            DOORS LOCKS SET COMPLETE ANTI-THEFT DEVICE
                                                                                                            - Not for USA, CDN and AUS
                                                                                                            from £247.65
                                                                                                            from £247.65
                                                                                                            This part replaces part number 150845
                                                                                                            # 018
                                                                                                            MPN: 162547
                                                                                                            DOORS LOCKS SET COMPLETE ANTI-THEFT DEVICE
                                                                                                            - Valid for USA, CDN and AUS
                                                                                                            from £1,922.60
                                                                                                            from £1,922.60
                                                                                                            # 019
                                                                                                            MPN: 168046
                                                                                                            SCREW
                                                                                                            from £2.44
                                                                                                            from £2.44
                                                                                                            This part replaces part number 156456
                                                                                                            # 020
                                                                                                            MPN: 157385
                                                                                                            CLIP
                                                                                                            from £0.48
                                                                                                            from £0.48
                                                                                                            # 021
                                                                                                            MPN: 12601176
                                                                                                            WASHER
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 022
                                                                                                            MPN: 150944
                                                                                                            THED WHEEL
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 023
                                                                                                            MPN: 12604079
                                                                                                            WASHER
                                                                                                            from £0.75
                                                                                                            from £0.75
                                                                                                            # 024
                                                                                                            MPN: 14497701
                                                                                                            WASHER
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 025
                                                                                                            MPN: 14303324
                                                                                                            SCREW
                                                                                                            from £0.53
                                                                                                            from £0.53
                                                                                                            This part replaces part number 014303324
                                                                                                            # 026
                                                                                                            MPN: 171835
                                                                                                            TOOTHED WHEEL SENSOR
                                                                                                            from £56.42
                                                                                                            from £56.42
                                                                                                            This part replaces part number 150943
                                                                                                            # 027
                                                                                                            MPN: 14303374
                                                                                                            SCREW
                                                                                                            from £0.71
                                                                                                            from £0.71
                                                                                                            # 028
                                                                                                            MPN: 152044
                                                                                                            PIN
                                                                                                            from £15.21
                                                                                                            from £15.21
                                                                                                            # 029
                                                                                                            MPN: 156061
                                                                                                            BUSHING
                                                                                                            from £9.00
                                                                                                            from £9.00
                                                                                                            # 030
                                                                                                            MPN: 100660
                                                                                                            WASHER
                                                                                                            from £0.71
                                                                                                            from £0.71
                                                                                                            # 031
                                                                                                            MPN: 101139
                                                                                                            NUT
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 16104425
                                                                                                            # 032
                                                                                                            MPN: 168055
                                                                                                            LOCK LEVER FOR STEERING COLUMN
                                                                                                            from £103.57
                                                                                                            from £103.57
                                                                                                            This part replaces part number 164530 which we have in stock - and 1 more. Click to view details
                                                                                                            # 033
                                                                                                            MPN: 10-16-11
                                                                                                            BALL
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 034
                                                                                                            MPN: 155865
                                                                                                            SPRING
                                                                                                            from £1.48
                                                                                                            from £1.48
                                                                                                            # 035
                                                                                                            MPN: 163593
                                                                                                            SPACER
                                                                                                            from £2.49
                                                                                                            from £2.49
                                                                                                            # 036
                                                                                                            MPN: 155866
                                                                                                            SHAFT
                                                                                                            - Valid till car Ass. Nr. 30647
                                                                                                            from £78.90
                                                                                                            from £78.90
                                                                                                            # 036
                                                                                                            MPN: 175715
                                                                                                            SHAFT
                                                                                                            - Valid from car Ass. Nr. 30648
                                                                                                            from £47.59
                                                                                                            from £47.59
                                                                                                            # 037
                                                                                                            MPN: 65168000
                                                                                                            UPPER COVER FOR STEERING ROD
                                                                                                            - Valid till car Ass. Nr. 30647
                                                                                                            from £135.98
                                                                                                            from £135.98
                                                                                                            # 037
                                                                                                            MPN: 65734700
                                                                                                            UPPER COVER FOR STEERING ROD
                                                                                                            - Valid from car Ass. Nr. 30648
                                                                                                            from £102.49
                                                                                                            from £102.49
                                                                                                            # 038
                                                                                                            MPN: 102825
                                                                                                            NUT
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 95900617
                                                                                                            # 039
                                                                                                            MPN: 168742
                                                                                                            COLUMN SUPPORT BRACKET
                                                                                                            - Not for GD - Valid till car Ass. Nr. 30647
                                                                                                            from £382.25
                                                                                                            from £382.25
                                                                                                            # 039
                                                                                                            MPN: 171600
                                                                                                            COLUMN SUPPORT BRACKET
                                                                                                            - Valid for GD - Valid till car Ass. Nr. 30647
                                                                                                            from £467.00
                                                                                                            from £467.00
                                                                                                            # 039
                                                                                                            MPN: 176144
                                                                                                            COLUMN SUPPORT BRACKET
                                                                                                            - Not for GD - Valid from car Ass. Nr. 30648
                                                                                                            from £201.99
                                                                                                            from £201.99
                                                                                                            # 039
                                                                                                            MPN: 177992
                                                                                                            COLUMN SUPPORT BRACKET
                                                                                                            - Valid for GD - Valid from car Ass. Nr. 30648
                                                                                                            from £709.30
                                                                                                            from £709.30
                                                                                                            # 040
                                                                                                            MPN: 10902524
                                                                                                            SCREW
                                                                                                            - For GD quantity 5
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 040
                                                                                                            MPN: 10902724
                                                                                                            SCREW
                                                                                                            - Valid for GD
                                                                                                            from £0.71
                                                                                                            from £0.71
                                                                                                            This part replaces part number 10902721 which we have in stock
                                                                                                            # 041
                                                                                                            MPN: 163579
                                                                                                            RH SLIDING ELEMENT
                                                                                                            - Valid till car Ass. Nr. 30647
                                                                                                            from £61.66
                                                                                                            from £61.66
                                                                                                            # 041
                                                                                                            MPN: 163587
                                                                                                            LH SLIDING ELEMENT
                                                                                                            - Valid till car Ass. Nr. 30647
                                                                                                            from £87.47
                                                                                                            from £87.47
                                                                                                            # 041
                                                                                                            MPN: 177972
                                                                                                            RH SLIDING ELEMENT
                                                                                                            - Valid from car Ass. Nr. 30648
                                                                                                            from £102.72
                                                                                                            from £102.72
                                                                                                            # 041
                                                                                                            MPN: 177973
                                                                                                            LH SLIDING ELEMENT
                                                                                                            - Valid from car Ass. Nr. 30648
                                                                                                            from £102.72
                                                                                                            from £102.72
                                                                                                            # 042
                                                                                                            MPN: 10519424
                                                                                                            WASHER
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 10519401 - and 3 more. Click to view details
                                                                                                            # 043
                                                                                                            MPN: 102948
                                                                                                            NUT
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 12574211 - and 4 more. Click to view details
                                                                                                            # 044
                                                                                                            MPN: 14058411
                                                                                                            NUT
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 045
                                                                                                            MPN: 12647624
                                                                                                            WASHER
                                                                                                            from £0.50
                                                                                                            from £0.50
                                                                                                            This part replaces part number 12647611
                                                                                                            # 046
                                                                                                            MPN: 64450700
                                                                                                            UNDER COLUMN PLATE
                                                                                                            from £30.71
                                                                                                            from £30.71
                                                                                                            # 049
                                                                                                            MPN: 64509000
                                                                                                            LH OUTER INSERT
                                                                                                            from £20.24
                                                                                                            from £20.24
                                                                                                            # 050
                                                                                                            MPN: 64508900
                                                                                                            RH OUTER INSERT
                                                                                                            from £17.02
                                                                                                            from £17.02
                                                                                                            # 051
                                                                                                            MPN: 13832101
                                                                                                            NUT
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 052
                                                                                                            MPN: 170010
                                                                                                            BLANK KEY
                                                                                                            from £661.10
                                                                                                            from £661.10
                                                                                                            This part replaces part number 170010 ASM - and 1 more. Click to view details
                                                                                                            # 053
                                                                                                            MPN: 63895900
                                                                                                            LOWER COVER FOR STEERING ROD
                                                                                                            from £210.00
                                                                                                            from £210.00
                                                                                                            This part replaces part number 63711700 - and 1 more. Click to view details
                                                                                                            # 054
                                                                                                            MPN: 15896470
                                                                                                            NUT
                                                                                                            (minimum order quantity = 20)
                                                                                                            from £0.79
                                                                                                            from £0.79
                                                                                                            This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                                                                            # 055
                                                                                                            MPN: 12601174
                                                                                                            WASHER
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 12601173 - and 5 more. Click to view details
                                                                                                            # 056
                                                                                                            MPN: 13274117
                                                                                                            SCREW
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 057
                                                                                                            MPN: 13275217
                                                                                                            SCREW
                                                                                                            from £1.18
                                                                                                            from £1.18
                                                                                                            This part replaces part number 14063014
                                                                                                            # 058
                                                                                                            MPN: 164081
                                                                                                            SMALL PLATE
                                                                                                            from £7.16
                                                                                                            from £7.16
                                                                                                            # 059
                                                                                                            MPN: 60739400
                                                                                                            RIVET
                                                                                                            from £0.71
                                                                                                            from £0.71
                                                                                                            # 061
                                                                                                            MPN: 163816
                                                                                                            RESISTOR FOR SPIRAL CONTACT
                                                                                                            from £9.14
                                                                                                            from £9.14
                                                                                                            # 062
                                                                                                            MPN: 13525170
                                                                                                            THREADED INSERT
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 063
                                                                                                            MPN: 171585
                                                                                                            SMALL PLATE
                                                                                                            - Valid for GD
                                                                                                            from £17.11
                                                                                                            from £17.11
                                                                                                            # 064
                                                                                                            MPN: 129544
                                                                                                            CLIP
                                                                                                            - Valid for GD
                                                                                                            from £0.96
                                                                                                            from £0.96
