039 - Pedals and Accelerator Control

Ferrari 550 Maranello Pedals and Accelerator Control Parts Diagram

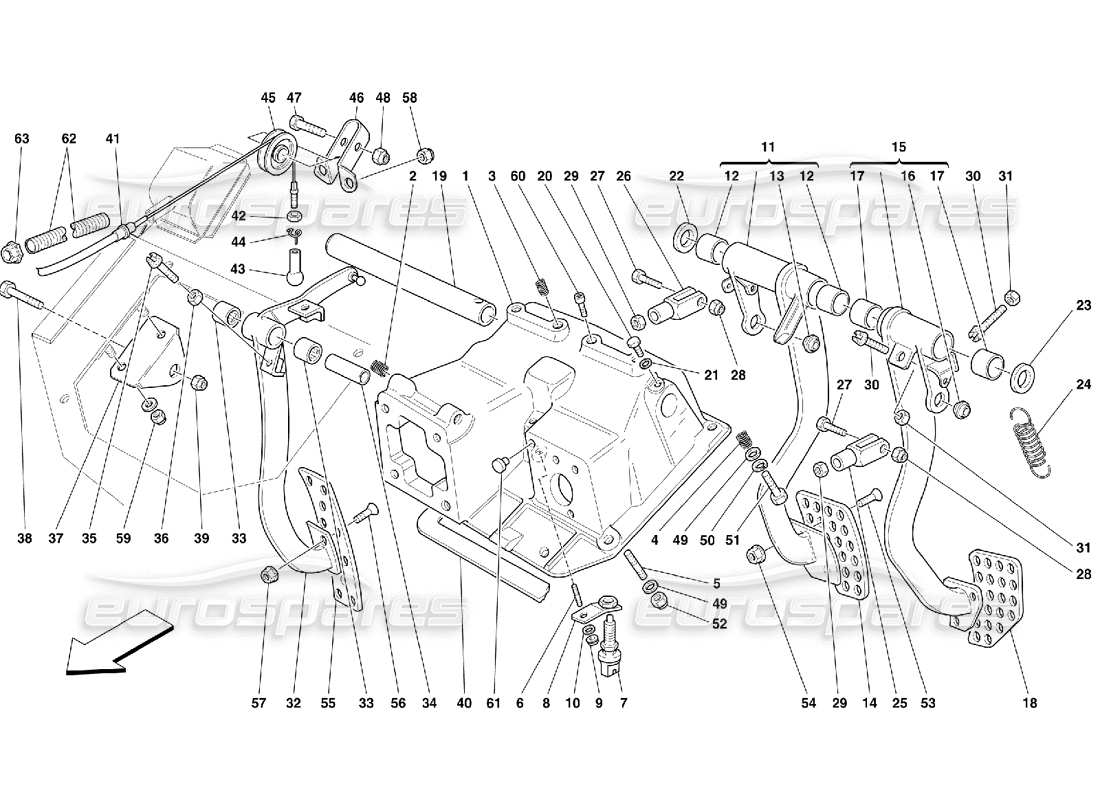

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                #
                                                                                                                Part number
                                                                                                                Description
                                                                                                                Price
                                                                                                                # 000
                                                                                                                MPN: 149328

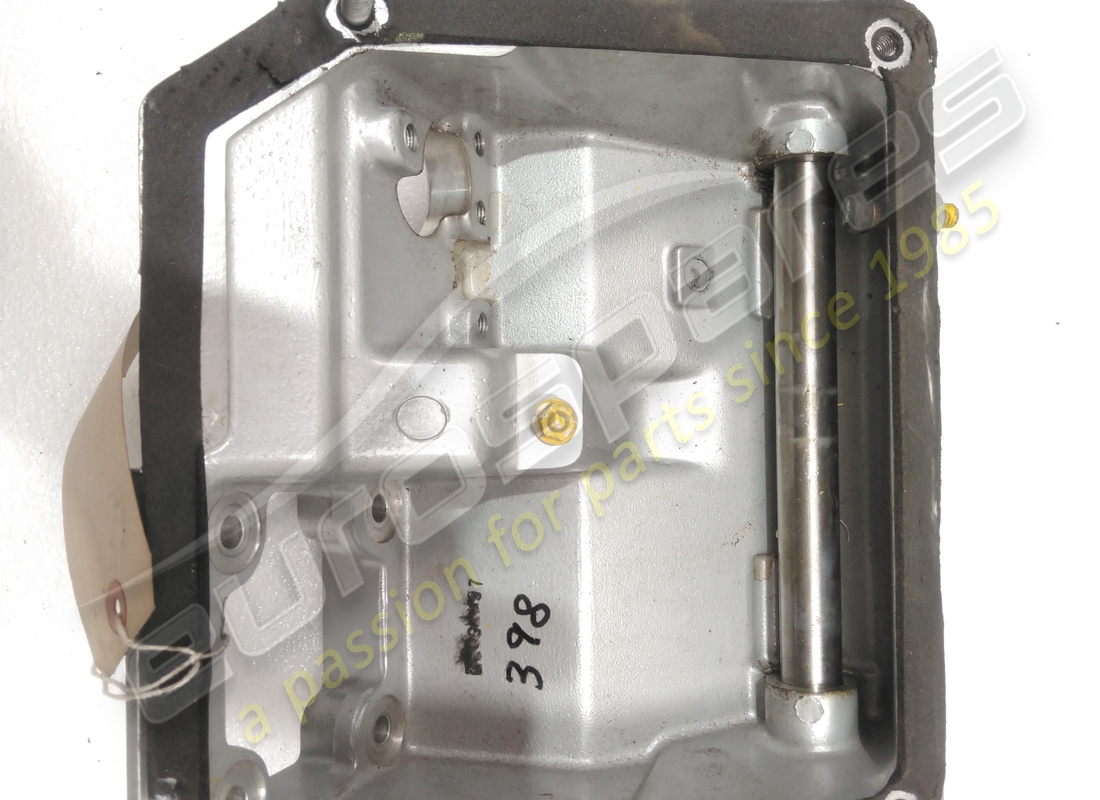

                                                                                                                COMPLETE PEDAL SUPPORT
                                                                                                                - Valid till car No 106398
                                                                                                                from £513.28
                                                                                                                from £513.28
                                                                                                                # 000
                                                                                                                MPN: 173938
                                                                                                                COMPLETE PEDAL SUPPORT
                                                                                                                - Valid from car No 106399 and valid till car No 110755
                                                                                                                # 000
                                                                                                                MPN: 178879
                                                                                                                COMPLETE PEDAL SUPPORT
                                                                                                                - Valid from car No 110756
                                                                                                                from £447.41
                                                                                                                from £447.41
                                                                                                                This part replaces part number 175097 - and 1 more. Click to view details
                                                                                                                # 001
                                                                                                                MPN: 162808
                                                                                                                PEDAL SUPPORT
                                                                                                                - Not as spare parts - With complete pedal support 149328
                                                                                                                # 001
                                                                                                                MPN: 170531
                                                                                                                PEDAL SUPPORT
                                                                                                                - Not as spare parts - With complete pedal support 173938
                                                                                                                from £1,495.00
                                                                                                                from £1,495.00
                                                                                                                # 001
                                                                                                                MPN: 175097
                                                                                                                PEDAL SUPPORT
                                                                                                                - Not as spare parts - With complete pedal support 178879
                                                                                                                Supersession
                                                                                                                Supersession
                                                                                                                # 002
                                                                                                                MPN: 13525770
                                                                                                                THREADED INSERT
                                                                                                                from £1.55
                                                                                                                from £1.55
                                                                                                                This part replaces part number 103830
                                                                                                                # 003
                                                                                                                MPN: 13525470
                                                                                                                THREADED INSERT
                                                                                                                from £0.51
                                                                                                                from £0.51
                                                                                                                This part replaces part number 107333
                                                                                                                # 004
                                                                                                                MPN: 13525770
                                                                                                                THREADED INSERT
                                                                                                                from £1.55
                                                                                                                from £1.55
                                                                                                                This part replaces part number 103830
                                                                                                                # 005
                                                                                                                MPN: 13516824
                                                                                                                STUD
                                                                                                                from £0.51
                                                                                                                from £0.51
                                                                                                                This part replaces part number 13516821
                                                                                                                # 006
                                                                                                                MPN: 11500224
                                                                                                                STUD
                                                                                                                from £0.53
                                                                                                                from £0.53
                                                                                                                This part replaces part number 11500221 - and 1 more. Click to view details
                                                                                                                # 007
                                                                                                                MPN: 133555
                                                                                                                STOP LIGHT SWITCH
                                                                                                                from £18.60
                                                                                                                from £18.60
                                                                                                                # 008
                                                                                                                MPN: 152310
                                                                                                                SMALL PLATE
                                                                                                                from £1.07
                                                                                                                from £1.07
                                                                                                                # 009
                                                                                                                MPN: 14058411
                                                                                                                NUT
                                                                                                                from £0.54
                                                                                                                from £0.54
                                                                                                                # 010
                                                                                                                MPN: 12646601
                                                                                                                WASHER
                                                                                                                from £0.71
                                                                                                                from £0.71
                                                                                                                # 011
                                                                                                                MPN: 170760
                                                                                                                BRAKE PEDAL
                                                                                                                - Valid for GD
                                                                                                                Supersession
                                                                                                                Supersession
                                                                                                                # 011
                                                                                                                MPN: 172538
                                                                                                                BRAKE PEDAL
                                                                                                                - Not for GD
                                                                                                                This part replaces part number 170760
                                                                                                                # 012
                                                                                                                MPN: 103163

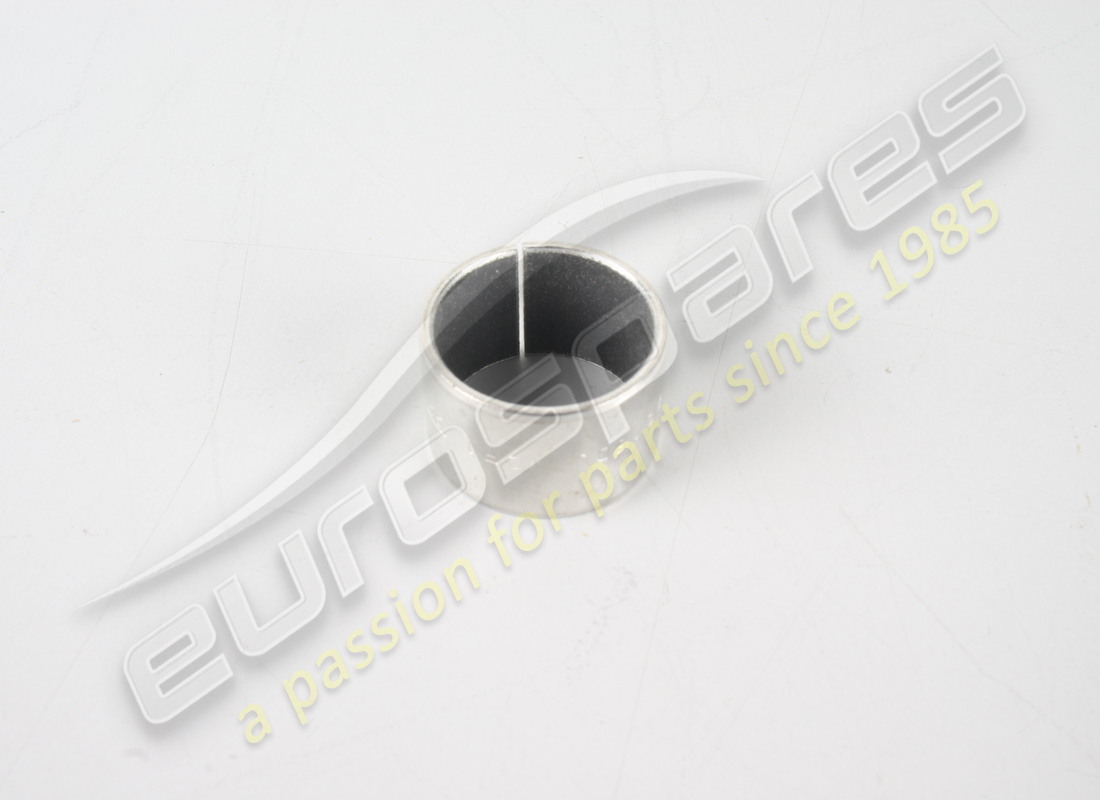

                                                                                                                BUSHING
                                                                                                                from £2.85
                                                                                                                from £2.85
                                                                                                                # 013
                                                                                                                MPN: 109407

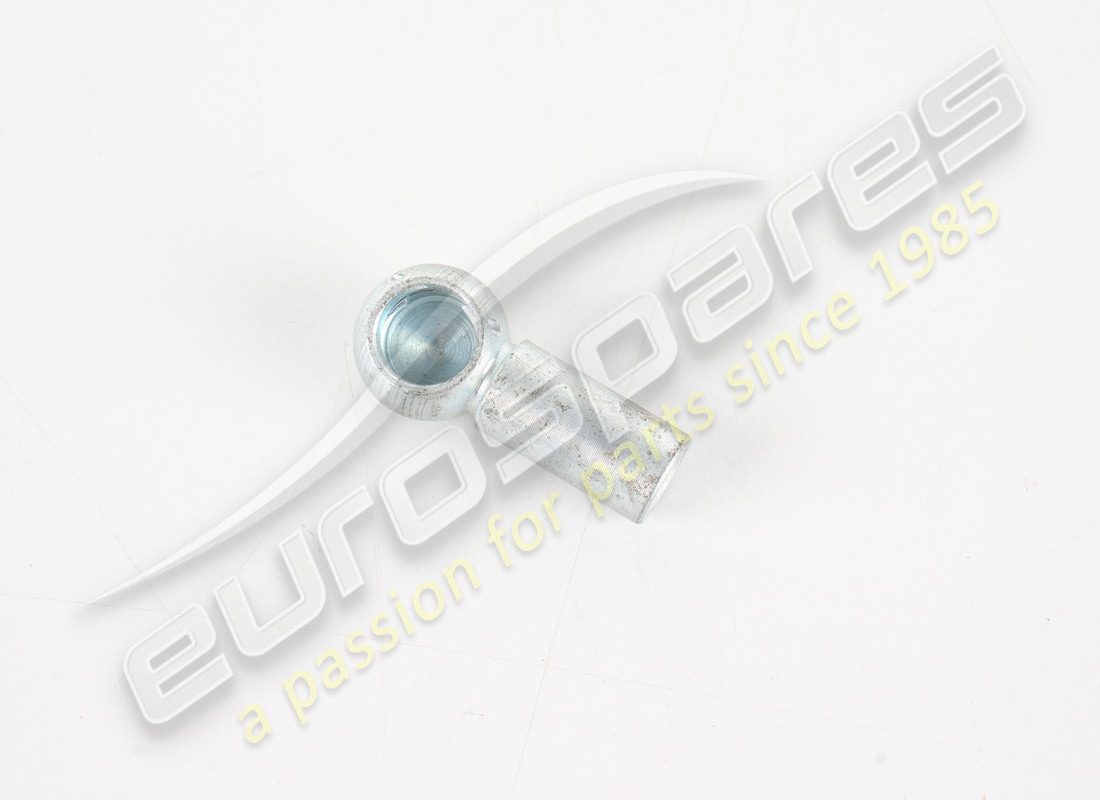

                                                                                                                BALL JOINT
                                                                                                                from £21.94
                                                                                                                from £21.94
                                                                                                                # 014
                                                                                                                MPN: 163865

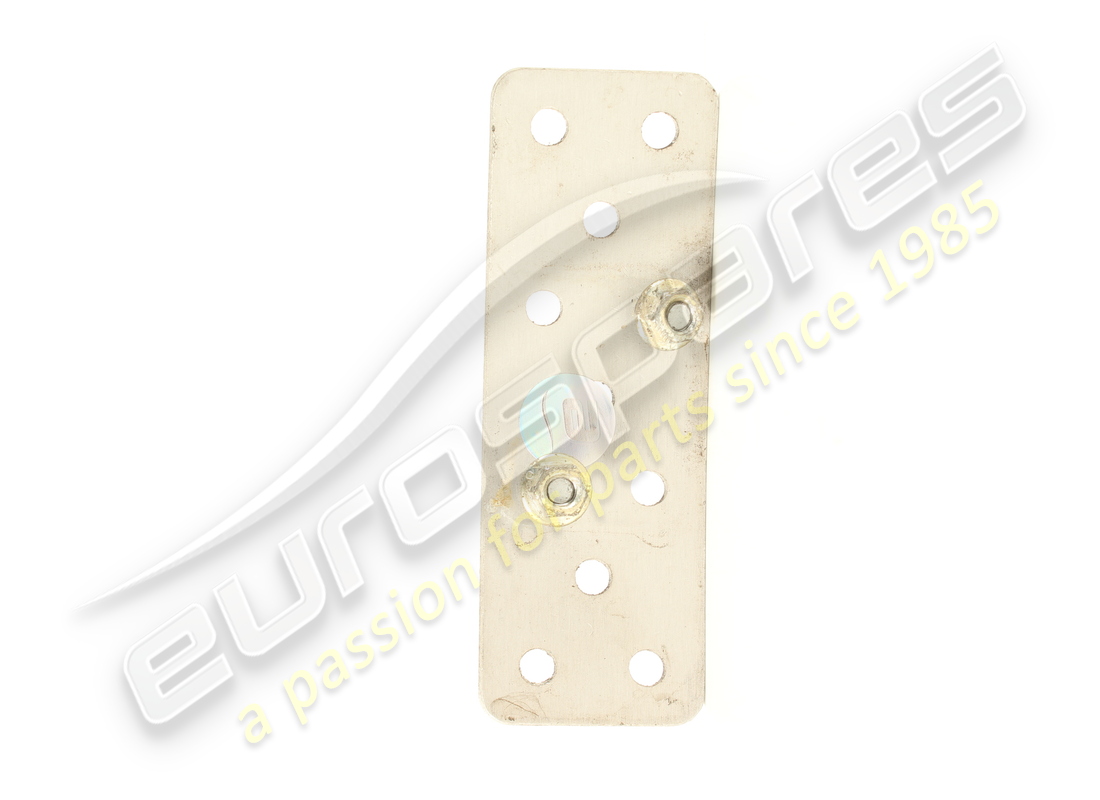

                                                                                                                BRAKE PEDAL DRILLED PLATE
                                                                                                                from £78.77
                                                                                                                from £78.77
                                                                                                                # 015
                                                                                                                MPN: 162807
                                                                                                                CLUTCH PEDAL
                                                                                                                - Valid till car No 106398 - Not for GD
                                                                                                                from £662.29
                                                                                                                from £662.29
                                                                                                                # 015
                                                                                                                MPN: 170707
                                                                                                                CLUTCH PEDAL
                                                                                                                - Valid from car No 106399 - Not for GD
                                                                                                                from £314.26
                                                                                                                from £314.26
                                                                                                                # 015
                                                                                                                MPN: 170761
                                                                                                                CLUTCH PEDAL
                                                                                                                - Valid for GD
                                                                                                                from £459.80
                                                                                                                from £459.80
                                                                                                                # 016
                                                                                                                MPN: 109407
                                                                                                                BALL JOINT
                                                                                                                from £21.94
                                                                                                                from £21.94
                                                                                                                # 017
                                                                                                                MPN: 103163
                                                                                                                BUSHING
                                                                                                                from £2.85
                                                                                                                from £2.85
                                                                                                                # 018
                                                                                                                MPN: 163871
                                                                                                                CLUTCH PEDAL DRILLED PLATE
                                                                                                                from £93.78
                                                                                                                from £93.78
                                                                                                                # 019
                                                                                                                MPN: 129954
                                                                                                                PEDALS SUPPORT PIN
                                                                                                                from £205.33
                                                                                                                from £205.33
                                                                                                                # 020
                                                                                                                MPN: 10902224
                                                                                                                SCREW
                                                                                                                from £0.53
                                                                                                                from £0.53
                                                                                                                # 021
                                                                                                                MPN: 12601274
                                                                                                                WASHER
                                                                                                                from £0.54
                                                                                                                from £0.54
                                                                                                                This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                                # 022
                                                                                                                MPN: 106083
                                                                                                                SPACER WASHER
                                                                                                                from £0.71
                                                                                                                from £0.71
                                                                                                                # 023
                                                                                                                MPN: 106083
                                                                                                                WASHER MM. 1.0
                                                                                                                - Possible fitting
                                                                                                                from £0.71
                                                                                                                from £0.71
                                                                                                                # 023
                                                                                                                MPN: 113833
                                                                                                                DITTO, THICKNESS MM. 1.1
                                                                                                                from £1.85
                                                                                                                from £1.85
                                                                                                                # 023
                                                                                                                MPN: 113834
                                                                                                                DITTO, THICKNESS MM. 1.2
                                                                                                                from £2.07
                                                                                                                from £2.07
                                                                                                                # 023
                                                                                                                MPN: 113835
                                                                                                                DITTO, THICKNESS MM. 1.3
                                                                                                                from £1.85
                                                                                                                from £1.85
                                                                                                                # 023
                                                                                                                MPN: 113836
                                                                                                                DITTO, THICKNESS MM. 1.4
                                                                                                                from £2.32
                                                                                                                from £2.32
                                                                                                                # 024
                                                                                                                MPN: 101305
                                                                                                                SPRING
                                                                                                                from £8.15
                                                                                                                from £8.15
                                                                                                                This part replaces part number 660343
                                                                                                                # 025
                                                                                                                MPN: 164393
                                                                                                                FORK FOR CLUTCH LEVER
                                                                                                                from £30.77
                                                                                                                from £30.77
                                                                                                                # 026
                                                                                                                MPN: 10248271
                                                                                                                FORK FOR BRAKE LEVER
                                                                                                                from £12.82
                                                                                                                from £12.82
                                                                                                                # 028
                                                                                                                MPN: 147985
                                                                                                                NUT
                                                                                                                from £0.54
                                                                                                                from £0.54
                                                                                                                # 029
                                                                                                                MPN: 16102314
                                                                                                                NUT
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                This part replaces part number 16102311 which we have in stock - and 1 more. Click to view details
                                                                                                                # 030
                                                                                                                MPN: 144011
                                                                                                                PIN
                                                                                                                from £10.00
                                                                                                                from £10.00
                                                                                                                # 031
                                                                                                                MPN: 16102314
                                                                                                                NUT
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                This part replaces part number 16102311 which we have in stock - and 1 more. Click to view details
                                                                                                                # 032
                                                                                                                MPN: 170676
                                                                                                                Accelerator Pedal
                                                                                                                from £148.08
                                                                                                                from £148.08
                                                                                                                # 033
                                                                                                                MPN: 101677
                                                                                                                ROLLER BEARING
                                                                                                                from £2.05
                                                                                                                from £2.05
                                                                                                                # 034
                                                                                                                MPN: 138219
                                                                                                                CARRIER BUSH
                                                                                                                from £58.51
                                                                                                                from £58.51
                                                                                                                # 035
                                                                                                                MPN: 123961
                                                                                                                PIN
                                                                                                                from £2.48
                                                                                                                from £2.48
                                                                                                                # 036
                                                                                                                MPN: 16102314
                                                                                                                NUT
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                This part replaces part number 16102311 which we have in stock - and 1 more. Click to view details
                                                                                                                # 037
                                                                                                                MPN: 152328
                                                                                                                ACCELERATOR SUPPORT
                                                                                                                from £7.87
                                                                                                                from £7.87
                                                                                                                # 038
                                                                                                                MPN: 10903621
                                                                                                                SCREW
                                                                                                                from £0.53
                                                                                                                from £0.53
                                                                                                                # 039
                                                                                                                MPN: 102741
                                                                                                                NUT
                                                                                                                from £0.53
                                                                                                                from £0.53
                                                                                                                This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                                                # 040
                                                                                                                MPN: 164394
                                                                                                                GASKET
                                                                                                                - Valid till car No 106398
                                                                                                                from £10.89
                                                                                                                from £10.89
                                                                                                                # 040
                                                                                                                MPN: 170706
                                                                                                                GASKET
                                                                                                                - Valid from car No 106399
                                                                                                                from £7.49
                                                                                                                from £7.49
                                                                                                                # 041
                                                                                                                MPN: 162381
                                                                                                                ACCELERATOR CABLE
                                                                                                                - Not for GD - Valid till stock exhaustion
                                                                                                                Supersession
                                                                                                                Supersession
                                                                                                                # 041
                                                                                                                MPN: 169884
                                                                                                                ACCELERATOR CABLE
                                                                                                                - Valid for GD - Valid till stock exhaustion
                                                                                                                Supersession
                                                                                                                Supersession
                                                                                                                # 041
                                                                                                                MPN: 178185
                                                                                                                ACCELERATOR CABLE
                                                                                                                - Not for GD - Valid after stock exhaustion of 162381
                                                                                                                from £50.68
                                                                                                                from £50.68
                                                                                                                This part replaces part number 162381
                                                                                                                # 041
                                                                                                                MPN: 178186
                                                                                                                ACCELERATOR CABLE
                                                                                                                - Valid for GD - Valid after stock exhaustion of 169884
                                                                                                                from £47.31
                                                                                                                from £47.31
                                                                                                                This part replaces part number 169884
                                                                                                                # 042
                                                                                                                MPN: 15896470
                                                                                                                NUT
                                                                                                                (minimum order quantity = 20)
                                                                                                                from £0.77
                                                                                                                from £0.77
                                                                                                                This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                                                                                # 043
                                                                                                                MPN: 173999
                                                                                                                RH THREAD THROTTLE BALL JOINT
                                                                                                                from £4.17
                                                                                                                from £4.17
                                                                                                                This part replaces part number 105617
                                                                                                                # 044
                                                                                                                MPN: 174001
                                                                                                                CLIP
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                This part replaces part number 10124776 - and 1 more. Click to view details
                                                                                                                # 045
                                                                                                                MPN: 157557
                                                                                                                PULLEY
                                                                                                                from £11.42
                                                                                                                from £11.42
                                                                                                                This part replaces part number 105665 - and 3 more. Click to view details
                                                                                                                # 046
                                                                                                                MPN: 152377
                                                                                                                SUPPORT
                                                                                                                from £21.95
                                                                                                                from £21.95
                                                                                                                # 047
                                                                                                                MPN: 10902624
                                                                                                                SCREW
                                                                                                                from £0.53
                                                                                                                from £0.53
                                                                                                                This part replaces part number 10902621
                                                                                                                # 048
                                                                                                                MPN: 102741
                                                                                                                NUT
                                                                                                                from £0.53
                                                                                                                from £0.53
                                                                                                                This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                                                # 049
                                                                                                                MPN: 14499401
                                                                                                                WASHER
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                # 050
                                                                                                                MPN: 127496
                                                                                                                WASHER
                                                                                                                from £0.54
                                                                                                                from £0.54
                                                                                                                This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                                                # 051
                                                                                                                MPN: 16043324
                                                                                                                SCREW
                                                                                                                from £0.53
                                                                                                                from £0.53
                                                                                                                This part replaces part number 16043321
                                                                                                                # 052
                                                                                                                MPN: 104030
                                                                                                                NUT
                                                                                                                from £0.53
                                                                                                                from £0.53
                                                                                                                This part replaces part number 16104125
                                                                                                                # 053
                                                                                                                MPN: 14441324
                                                                                                                SCREW
                                                                                                                from £0.51
                                                                                                                from £0.51
                                                                                                                # 054
                                                                                                                MPN: 14058411
                                                                                                                NUT
                                                                                                                from £0.53
                                                                                                                from £0.53
                                                                                                                # 055
                                                                                                                MPN: 164037
                                                                                                                ACCELERATOR PEDAL DRILLED PLATE
                                                                                                                from £44.99
                                                                                                                from £44.99
                                                                                                                # 056
                                                                                                                MPN: 14440734
                                                                                                                SCREW
                                                                                                                from £1.55
                                                                                                                from £1.55
                                                                                                                This part replaces part number 14440721 - and 1 more. Click to view details
                                                                                                                # 057
                                                                                                                MPN: 14058311
                                                                                                                NUT
                                                                                                                from £0.53
                                                                                                                from £0.53
                                                                                                                # 058
                                                                                                                MPN: 102948
                                                                                                                NUT
                                                                                                                from £0.54
                                                                                                                from £0.54
                                                                                                                This part replaces part number 12574211 - and 3 more. Click to view details
                                                                                                                # 059
                                                                                                                MPN: 104030
                                                                                                                NUT
                                                                                                                from £0.53
                                                                                                                from £0.53
                                                                                                                This part replaces part number 16104125
                                                                                                                # 060
                                                                                                                MPN: 13276011
                                                                                                                SCREW
                                                                                                                from £13.53
                                                                                                                from £13.53
                                                                                                                # 061
                                                                                                                MPN: 14591687
                                                                                                                FIXING BUTTON
                                                                                                                - For cars GS valid till car - Ass. Nr. 32101 and till car - Ass. Nr. 32056 M.Y. 99
                                                                                                                from £0.26
                                                                                                                from £0.26
                                                                                                                This part replaces part number 69767700 - and 1 more. Click to view details
                                                                                                                # 062
                                                                                                                MPN: 175190
                                                                                                                SHEATH
                                                                                                                from £6.55
                                                                                                                from £6.55
                                                                                                                # 063
                                                                                                                MPN: 175191
                                                                                                                SLEEVE
                                                                                                                from £9.89
                                                                                                                from £9.89
