![ferrari 550 maranello air intake parts diagram](/img/ixAAAETdFtv3v2RLGXIGIiiqZYhGoUGi83Eu_bpINB4VPMPGlgED/ferrari-550-maranello-part-diagram-021.webp)

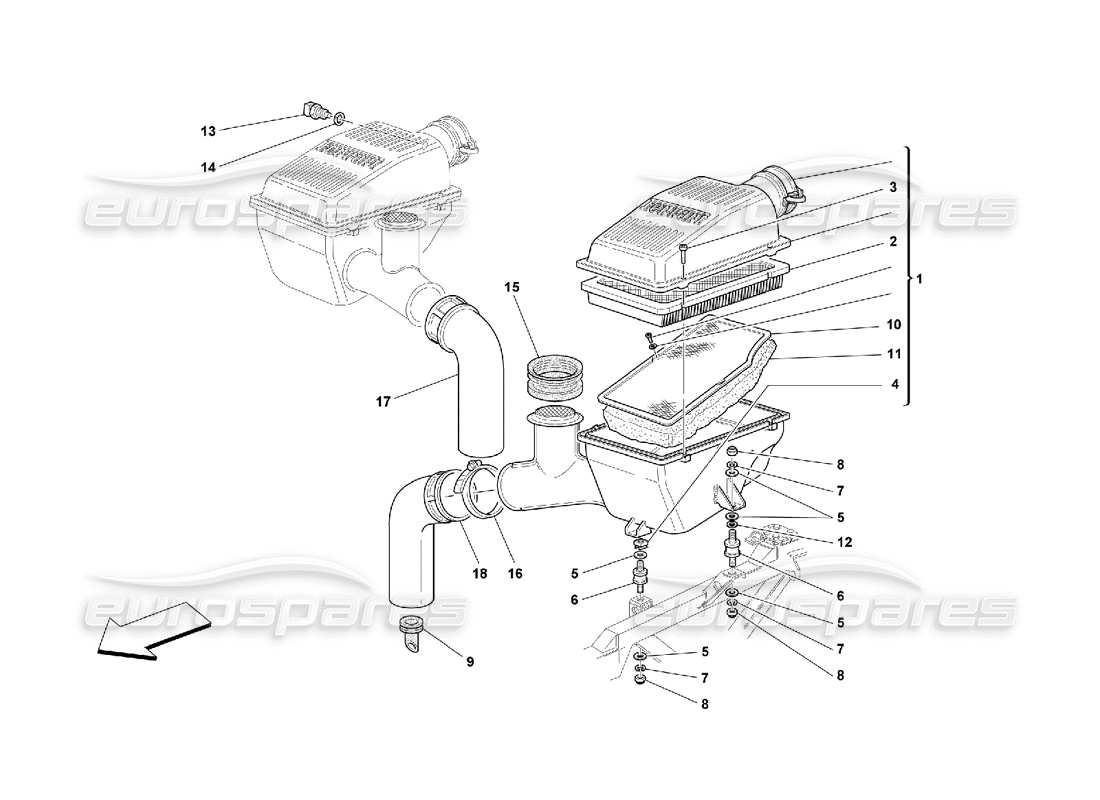

021 - AIR INTAKE
Ferrari 550 Maranello Air Intake Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 70001326/A
SERVICE KIT
(x2 oil filters 206166, x2 air filters 151562, x2 fuel filters 152212, x1 sump washer 10261860)
# 001
MPN: 168087

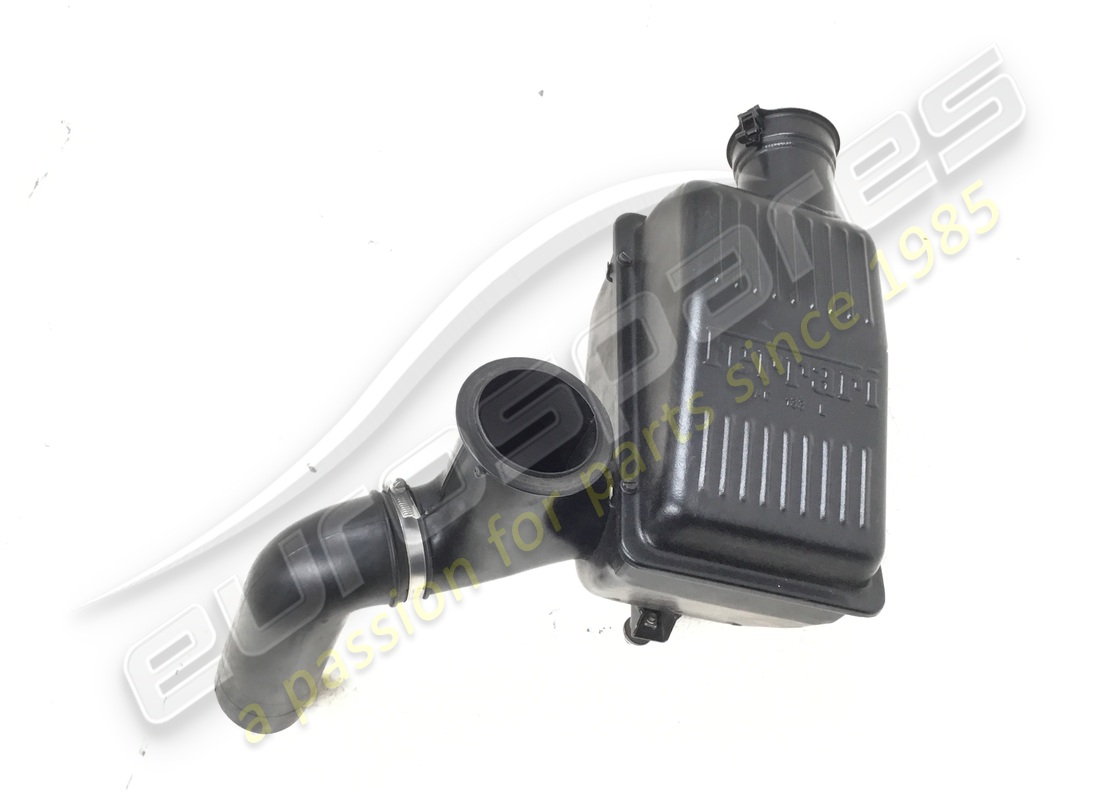

COMPLETE RH AIR INTAKE
from £237.29
from £237.29
This part replaces part number 163161 - and 2 more. Click to view details
# 001
MPN: 168088
COMPLETE LH AIR INTAKE
from £237.29
from £237.29
This part replaces part number 163162 - and 1 more. Click to view details
# 002
MPN: 151562
AIR FILER
from £33.15
from £33.15
# 003
MPN: 157757/A
SCREW
from £8.99
from £8.99
# 004
MPN: 14074790
NUT
from £1.32
from £1.32
# 005
MPN: 12643724
WASHER
from £0.47
from £0.47
This part replaces part number 109684 - and 4 more. Click to view details
# 006
MPN: 142202
ANTI-VIBRATION SUPPORT
from £14.62
from £14.62
# 007
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.51
from £0.51
This part replaces part number 10516470 - and 4 more. Click to view details
# 008
MPN: 15896214
NUT
from £0.53
from £0.53
This part replaces part number 15896211
# 009
MPN: 169404
RUBBER END
from £9.88
from £9.88
# 010
MPN: 152579
AIR INTAKE SHIELD
from £39.19
from £39.19
# 011
MPN: 152578
FILTER
from £112.68
from £112.68
# 012
MPN: 12640624
WASHER
from £0.47
from £0.47
This part replaces part number 12640601 - and 1 more. Click to view details
# 013
MPN: 162419

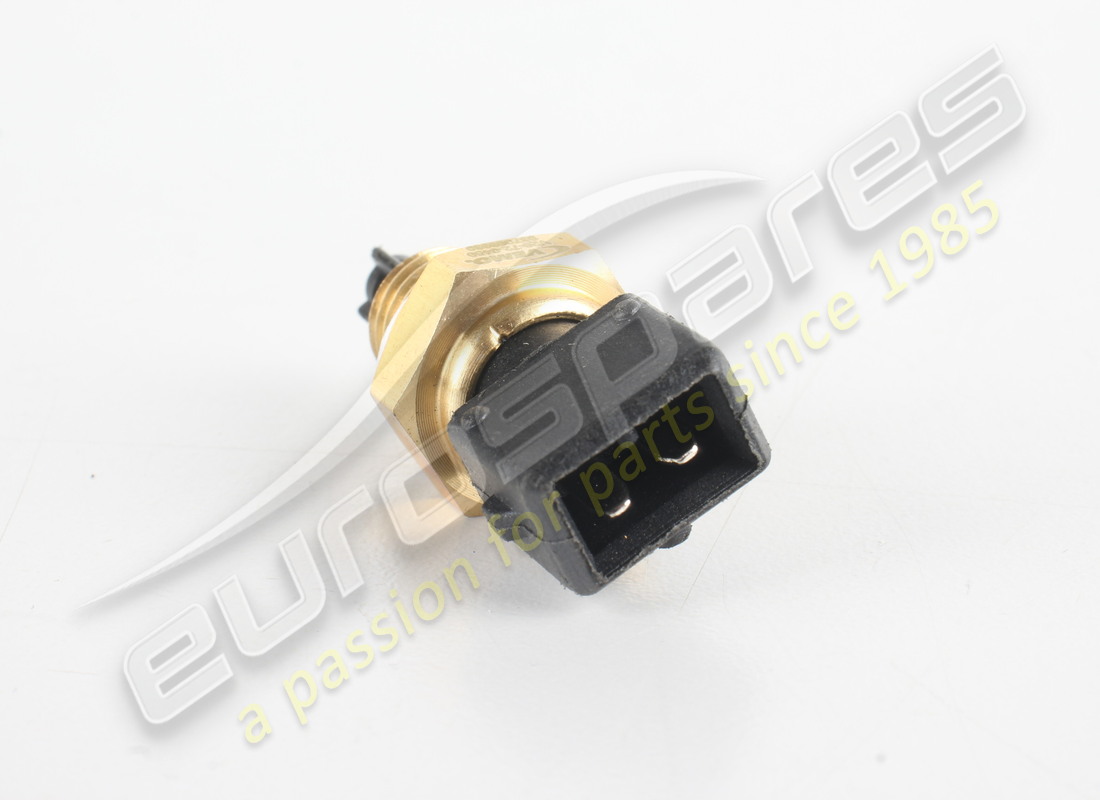

AIR TEMPERATURE SENSOR
from £36.31
from £36.31
# 014
MPN: 10296160
GASKET
from £0.47
from £0.47
# 015
MPN: 165855
CONVEYOR BELLOWS
from £24.59
from £24.59
# 016
MPN: 13001190
SCREW COLLAR
from £0.62
from £0.62
# 017
MPN: 168089

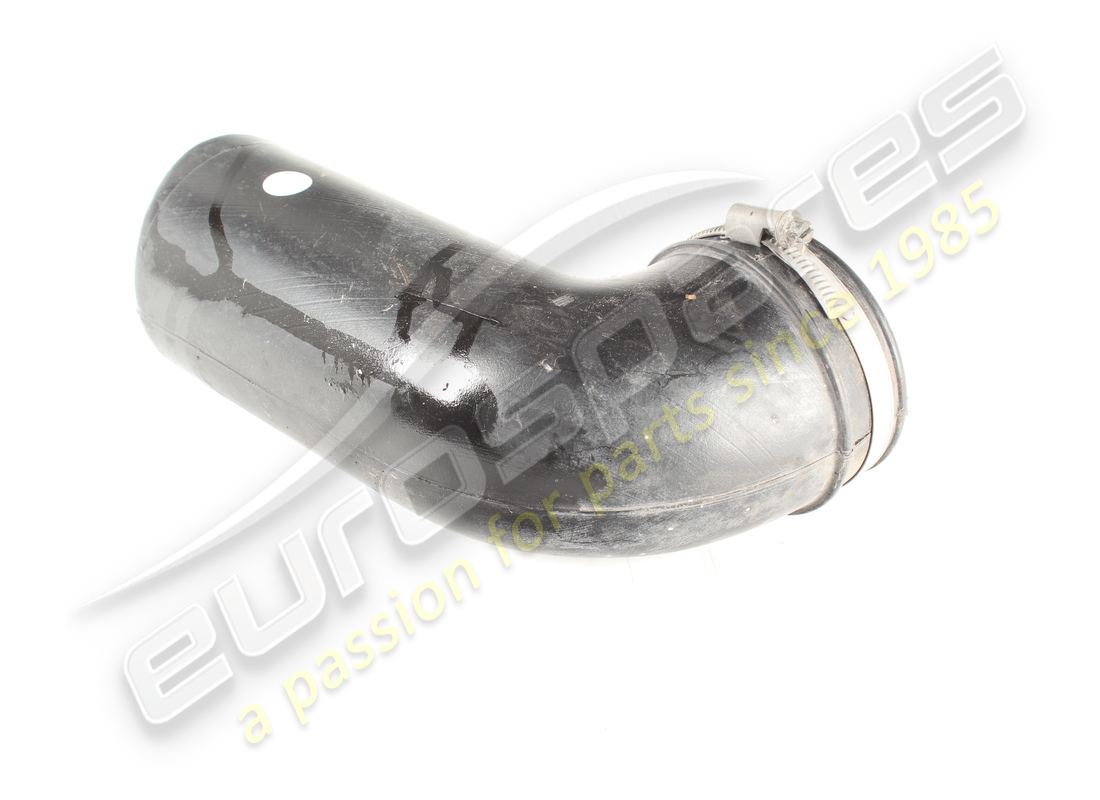

RH DUCT
from £10.27
from £10.27
# 018
MPN: 172957
LH DUCT
from £9.75
from £9.75
