Ferrari 550 Maranello Air Intake Manifolds Parts Diagram

020 - Air Intake Manifolds

Ferrari 550 Maranello Air Intake Manifolds Parts Diagram

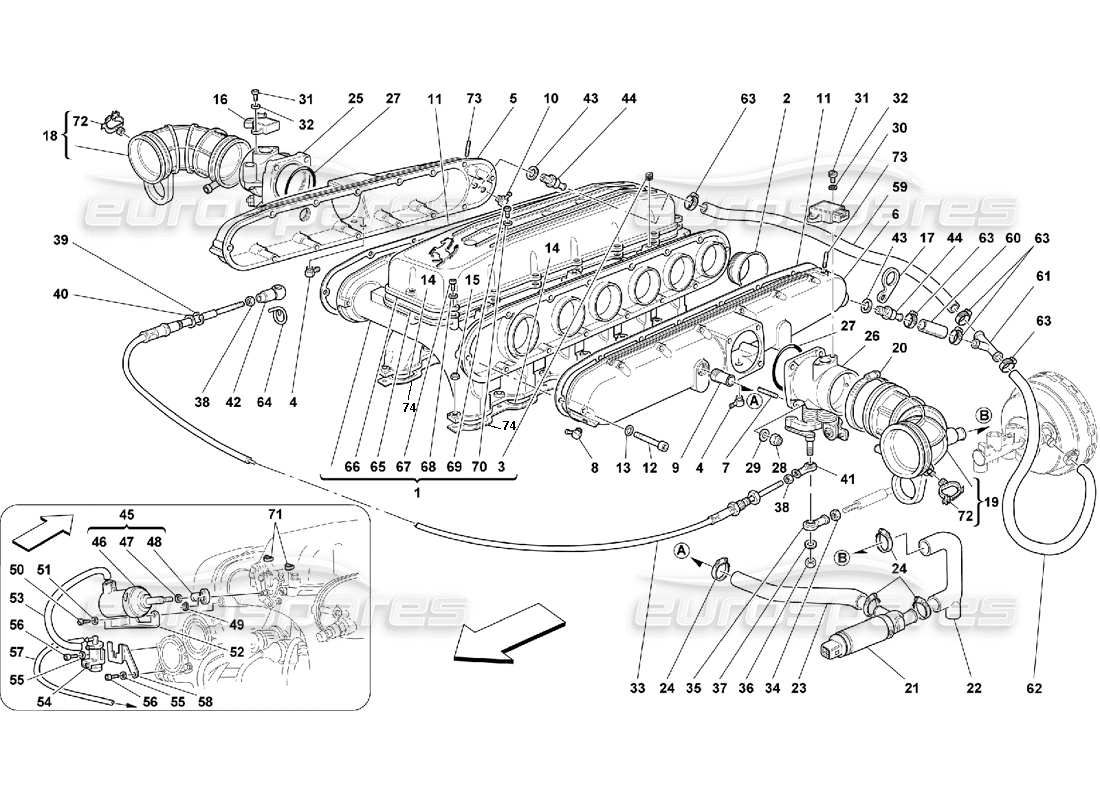

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                          #
                                                                                                                          Part number
                                                                                                                          Description
                                                                                                                          Price
                                                                                                                          # 000
                                                                                                                          MPN: 168096
                                                                                                                          COMPLETE SUCTION MANIFOLD WITH ACTUATOR
                                                                                                                          - Valid till engine Nr. 49833
                                                                                                                          Supersession
                                                                                                                          Supersession
                                                                                                                          This part replaces part number 162768
                                                                                                                          # 000
                                                                                                                          MPN: 171619
                                                                                                                          RH COMPLETE SUCTION MANIFOLDS COVER
                                                                                                                          - Valid till car Ass. Nr. 32101 GS and till car Ass. Nr. 32104 GD - Not for USA M.Y. 99 and CDN M.Y. 99
                                                                                                                          from £414.88
                                                                                                                          from £414.88
                                                                                                                          # 000
                                                                                                                          MPN: 171620
                                                                                                                          LH COMPLETE SUCTION MANIFOLDS COVER
                                                                                                                          - Valid till car Ass. Nr. 32101 GS and till car Ass. Nr. 32104 GD - Not for USA M.Y. 99 and CDN M.Y. 99
                                                                                                                          from £403.35
                                                                                                                          from £403.35
                                                                                                                          # 000
                                                                                                                          MPN: 177538

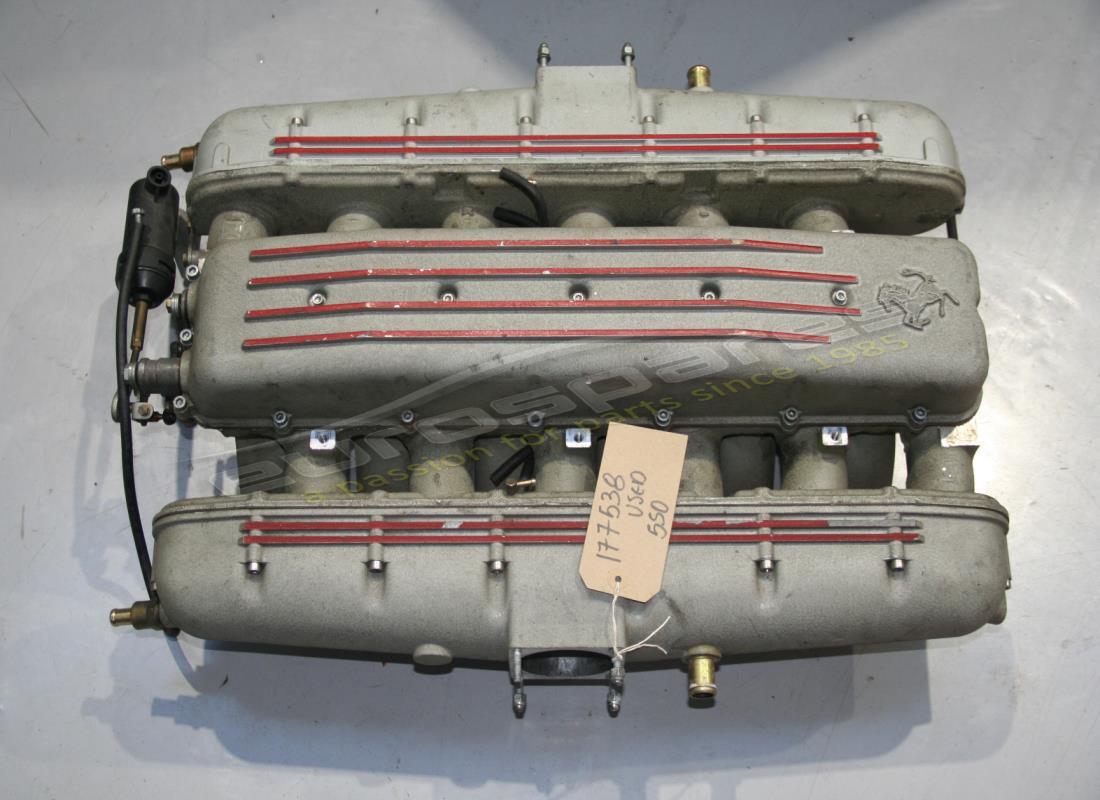

                                                                                                                          COMPLETE SUCTION MANIFOLD WITH ACTUATOR
                                                                                                                          - Valid from engine Nr. 49834
                                                                                                                          from £2,140.70
                                                                                                                          from £2,140.70
                                                                                                                          This part replaces part number 168096 - and 2 more. Click to view details
                                                                                                                          # 000
                                                                                                                          MPN: 183031
                                                                                                                          RH COMPLETE SUCTION MANIFOLDS COVER
                                                                                                                          - Valid from car Ass. Nr. 32102 GS and from car Ass. Nr. 32105 GD - Not for USA M.Y. 99 and CDN M.Y. 99
                                                                                                                          from £380.51
                                                                                                                          from £380.51
                                                                                                                          # 000
                                                                                                                          MPN: 183032
                                                                                                                          LH COMPLETE SUCTION MANIFOLDS COVER
                                                                                                                          - Valid from car Ass. Nr. 32102 GS and from car Ass. Nr. 32105 GD - Not for USA M.Y. 99 and CDN M.Y. 99
                                                                                                                          from £373.43
                                                                                                                          from £373.43
                                                                                                                          # 000
                                                                                                                          MPN: 183051
                                                                                                                          RH COMPLETE SUCTION MANIFOLDS COVER
                                                                                                                          - Valid till car Ass. Nr. 32056 - Valid for USA M.Y. 99 and CDN M.Y. 99
                                                                                                                          from £226.25
                                                                                                                          from £226.25
                                                                                                                          # 000
                                                                                                                          MPN: 183052
                                                                                                                          LH COMPLETE SUCTION MANIFOLDS COVER
                                                                                                                          - Valid till car Ass. Nr. 32056 - Valid for USA M.Y. 99 and CDN M.Y. 99
                                                                                                                          from £226.25
                                                                                                                          from £226.25
                                                                                                                          # 000
                                                                                                                          MPN: 183053
                                                                                                                          RH COMPLETE SUCTION MANIFOLDS COVER
                                                                                                                          - Valid from car Ass. Nr. 32057 - Valid for USA M.Y. 99 and CDN M.Y. 99
                                                                                                                          from £370.72
                                                                                                                          from £370.72
                                                                                                                          # 000
                                                                                                                          MPN: 183054
                                                                                                                          LH COMPLETE SUCTION MANIFOLDS COVER
                                                                                                                          - Valid from car Ass. Nr. 32057 - Valid for USA M.Y. 99 and CDN M.Y. 99
                                                                                                                          from £370.72
                                                                                                                          from £370.72
                                                                                                                          # 001
                                                                                                                          MPN: 162768
                                                                                                                          SUCTION MANIFOLD
                                                                                                                          - Valid till engine Nr. 49833 - Not as spare part - With complete suction manifolds
                                                                                                                          Supersession
                                                                                                                          Supersession
                                                                                                                          # 001
                                                                                                                          MPN: 177539
                                                                                                                          SUCTION MANIFOLD
                                                                                                                          - Valid from engine Nr. 49834 - Not as spare part - With complete suction manifolds
                                                                                                                          # 002
                                                                                                                          MPN: 168161
                                                                                                                          END MANIFOLD
                                                                                                                          from £18.22
                                                                                                                          from £18.22
                                                                                                                          # 003
                                                                                                                          MPN: 13525570
                                                                                                                          THREADED INSERT
                                                                                                                          from £2.28
                                                                                                                          from £2.28
                                                                                                                          This part replaces part number 109668
                                                                                                                          # 004
                                                                                                                          MPN: 128016
                                                                                                                          UNION
                                                                                                                          - Not for USA M.Y. 99 and CDN M.Y. 99
                                                                                                                          from £6.85
                                                                                                                          from £6.85
                                                                                                                          # 004
                                                                                                                          MPN: 174818
                                                                                                                          UNION
                                                                                                                          - Valid for USA M.Y. 99 and CDN M.Y. 99
                                                                                                                          from £9.26
                                                                                                                          from £9.26
                                                                                                                          # 005
                                                                                                                          -
                                                                                                                          RH SUCTION MANIFOLDS COVER
                                                                                                                          # 006
                                                                                                                          -
                                                                                                                          LH SUCTION MANIFOLDS COVER
                                                                                                                          # 007
                                                                                                                          MPN: 13541324
                                                                                                                          STUD
                                                                                                                          from £0.97
                                                                                                                          from £0.97
                                                                                                                          This part replaces part number 13541321
                                                                                                                          # 008
                                                                                                                          MPN: 128016
                                                                                                                          UNION
                                                                                                                          from £6.85
                                                                                                                          from £6.85
                                                                                                                          # 009
                                                                                                                          MPN: 143286
                                                                                                                          UNION
                                                                                                                          from £3.15
                                                                                                                          from £3.15
                                                                                                                          # 010
                                                                                                                          MPN: 128016
                                                                                                                          UNION
                                                                                                                          from £6.85
                                                                                                                          from £6.85
                                                                                                                          # 011
                                                                                                                          MPN: 154562
                                                                                                                          GASKET
                                                                                                                          from £8.06
                                                                                                                          from £8.06
                                                                                                                          # 012
                                                                                                                          MPN: 156828
                                                                                                                          SCREW
                                                                                                                          from £1.57
                                                                                                                          from £1.57
                                                                                                                          This part replaces part number 14306024
                                                                                                                          # 013
                                                                                                                          MPN: 12601274
                                                                                                                          WASHER
                                                                                                                          from £0.49
                                                                                                                          from £0.49
                                                                                                                          This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                                          # 014
                                                                                                                          MPN: 324050
                                                                                                                          INLET GASKET
                                                                                                                          from £6.38
                                                                                                                          from £6.38
                                                                                                                          This part replaces part number 225462
                                                                                                                          # 015
                                                                                                                          MPN: 159601
                                                                                                                          NUT
                                                                                                                          from £0.51
                                                                                                                          from £0.51
                                                                                                                          This part replaces part number 12578121
                                                                                                                          # 016
                                                                                                                          MPN: 172750
                                                                                                                          POTENTIOMETER FOR RH THROTTLE VALVE
                                                                                                                          from £171.24
                                                                                                                          from £171.24
                                                                                                                          # 017
                                                                                                                          MPN: 154754
                                                                                                                          BRACKET
                                                                                                                          - Valid till engine Nr. 52415
                                                                                                                          from £0.71
                                                                                                                          from £0.71
                                                                                                                          # 018
                                                                                                                          MPN: 159830
                                                                                                                          RH SLEEVE
                                                                                                                          from £96.62
                                                                                                                          from £96.62
                                                                                                                          This part replaces part number 154437
                                                                                                                          # 018
                                                                                                                          MPN: 180140
                                                                                                                          RH SLEEVE
                                                                                                                          - Valid from engine Nr. 52416
                                                                                                                          from £77.23
                                                                                                                          from £77.23
                                                                                                                          # 019
                                                                                                                          MPN: 159831
                                                                                                                          LH SLEEVE
                                                                                                                          - Valid till engine Nr. 52415
                                                                                                                          from £96.62
                                                                                                                          from £96.62
                                                                                                                          This part replaces part number 154438
                                                                                                                          # 019
                                                                                                                          MPN: 180141
                                                                                                                          LH SLEEVE
                                                                                                                          - Valid from engine Nr. 52416
                                                                                                                          from £77.23
                                                                                                                          from £77.23
                                                                                                                          # 020
                                                                                                                          MPN: 13001190
                                                                                                                          SCREEW COLLAR
                                                                                                                          from £0.86
                                                                                                                          from £0.86
                                                                                                                          # 021
                                                                                                                          MPN: 142432
                                                                                                                          REGULATOR FOR IDLE ADJUSTMENT
                                                                                                                          from £189.00
                                                                                                                          from £189.00
                                                                                                                          # 022
                                                                                                                          MPN: 159120
                                                                                                                          PIPE FROM REGULATOR TO SLEEVE
                                                                                                                          from £103.14
                                                                                                                          from £103.14
                                                                                                                          This part replaces part number 154440 - and 3 more. Click to view details
                                                                                                                          # 023
                                                                                                                          MPN: 171759
                                                                                                                          PIPE FROM REGULATOR TO PLENUM CHAMBER
                                                                                                                          from £43.44
                                                                                                                          from £43.44
                                                                                                                          This part replaces part number 154441 which we have in stock
                                                                                                                          # 024
                                                                                                                          MPN: 13000490
                                                                                                                          SCREW COLLAR
                                                                                                                          from £0.48
                                                                                                                          from £0.48
                                                                                                                          This part replaces part number 10169090 - and 3 more. Click to view details
                                                                                                                          # 025
                                                                                                                          MPN: 171006
                                                                                                                          COMPLETE RH THROTTLE HOLDER
                                                                                                                          - Not for GD
                                                                                                                          from £345.92
                                                                                                                          from £345.92
                                                                                                                          # 025
                                                                                                                          MPN: 174463
                                                                                                                          COMPLETE RH THROTTLE HOLDER
                                                                                                                          - Valid for GD
                                                                                                                          from £549.51
                                                                                                                          from £549.51
                                                                                                                          # 026
                                                                                                                          MPN: 171007
                                                                                                                          COMPLETE LH THROTTLE HOLDER
                                                                                                                          - Not for GD
                                                                                                                          from £296.20
                                                                                                                          from £296.20
                                                                                                                          # 026
                                                                                                                          MPN: 171203
                                                                                                                          COMPLETE LH THROTTLE HOLDER
                                                                                                                          - Valid for GD
                                                                                                                          from £628.95
                                                                                                                          from £628.95
                                                                                                                          # 027
                                                                                                                          MPN: 142934
                                                                                                                          O.R. GASKET
                                                                                                                          from £6.15
                                                                                                                          from £6.15
                                                                                                                          This part replaces part number 147901
                                                                                                                          # 028
                                                                                                                          MPN: 101239
                                                                                                                          NUT
                                                                                                                          from £1.60
                                                                                                                          from £1.60
                                                                                                                          # 029
                                                                                                                          MPN: 14496424
                                                                                                                          WASHER
                                                                                                                          Supersession
                                                                                                                          Supersession
                                                                                                                          This part replaces part number 14496401 - and 3 more. Click to view details
                                                                                                                          # 030
                                                                                                                          MPN: 158170
                                                                                                                          POTENTIOMETER FOR LH THROTTLE VALVE
                                                                                                                          from £121.39
                                                                                                                          from £121.39
                                                                                                                          This part replaces part number 142434 - and 2 more. Click to view details
                                                                                                                          # 031
                                                                                                                          MPN: 10444521
                                                                                                                          SCREW
                                                                                                                          from £0.71
                                                                                                                          from £0.71
                                                                                                                          # 032
                                                                                                                          MPN: 12601074
                                                                                                                          WASHER
                                                                                                                          from £0.53
                                                                                                                          from £0.53
                                                                                                                          This part replaces part number 12601070 which we have in stock
                                                                                                                          # 033
                                                                                                                          MPN: 178200
                                                                                                                          PUSH-PULL CABLE
                                                                                                                          from £78.01
                                                                                                                          from £78.01
                                                                                                                          This part replaces part number 155543
                                                                                                                          # 033
                                                                                                                          MPN: 178200
                                                                                                                          PUSH-PULL CABLE
                                                                                                                          from £78.01
                                                                                                                          from £78.01
                                                                                                                          This part replaces part number 155543
                                                                                                                          # 034
                                                                                                                          MPN: 15896470
                                                                                                                          NUT
                                                                                                                          (minimum order quantity = 20)
                                                                                                                          from £0.78
                                                                                                                          from £0.78
                                                                                                                          This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                                                                                          # 035
                                                                                                                          MPN: 111530
                                                                                                                          BALL JOINT
                                                                                                                          from £25.42
                                                                                                                          from £25.42
                                                                                                                          # 036
                                                                                                                          MPN: 113647
                                                                                                                          NUT
                                                                                                                          from £0.54
                                                                                                                          from £0.54
                                                                                                                          # 037
                                                                                                                          MPN: 14496324
                                                                                                                          WASHER
                                                                                                                          from £1.42
                                                                                                                          from £1.42
                                                                                                                          This part replaces part number 14496301
                                                                                                                          # 038
                                                                                                                          MPN: 15896470
                                                                                                                          NUT
                                                                                                                          (minimum order quantity = 20)
                                                                                                                          from £0.78
                                                                                                                          from £0.78
                                                                                                                          This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                                                                                          # 039
                                                                                                                          MPN: 16160976

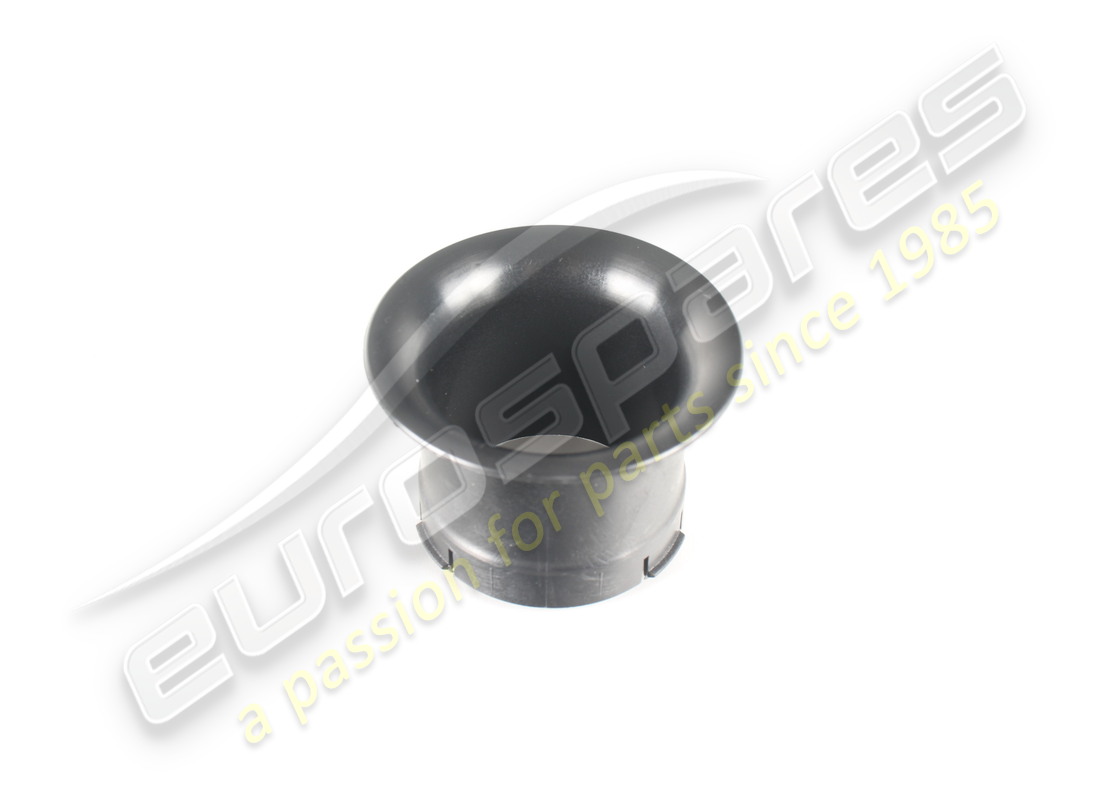

                                                                                                                          FLEXIBLE RING
                                                                                                                          from £0.53
                                                                                                                          from £0.53
                                                                                                                          # 040
                                                                                                                          MPN: 12638624
                                                                                                                          WASHER
                                                                                                                          from £0.54
                                                                                                                          from £0.54
                                                                                                                          # 041
                                                                                                                          MPN: 111530
                                                                                                                          BALL JOINT
                                                                                                                          from £25.42
                                                                                                                          from £25.42
                                                                                                                          # 042
                                                                                                                          MPN: 173999
                                                                                                                          RH THREAD THROTTLE BALL JOINT
                                                                                                                          from £2.56
                                                                                                                          from £2.56
                                                                                                                          This part replaces part number 105617 - and 2 more. Click to view details
                                                                                                                          # 043
                                                                                                                          MPN: 10298460

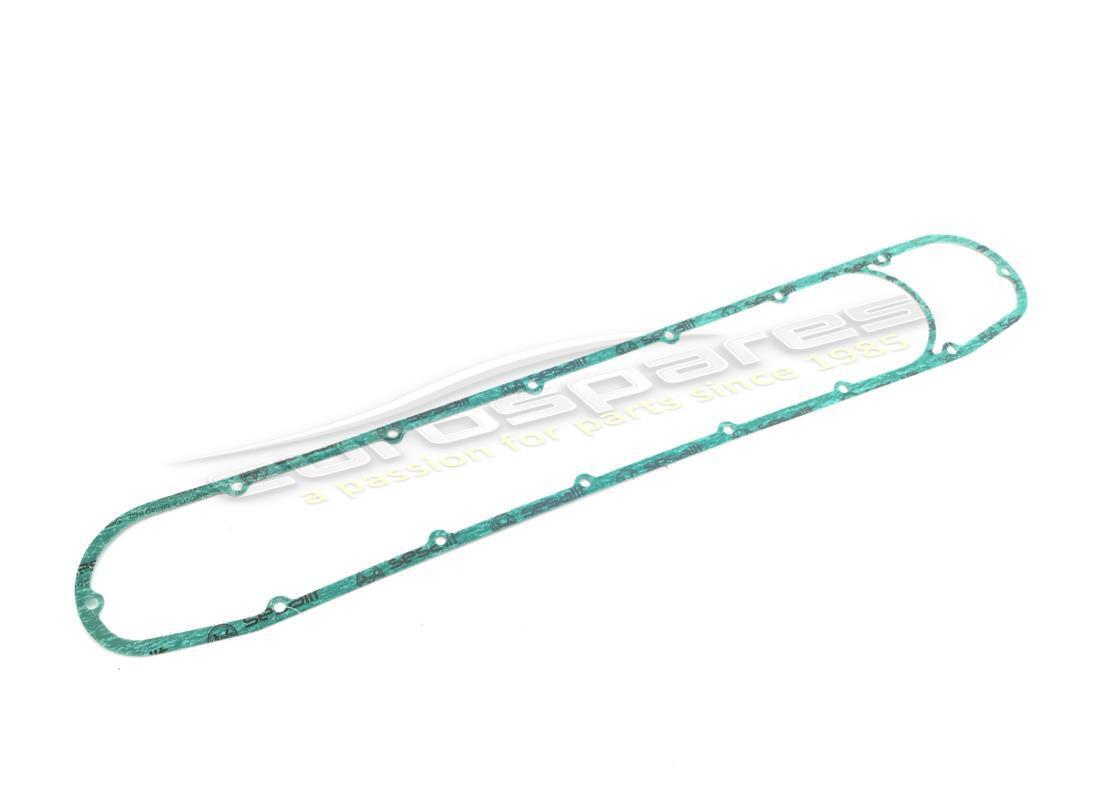

                                                                                                                          GASKET
                                                                                                                          from £0.53
                                                                                                                          from £0.53
                                                                                                                          This part replaces part number 93353
                                                                                                                          # 044
                                                                                                                          MPN: 147978
                                                                                                                          NONRETURN VALVE
                                                                                                                          from £4.87
                                                                                                                          from £4.87
                                                                                                                          # 045
                                                                                                                          MPN: 173602
                                                                                                                          COMPLETE ACTUATOR
                                                                                                                          Supersession
                                                                                                                          Supersession
                                                                                                                          This part replaces part number 173594
                                                                                                                          # 046
                                                                                                                          MPN: 173594
                                                                                                                          ACTUATOR
                                                                                                                          Supersession
                                                                                                                          Supersession
                                                                                                                          # 047
                                                                                                                          MPN: 173601
                                                                                                                          NUT
                                                                                                                          from £0.54
                                                                                                                          from £0.54
                                                                                                                          # 048
                                                                                                                          MPN: 173596
                                                                                                                          BALL JOINT
                                                                                                                          Supersession
                                                                                                                          Supersession
                                                                                                                          # 049
                                                                                                                          MPN: 173598
                                                                                                                          SEEGER RING
                                                                                                                          from £0.47
                                                                                                                          from £0.47
                                                                                                                          # 050
                                                                                                                          MPN: 173599
                                                                                                                          SCREW
                                                                                                                          from £2.25
                                                                                                                          from £2.25
                                                                                                                          # 051
                                                                                                                          MPN: 173600
                                                                                                                          WASHER
                                                                                                                          from £0.47
                                                                                                                          from £0.47
                                                                                                                          # 052
                                                                                                                          MPN: 173595
                                                                                                                          SUPPORT
                                                                                                                          from £21.48
                                                                                                                          from £21.48
                                                                                                                          # 053
                                                                                                                          MPN: 168248

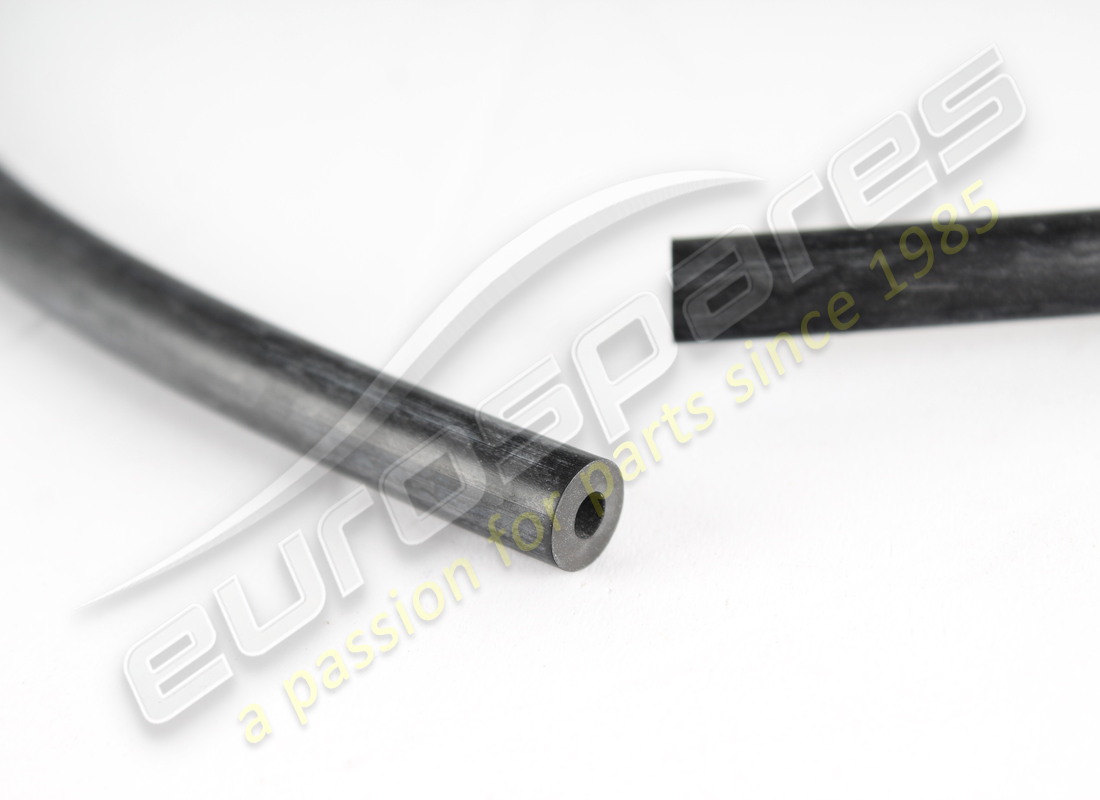

                                                                                                                          RUBBER PIPE
                                                                                                                          from £19.30
                                                                                                                          from £19.30
                                                                                                                          # 054
                                                                                                                          MPN: 159177
                                                                                                                          SOLENOID VALVE
                                                                                                                          from £107.31
                                                                                                                          from £107.31
                                                                                                                          This part replaces part number 154384 which we have in stock
                                                                                                                          # 055
                                                                                                                          MPN: 12601274
                                                                                                                          WASHER
                                                                                                                          from £0.53
                                                                                                                          from £0.53
                                                                                                                          This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                                          # 056
                                                                                                                          MPN: 14305224
                                                                                                                          SCREW
                                                                                                                          from £0.53
                                                                                                                          from £0.53
                                                                                                                          # 057
                                                                                                                          MPN: 122761

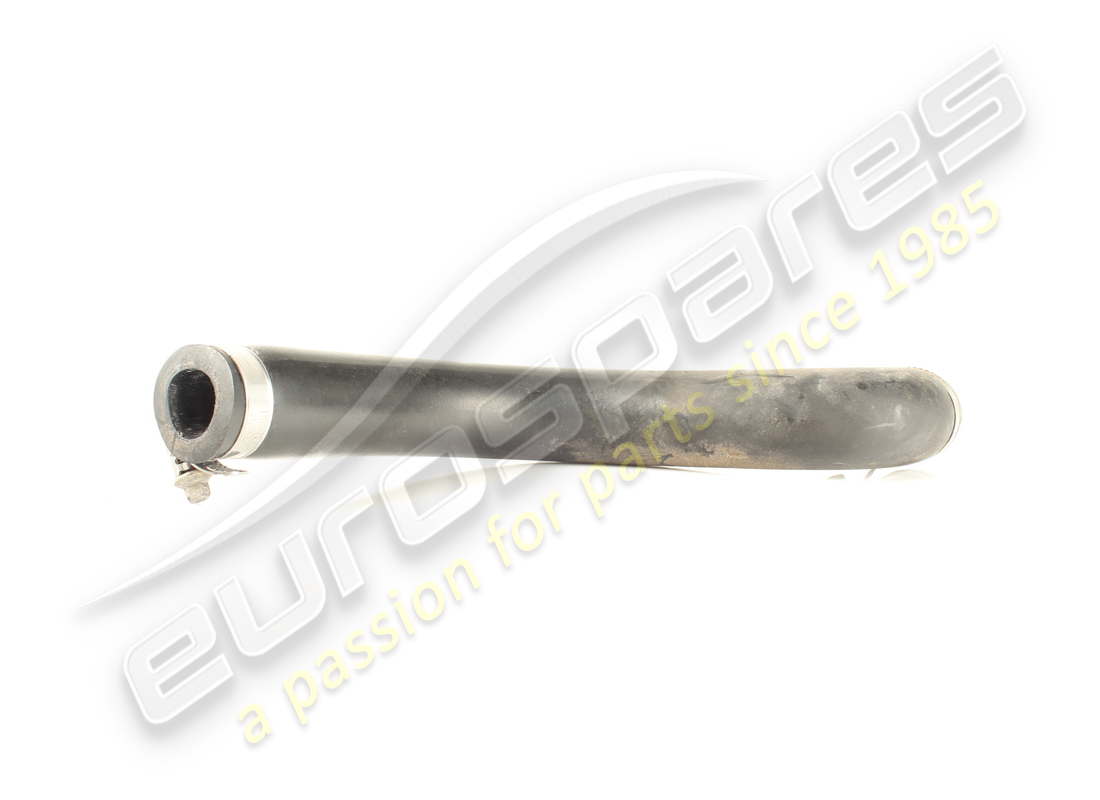

                                                                                                                          RUBBER PIPE FROM UNION TO SOLENOID VALVE
                                                                                                                          from £52.93
                                                                                                                          from £52.93
                                                                                                                          This part replaces part number 275542
                                                                                                                          # 058
                                                                                                                          MPN: 168246
                                                                                                                          SMALL PLATE
                                                                                                                          from £3.02
                                                                                                                          from £3.02
                                                                                                                          # 059
                                                                                                                          MPN: 173841
                                                                                                                          RUBBER PIPE FROM RH VALVE TO UNION
                                                                                                                          from £6.35
                                                                                                                          from £6.35
                                                                                                                          # 060
                                                                                                                          MPN: 111023
                                                                                                                          RUBBER PIPE FROM LH VALVE TO UNION
                                                                                                                          from £51.97
                                                                                                                          from £51.97
                                                                                                                          # 061
                                                                                                                          MPN: 100881
                                                                                                                          UNION
                                                                                                                          from £1.75
                                                                                                                          from £1.75
                                                                                                                          This part replaces part number 680025 - and 1 more. Click to view details
                                                                                                                          # 062
                                                                                                                          MPN: 168386
                                                                                                                          RUBBER PIPE FROM UNION TO BRAKE BOOSTER
                                                                                                                          - Not for GD
                                                                                                                          from £25.16
                                                                                                                          from £25.16
                                                                                                                          # 062
                                                                                                                          MPN: 173842
                                                                                                                          RUBBER PIPE FROM UNION TO BRAKE BOOSTER
                                                                                                                          - Valid for GD
                                                                                                                          from £44.17
                                                                                                                          from £44.17
                                                                                                                          This part replaces part number 200012
                                                                                                                          # 063
                                                                                                                          MPN: 13000390
                                                                                                                          SCREW COLLAR
                                                                                                                          from £0.51
                                                                                                                          from £0.51
                                                                                                                          This part replaces part number 12179590 - and 1 more. Click to view details
                                                                                                                          # 064
                                                                                                                          MPN: 174001
                                                                                                                          CLIP
                                                                                                                          from £0.54
                                                                                                                          from £0.54
                                                                                                                          This part replaces part number 10124776 - and 1 more. Click to view details
                                                                                                                          # 065
                                                                                                                          MPN: 162904

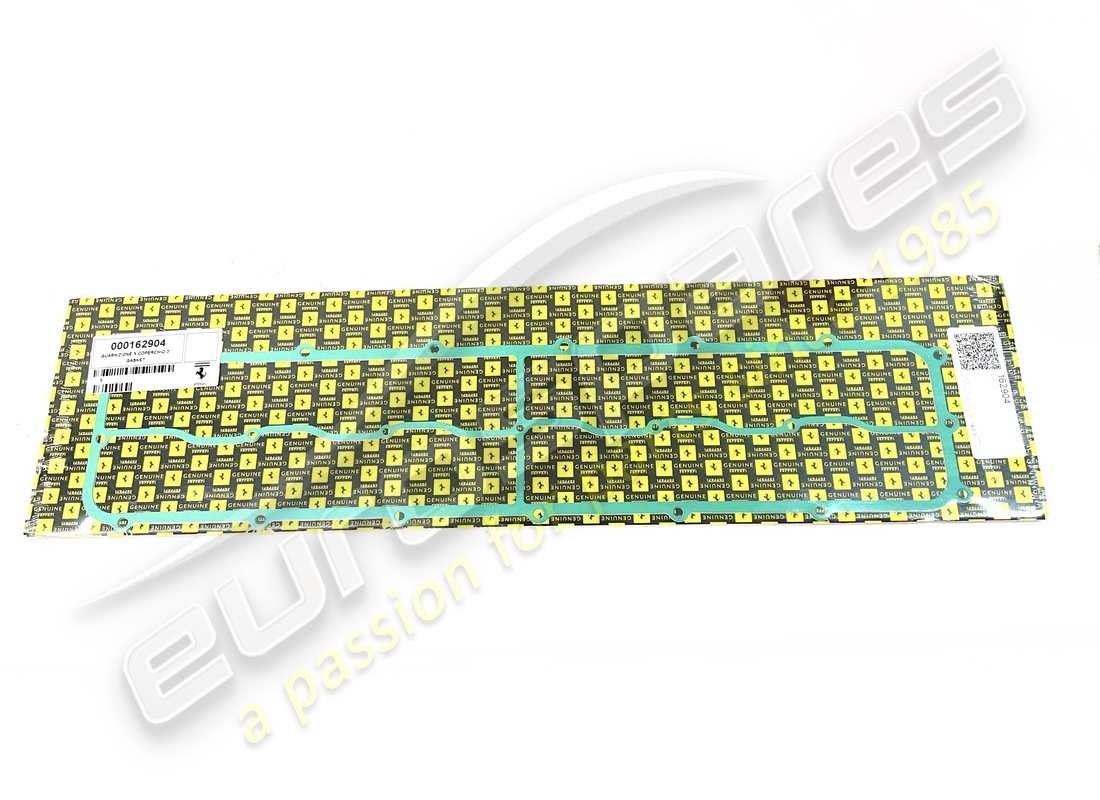

                                                                                                                          GASKET
                                                                                                                          from £12.80
                                                                                                                          from £12.80
                                                                                                                          # 066
                                                                                                                          MPN: 162903
                                                                                                                          COVER
                                                                                                                          from £236.16
                                                                                                                          from £236.16
                                                                                                                          # 067
                                                                                                                          MPN: 14305424
                                                                                                                          SCREW
                                                                                                                          from £0.48
                                                                                                                          from £0.48
                                                                                                                          This part replaces part number 14305421 - and 2 more. Click to view details
                                                                                                                          # 068
                                                                                                                          MPN: 12601274
                                                                                                                          WASHER
                                                                                                                          from £0.48
                                                                                                                          from £0.48
                                                                                                                          This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                                          # 069
                                                                                                                          MPN: 163774
                                                                                                                          SCREW
                                                                                                                          from £3.20
                                                                                                                          from £3.20
                                                                                                                          # 070
                                                                                                                          MPN: 12601174
                                                                                                                          WASHER
                                                                                                                          from £0.53
                                                                                                                          from £0.53
                                                                                                                          This part replaces part number 12601173 - and 5 more. Click to view details
                                                                                                                          # 071
                                                                                                                          MPN: 178441
                                                                                                                          SEAL RING
                                                                                                                          - Valid from engine Nr. 52416
                                                                                                                          from £8.82
                                                                                                                          from £8.82
                                                                                                                          # 072
                                                                                                                          MPN: 180139
                                                                                                                          CLIP
                                                                                                                          from £0.53
                                                                                                                          from £0.53
                                                                                                                          # 073
                                                                                                                          MPN: 11500024
                                                                                                                          STUD
                                                                                                                          - Valid from car Ass. Nr. 32102 GS, from car Ass. Nr. 32105 GD and from car Ass. Nr. 32057 M.Y. 99
                                                                                                                          from £1.57
                                                                                                                          from £1.57
                                                                                                                          This part replaces part number 11500011 which we have in stock - and 1 more. Click to view details
                                                                                                                          # 074
                                                                                                                          MPN: 324050
                                                                                                                          INLET GASKET
                                                                                                                          from £6.38
                                                                                                                          from £6.38
                                                                                                                          This part replaces part number 225462
