ferrari 550 barchetta instruments parts diagram

125 - Instruments

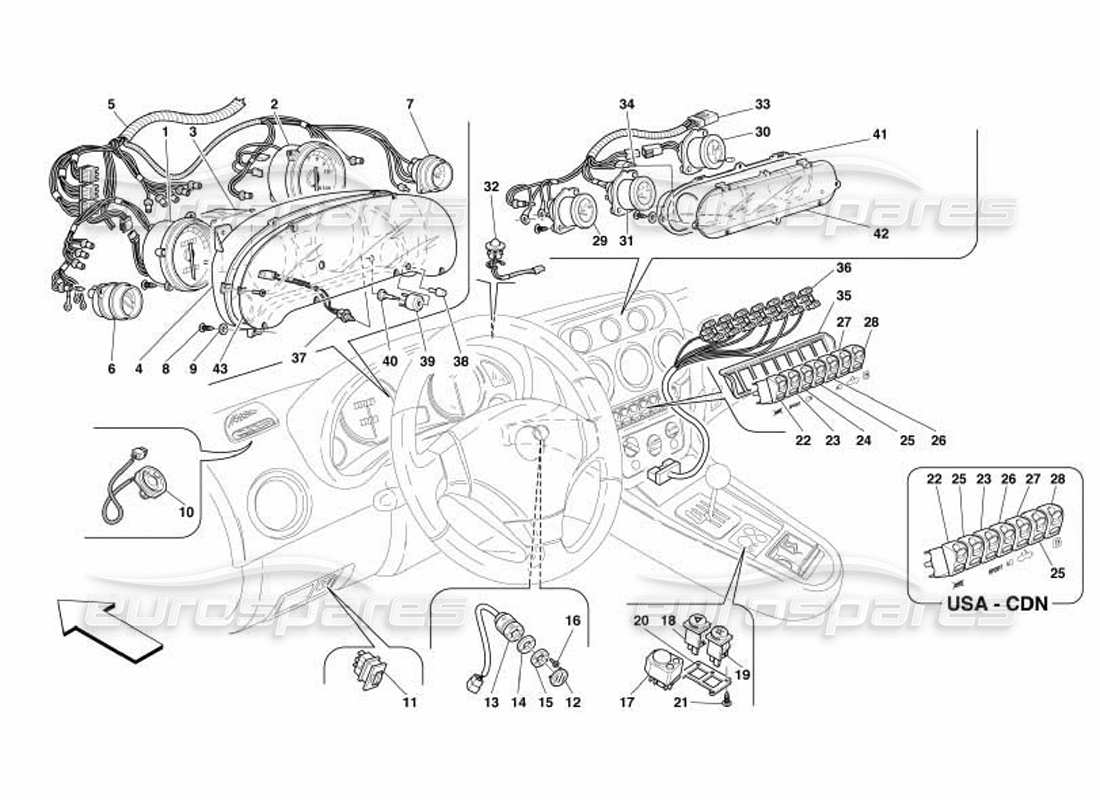

Ferrari 550 Barchetta Instruments Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                    #
                                                                    Part number
                                                                    Description
                                                                    Price
                                                                    # 001
                                                                    MPN: 164626
                                                                    ODOMETER-KM
                                                                    from £314.29
                                                                    from £314.29
                                                                    # 001
                                                                    MPN: 171309
                                                                    ODOMETER-MILES
                                                                    from £491.51
                                                                    from £491.51
                                                                    # 002
                                                                    MPN: 164627
                                                                    ELECTRONIC REVOLUTION COUNTER
                                                                    from £140.23
                                                                    from £140.23

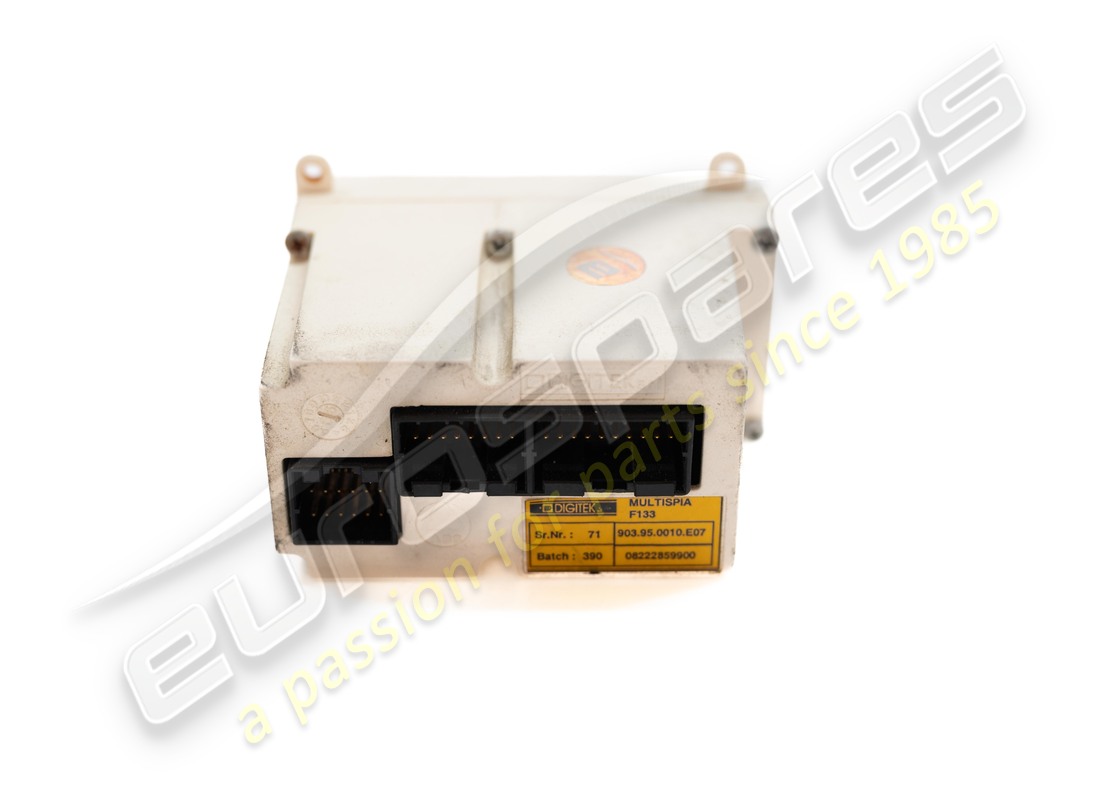

                                                                    # 003
                                                                    MPN: 179152
                                                                    MULTIFUNCTION WARNING LIGHT/DISPLAY ASSEMBLY
                                                                    from £1,218.83
                                                                    from £1,218.83
                                                                    This part replaces part number 170763 which we have in stock
                                                                    # 004
                                                                    MPN: 185850
                                                                    CONTROL PANEL PLATE WITH
                                                                    from £967.09
                                                                    from £967.09
                                                                    This part replaces part number 177408 - and 1 more. Click to view details
                                                                    # 005
                                                                    MPN: 179153
                                                                    DASHBOARD INSTRUMENTS CONNECTING CABLES

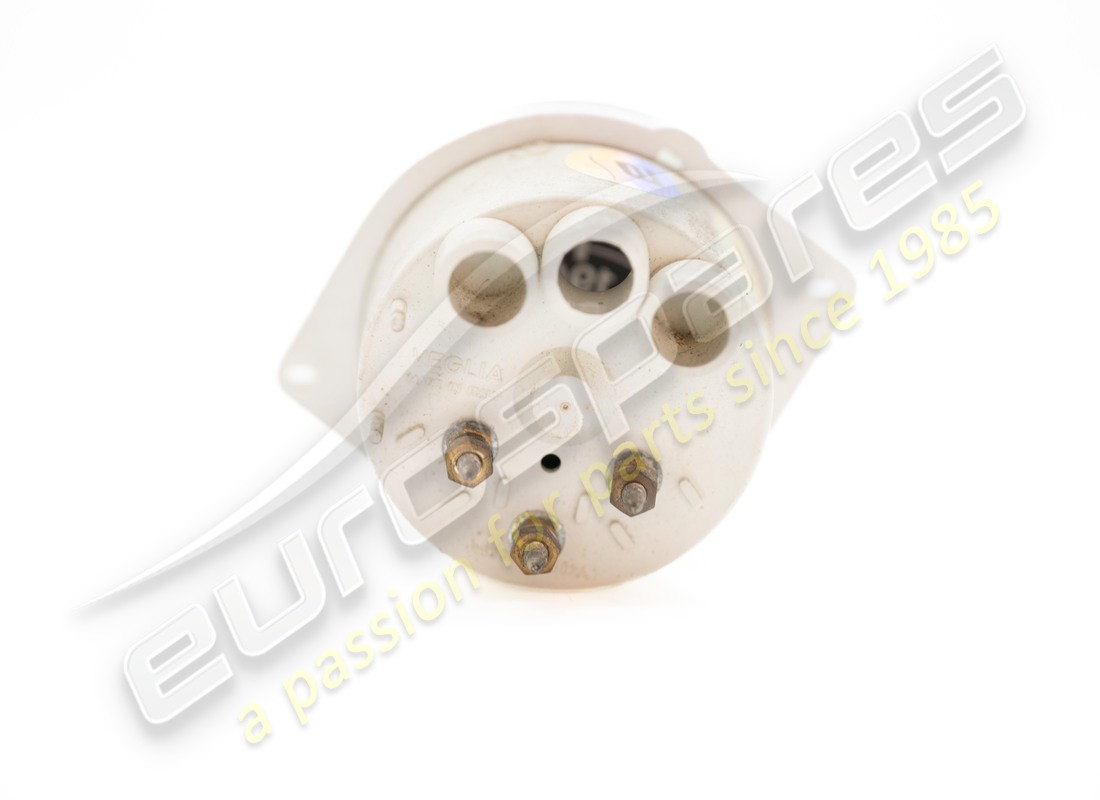

                                                                    # 006
                                                                    MPN: 164628
                                                                    WATER THERMOMETER
                                                                    Not for USA, CDN and GB
                                                                    from £40.33
                                                                    from £40.33
                                                                    # 006
                                                                    MPN: 171310
                                                                    WATER THERMOMETER
                                                                    Valid for USA, CDN and GB
                                                                    from £73.33
                                                                    from £73.33

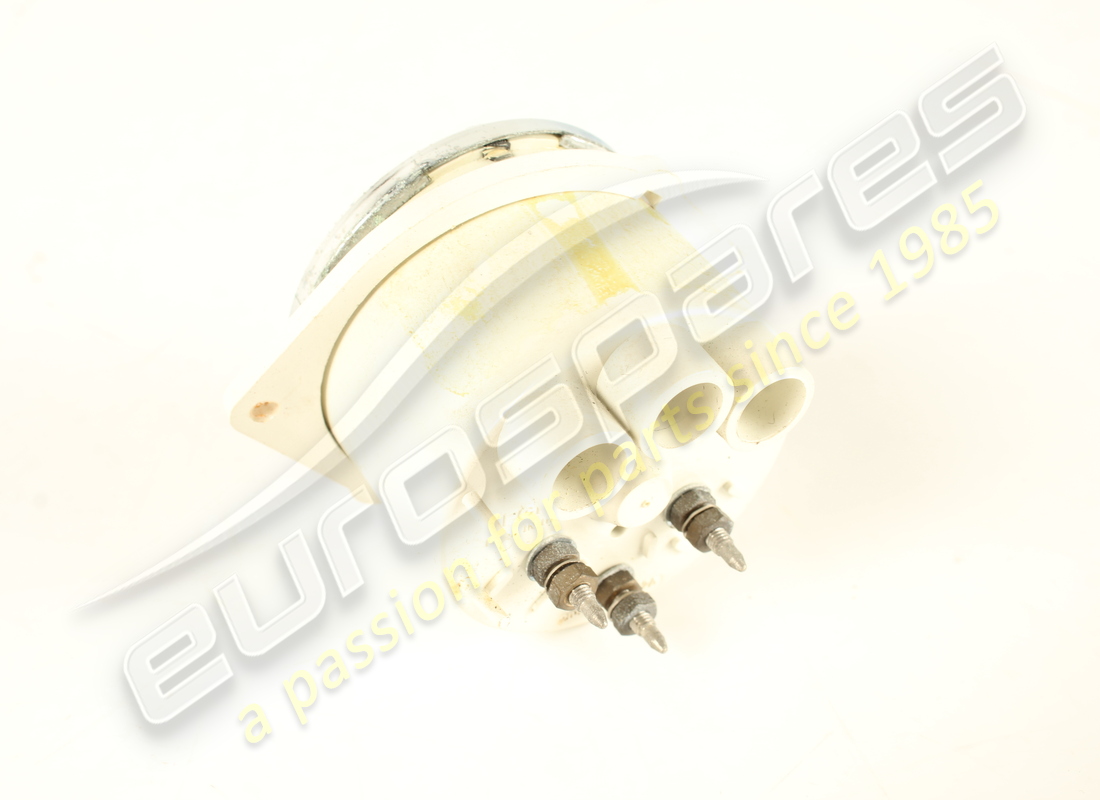

                                                                    # 007
                                                                    MPN: 164629
                                                                    OIL PRESSURE INDICATOR
                                                                    Not for USA, CDN and GB
                                                                    from £39.56
                                                                    from £39.56
                                                                    # 007
                                                                    MPN: 171311
                                                                    OIL PRESSURE INDICATOR
                                                                    Valid for USA, CDN and GB
                                                                    from £73.33
                                                                    from £73.33
                                                                    # 008
                                                                    MPN: 14778418
                                                                    SCREW
                                                                    (minimum order quantity = 10)
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 009
                                                                    MPN: 12644478
                                                                    WASHER
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 010
                                                                    MPN: 157172
                                                                    LOUD SPEAKER TWEETER
                                                                    from £22.91
                                                                    from £22.91
                                                                    # 011
                                                                    MPN: 153073
                                                                    LIGHT ADJUSTING POTENTIOMETER
                                                                    from £669.79
                                                                    from £669.79
                                                                    # 012
                                                                    MPN: 63994500
                                                                    SENSOR COVERING GRILL
                                                                    from £2.49
                                                                    from £2.49
                                                                    # 013
                                                                    MPN: 63934200
                                                                    INNER COMPARTMENT TEMPERATURE SENSOR
                                                                    from £31.71
                                                                    from £31.71
                                                                    # 014
                                                                    MPN: 63994700
                                                                    SENSOR FIXING WASHER
                                                                    from £2.58
                                                                    from £2.58
                                                                    # 015
                                                                    MPN: 63994600
                                                                    SENSOR FIXING WASHER
                                                                    from £4.02
                                                                    from £4.02
                                                                    # 016
                                                                    MPN: 15915977
                                                                    SCREW
                                                                    from £0.71
                                                                    from £0.71
                                                                    This part replaces part number 64428200
                                                                    # 017
                                                                    MPN: 181275
                                                                    REAR-VIEW MIRROR SWITCH
                                                                    from £244.48
                                                                    from £244.48
                                                                    # 018
                                                                    MPN: 229350
                                                                    EMERGENCY LIGHTS SWITCH
                                                                    old number : 157477
                                                                    from £21.00
                                                                    from £21.00
                                                                    This part replaces part number 157477 which we have in stock - and 1 more. Click to view details
                                                                    # 019
                                                                    MPN: 208847
                                                                    PARKING LIGHTS CONTROL SWITCH
                                                                    from £21.10
                                                                    from £21.10
                                                                    This part replaces part number 157479 which we have in stock - and 2 more. Click to view details
                                                                    # 020
                                                                    MPN: 65992200
                                                                    PLATE
                                                                    from £6.70
                                                                    from £6.70
                                                                    # 021
                                                                    MPN: 15900270
                                                                    SCREW
                                                                    from £0.53
                                                                    from £0.53

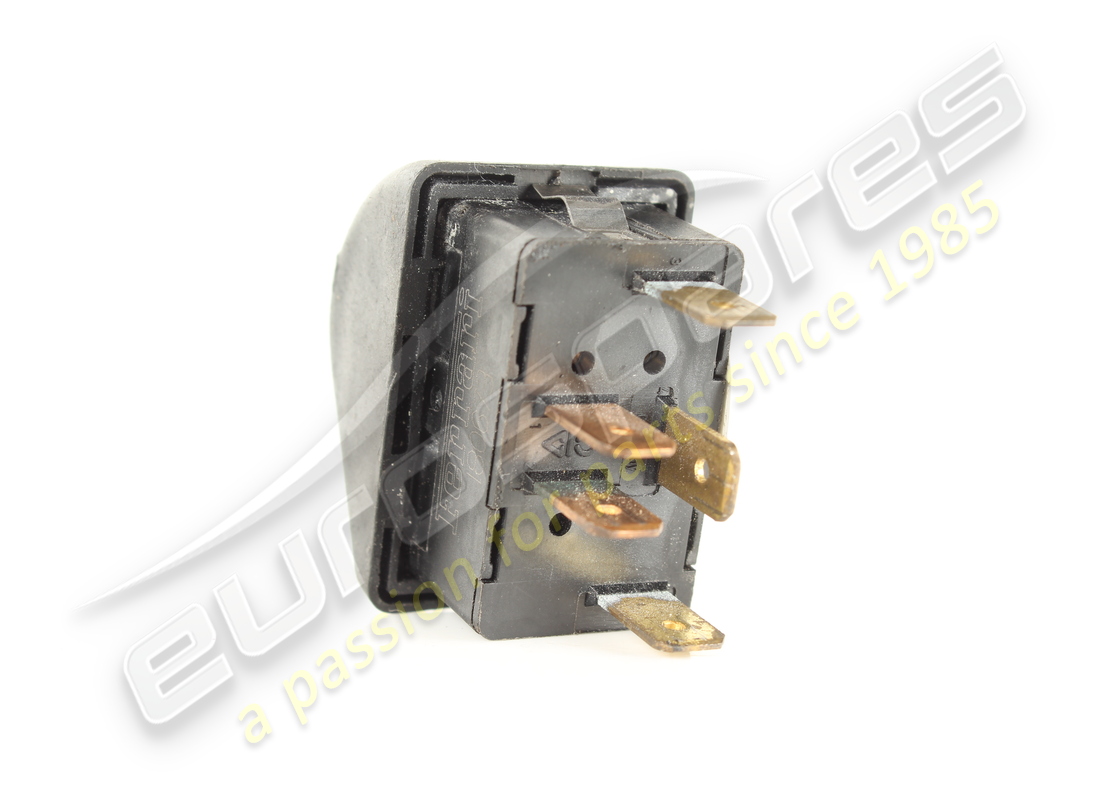

                                                                    # 022
                                                                    MPN: 180675
                                                                    ASR EXCLUSION CONTROL SWITCH
                                                                    from £240.80
                                                                    from £240.80

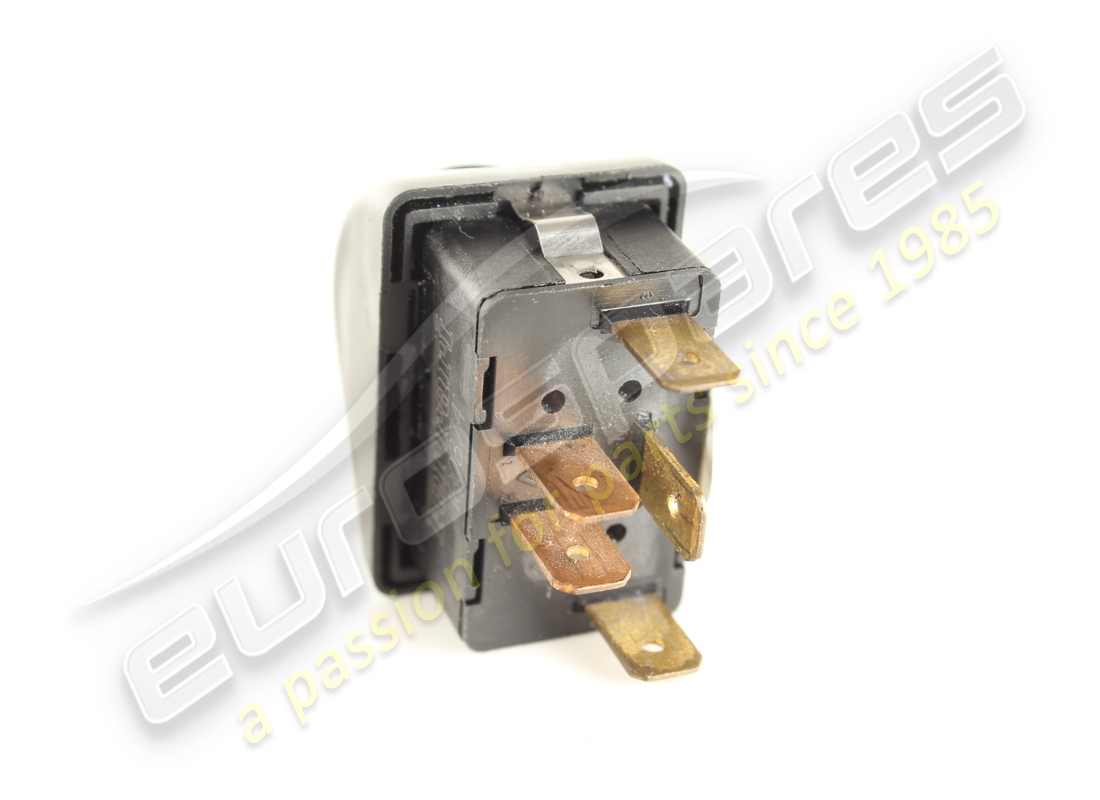

                                                                    # 023
                                                                    MPN: 180684
                                                                    SPORT SWITCH
                                                                    from £1,226.45
                                                                    from £1,226.45
                                                                    # 024
                                                                    MPN: 180676
                                                                    REAR FOG LIGHT CONTROL SWITCH
                                                                    Not for USA and CDN
                                                                    from £229.30
                                                                    from £229.30
                                                                    # 025
                                                                    MPN: 180687
                                                                    DUMMY SWITCH
                                                                    Quantity 2 for USA and CDN
                                                                    from £167.90
                                                                    from £167.90
                                                                    # 026
                                                                    MPN: 180685
                                                                    FOG LIGHTS SWITCH
                                                                    from £342.00
                                                                    from £342.00
                                                                    # 027
                                                                    MPN: 180673
                                                                    REAR HOOD OPENING PUSH BUTTON
                                                                    from £251.96
                                                                    from £251.96
                                                                    # 028
                                                                    MPN: 180674
                                                                    FUEL DOOR CONTROL PUSH-BUTTON
                                                                    from £46.54
                                                                    from £46.54

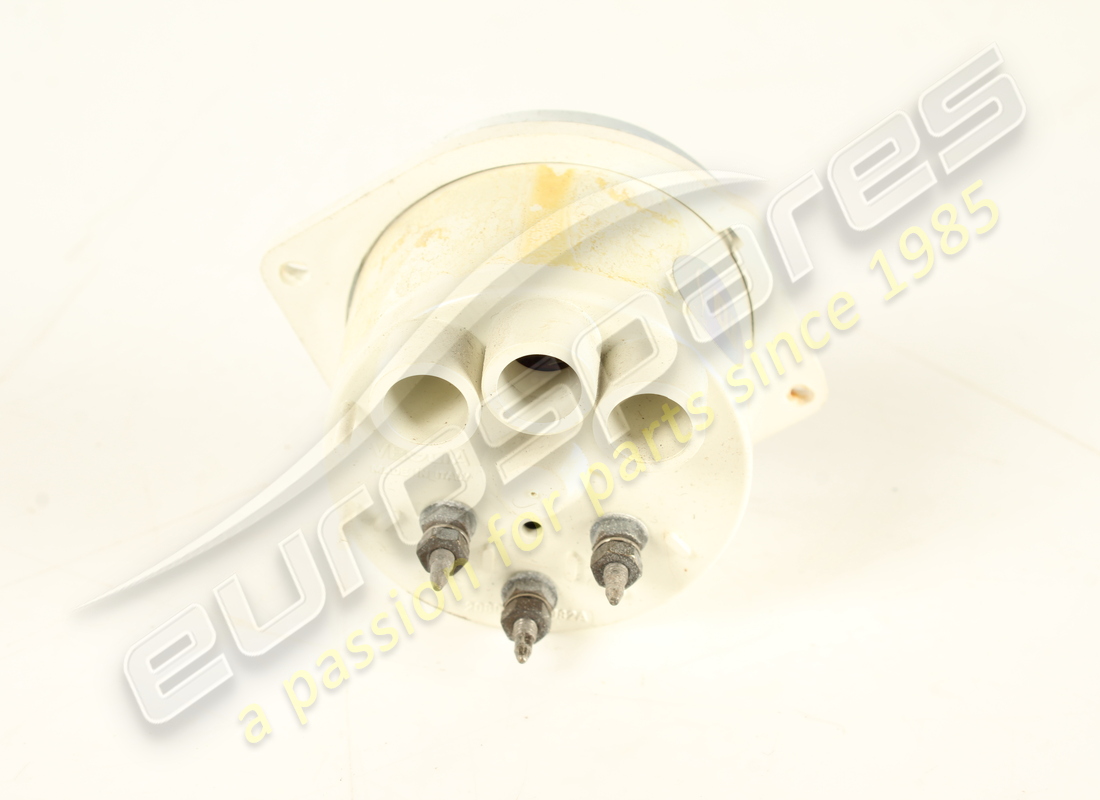

                                                                    # 029
                                                                    MPN: 164635
                                                                    OIL TEMPERATURE INDICATOR
                                                                    Not for USA, CDN and GB
                                                                    from £52.50
                                                                    from £52.50
                                                                    # 029
                                                                    MPN: 171314
                                                                    OIL TEMPERATURE INDICATOR
                                                                    Valid for USA,CDN and GB
                                                                    from £95.52
                                                                    from £95.52

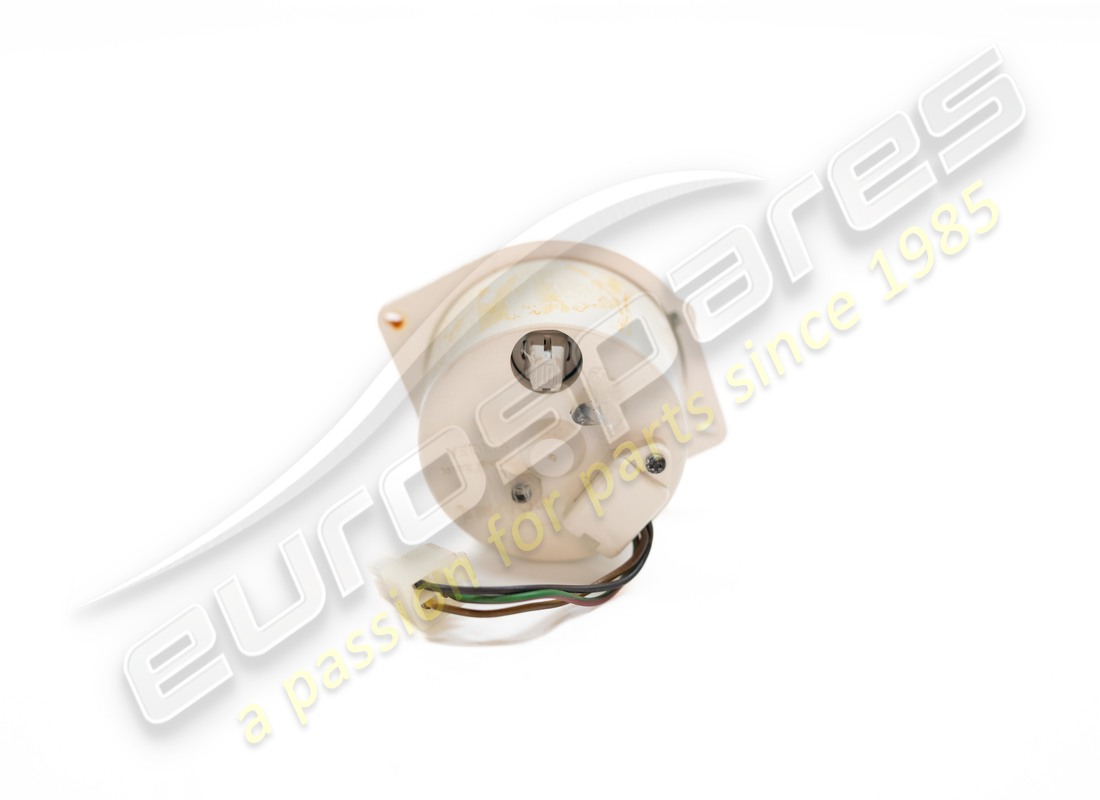

                                                                    # 030
                                                                    MPN: 164637
                                                                    ANALOGIC CLOCK
                                                                    from £78.75
                                                                    from £78.75

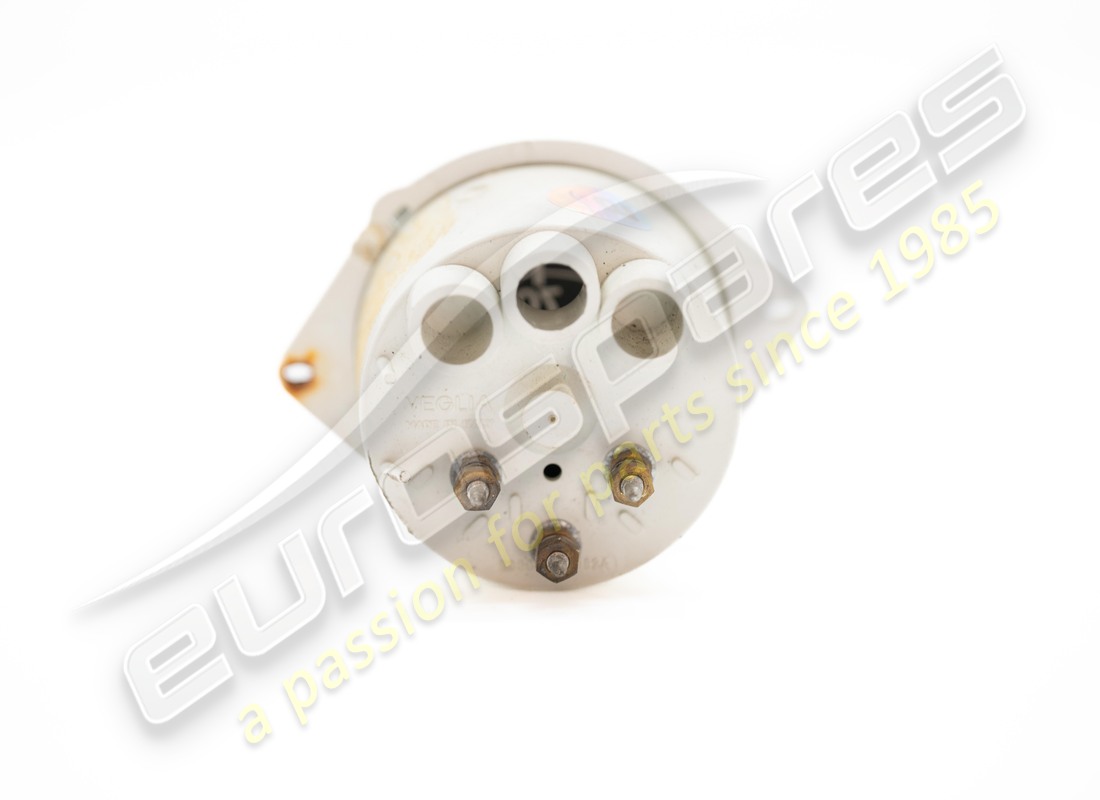

                                                                    # 031
                                                                    MPN: 164636

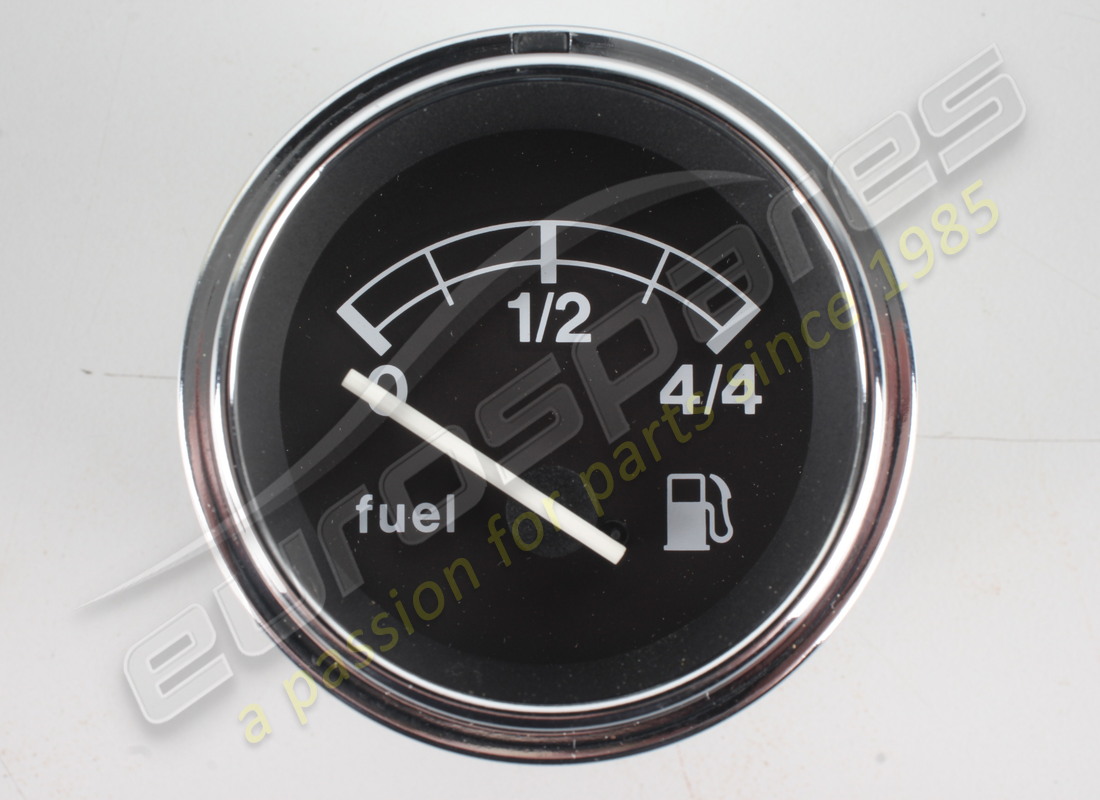

                                                                    FUEL LEVEL INDICATOR
                                                                    Not for USA, CDN, GD and J
                                                                    from £78.75
                                                                    from £78.75
                                                                    # 031
                                                                    MPN: 172775
                                                                    FUEL LEVEL INDICATOR
                                                                    Valid for USA, CDN, GD and J
                                                                    from £73.33
                                                                    from £73.33
                                                                    # 033
                                                                    MPN: 164638
                                                                    SIDE INSTRUMENTS CONNECTING CABLES
                                                                    from £75.32
                                                                    from £75.32

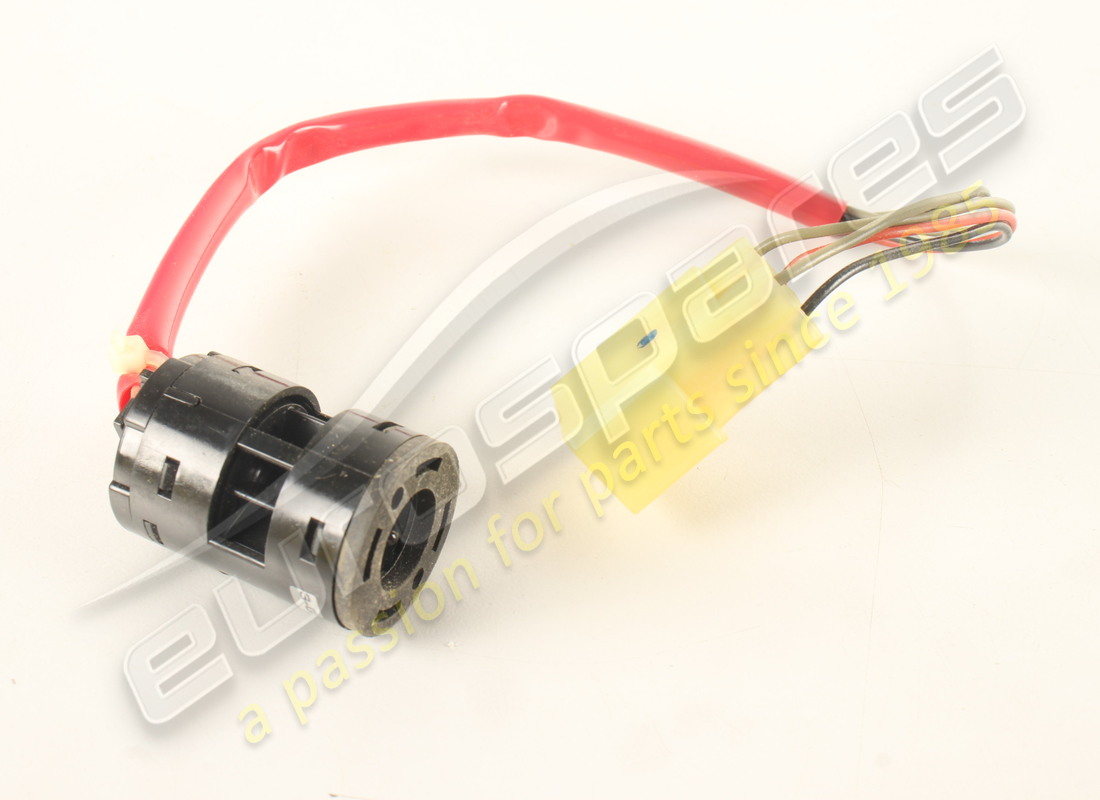

                                                                    # 034
                                                                    MPN: 165010
                                                                    ANTI-THEFT WARNING LED
                                                                    from £17.10
                                                                    from £17.10
                                                                    # 035
                                                                    MPN: 64591400
                                                                    SWITCH HOLDER PLATE
                                                                    from £94.10
                                                                    from £94.10
                                                                    # 036
                                                                    MPN: 187930
                                                                    CABLES FOR SWITCHES CONNECTION
                                                                    from £44.65
                                                                    from £44.65
                                                                    # 037
                                                                    MPN: 164631
                                                                    OUTER TEMPERATURE DISPLAY MICRO-SWITCH
                                                                    Not for SA
                                                                    from £42.08
                                                                    from £42.08
                                                                    This part replaces part number 179575 which we have in stock
                                                                    # 037
                                                                    MPN: 174146
                                                                    OUTER TEMPERATURE DISPLAY MICRO-SWITCH
                                                                    Valid for SA
                                                                    from £97.16
                                                                    from £97.16
                                                                    # 038
                                                                    MPN: 179901
                                                                    OUTER TEMPERATURE PUSH BUTTON
                                                                    from £19.80
                                                                    from £19.80
                                                                    # 039
                                                                    MPN: 181054
                                                                    OUTER TEMPERATURE BUTTON
                                                                    from £44.09
                                                                    from £44.09
                                                                    # 040
                                                                    MPN: 181055
                                                                    PIN FOR OUTER TEMPERATURE
                                                                    from £49.73
                                                                    from £49.73
                                                                    # 041
                                                                    MPN: 177410
                                                                    CONSOLE PANEL
                                                                    from £295.68
                                                                    from £295.68
                                                                    # 042
                                                                    MPN: 179581
                                                                    TRANSPARENT COVER
                                                                    No for GD
                                                                    from £23.94
                                                                    from £23.94
                                                                    # 042
                                                                    MPN: 179582
                                                                    TRANSPARENT COVER
                                                                    Valid for GD
                                                                    from £12.06
                                                                    from £12.06
                                                                    # 043
                                                                    MPN: 192161
                                                                    TRANSPARENT COVER
                                                                    from £70.97
                                                                    from £70.97
