105 - FRONT BUMPER

Ferrari 550 Barchetta Front Bumper Parts Diagram

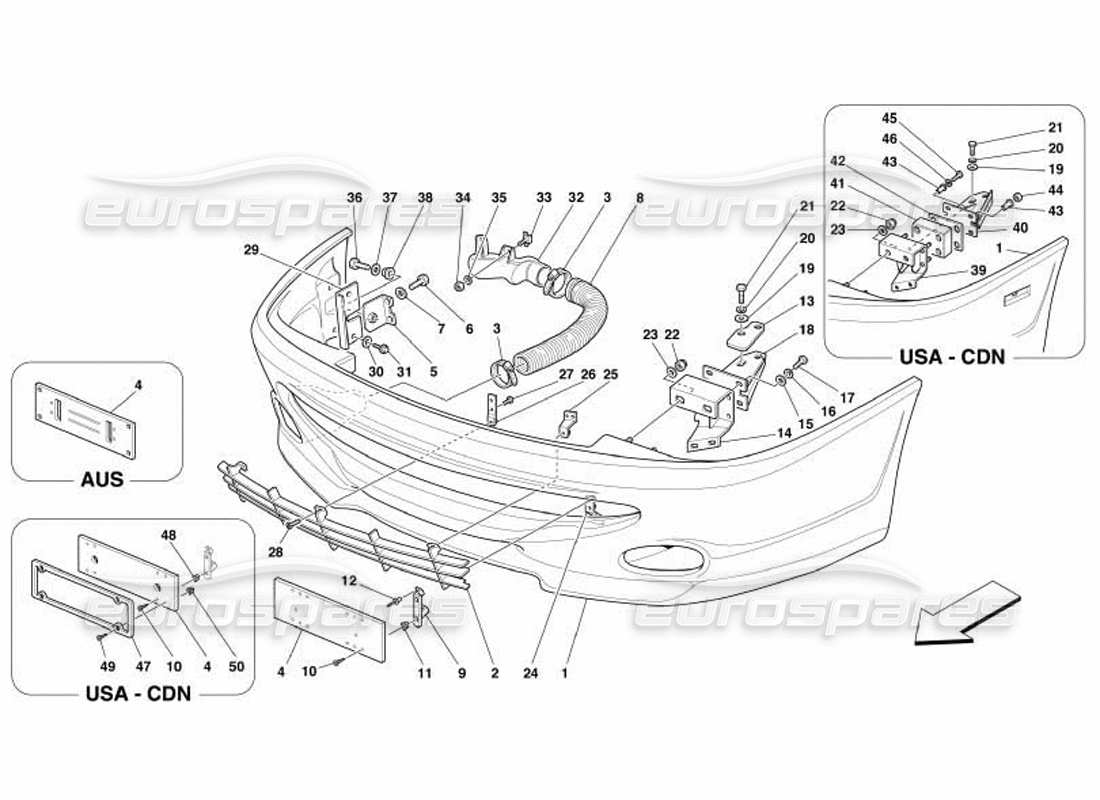

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Price
                                                        # 001
                                                        MPN: 65047110

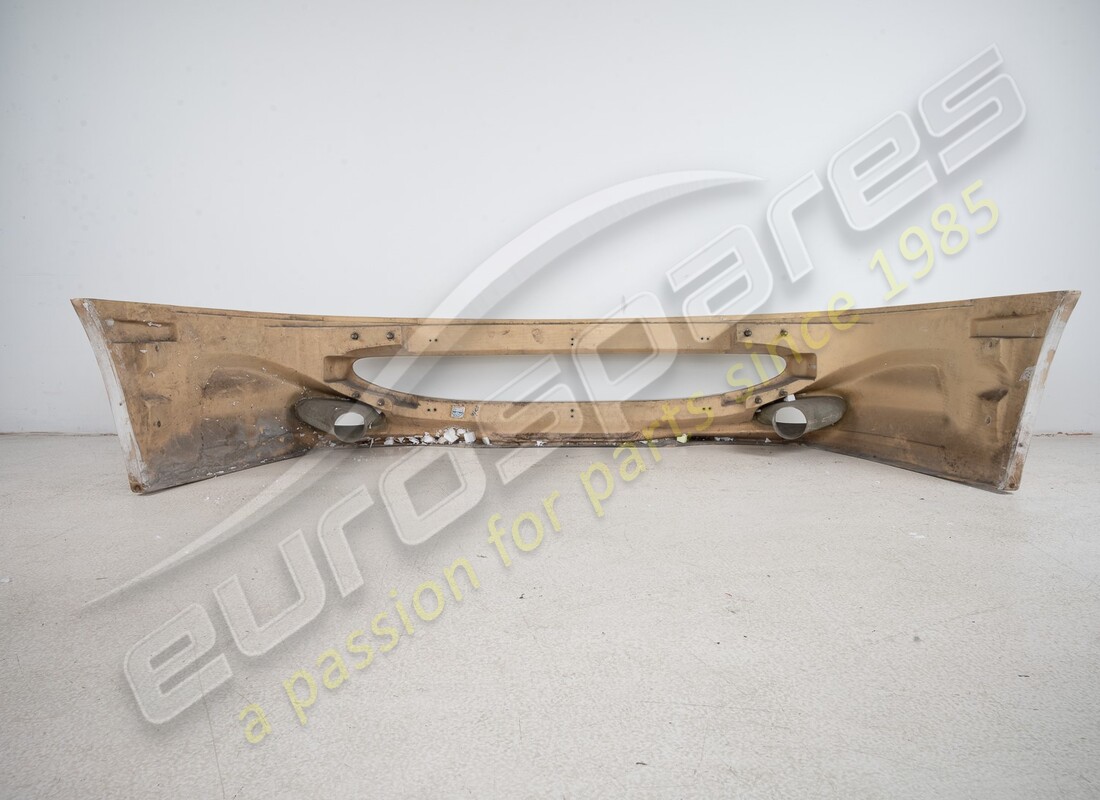

                                                        COMPLETE FRONT BUMPER
                                                        Not for US and CDN
                                                        from £1,882.38
                                                        from £1,882.38
                                                        # 001
                                                        MPN: 65186810
                                                        COMPLETE FRONT BUMPER
                                                        Valid for USA
                                                        from £6,117.78
                                                        from £6,117.78
                                                        # 001
                                                        MPN: 65377610
                                                        COMPLETE FRONT BUMPER
                                                        Valid for CDN
                                                        from £6,013.97
                                                        from £6,013.97
                                                        # 002
                                                        MPN: 64909900

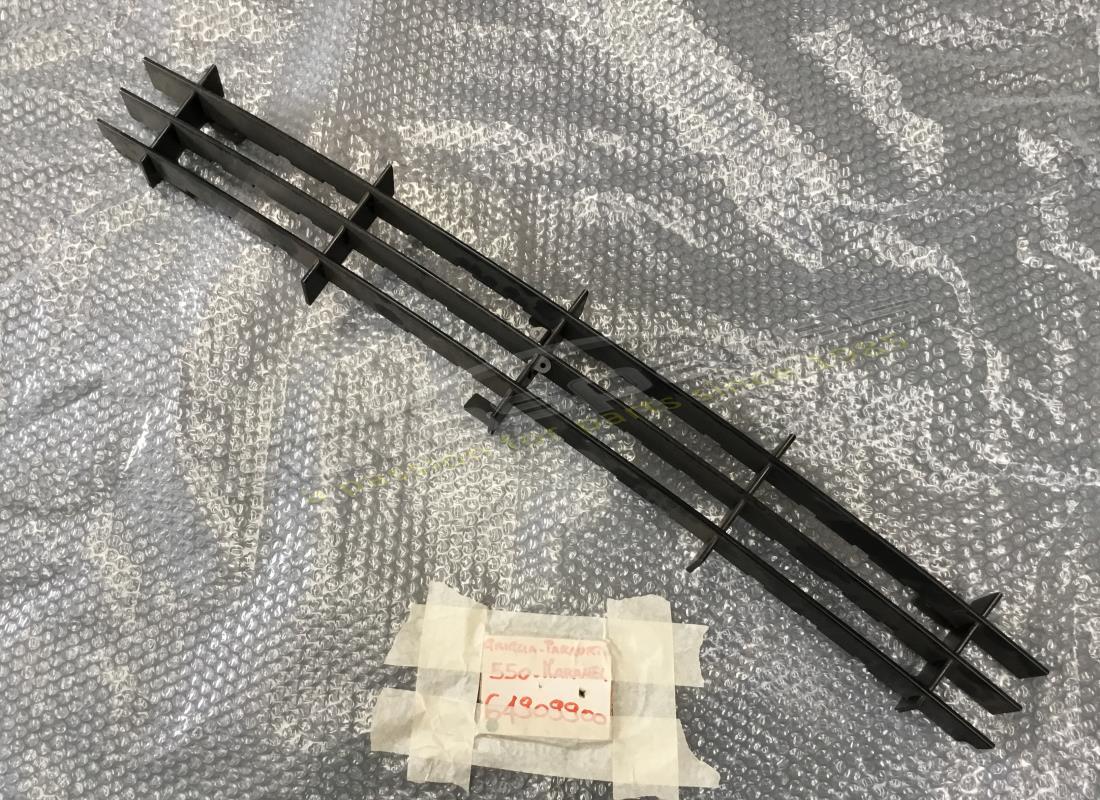

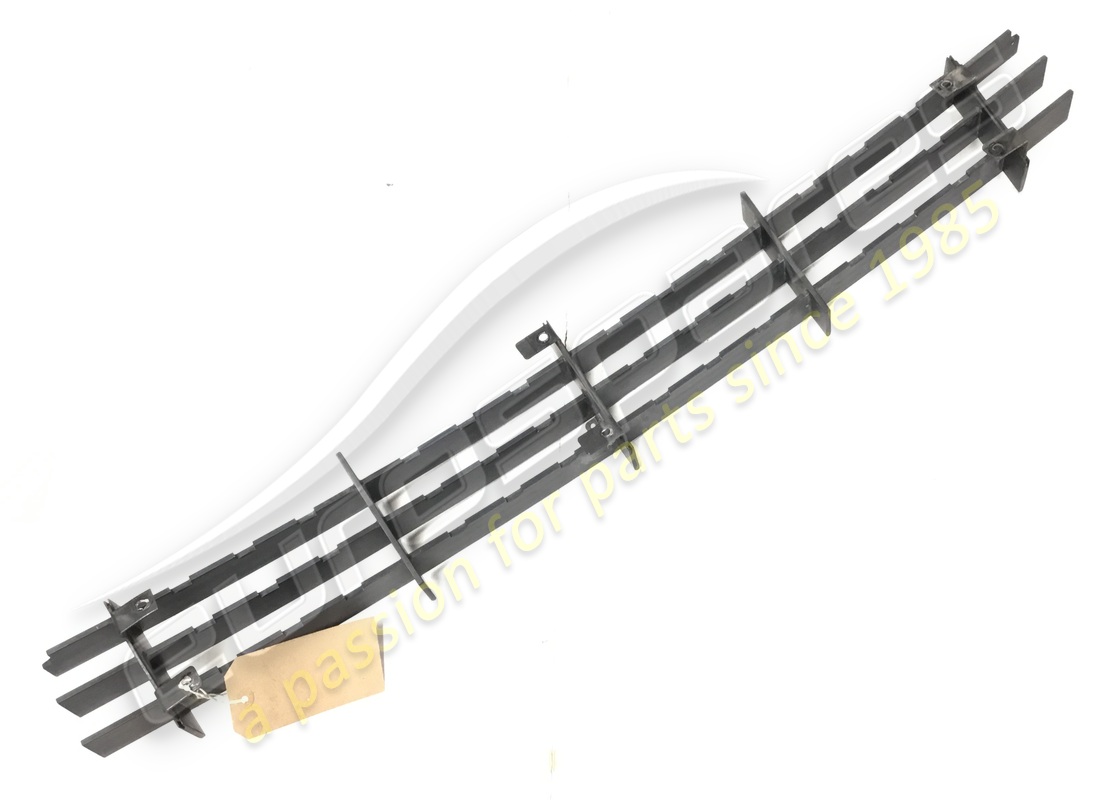

                                                        COMPLETE FRONT BUMPER GRILL
                                                        from £519.75
                                                        from £519.75
                                                        This part replaces part number 64564000 - and 1 more. Click to view details
                                                        # 003
                                                        MPN: 13001090

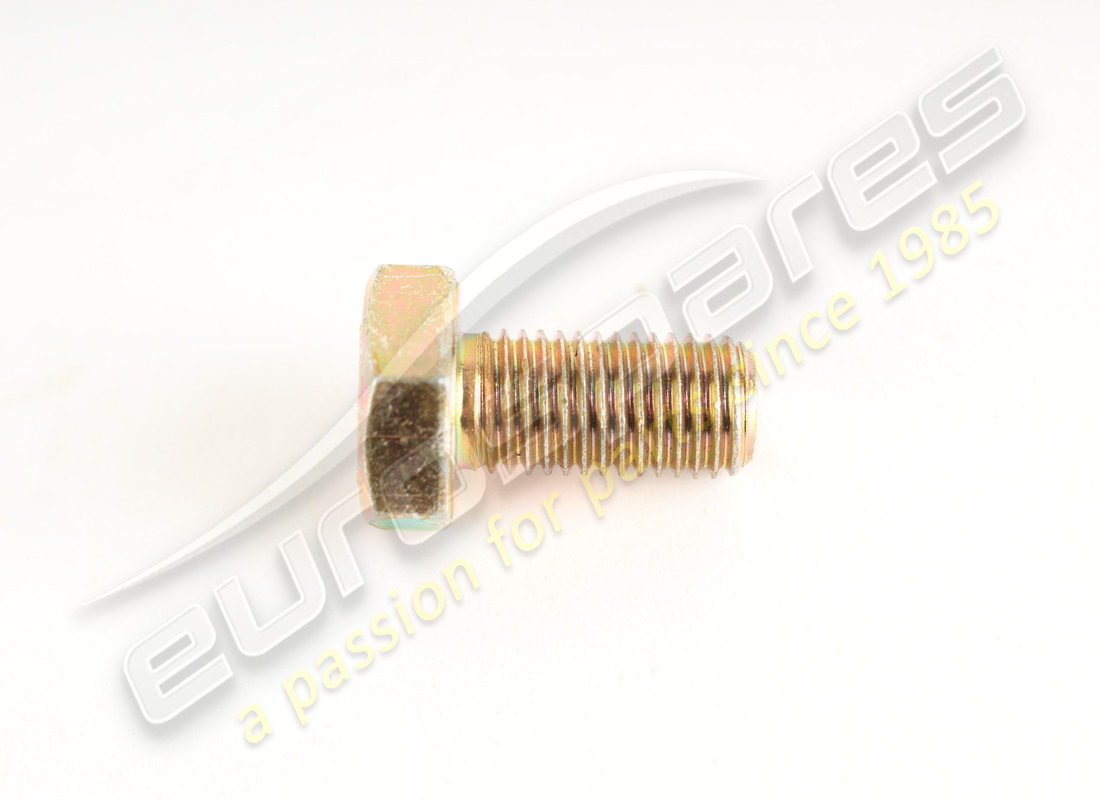

                                                        SCREW COLLAR
                                                        from £0.84
                                                        from £0.84
                                                        This part replaces part number 12174990 - and 2 more. Click to view details
                                                        # 004
                                                        MPN: 63736300
                                                        FRONT PLATE FRAME
                                                        Valid for D
                                                        from £39.63
                                                        from £39.63
                                                        # 004
                                                        MPN: 63736400
                                                        FRONT PLATE FRAME
                                                        Not for D,CH,USA, CDN, AUS and J
                                                        from £37.81
                                                        from £37.81
                                                        # 004
                                                        MPN: 65271000
                                                        FRONT PLATE FRAME
                                                        Valid for AUS
                                                        # 004
                                                        MPN: 65271400
                                                        FRONT PLATE FRAME
                                                        Valid for USA and CDN
                                                        from £23.59
                                                        from £23.59
                                                        # 004
                                                        MPN: 65272100
                                                        FRONT PLATE FRAME
                                                        Valid for J
                                                        from £34.50
                                                        from £34.50
                                                        # 004
                                                        MPN: 65272400
                                                        FRONT PLATE FRAME
                                                        Valid for CH
                                                        from £20.25
                                                        from £20.25
                                                        # 005
                                                        MPN: 65238400
                                                        RH BRACKET
                                                        from £20.41
                                                        from £20.41
                                                        # 005
                                                        MPN: 65239000
                                                        LH BRACKET
                                                        from £20.41
                                                        from £20.41
                                                        # 006
                                                        MPN: 10902624
                                                        SCREW
                                                        from £0.47
                                                        from £0.47
                                                        This part replaces part number 10902621
                                                        # 007
                                                        MPN: 12647701
                                                        WASHER
                                                        from £0.47
                                                        from £0.47
                                                        # 008
                                                        MPN: 174155
                                                        PIPE FOR FRONT BRAKES COOLING
                                                        from £110.16
                                                        from £110.16
                                                        This part replaces part number 156403
                                                        # 009
                                                        MPN: 64992300
                                                        RH BRACKET
                                                        from £50.96
                                                        from £50.96
                                                        # 009
                                                        MPN: 64992400
                                                        LH BRACKET
                                                        from £58.32
                                                        from £58.32
                                                        # 010
                                                        MPN: 15917777
                                                        SCREW
                                                        from £0.47
                                                        from £0.47
                                                        # 011
                                                        MPN: 14215480
                                                        NUT SCREW
                                                        from £0.47
                                                        from £0.47
                                                        This part replaces part number 14211580
                                                        # 012
                                                        MPN: 14296196
                                                        RIVET
                                                        from £0.51
                                                        from £0.51
                                                        # 013
                                                        MPN: 63215400
                                                        SPACER
                                                        Not for USA and CDN
                                                        from £1.08
                                                        from £1.08
                                                        # 014
                                                        MPN: 65048600
                                                        RH INNER BRACKET
                                                        Not for USA and CDN
                                                        from £184.55
                                                        from £184.55
                                                        # 014
                                                        MPN: 65048700
                                                        LH INNER BRACKET
                                                        Not for USA and CDN
                                                        from £184.55
                                                        from £184.55
                                                        # 015
                                                        MPN: 12646821
                                                        WASHER
                                                        Not for USA and CDN - (minimum order quantity = 30)
                                                        from £0.47
                                                        from £0.47
                                                        # 016
                                                        MPN: 127497
                                                        WASHER
                                                        Not for USA and CDN
                                                        from £0.53
                                                        from £0.53
                                                        This part replaces part number 10516871 - and 2 more. Click to view details
                                                        # 017
                                                        MPN: 11227921
                                                        SCREW
                                                        from £0.47
                                                        from £0.47
                                                        # 018
                                                        MPN: 65033000
                                                        RH SUPPORT
                                                        Not for USA and CDN
                                                        from £225.81
                                                        from £225.81
                                                        # 018
                                                        MPN: 65033100
                                                        LH SUPPORT
                                                        Not for USA and CDN
                                                        from £144.39
                                                        from £144.39
                                                        # 019
                                                        MPN: 12648504
                                                        WASHER
                                                        from £0.47
                                                        from £0.47
                                                        This part replaces part number 64224300
                                                        # 020
                                                        MPN: 10571979
                                                        WASHER
                                                        from £0.53
                                                        from £0.53
                                                        This part replaces part number 64224400
                                                        # 021
                                                        MPN: 15540621
                                                        SCREW
                                                        Supersession
                                                        Supersession
                                                        This part replaces part number 64224200
                                                        # 022
                                                        MPN: 104114
                                                        NUT
                                                        Supersession
                                                        Supersession
                                                        This part replaces part number 15503711 - and 1 more. Click to view details
                                                        # 023
                                                        MPN: 12646821
                                                        WASHER
                                                        (minimum order quantity = 30)
                                                        from £0.47
                                                        from £0.47
                                                        # 024
                                                        MPN: 65184000
                                                        RH BRACKET
                                                        from £83.57
                                                        from £83.57
                                                        # 024
                                                        MPN: 65184100
                                                        LH BRACKET
                                                        from £31.62
                                                        from £31.62
                                                        # 025
                                                        MPN: 65183800
                                                        RH BRACKET
                                                        from £63.90
                                                        from £63.90
                                                        # 025
                                                        MPN: 65183900
                                                        LH BRACKET
                                                        from £40.87
                                                        from £40.87
                                                        # 026
                                                        MPN: 65184200
                                                        UPPER BRACKET
                                                        from £19.66
                                                        from £19.66
                                                        # 026
                                                        MPN: 65184300
                                                        LOWER BRACKET
                                                        from £31.62
                                                        from £31.62
                                                        # 027
                                                        MPN: 16285127
                                                        SCREW
                                                        (minimum order quantity = 10)
                                                        from £0.47
                                                        from £0.47
                                                        # 028
                                                        MPN: 13274177
                                                        SCREW
                                                        (minimum order quantity = 10)
                                                        from £0.50
                                                        from £0.50
                                                        This part replaces part number 13274172
                                                        # 029
                                                        MPN: 65270200
                                                        SIDE BRACKET
                                                        from £125.26
                                                        from £125.26
                                                        # 030
                                                        MPN: 12646821
                                                        WASHER
                                                        (minimum order quantity = 30)
                                                        from £0.47
                                                        from £0.47
                                                        # 031
                                                        MPN: 15970521
                                                        SCREW
                                                        from £0.47
                                                        from £0.47
                                                        # 032
                                                        MPN: 168355
                                                        RH BRAKES AIR INLET
                                                        from £38.76
                                                        from £38.76
                                                        # 032
                                                        MPN: 168356
                                                        LH BRAKES AIR INLET
                                                        from £39.15
                                                        from £39.15
                                                        # 033
                                                        MPN: 14662695
                                                        SCREW
                                                        from £2.54
                                                        from £2.54
                                                        # 034
                                                        MPN: 102741
                                                        NUT
                                                        from £0.47
                                                        from £0.47
                                                        This part replaces part number 12575411 - and 1 more. Click to view details
                                                        # 035
                                                        MPN: 12646601
                                                        WASHER
                                                        from £0.71
                                                        from £0.71
                                                        # 036
                                                        MPN: 11343821
                                                        SCREW
                                                        from £0.57
                                                        from £0.57
                                                        # 037
                                                        MPN: 12642424
                                                        WASHER
                                                        from £0.53
                                                        from £0.53
                                                        # 038
                                                        MPN: 65228700
                                                        BUSHING
                                                        from £3.48
                                                        from £3.48
                                                        # 039
                                                        MPN: 65170400
                                                        RH BRACKET
                                                        Valid for USA and CDN
                                                        from £134.54
                                                        from £134.54
                                                        # 039
                                                        MPN: 65170500
                                                        LH BRACKET
                                                        Valid for USA and CDN
                                                        from £56.57
                                                        from £56.57
                                                        # 040
                                                        MPN: 65170200
                                                        RH SUPPORT
                                                        Valid for USA and CDN
                                                        from £113.36
                                                        from £113.36
                                                        # 040
                                                        MPN: 65170300
                                                        LH SUPPORT
                                                        Valid for USA and CDN
                                                        from £113.36
                                                        from £113.36
                                                        # 041
                                                        MPN: 63214100
                                                        PAD
                                                        Valid for USA and CDN
                                                        from £14.48
                                                        from £14.48
                                                        # 042
                                                        MPN: 63738800
                                                        PLATE
                                                        Valid for USA and CDN
                                                        from £1.11
                                                        from £1.11
                                                        # 043
                                                        MPN: 65372900
                                                        SPACER
                                                        Valid for USA and CDN
                                                        from £1.96
                                                        from £1.96
                                                        # 044
                                                        MPN: 104114
                                                        NUT
                                                        Valid for USA and CDN
                                                        Supersession
                                                        Supersession
                                                        This part replaces part number 15503711 - and 1 more. Click to view details
                                                        # 045
                                                        MPN: 15888721
                                                        SCREW
                                                        Valid for USA and CDN
                                                        from £1.13
                                                        from £1.13
                                                        # 046
                                                        MPN: 12646821
                                                        WASHER
                                                        Valid for USA and CDN - (minimum order quantity = 30)
                                                        from £0.47
                                                        from £0.47
                                                        # 047
                                                        MPN: 60987900
                                                        FRONT NUMBER PLATE RIM
                                                        Valid for USA and CDN
                                                        from £38.94
                                                        from £38.94
                                                        # 048
                                                        MPN: 14115680
                                                        NUT SCREW
                                                        Valid for USA and CDN
                                                        from £0.53
                                                        from £0.53
                                                        # 049
                                                        MPN: 15688175
                                                        SCREW
                                                        Valid for USA and CDN
                                                        from £0.47
                                                        from £0.47
                                                        This part replaces part number 15688108
                                                        # 050
                                                        MPN: 14201980
                                                        BLOCK
                                                        Valid for USA and CDN
                                                        from £0.53
                                                        from £0.53
