052 - Wheels

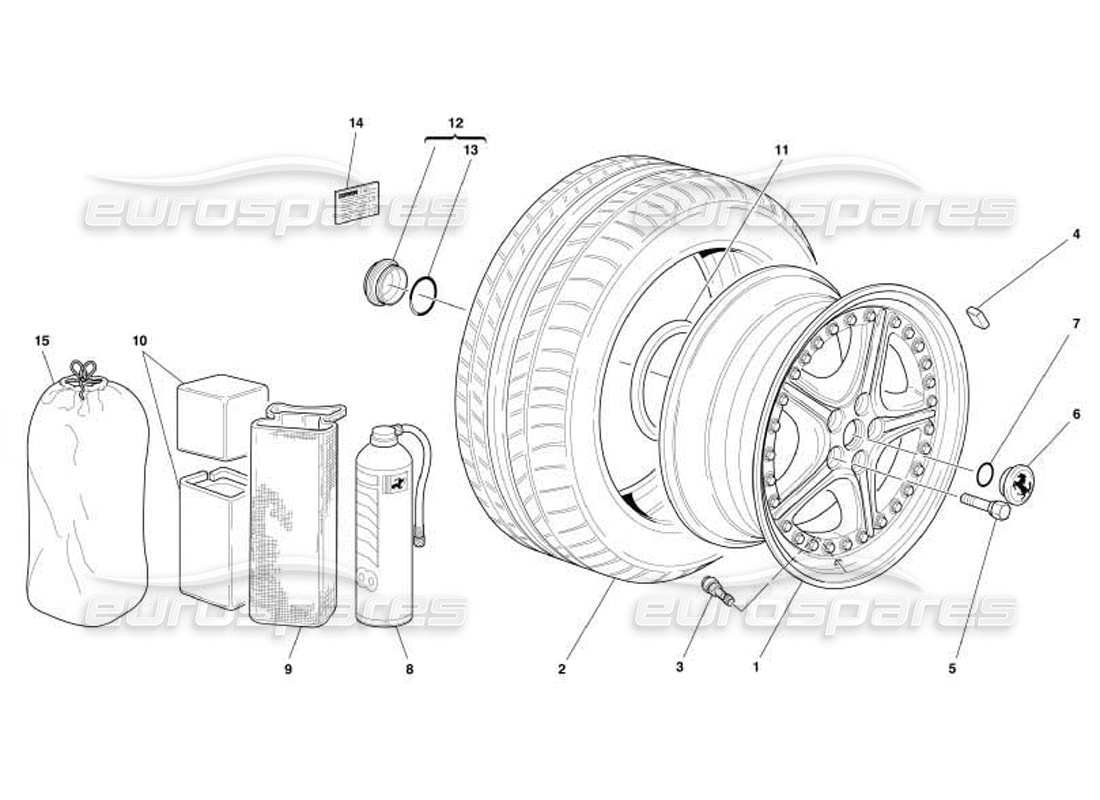

Ferrari 550 Barchetta Wheels Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Price
                      # 001
                      MPN: 176256
                      FRONT SPLIT RIM 8.5JX18
                      from £1,131.89
                      from £1,131.89
                      # 001
                      MPN: 176257
                      REAR SPLIT RIM 10.5 X 18
                      from £4,150.47
                      from £4,150.47
                      # 002
                      MPN: 164697
                      FRONT TYRE BRIDGESTONE 255/40 ZR 18
                      Not as spare part now
                      from £670.85
                      from £670.85
                      # 002
                      MPN: 164698
                      REAR TYRE BRIDGESTONE 295/35 ZR 18
                      Not as spare part now
                      from £863.90
                      from £863.90
                      # 002
                      MPN: 164801
                      FRONT TYRE MICHELIN 235/45 ZR 18
                      Not as spare part now
                      from £635.24
                      from £635.24
                      # 002
                      MPN: 164802
                      REAR TYRE MICHELIN 295/35 ZR 18
                      Not as spare part now
                      from £910.46
                      from £910.46
                      # 002
                      MPN: 164803
                      RH FRONT TYRE GOODYEAR 255/40 ZR 18
                      Not as spare part now
                      # 002
                      MPN: 164804
                      LH FRONT TYRE GOODYEAR 255/40 ZR 18
                      Not as spare part now
                      # 002
                      MPN: 164805
                      RH REAR TYRE GOODYEAR 295/35 ZR 18
                      Not as spare part now
                      # 002
                      MPN: 164806
                      LH REAR TYRE GOODYEAR 295/35 ZR 18
                      Not as spare part now
                      # 002
                      MPN: 164807
                      FRONT TYRE PIRELLI 255/40 ZR 18
                      Not as spare part now
                      from £586.97
                      from £586.97
                      # 002
                      MPN: 164808
                      REAR TYRE PIRELLI 295/35 ZR 18
                      Not as spare part now
                      from £714.35
                      from £714.35
                      # 003
                      MPN: 174166
                      VALVE
                      from £5.20
                      from £5.20
                      This part replaces part number 105069 - and 1 more. Click to view details
                      # 004
                      MPN: 162677
                      COUNTER-WEIGHT (90GR.)
                      Not as spare part now - Replaced by 192934
                      from £5.64
                      from £5.64
                      # 004
                      MPN: 192934
                      COUNTER-WEIGHT (50GR.)
                      from £2.25
                      from £2.25
                      This part replaces part number 155302 - and 1 more. Click to view details
                      # 005
                      MPN: 181291
                      STUD
                      from £25.20
                      from £25.20
                      # 005
                      MPN: 70001200
                      TITANIUM WHEEL BOLT KIT
                      - Valid for aluminium rim - includes 20x titanium wheel Stud
                      from £1,140.69
                      from £1,140.69
                      # 006
                      MPN: 340066
                      WHEEL BADGE
                      from £5.29
                      from £5.29
                      This part replaces part number 226245 - and 3 more. Click to view details
                      # 007
                      MPN: 120065
                      GASKET
                      from £0.82
                      from £0.82
                      # 008
                      MPN: 152367
                      TYRE REPAIR CYLINDER BOTTLE
                      (UK shipment only or Collection)
                      from £495.42
                      from £495.42
                      This part replaces part number 171576 - and 1 more. Click to view details
                      # 010
                      MPN: 166537
                      POLYSTYRENE FOAM CASE
                      from £31.55
                      from £31.55
                      # 011
                      MPN: 161927
                      GASKET
                      from £176.92
                      from £176.92
                      # 012
                      MPN: 167137
                      RIM COMPLETE PROTECTION
                      from £13.16
                      from £13.16
                      # 013
                      MPN: 167139
                      O.R. GASKET
                      from £1.95
                      from £1.95
                      # 014
                      MPN: 165122
                      TYRE PRESSURE PLATE
                      BRIDGESTONE - Not for USA, CDN and AUS
                      from £9.90
                      from £9.90
                      # 014
                      MPN: 165123
                      TYRE PRESSURE PLATE
                      PIRELLI - Not for USA, CDN and AUS
                      from £2.59
                      from £2.59
                      # 014
                      MPN: 165124
                      TYRE PRESSURE PLATE
                      GOODYEAR - Not for USA, CDN and AUS
                      from £3.36
                      from £3.36
                      # 014
                      MPN: 165125
                      TYRE PRESSURE PLATE
                      MICHELIN - Valid for MXX3 - Not for USA, CDN and AUS
                      from £3.45
                      from £3.45
                      # 014
                      MPN: 172681
                      TYRE PRESSURE PLATE
                      BRIDGESTONE - Valid for USA and CDN
                      # 014
                      MPN: 172682
                      TYRE PRESSURE PLATE
                      PIRELLI - Valid for USA and CDN
                      from £4.62
                      from £4.62
                      # 014
                      MPN: 172683
                      TYRE PRESSURE PLATE
                      GOODYEAR - Valid for USA and CDN
                      from £4.62
                      from £4.62
                      # 014
                      MPN: 172684
                      TYRE PRESSURE PLATE
                      MICHELIN - Valid for MXX3 - Valid for USA and CDN
                      from £4.62
                      from £4.62
                      # 014
                      MPN: 173388
                      TYRE PRESSURE PLATE
                      BRIDGESTONE - Valid for AUS
                      from £4.65
                      from £4.65
                      # 014
                      MPN: 173389
                      TYRE PRESSURE PLATE
                      MICHELIN - Valid for MXX3 - Valid for AUS
                      from £4.62
                      from £4.62
                      # 014
                      MPN: 173390
                      TYRE PRESSURE PLATE
                      GOODYEAR - Valid for AUS
                      from £5.83
                      from £5.83
                      # 014
                      MPN: 173390
                      TYRE PRESSURE PLATE
                      MICHELIN - Valid for Pilot Sport - Valid for AUS
                      from £5.83
                      from £5.83
                      # 014
                      MPN: 173391
                      TYRE PRESSURE PLATE
                      PIRELLI - Valid for AUS
                      from £4.65
                      from £4.65
                      # 014
                      MPN: 191301
                      TYRE PRESSURE PLATE
                      MICHELIN - Valid for Pilot Sport - Valid for USA and CDN
                      from £6.81
                      from £6.81
                      # 014
                      MPN: 191302
                      TYRE PRESSURE PLATE
                      MICHELIN - Valid for Pilot Sport - Not for USA, CDN and AUS
                      from £11.76
                      from £11.76
                      # 015
                      MPN: 173688
                      BAG
                      from £28.26
                      from £28.26
                      This part replaces part number 173668
