051 - Rear Suspension - Wishbones and Stabilizer Bar

Ferrari 550 Barchetta Rear Suspension - Wishbones and Stabilizer Bar Parts Diagram

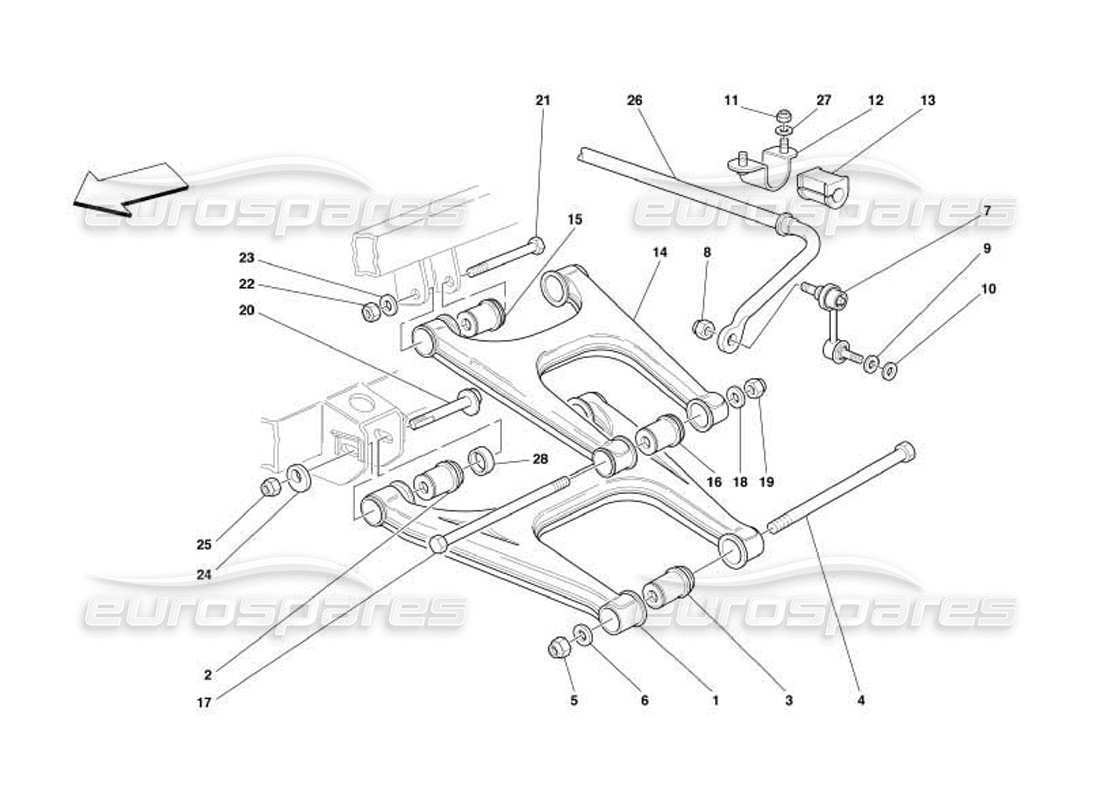

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                    #
                                                    Part number
                                                    Description
                                                    Price
                                                    # 001
                                                    MPN: 169796
                                                    LOWER LEVER
                                                    from £288.75
                                                    from £288.75
                                                    # 002
                                                    MPN: 169573
                                                    FLAMBLOCK FOR LOWER FORK
                                                    from £159.37
                                                    from £159.37
                                                    # 003
                                                    MPN: 169574
                                                    FLAMBLOCK FOR LOWER FORK
                                                    from £72.82
                                                    from £72.82
                                                    # 004
                                                    MPN: 168445
                                                    SCREW
                                                    from £42.63
                                                    from £42.63
                                                    # 005
                                                    MPN: 150238
                                                    NUT
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 12575821 - and 2 more. Click to view details
                                                    # 006
                                                    MPN: 105434
                                                    WASHER
                                                    from £20.21
                                                    from £20.21
                                                    # 007
                                                    MPN: 171812
                                                    TIE ROD
                                                    from £42.03
                                                    from £42.03
                                                    # 008
                                                    MPN: 102742
                                                    NUT
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 12557621 - and 2 more. Click to view details
                                                    # 009
                                                    MPN: 102901
                                                    WASHER
                                                    from £0.71
                                                    from £0.71
                                                    This part replaces part number 4146930
                                                    # 010
                                                    MPN: 160092
                                                    WASHER
                                                    from £0.47
                                                    from £0.47
                                                    # 011
                                                    MPN: 147985
                                                    NUT
                                                    from £0.47
                                                    from £0.47
                                                    # 012
                                                    MPN: 153148
                                                    PAD FASTENING PLATE
                                                    Ø 17 - Not for cars with handling Fiorano equipment
                                                    from £4.03
                                                    from £4.03
                                                    # 013
                                                    MPN: 130533
                                                    BAR BUFFER
                                                    Ø 21 - Valid for cars with handling Fiorano equipment - Optional
                                                    from £46.37
                                                    from £46.37
                                                    # 013
                                                    MPN: 153146
                                                    BAR BUFFER
                                                    Supersession
                                                    Supersession
                                                    # 014
                                                    MPN: 169797
                                                    UPPER LEVER
                                                    from £304.12
                                                    from £304.12
                                                    # 015
                                                    MPN: 169574
                                                    FLAMBLOCK FOR UPPER FORK
                                                    from £72.82
                                                    from £72.82
                                                    # 016
                                                    MPN: 163038
                                                    BUSHES
                                                    from £38.54
                                                    from £38.54
                                                    This part replaces part number 157701
                                                    # 017
                                                    MPN: 144747
                                                    SCREW
                                                    from £36.39
                                                    from £36.39
                                                    # 018
                                                    MPN: 12601574
                                                    WASHER
                                                    from £0.54
                                                    from £0.54
                                                    This part replaces part number 106616 which we have in stock - and 2 more. Click to view details
                                                    # 019
                                                    MPN: 102825
                                                    NUT
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 95900617
                                                    # 020
                                                    MPN: 150789
                                                    ECCENTRIC SCREW
                                                    from £37.94
                                                    from £37.94
                                                    # 021
                                                    MPN: 106422
                                                    SCREW
                                                    from £8.37
                                                    from £8.37
                                                    # 022
                                                    MPN: 150238
                                                    NUT
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 12575821 - and 2 more. Click to view details
                                                    # 023
                                                    MPN: 12601674
                                                    WASHER
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 122975
                                                    # 024
                                                    MPN: 175077
                                                    ECCENTRIC WASHER
                                                    from £7.40
                                                    from £7.40
                                                    This part replaces part number 150790 which we have in stock - and 2 more. Click to view details
                                                    # 025
                                                    MPN: 150238
                                                    NUT
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 12575821 - and 2 more. Click to view details
                                                    # 026
                                                    MPN: 169120
                                                    Rear Anti-Roll Bar
                                                    Ø 17 - Not for cars with handling Fiorano equipment
                                                    from £112.25
                                                    from £112.25
                                                    # 026
                                                    MPN: 210888
                                                    REAR ANTI ROLL BAR Ø 19.5 MM
                                                    from £1,242.35
                                                    from £1,242.35
                                                    This part replaces part number 175890
                                                    # 027
                                                    MPN: 10519624
                                                    WASHER
                                                    from £0.53
                                                    from £0.53
                                                    This part replaces part number 10519601 - and 3 more. Click to view details
                                                    # 028
                                                    MPN: 187016
                                                    SPACER
                                                    from £2.08
                                                    from £2.08
                                                    Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
