ferrari 550 barchetta hand-brake control parts diagram

044 - Hand-Brake Control

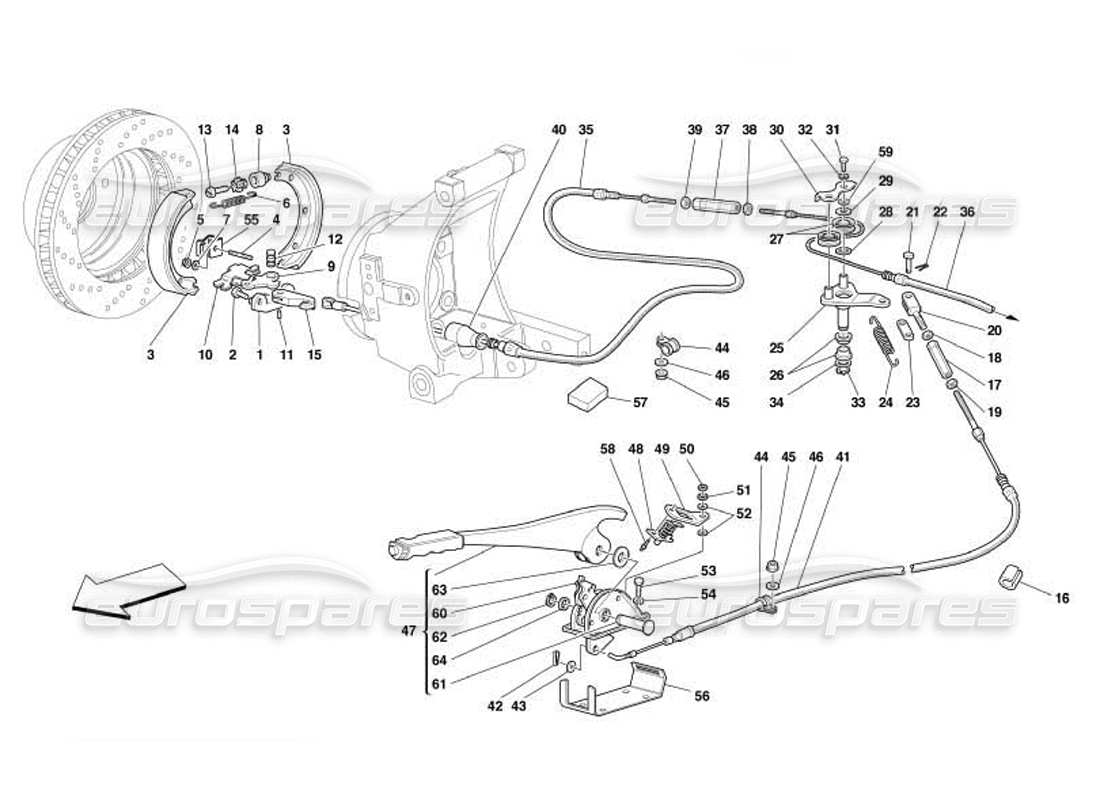

Ferrari 550 Barchetta Hand-Brake Control Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                      #
                                                                                                                      Part number
                                                                                                                      Description
                                                                                                                      Price
                                                                                                                      # 001
                                                                                                                      MPN: 142861
                                                                                                                      SMALL BLOCK
                                                                                                                      from £148.35
                                                                                                                      from £148.35
                                                                                                                      # 002
                                                                                                                      MPN: 142856
                                                                                                                      SCREW
                                                                                                                      from £2.47
                                                                                                                      from £2.47
                                                                                                                      # 003
                                                                                                                      MPN: 178382
                                                                                                                      COMPLETE BRAKE SHOE
                                                                                                                      use part number: 170701
                                                                                                                      Supersession
                                                                                                                      Supersession
                                                                                                                      # 004
                                                                                                                      MPN: 13539224
                                                                                                                      STUD
                                                                                                                      from £2.48
                                                                                                                      from £2.48
                                                                                                                      # 006
                                                                                                                      MPN: 101276
                                                                                                                      SPRING
                                                                                                                      from £2.28
                                                                                                                      from £2.28
                                                                                                                      This part replaces part number 680516 - and 5 more. Click to view details
                                                                                                                      # 007
                                                                                                                      MPN: 12637824
                                                                                                                      WASHER
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      This part replaces part number 12637801 which we have in stock - and 1 more. Click to view details
                                                                                                                      # 008
                                                                                                                      MPN: 101279
                                                                                                                      SCREW SEAT
                                                                                                                      from £31.50
                                                                                                                      from £31.50
                                                                                                                      # 009
                                                                                                                      MPN: 101280
                                                                                                                      INNER LEVER
                                                                                                                      from £26.20
                                                                                                                      from £26.20
                                                                                                                      This part replaces part number 680538 - and 6 more. Click to view details
                                                                                                                      # 010
                                                                                                                      MPN: 101281
                                                                                                                      OUTER LEVER
                                                                                                                      from £34.27
                                                                                                                      from £34.27
                                                                                                                      This part replaces part number 680539 - and 7 more. Click to view details
                                                                                                                      # 011
                                                                                                                      MPN: 101282
                                                                                                                      PIN
                                                                                                                      from £8.04
                                                                                                                      from £8.04
                                                                                                                      This part replaces part number 680540
                                                                                                                      # 012
                                                                                                                      MPN: 101283
                                                                                                                      PIN
                                                                                                                      from £8.70
                                                                                                                      from £8.70
                                                                                                                      This part replaces part number 680541 - and 2 more. Click to view details
                                                                                                                      # 013
                                                                                                                      MPN: 101285
                                                                                                                      SCREW
                                                                                                                      from £17.78
                                                                                                                      from £17.78
                                                                                                                      This part replaces part number 680543 - and 8 more. Click to view details
                                                                                                                      # 014
                                                                                                                      MPN: 101286
                                                                                                                      NUT
                                                                                                                      from £21.71
                                                                                                                      from £21.71
                                                                                                                      This part replaces part number 680544 - and 6 more. Click to view details
                                                                                                                      # 016
                                                                                                                      MPN: 152913
                                                                                                                      RUBBER PIPE
                                                                                                                      from £23.81
                                                                                                                      from £23.81
                                                                                                                      # 017
                                                                                                                      MPN: 152302
                                                                                                                      ADJUSTMENT SLEEVE
                                                                                                                      from £6.55
                                                                                                                      from £6.55
                                                                                                                      # 018
                                                                                                                      MPN: 16102914
                                                                                                                      NUT
                                                                                                                      from £1.62
                                                                                                                      from £1.62
                                                                                                                      This part replaces part number 16102911
                                                                                                                      # 019
                                                                                                                      MPN: 16102314
                                                                                                                      NUT
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      This part replaces part number 16102311 which we have in stock - and 1 more. Click to view details
                                                                                                                      # 020
                                                                                                                      MPN: 152301
                                                                                                                      FORK
                                                                                                                      from £24.50
                                                                                                                      from £24.50
                                                                                                                      # 021
                                                                                                                      MPN: 10050814
                                                                                                                      PIN
                                                                                                                      from £1.29
                                                                                                                      from £1.29
                                                                                                                      This part replaces part number 10050811
                                                                                                                      # 022
                                                                                                                      MPN: 10734208
                                                                                                                      SPLIT PIN
                                                                                                                      from £0.54
                                                                                                                      from £0.54
                                                                                                                      This part replaces part number 10734201
                                                                                                                      # 023
                                                                                                                      MPN: 152303
                                                                                                                      SMALL PLATE
                                                                                                                      from £13.97
                                                                                                                      from £13.97
                                                                                                                      # 025
                                                                                                                      MPN: 152279
                                                                                                                      LEVER
                                                                                                                      Not for GD
                                                                                                                      from £40.58
                                                                                                                      from £40.58
                                                                                                                      # 025
                                                                                                                      MPN: 156122
                                                                                                                      LEVER
                                                                                                                      Valid for GD
                                                                                                                      from £57.75
                                                                                                                      from £57.75
                                                                                                                      # 026
                                                                                                                      MPN: 152273
                                                                                                                      BUSHING
                                                                                                                      from £5.41
                                                                                                                      from £5.41
                                                                                                                      # 027
                                                                                                                      MPN: 175780
                                                                                                                      PULLEY
                                                                                                                      from £6.95
                                                                                                                      from £6.95
                                                                                                                      This part replaces part number 152274
                                                                                                                      # 028
                                                                                                                      MPN: 152617
                                                                                                                      WASHER
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      # 029
                                                                                                                      MPN: 109483
                                                                                                                      WASHER
                                                                                                                      from £0.92
                                                                                                                      from £0.92
                                                                                                                      # 030
                                                                                                                      MPN: 152299
                                                                                                                      SMALL PLATE
                                                                                                                      Not for GD
                                                                                                                      from £3.99
                                                                                                                      from £3.99
                                                                                                                      # 030
                                                                                                                      MPN: 158694
                                                                                                                      SMALL PLATE
                                                                                                                      Valid for GD
                                                                                                                      from £5.88
                                                                                                                      from £5.88
                                                                                                                      # 031
                                                                                                                      MPN: 10977524
                                                                                                                      SCREW
                                                                                                                      from £0.53
                                                                                                                      from £0.53
                                                                                                                      # 032
                                                                                                                      MPN: 11193274
                                                                                                                      WASHER
                                                                                                                      from £0.54
                                                                                                                      from £0.54
                                                                                                                      This part replaces part number 11193279 which we have in stock
                                                                                                                      # 033
                                                                                                                      MPN: 11066476
                                                                                                                      SEEGER RING
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      # 034
                                                                                                                      MPN: 152300
                                                                                                                      WASHER
                                                                                                                      from £0.92
                                                                                                                      from £0.92
                                                                                                                      # 035
                                                                                                                      MPN: 152297
                                                                                                                      RH REAR CABLE
                                                                                                                      from £117.13
                                                                                                                      from £117.13
                                                                                                                      # 036
                                                                                                                      MPN: 152298
                                                                                                                      LH REAR CABLE
                                                                                                                      from £64.42
                                                                                                                      from £64.42
                                                                                                                      # 037
                                                                                                                      MPN: 10091014
                                                                                                                      SLEEVE
                                                                                                                      from £45.23
                                                                                                                      from £45.23
                                                                                                                      This part replaces part number 10091011
                                                                                                                      # 038
                                                                                                                      MPN: 10727314
                                                                                                                      NUT
                                                                                                                      from £5.51
                                                                                                                      from £5.51
                                                                                                                      This part replaces part number 10727311
                                                                                                                      # 039
                                                                                                                      MPN: 10725914
                                                                                                                      NUT
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      This part replaces part number 10725911 - and 1 more. Click to view details
                                                                                                                      # 040
                                                                                                                      MPN: 143938
                                                                                                                      STOP LIMIT FOR HAND BRAKE SHEATH
                                                                                                                      from £16.23
                                                                                                                      from £16.23
                                                                                                                      # 041
                                                                                                                      MPN: 164021
                                                                                                                      HAND-BRAKE CONTROL CABLE
                                                                                                                      from £151.88
                                                                                                                      from £151.88
                                                                                                                      # 042
                                                                                                                      MPN: 10796440
                                                                                                                      SPLIT PIN
                                                                                                                      Supersession
                                                                                                                      Supersession
                                                                                                                      This part replaces part number 264555
                                                                                                                      # 043
                                                                                                                      MPN: 10519624
                                                                                                                      WASHER
                                                                                                                      from £0.54
                                                                                                                      from £0.54
                                                                                                                      This part replaces part number 10519601 - and 3 more. Click to view details
                                                                                                                      # 044
                                                                                                                      MPN: 10441290
                                                                                                                      BRACKET WITH SHEATH
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      # 045
                                                                                                                      MPN: 102741
                                                                                                                      NUT
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                                                      # 046
                                                                                                                      MPN: 12639724
                                                                                                                      WASHER
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      This part replaces part number 12639725 - and 1 more. Click to view details
                                                                                                                      # 047
                                                                                                                      MPN: 154095
                                                                                                                      HAND BRAKE LEVER
                                                                                                                      without lining
                                                                                                                      from £360.21
                                                                                                                      from £360.21
                                                                                                                      This part replaces part number 141460 - and 2 more. Click to view details
                                                                                                                      # 047
                                                                                                                      MPN: 629965..
                                                                                                                      LINING
                                                                                                                      See relevant table for leather colours
                                                                                                                      Supersession
                                                                                                                      Supersession
                                                                                                                      # 049
                                                                                                                      MPN: 169291
                                                                                                                      SUPPORT BRACKET
                                                                                                                      from £1.54
                                                                                                                      from £1.54
                                                                                                                      # 050
                                                                                                                      MPN: 15896470
                                                                                                                      NUT
                                                                                                                      (minimum order quantity = 20)
                                                                                                                      from £0.76
                                                                                                                      from £0.76
                                                                                                                      This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                                                                                      # 051
                                                                                                                      MPN: 12605274
                                                                                                                      WASHER
                                                                                                                      from £0.71
                                                                                                                      from £0.71
                                                                                                                      This part replaces part number 12605270 - and 1 more. Click to view details
                                                                                                                      # 053
                                                                                                                      MPN: 10902124
                                                                                                                      SCREW
                                                                                                                      from £0.51
                                                                                                                      from £0.51
                                                                                                                      This part replaces part number 10902111 - and 1 more. Click to view details
                                                                                                                      # 054
                                                                                                                      MPN: 127494
                                                                                                                      WASHER
                                                                                                                      (minimum order quantity = 20)
                                                                                                                      from £0.53
                                                                                                                      from £0.53
                                                                                                                      This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                                                      # 055
                                                                                                                      MPN: 177625
                                                                                                                      SPRING
                                                                                                                      from £65.63
                                                                                                                      from £65.63
                                                                                                                      # 056
                                                                                                                      MPN: 64051200
                                                                                                                      SUPPORT
                                                                                                                      from £8.50
                                                                                                                      from £8.50
                                                                                                                      # 057
                                                                                                                      MPN: 158346
                                                                                                                      RUBBER THICKNESS
                                                                                                                      from £0.79
                                                                                                                      from £0.79
                                                                                                                      # 058
                                                                                                                      MPN: 15915807
                                                                                                                      SCREW
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      # 059
                                                                                                                      MPN: 62501300
                                                                                                                      WASHER
                                                                                                                      from £0.77
                                                                                                                      from £0.77
                                                                                                                      # 060
                                                                                                                      MPN: 191634
                                                                                                                      COMPLETE MECHANISM
                                                                                                                      from £180.66
                                                                                                                      from £180.66
                                                                                                                      # 061
                                                                                                                      MPN: 191635
                                                                                                                      PIN
                                                                                                                      from £17.11
                                                                                                                      from £17.11
                                                                                                                      # 062
                                                                                                                      MPN: 191638
                                                                                                                      SEEGER RING
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      # 063
                                                                                                                      MPN: 191636
                                                                                                                      WASHER
                                                                                                                      from £7.39
                                                                                                                      from £7.39
                                                                                                                      # 064
                                                                                                                      MPN: 191637
                                                                                                                      SPACER WASHER
                                                                                                                      from £0.47
                                                                                                                      from £0.47
