ferrari 550 barchetta engine-gearbox connecting tube and insulation parts diagram

035 - Engine-Gearbox Connecting Tube and Insulation

Ferrari 550 Barchetta Engine-Gearbox Connecting Tube and Insulation Parts Diagram

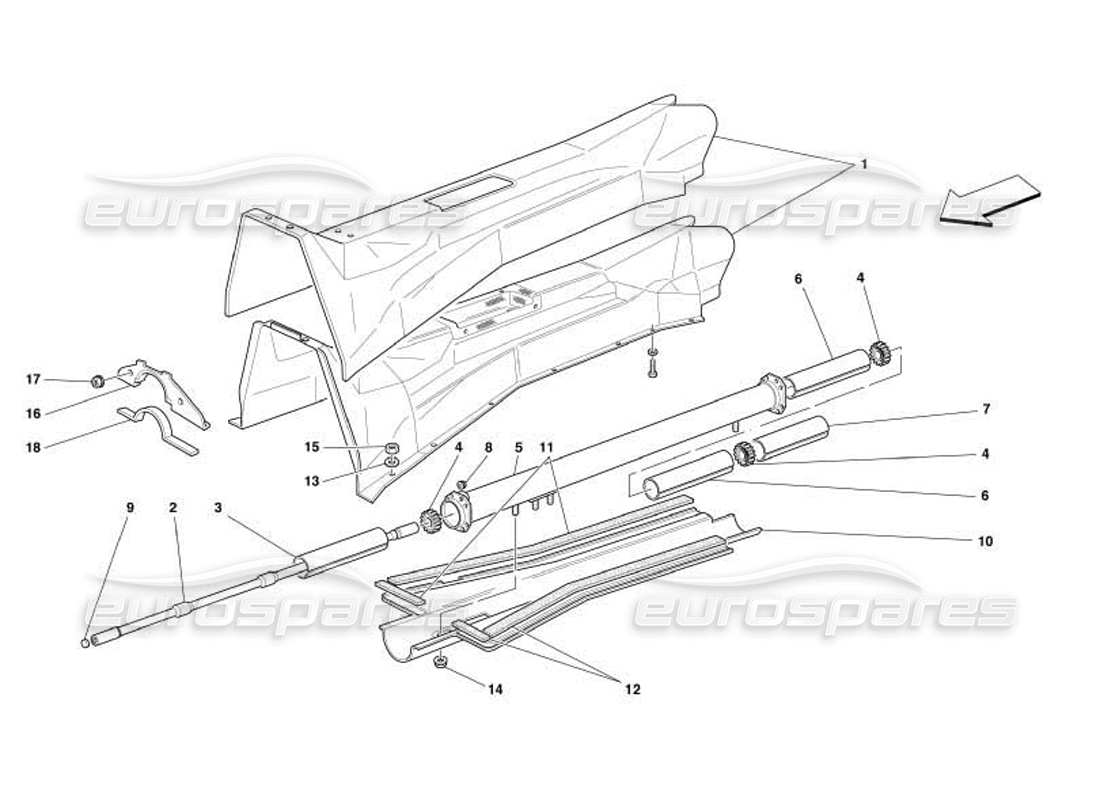

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Price
                                      # 001
                                      MPN: 65859100

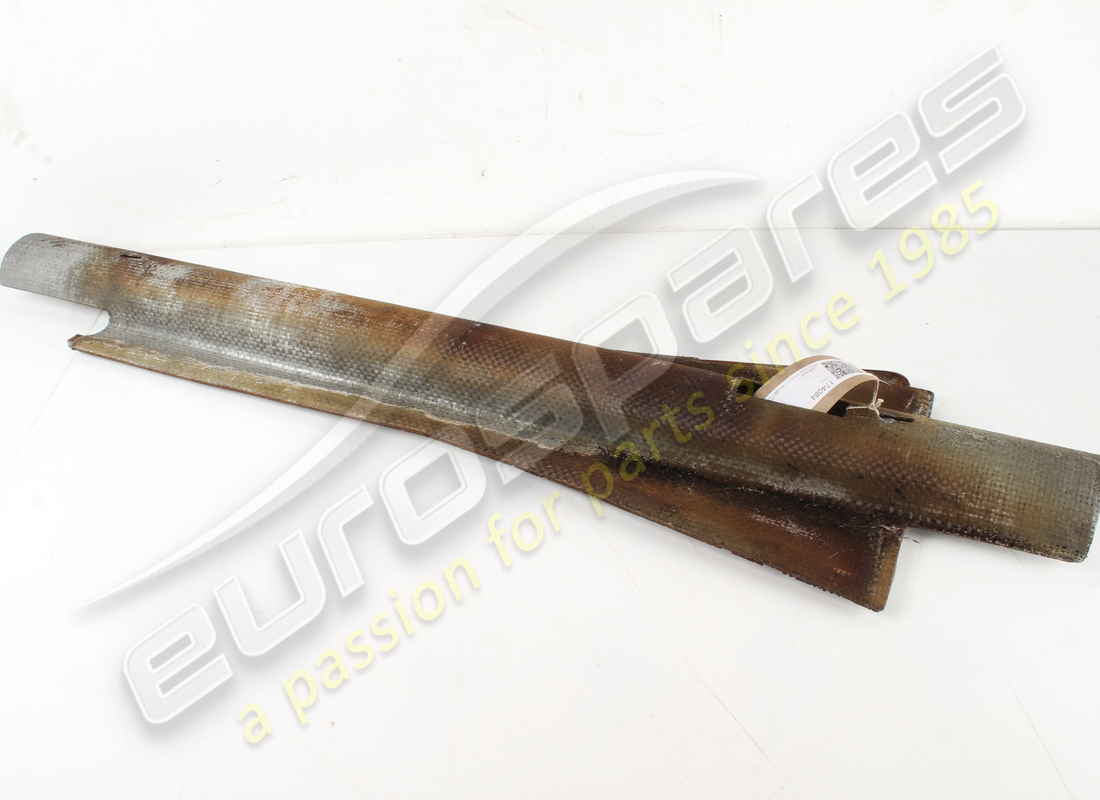

                                      COMPLETE TUNNEL HEAT SHIELD
                                      from £1,884.53
                                      from £1,884.53
                                      This part replaces part number 65193000
                                      # 002
                                      MPN: 173817
                                      COMPLETE PROPELLER SHAFT
                                      from £1,519.48
                                      from £1,519.48
                                      # 003
                                      MPN: 167000
                                      ENGINE SIDE SPACER
                                      from £90.90
                                      from £90.90
                                      # 004
                                      MPN: 166569
                                      BEARING
                                      from £50.49
                                      from £50.49
                                      # 005
                                      MPN: 170076
                                      ENGINE-GEARBOX CONNECTING PIPE
                                      Supersession
                                      Supersession
                                      # 006
                                      MPN: 166998
                                      INTERMEDIATE SPACER
                                      from £55.25
                                      from £55.25
                                      # 007
                                      MPN: 166999
                                      GEARBOX SIDE SPACER
                                      from £181.94
                                      from £181.94
                                      # 009
                                      MPN: 144443
                                      SPACER
                                      from £2.11
                                      from £2.11
                                      # 010
                                      MPN: 174084
                                      SHIELD FOR PIPE PROTECTION
                                      Supersession
                                      Supersession
                                      This part replaces part number 169790
                                      # 011
                                      MPN: 167499
                                      RH GASKET
                                      Supersession
                                      Supersession
                                      # 012
                                      MPN: 172910
                                      LH GASKET
                                      from £73.56
                                      from £73.56
                                      # 013
                                      MPN: 12640624
                                      WASHER
                                      from £0.47
                                      from £0.47
                                      This part replaces part number 12640601 - and 1 more. Click to view details
                                      # 014
                                      MPN: 14058411
                                      NUT
                                      from £0.47
                                      from £0.47
                                      # 015
                                      MPN: 13046011
                                      NUT
                                      from £0.47
                                      from £0.47
                                      # 016
                                      MPN: 65193500
                                      SEAL PLATE
                                      from £14.91
                                      from £14.91
                                      # 017
                                      MPN: 14059111
                                      NUT
                                      from £0.47
                                      from £0.47
                                      # 018
                                      MPN: 65200600
                                      GASKET
                                      from £106.52
                                      from £106.52
