032 - Lay Shaft Gears

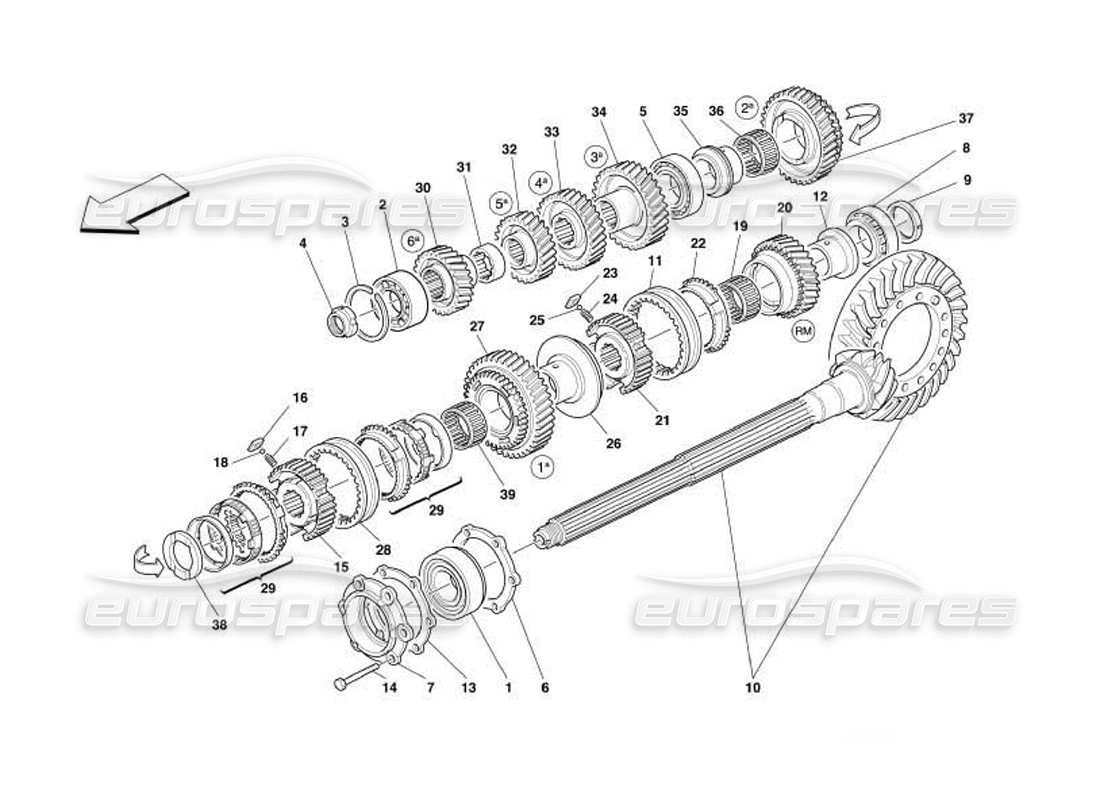

Ferrari 550 Barchetta Lay Shaft Gears Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 144498
BEARING FOR DRIVEN SHAFT DIFFERENTIAL SIDE
from £150.13
from £150.13
# 002
MPN: 103030
ROLLER BEARING
from £128.26
from £128.26
This part replaces part number 101605 - and 2 more. Click to view details
# 003
MPN: 144511
STOP RING
from £1.54
from £1.54
# 004
MPN: 159553
RING NUT
from £46.31
from £46.31
# 005
MPN: 228055
ROLLER BEARING
from £47.37
from £47.37
This part replaces part number 131056 - and 1 more. Click to view details
# 006
MPN: 143924
RING
from £31.90
from £31.90
# 007
MPN: 143923
BUSHING
from £40.31
from £40.31
# 008
MPN: 121822
ROLLER BEARING
from £209.58
from £209.58
# 009
MPN: 122152
SPACER
from £131.97
from £131.97
# 009
MPN: 157668
SPACER
As an alternative
from £55.87
from £55.87
# 010
MPN: 167988
COMPLETE BEVEL GEAR PAIR R.11/43
Not as spare part now - Replaced by 191956
Supersession
Supersession
# 010
MPN: 191956
COMPLETE BEVEL GEAR PAIR R.11/43
from £747.81
from £747.81
This part replaces part number 167988
# 011
MPN: 152198
SLEEVE
from £159.77
from £159.77
# 012
MPN: 152090
BUSHING
from £178.68
from £178.68
# 013
MPN: 155718
SPACER THICK. MM. 2.0
from £23.70
from £23.70
# 013
MPN: 155719
SPACER THICK. MM. 1.6
from £40.00
from £40.00
# 013
MPN: 155720
SPACER THICK. MM. 1.8
from £23.67
from £23.67
# 013
MPN: 155721
SPACER THICK. MM. 2.2
from £16.31
from £16.31
# 013
MPN: 155722
SPACER THICK. MM. 2.4
from £10.49
from £10.49
# 013
MPN: 175375
SPACER THICK. MM. 1.85
from £22.19
from £22.19
# 013
MPN: 175376
SPACER THICK. MM. 1.9
from £25.28
from £25.28
# 013
MPN: 175377
SPACER THICK. MM. 1.95
from £9.06
from £9.06
# 014
MPN: 16321430
SCREW
from £0.64
from £0.64
# 015
MPN: 157255
SYNCHRONIZER BODY
from £172.03
from £172.03
# 016
MPN: 157051
SMALL BLOCK
from £5.85
from £5.85
# 017
MPN: 157049
SPRING
from £0.88
from £0.88
# 018
MPN: 157050
BALL
from £0.52
from £0.52
# 019
MPN: 150004
ROLLER CAGE
from £6.10
from £6.10
# 020
MPN: 167986
REVERSE GEAR
from £755.98
from £755.98
# 021
MPN: 152203
SYNCHRONIZER BODY
from £101.98
from £101.98
# 022
MPN: 152205
SYNCHRONIZER RING
from £260.94
from £260.94
# 023
MPN: 152195
SMALL BLOCK
from £0.47
from £0.47
# 024
MPN: 152196
SPRING
from £0.47
from £0.47
# 025
MPN: 152197
BALL
from £2.09
from £2.09
# 026
MPN: 152091
BUSHING
from £113.56
from £113.56
# 027
MPN: 167974
PINION FOR 1ST GEAR
from £241.33
from £241.33
# 028
MPN: 156931
SLEEVE
from £129.01
from £129.01
# 029
MPN: 159088
SYNCHRONIZER RINGS SET
from £508.43
from £508.43
This part replaces part number 159095
# 030
MPN: 167972
PINION FOR 6TH GEAR
from £516.87
from £516.87
# 031
MPN: 170056
SPACER
from £47.06
from £47.06
# 032
MPN: 179112
PINION FOR 5TH GEAR
from £499.93
from £499.93
# 033
MPN: 179111
PINION FOR 4TH GEAR
from £468.22
from £468.22
# 034
MPN: 167969
PINION FOR 3RD GEAR
from £147.41
from £147.41
# 035
MPN: 143892
BUSHING
from £26.19
from £26.19
# 036
MPN: 104254
ROLLER CAGE
from £29.98
from £29.98
# 037
MPN: 167976
PINION FOR 2ND GEAR
from £856.17
from £856.17
This part replaces part number 167977
# 038
MPN: 157375
SPACER
from £5.89
from £5.89
# 039
MPN: 104254
ROLLER CAGE
from £29.98
from £29.98
