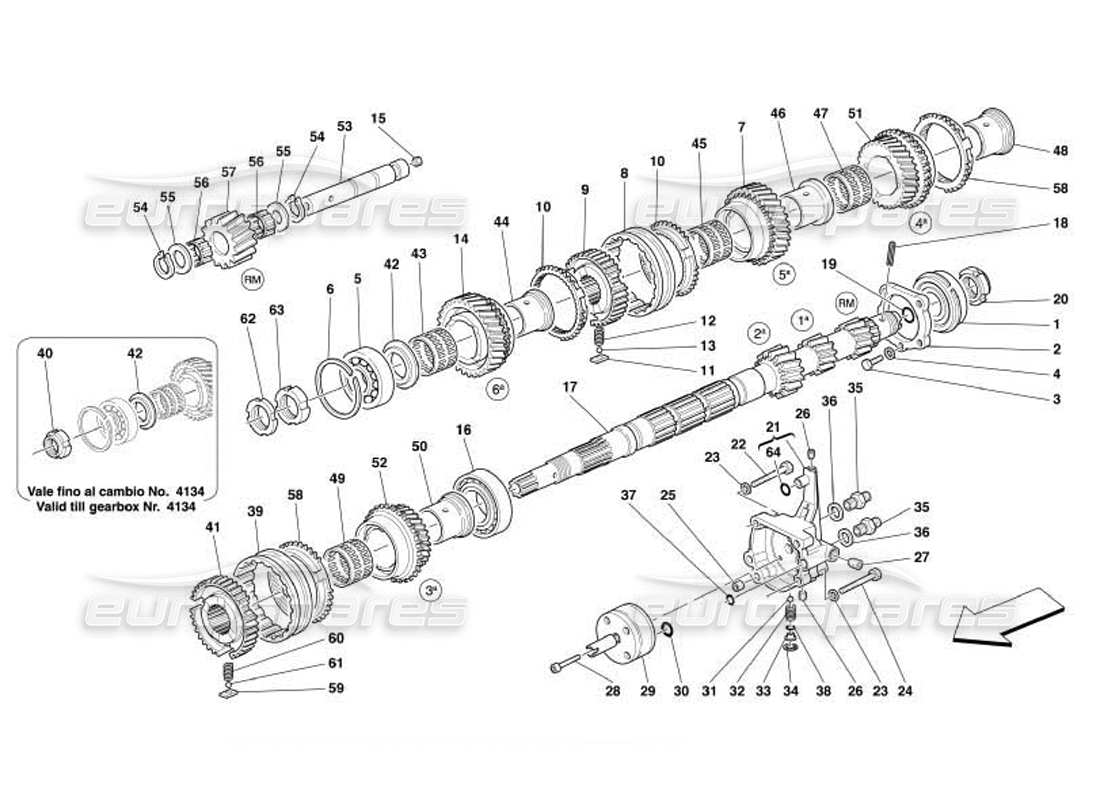

031 - Main Shaft Gears and Clutch Oil Pump

Ferrari 550 Barchetta Main Shaft Gears and Clutch Oil Pump Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                    #
                                                                                                                    Part number
                                                                                                                    Description
                                                                                                                    Price
                                                                                                                    # 000
                                                                                                                    MPN: 149329
                                                                                                                    COMPLETE OIL PUMP BODY
                                                                                                                    Not as spare part now - Replaced by 196153
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 000
                                                                                                                    MPN: 196153
                                                                                                                    COMPLETE OIL PUMP BODY
                                                                                                                    from £132.53
                                                                                                                    from £132.53
                                                                                                                    This part replaces part number 149329
                                                                                                                    # 001
                                                                                                                    MPN: 144502
                                                                                                                    BEARING FOR MAIN SHAFT PUMP OIL SIDE
                                                                                                                    from £88.74
                                                                                                                    from £88.74
                                                                                                                    # 002
                                                                                                                    MPN: 144444
                                                                                                                    SUPPORT RING
                                                                                                                    from £36.67
                                                                                                                    from £36.67
                                                                                                                    # 003
                                                                                                                    MPN: 16043424
                                                                                                                    SCREW
                                                                                                                    from £0.53
                                                                                                                    from £0.53
                                                                                                                    This part replaces part number 16043421
                                                                                                                    # 004
                                                                                                                    MPN: 127496
                                                                                                                    WASHER
                                                                                                                    from £0.54
                                                                                                                    from £0.54
                                                                                                                    This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                                                    # 005
                                                                                                                    MPN: 103030
                                                                                                                    ROLLER BEARING
                                                                                                                    from £124.53
                                                                                                                    from £124.53
                                                                                                                    This part replaces part number 101605 - and 2 more. Click to view details
                                                                                                                    # 006
                                                                                                                    MPN: 144511
                                                                                                                    STOP RING
                                                                                                                    from £1.55
                                                                                                                    from £1.55
                                                                                                                    # 007
                                                                                                                    MPN: 179113
                                                                                                                    PINION FOR 5TH GEAR
                                                                                                                    from £1,809.40
                                                                                                                    from £1,809.40
                                                                                                                    # 008
                                                                                                                    MPN: 152206
                                                                                                                    SLEEVE FOR SYNCHRONIZER
                                                                                                                    from £42.34
                                                                                                                    from £42.34
                                                                                                                    # 009
                                                                                                                    MPN: 152207
                                                                                                                    SYNCHRONIZER BODY
                                                                                                                    from £168.75
                                                                                                                    from £168.75
                                                                                                                    # 010
                                                                                                                    MPN: 152209
                                                                                                                    SYNCHRONIZER RING
                                                                                                                    from £89.66
                                                                                                                    from £89.66
                                                                                                                    # 011
                                                                                                                    MPN: 152195
                                                                                                                    SMALL BLOCK
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 012
                                                                                                                    MPN: 152196
                                                                                                                    SPRING
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 013
                                                                                                                    MPN: 152197
                                                                                                                    BALL
                                                                                                                    from £2.09
                                                                                                                    from £2.09
                                                                                                                    # 014
                                                                                                                    MPN: 167984
                                                                                                                    PINION FOR 6TH GEAR
                                                                                                                    from £633.50
                                                                                                                    from £633.50
                                                                                                                    # 015
                                                                                                                    MPN: 10269350
                                                                                                                    PLUG
                                                                                                                    from £1.00
                                                                                                                    from £1.00
                                                                                                                    # 016
                                                                                                                    MPN: 228055
                                                                                                                    ROLLER BEARING
                                                                                                                    from £45.99
                                                                                                                    from £45.99
                                                                                                                    This part replaces part number 131056 - and 1 more. Click to view details
                                                                                                                    # 017
                                                                                                                    MPN: 167968

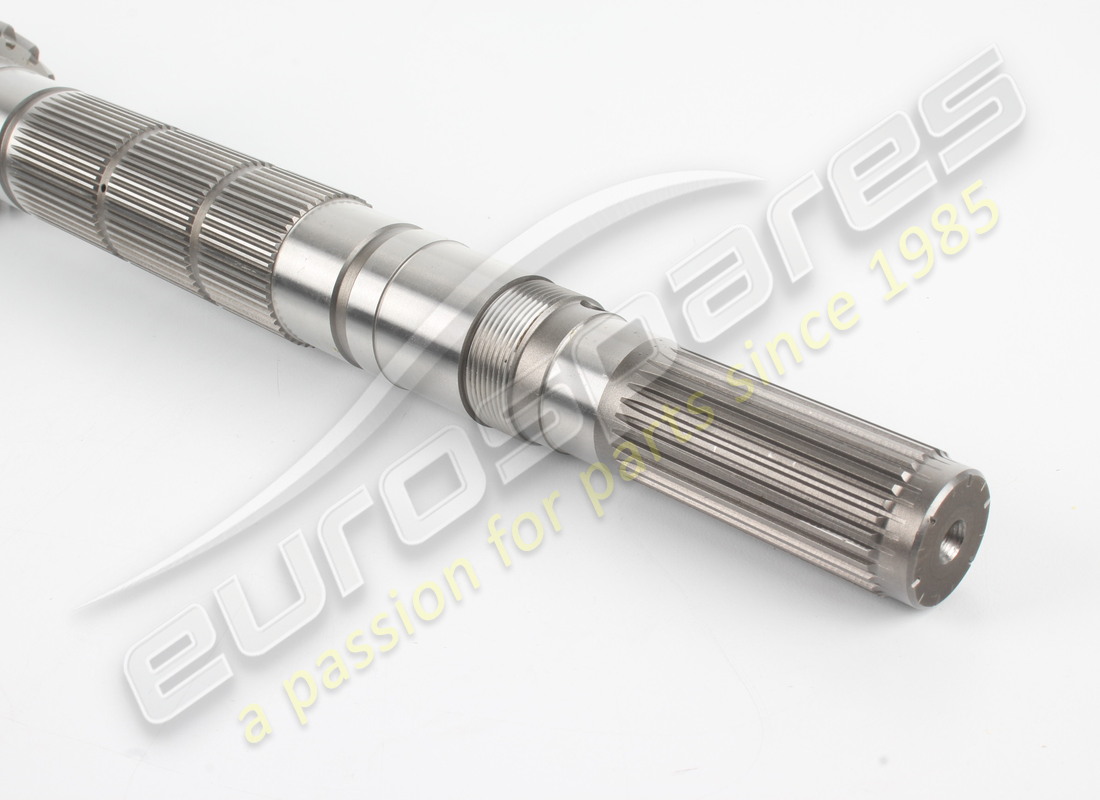

                                                                                                                    MAIN SHAFT FOR GEAR LEVER
                                                                                                                    Not as spare part now- -Replaced by 189318 - For cars till gearbox Nr. 4134 also mount ring nuts 189162 and 189311 and appropriate spacer for shaft - See pos. 62, 63 and 42
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 017
                                                                                                                    MPN: 189318
                                                                                                                    MAIN SHAFT FOR GEAR LEVER
                                                                                                                    from £1,481.88
                                                                                                                    from £1,481.88
                                                                                                                    This part replaces part number 167968
                                                                                                                    # 018
                                                                                                                    MPN: 14601270
                                                                                                                    FLEXIBLE PIN
                                                                                                                    from £0.53
                                                                                                                    from £0.53
                                                                                                                    # 019
                                                                                                                    MPN: 109724
                                                                                                                    O.R. GASKET
                                                                                                                    from £0.65
                                                                                                                    from £0.65
                                                                                                                    # 020
                                                                                                                    MPN: 159553
                                                                                                                    RING NUT
                                                                                                                    from £46.31
                                                                                                                    from £46.31
                                                                                                                    # 021
                                                                                                                    MPN: 170931
                                                                                                                    OIL PUMP BODY
                                                                                                                    Not as spare part now - Replaced by 189117
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 021
                                                                                                                    MPN: 189117
                                                                                                                    OIL PUMP BODY
                                                                                                                    With complete oil pump body
                                                                                                                    This part replaces part number 170931
                                                                                                                    # 022
                                                                                                                    MPN: 16044321
                                                                                                                    SCREW
                                                                                                                    from £0.30
                                                                                                                    from £0.30
                                                                                                                    # 023
                                                                                                                    MPN: 12601374
                                                                                                                    WASHER
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                                                    # 024
                                                                                                                    MPN: 16044321
                                                                                                                    SCREW
                                                                                                                    from £0.30
                                                                                                                    from £0.30
                                                                                                                    # 025
                                                                                                                    MPN: 102704
                                                                                                                    CENTERING DOWEL
                                                                                                                    from £1.59
                                                                                                                    from £1.59
                                                                                                                    This part replaces part number 500805
                                                                                                                    # 026
                                                                                                                    MPN: 14326150
                                                                                                                    PLUG
                                                                                                                    from £0.51
                                                                                                                    from £0.51
                                                                                                                    This part replaces part number 12326150
                                                                                                                    # 027
                                                                                                                    MPN: 10269550
                                                                                                                    PLUG
                                                                                                                    from £1.56
                                                                                                                    from £1.56
                                                                                                                    # 028
                                                                                                                    MPN: 14303474
                                                                                                                    SCREW
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 029
                                                                                                                    MPN: 185458
                                                                                                                    COMPLETE CLUTCH OIL PUMP
                                                                                                                    from £737.45
                                                                                                                    from £737.45
                                                                                                                    This part replaces part number 171706
                                                                                                                    # 030
                                                                                                                    MPN: 137192
                                                                                                                    O.R. GASKET
                                                                                                                    from £0.54
                                                                                                                    from £0.54
                                                                                                                    # 031
                                                                                                                    MPN: 135770
                                                                                                                    BALL
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 032
                                                                                                                    MPN: 171889
                                                                                                                    SPRING
                                                                                                                    from £2.29
                                                                                                                    from £2.29
                                                                                                                    # 033
                                                                                                                    MPN: 162315
                                                                                                                    SPACER
                                                                                                                    from £1.09
                                                                                                                    from £1.09
                                                                                                                    # 034
                                                                                                                    MPN: 11057576
                                                                                                                    SEEGER RING
                                                                                                                    from £0.53
                                                                                                                    from £0.53
                                                                                                                    # 035
                                                                                                                    MPN: 150577
                                                                                                                    UNION
                                                                                                                    from £10.84
                                                                                                                    from £10.84
                                                                                                                    # 036
                                                                                                                    MPN: 10257060
                                                                                                                    GASKET
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 10253060 - and 2 more. Click to view details
                                                                                                                    # 037
                                                                                                                    MPN: 137192
                                                                                                                    GASKET
                                                                                                                    from £0.54
                                                                                                                    from £0.54
                                                                                                                    # 038
                                                                                                                    MPN: 128702
                                                                                                                    GASKET
                                                                                                                    from £2.45
                                                                                                                    from £2.45
                                                                                                                    # 039
                                                                                                                    MPN: 152198
                                                                                                                    SLEEVE
                                                                                                                    from £161.14
                                                                                                                    from £161.14
                                                                                                                    # 040
                                                                                                                    MPN: 153000
                                                                                                                    RING NUT
                                                                                                                    from £33.69
                                                                                                                    from £33.69
                                                                                                                    This part replaces part number 131775 - and 1 more. Click to view details
                                                                                                                    # 041
                                                                                                                    MPN: 161015
                                                                                                                    SYNCHRONIZER BODY
                                                                                                                    from £226.26
                                                                                                                    from £226.26
                                                                                                                    # 042
                                                                                                                    MPN: 143886
                                                                                                                    SPACER
                                                                                                                    Valid till gearbox Nr. 4134
                                                                                                                    from £11.20
                                                                                                                    from £11.20
                                                                                                                    # 042
                                                                                                                    MPN: 189413
                                                                                                                    SPACER
                                                                                                                    Possible fitting - Thickness. mm. 4 - Valid from gearbox Nr. 4135
                                                                                                                    from £29.87
                                                                                                                    from £29.87
                                                                                                                    # 042
                                                                                                                    MPN: 189417
                                                                                                                    SPACER
                                                                                                                    Possible fitting - Thickness. mm. 4,2 - Valid from gearbox Nr. 4135
                                                                                                                    from £6.45
                                                                                                                    from £6.45
                                                                                                                    # 042
                                                                                                                    MPN: 189418
                                                                                                                    SPACER
                                                                                                                    Possible fitting - Thickness. mm. 3,8 - Valid from gearbox Nr. 4135
                                                                                                                    from £6.45
                                                                                                                    from £6.45
                                                                                                                    # 042
                                                                                                                    MPN: 192722
                                                                                                                    SPACER
                                                                                                                    Possible fitting - Thickness. mm. 4,3 - Valid from gearbox Nr. 4135
                                                                                                                    from £93.38
                                                                                                                    from £93.38
                                                                                                                    # 042
                                                                                                                    MPN: 192723
                                                                                                                    SPACER
                                                                                                                    Possible fitting - Thickness. mm. 4,1 - Valid from gearbox Nr. 4135
                                                                                                                    from £93.38
                                                                                                                    from £93.38
                                                                                                                    # 043
                                                                                                                    MPN: 107525
                                                                                                                    ROLLER CAGE
                                                                                                                    from £7.96
                                                                                                                    from £7.96
                                                                                                                    # 044
                                                                                                                    MPN: 143893
                                                                                                                    BUSHING
                                                                                                                    from £240.31
                                                                                                                    from £240.31
                                                                                                                    # 045
                                                                                                                    MPN: 107525
                                                                                                                    ROLLER CAGE
                                                                                                                    from £7.96
                                                                                                                    from £7.96
                                                                                                                    # 046
                                                                                                                    MPN: 152094
                                                                                                                    BUSHING
                                                                                                                    from £42.75
                                                                                                                    from £42.75
                                                                                                                    # 047
                                                                                                                    MPN: 107525
                                                                                                                    ROLLER CAGE
                                                                                                                    from £7.96
                                                                                                                    from £7.96
                                                                                                                    # 048
                                                                                                                    MPN: 152093
                                                                                                                    BUSHING
                                                                                                                    from £37.53
                                                                                                                    from £37.53
                                                                                                                    # 049
                                                                                                                    MPN: 109002
                                                                                                                    ROLLER CAGE
                                                                                                                    from £16.40
                                                                                                                    from £16.40
                                                                                                                    This part replaces part number 114059
                                                                                                                    # 050
                                                                                                                    MPN: 161445
                                                                                                                    BUSHING
                                                                                                                    from £77.01
                                                                                                                    from £77.01
                                                                                                                    # 051
                                                                                                                    MPN: 179110
                                                                                                                    PINION FOR 4TH GEAR
                                                                                                                    from £1,149.78
                                                                                                                    from £1,149.78
                                                                                                                    # 052
                                                                                                                    MPN: 167978
                                                                                                                    PINION FOR 3RD GEAR
                                                                                                                    from £456.09
                                                                                                                    from £456.09
                                                                                                                    # 053
                                                                                                                    MPN: 159410
                                                                                                                    PIN
                                                                                                                    from £32.29
                                                                                                                    from £32.29
                                                                                                                    # 054
                                                                                                                    MPN: 158272
                                                                                                                    FLEXIBLE RING
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 055
                                                                                                                    MPN: 104249
                                                                                                                    SPACER WASHER
                                                                                                                    mm. 4,0
                                                                                                                    from £37.72
                                                                                                                    from £37.72
                                                                                                                    # 055
                                                                                                                    MPN: 158257
                                                                                                                    SPACER WASHER
                                                                                                                    mm. 4,1
                                                                                                                    from £5.26
                                                                                                                    from £5.26
                                                                                                                    # 056
                                                                                                                    MPN: 104256
                                                                                                                    ROLLER CAGE
                                                                                                                    from £5.97
                                                                                                                    from £5.97
                                                                                                                    # 057
                                                                                                                    MPN: 167973
                                                                                                                    IDLE GEAR FOR REVERSE
                                                                                                                    from £746.27
                                                                                                                    from £746.27
                                                                                                                    # 058
                                                                                                                    MPN: 155155
                                                                                                                    SYNCHRONIZER RING
                                                                                                                    from £495.00
                                                                                                                    from £495.00
                                                                                                                    # 059
                                                                                                                    MPN: 152195
                                                                                                                    SMALL BLOCK
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 060
                                                                                                                    MPN: 161016
                                                                                                                    SPRING
                                                                                                                    from £2.85
                                                                                                                    from £2.85
                                                                                                                    # 061
                                                                                                                    MPN: 152197
                                                                                                                    BALL
                                                                                                                    from £2.09
                                                                                                                    from £2.09
                                                                                                                    # 062
                                                                                                                    MPN: 189311
                                                                                                                    RING NUT
                                                                                                                    Valid from gearbox Nr. 4135
                                                                                                                    from £7.72
                                                                                                                    from £7.72
                                                                                                                    # 063
                                                                                                                    MPN: 189162
                                                                                                                    RING NUT
                                                                                                                    Valid from gearbox Nr. 4135
                                                                                                                    from £8.06
                                                                                                                    from £8.06
                                                                                                                    # 064
                                                                                                                    MPN: 134705
                                                                                                                    GASKET
                                                                                                                    For oil pump body 196153
                                                                                                                    from £0.47
                                                                                                                    from £0.47
