018 - Secondary Air Pump

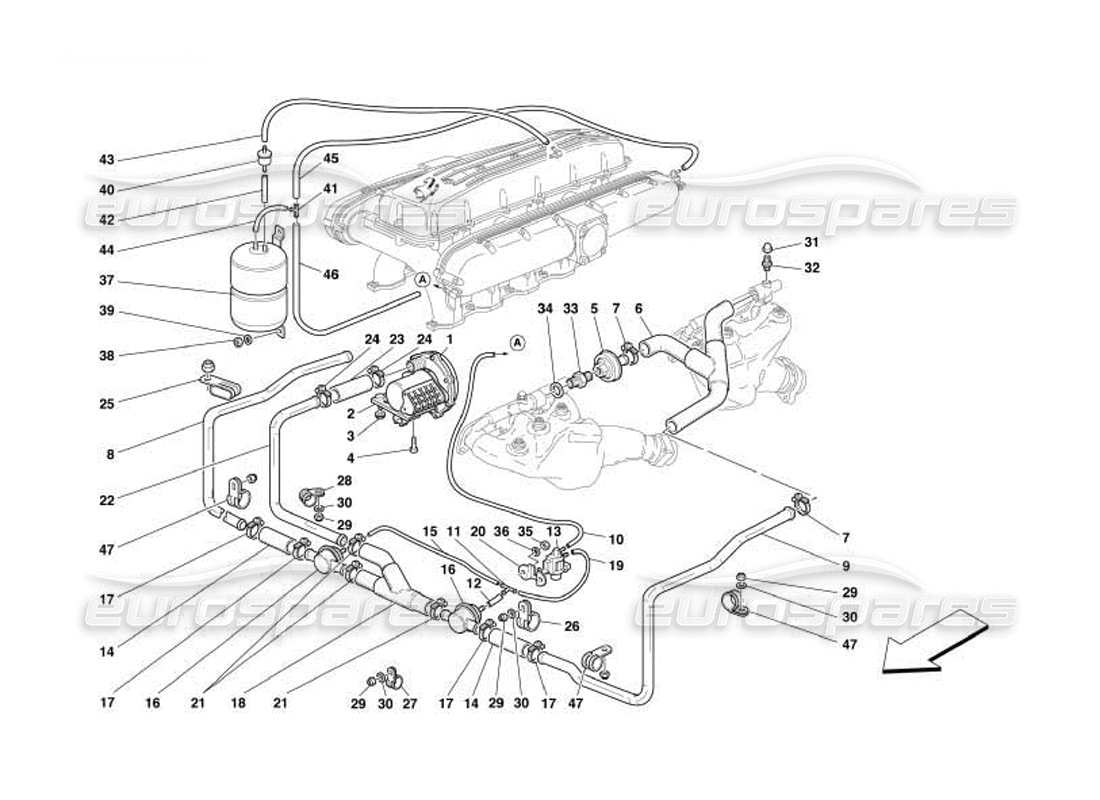

Ferrari 550 Barchetta Secondary Air Pump Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                              #
                                                                                              Part number
                                                                                              Description
                                                                                              Price

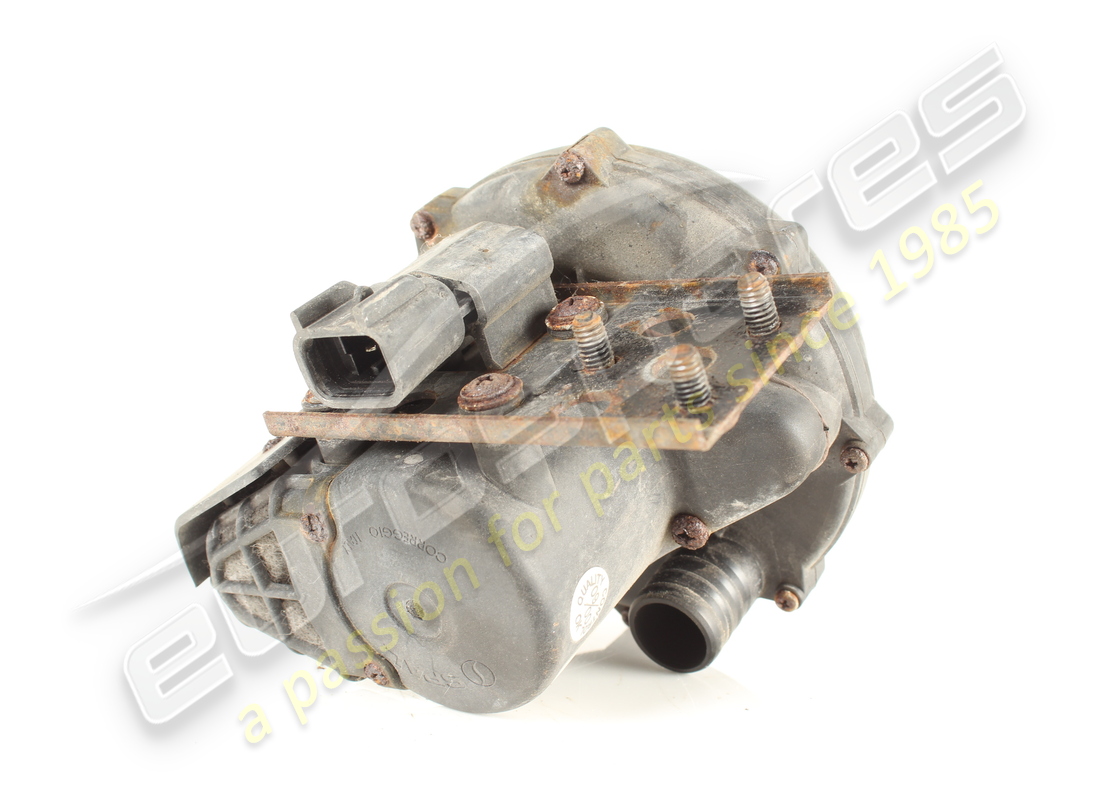

                                                                                              # 001
                                                                                              MPN: 165903
                                                                                              ELECTRIC AIR PUMP WITH BRACKET
                                                                                              from £521.48
                                                                                              from £521.48
                                                                                              # 002
                                                                                              MPN: 149111
                                                                                              BRACKET
                                                                                              from £16.94
                                                                                              from £16.94
                                                                                              # 003
                                                                                              MPN: 14058411
                                                                                              NUT
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 004
                                                                                              MPN: 14306724
                                                                                              SCREW
                                                                                              from £0.56
                                                                                              from £0.56
                                                                                              # 005
                                                                                              MPN: 148494
                                                                                              SECONDARY AIR VALVE
                                                                                              from £402.05
                                                                                              from £402.05
                                                                                              This part replaces part number 121769 - and 9 more. Click to view details
                                                                                              # 006
                                                                                              MPN: 154873
                                                                                              CONNECTION PIPE
                                                                                              from £150.51
                                                                                              from £150.51
                                                                                              # 007
                                                                                              MPN: 161490
                                                                                              SCREW COLLAR
                                                                                              from £1.02
                                                                                              from £1.02
                                                                                              # 008
                                                                                              MPN: 155103
                                                                                              RH PIPE
                                                                                              from £24.40
                                                                                              from £24.40
                                                                                              # 009
                                                                                              MPN: 168369
                                                                                              LH PIPE
                                                                                              from £100.77
                                                                                              from £100.77
                                                                                              # 010
                                                                                              MPN: 117170
                                                                                              PIPE FROM SOLENOID VALVE TO PLENUM CHAMBER
                                                                                              from £8.24
                                                                                              from £8.24
                                                                                              # 011
                                                                                              MPN: 121793
                                                                                              3-WAY UNION
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 012
                                                                                              MPN: 121831
                                                                                              PIPE FROM UNION TO LH CUT-OFF VALVE
                                                                                              from £1.33
                                                                                              from £1.33
                                                                                              # 013
                                                                                              MPN: 159177
                                                                                              SOLENOID VALVE
                                                                                              from £103.88
                                                                                              from £103.88
                                                                                              This part replaces part number 154384 which we have in stock
                                                                                              # 014
                                                                                              MPN: 165446
                                                                                              RUBBER PIPE
                                                                                              from £9.36
                                                                                              from £9.36
                                                                                              This part replaces part number 155107 which we have in stock - and 5 more. Click to view details
                                                                                              # 015
                                                                                              MPN: 115412
                                                                                              PIPE FROM RH CUT-OFF VALVE TO UNION
                                                                                              from £1.33
                                                                                              from £1.33
                                                                                              This part replaces part number 169456
                                                                                              # 016
                                                                                              MPN: 147390
                                                                                              CUT-OFF VALVE
                                                                                              from £176.28
                                                                                              from £176.28
                                                                                              This part replaces part number 121751 - and 3 more. Click to view details
                                                                                              # 017
                                                                                              MPN: 13000490
                                                                                              SCREW COLLAR
                                                                                              from £0.51
                                                                                              from £0.51
                                                                                              This part replaces part number 10169090 - and 3 more. Click to view details
                                                                                              # 018
                                                                                              MPN: 154871
                                                                                              CONNECTION SLEEVE
                                                                                              from £173.22
                                                                                              from £173.22
                                                                                              # 019
                                                                                              MPN: 159539
                                                                                              PIPE FROM UNION TO SOLENOID VALVE
                                                                                              from £2.49
                                                                                              from £2.49
                                                                                              # 020
                                                                                              MPN: 145472
                                                                                              SMALL PLATE
                                                                                              from £2.25
                                                                                              from £2.25
                                                                                              # 021
                                                                                              MPN: 13000490
                                                                                              SCREW COLLAR
                                                                                              from £0.52
                                                                                              from £0.52
                                                                                              This part replaces part number 10169090 - and 3 more. Click to view details
                                                                                              # 022
                                                                                              MPN: 168368
                                                                                              PIPE
                                                                                              from £23.23
                                                                                              from £23.23
                                                                                              # 024
                                                                                              MPN: 13000490
                                                                                              SCREW COLLAR
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              This part replaces part number 10169090 - and 3 more. Click to view details
                                                                                              # 025
                                                                                              MPN: 61712500
                                                                                              BRACKET WITH SHEATH
                                                                                              from £0.88
                                                                                              from £0.88
                                                                                              # 026
                                                                                              MPN: 10442090
                                                                                              BRACKET WITH SHEATH
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 027
                                                                                              MPN: 10441490
                                                                                              BRACKET WITH SHEATH
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 028
                                                                                              MPN: 10441990
                                                                                              BRACKET WITH SHEATH
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 029
                                                                                              MPN: 102948
                                                                                              NUT
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 12574211 - and 3 more. Click to view details
                                                                                              # 030
                                                                                              MPN: 14499324
                                                                                              WASHER
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 14499301 which we have in stock
                                                                                              # 031
                                                                                              MPN: 150595
                                                                                              CAP NUT
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 16109642
                                                                                              # 032
                                                                                              MPN: 152630
                                                                                              UNION
                                                                                              from £44.20
                                                                                              from £44.20
                                                                                              # 033
                                                                                              MPN: 152631
                                                                                              UNION
                                                                                              from £13.75
                                                                                              from £13.75
                                                                                              # 034
                                                                                              MPN: 10257460
                                                                                              GASKET
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 94702
                                                                                              # 035
                                                                                              MPN: 169180
                                                                                              NUT
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              This part replaces part number 12574121
                                                                                              # 036
                                                                                              MPN: 14496324
                                                                                              WASHER
                                                                                              from £1.39
                                                                                              from £1.39
                                                                                              This part replaces part number 14496301 which we have in stock
                                                                                              # 037
                                                                                              MPN: 175374
                                                                                              DEPRESSION ACCUMULATION TANK
                                                                                              from £154.85
                                                                                              from £154.85
                                                                                              # 038
                                                                                              MPN: 102741
                                                                                              NUT
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                              # 039
                                                                                              MPN: 12646601
                                                                                              WASHER
                                                                                              from £0.71
                                                                                              from £0.71
                                                                                              # 040
                                                                                              MPN: 62507200
                                                                                              NONRETURN VALVE
                                                                                              from £14.16
                                                                                              from £14.16
                                                                                              This part replaces part number 61653800
                                                                                              # 041
                                                                                              MPN: 121793
                                                                                              UNION
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 042
                                                                                              MPN: 121831
                                                                                              RUBBER HOSE FROM VALVE TO TANK
                                                                                              from £1.33
                                                                                              from £1.33
                                                                                              # 043
                                                                                              MPN: 124347
                                                                                              RUBBER HOSE FROM RH SUCTION MANIFOLD TO VALVE
                                                                                              from £6.10
                                                                                              from £6.10
                                                                                              # 044
                                                                                              MPN: 121831
                                                                                              RUBBER HOSE FROM TANK TO UNION
                                                                                              from £1.33
                                                                                              from £1.33
                                                                                              # 045
                                                                                              MPN: 122761
                                                                                              RUBBER PIPE FROM UNION TO SOLENOID VALVE
                                                                                              from £52.25
                                                                                              from £52.25
                                                                                              This part replaces part number 275542
                                                                                              # 046
                                                                                              MPN: 124032
                                                                                              RUBBER PIPE FROM UNION TO SOLENOID VALVE
                                                                                              Valid for GD
                                                                                              from £25.06
                                                                                              from £25.06
                                                                                              # 046
                                                                                              MPN: 168432
                                                                                              RUBBER PIPE FROM UNION TO SOLENOID VALVE
                                                                                              Not for GD
                                                                                              from £23.66
                                                                                              from £23.66
                                                                                              # 047
                                                                                              MPN: 10441790
                                                                                              BRACKET WITH SHEATH
                                                                                              from £0.47
                                                                                              from £0.47
