ferrari 550 barchetta fuel supply system parts diagram

009 - fuel supply system

Ferrari 550 Barchetta Fuel Supply System Parts Diagram

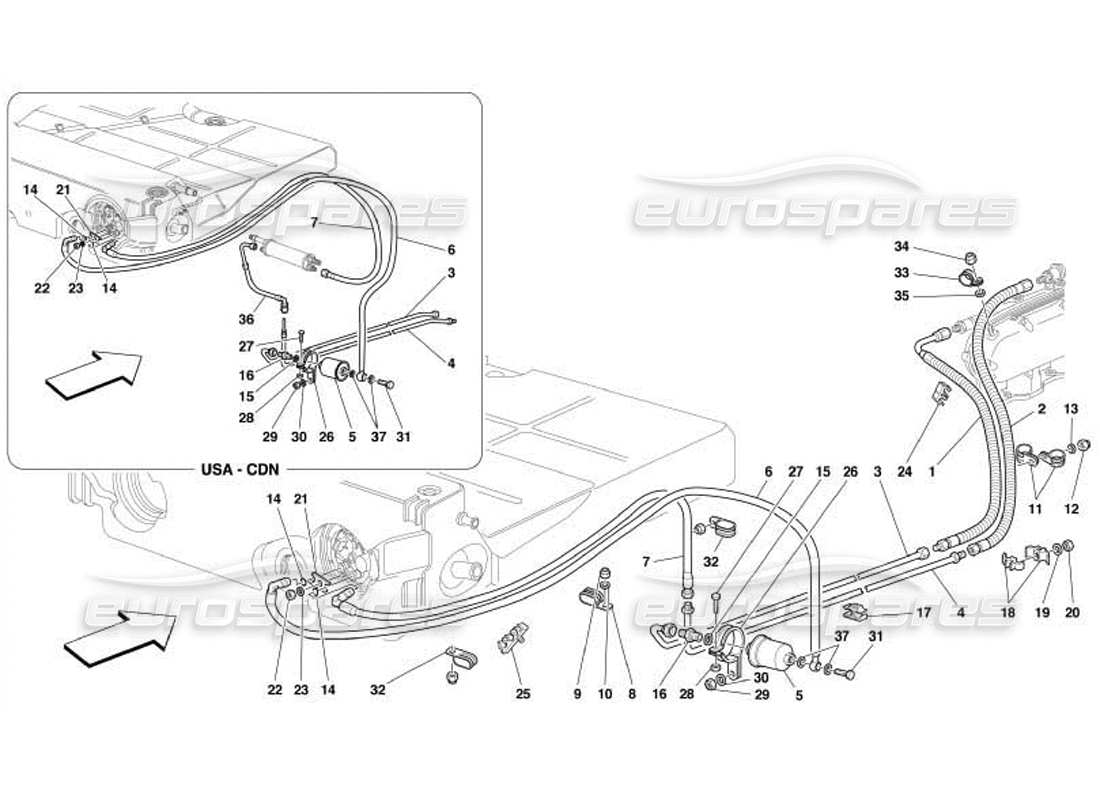

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                              #
                                                              Part number
                                                              Description
                                                              Price
                                                              # 001
                                                              MPN: 178522

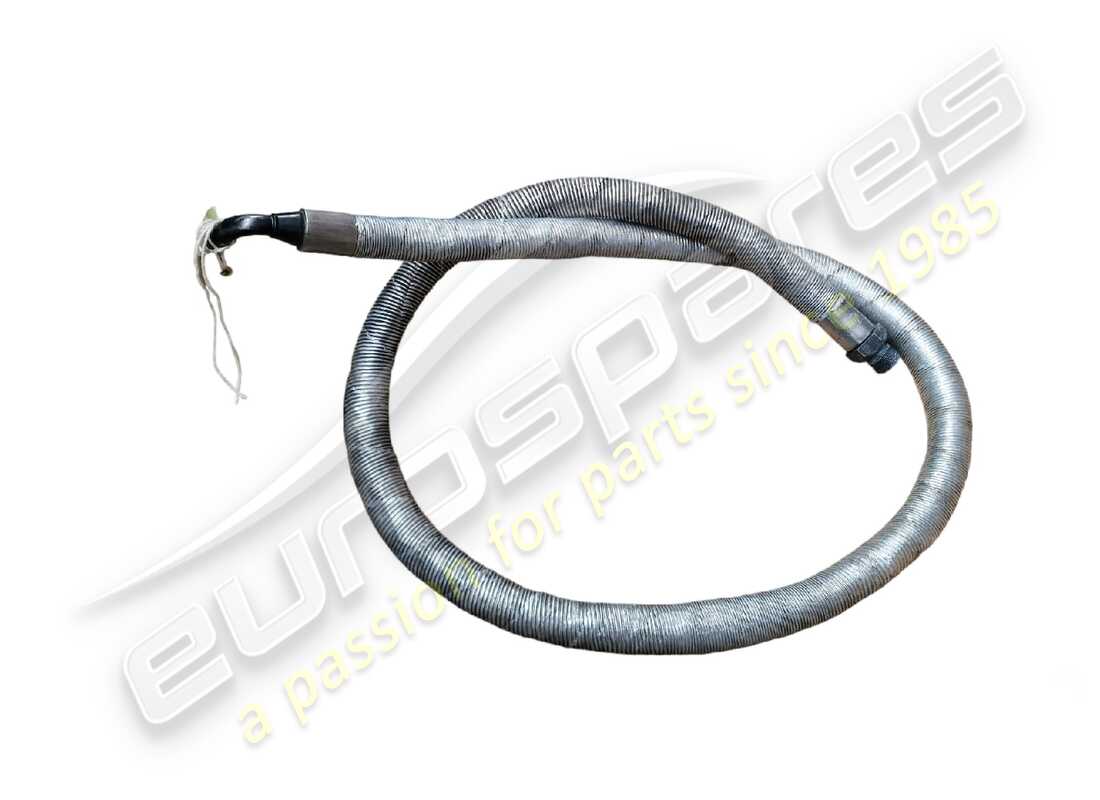

                                                              LH DELIVERY PIPE
                                                              Not for GD
                                                              from £122.46
                                                              from £122.46
                                                              This part replaces part number 166742 - and 1 more. Click to view details
                                                              # 001
                                                              MPN: 178523
                                                              LH DELIVERY PIPE
                                                              Valid for GD
                                                              from £202.86
                                                              from £202.86
                                                              This part replaces part number 173857
                                                              # 001
                                                              MPN: 178524
                                                              RH DELIVERY PIPE
                                                              Valid for GD
                                                              from £208.20
                                                              from £208.20
                                                              This part replaces part number 173858
                                                              # 001
                                                              MPN: 178525
                                                              RH DELIVERY PIPE
                                                              -Not for GD-
                                                              from £108.33
                                                              from £108.33
                                                              This part replaces part number 178304 - and 1 more. Click to view details
                                                              # 002
                                                              MPN: 179162

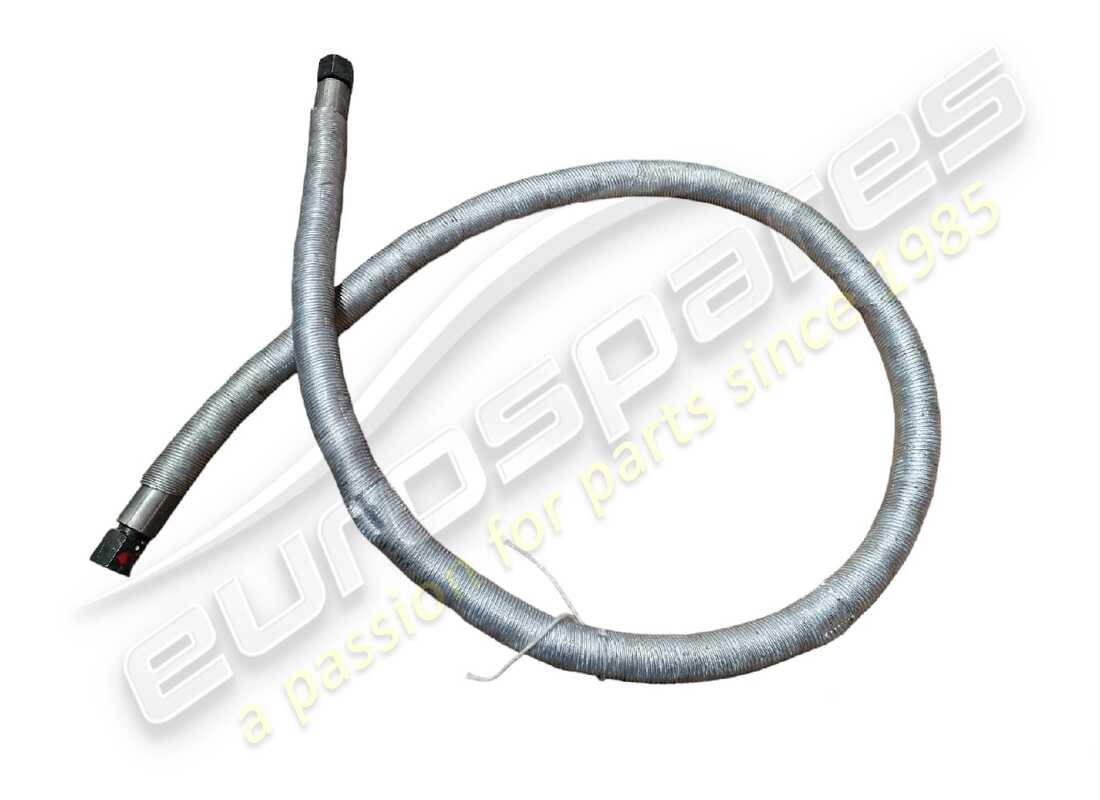

                                                              LH RETURN PIPE
                                                              Valid for GD
                                                              from £279.76
                                                              from £279.76
                                                              # 002
                                                              MPN: 179164
                                                              RH RETURN PIPE
                                                              Not for GD
                                                              from £160.48
                                                              from £160.48
                                                              This part replaces part number 178300 which we have in stock - and 3 more. Click to view details
                                                              # 002
                                                              MPN: 179165
                                                              LH RETURN PIPE
                                                              Not for GD
                                                              from £302.08
                                                              from £302.08
                                                              # 002
                                                              MPN: 179165
                                                              RH RETURN PIPE
                                                              Valid for GD
                                                              from £302.08
                                                              from £302.08
                                                              # 003
                                                              MPN: 166738
                                                              RH DELIVERY RIGID PIPE
                                                              Not for USA and CDN
                                                              from £79.25
                                                              from £79.25
                                                              # 003
                                                              MPN: 166739
                                                              LH DELIVERY RIGID PIPE
                                                              from £79.25
                                                              from £79.25
                                                              # 003
                                                              MPN: 179366
                                                              RH DELIVERY RIGID PIPE
                                                              Valid for USA and CDN
                                                              from £40.04
                                                              from £40.04
                                                              # 004
                                                              MPN: 166740
                                                              RH AND LH RETURN RIGID PIPE
                                                              Not for USA and CDN
                                                              from £29.54
                                                              from £29.54
                                                              # 004
                                                              MPN: 178777
                                                              LH RETURN RIGID PIPE
                                                              Valid for USA and CDN
                                                              from £52.70
                                                              from £52.70
                                                              # 004
                                                              MPN: 179365
                                                              RH RETURN RIGID PIPE
                                                              Valid for USA and CDN
                                                              from £64.49
                                                              from £64.49
                                                              # 006
                                                              MPN: 170432
                                                              RH AND LH REAR DELIVERY PIPE
                                                              from £143.50
                                                              from £143.50
                                                              This part replaces part number 166736
                                                              # 007
                                                              MPN: 170431
                                                              RH AND LH REAR RETURN PIPE
                                                              Not for USA and CDN
                                                              from £67.04
                                                              from £67.04
                                                              This part replaces part number 166737
                                                              # 007
                                                              MPN: 182726
                                                              RH AND LH REAR RETURN PIPE
                                                              Valid for USA and CDN
                                                              from £245.25
                                                              from £245.25
                                                              # 008
                                                              MPN: 138478
                                                              BRACKET
                                                              LH SIDE
                                                              from £2.66
                                                              from £2.66
                                                              # 008
                                                              MPN: 61712500
                                                              BRACKET
                                                              RH SIDE
                                                              from £0.88
                                                              from £0.88
                                                              # 009
                                                              MPN: 102948
                                                              NUT
                                                              from £0.47
                                                              from £0.47
                                                              This part replaces part number 12574211 - and 3 more. Click to view details
                                                              # 010
                                                              MPN: 14499324
                                                              WASHER
                                                              from £0.47
                                                              from £0.47
                                                              This part replaces part number 14499301 which we have in stock
                                                              # 011
                                                              MPN: 10441990
                                                              BRACKET
                                                              from £0.47
                                                              from £0.47
                                                              # 012
                                                              MPN: 102948
                                                              NUT
                                                              from £0.47
                                                              from £0.47
                                                              This part replaces part number 12574211 - and 3 more. Click to view details
                                                              # 013
                                                              MPN: 14499324
                                                              WASHER
                                                              from £0.47
                                                              from £0.47
                                                              This part replaces part number 14499301 which we have in stock
                                                              # 014
                                                              MPN: 127816
                                                              O.R. GASKET
                                                              from £1.41
                                                              from £1.41
                                                              # 015
                                                              MPN: 10261060
                                                              GASKET
                                                              from £0.53
                                                              from £0.53
                                                              # 016
                                                              MPN: 109797
                                                              UNION
                                                              from £9.95
                                                              from £9.95
                                                              # 017
                                                              MPN: 141699
                                                              CLIP
                                                              from £0.74
                                                              from £0.74
                                                              # 018
                                                              MPN: 62658800
                                                              CLIP
                                                              from £7.86
                                                              from £7.86
                                                              # 019
                                                              MPN: 14499324
                                                              WASHER
                                                              from £0.51
                                                              from £0.51
                                                              This part replaces part number 14499301 which we have in stock
                                                              # 020
                                                              MPN: 102948
                                                              NUT
                                                              from £0.47
                                                              from £0.47
                                                              This part replaces part number 12574211 - and 3 more. Click to view details
                                                              # 021
                                                              MPN: 129316
                                                              PLATE
                                                              from £3.02
                                                              from £3.02
                                                              # 022
                                                              MPN: 14084211
                                                              NUT
                                                              from £0.71
                                                              from £0.71
                                                              # 023
                                                              MPN: 12601274
                                                              WASHER
                                                              from £0.47
                                                              from £0.47
                                                              This part replaces part number 12601221 - and 5 more. Click to view details
                                                              # 024
                                                              MPN: 140730
                                                              CLIP
                                                              from £0.47
                                                              from £0.47
                                                              This part replaces part number 179357 which we have in stock
                                                              # 025
                                                              MPN: 156548
                                                              CLIP
                                                              from £8.07
                                                              from £8.07
                                                              # 026
                                                              MPN: 152885
                                                              BRACKET
                                                              from £4.38
                                                              from £4.38
                                                              # 027
                                                              MPN: 10902324
                                                              SCREW
                                                              from £0.47
                                                              from £0.47
                                                              This part replaces part number 10902311 which we have in stock - and 3 more. Click to view details
                                                              # 028
                                                              MPN: 102741
                                                              NUT
                                                              from £0.47
                                                              from £0.47
                                                              This part replaces part number 12575411 - and 1 more. Click to view details
                                                              # 029
                                                              MPN: 101139
                                                              NUT
                                                              from £0.47
                                                              from £0.47
                                                              This part replaces part number 16104425
                                                              # 030
                                                              MPN: 12646724
                                                              WASHER
                                                              from £0.47
                                                              from £0.47
                                                              This part replaces part number 12601571 which we have in stock - and 2 more. Click to view details
                                                              # 032
                                                              MPN: 139512
                                                              BRACKET WITH SHEATH
                                                              from £1.20
                                                              from £1.20
                                                              # 033
                                                              MPN: 10441790
                                                              BRACKET WITH SHEATH
                                                              from £0.47
                                                              from £0.47
                                                              # 034
                                                              MPN: 102948
                                                              NUT
                                                              from £0.47
                                                              from £0.47
                                                              This part replaces part number 12574211 - and 3 more. Click to view details
                                                              # 035
                                                              MPN: 14499324
                                                              WASHER
                                                              from £0.47
                                                              from £0.47
                                                              This part replaces part number 14499301 which we have in stock
                                                              # 036
                                                              MPN: 180943
                                                              FUEL TUBE FROM EXCHANGER TO RIGID PIPE
                                                              Valid for USA and CDN
                                                              from £49.17
                                                              from £49.17
                                                              # 037
                                                              MPN: 10280060
                                                              GASKET
                                                              from £0.47
                                                              from £0.47
                                                              This part replaces part number 100501 - and 3 more. Click to view details
