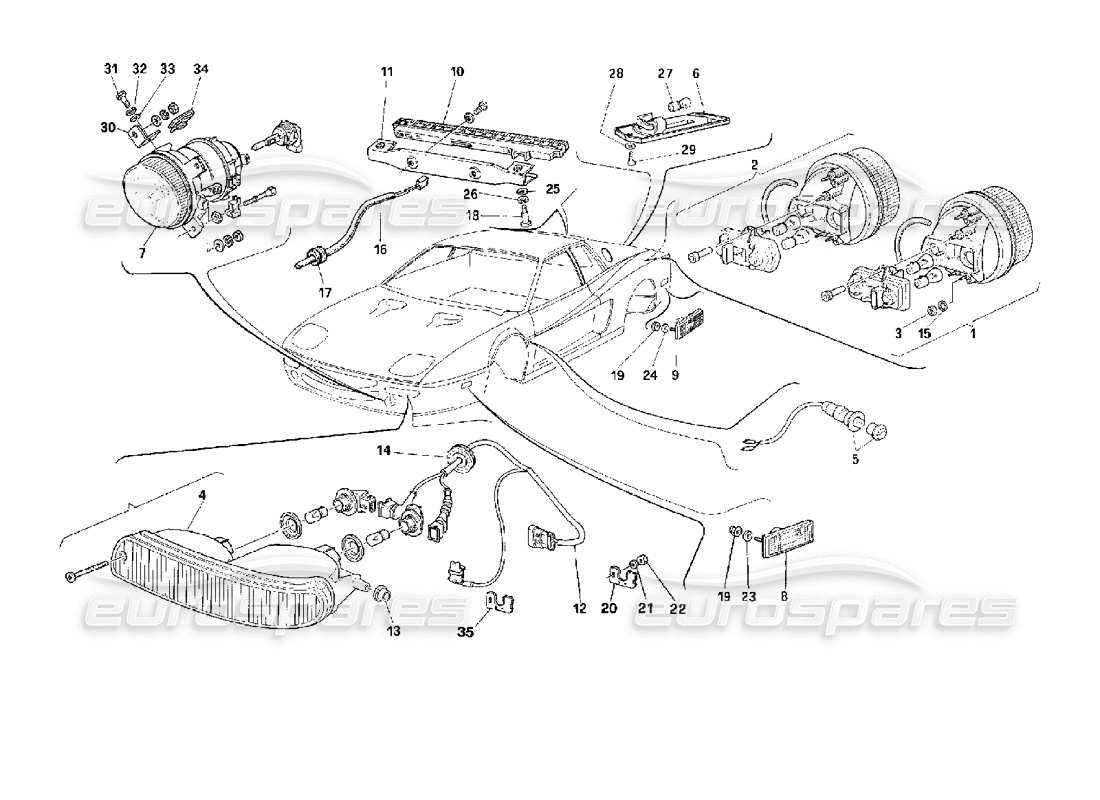

Ferrari 512 M Lamps Parts Diagram

125 - Lamps

Ferrari 512 M Lamps Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                  #
                                                  Part number
                                                  Description
                                                  Price
                                                  # 001
                                                  MPN: 157515
                                                  RH REAR EXTERNAL LIGHT
                                                  - Not for USA, CDN
                                                  from £557.26
                                                  from £557.26
                                                  # 001
                                                  MPN: 157516
                                                  LH REAR EXTERNAL LIGHT
                                                  - Not for USA, CDN
                                                  from £529.40
                                                  from £529.40
                                                  # 001
                                                  MPN: 157522
                                                  RH REAR EXTERNAL LIGHT
                                                  - Valid for USA, CDN
                                                  from £103.95
                                                  from £103.95
                                                  # 001
                                                  MPN: 157523
                                                  LH REAR EXTERNAL LIGHT
                                                  - Valid for USA, CDN
                                                  from £269.54
                                                  from £269.54
                                                  # 002
                                                  MPN: 157513
                                                  RH REAR INTERNAL LIGHT
                                                  - Not for USA, CDN
                                                  from £250.00
                                                  from £250.00
                                                  # 002
                                                  MPN: 157514
                                                  LH REAR INTERNAL LIGHT
                                                  - Not for USA, CDN
                                                  from £425.00
                                                  from £425.00
                                                  # 002
                                                  MPN: 157524
                                                  RH REAR INTERNAL LIGHT
                                                  - Valid for USA, CDN
                                                  from £275.96
                                                  from £275.96
                                                  # 002
                                                  MPN: 157525
                                                  LH REAR INTERNAL LIGHT
                                                  - Valid for USA, CDN
                                                  from £275.96
                                                  from £275.96
                                                  # 004
                                                  MPN: 157511

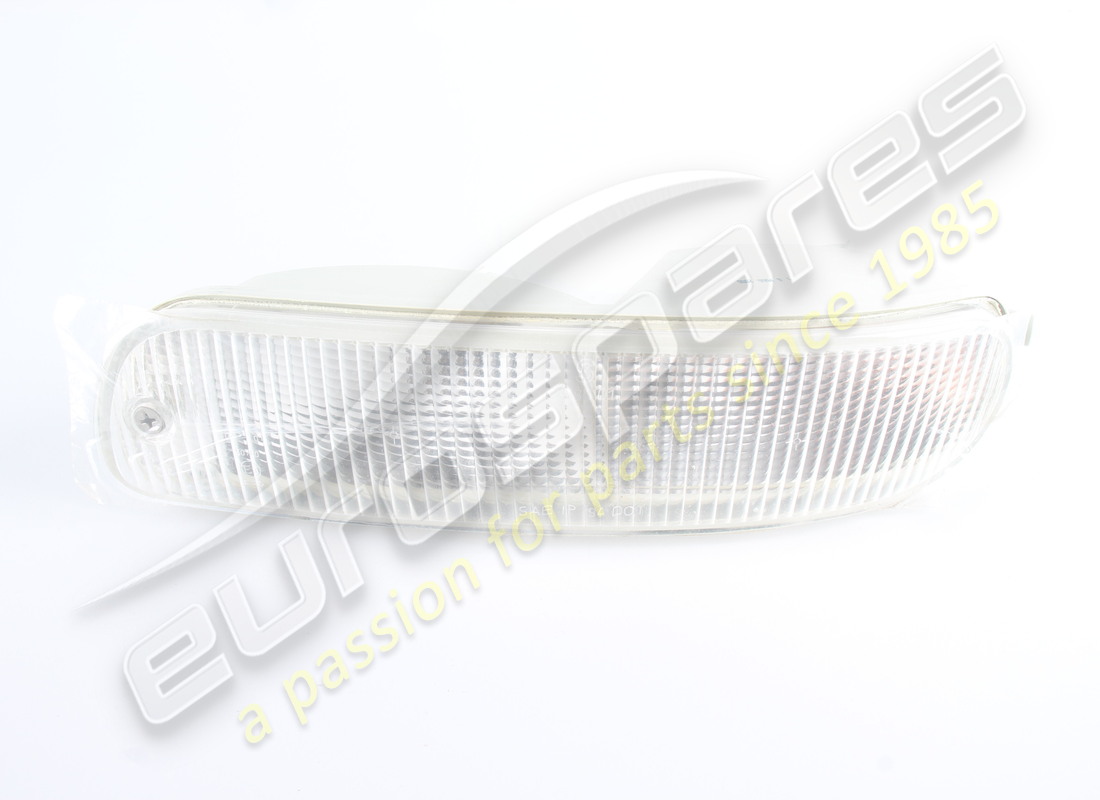

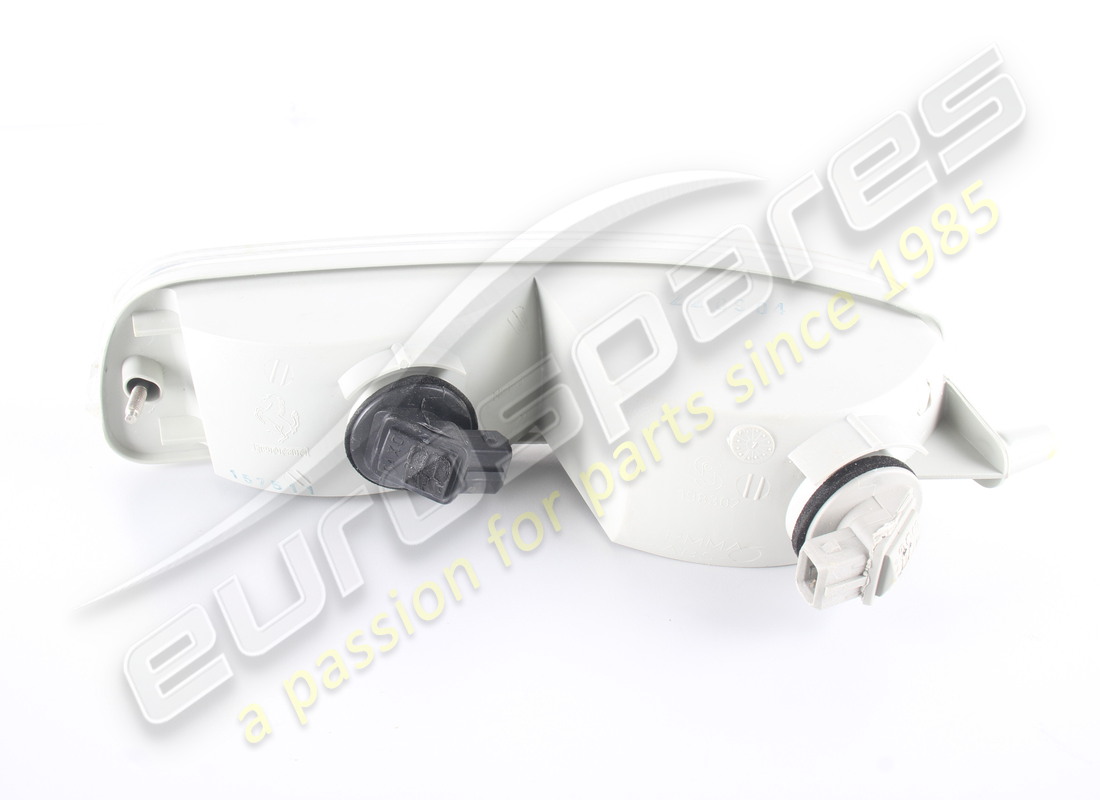

                                                  RH FRONT SIDE DIRECTION
                                                  - Not for USA, CDN
                                                  Supersession
                                                  Supersession
                                                  # 004
                                                  MPN: 157512
                                                  LH FRONT SIDE DIRECTION
                                                  - Not for USA, CDN
                                                  Supersession
                                                  Supersession
                                                  # 004
                                                  MPN: 157674
                                                  RH FRONT SIDE DIRECTION
                                                  - Valid for USA, CDN
                                                  from £98.42
                                                  from £98.42
                                                  # 004
                                                  MPN: 157675
                                                  LH FRONT SIDE DIRECTION
                                                  - Valid for USA, CDN
                                                  from £955.41
                                                  from £955.41
                                                  # 005
                                                  MPN: 162902
                                                  FRONT SIDE DIRECTION LIGHT
                                                  - Not for USA, CDN
                                                  from £6.86
                                                  from £6.86
                                                  This part replaces part number 61830400 - and 4 more. Click to view details
                                                  # 007
                                                  MPN: 164473
                                                  RH ANTI FOG LIGHT
                                                  from £286.37
                                                  from £286.37
                                                  This part replaces part number 157519
                                                  # 007
                                                  MPN: 164474
                                                  LH ANTI FOG LIGHT
                                                  from £303.47
                                                  from £303.47
                                                  This part replaces part number 157520
                                                  # 008
                                                  MPN: 147563
                                                  FRONT SIDE MARKER
                                                  - Valid for USA and CDN
                                                  from £15.03
                                                  from £15.03
                                                  # 009
                                                  MPN: 140594
                                                  REAR SIDE MARKER
                                                  - Valid for USA and CDN
                                                  from £15.03
                                                  from £15.03
                                                  # 010
                                                  MPN: 63077500
                                                  ADDITIONAL STOP LIGHTS
                                                  - Valid for USA, CDN, AUS
                                                  from £80.54
                                                  from £80.54
                                                  # 011
                                                  MPN: 63077300
                                                  STOP LIGHT BRACKET
                                                  - Valid for USA, CDN, AUS
                                                  from £26.33
                                                  from £26.33
                                                  # 012
                                                  MPN: 162518

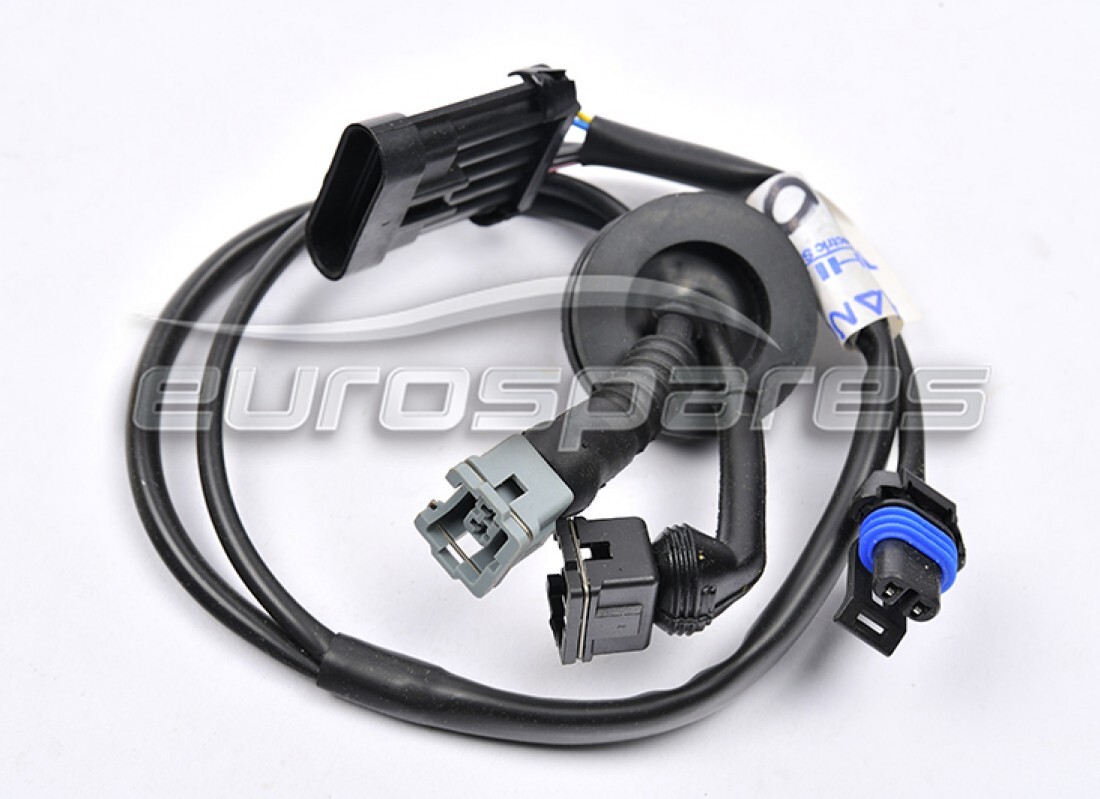

                                                  REAR LIGHTS CABLE CONNECTION
                                                  - Valid for USA, CDN
                                                  from £76.21
                                                  from £76.21
                                                  # 012
                                                  MPN: 162680
                                                  FRONT LIGHTS CABLE CONNECTION
                                                  - Not for USA, CDN
                                                  from £187.68
                                                  from £187.68
                                                  # 013
                                                  MPN: 10458187
                                                  RUBBER
                                                  from £4.92
                                                  from £4.92
                                                  # 014
                                                  MPN: 10398780
                                                  CABLE GROMMET
                                                  from £2.49
                                                  from £2.49
                                                  # 015
                                                  MPN: 10519424
                                                  WASHER
                                                  from £0.53
                                                  from £0.53
                                                  This part replaces part number 10519401 - and 3 more. Click to view details
                                                  # 016
                                                  MPN: 150059
                                                  ADDITIONAL STOP LIGHT CABLE CONNECTION
                                                  - Valid for USA, CDN, AUS
                                                  from £14.32
                                                  from £14.32
                                                  # 017
                                                  MPN: 10396380
                                                  CABLE GROMMET
                                                  - Valid for USA, CDN, AUS
                                                  from £0.53
                                                  from £0.53
                                                  # 018
                                                  MPN: 62771000
                                                  SCREW
                                                  from £3.10
                                                  from £3.10
                                                  # 019
                                                  MPN: 14084111
                                                  NUT
                                                  from £0.51
                                                  from £0.51
                                                  This part replaces part number 14084100
                                                  # 020
                                                  MPN: 155751
                                                  SIDE MARKER CLIP
                                                  from £2.84
                                                  from £2.84
                                                  # 021
                                                  MPN: 12642877
                                                  WASHER
                                                  from £0.54
                                                  from £0.54
                                                  # 022
                                                  MPN: 12574011
                                                  NUT
                                                  from £0.53
                                                  from £0.53
                                                  # 023
                                                  MPN: 12638178
                                                  WASHER
                                                  from £0.47
                                                  from £0.47
                                                  This part replaces part number 10519578 - and 3 more. Click to view details
                                                  # 024
                                                  MPN: 12624101
                                                  WASHER
                                                  from £0.53
                                                  from £0.53
                                                  # 025
                                                  MPN: 10519624
                                                  WASHER
                                                  from £0.54
                                                  from £0.54
                                                  This part replaces part number 10519601 - and 3 more. Click to view details
                                                  # 026
                                                  MPN: 127496
                                                  WASHER
                                                  from £0.54
                                                  from £0.54
                                                  This part replaces part number 10516671 - and 2 more. Click to view details
                                                  # 027
                                                  MPN: 10857790
                                                  BULB
                                                  from £1.29
                                                  from £1.29
                                                  This part replaces part number 101524
                                                  # 028
                                                  MPN: 14496277
                                                  WASHER
                                                  from £0.53
                                                  from £0.53
                                                  # 029
                                                  MPN: 15687378
                                                  SCREW
                                                  Supersession
                                                  Supersession
                                                  This part replaces part number 15782701 which we have in stock
                                                  # 030
                                                  MPN: 165107
                                                  BRACKET
                                                  from £4.37
                                                  from £4.37
                                                  # 031
                                                  MPN: 10977721
                                                  SCREW
                                                  Supersession
                                                  Supersession
                                                  This part replaces part number 13833524
                                                  # 032
                                                  MPN: 12638101
                                                  WASHER
                                                  from £0.49
                                                  from £0.49
                                                  # 033
                                                  MPN: 10615370
                                                  WASHER
                                                  Supersession
                                                  Supersession
                                                  # 034
                                                  MPN: 165108
                                                  CLIP
                                                  from £1.26
                                                  from £1.26
                                                  # 035
                                                  MPN: 156198
                                                  FRONT LIGHT CLIP
                                                  from £10.59
                                                  from £10.59
                                                  Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
