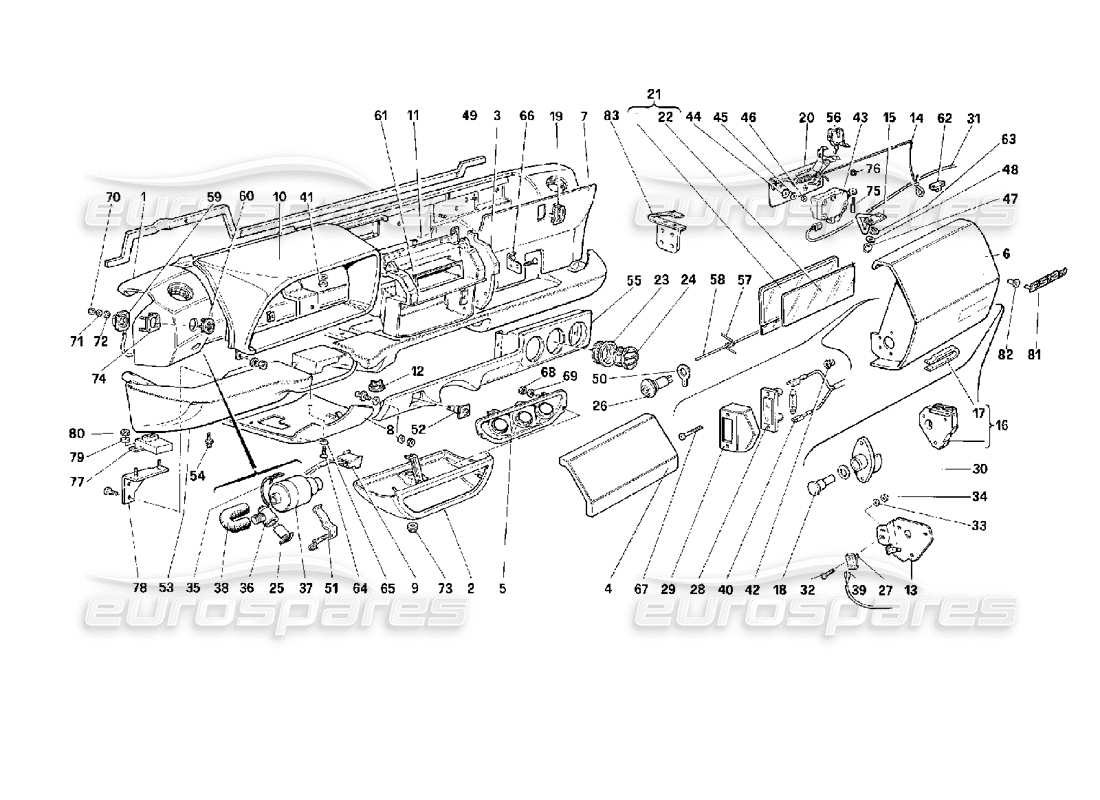

Ferrari 512 M DASHBOARD Parts Diagram

120 - DASHBOARD

Ferrari 512 M Dashboard Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                    #
                                                                                                                                    Part number
                                                                                                                                    Description
                                                                                                                                    Price
                                                                                                                                    # 000
                                                                                                                                    MPN: 645302..
                                                                                                                                    DASH BOARD ASSEMBLY (WITHOUT INSTRUMENT SEAT)
                                                                                                                                    - Not for GD
                                                                                                                                    Supersession
                                                                                                                                    Supersession
                                                                                                                                    # 000
                                                                                                                                    MPN: 645303..
                                                                                                                                    DASH BOARD ASSEMBLY (WITH INSTRUMENT SEAT)
                                                                                                                                    - Not for GD
                                                                                                                                    Supersession
                                                                                                                                    Supersession
                                                                                                                                    # 000
                                                                                                                                    MPN: 645492..
                                                                                                                                    DASH BOARD ASSEMBLY (WITH INSTRUMENT SEAT)
                                                                                                                                    - Valid for GD
                                                                                                                                    Supersession
                                                                                                                                    Supersession
                                                                                                                                    # 000
                                                                                                                                    MPN: 645493..
                                                                                                                                    DASH BOARD ASSEMBLY (WITHOUT INSTRUMENT SEAT)
                                                                                                                                    - Valid for GD
                                                                                                                                    Supersession
                                                                                                                                    Supersession
                                                                                                                                    # 001
                                                                                                                                    MPN: 630791..
                                                                                                                                    DASH BOARD FRAME
                                                                                                                                    - Not for GD
                                                                                                                                    Supersession
                                                                                                                                    Supersession
                                                                                                                                    # 001
                                                                                                                                    MPN: 631089..
                                                                                                                                    DASH BOARD FRAME
                                                                                                                                    - Vale for GD
                                                                                                                                    Supersession
                                                                                                                                    Supersession
                                                                                                                                    # 002
                                                                                                                                    MPN: 634546..
                                                                                                                                    Instruments Panel
                                                                                                                                    - Valid for USA and GD
                                                                                                                                    Supersession
                                                                                                                                    Supersession
                                                                                                                                    # 002
                                                                                                                                    MPN: 636996..
                                                                                                                                    Instruments Panel
                                                                                                                                    - Not for USA and GD
                                                                                                                                    Supersession
                                                                                                                                    Supersession
                                                                                                                                    # 003
                                                                                                                                    MPN: 630853..
                                                                                                                                    RH SIDE PANEL
                                                                                                                                    - Not for GD
                                                                                                                                    Supersession
                                                                                                                                    Supersession
                                                                                                                                    # 003
                                                                                                                                    MPN: 631070..
                                                                                                                                    LH SIDE PANEL
                                                                                                                                    - Valid for GD
                                                                                                                                    Supersession
                                                                                                                                    Supersession
                                                                                                                                    # 004
                                                                                                                                    MPN: 630787..
                                                                                                                                    RADIO BOX PANEL
                                                                                                                                    - Not for GD
                                                                                                                                    Supersession
                                                                                                                                    Supersession
                                                                                                                                    # 004
                                                                                                                                    MPN: 631071..
                                                                                                                                    RADIO BOX PANEL
                                                                                                                                    - Valid for GD
                                                                                                                                    Supersession
                                                                                                                                    Supersession
                                                                                                                                    # 005
                                                                                                                                    MPN: 63462700
                                                                                                                                    INSTRUMENTS PLATE
                                                                                                                                    - Valid for ZA and GB
                                                                                                                                    from £26.47
                                                                                                                                    from £26.47
                                                                                                                                    # 005
                                                                                                                                    MPN: 63924100
                                                                                                                                    INSTRUMENTS PLATE
                                                                                                                                    - Not for GD
                                                                                                                                    from £55.85
                                                                                                                                    from £55.85

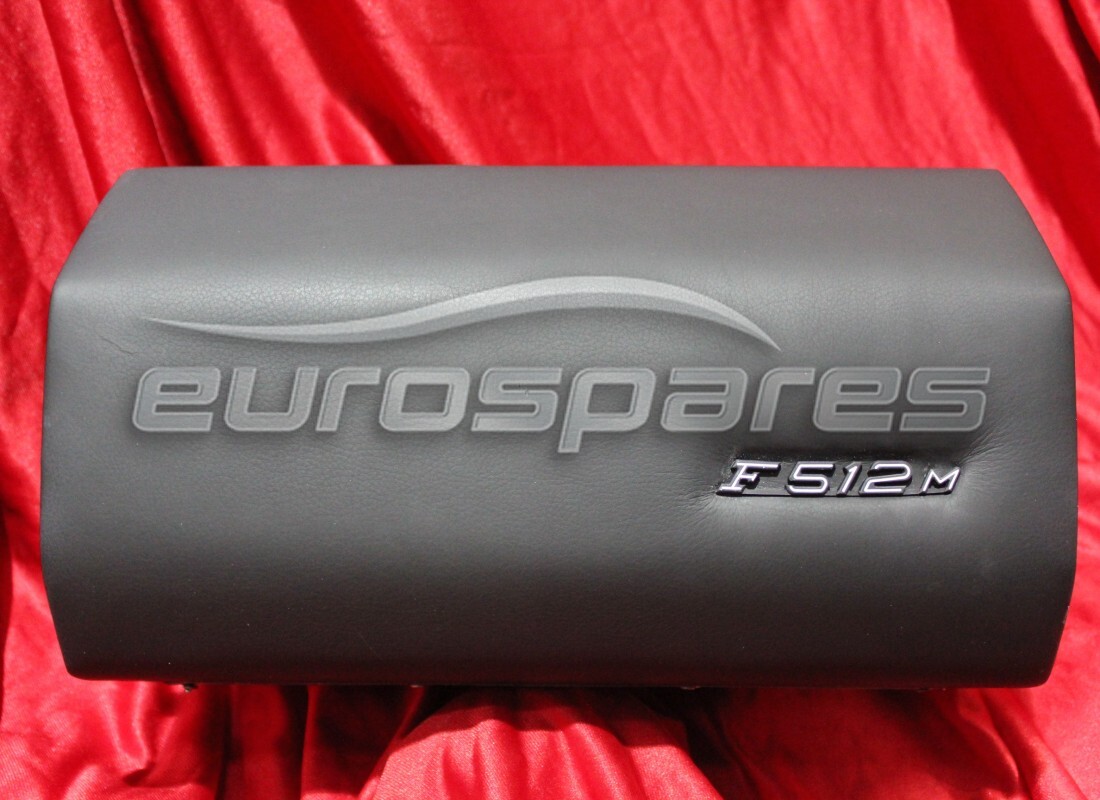

                                                                                                                                    # 006
                                                                                                                                    MPN: 64530100
                                                                                                                                    GLOVE BOX
                                                                                                                                    from £516.67
                                                                                                                                    from £516.67
                                                                                                                                    # 007
                                                                                                                                    MPN: 634548..
                                                                                                                                    REAR COVER FOR GLOVE BOX
                                                                                                                                    Supersession
                                                                                                                                    Supersession
                                                                                                                                    # 008
                                                                                                                                    MPN: 634103..
                                                                                                                                    STEERING COLUMN COVER
                                                                                                                                    - Valid for USA and GD
                                                                                                                                    Supersession
                                                                                                                                    Supersession
                                                                                                                                    # 008
                                                                                                                                    MPN: 639247..
                                                                                                                                    STEERING COLUMN COVER
                                                                                                                                    - Not for USA and GD
                                                                                                                                    Supersession
                                                                                                                                    Supersession
                                                                                                                                    # 009
                                                                                                                                    MPN: 119430
                                                                                                                                    Sensor cable for internal temp.
                                                                                                                                    from £5.19
                                                                                                                                    from £5.19
                                                                                                                                    # 010
                                                                                                                                    MPN: 630793..
                                                                                                                                    HOUSING INSTRUMENTS
                                                                                                                                    Supersession
                                                                                                                                    Supersession
                                                                                                                                    # 011
                                                                                                                                    MPN: 63079200
                                                                                                                                    AIR VENT FRAME WORK
                                                                                                                                    - Not for GD
                                                                                                                                    from £1,083.51
                                                                                                                                    from £1,083.51
                                                                                                                                    # 011
                                                                                                                                    MPN: 63106700
                                                                                                                                    AIR VENT FRAME WORK
                                                                                                                                    - Vale for GD
                                                                                                                                    from £1,083.51
                                                                                                                                    from £1,083.51
                                                                                                                                    # 012
                                                                                                                                    MPN: 61503600
                                                                                                                                    Frame
                                                                                                                                    - For GD q.ty 1
                                                                                                                                    from £0.47
                                                                                                                                    from £0.47
                                                                                                                                    This part replaces part number 61528400
                                                                                                                                    # 013
                                                                                                                                    MPN: 61534600
                                                                                                                                    BRACKET
                                                                                                                                    - Valid for GD
                                                                                                                                    from £2.91
                                                                                                                                    from £2.91
                                                                                                                                    # 013
                                                                                                                                    MPN: 61554500
                                                                                                                                    BRACKET
                                                                                                                                    - Not for GD
                                                                                                                                    from £11.89
                                                                                                                                    from £11.89
                                                                                                                                    # 014
                                                                                                                                    MPN: 61554400
                                                                                                                                    SAFETY CABLE
                                                                                                                                    from £9.53
                                                                                                                                    from £9.53
                                                                                                                                    # 015
                                                                                                                                    MPN: 61554600
                                                                                                                                    LOCK STRIKER
                                                                                                                                    from £74.23
                                                                                                                                    from £74.23
                                                                                                                                    # 016
                                                                                                                                    MPN: 61522400
                                                                                                                                    RH DASHBOARD BOX HINGE
                                                                                                                                    from £7.44
                                                                                                                                    from £7.44
                                                                                                                                    # 016
                                                                                                                                    MPN: 61522500
                                                                                                                                    LH DASHBOARD BOX HINGE
                                                                                                                                    Supersession
                                                                                                                                    Supersession
                                                                                                                                    # 017
                                                                                                                                    MPN: 61522000
                                                                                                                                    SPRING
                                                                                                                                    from £1.25
                                                                                                                                    from £1.25
                                                                                                                                    # 018
                                                                                                                                    MPN: 61522800
                                                                                                                                    PIN
                                                                                                                                    from £10.51
                                                                                                                                    from £10.51
                                                                                                                                    # 019
                                                                                                                                    MPN: 61554700
                                                                                                                                    Frame
                                                                                                                                    from £12.74
                                                                                                                                    from £12.74
                                                                                                                                    # 020
                                                                                                                                    MPN: 61545700
                                                                                                                                    LOCK BRAKET
                                                                                                                                    - Valid for GD
                                                                                                                                    from £55.18
                                                                                                                                    from £55.18
                                                                                                                                    # 020
                                                                                                                                    MPN: 61545800
                                                                                                                                    LOCK BRAKET
                                                                                                                                    - Not for GD
                                                                                                                                    from £57.33
                                                                                                                                    from £57.33
                                                                                                                                    # 021
                                                                                                                                    MPN: 615774..
                                                                                                                                    MIRROR, COMPLETE
                                                                                                                                    Supersession
                                                                                                                                    Supersession
                                                                                                                                    # 022
                                                                                                                                    MPN: 61523200
                                                                                                                                    COURTESY MIRROR
                                                                                                                                    from £22.53
                                                                                                                                    from £22.53
                                                                                                                                    # 023
                                                                                                                                    MPN: 61528500
                                                                                                                                    AIR SEAT
                                                                                                                                    from £4.30
                                                                                                                                    from £4.30
                                                                                                                                    # 024
                                                                                                                                    MPN: 61528600
                                                                                                                                    AIR VENT
                                                                                                                                    from £90.07
                                                                                                                                    from £90.07
                                                                                                                                    # 025
                                                                                                                                    MPN: 61079100
                                                                                                                                    SENSOR FOR INTERNAL TEMPERATURE
                                                                                                                                    from £311.66
                                                                                                                                    from £311.66
                                                                                                                                    # 026
                                                                                                                                    MPN: 61523600
                                                                                                                                    SOCKET
                                                                                                                                    from £9.45
                                                                                                                                    from £9.45
                                                                                                                                    # 027
                                                                                                                                    MPN: 61523700
                                                                                                                                    SWITCH
                                                                                                                                    from £103.36
                                                                                                                                    from £103.36
                                                                                                                                    # 028
                                                                                                                                    MPN: 61647200
                                                                                                                                    DASH BOARD BOX LAMP
                                                                                                                                    from £31.94
                                                                                                                                    from £31.94
                                                                                                                                    This part replaces part number 61496800 - and 1 more. Click to view details
                                                                                                                                    # 029
                                                                                                                                    MPN: 61523800
                                                                                                                                    DASH BOARD BOX LAMP FRAME
                                                                                                                                    from £18.28
                                                                                                                                    from £18.28
                                                                                                                                    # 030
                                                                                                                                    MPN: 61522600
                                                                                                                                    RH MOBILE HINGE
                                                                                                                                    from £2.10
                                                                                                                                    from £2.10
                                                                                                                                    # 030
                                                                                                                                    MPN: 63403500
                                                                                                                                    LH MOBILE HINGE
                                                                                                                                    from £105.10
                                                                                                                                    from £105.10
                                                                                                                                    # 031
                                                                                                                                    MPN: 124410
                                                                                                                                    SOCKET CABLES
                                                                                                                                    from £5.60
                                                                                                                                    from £5.60

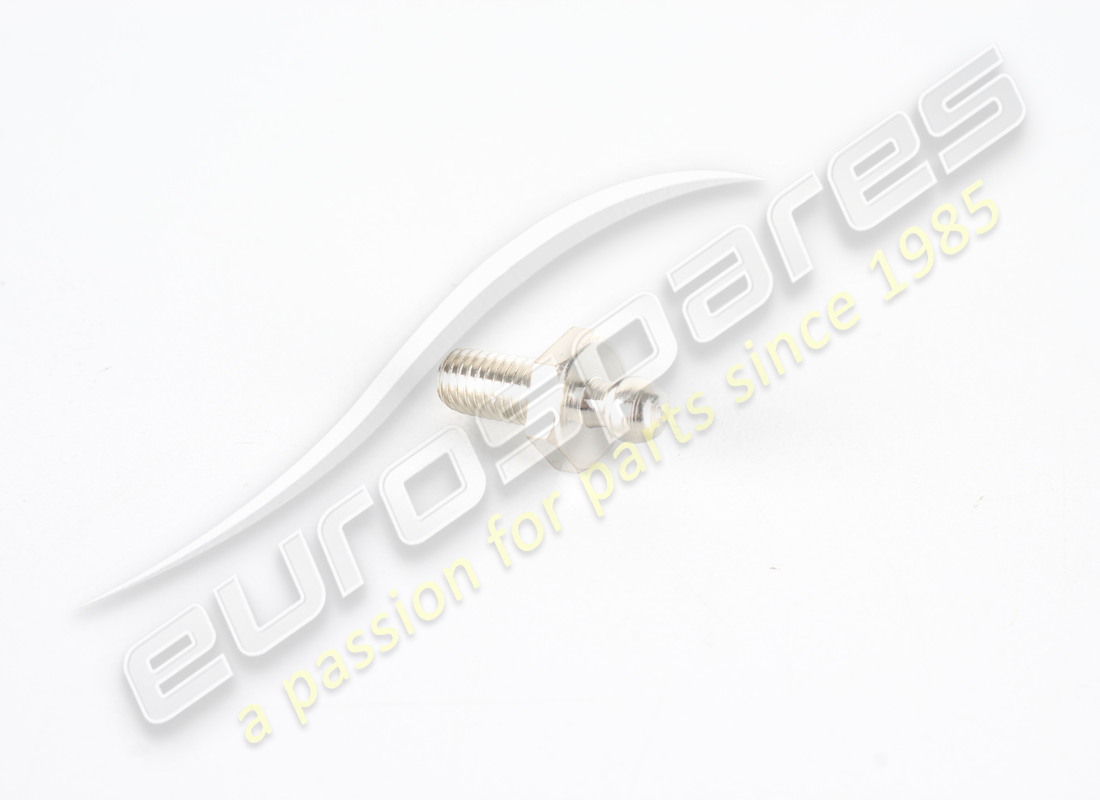

                                                                                                                                    # 032
                                                                                                                                    MPN: 61524100
                                                                                                                                    SCREW
                                                                                                                                    from £1.83
                                                                                                                                    from £1.83
                                                                                                                                    # 033
                                                                                                                                    MPN: 61524200
                                                                                                                                    WASHER
                                                                                                                                    from £0.54
                                                                                                                                    from £0.54
                                                                                                                                    # 034
                                                                                                                                    MPN: 61524300
                                                                                                                                    NUT
                                                                                                                                    from £0.54
                                                                                                                                    from £0.54
                                                                                                                                    # 035
                                                                                                                                    MPN: 120065
                                                                                                                                    O RING
                                                                                                                                    from £0.90
                                                                                                                                    from £0.90
                                                                                                                                    # 036
                                                                                                                                    MPN: 61079200
                                                                                                                                    BOX SENSOR
                                                                                                                                    from £4.23
                                                                                                                                    from £4.23
                                                                                                                                    # 037
                                                                                                                                    MPN: 61079300
                                                                                                                                    SUCTION FAN FOR SENSOR
                                                                                                                                    Supersession
                                                                                                                                    Supersession
                                                                                                                                    # 038
                                                                                                                                    MPN: 124039
                                                                                                                                    PIPE FROM SUCTION FAN TO SENSOR
                                                                                                                                    from £13.34
                                                                                                                                    from £13.34
                                                                                                                                    # 039
                                                                                                                                    MPN: 124409
                                                                                                                                    SWITCH CABLES
                                                                                                                                    from £19.88
                                                                                                                                    from £19.88
                                                                                                                                    # 040
                                                                                                                                    MPN: 124411
                                                                                                                                    LAMP CABLES
                                                                                                                                    from £11.88
                                                                                                                                    from £11.88

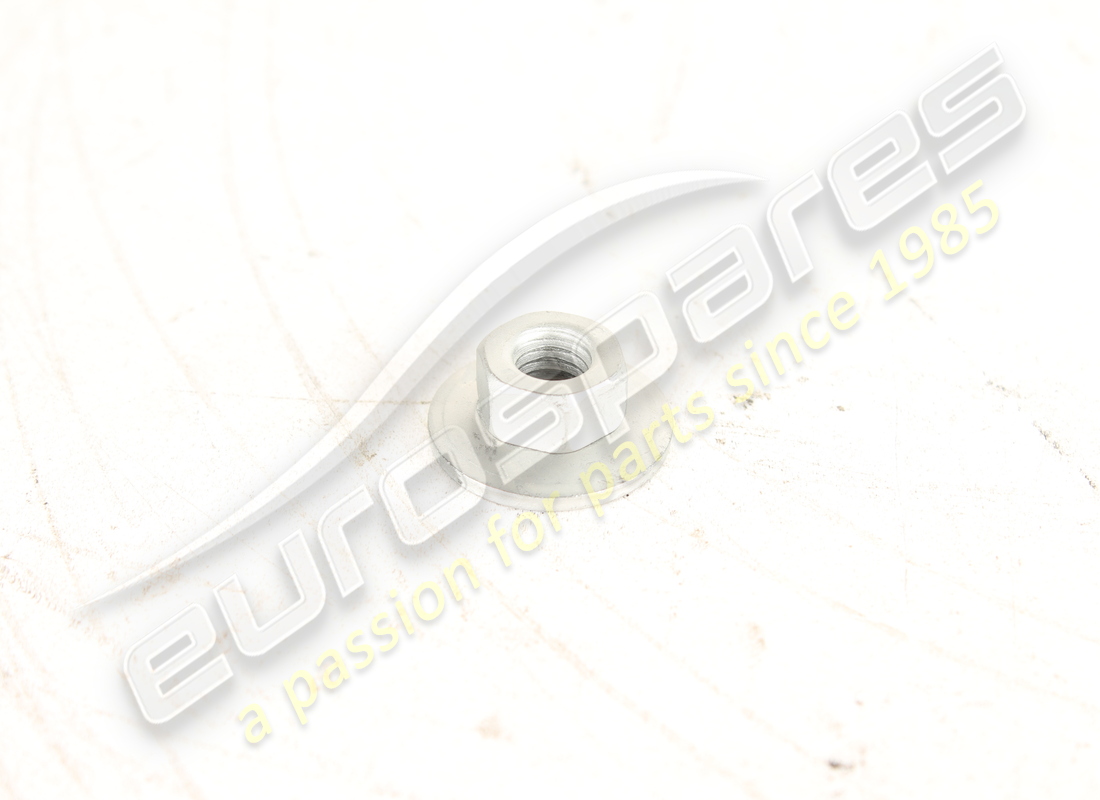

                                                                                                                                    # 041
                                                                                                                                    MPN: 14084111
                                                                                                                                    NUT
                                                                                                                                    from £0.53
                                                                                                                                    from £0.53
                                                                                                                                    This part replaces part number 14084100
                                                                                                                                    # 042
                                                                                                                                    MPN: 14115680
                                                                                                                                    NUT SCREW
                                                                                                                                    from £0.53
                                                                                                                                    from £0.53
                                                                                                                                    # 043
                                                                                                                                    MPN: 61523100
                                                                                                                                    LOCK MAGNET
                                                                                                                                    from £574.15
                                                                                                                                    from £574.15
                                                                                                                                    # 044
                                                                                                                                    MPN: 12643724
                                                                                                                                    WASHER
                                                                                                                                    from £0.53
                                                                                                                                    from £0.53
                                                                                                                                    This part replaces part number 109684 - and 4 more. Click to view details
                                                                                                                                    # 045
                                                                                                                                    MPN: 10519401
                                                                                                                                    WASHER
                                                                                                                                    from £0.49
                                                                                                                                    from £0.49
                                                                                                                                    # 046
                                                                                                                                    MPN: 15896211
                                                                                                                                    NUT
                                                                                                                                    Supersession
                                                                                                                                    Supersession
                                                                                                                                    This part replaces part number 15896210
                                                                                                                                    # 047
                                                                                                                                    MPN: 14051849
                                                                                                                                    NUT
                                                                                                                                    from £0.62
                                                                                                                                    from £0.62
                                                                                                                                    # 048
                                                                                                                                    MPN: 12605176
                                                                                                                                    WASHER
                                                                                                                                    Supersession
                                                                                                                                    Supersession
                                                                                                                                    # 049
                                                                                                                                    MPN: 61554300
                                                                                                                                    DASHBOARD SUPPORT STRUCTURE
                                                                                                                                    - Not for GD
                                                                                                                                    from £229.55
                                                                                                                                    from £229.55
                                                                                                                                    # 049
                                                                                                                                    MPN: 63108600
                                                                                                                                    DASHBOARD SUPPORT STRUCTURE
                                                                                                                                    - Valid for GD
                                                                                                                                    # 050
                                                                                                                                    MPN: 60701400
                                                                                                                                    NEGATIVE TERMINAL
                                                                                                                                    from £3.39
                                                                                                                                    from £3.39

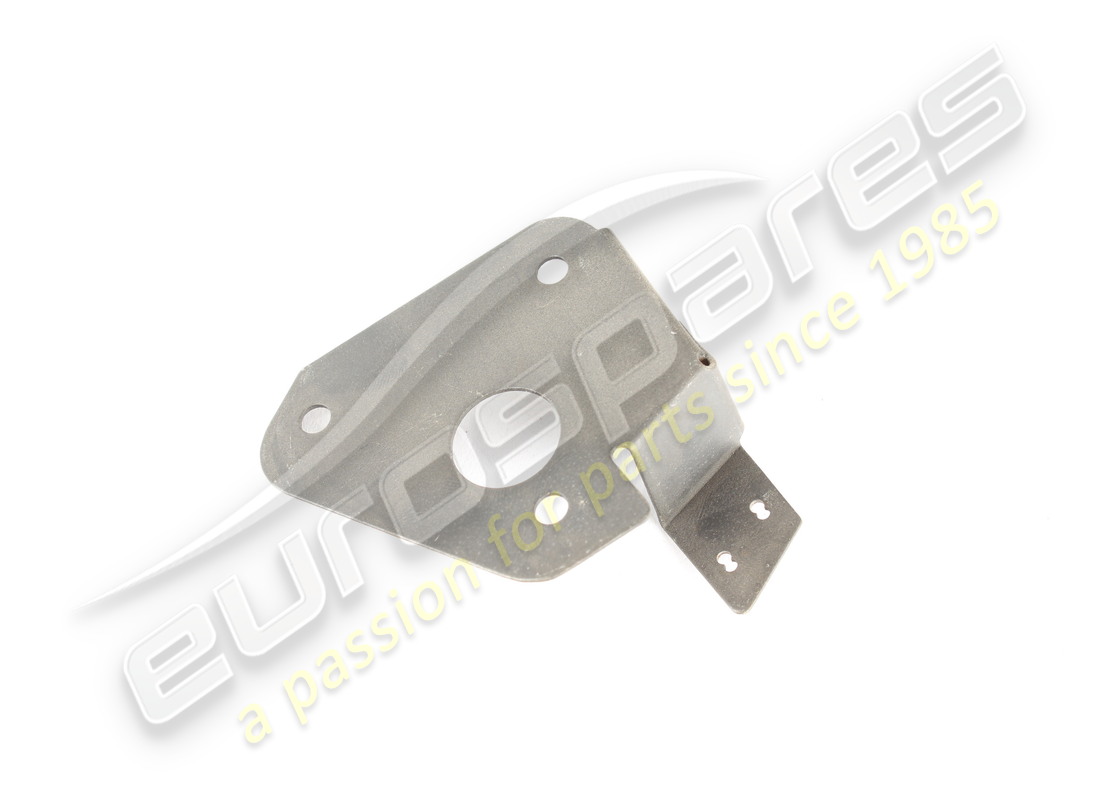

                                                                                                                                    # 051
                                                                                                                                    MPN: 61089500
                                                                                                                                    BRACKET
                                                                                                                                    from £3.47
                                                                                                                                    from £3.47

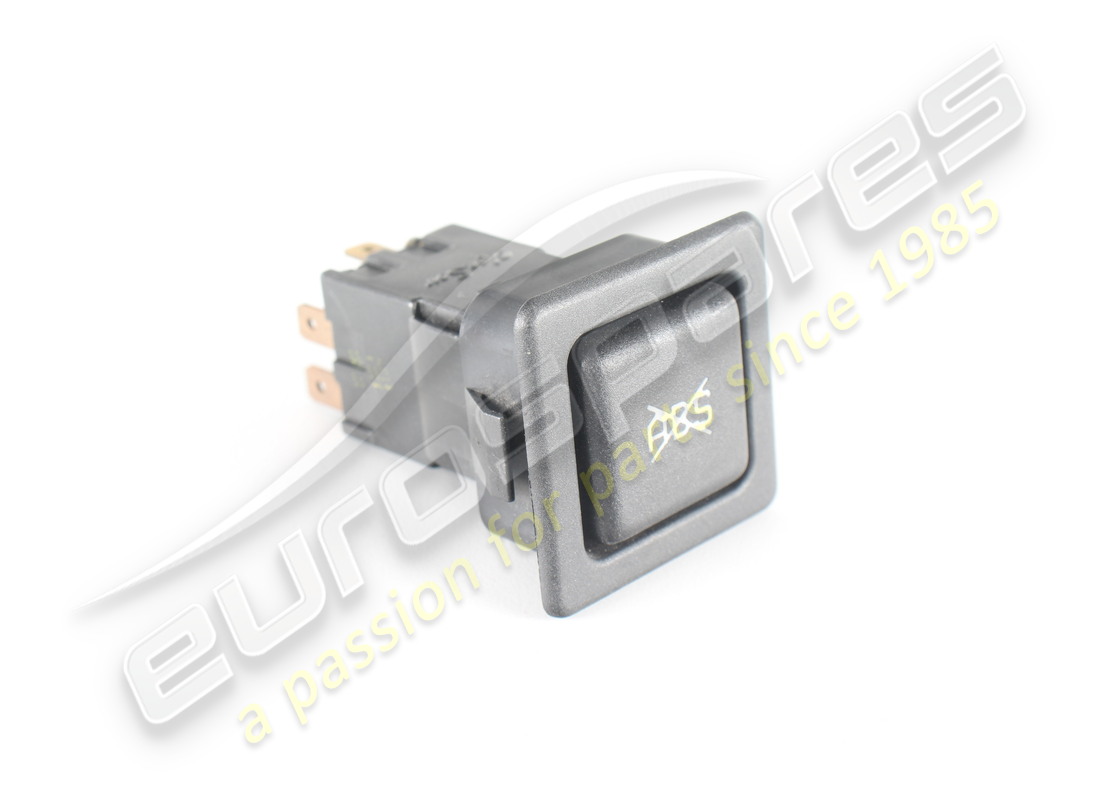

                                                                                                                                    # 052
                                                                                                                                    MPN: 153041
                                                                                                                                    ABS CUT OUT PUSH
                                                                                                                                    - Not for USA, CDN and AUS
                                                                                                                                    from £23.65
                                                                                                                                    from £23.65
                                                                                                                                    # 053
                                                                                                                                    MPN: 634102..
                                                                                                                                    KNEE PROTECTION
                                                                                                                                    - Valid for USA
                                                                                                                                    Supersession
                                                                                                                                    Supersession
                                                                                                                                    # 053
                                                                                                                                    MPN: 634127..
                                                                                                                                    KNEE PROTECTION
                                                                                                                                    - Valid for GD
                                                                                                                                    Supersession
                                                                                                                                    Supersession
                                                                                                                                    # 053
                                                                                                                                    MPN: 636998..
                                                                                                                                    KNEE PROTECTION
                                                                                                                                    - Not for USA and GD
                                                                                                                                    Supersession
                                                                                                                                    Supersession
                                                                                                                                    # 054
                                                                                                                                    MPN: 60084407
                                                                                                                                    button
                                                                                                                                    from £3.65
                                                                                                                                    from £3.65
                                                                                                                                    # 055
                                                                                                                                    MPN: 634603..
                                                                                                                                    LOWER COVER
                                                                                                                                    - Not for USA, CDN and GD
                                                                                                                                    Supersession
                                                                                                                                    Supersession
                                                                                                                                    # 055
                                                                                                                                    MPN: 634604..
                                                                                                                                    LOWER COVER
                                                                                                                                    - Valid for USA and CDN
                                                                                                                                    Supersession
                                                                                                                                    Supersession
                                                                                                                                    # 055
                                                                                                                                    MPN: 634605..
                                                                                                                                    LOWER COVER
                                                                                                                                    - Valid for ZA and GB
                                                                                                                                    Supersession
                                                                                                                                    Supersession
                                                                                                                                    # 055
                                                                                                                                    MPN: 634606..
                                                                                                                                    LOWER COVER
                                                                                                                                    - Valid for AUS
                                                                                                                                    Supersession
                                                                                                                                    Supersession
                                                                                                                                    # 056
                                                                                                                                    MPN: 61545600
                                                                                                                                    GLOVE BOX LOCK
                                                                                                                                    # 057
                                                                                                                                    MPN: 61577500
                                                                                                                                    CLIP
                                                                                                                                    from £1.06
                                                                                                                                    from £1.06
                                                                                                                                    # 058
                                                                                                                                    MPN: 61577600
                                                                                                                                    PIN
                                                                                                                                    from £1.42
                                                                                                                                    from £1.42
                                                                                                                                    # 059
                                                                                                                                    MPN: 146216
                                                                                                                                    TWEETER LOUDSPEAKER
                                                                                                                                    from £29.28
                                                                                                                                    from £29.28
                                                                                                                                    # 060
                                                                                                                                    MPN: 63032800
                                                                                                                                    TWEETER GRILL PROTECTION
                                                                                                                                    from £57.07
                                                                                                                                    from £57.07
                                                                                                                                    # 061
                                                                                                                                    MPN: 61541600
                                                                                                                                    RADIO HOLDER
                                                                                                                                    from £367.50
                                                                                                                                    from £367.50
                                                                                                                                    # 062
                                                                                                                                    MPN: 63435000
                                                                                                                                    HOOK
                                                                                                                                    from £1.64
                                                                                                                                    from £1.64
                                                                                                                                    # 063
                                                                                                                                    MPN: 12642807
                                                                                                                                    WASHER
                                                                                                                                    from £0.47
                                                                                                                                    from £0.47
                                                                                                                                    # 064
                                                                                                                                    MPN: 15690778
                                                                                                                                    SCREW
                                                                                                                                    from £0.54
                                                                                                                                    from £0.54
                                                                                                                                    # 065
                                                                                                                                    MPN: 62765300
                                                                                                                                    WASHER
                                                                                                                                    Supersession
                                                                                                                                    Supersession
                                                                                                                                    # 066
                                                                                                                                    MPN: 63422600
                                                                                                                                    BRACKET ARRESTER BOX
                                                                                                                                    from £12.01
                                                                                                                                    from £12.01
                                                                                                                                    # 067
                                                                                                                                    MPN: 15908678
                                                                                                                                    SCREW
                                                                                                                                    from £0.54
                                                                                                                                    from £0.54
                                                                                                                                    # 068
                                                                                                                                    MPN: 14084111
                                                                                                                                    NUT
                                                                                                                                    from £0.53
                                                                                                                                    from £0.53
                                                                                                                                    This part replaces part number 14084100
                                                                                                                                    # 069
                                                                                                                                    MPN: 12624101
                                                                                                                                    WASHER
                                                                                                                                    from £0.54
                                                                                                                                    from £0.54
                                                                                                                                    # 070
                                                                                                                                    MPN: 16101711
                                                                                                                                    NUT
                                                                                                                                    from £0.51
                                                                                                                                    from £0.51
                                                                                                                                    This part replaces part number 16101715
                                                                                                                                    # 071
                                                                                                                                    MPN: 10615170
                                                                                                                                    WASHER
                                                                                                                                    Supersession
                                                                                                                                    Supersession
                                                                                                                                    # 072
                                                                                                                                    MPN: 12639401
                                                                                                                                    WASHER
                                                                                                                                    from £0.52
                                                                                                                                    from £0.52
                                                                                                                                    # 073
                                                                                                                                    MPN: 14039714
                                                                                                                                    NUT
                                                                                                                                    from £0.51
                                                                                                                                    from £0.51
                                                                                                                                    # 074
                                                                                                                                    MPN: 63422700
                                                                                                                                    PLATE
                                                                                                                                    from £28.81
                                                                                                                                    from £28.81
                                                                                                                                    # 075
                                                                                                                                    MPN: 63422500
                                                                                                                                    PIN
                                                                                                                                    from £3.85
                                                                                                                                    from £3.85
                                                                                                                                    # 076
                                                                                                                                    MPN: 14084011
                                                                                                                                    NUT
                                                                                                                                    from £0.54
                                                                                                                                    from £0.54
                                                                                                                                    # 077
                                                                                                                                    MPN: 156086
                                                                                                                                    ABS CUT OUT CENTRAL UNIT
                                                                                                                                    - Not for USA, CDN and AUS
                                                                                                                                    from £226.68
                                                                                                                                    from £226.68
                                                                                                                                    # 078
                                                                                                                                    MPN: 153983
                                                                                                                                    BRACKET
                                                                                                                                    - Not for USA, CDN and AUS
                                                                                                                                    from £15.96
                                                                                                                                    from £15.96
                                                                                                                                    # 079
                                                                                                                                    MPN: 14496277
                                                                                                                                    WASHER
                                                                                                                                    - Not for USA, CDN and AUS
                                                                                                                                    from £0.53
                                                                                                                                    from £0.53
                                                                                                                                    # 080
                                                                                                                                    MPN: 10794011
                                                                                                                                    NUT
                                                                                                                                    - Not for USA, CDN and AUS
                                                                                                                                    from £0.30
                                                                                                                                    from £0.30
                                                                                                                                    # 081
                                                                                                                                    MPN: 64528700
                                                                                                                                    F 512M NAME
                                                                                                                                    from £50.18
                                                                                                                                    from £50.18
                                                                                                                                    # 082
                                                                                                                                    MPN: 60324506
                                                                                                                                    CLIP
                                                                                                                                    from £1.57
                                                                                                                                    from £1.57
                                                                                                                                    This part replaces part number 62773000
                                                                                                                                    # 083
                                                                                                                                    MPN: 63455400
                                                                                                                                    SPRING WITH BRACKET
                                                                                                                                    from £17.30
                                                                                                                                    from £17.30
                                                                                                                                    This part replaces part number 63455500
