Ferrari 512 M Seats and Safety Belts -Valid for USA- Parts Diagram

118 - Seats and Safety Belts -Valid for USA-

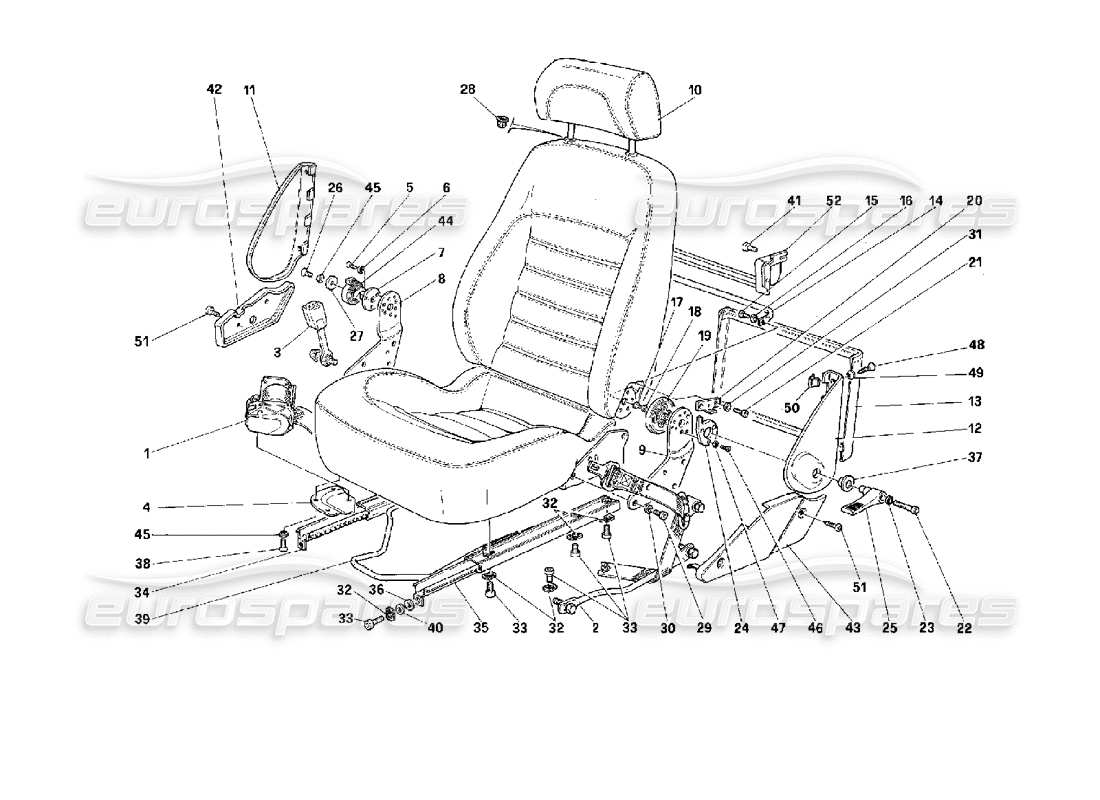

Ferrari 512 M Seats and Safety Belts -Valid for USA- Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                      #
                                                                                                      Part number
                                                                                                      Description
                                                                                                      Price
                                                                                                      # 000
                                                                                                      MPN: 630155..
                                                                                                      RH SEAT WITH GUIDES AND ABDOMINAL BELT
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 000
                                                                                                      MPN: 630156..
                                                                                                      LH SEAT WITH GUIDES AND ABDOMINAL BELT
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 000
                                                                                                      MPN: 636505..
                                                                                                      PILLOW LINING
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 000
                                                                                                      MPN: 636524..
                                                                                                      RH
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 000
                                                                                                      MPN: 636621..
                                                                                                      HEADREST LINING
                                                                                                      - LH back seat lining
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 001
                                                                                                      MPN: 62732400
                                                                                                      RH COMPLETE ABDOMINAL BELT
                                                                                                      from £229.68
                                                                                                      from £229.68
                                                                                                      # 001
                                                                                                      MPN: 62741900
                                                                                                      LH COMPLETE ABDOMINAL BELT
                                                                                                      from £221.52
                                                                                                      from £221.52
                                                                                                      # 002
                                                                                                      -
                                                                                                      BELT TIGHTENER
                                                                                                      # 003
                                                                                                      -
                                                                                                      BELT HOOK
                                                                                                      # 004
                                                                                                      MPN: 62592800
                                                                                                      RH ROLLING DEVICE FASTENING BRACKET
                                                                                                      from £11.76
                                                                                                      from £11.76
                                                                                                      # 004
                                                                                                      MPN: 62778200
                                                                                                      LH ROLLING DEVICE FASTENING BRACKET
                                                                                                      from £11.20
                                                                                                      from £11.20
                                                                                                      # 005
                                                                                                      MPN: 14441127
                                                                                                      SCREW
                                                                                                      from £0.54
                                                                                                      from £0.54
                                                                                                      # 006
                                                                                                      MPN: 12606876
                                                                                                      WASHER
                                                                                                      from £0.71
                                                                                                      from £0.71
                                                                                                      # 007
                                                                                                      MPN: 63314300
                                                                                                      BUSH FOR SPRING
                                                                                                      from £14.71
                                                                                                      from £14.71
                                                                                                      # 008
                                                                                                      MPN: 63288900
                                                                                                      RH JOINT FASTENING PLATE
                                                                                                      from £91.75
                                                                                                      from £91.75
                                                                                                      # 009
                                                                                                      MPN: 63289000
                                                                                                      LH JOINT FASTENING PLATE
                                                                                                      from £91.75
                                                                                                      from £91.75
                                                                                                      # 010
                                                                                                      MPN: 630180..
                                                                                                      LINED HEADREST
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 011
                                                                                                      MPN: 630184..
                                                                                                      RH INNER BACK SEAT JOINT COVER
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 011
                                                                                                      MPN: 630187..
                                                                                                      LH INNER BACK SEAT JOINT COVER
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 012
                                                                                                      MPN: 630185..
                                                                                                      LH OUTER BACK SEAT JOINT COVER
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 012
                                                                                                      MPN: 630186..
                                                                                                      RH OUTER BACK SEAT JOINT COVER
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 013
                                                                                                      MPN: 630188..
                                                                                                      BACK SEAT FOR REAR SIDE LINING
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 014
                                                                                                      MPN: 63294300
                                                                                                      JOINT CONNECTION
                                                                                                      from £9.56
                                                                                                      from £9.56
                                                                                                      This part replaces part number 62651800
                                                                                                      # 015
                                                                                                      MPN: 14302931
                                                                                                      SCREW
                                                                                                      from £0.56
                                                                                                      from £0.56
                                                                                                      # 016
                                                                                                      MPN: 160920
                                                                                                      WASHER
                                                                                                      from £0.68
                                                                                                      from £0.68
                                                                                                      # 017
                                                                                                      MPN: 63325100
                                                                                                      SCREW
                                                                                                      from £2.88
                                                                                                      from £2.88
                                                                                                      # 018
                                                                                                      MPN: 10615470
                                                                                                      WASHER
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 019
                                                                                                      MPN: 62652200
                                                                                                      RH SIDE BACKSEAT ADJUSTER
                                                                                                      from £128.56
                                                                                                      from £128.56
                                                                                                      # 019
                                                                                                      MPN: 62652400
                                                                                                      LH SIDE BACK SEAT ADJUSTER
                                                                                                      from £39.76
                                                                                                      from £39.76
                                                                                                      # 020
                                                                                                      MPN: 62887300
                                                                                                      PLATE FOR BACK SEAT STOP
                                                                                                      from £14.58
                                                                                                      from £14.58
                                                                                                      # 021
                                                                                                      MPN: 40294308
                                                                                                      SCREW
                                                                                                      from £2.71
                                                                                                      from £2.71
                                                                                                      This part replaces part number 20293306
                                                                                                      # 022
                                                                                                      MPN: 14358927
                                                                                                      SCREW
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      # 023
                                                                                                      MPN: 149951
                                                                                                      WASHER
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      This part replaces part number 10615301 - and 4 more. Click to view details
                                                                                                      # 024
                                                                                                      MPN: 62955700
                                                                                                      RH BACK SEAT LOCK
                                                                                                      from £6.02
                                                                                                      from £6.02
                                                                                                      # 024
                                                                                                      MPN: 62955800
                                                                                                      LH BACK SEAT LOCK
                                                                                                      from £23.97
                                                                                                      from £23.97
                                                                                                      # 025
                                                                                                      MPN: 62743900
                                                                                                      RH SEAT RELEASE HANDLE
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 025
                                                                                                      MPN: 63294200
                                                                                                      LH SEAT RELEASE HANDLE
                                                                                                      from £50.91
                                                                                                      from £50.91
                                                                                                      This part replaces part number 62743800
                                                                                                      # 026
                                                                                                      MPN: 14441127
                                                                                                      SCREW
                                                                                                      from £0.54
                                                                                                      from £0.54
                                                                                                      # 027
                                                                                                      MPN: 13578305
                                                                                                      WASHER
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      # 028
                                                                                                      MPN: 20058905
                                                                                                      HEADREST PLASTIC INSERT
                                                                                                      from £17.14
                                                                                                      from £17.14
                                                                                                      # 029
                                                                                                      MPN: 40294308
                                                                                                      SCREW
                                                                                                      from £2.64
                                                                                                      from £2.64
                                                                                                      This part replaces part number 20293306
                                                                                                      # 030
                                                                                                      MPN: 12601374
                                                                                                      WASHER
                                                                                                      from £0.29
                                                                                                      from £0.29
                                                                                                      This part replaces part number 10615474 - and 13 more. Click to view details
                                                                                                      # 031
                                                                                                      MPN: 12601374
                                                                                                      WASHER
                                                                                                      from £0.29
                                                                                                      from £0.29
                                                                                                      This part replaces part number 10615474 - and 13 more. Click to view details
                                                                                                      # 032
                                                                                                      MPN: 63395300
                                                                                                      PLATE
                                                                                                      from £0.61
                                                                                                      from £0.61
                                                                                                      # 033
                                                                                                      MPN: 40294308
                                                                                                      SCREW
                                                                                                      from £2.64
                                                                                                      from £2.64
                                                                                                      This part replaces part number 20293306
                                                                                                      # 034
                                                                                                      MPN: 62655200
                                                                                                      RH GUIDE
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 035
                                                                                                      MPN: 62655300
                                                                                                      LH GUIDE
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 036
                                                                                                      MPN: 14496506
                                                                                                      WASHER
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 037
                                                                                                      MPN: 62752500
                                                                                                      BUSH
                                                                                                      from £3.24
                                                                                                      from £3.24
                                                                                                      # 038
                                                                                                      MPN: 14441327
                                                                                                      SCREW
                                                                                                      from £0.87
                                                                                                      from £0.87
                                                                                                      # 039
                                                                                                      MPN: 627505..
                                                                                                      RH GUIDES CONTROL FORK
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 039
                                                                                                      MPN: 627528..
                                                                                                      LH GUIDES CONTROL FORK
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 040
                                                                                                      MPN: 12601374
                                                                                                      WASHER
                                                                                                      from £0.30
                                                                                                      from £0.30
                                                                                                      This part replaces part number 10615474 - and 13 more. Click to view details
                                                                                                      # 041
                                                                                                      MPN: 14302331
                                                                                                      SCREW
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 042
                                                                                                      MPN: 629832..
                                                                                                      RH INNER PILLOW JOINT COVER
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 042
                                                                                                      MPN: 629834..
                                                                                                      LH INNER PILLOW JOINT COVER
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 043
                                                                                                      MPN: 629833..
                                                                                                      LH OUTER PILLOW JOINT COVER
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 043
                                                                                                      MPN: 629835..
                                                                                                      RH OUTER PILLOW JOINT COVER
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 044
                                                                                                      MPN: 62651900
                                                                                                      SPRING
                                                                                                      from £10.61
                                                                                                      from £10.61
                                                                                                      # 045
                                                                                                      MPN: 12606876
                                                                                                      WASHER
                                                                                                      from £0.71
                                                                                                      from £0.71
                                                                                                      # 046
                                                                                                      MPN: 14441127
                                                                                                      SCREW
                                                                                                      from £0.54
                                                                                                      from £0.54
                                                                                                      # 047
                                                                                                      MPN: 12606876
                                                                                                      WASHER
                                                                                                      from £0.71
                                                                                                      from £0.71
                                                                                                      # 048
                                                                                                      MPN: 15915208
                                                                                                      SCREW
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 049
                                                                                                      MPN: 62823200
                                                                                                      WASHER
                                                                                                      from £0.71
                                                                                                      from £0.71
                                                                                                      # 050
                                                                                                      MPN: 62773500
                                                                                                      CLIP
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 051
                                                                                                      MPN: 20297602
                                                                                                      SCREW
                                                                                                      from £5.75
                                                                                                      from £5.75
                                                                                                      # 052
                                                                                                      MPN: 62651700
                                                                                                      ARTICULATED JOINTS TRANSM. COVER
