Ferrari 512 M air conditioning system Parts Diagram

052 - air conditioning system

Ferrari 512 M Air Conditioning System Parts Diagram

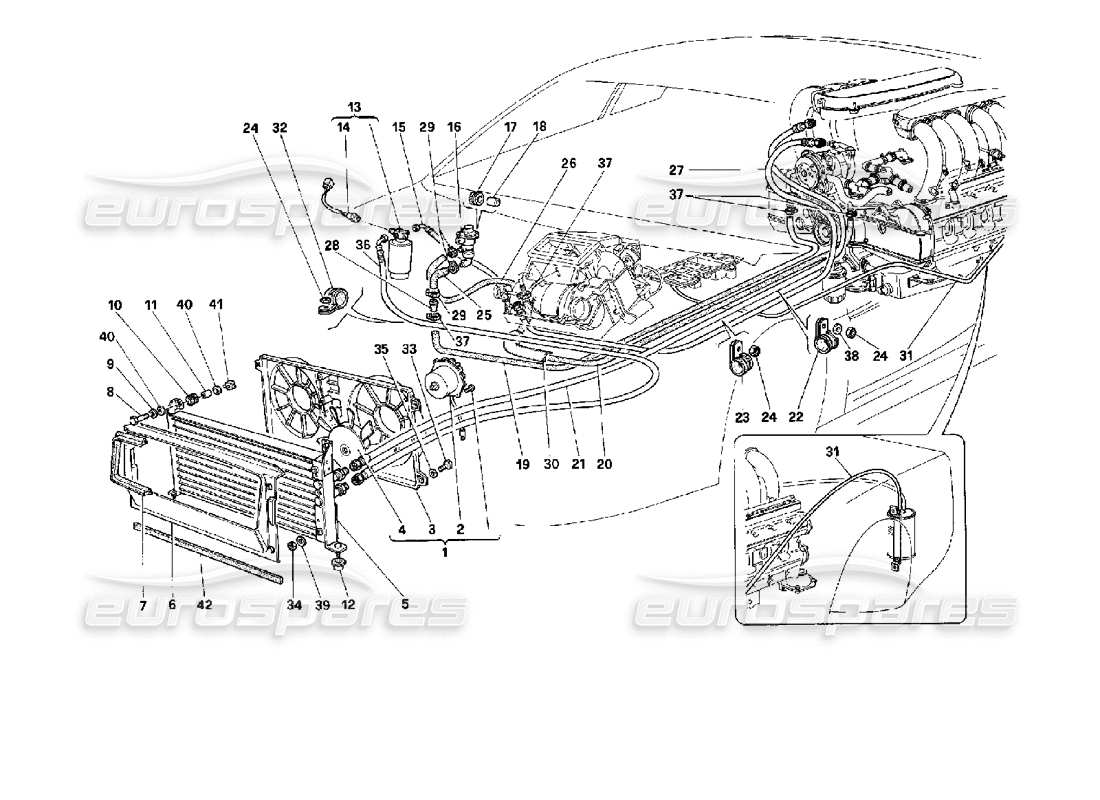

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                            #
                                                                            Part number
                                                                            Description
                                                                            Price
                                                                            # 001
                                                                            MPN: 63370600
                                                                            COMPLETE ELECTRO FAN
                                                                            from £215.92
                                                                            from £215.92
                                                                            # 002
                                                                            MPN: 152409
                                                                            A/C. FAN MOTOR
                                                                            from £94.97
                                                                            from £94.97
                                                                            # 003
                                                                            MPN: 63358800
                                                                            AIR CONVEYOR
                                                                            from £44.36
                                                                            from £44.36
                                                                            # 004
                                                                            MPN: 152412
                                                                            FAN
                                                                            from £24.96
                                                                            from £24.96
                                                                            # 005
                                                                            MPN: 63337600
                                                                            A.C. CONDENSER
                                                                            from £4,025.89
                                                                            from £4,025.89
                                                                            # 006
                                                                            MPN: 63028300
                                                                            AIR CONVEYOR TO CONDENSER
                                                                            from £285.48
                                                                            from £285.48
                                                                            # 007
                                                                            MPN: 63087700
                                                                            GASKET
                                                                            from £9.28
                                                                            from £9.28
                                                                            # 008
                                                                            MPN: 10902624
                                                                            SCREW
                                                                            from £0.53
                                                                            from £0.53
                                                                            This part replaces part number 10902621
                                                                            # 009
                                                                            MPN: 127494
                                                                            WASHER
                                                                            (minimum order quantity = 20)
                                                                            from £0.53
                                                                            from £0.53
                                                                            This part replaces part number 10516470 - and 4 more. Click to view details
                                                                            # 010
                                                                            MPN: 103549
                                                                            CABLE GROMMET
                                                                            from £0.70
                                                                            from £0.70
                                                                            # 011
                                                                            MPN: 103550
                                                                            SPACER
                                                                            from £4.68
                                                                            from £4.68
                                                                            This part replaces part number 4130913
                                                                            # 012
                                                                            MPN: 137624
                                                                            PAD
                                                                            from £2.64
                                                                            from £2.64
                                                                            # 013
                                                                            MPN: 63934300

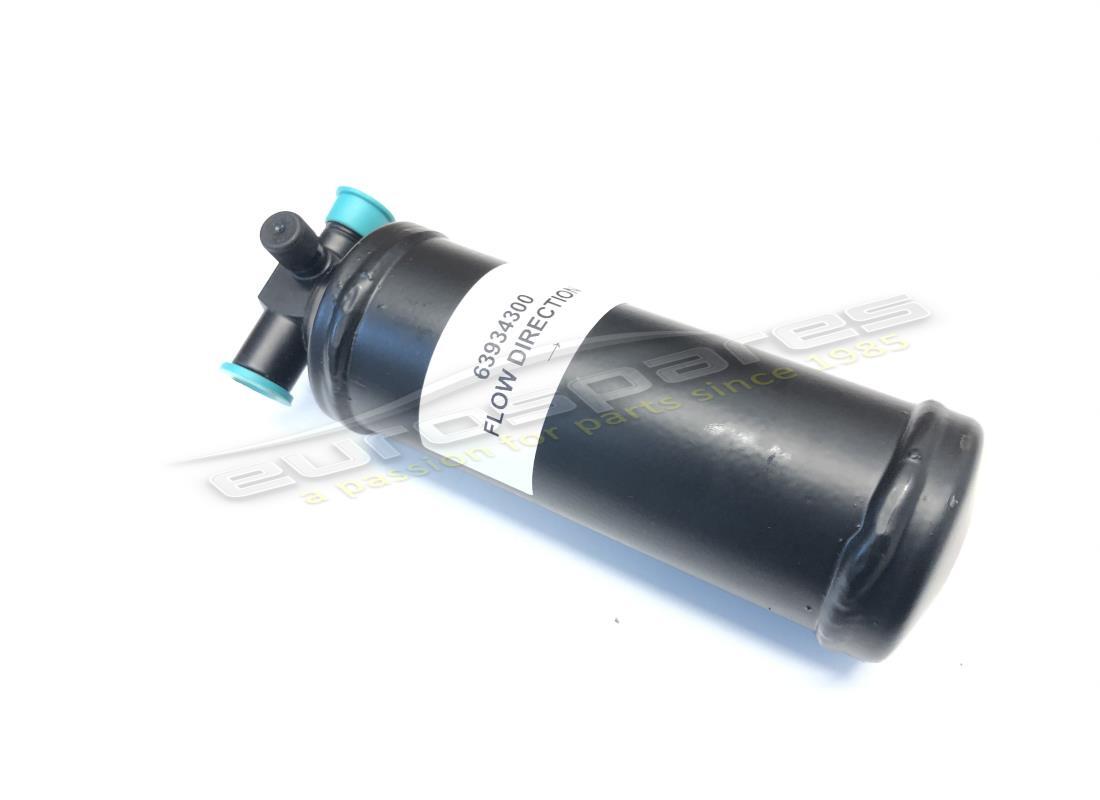

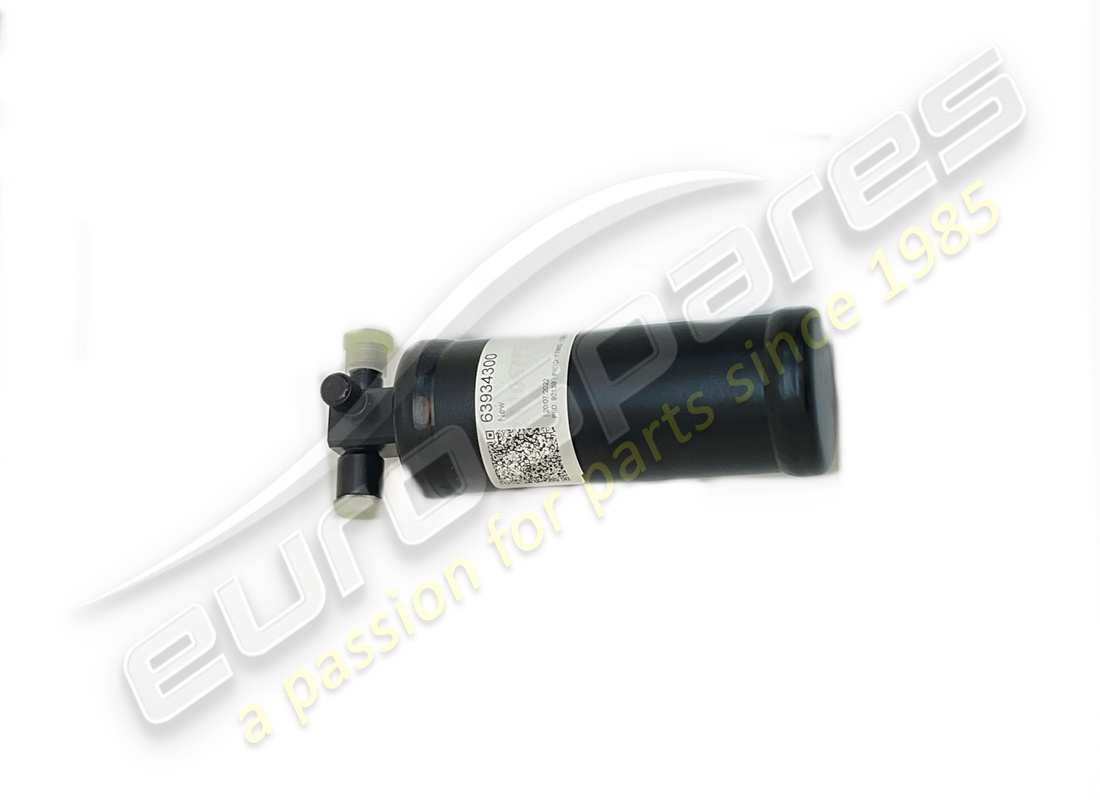

                                                                            DEHYDRATOR FILTER WITH PRESSOSTAT
                                                                            - Not for GD
                                                                            from £51.45
                                                                            from £51.45
                                                                            # 013
                                                                            MPN: 64734000
                                                                            DEHYDRATOR FILTER WITH PRESSOSTAT
                                                                            - Valid for GD
                                                                            from £123.59
                                                                            from £123.59
                                                                            # 014
                                                                            MPN: 64278900

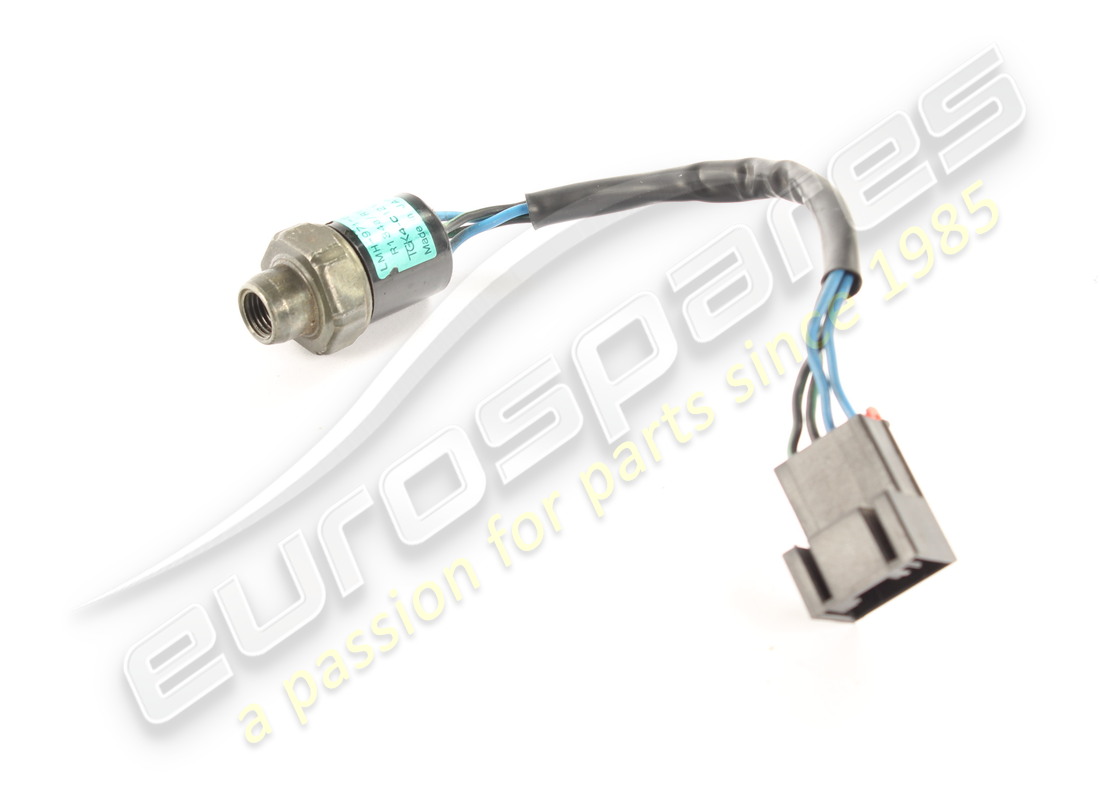

                                                                            PRESSOSTAT
                                                                            from £49.45
                                                                            from £49.45
                                                                            # 015
                                                                            MPN: 161735
                                                                            PIPE FROM FILTER TO EVAPORATOR
                                                                            - Not for GD
                                                                            from £77.18
                                                                            from £77.18
                                                                            # 015
                                                                            MPN: 164288
                                                                            PIPE FROM FILTER TO EVAPORATOR
                                                                            - Valid for GD
                                                                            from £94.09
                                                                            from £94.09
                                                                            # 016
                                                                            MPN: 63241600
                                                                            ELECTROMAGNETIC VALVE
                                                                            Supersession
                                                                            Supersession
                                                                            # 017
                                                                            MPN: 103549
                                                                            CABLE GROMMET
                                                                            from £0.70
                                                                            from £0.70
                                                                            # 018
                                                                            MPN: 103550
                                                                            SPACER
                                                                            from £4.68
                                                                            from £4.68
                                                                            This part replaces part number 4130913
                                                                            # 019
                                                                            MPN: 124029
                                                                            PIPE FROM ELECTROMAGNETIC VALVE TO ENGINE
                                                                            from £116.07
                                                                            from £116.07
                                                                            # 020
                                                                            MPN: 124027
                                                                            PIPE FROM ENGINE TO EVAPORATOR
                                                                            from £69.91
                                                                            from £69.91
                                                                            # 021
                                                                            MPN: 161831
                                                                            PIPE FROM COMPRESSOR TO CONDENSER
                                                                            from £310.92
                                                                            from £310.92
                                                                            # 022
                                                                            MPN: 119463
                                                                            BRACKET
                                                                            from £29.85
                                                                            from £29.85
                                                                            # 023
                                                                            MPN: 10441890
                                                                            BRACKET
                                                                            from £0.53
                                                                            from £0.53
                                                                            # 024
                                                                            MPN: 102948
                                                                            NUT
                                                                            from £0.53
                                                                            from £0.53
                                                                            This part replaces part number 12574211 - and 4 more. Click to view details
                                                                            # 025
                                                                            MPN: 125003
                                                                            PIPE FROM ELECTROMAGNETIC VALVE TO REDUCTION
                                                                            from £17.53
                                                                            from £17.53
                                                                            # 026
                                                                            MPN: 61615000
                                                                            PIPE FROM EVAPORATOR TO ELECTRO FAN
                                                                            from £60.83
                                                                            from £60.83
                                                                            # 027
                                                                            MPN: 154108
                                                                            PIPE FROM EVAPORATOR TO COMPRESSOR
                                                                            - Valid for GD
                                                                            from £143.38
                                                                            from £143.38
                                                                            # 027
                                                                            MPN: 161830
                                                                            PIPE FROM EVAPORATOR TO COMPRESSOR
                                                                            - Not for GD
                                                                            from £164.86
                                                                            from £164.86
                                                                            # 028
                                                                            MPN: 124030
                                                                            REDUCTION
                                                                            from £5.72
                                                                            from £5.72
                                                                            # 029
                                                                            MPN: 13000490
                                                                            CLAMP
                                                                            from £0.51
                                                                            from £0.51
                                                                            This part replaces part number 10169090 - and 3 more. Click to view details
                                                                            # 030
                                                                            MPN: 61275000
                                                                            PIPES INSULATION
                                                                            from £68.78
                                                                            from £68.78
                                                                            # 031
                                                                            MPN: 62954400
                                                                            PIPE FROM VACUUM TANK TO PUSH BUTTON PANEL
                                                                            from £8.25
                                                                            from £8.25
                                                                            # 032
                                                                            MPN: 10441490
                                                                            BRACKET
                                                                            from £0.51
                                                                            from £0.51
                                                                            # 033
                                                                            MPN: 10903821
                                                                            SCREW
                                                                            Supersession
                                                                            Supersession
                                                                            # 034
                                                                            MPN: 12574211
                                                                            NUT
                                                                            from £0.49
                                                                            from £0.49
                                                                            # 035
                                                                            MPN: 14496421
                                                                            WASHER
                                                                            Supersession
                                                                            Supersession
                                                                            # 036
                                                                            MPN: 161734
                                                                            PIPE FROM CONDENSER TO FILTER
                                                                            - Not for GD
                                                                            from £62.13
                                                                            from £62.13
                                                                            # 036
                                                                            MPN: 164289
                                                                            PIPE FROM CONDENSER TO FILTER
                                                                            - Valid for GD
                                                                            from £87.56
                                                                            from £87.56
                                                                            # 037
                                                                            MPN: 13000390
                                                                            CLAMP
                                                                            from £0.53
                                                                            from £0.53
                                                                            This part replaces part number 12179590 - and 1 more. Click to view details
                                                                            # 038
                                                                            MPN: 12643724
                                                                            WASHER
                                                                            from £0.53
                                                                            from £0.53
                                                                            This part replaces part number 109684 - and 4 more. Click to view details
                                                                            # 039
                                                                            MPN: 106744
                                                                            WASHER
                                                                            from £5.45
                                                                            from £5.45
                                                                            # 040
                                                                            MPN: 12643724
                                                                            WASHER
                                                                            from £0.51
                                                                            from £0.51
                                                                            This part replaces part number 109684 - and 4 more. Click to view details
                                                                            # 041
                                                                            MPN: 60659100
                                                                            NUT
                                                                            from £0.64
                                                                            from £0.64
                                                                            This part replaces part number 0-166-1-039-50 - and 1 more. Click to view details
                                                                            # 042
                                                                            MPN: 62660300
                                                                            GASKET
                                                                            from £7.41
                                                                            from £7.41
                                                                            Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
