Ferrari 512 M Gearbox Transmission Parts Diagram

029 - Gearbox Transmission

Ferrari 512 M Gearbox Transmission Parts Diagram

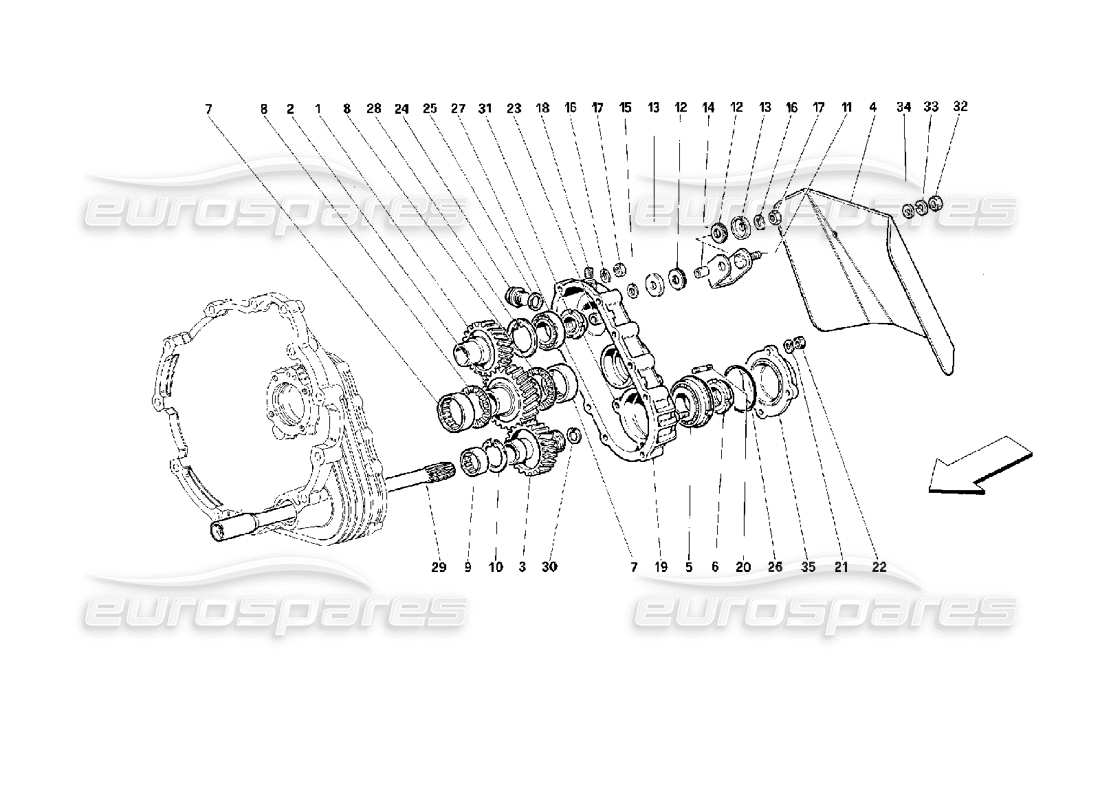

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                #
                                                                Part number
                                                                Description
                                                                Price
                                                                # 001
                                                                MPN: 151939

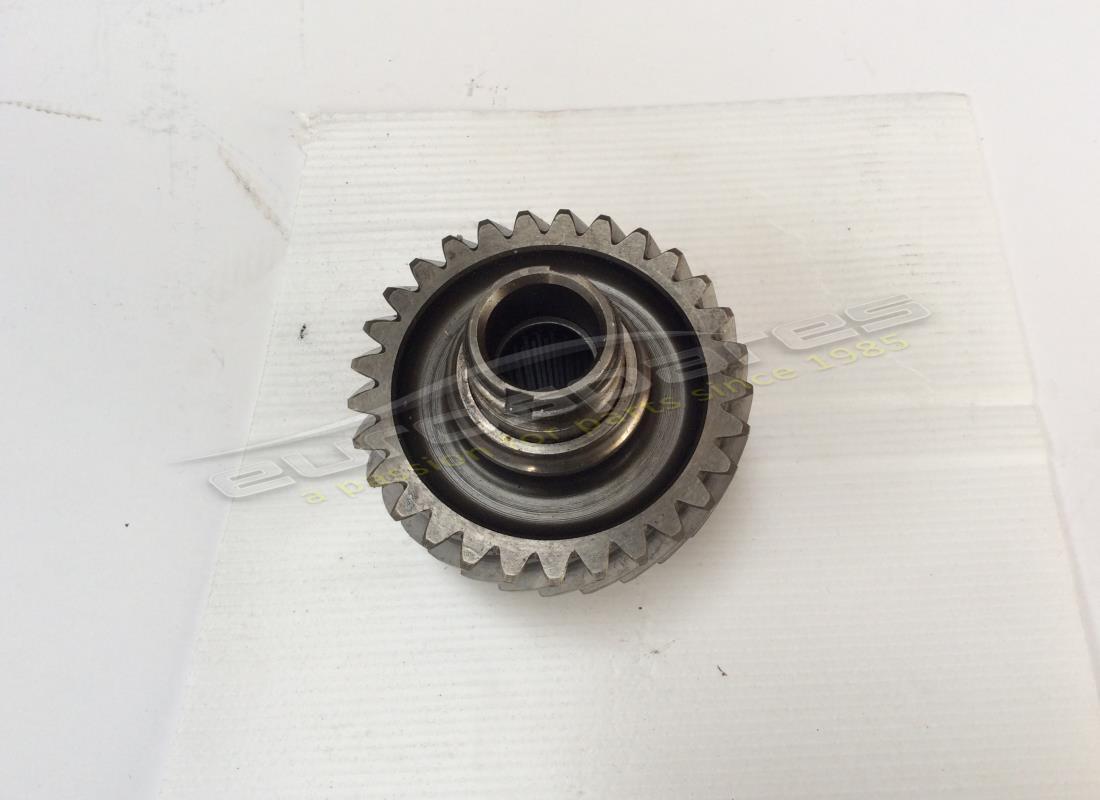

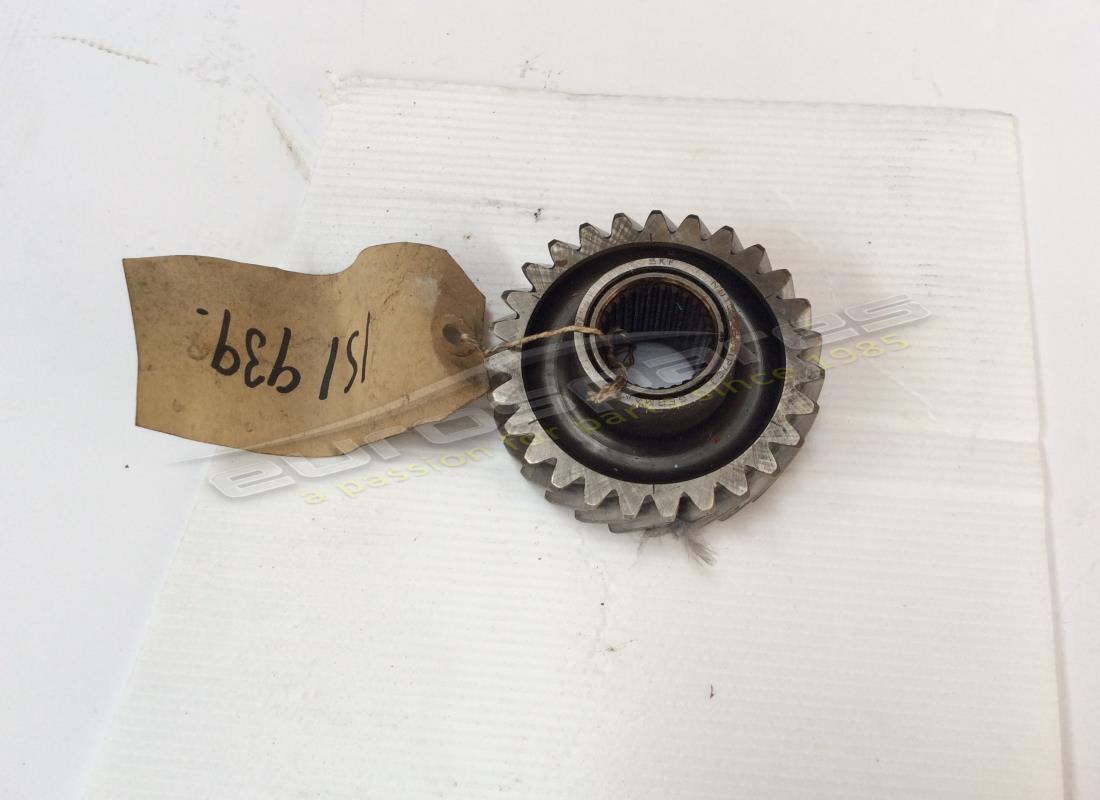

                                                                DRIVE GEAR
                                                                - Valid for CH - Not for USA, CDN, AUS, J, CH
                                                                from £148.06
                                                                from £148.06
                                                                # 001
                                                                MPN: 151940
                                                                DRIVE GEAR
                                                                - Not for USA, CDN, AUS, J, CH
                                                                from £524.19
                                                                from £524.19
                                                                # 001
                                                                MPN: 161487
                                                                DRIVE GEAR
                                                                - Valid for USA, CDN, AUS, J,
                                                                from £200.18
                                                                from £200.18
                                                                # 002
                                                                MPN: 146556
                                                                INTERMEDIATE GEAR
                                                                from £257.81
                                                                from £257.81
                                                                # 002
                                                                MPN: 149589
                                                                INTERMEDIATE GEAR
                                                                - Valid for CH - Not for USA, CDN, AUS, J, CH
                                                                from £336.63
                                                                from £336.63
                                                                # 002
                                                                MPN: 161486
                                                                INTERMEDIATE GEAR
                                                                - Valid for USA, CDN, AUS, J
                                                                from £198.31
                                                                from £198.31
                                                                # 003
                                                                MPN: 146555
                                                                DRIVEN GEAR
                                                                from £254.60
                                                                from £254.60
                                                                # 003
                                                                MPN: 149590
                                                                DRIVEN GEAR
                                                                - Valid for CH
                                                                from £132.34
                                                                from £132.34
                                                                # 003
                                                                MPN: 161488
                                                                DRIVEN GEAR
                                                                - Valid for USA, CDN, AUS, J
                                                                from £231.16
                                                                from £231.16
                                                                # 004
                                                                MPN: 148189
                                                                PROTECTION PLATE
                                                                from £173.53
                                                                from £173.53
                                                                # 005
                                                                MPN: 126223

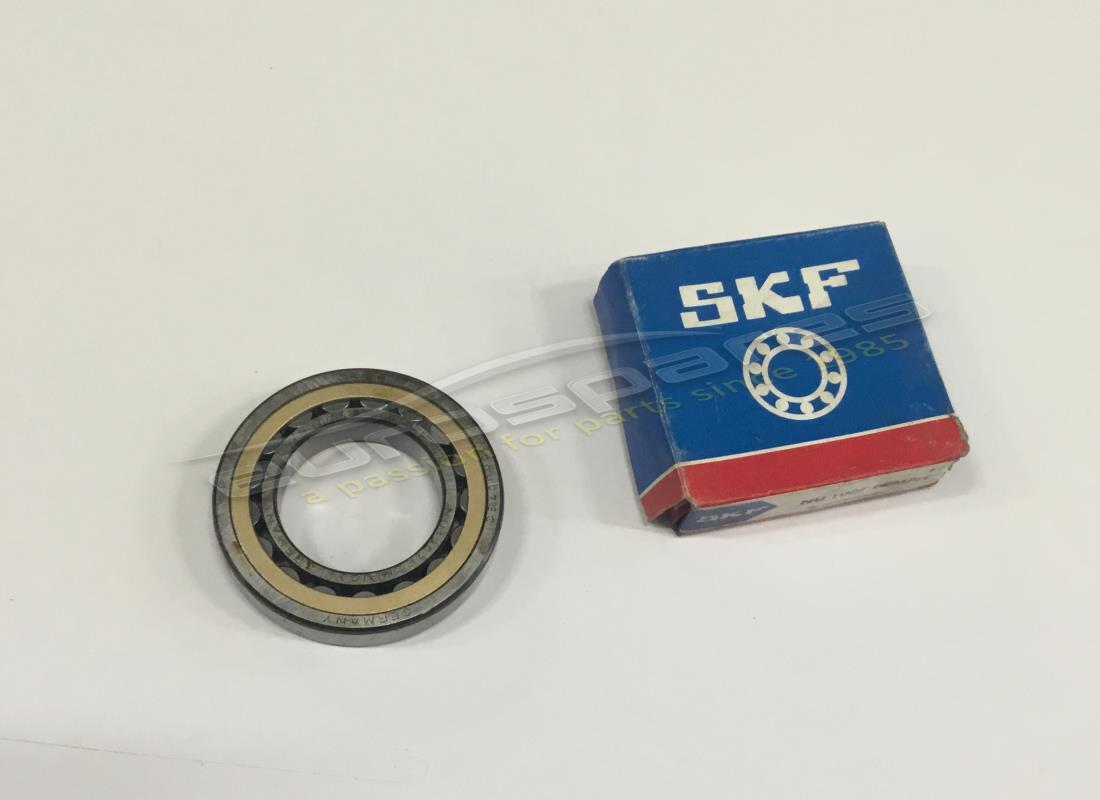

                                                                BEARING
                                                                from £260.07
                                                                from £260.07
                                                                This part replaces part number 116063 - and 5 more. Click to view details
                                                                # 006
                                                                MPN: 153068
                                                                RING NUT
                                                                from £70.35
                                                                from £70.35
                                                                This part replaces part number 100729 - and 1 more. Click to view details
                                                                # 007
                                                                MPN: 104840
                                                                ROLLER BEARING
                                                                from £41.13
                                                                from £41.13
                                                                # 008
                                                                MPN: 104841
                                                                AXIAL BEARING
                                                                from £6.95
                                                                from £6.95
                                                                # 009
                                                                MPN: 103095
                                                                ROLLER BEARING
                                                                from £35.95
                                                                from £35.95
                                                                This part replaces part number HK 35/20 which we have in stock
                                                                # 010
                                                                MPN: 103096
                                                                LOCK RING
                                                                from £1.48
                                                                from £1.48
                                                                This part replaces part number 104835
                                                                # 011
                                                                MPN: 128500

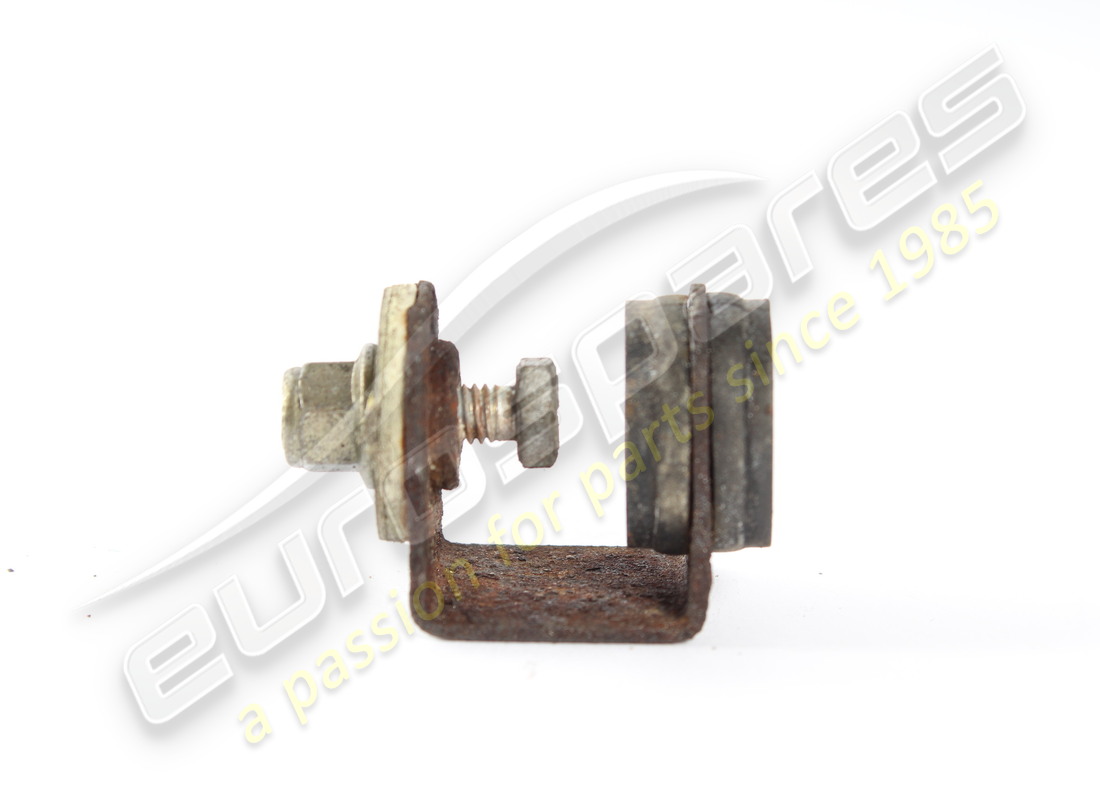

                                                                BRACKET
                                                                from £7.08
                                                                from £7.08
                                                                # 012
                                                                MPN: 107978
                                                                PAD
                                                                from £1.08
                                                                from £1.08
                                                                # 013
                                                                MPN: 107979
                                                                CAP
                                                                from £1.10
                                                                from £1.10
                                                                # 014
                                                                MPN: 107980
                                                                DISTANCE TUBE
                                                                from £1.57
                                                                from £1.57
                                                                # 015
                                                                MPN: 124801
                                                                SPACER
                                                                from £1.43
                                                                from £1.43
                                                                # 016
                                                                MPN: 12601374
                                                                WASHER
                                                                from £0.29
                                                                from £0.29
                                                                This part replaces part number 10615474 - and 13 more. Click to view details
                                                                # 017
                                                                MPN: 133989
                                                                NUT
                                                                from £0.51
                                                                from £0.51
                                                                This part replaces part number 8 D 4-UNI 207
                                                                # 018
                                                                MPN: 10269450
                                                                PLUG
                                                                from £10.81
                                                                from £10.81
                                                                # 019
                                                                MPN: 146621
                                                                CLUTCH HOUSING COVER
                                                                from £214.04
                                                                from £214.04
                                                                # 020
                                                                MPN: 13543324
                                                                STUD
                                                                from £0.83
                                                                from £0.83
                                                                This part replaces part number 13543321
                                                                # 021
                                                                MPN: 12601374
                                                                WASHER
                                                                from £0.30
                                                                from £0.30
                                                                This part replaces part number 10615474 - and 13 more. Click to view details
                                                                # 022
                                                                MPN: 133989
                                                                NUT
                                                                from £0.53
                                                                from £0.53
                                                                This part replaces part number 8 D 4-UNI 207
                                                                # 023
                                                                MPN: 109336
                                                                OIL RECOVERY PIPE
                                                                from £54.61
                                                                from £54.61
                                                                # 024
                                                                MPN: 10275011
                                                                OIL FILLER PLUG
                                                                from £1.05
                                                                from £1.05
                                                                This part replaces part number 10275001 - and 3 more. Click to view details
                                                                # 025
                                                                MPN: 10263460
                                                                GASKET
                                                                from £0.53
                                                                from £0.53
                                                                This part replaces part number 95119
                                                                # 026
                                                                MPN: 152541
                                                                OR GASKET
                                                                from £2.35
                                                                from £2.35
                                                                # 027
                                                                MPN: 112981
                                                                BEARING
                                                                from £92.40
                                                                from £92.40
                                                                # 028
                                                                MPN: 11061076
                                                                SEEGER RING
                                                                from £0.62
                                                                from £0.62
                                                                This part replaces part number 11061075 - and 1 more. Click to view details
                                                                # 029
                                                                MPN: 154294
                                                                propeller shaft
                                                                from £606.48
                                                                from £606.48
                                                                # 030
                                                                MPN: 11058276
                                                                LOCK RING
                                                                from £0.47
                                                                from £0.47
                                                                # 031
                                                                MPN: 153066
                                                                RING NUT
                                                                from £42.82
                                                                from £42.82
                                                                This part replaces part number 125500 - and 1 more. Click to view details
                                                                # 032
                                                                MPN: 15896211
                                                                NUT
                                                                Supersession
                                                                Supersession
                                                                This part replaces part number 15896210
                                                                # 033
                                                                MPN: 127494
                                                                WASHER
                                                                (minimum order quantity = 20)
                                                                from £0.53
                                                                from £0.53
                                                                This part replaces part number 10516470 - and 4 more. Click to view details
                                                                # 034
                                                                MPN: 12643724
                                                                WASHER
                                                                from £0.52
                                                                from £0.52
                                                                This part replaces part number 109684 - and 4 more. Click to view details
                                                                # 035
                                                                MPN: 163736

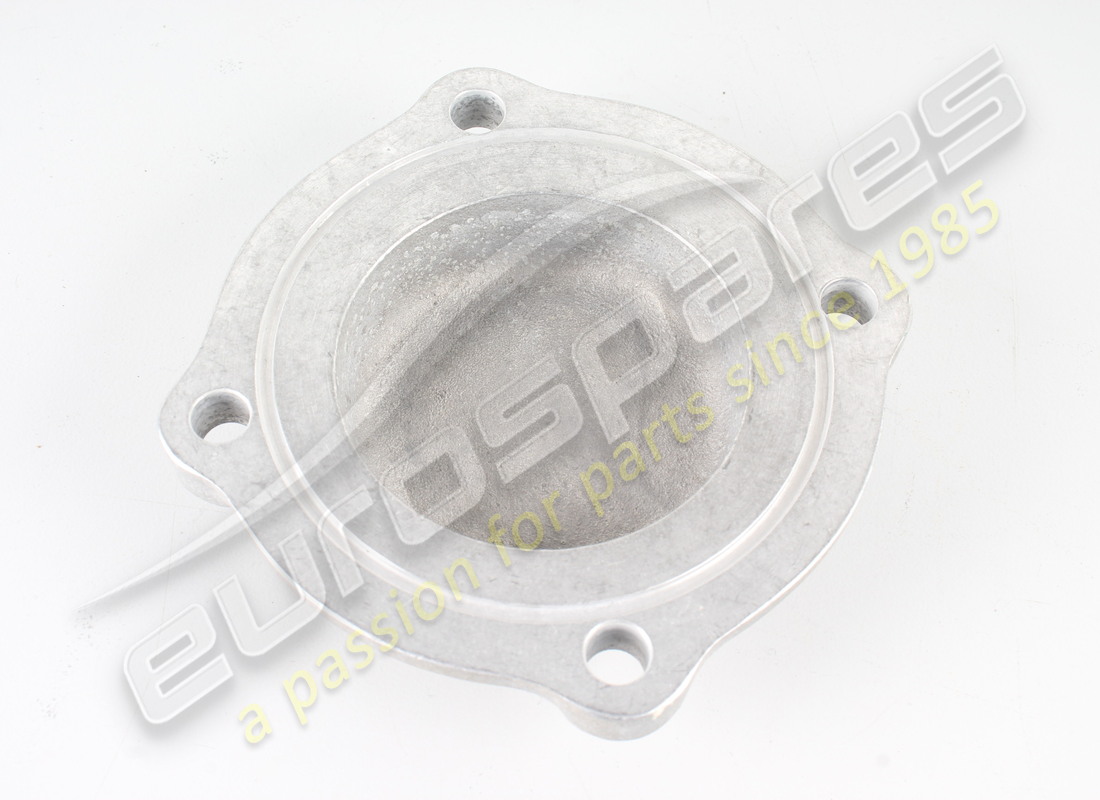

                                                                SMALL COVER
                                                                from £53.39
                                                                from £53.39
                                                                This part replaces part number 102808 - and 3 more. Click to view details
