Ferrari 512 M ClutCH Release Control -Not for GD- Parts Diagram

027 - ClutCH Release Control -Not for GD-

Ferrari 512 M Clutch Release Control -Not for GD- Parts Diagram

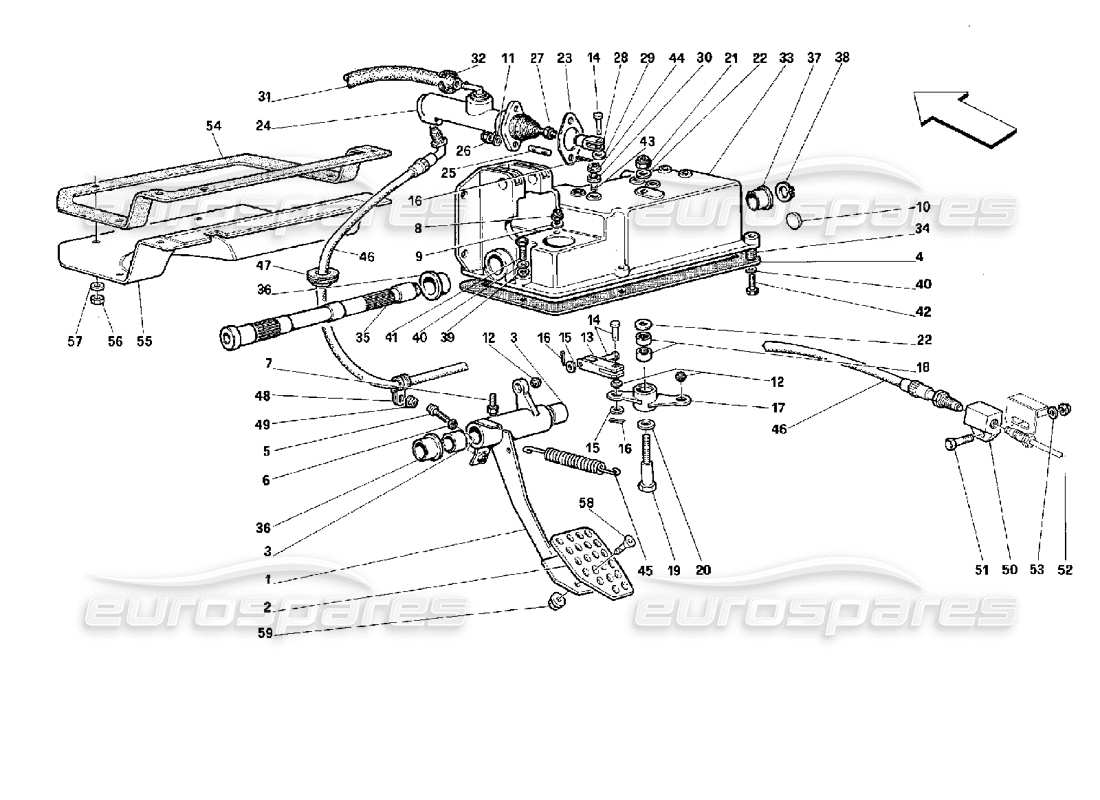

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                        #
                                                                                                                        Part number
                                                                                                                        Description
                                                                                                                        Price
                                                                                                                        # 001
                                                                                                                        MPN: 163883
                                                                                                                        CLUTCH PEDAL
                                                                                                                        from £217.95
                                                                                                                        from £217.95
                                                                                                                        # 002
                                                                                                                        MPN: 163871
                                                                                                                        DRILLED PLATE
                                                                                                                        from £95.39
                                                                                                                        from £95.39
                                                                                                                        # 003
                                                                                                                        MPN: 103163
                                                                                                                        BUSH
                                                                                                                        from £2.90
                                                                                                                        from £2.90
                                                                                                                        # 004
                                                                                                                        MPN: 156663
                                                                                                                        GASKET
                                                                                                                        from £9.52
                                                                                                                        from £9.52
                                                                                                                        # 005
                                                                                                                        MPN: 144011
                                                                                                                        ADJUSTING PUSH ROD
                                                                                                                        from £10.00
                                                                                                                        from £10.00
                                                                                                                        # 006
                                                                                                                        MPN: 16102311
                                                                                                                        NUT
                                                                                                                        from £0.43
                                                                                                                        from £0.43
                                                                                                                        This part replaces part number 16102315
                                                                                                                        # 007
                                                                                                                        MPN: 114825
                                                                                                                        STOP PUSH ROD
                                                                                                                        from £38.43
                                                                                                                        from £38.43
                                                                                                                        # 008
                                                                                                                        MPN: 133989
                                                                                                                        NUT
                                                                                                                        from £0.54
                                                                                                                        from £0.54
                                                                                                                        This part replaces part number 8 D 4-UNI 207
                                                                                                                        # 009
                                                                                                                        MPN: 12601374
                                                                                                                        WASHER
                                                                                                                        from £0.30
                                                                                                                        from £0.30
                                                                                                                        This part replaces part number 10615474 - and 13 more. Click to view details
                                                                                                                        # 010
                                                                                                                        MPN: 10158801
                                                                                                                        PLUG
                                                                                                                        from £0.83
                                                                                                                        from £0.83
                                                                                                                        This part replaces part number 10158800
                                                                                                                        # 011
                                                                                                                        MPN: 12601374
                                                                                                                        WASHER
                                                                                                                        from £0.30
                                                                                                                        from £0.30
                                                                                                                        This part replaces part number 10615474 - and 13 more. Click to view details

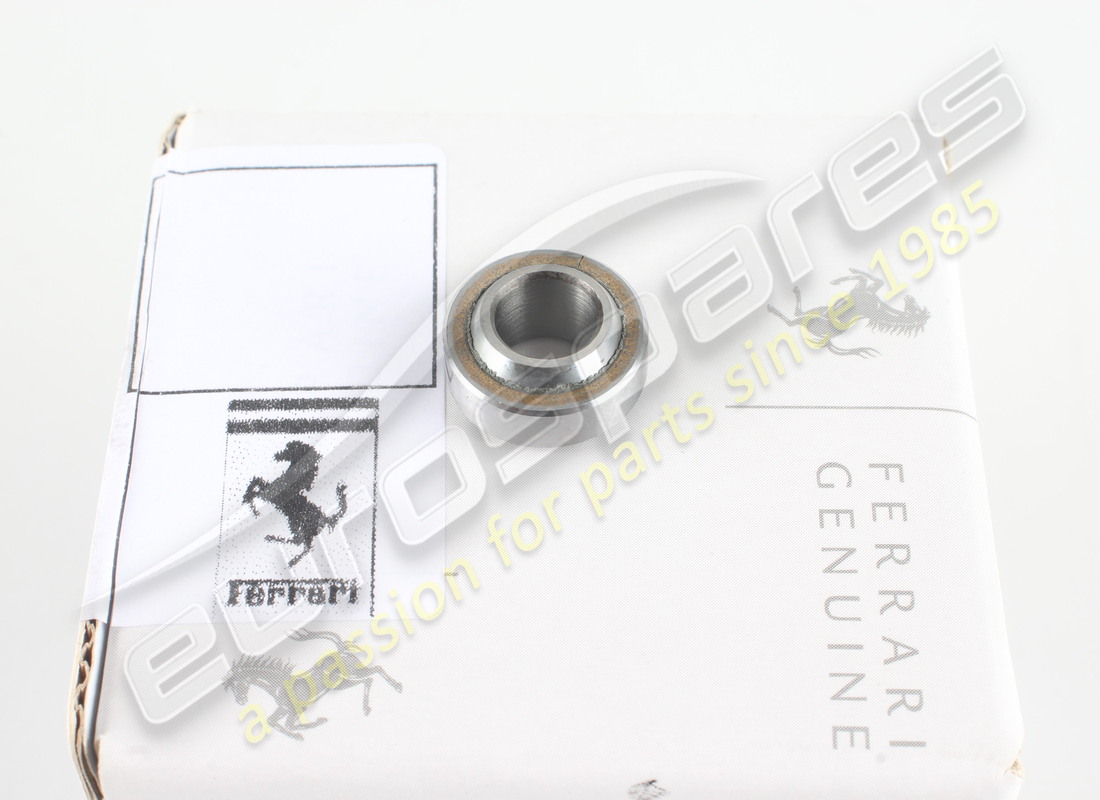

                                                                                                                        # 012
                                                                                                                        MPN: 109407
                                                                                                                        BALL JOINT
                                                                                                                        from £22.24
                                                                                                                        from £22.24
                                                                                                                        # 013
                                                                                                                        MPN: 112172
                                                                                                                        DOUBLE FIXING FORK
                                                                                                                        from £99.03
                                                                                                                        from £99.03
                                                                                                                        # 014
                                                                                                                        MPN: 10050811
                                                                                                                        PIN
                                                                                                                        from £3.65
                                                                                                                        from £3.65
                                                                                                                        This part replaces part number 10050810
                                                                                                                        # 015
                                                                                                                        MPN: 10519624
                                                                                                                        WASHER
                                                                                                                        from £0.54
                                                                                                                        from £0.54
                                                                                                                        This part replaces part number 10519601 - and 3 more. Click to view details
                                                                                                                        # 016
                                                                                                                        MPN: 10734201
                                                                                                                        SPLIT PIN
                                                                                                                        Supersession
                                                                                                                        Supersession
                                                                                                                        # 017
                                                                                                                        MPN: 148821
                                                                                                                        RELAY LEVER
                                                                                                                        from £108.19
                                                                                                                        from £108.19
                                                                                                                        # 018
                                                                                                                        MPN: 115430
                                                                                                                        ROLLER BEARING
                                                                                                                        from £12.60
                                                                                                                        from £12.60
                                                                                                                        # 019
                                                                                                                        MPN: 114830
                                                                                                                        PIN FOR RELAY LEVER
                                                                                                                        from £6.12
                                                                                                                        from £6.12
                                                                                                                        # 020
                                                                                                                        MPN: 112126
                                                                                                                        WASHER
                                                                                                                        from £0.47
                                                                                                                        from £0.47
                                                                                                                        # 021
                                                                                                                        MPN: 102825
                                                                                                                        NUT
                                                                                                                        from £0.54
                                                                                                                        from £0.54
                                                                                                                        This part replaces part number 95900617
                                                                                                                        # 022
                                                                                                                        MPN: 113500
                                                                                                                        WASHER
                                                                                                                        from £10.25
                                                                                                                        from £10.25
                                                                                                                        # 023
                                                                                                                        MPN: 124469
                                                                                                                        SPACER
                                                                                                                        from £3.01
                                                                                                                        from £3.01
                                                                                                                        # 024
                                                                                                                        MPN: 175211
                                                                                                                        CLUTCH MASTER CYLINDER
                                                                                                                        from £89.18
                                                                                                                        from £89.18
                                                                                                                        This part replaces part number 123416 - and 4 more. Click to view details
                                                                                                                        # 025
                                                                                                                        MPN: 13543524
                                                                                                                        STUD
                                                                                                                        from £2.04
                                                                                                                        from £2.04
                                                                                                                        This part replaces part number 13543521
                                                                                                                        # 026
                                                                                                                        MPN: 104030
                                                                                                                        SELF LOCKING NUT
                                                                                                                        from £0.53
                                                                                                                        from £0.53
                                                                                                                        This part replaces part number 16104125
                                                                                                                        # 027
                                                                                                                        MPN: 16102311
                                                                                                                        NUT
                                                                                                                        from £0.43
                                                                                                                        from £0.43
                                                                                                                        This part replaces part number 16102315
                                                                                                                        # 028
                                                                                                                        MPN: 10007871
                                                                                                                        FORK
                                                                                                                        from £6.02
                                                                                                                        from £6.02
                                                                                                                        # 029
                                                                                                                        MPN: 12642701
                                                                                                                        WASHER
                                                                                                                        from £0.47
                                                                                                                        from £0.47
                                                                                                                        This part replaces part number 12642724
                                                                                                                        # 030
                                                                                                                        MPN: 12643724
                                                                                                                        WASHER
                                                                                                                        from £0.51
                                                                                                                        from £0.51
                                                                                                                        This part replaces part number 109684 - and 4 more. Click to view details
                                                                                                                        # 031
                                                                                                                        MPN: 155961
                                                                                                                        FEED PIPE FOR CLUTCH MASTER CYLINDER
                                                                                                                        from £43.14
                                                                                                                        from £43.14
                                                                                                                        # 032
                                                                                                                        MPN: 157934
                                                                                                                        CLAMP
                                                                                                                        Supersession
                                                                                                                        Supersession
                                                                                                                        This part replaces part number 12179190
                                                                                                                        # 033
                                                                                                                        MPN: 155180
                                                                                                                        PEDAL SUPPORT
                                                                                                                        from £160.62
                                                                                                                        from £160.62
                                                                                                                        This part replaces part number 123247 - and 2 more. Click to view details
                                                                                                                        # 034
                                                                                                                        MPN: 124777
                                                                                                                        THREADED BUSH
                                                                                                                        from £14.07
                                                                                                                        from £14.07
                                                                                                                        # 035
                                                                                                                        MPN: 112152
                                                                                                                        PIN ON THE PEDAL SUPPORT
                                                                                                                        from £86.26
                                                                                                                        from £86.26
                                                                                                                        # 036
                                                                                                                        MPN: 124687
                                                                                                                        BUSH
                                                                                                                        from £5.43
                                                                                                                        from £5.43
                                                                                                                        # 037
                                                                                                                        MPN: 124686
                                                                                                                        BUSH
                                                                                                                        from £4.76
                                                                                                                        from £4.76
                                                                                                                        # 038
                                                                                                                        MPN: 11066676
                                                                                                                        SPRING RING
                                                                                                                        from £0.51
                                                                                                                        from £0.51
                                                                                                                        This part replaces part number 11066675
                                                                                                                        # 039
                                                                                                                        MPN: 10519624
                                                                                                                        WASHER
                                                                                                                        from £0.54
                                                                                                                        from £0.54
                                                                                                                        This part replaces part number 10519601 - and 3 more. Click to view details
                                                                                                                        # 040
                                                                                                                        MPN: 127496
                                                                                                                        WASHER
                                                                                                                        from £0.53
                                                                                                                        from £0.53
                                                                                                                        This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                                                        # 041
                                                                                                                        MPN: 16043821
                                                                                                                        SCREW
                                                                                                                        from £0.49
                                                                                                                        from £0.49
                                                                                                                        # 042
                                                                                                                        MPN: 16043421
                                                                                                                        SCREW
                                                                                                                        from £2.74
                                                                                                                        from £2.74
                                                                                                                        This part replaces part number 95524
                                                                                                                        # 043
                                                                                                                        MPN: 11500121
                                                                                                                        STUD SECURING WINDSHIELD WIPER MOTOR BRACKET
                                                                                                                        Supersession
                                                                                                                        Supersession
                                                                                                                        This part replaces part number 13540820
                                                                                                                        # 044
                                                                                                                        MPN: 14058411
                                                                                                                        NUT
                                                                                                                        from £0.53
                                                                                                                        from £0.53
                                                                                                                        # 046
                                                                                                                        MPN: 149628
                                                                                                                        CLUTCH CONTROL TUBE
                                                                                                                        from £69.62
                                                                                                                        from £69.62
                                                                                                                        # 047
                                                                                                                        MPN: 105369
                                                                                                                        CABLE GROMMET
                                                                                                                        from £19.10
                                                                                                                        from £19.10
                                                                                                                        # 048
                                                                                                                        MPN: 10441290
                                                                                                                        BRACKET
                                                                                                                        from £0.53
                                                                                                                        from £0.53
                                                                                                                        # 049
                                                                                                                        MPN: 14058411
                                                                                                                        NUT
                                                                                                                        from £0.54
                                                                                                                        from £0.54
                                                                                                                        # 050
                                                                                                                        MPN: 148869
                                                                                                                        UNION
                                                                                                                        from £40.73
                                                                                                                        from £40.73
                                                                                                                        # 051
                                                                                                                        MPN: 10902724
                                                                                                                        SCREW
                                                                                                                        from £0.71
                                                                                                                        from £0.71
                                                                                                                        This part replaces part number 10902721 which we have in stock
                                                                                                                        # 052
                                                                                                                        MPN: 14058411
                                                                                                                        NUT
                                                                                                                        from £0.54
                                                                                                                        from £0.54
                                                                                                                        # 053
                                                                                                                        MPN: 12646601
                                                                                                                        WASHER
                                                                                                                        from £0.49
                                                                                                                        from £0.49
                                                                                                                        # 054
                                                                                                                        MPN: 118422
                                                                                                                        GASKET
                                                                                                                        from £15.83
                                                                                                                        from £15.83
                                                                                                                        # 055
                                                                                                                        MPN: 118421
                                                                                                                        COVER
                                                                                                                        from £121.03
                                                                                                                        from £121.03
                                                                                                                        # 056
                                                                                                                        MPN: 102948
                                                                                                                        NUT
                                                                                                                        from £0.53
                                                                                                                        from £0.53
                                                                                                                        This part replaces part number 12574211 - and 4 more. Click to view details
                                                                                                                        # 057
                                                                                                                        MPN: 12643724
                                                                                                                        WASHER
                                                                                                                        from £0.51
                                                                                                                        from £0.51
                                                                                                                        This part replaces part number 109684 - and 4 more. Click to view details
                                                                                                                        # 058
                                                                                                                        MPN: 14441324
                                                                                                                        SCREW
                                                                                                                        from £0.53
                                                                                                                        from £0.53
                                                                                                                        # 059
                                                                                                                        MPN: 14058411
                                                                                                                        NUT
                                                                                                                        from £0.53
                                                                                                                        from £0.53
