105 - Front Compartment Lid

Ferrari 512 BBi Front Compartment Lid Parts Diagram

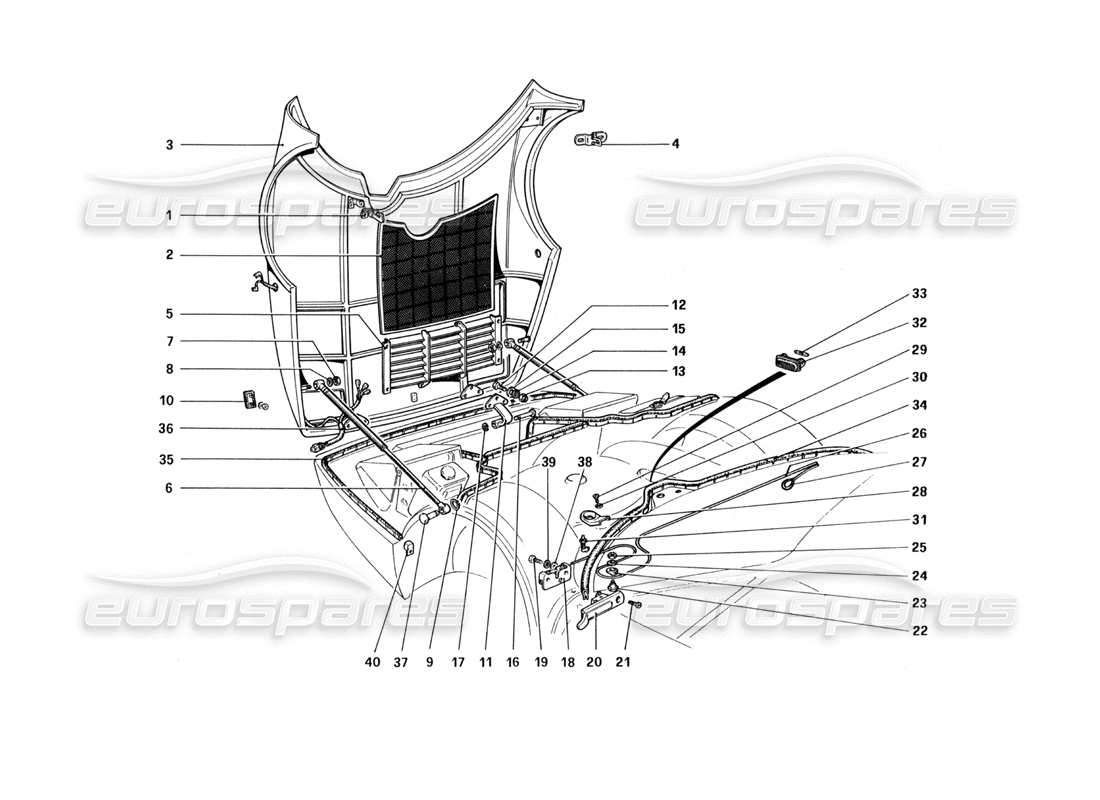

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                              #
                                                                              Part number
                                                                              Description
                                                                              Price
                                                                              # 001
                                                                              MPN: 60858000
                                                                              SAFETY HOOK
                                                                              from £30.82
                                                                              from £30.82
                                                                              This part replaces part number 50097500 - and 1 more. Click to view details
                                                                              # 002
                                                                              MPN: 50200807
                                                                              TAPPETO COFAHO
                                                                              # 003
                                                                              MPN: 60949700
                                                                              COFANO ANT. PER GD
                                                                              from £5,642.01
                                                                              from £5,642.01
                                                                              # 004

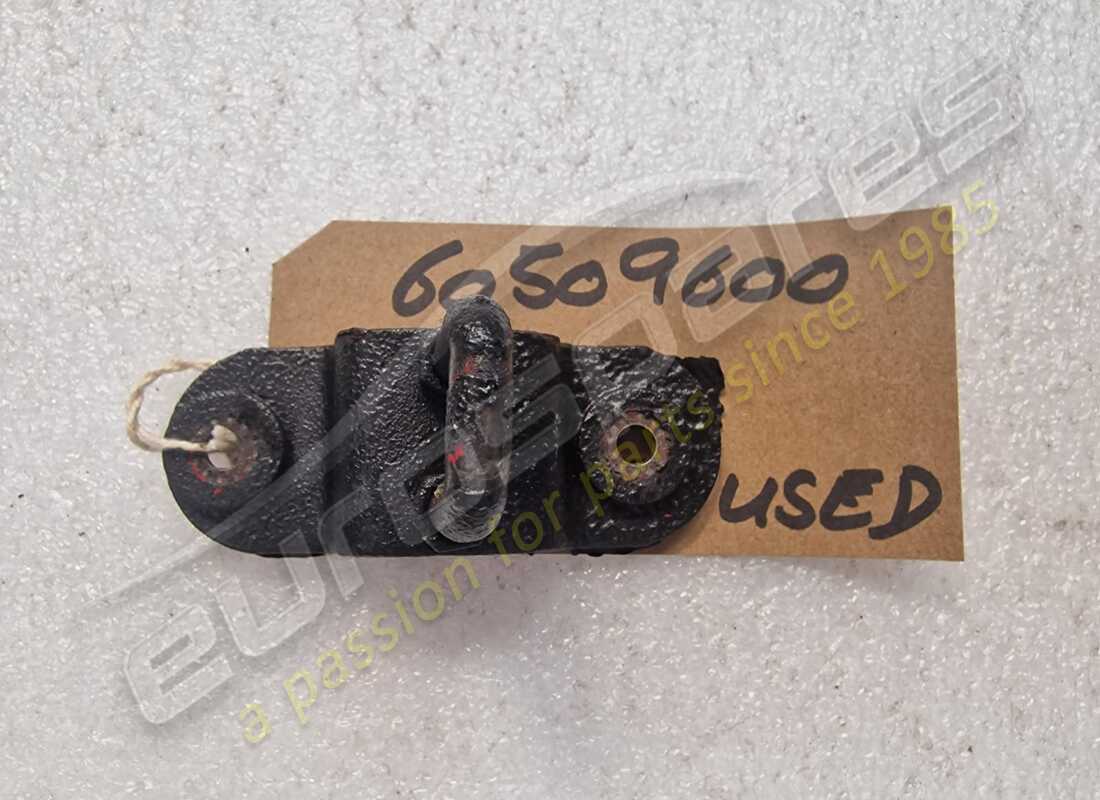

                                                                              MPN: 60509600
                                                                              PIVOT
                                                                              from £34.15
                                                                              from £34.15

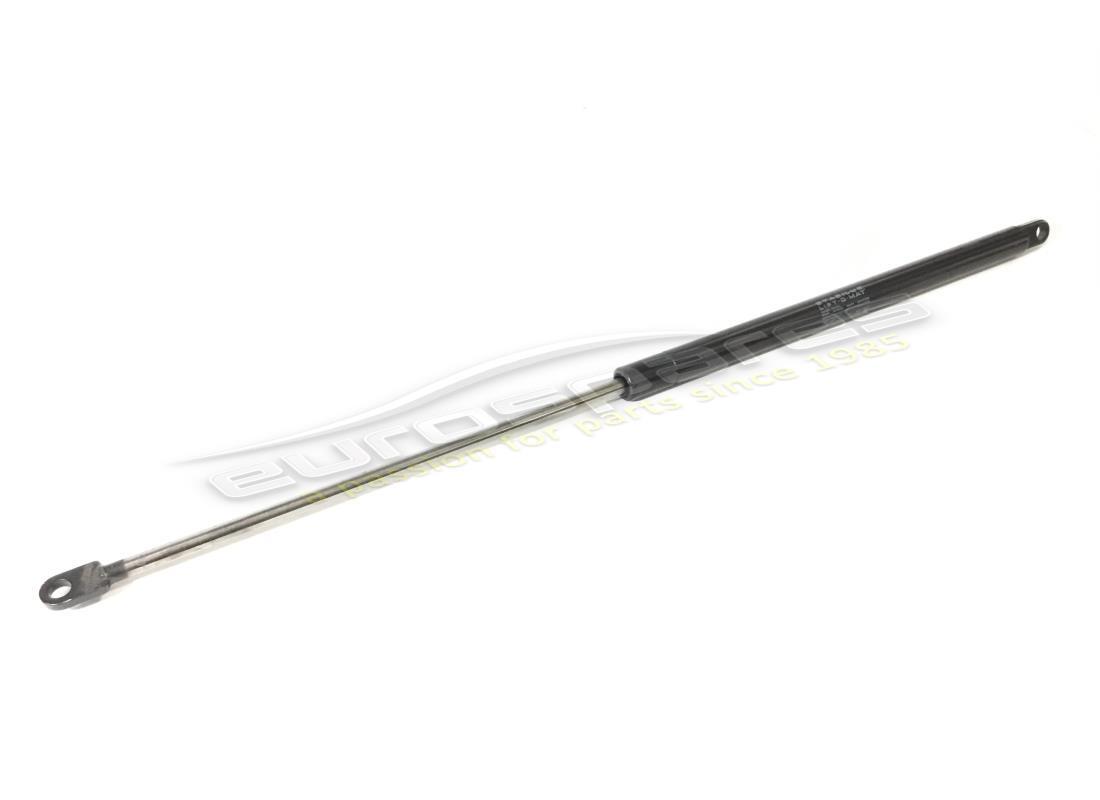

                                                                              # 006
                                                                              MPN: 60853900
                                                                              FRONT COVER STRUT
                                                                              from £66.25
                                                                              from £66.25
                                                                              # 007
                                                                              MPN: 104030
                                                                              SELF LOCKING NUT
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 16104125
                                                                              # 009
                                                                              MPN: 11087876
                                                                              SEEGER RING
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 010
                                                                              MPN: 60795400
                                                                              FRONT ORNAMENT
                                                                              Two pin type.
                                                                              from £122.56
                                                                              from £122.56
                                                                              This part replaces part number 60043007
                                                                              # 011
                                                                              MPN: 50028202
                                                                              CERNIERA
                                                                              from £42.02
                                                                              from £42.02
                                                                              This part replaces part number 50028208 - and 1 more. Click to view details
                                                                              # 012
                                                                              MPN: 16043211
                                                                              SCREW
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 013
                                                                              MPN: 16100824
                                                                              NUT
                                                                              from £0.50
                                                                              from £0.50
                                                                              This part replaces part number 16100814 - and 1 more. Click to view details
                                                                              # 014
                                                                              MPN: 127496
                                                                              WASHER
                                                                              from £0.53
                                                                              from £0.53
                                                                              This part replaces part number 10516671 - and 2 more. Click to view details
                                                                              # 015
                                                                              MPN: 10519621
                                                                              WASHER
                                                                              Supersession
                                                                              Supersession
                                                                              # 016
                                                                              MPN: 50097707
                                                                              PIVOT
                                                                              Supersession
                                                                              Supersession
                                                                              # 017
                                                                              MPN: 11065675
                                                                              SEEGER RING
                                                                              Supersession
                                                                              Supersession
                                                                              # 018
                                                                              MPN: 60277407
                                                                              SERRATURA
                                                                              from £278.31
                                                                              from £278.31
                                                                              This part replaces part number 60023405 - and 13 more. Click to view details
                                                                              # 019
                                                                              MPN: 60895100
                                                                              SCREW
                                                                              from £1.06
                                                                              from £1.06
                                                                              # 020
                                                                              MPN: 30195903
                                                                              BOOT PULL ASSY
                                                                              from £485.45
                                                                              from £485.45
                                                                              This part replaces part number 253-34-330-02
                                                                              # 021
                                                                              MPN: 50208107
                                                                              SCREW
                                                                              from £0.99
                                                                              from £0.99
                                                                              # 022
                                                                              MPN: 50093509
                                                                              PIVOT
                                                                              from £5.98
                                                                              from £5.98
                                                                              # 023
                                                                              MPN: 50093400
                                                                              BUSH
                                                                              from £2.95
                                                                              from £2.95
                                                                              # 024
                                                                              MPN: 11196270
                                                                              WASHER
                                                                              # 026
                                                                              MPN: 50036805
                                                                              CAVO
                                                                              from £15.39
                                                                              from £15.39
                                                                              # 027
                                                                              MPN: 50036904
                                                                              CAVO EMERGENZA
                                                                              # 028
                                                                              MPN: 50097400
                                                                              BRACKET / SUPPORT
                                                                              from £73.45
                                                                              from £73.45
                                                                              # 029
                                                                              MPN: 10979421
                                                                              SCREW
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 030
                                                                              MPN: 10615470
                                                                              WASHER
                                                                              Supersession
                                                                              Supersession
                                                                              # 031
                                                                              MPN: 20069704
                                                                              Ceiling light button
                                                                              Supersession
                                                                              Supersession
                                                                              # 031
                                                                              MPN: 20166807
                                                                              COURTESY LIGHT SWITCH
                                                                              from £123.44
                                                                              from £123.44
                                                                              This part replaces part number 20069704 - and 1 more. Click to view details
                                                                              # 032
                                                                              MPN: 20144309

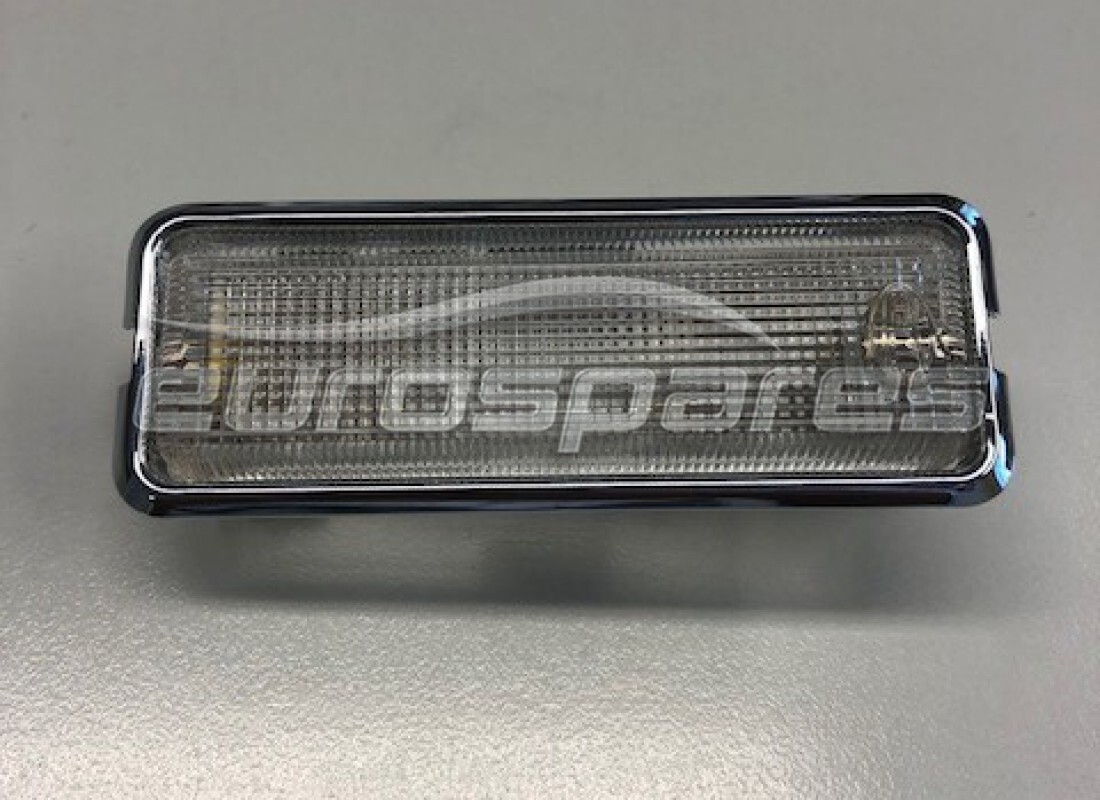

                                                                              INTERIOR LAMP
                                                                              from £195.00
                                                                              from £195.00
                                                                              This part replaces part number 253-80-814-00 - and 1 more. Click to view details
                                                                              # 033
                                                                              MPN: 50100205
                                                                              LAMP
                                                                              from £1.04
                                                                              from £1.04
                                                                              # 034
                                                                              MPN: MC3477/1
                                                                              GASKET
                                                                              from £5.98
                                                                              from £5.98
                                                                              This part replaces part number 20101101 - and 21 more. Click to view details
                                                                              # 035
                                                                              MPN: MC3478/3
                                                                              GASKET
                                                                              PRICE PER METRE
                                                                              from £9.35
                                                                              from £9.35
                                                                              # 036
                                                                              MPN: 50324003
                                                                              CAVO COLLEGAMENTO LUCI ANT. DX.
                                                                              from £50.35
                                                                              from £50.35
                                                                              # 036
                                                                              MPN: 50324102
                                                                              CAVO COLLEGAMENTO LUCI ANT. SX.
                                                                              from £52.87
                                                                              from £52.87
                                                                              # 037
                                                                              MPN: 60599500
                                                                              PIVOT
                                                                              from £13.53
                                                                              from £13.53
                                                                              # 038
                                                                              MPN: 10519501
                                                                              WASHER
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 039
                                                                              MPN: 10516571
                                                                              WASHER
                                                                              Supersession
                                                                              Supersession
                                                                              # 040
                                                                              MPN: 50371103
                                                                              TERMINAL FOR GASKET
                                                                              from £240.58
                                                                              from £240.58
