ferrari 512 bbi throttles controll (variant for rhd version) parts diagram

039 - Throttles Controll (Variant for RHD Version)

Ferrari 512 BBi Throttles Controll (Variant for RHD Version) Parts Diagram

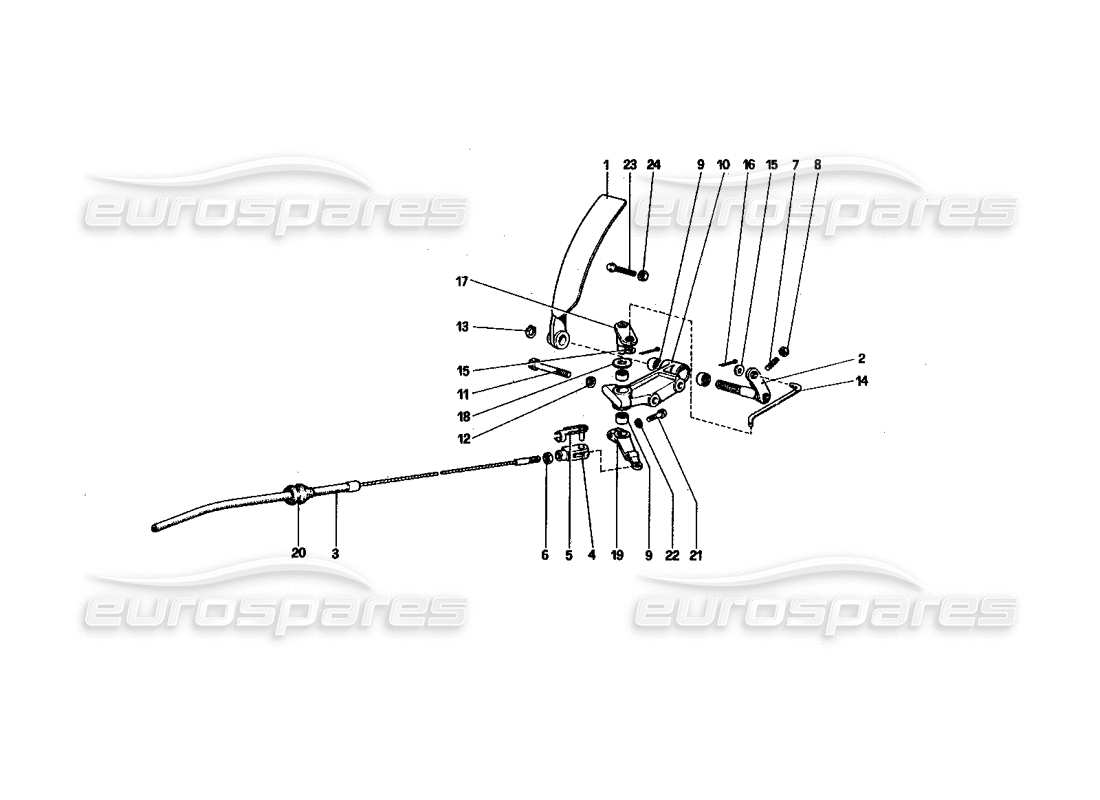

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                  #
                                                  Part number
                                                  Description
                                                  Price
                                                  # 001
                                                  MPN: 105562
                                                  PEDALE ACCELERATORE
                                                  # 002
                                                  MPN: 106315
                                                  PIN AND TRANSFER LEVER ASSEMBLY
                                                  from £107.86
                                                  from £107.86
                                                  # 003
                                                  MPN: 118787
                                                  FLESSIBILE COMANDO ACCELERATORE
                                                  from £41.32
                                                  from £41.32
                                                  # 004
                                                  MPN: 100655
                                                  FORK
                                                  from £56.31
                                                  from £56.31
                                                  This part replaces part number 550015 - and 3 more. Click to view details
                                                  # 005
                                                  MPN: 100656
                                                  PIVOT
                                                  from £2.25
                                                  from £2.25
                                                  # 006
                                                  MPN: 10725911
                                                  LOCKNUT
                                                  Supersession
                                                  Supersession
                                                  This part replaces part number 95900403
                                                  # 007
                                                  MPN: 13708910
                                                  SCREW
                                                  from £0.47
                                                  from £0.47
                                                  # 008
                                                  MPN: 15896411
                                                  LOCKNUT
                                                  Supersession
                                                  Supersession
                                                  This part replaces part number 15896401
                                                  # 009
                                                  MPN: 101677
                                                  ROLLER BEARING
                                                  from £2.04
                                                  from £2.04
                                                  # 010
                                                  MPN: 110933
                                                  SUPPOI TO PEDALE ACCELERATORE
                                                  from £87.18
                                                  from £87.18
                                                  This part replaces part number 106293 - and 3 more. Click to view details
                                                  # 011
                                                  MPN: 16136321
                                                  BOLT
                                                  from £0.81
                                                  from £0.81
                                                  # 012
                                                  MPN: 12601371
                                                  WASHER
                                                  Supersession
                                                  Supersession
                                                  # 013
                                                  MPN: 11066076
                                                  SEEGER RING
                                                  from £0.47
                                                  from £0.47
                                                  This part replaces part number 11066075
                                                  # 014
                                                  MPN: 106297
                                                  TIE ROD
                                                  from £7.16
                                                  from £7.16
                                                  # 015
                                                  MPN: 12643724
                                                  WASHER
                                                  from £0.47
                                                  from £0.47
                                                  This part replaces part number 109684 - and 4 more. Click to view details
                                                  # 016
                                                  MPN: 10734201
                                                  SPLIT PIN
                                                  Supersession
                                                  Supersession
                                                  # 017
                                                  MPN: 107158
                                                  PIN AND TRANSFER LEVER ASSEMBLY
                                                  from £73.80
                                                  from £73.80
                                                  # 018
                                                  MPN: 107826
                                                  WASHER
                                                  from £3.15
                                                  from £3.15
                                                  # 019
                                                  MPN: 110934
                                                  LEVER
                                                  from £56.33
                                                  from £56.33
                                                  This part replaces part number 107143 - and 2 more. Click to view details
                                                  # 020
                                                  MPN: 106313
                                                  PROTECTIVE BELLOWS
                                                  from £7.98
                                                  from £7.98
                                                  # 021
                                                  MPN: 16043421
                                                  BOLT
                                                  from £2.76
                                                  from £2.76
                                                  This part replaces part number 95524
                                                  # 022
                                                  MPN: 106852
                                                  WASHER
                                                  Supersession
                                                  Supersession
                                                  This part replaces part number 10516670 which we have in stock - and 2 more. Click to view details
                                                  # 023
                                                  MPN: 100640
                                                  SCREW
                                                  from £3.15
                                                  from £3.15
                                                  This part replaces part number 9181141 - and 1 more. Click to view details
                                                  # 024
                                                  MPN: 16102311
                                                  LOCKNUT
                                                  from £0.42
                                                  from £0.42
                                                  This part replaces part number 16102315
