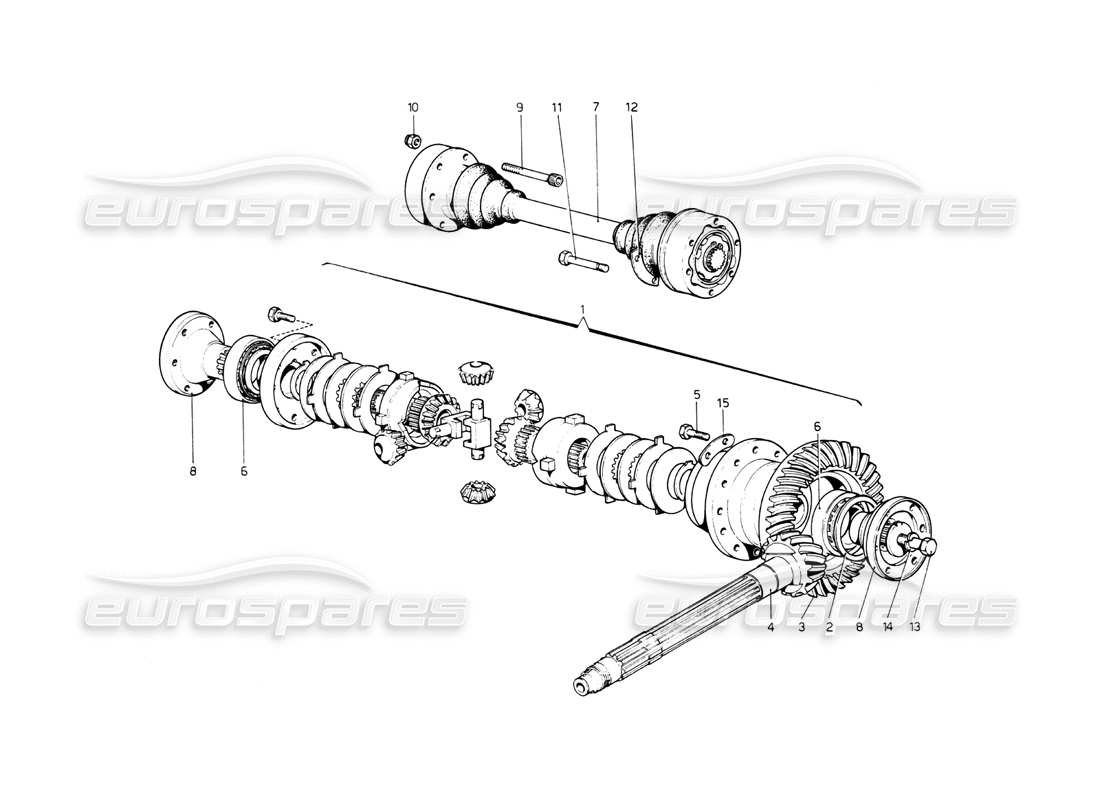

024 - Differential & Axle Shafts

Ferrari 512 BB Differential & Axle Shafts Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Price
                          # 001
                          MPN: 155099
                          DIFFERENTIAL UNIT
                          from £3,846.15
                          from £3,846.15
                          This part replaces part number 103262 - and 2 more. Click to view details
                          # 002
                          MPN: 103422
                          DISTANZIALE PER CUSCINETTO SX SUPPORTO DIFFERENZ. - SPESS. MM. 2,40
                          from £52.02
                          from £52.02
                          # 002
                          MPN: 103423
                          DISTANZIALE PER CUSCINETTO SX SUPPORTO DIFFERENZ. - SPESS. MM. 2,60
                          from £90.41
                          from £90.41
                          # 002
                          MPN: 103424
                          DISTANZIALE PER CUSCINETTO SX SUPPORTO DIFFERENZ. - SPESS. MM. 2,862
                          from £103.92
                          from £103.92
                          This part replaces part number 103231
                          # 002
                          MPN: 103424
                          DISTANZIALE PER CUSCINETTO SX SUPPORTO DIFFERENZ. - SPESS. MM. 2,80
                          from £103.92
                          from £103.92
                          This part replaces part number 103231
                          # 002
                          MPN: 103425
                          DISTANZIALE PER CUSCINETTO SX SUPPORTO DIFFERENZ. - SPESS. MM. 3,00
                          from £52.02
                          from £52.02
                          # 002
                          MPN: 103426
                          DISTANZIALE PER CUSCINETTO SX SUPPORTO DIFFERENZ. - SPESS. MM. 3,20
                          from £110.82
                          from £110.82
                          # 003
                          MPN: 109433
                          CROWN FOR BEGIRL GEAR R 14/45
                          Vale fino esaur. n. 109476
                          Supersession
                          Supersession
                          # 003
                          MPN: 109476
                          COPPIA CONICA COMPFETA
                          Vale fino esaurimento
                          This part replaces part number 109432 - and 2 more. Click to view details
                          # 003
                          MPN: 110014
                          CROWN WHEEL (RATIO 14/45)
                          use : 110016
                          Supersession
                          Supersession
                          # 003
                          MPN: 110016
                          CROWN WHEEL & PINION (RATIO 14/45)
                          Supersession
                          Supersession
                          This part replaces part number 110013 - and 2 more. Click to view details
                          # 004
                          MPN: 109432
                          SECONDARY SHAFT WITH PINION
                          Vale fino esaur. n. 10947G
                          Supersession
                          Supersession
                          # 004
                          MPN: 110013
                          PINION SHAFT (RATIO 14/45)
                          use : 110016
                          Supersession
                          Supersession
                          # 005
                          MPN: 171275
                          SCREW
                          from £21.51
                          from £21.51
                          This part replaces part number 153710
                          # 006
                          MPN: 101634
                          DIFFERENTIAL SUPPORT BEARING
                          from £89.99
                          from £89.99
                          This part replaces part number 580881
                          # 007
                          MPN: 103885
                          AXLE SHAFT
                          from £1,199.00
                          from £1,199.00
                          # 008
                          MPN: 10-32-07
                          FLANGIA ATTACCO SEMIASSE
                          from £479.82
                          from £479.82
                          # 009
                          MPN: 101632
                          DRIVESHAFT BOLT
                          from £15.05
                          from £15.05
                          This part replaces part number 103432 - and 5 more. Click to view details
                          # 010
                          MPN: 101633
                          DRIVESHAFT NUT
                          (original)
                          from £4.29
                          from £4.29
                          # 011
                          MPN: 104183
                          SCREW
                          from £21.29
                          from £21.29
                          # 012
                          MPN: 104184
                          PLATE
                          from £4.01
                          from £4.01
                          This part replaces part number 580553 - and 1 more. Click to view details
                          # 013
                          MPN: 11399121
                          SCREW
                          from £2.81
                          from £2.81
                          # 014
                          MPN: 10517070
                          WASHER
                          from £2.95
                          from £2.95
                          # 015
                          MPN: 10-32-34
                          PLATE
                          from £9.04
                          from £9.04
