022 - Lay Shaft Gears

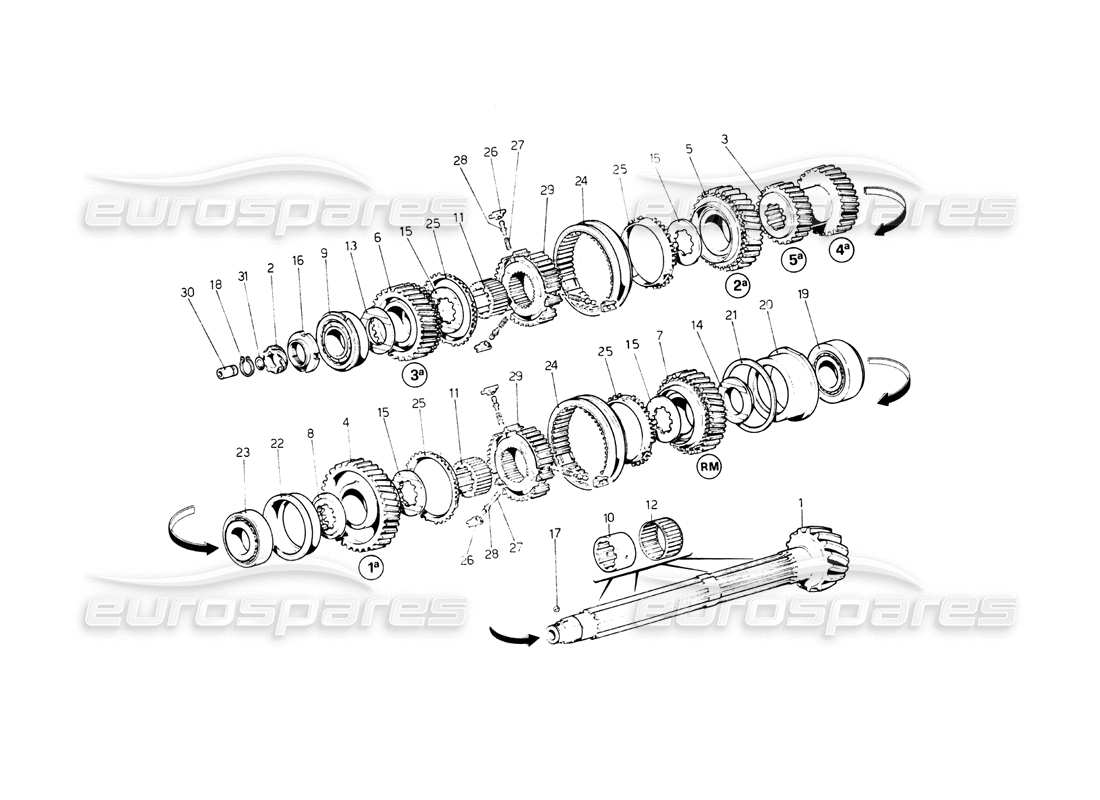

Ferrari 512 BB Lay Shaft Gears Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Price
                                                      # 001
                                                      MPN: 109432
                                                      ALBERO SECONDARIO
                                                      Vale fino esaur. n. 109476
                                                      Supersession
                                                      Supersession
                                                      # 001
                                                      MPN: 110013
                                                      PINION SHAFT (RATIO 14/45)
                                                      use : 110016
                                                      Supersession
                                                      Supersession
                                                      # 002
                                                      MPN: 109477
                                                      SCREW
                                                      from £93.37
                                                      from £93.37
                                                      # 003
                                                      MPN: 105746
                                                      INGRANAGGIO 4ª E 5ª VELOCITA
                                                      Supersession
                                                      Supersession
                                                      # 004
                                                      MPN: 110168
                                                      Ingranaggio 1ª velocita
                                                      # 005
                                                      MPN: 110169
                                                      Ingranaggio 2ª velocita
                                                      from £3,401.30
                                                      from £3,401.30
                                                      # 006
                                                      MPN: 105756
                                                      Ingranaggio 3ª velocita
                                                      Vale fino esaurimento
                                                      Supersession
                                                      Supersession
                                                      # 006
                                                      MPN: 110170
                                                      Ingranaggio 3ª velocita
                                                      Vale dopo esaur. n. 105756
                                                      from £1,126.94
                                                      from £1,126.94
                                                      # 007
                                                      MPN: 109475
                                                      INGRANAGGIO R.M.
                                                      Supersession
                                                      Supersession
                                                      # 008
                                                      MPN: 102977
                                                      DISTANZIALE FRA 1ª VEL. E CUSCINETTO SPESSORE MM. 6,00
                                                      Supersession
                                                      Supersession
                                                      # 008
                                                      MPN: 102978
                                                      DISTANZIALE FRA 1ª VEL. E CUSCINETTO SPESSORE MM. 6,25
                                                      Supersession
                                                      Supersession
                                                      # 008
                                                      MPN: 102979
                                                      DISTANZIALE FRA 1ª VEL. E CUSCINETTO SPESSORE MM. 6,50
                                                      Vale fino esaurimento
                                                      Supersession
                                                      Supersession
                                                      # 008
                                                      MPN: 102980
                                                      DISTANZIALE FRA 1ª VEL. E CUSCINETTO SPESSORE MM. 6,75
                                                      Supersession
                                                      Supersession
                                                      # 008
                                                      MPN: 102981
                                                      DISTANZIALE FRA 1ª VEL. E CUSCINETTO SPESSORE MM. 7,00
                                                      Supersession
                                                      Supersession
                                                      # 008
                                                      MPN: 110173
                                                      DISTANZIALE FRA 1ª VEL. E CUSCINETTO SPESSORE MM. 6,50
                                                      Vale dopo esaur. n. 102977
                                                      from £160.79
                                                      from £160.79
                                                      # 008
                                                      MPN: 110177
                                                      DISTANZIALE FRA 1ª VEL. E CUSCINETTO SPESSORE MM. 6,00
                                                      from £17.78
                                                      from £17.78
                                                      This part replaces part number 102977
                                                      # 008
                                                      MPN: 110178
                                                      DISTANZIALE FRA 1ª VEL. E CUSCINETTO SPESSORE MM. 6,25
                                                      from £17.28
                                                      from £17.28
                                                      This part replaces part number 102978
                                                      # 008
                                                      MPN: 110180
                                                      DISTANZIALE FRA 1ª VEL. E CUSCINETTO SPESSORE MM. 6,75
                                                      from £38.04
                                                      from £38.04
                                                      This part replaces part number 102980
                                                      # 008
                                                      MPN: 110181
                                                      DISTANZIALE FRA 1ª VEL. E CUSCINETTO SPESSORE MM. 7,00
                                                      from £32.72
                                                      from £32.72
                                                      This part replaces part number 102981
                                                      # 009
                                                      MPN: 103030
                                                      CUSCINETTO ANTERIORE
                                                      from £128.26
                                                      from £128.26
                                                      This part replaces part number 101605 - and 2 more. Click to view details
                                                      # 010
                                                      MPN: 104704
                                                      PISTA RULLINI PER 1ª 2ª 3ª VEL. E R.M.
                                                      from £359.61
                                                      from £359.61
                                                      # 011
                                                      MPN: 104711
                                                      BUSH
                                                      from £83.45
                                                      from £83.45
                                                      # 012
                                                      MPN: 101604
                                                      GABBIA RULLINI PER INGRANAGGI 1ª 2ª 3ª VELOCITA E R.M.
                                                      from £72.10
                                                      from £72.10
                                                      # 013
                                                      MPN: 107132
                                                      SPACER
                                                      Vale fino esaurimento
                                                      from £99.13
                                                      from £99.13
                                                      # 013
                                                      MPN: 110176
                                                      SPACER
                                                      Vale dopo esaur. n. 107132
                                                      from £253.32
                                                      from £253.32
                                                      # 014
                                                      MPN: 105766
                                                      SPACER
                                                      from £82.50
                                                      from £82.50
                                                      # 014
                                                      MPN: 110174
                                                      SPACER
                                                      from £59.65
                                                      from £59.65
                                                      # 015
                                                      MPN: 104723
                                                      SPACER
                                                      from £81.86
                                                      from £81.86
                                                      # 015
                                                      MPN: 110175
                                                      SPACER
                                                      size : 36-40-3.2
                                                      from £177.36
                                                      from £177.36
                                                      # 016
                                                      MPN: 153068
                                                      RING NUT
                                                      from £70.35
                                                      from £70.35
                                                      This part replaces part number 100729 - and 1 more. Click to view details
                                                      # 017
                                                      MPN: 10-16-11
                                                      SFERA
                                                      from £0.56
                                                      from £0.56
                                                      # 018
                                                      MPN: 11037375
                                                      SEEGER RING
                                                      # 019
                                                      MPN: 101636
                                                      BRIDGE SIDE BEARING
                                                      from £92.12
                                                      from £92.12
                                                      # 020
                                                      MPN: 109609
                                                      BEARING BUSH
                                                      Supersession
                                                      Supersession
                                                      # 021
                                                      MPN: 104725
                                                      CONICAL PAIR ADJUSTMENT THICKNESS THICKNESS MM. 2,00
                                                      from £35.82
                                                      from £35.82
                                                      # 021
                                                      MPN: 104726
                                                      CONICAL PAIR ADJUSTMENT THICKNESS THICKNESS MM. 2,25
                                                      from £11.05
                                                      from £11.05
                                                      # 021
                                                      MPN: 104727
                                                      CONICAL PAIR ADJUSTMENT THICKNESS THICKNESS MM. 2,50
                                                      from £10.72
                                                      from £10.72
                                                      # 021
                                                      MPN: 104728
                                                      CONICAL PAIR ADJUSTMENT THICKNESS THICKNESS MM. 2,75
                                                      from £19.34
                                                      from £19.34
                                                      # 021
                                                      MPN: 104729
                                                      CONICAL PAIR ADJUSTMENT THICKNESS THICKNESS MM. 3,00
                                                      from £21.59
                                                      from £21.59
                                                      # 022
                                                      MPN: 104730
                                                      BUSH FOR CENTRAL BEARING
                                                      Supersession
                                                      Supersession
                                                      # 023
                                                      MPN: 103031
                                                      CUSCINETTO CENTRALE
                                                      from £168.43
                                                      from £168.43
                                                      # 024
                                                      MPN: 104092
                                                      SYNCHRONIZER ASSEMBLY
                                                      # 024
                                                      MPN: 184547
                                                      MANICOTTO PER SINCRONIZZATORE
                                                      Supersession
                                                      Supersession
                                                      # 025
                                                      MPN: 106040
                                                      SYNCHROMESH RING
                                                      from £695.00
                                                      from £695.00
                                                      # 026
                                                      MPN: 106042
                                                      TASSELLO PER SINCRONIZZATORE
                                                      from £77.52
                                                      from £77.52
                                                      # 027
                                                      MPN: 106043
                                                      SPRING
                                                      from £5.27
                                                      from £5.27
                                                      # 028
                                                      MPN: 113412
                                                      PUNTALINO PER TASSELLO
                                                      from £10.86
                                                      from £10.86
                                                      # 029
                                                      MPN: 106039
                                                      CORPO SINCRONIZZATORE
                                                      from £225.01
                                                      from £225.01
                                                      # 030
                                                      MPN: 104745
                                                      BUSH
                                                      from £38.29
                                                      from £38.29
                                                      # 031
                                                      MPN: 105329
                                                      SEALING RING
                                                      from £1.45
                                                      from £1.45
