ferrari 512 bb water pump and pipings parts diagram

015 - Water Pump and Pipings

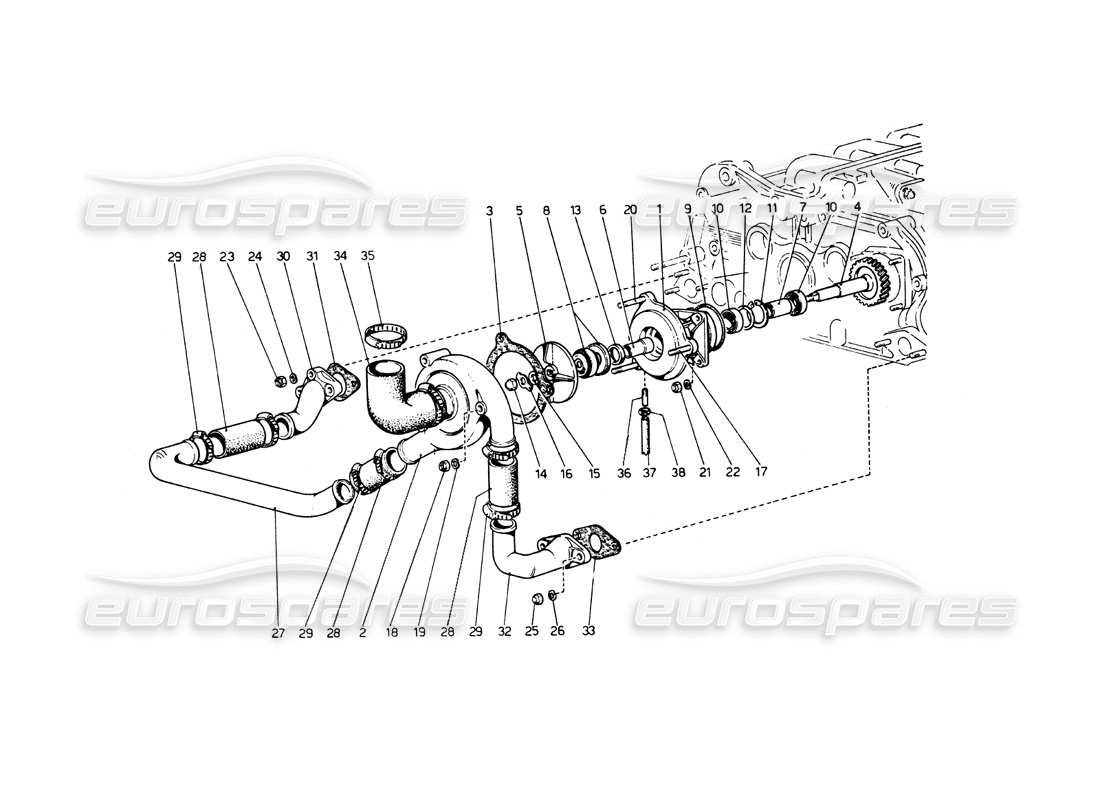

Ferrari 512 BB Water Pump and Pipings Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                              #
                                                                              Part number
                                                                              Description
                                                                              Price
                                                                              # 001
                                                                              MPN: 106562
                                                                              WATER PUMP BODY
                                                                              from £1,543.07
                                                                              from £1,543.07
                                                                              This part replaces part number 104507
                                                                              # 002
                                                                              MPN: 102328
                                                                              COVER
                                                                              from £163.04
                                                                              from £163.04
                                                                              # 003
                                                                              MPN: 152481
                                                                              GASKET
                                                                              from £6.94
                                                                              from £6.94
                                                                              This part replaces part number 102906
                                                                              # 003
                                                                              MPN: 152481
                                                                              GASKET
                                                                              from £6.94
                                                                              from £6.94
                                                                              This part replaces part number 102906
                                                                              # 004
                                                                              MPN: 102766
                                                                              GEAR WITH PUMP CONTROL SHAFT
                                                                              from £413.24
                                                                              from £413.24
                                                                              # 005
                                                                              MPN: 100430
                                                                              GIRANTE
                                                                              from £170.50
                                                                              from £170.50
                                                                              This part replaces part number 26614 - and 1 more. Click to view details
                                                                              # 006
                                                                              MPN: 102768
                                                                              SPACER
                                                                              from £46.04
                                                                              from £46.04
                                                                              # 007
                                                                              MPN: 102767
                                                                              SPACER
                                                                              from £39.56
                                                                              from £39.56
                                                                              # 008
                                                                              MPN: 100433
                                                                              SEALING RING
                                                                              from £69.95
                                                                              from £69.95
                                                                              This part replaces part number 114410
                                                                              # 009
                                                                              MPN: 101615
                                                                              SEALING RING
                                                                              from £2.32
                                                                              from £2.32
                                                                              # 010
                                                                              MPN: 101603
                                                                              BEARING
                                                                              from £12.99
                                                                              from £12.99
                                                                              This part replaces part number 114763 - and 1 more. Click to view details
                                                                              # 011
                                                                              MPN: 11059075
                                                                              SEEGER RING
                                                                              Supersession
                                                                              Supersession
                                                                              # 012
                                                                              MPN: 102784
                                                                              WASHER
                                                                              # 013
                                                                              MPN: 105548
                                                                              SEALING RING
                                                                              from £17.92
                                                                              from £17.92
                                                                              # 014
                                                                              MPN: 100436
                                                                              NUT
                                                                              from £7.64
                                                                              from £7.64
                                                                              This part replaces part number 92896
                                                                              # 015
                                                                              MPN: 10730321
                                                                              WASHER
                                                                              from £0.66
                                                                              from £0.66
                                                                              This part replaces part number 10730301 - and 2 more. Click to view details
                                                                              # 016
                                                                              MPN: 100434
                                                                              PLATE
                                                                              from £7.26
                                                                              from £7.26
                                                                              This part replaces part number 92361 - and 1 more. Click to view details
                                                                              # 017
                                                                              MPN: 13517521
                                                                              SHORT THREADED STUD
                                                                              from £6.77
                                                                              from £6.77
                                                                              # 018
                                                                              MPN: 101139
                                                                              NUT
                                                                              from £0.54
                                                                              from £0.54
                                                                              This part replaces part number 16104425
                                                                              # 019
                                                                              MPN: 12601371
                                                                              WASHER
                                                                              Supersession
                                                                              Supersession
                                                                              # 020
                                                                              MPN: 104517
                                                                              LONG THREADED STUD
                                                                              from £6.78
                                                                              from £6.78
                                                                              # 021
                                                                              MPN: 101139
                                                                              NUT
                                                                              from £0.53
                                                                              from £0.53
                                                                              This part replaces part number 16104425
                                                                              # 022
                                                                              MPN: 12601371
                                                                              WASHER
                                                                              Supersession
                                                                              Supersession
                                                                              # 023
                                                                              MPN: 102741
                                                                              NUT
                                                                              from £0.52
                                                                              from £0.52
                                                                              This part replaces part number 12575411 - and 1 more. Click to view details
                                                                              # 024
                                                                              MPN: 12601271
                                                                              WASHER
                                                                              Supersession
                                                                              Supersession
                                                                              This part replaces part number 103372 - and 1 more. Click to view details
                                                                              # 025
                                                                              MPN: 101139
                                                                              NUT
                                                                              from £0.54
                                                                              from £0.54
                                                                              This part replaces part number 16104425
                                                                              # 026
                                                                              MPN: 12601371
                                                                              WASHER
                                                                              Supersession
                                                                              Supersession
                                                                              # 027
                                                                              MPN: 105588
                                                                              HOSE CONNECTING WATER PUMP AND RIGHT CRANKCASE
                                                                              from £117.59
                                                                              from £117.59
                                                                              # 028
                                                                              MPN: 105396
                                                                              SLEEVE
                                                                              from £20.46
                                                                              from £20.46
                                                                              # 029
                                                                              MPN: 12173090
                                                                              JUBILEE CLIP
                                                                              Supersession
                                                                              Supersession
                                                                              This part replaces part number 105672
                                                                              # 031
                                                                              MPN: 147699
                                                                              GASKET
                                                                              from £3.25
                                                                              from £3.25
                                                                              This part replaces part number 106767
                                                                              # 032
                                                                              MPN: 105395
                                                                              UNION
                                                                              from £115.37
                                                                              from £115.37
                                                                              # 033
                                                                              MPN: 152352
                                                                              GASKET
                                                                              from £1.44
                                                                              from £1.44
                                                                              This part replaces part number 104509
                                                                              # 033
                                                                              MPN: 152352
                                                                              GASKET 0E=NLA 0=MP
                                                                              from £1.44
                                                                              from £1.44
                                                                              This part replaces part number 104509
                                                                              # 034
                                                                              MPN: 121258
                                                                              SLEEVE
                                                                              from £19.23
                                                                              from £19.23
                                                                              This part replaces part number 10147087 - and 4 more. Click to view details
                                                                              # 035
                                                                              MPN: 105303
                                                                              JUBILEE CLIP
                                                                              Supersession
                                                                              Supersession
                                                                              # 036
                                                                              MPN: 104516
                                                                              UNION
                                                                              from £18.30
                                                                              from £18.30
                                                                              # 037
                                                                              MPN: 105587
                                                                              DRAIN PIPE
                                                                              from £6.12
                                                                              from £6.12
                                                                              # 038
                                                                              MPN: 102721
                                                                              JUBILEE CLIP
                                                                              Supersession
                                                                              Supersession
