ferrari 458 challenge distribuzione - comandi parts diagram

006 - distribuzione - comandi

Ferrari 458 Challenge Distribuzione - Comandi Parts Diagram

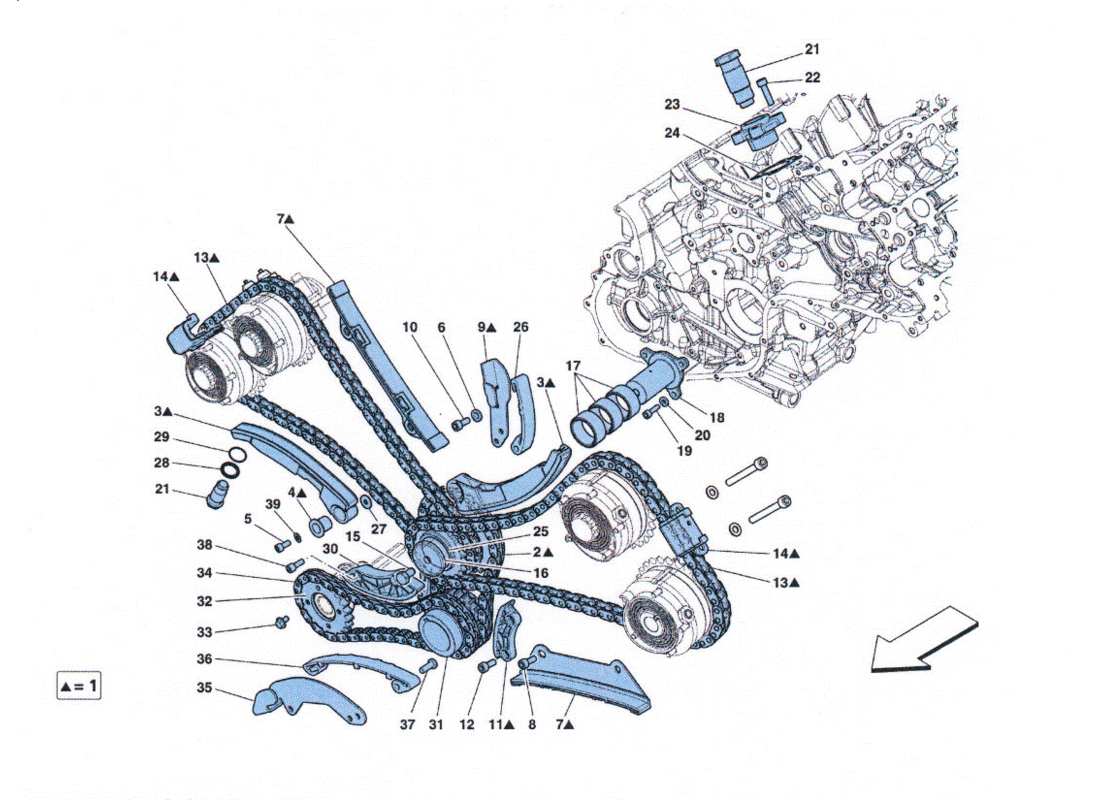

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                              #
                                                                              Part number
                                                                              Description
                                                                              Price
                                                                              # 001
                                                                              MPN: 253292
                                                                              OVERALL DISTRIBUTION CONTROL AND PUMPS
                                                                              Supersession
                                                                              Supersession
                                                                              # 003
                                                                              MPN: 186184
                                                                              PATTINO MOBILE
                                                                              from £69.62
                                                                              from £69.62
                                                                              # 004
                                                                              MPN: 175303
                                                                              BOCCOLA
                                                                              from £13.13
                                                                              from £13.13
                                                                              # 005
                                                                              MPN: 14306424
                                                                              VITE
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 14306324 - and 2 more. Click to view details
                                                                              # 006
                                                                              MPN: 12647624
                                                                              ROSETTA
                                                                              from £0.53
                                                                              from £0.53
                                                                              This part replaces part number 12647611
                                                                              # 007
                                                                              MPN: 186185
                                                                              Pattino Fisso
                                                                              from £33.00
                                                                              from £33.00
                                                                              # 008
                                                                              MPN: 231627
                                                                              VITE
                                                                              from £0.53
                                                                              from £0.53
                                                                              # 010
                                                                              MPN: 231616
                                                                              VITE
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 14305724 which we have in stock
                                                                              # 011
                                                                              MPN: 186181
                                                                              Pattino Fisso
                                                                              Supersession
                                                                              Supersession
                                                                              # 012
                                                                              MPN: 231620
                                                                              VITE
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 013
                                                                              MPN: 193616
                                                                              CATENA
                                                                              from £53.11
                                                                              from £53.11
                                                                              # 014
                                                                              MPN: 222310
                                                                              Pattino Fisso
                                                                              from £18.17
                                                                              from £18.17
                                                                              # 015
                                                                              MPN: 16043124
                                                                              VITE
                                                                              from £0.26
                                                                              from £0.26
                                                                              This part replaces part number 16043121 which we have in stock - and 1 more. Click to view details
                                                                              # 016
                                                                              MPN: 194262
                                                                              SPALLAMENTO
                                                                              from £10.46
                                                                              from £10.46
                                                                              # 017
                                                                              MPN: 175282
                                                                              GABBIA A RULLINI
                                                                              from £2.85
                                                                              from £2.85
                                                                              # 019
                                                                              MPN: 14304224
                                                                              VITE
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 020
                                                                              MPN: 11181574
                                                                              ROSETTA
                                                                              from £0.53
                                                                              from £0.53
                                                                              # 021
                                                                              MPN: 197880
                                                                              HYDRAULIC TENSIONER
                                                                              from £43.75
                                                                              from £43.75
                                                                              # 022
                                                                              MPN: 231619
                                                                              VITE
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 024
                                                                              MPN: 247147
                                                                              Guarnizione
                                                                              from £2.55
                                                                              from £2.55
                                                                              This part replaces part number 185854
                                                                              # 026
                                                                              MPN: 196683
                                                                              PATTINO
                                                                              from £24.32
                                                                              from £24.32
                                                                              # 027
                                                                              MPN: 175306
                                                                              SPALLAMENTO
                                                                              from £2.08
                                                                              from £2.08
                                                                              # 028
                                                                              MPN: 190171
                                                                              DISTANZIALE
                                                                              from £3.29
                                                                              from £3.29
                                                                              # 029
                                                                              MPN: 192069
                                                                              Guarnizione
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 030
                                                                              MPN: 249844
                                                                              Pattino Fisso
                                                                              from £31.41
                                                                              from £31.41
                                                                              # 031
                                                                              MPN: 244214
                                                                              RUOTA DENTATA ALBERO MOTORE
                                                                              Supersession
                                                                              Supersession
                                                                              # 032
                                                                              MPN: 255815
                                                                              RUOTA DENTATA COMANDO POMPE
                                                                              from £110.45
                                                                              from £110.45
                                                                              # 033
                                                                              MPN: 255780
                                                                              VITE
                                                                              from £0.68
                                                                              from £0.68
                                                                              # 034
                                                                              MPN: 253294
                                                                              CATENA
                                                                              from £303.62
                                                                              from £303.62
                                                                              # 035
                                                                              MPN: 253293
                                                                              SUPPORTO
                                                                              from £19.46
                                                                              from £19.46
                                                                              # 036
                                                                              MPN: 249904
                                                                              PATTINO MOBILE
                                                                              from £33.97
                                                                              from £33.97
                                                                              # 037
                                                                              MPN: 231616
                                                                              VITE
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 14305724 which we have in stock
                                                                              # 038
                                                                              MPN: 231619
                                                                              VITE
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 039
                                                                              MPN: 255527
                                                                              ROSETTA
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 10569373
