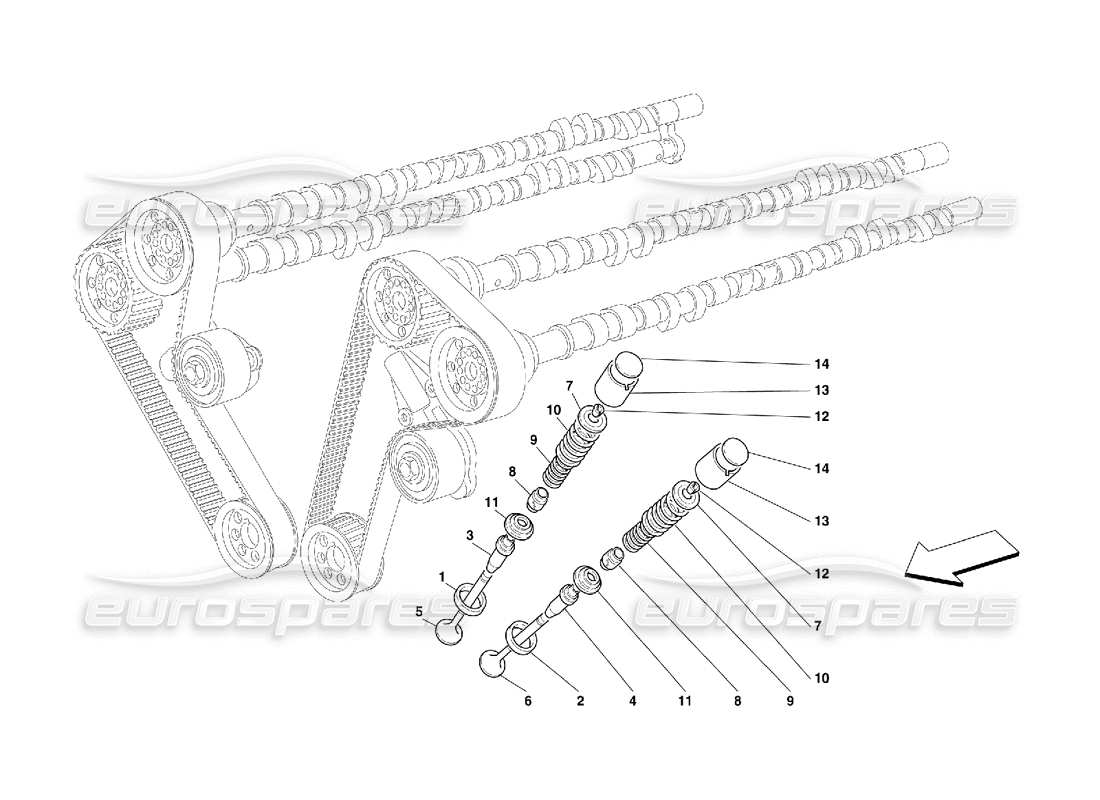

Ferrari 456 GT/GTA Timing - Valves Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Price
                        # 001
                        MPN: 140699
                        INTAKE VALVE SEAT
                        from £14.51
                        from £14.51
                        # 002
                        MPN: 140702
                        EXHAUST VALVE SEAT
                        Supersession
                        Supersession
                        # 003
                        MPN: 141419
                        SUCTION VALVE GUIDE
                        Supersession
                        Supersession
                        # 003
                        MPN: 141420
                        INTAKE VALVE GUIDE OVERSIZED
                        from £29.19
                        from £29.19
                        # 004
                        MPN: 141421
                        EXHAUST VALVE GUIDE
                        from £19.94
                        from £19.94
                        # 004
                        MPN: 141422
                        EXHAUST VALVE GUIDE OVERSIZE
                        Supersession
                        Supersession
                        # 005
                        MPN: 155726
                        INTAKE VALVE
                        from £14.36
                        from £14.36
                        This part replaces part number 140609 - and 1 more. Click to view details
                        # 006
                        MPN: 140597
                        EXHAUST VALVE (EATON)
                        Supersession
                        Supersession
                        # 006
                        MPN: 155727
                        EXHAUST VALVE (INTERVALVES)
                        from £42.39
                        from £42.39
                        This part replaces part number 140597 - and 1 more. Click to view details
                        # 007
                        MPN: 117567
                        CUP
                        - Valid from engine Nr. 40863
                        from £21.89
                        from £21.89
                        # 007
                        MPN: 155085
                        CUP
                        - Valid till engine Nr. 40862
                        from £2.92
                        from £2.92
                        # 008
                        MPN: 141565
                        OIL RING FOR VALVE GUIDE
                        Supersession
                        Supersession
                        This part replaces part number 119051 - and 1 more. Click to view details
                        # 009
                        MPN: 148242
                        INNER SPRING
                        - Valid till Ass. Nr. 40862
                        from £11.92
                        from £11.92
                        # 009
                        MPN: 156648
                        INNER SPRING
                        - Valid from Ass. Nr. 40863
                        from £35.20
                        from £35.20
                        # 010
                        MPN: 148241
                        OUTER SPRING
                        - Valid till Ass. Nr. 40862
                        from £1.84
                        from £1.84
                        # 010
                        MPN: 160049
                        OUTER SPRING
                        - Valid from Ass. Nr. 40863
                        from £35.20
                        from £35.20
                        # 011
                        MPN: 140604
                        CUP
                        from £22.37
                        from £22.37
                        # 012
                        MPN: 117283
                        COTTER FOR VALVE SPRING CUP
                        from £0.85
                        from £0.85
                        # 013
                        MPN: 117562
                        TAPPET FOR VALVE CONTROL
                        from £39.37
                        from £39.37
                        # 014
                        MPN: 117569
                        SHIM FOR VALVE ADJSTMENT THICKNESS 3,25 MM.
                        from £11.07
                        from £11.07
                        # 014
                        MPN: 117570
                        DITTO, THICKNESS 3.30 MM
                        from £11.07
                        from £11.07
                        # 014
                        MPN: 117571
                        DITTO, THICKNESS 3.35 MM
                        from £11.07
                        from £11.07
                        # 014
                        MPN: 117572
                        DITTO, THICKNESS 3.40 MM
                        from £11.07
                        from £11.07
                        # 014
                        MPN: 117573
                        DITTO, THICKNESS 3.45 MM
                        from £11.07
                        from £11.07
                        # 014
                        MPN: 117574
                        DITTO, THICKNESS 3.50 MM
                        from £11.07
                        from £11.07
                        # 014
                        MPN: 117575
                        DITTO, THICKNESS 3.55 MM
                        from £23.05
                        from £23.05
                        # 014
                        MPN: 117576
                        DITTO, THICKNESS 3.60 MM
                        from £27.66
                        from £27.66
                        # 014
                        MPN: 117577
                        DITTO, THICKNESS 3.65 MM
                        from £9.18
                        from £9.18
                        # 014
                        MPN: 117578
                        DITTO, THICKNESS 3.70 MM
                        from £27.66
                        from £27.66
                        # 014
                        MPN: 117579
                        SHIM 3,75 MM.
                        from £9.70
                        from £9.70
                        # 014
                        MPN: 117580
                        DITTO, THICKNESS 3.80 MM
                        from £27.66
                        from £27.66
                        # 014
                        MPN: 117581
                        DITTO, THICKNESS 3.85 MM
                        from £27.66
                        from £27.66
                        # 014
                        MPN: 117582
                        DITTO, THICKNESS 3.90 MM
                        from £27.66
                        from £27.66
                        # 014
                        MPN: 117583
                        DITTO, THICKNESS 3.95 MM
                        from £23.05
                        from £23.05
                        # 014
                        MPN: 117584
                        DITTO, THICKNESS 4.00 MM
                        from £27.66
                        from £27.66
                        # 014
                        MPN: 117585
                        DITTO, THICKNESS 4.05 MM
                        from £23.05
                        from £23.05
                        # 014
                        MPN: 117586
                        DITTO, THICKNESS 4.10 MM
                        from £15.21
                        from £15.21
                        # 014
                        MPN: 117587
                        DITTO, THICKNESS 4.15 MM
                        from £15.21
                        from £15.21
                        # 014
                        MPN: 117588
                        DITTO, THICKNESS 4.20 MM
                        from £21.06
                        from £21.06
                        # 014
                        MPN: 117589
                        DITTO, THICKNESS 4.25 MM
                        from £21.06
                        from £21.06
                        # 014
                        MPN: 117590
                        DITTO, THICKNESS 4.30 MM
                        from £11.58
                        from £11.58
                        # 014
                        MPN: 117591
                        DITTO, THICKNESS 4.35 MM
                        from £6.09
                        from £6.09
                        # 014
                        MPN: 117592
                        DITTO, THICKNESS 4.40 MM
                        from £6.09
                        from £6.09
                        # 014
                        MPN: 117593
                        DITTO, THICKNESS 4.45 MM
                        from £6.09
                        from £6.09
                        # 014
                        MPN: 117594
                        DITTO, THICKNESS 4.50 MM
                        from £11.07
                        from £11.07
                        # 014
                        MPN: 117595
                        DITTO, THICKNESS 4.55 MM
                        from £11.07
                        from £11.07
                        # 014
                        MPN: 117596
                        DITTO, THICKNESS 4.60 MM
                        from £11.07
                        from £11.07
                        # 014
                        MPN: 153731
                        DITTO, THICKNESS 3.725 MM
                        from £7.38
                        from £7.38
                        # 014
                        MPN: 153732
                        DITTO, THICKNESS 3.775 MM
                        from £7.38
                        from £7.38
                        # 014
                        MPN: 153733
                        DITTO, THICKNESS 3.825 MM
                        from £7.38
                        from £7.38
                        # 014
                        MPN: 153734
                        DITTO, THICKNESS 3.875 MM
                        from £7.38
                        from £7.38
                        # 014
                        MPN: 153735
                        DITTO, THICKNESS 3.925 MM
                        from £7.38
                        from £7.38
                        # 014
                        MPN: 153736
                        DITTO, THICKNESS 3.975 MM
                        from £23.05
                        from £23.05
                        # 014
                        MPN: 153737
                        DITTO, THICKNESS 4.025 MM
                        from £22.18
                        from £22.18
                        # 014
                        MPN: 153738
                        DITTO, THICKNESS 4.075 MM
                        from £22.18
                        from £22.18
                        # 014
                        MPN: 153739
                        DITTO, THICKNESS 4.125 MM
                        from £17.01
                        from £17.01
                        # 014
                        MPN: 153740
                        DITTO, THICKNESS 4.175 MM
                        from £23.05
                        from £23.05
                        # 014
                        MPN: 153741
                        DITTO, THICKNESS 4.225 MM
                        from £7.38
                        from £7.38
                        # 014
                        MPN: 153742
                        DITTO, THICKNESS 4.275 MM
                        from £7.38
                        from £7.38
                        Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
