Ferrari 456 GT/GTA Timing - Controls Parts Diagram

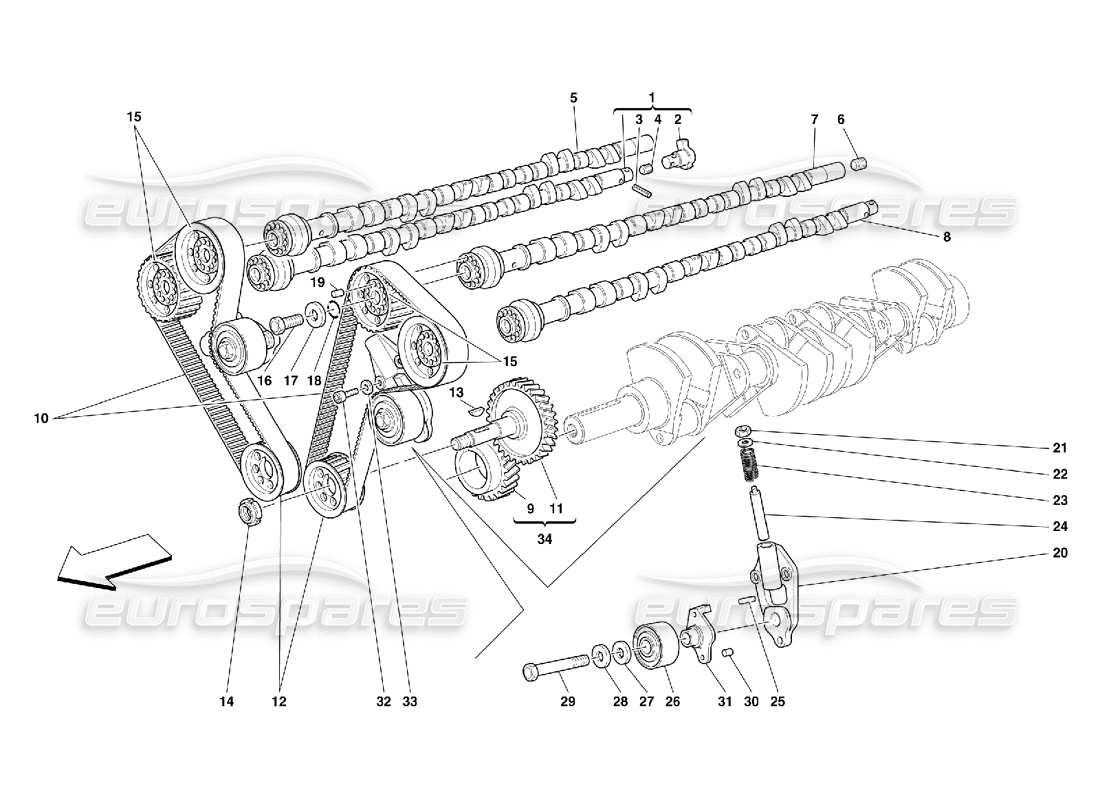

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                  #
                                                  Part number
                                                  Description
                                                  Price
                                                  # 001
                                                  MPN: 151516

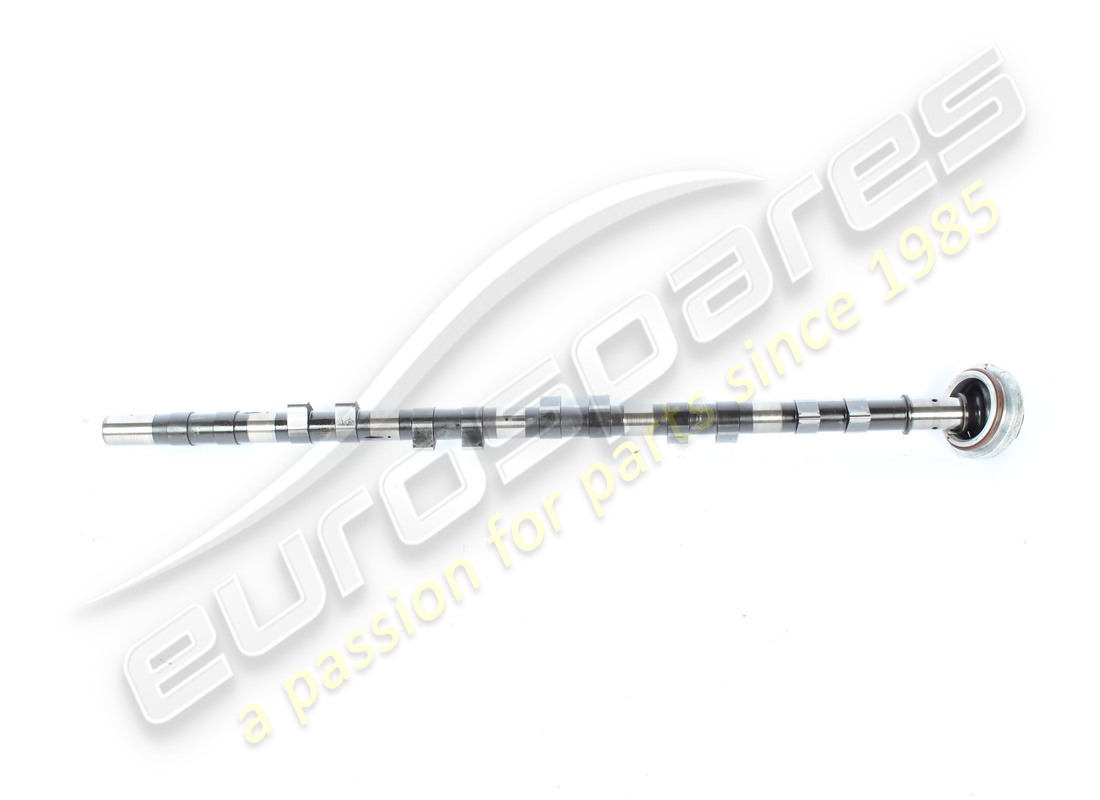

                                                  COMPLETE RH EXHAUST CAM SHAFT
                                                  - Valid for MOTRONIC 2.7
                                                  from £1,547.14
                                                  from £1,547.14
                                                  # 001
                                                  MPN: 167583

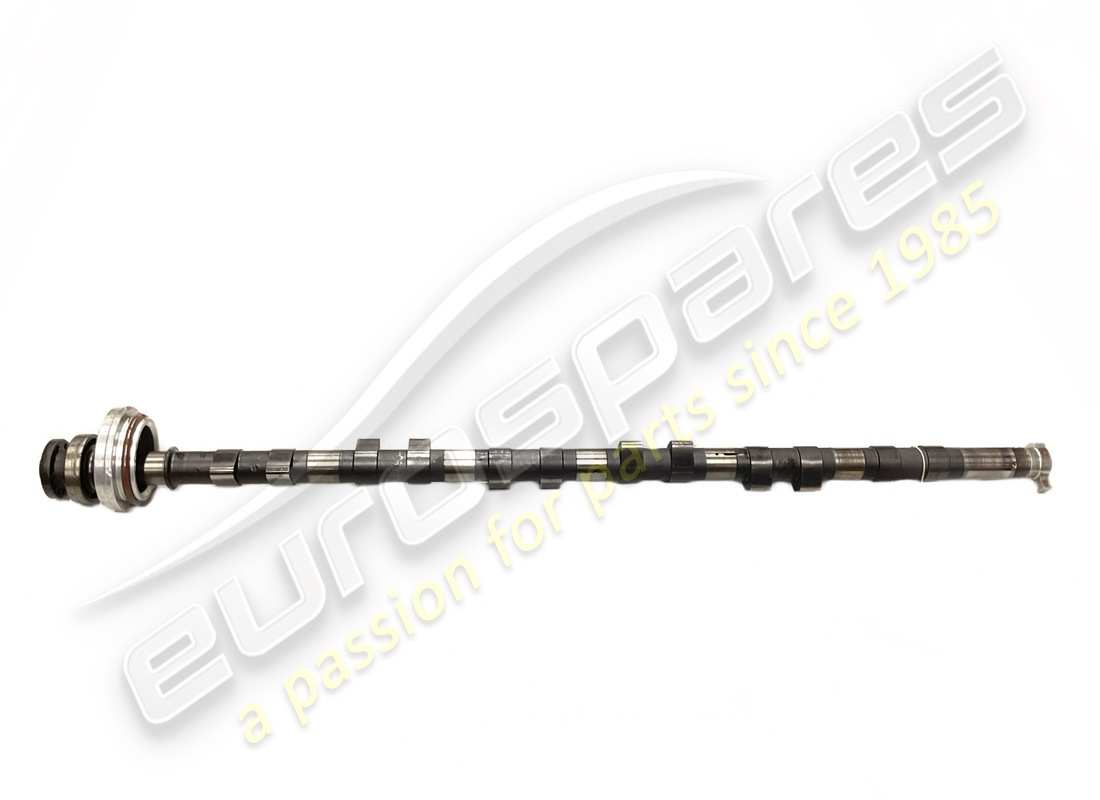

                                                  COMPLETE RH EXHAUST CAM SHAFT CAM SHAFT
                                                  - Valid for MOTRONIC 5.2 - Valid till engine Nr. 42240
                                                  Supersession
                                                  Supersession
                                                  # 001
                                                  MPN: 171451
                                                  COMPLETE RH EXHAUST CAM SHAFT CAM SHAFT
                                                  - Valid for MOTRONIC 5.2 - Valid from engine Nr. 42241
                                                  from £994.16
                                                  from £994.16
                                                  This part replaces part number 167583
                                                  # 002
                                                  MPN: 151194

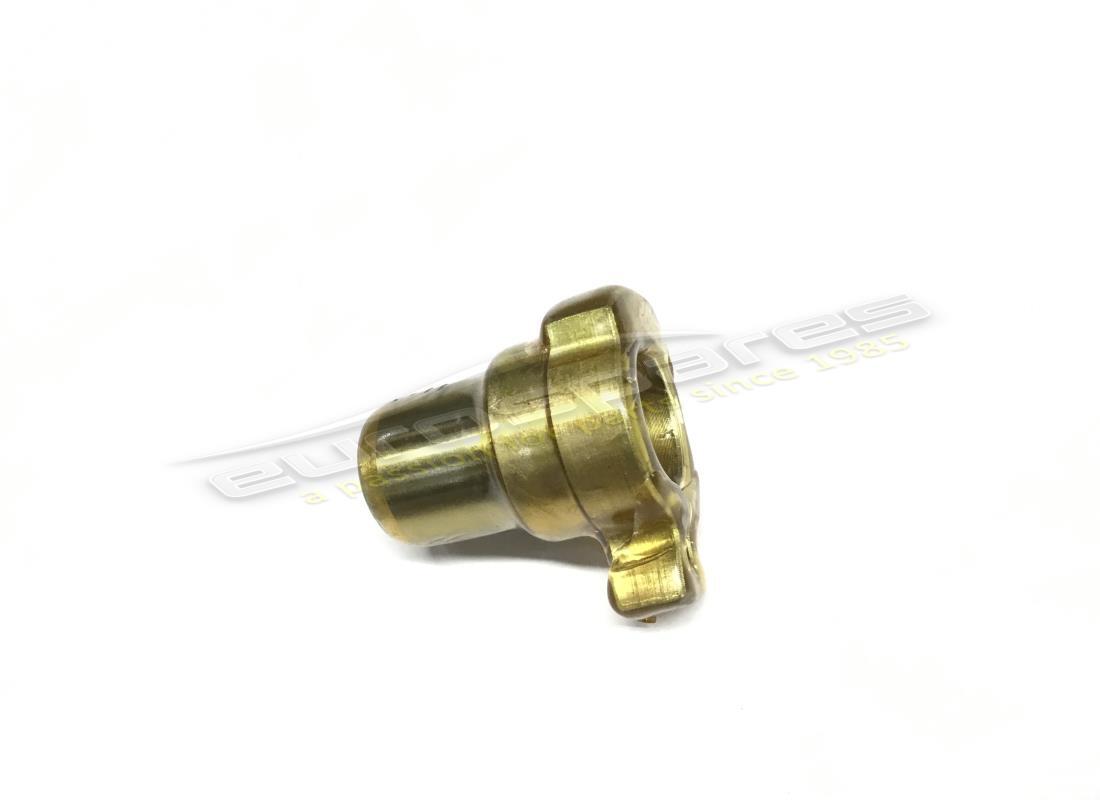

                                                  COUPLING ON THE CAM SHAFT
                                                  - Valid for MOTRONIC 2.7
                                                  from £519.75
                                                  from £519.75

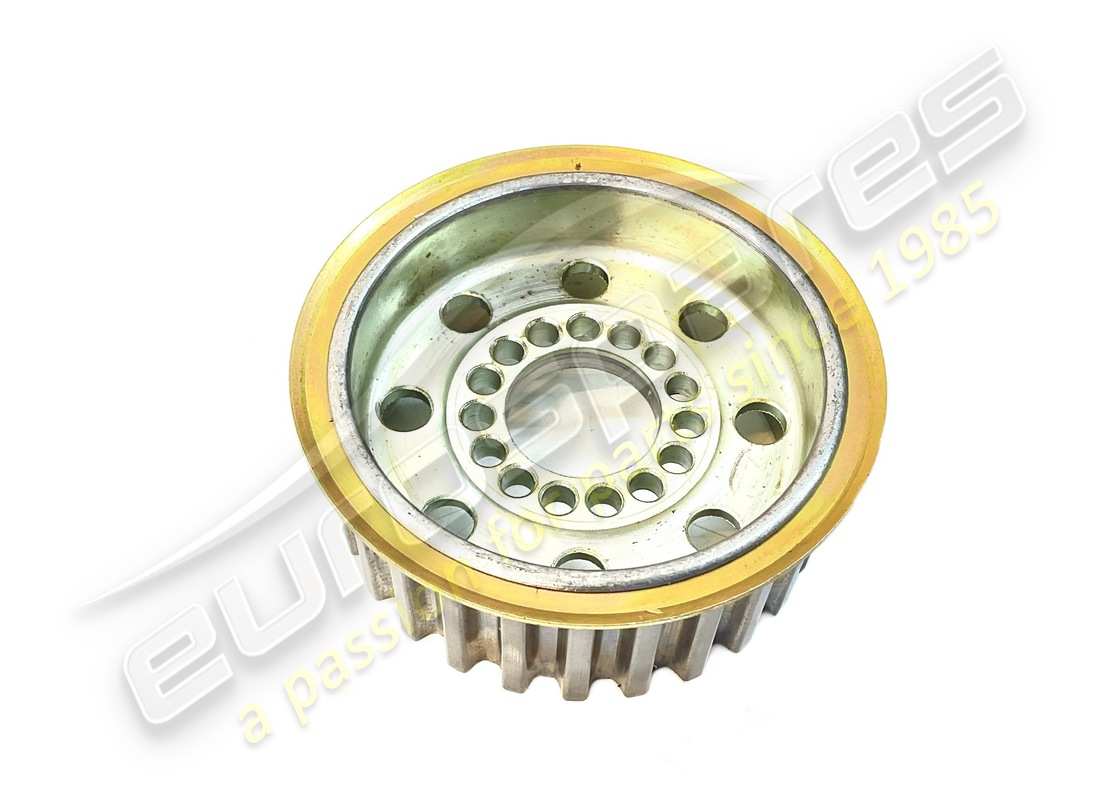

                                                  # 002
                                                  MPN: 165790
                                                  COUPLING ON THE CAM SHAFT SHAFT
                                                  - Valid for MOTRONIC 5.2 - Valid till engine Nr. 42240
                                                  from £78.75
                                                  from £78.75
                                                  # 002
                                                  MPN: 171450
                                                  COUPLING ON THE CAM SHAFT SHAFT
                                                  - Valid for MOTRONIC 5.2 - Valid from engine Nr. 42241
                                                  from £201.49
                                                  from £201.49
                                                  # 003
                                                  MPN: 149859
                                                  DOWEL BOLT
                                                  from £1.13
                                                  from £1.13
                                                  # 004
                                                  MPN: 10158501
                                                  PLUG
                                                  - Valid for MOTRONIC 2.7
                                                  from £1.65
                                                  from £1.65
                                                  # 004
                                                  MPN: 10158501
                                                  PLUG
                                                  - Valid for MOTRONIC 5.2 - Valid till engine Nr. 42240
                                                  from £1.65
                                                  from £1.65
                                                  # 005
                                                  MPN: 155147
                                                  COMPLETE RH INDUCTION DISTRIBUTION SHAFT
                                                  from £321.22
                                                  from £321.22
                                                  # 006
                                                  MPN: 10269550
                                                  THREADED PLUG
                                                  from £1.59
                                                  from £1.59
                                                  # 007
                                                  MPN: 155149
                                                  COMPLETE LH INDUCTION DISTRIBUTION SHAFT
                                                  from £418.87
                                                  from £418.87
                                                  # 008
                                                  MPN: 151514

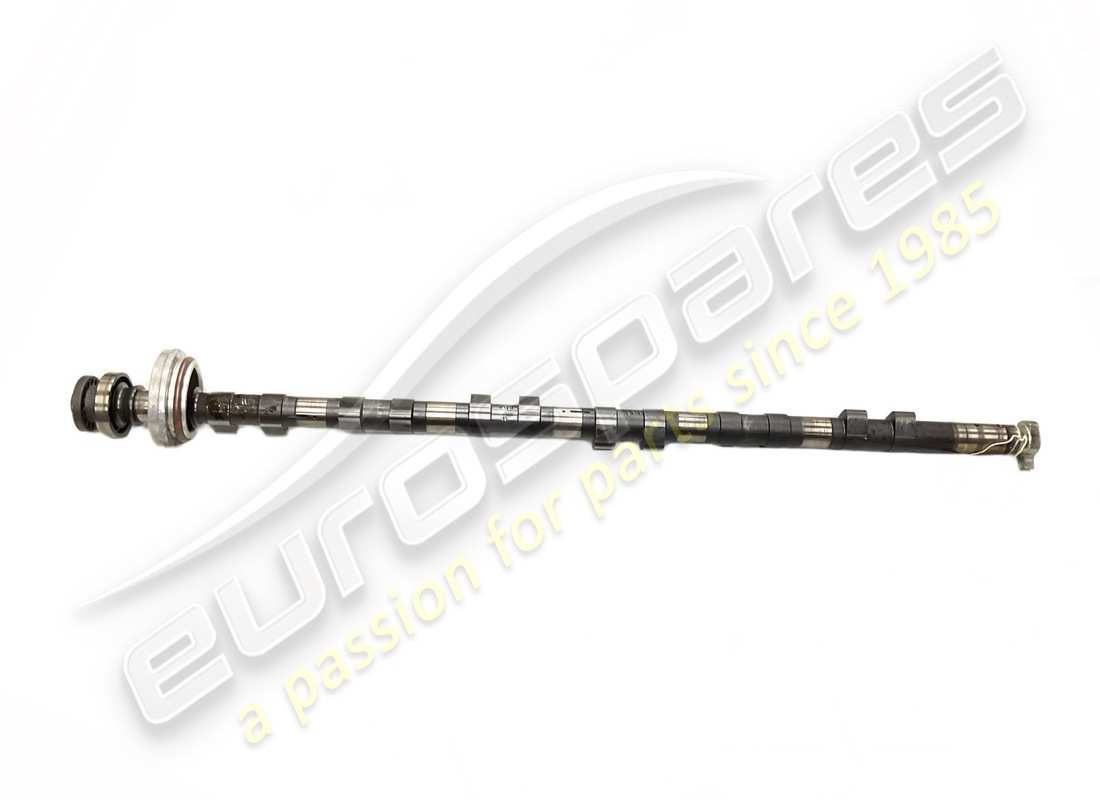

                                                  COMPLETE LH EXHAUST CAM SHAFT
                                                  - Valid for MOTRONIC 2.7
                                                  from £1,547.14
                                                  from £1,547.14
                                                  # 008
                                                  MPN: 163231
                                                  COMPLETE LH EXHAUST CAM SHAFT
                                                  - Valid for MOTRONIC 5.2
                                                  from £768.62
                                                  from £768.62
                                                  # 009
                                                  MPN: 154298
                                                  DRIVING GEAR
                                                  - Valid till engine Nr. 42087 - Not as spare part replaced by 70000876
                                                  Supersession
                                                  Supersession
                                                  This part replaces part number 164303
                                                  # 009
                                                  MPN: 168702
                                                  DRIVING GEAR
                                                  - Valid from engine Nr. 42088 - Not as spare part replaced by 70000876
                                                  from £62.32
                                                  from £62.32
                                                  # 010
                                                  MPN: 187744
                                                  TIMING CONTROL BELT
                                                  from £33.52
                                                  from £33.52
                                                  This part replaces part number 148515

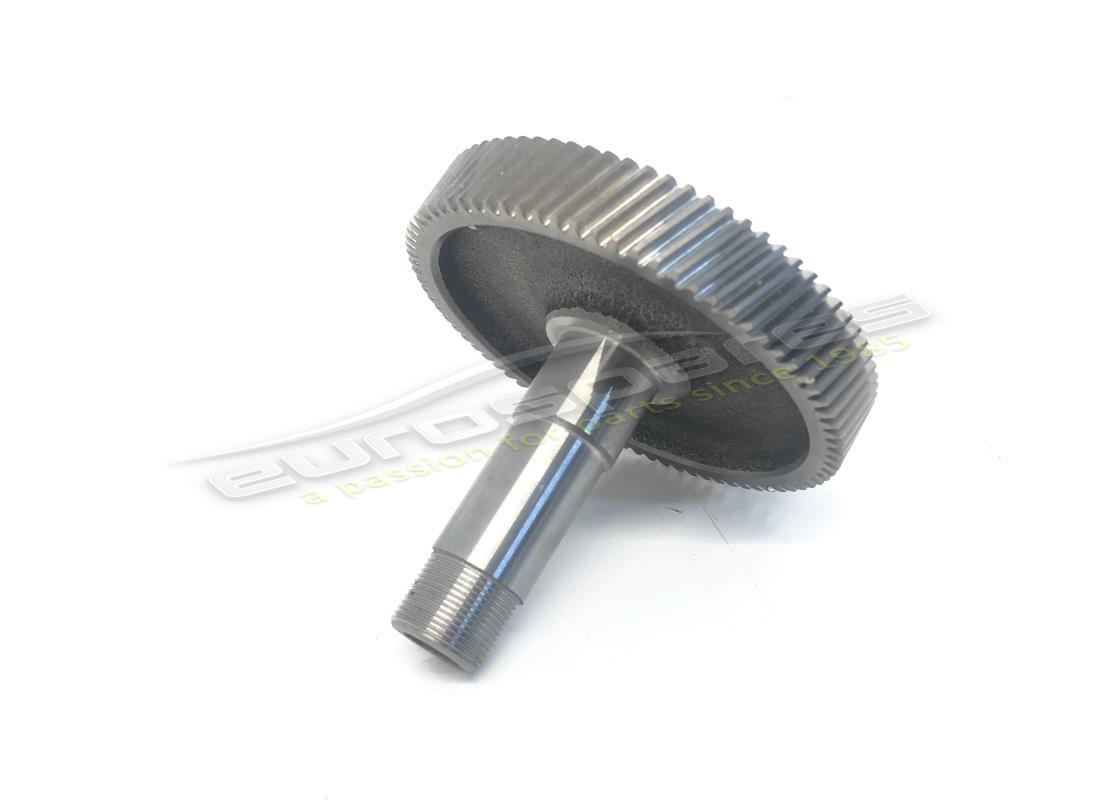

                                                  # 011
                                                  MPN: 154297
                                                  DRIVEN GEAR
                                                  - Valid till engine Nr. 42087 - Not as spare part replaced by 70000876
                                                  from £414.75
                                                  from £414.75
                                                  This part replaces part number 164304
                                                  # 011
                                                  MPN: 168701
                                                  DRIVEN GEAR
                                                  - Valid from engine Nr. 42088 - Not as spare part replaced by 70000876
                                                  from £110.95
                                                  from £110.95
                                                  # 012
                                                  MPN: 149928
                                                  TIMING GEAR
                                                  from £139.38
                                                  from £139.38
                                                  # 013
                                                  MPN: 10206320
                                                  DISC KEY
                                                  from £0.77
                                                  from £0.77
                                                  # 014
                                                  MPN: 104919
                                                  RING NUT
                                                  from £3.08
                                                  from £3.08
                                                  # 015
                                                  MPN: 149927
                                                  DRIVEN GEAR
                                                  - Valid till engine Nr. 36009
                                                  from £48.20
                                                  from £48.20
                                                  # 015
                                                  MPN: 159382
                                                  DRIVEN GEAR
                                                  - Valid from engine Nr. 36010
                                                  from £51.08
                                                  from £51.08
                                                  This part replaces part number 149927 which we have in stock - and 2 more. Click to view details
                                                  # 016
                                                  MPN: 146540
                                                  SCREW
                                                  from £9.06
                                                  from £9.06
                                                  This part replaces part number 16326431 - and 3 more. Click to view details
                                                  # 017
                                                  MPN: 114802
                                                  WASHER
                                                  from £6.15
                                                  from £6.15
                                                  # 018
                                                  MPN: 114808
                                                  SEAL RING
                                                  from £2.25
                                                  from £2.25
                                                  # 019
                                                  MPN: 114803
                                                  CENTERING DOWEL
                                                  from £18.02
                                                  from £18.02
                                                  # 020
                                                  MPN: 149346
                                                  BELT TIGHTENER BODY
                                                  from £132.13
                                                  from £132.13
                                                  # 021
                                                  MPN: 102948
                                                  NUT
                                                  from £0.47
                                                  from £0.47
                                                  This part replaces part number 12574211 - and 4 more. Click to view details
                                                  # 022
                                                  MPN: 121558
                                                  WASHER
                                                  from £0.94
                                                  from £0.94
                                                  # 023
                                                  MPN: 121249
                                                  SPRING FOR BELT
                                                  from £11.77
                                                  from £11.77
                                                  # 024
                                                  MPN: 121047
                                                  PIN
                                                  from £7.90
                                                  from £7.90
                                                  # 025
                                                  MPN: 13933570
                                                  PIN
                                                  from £0.47
                                                  from £0.47
                                                  # 026
                                                  MPN: 171057
                                                  PULLEY
                                                  from £148.65
                                                  from £148.65

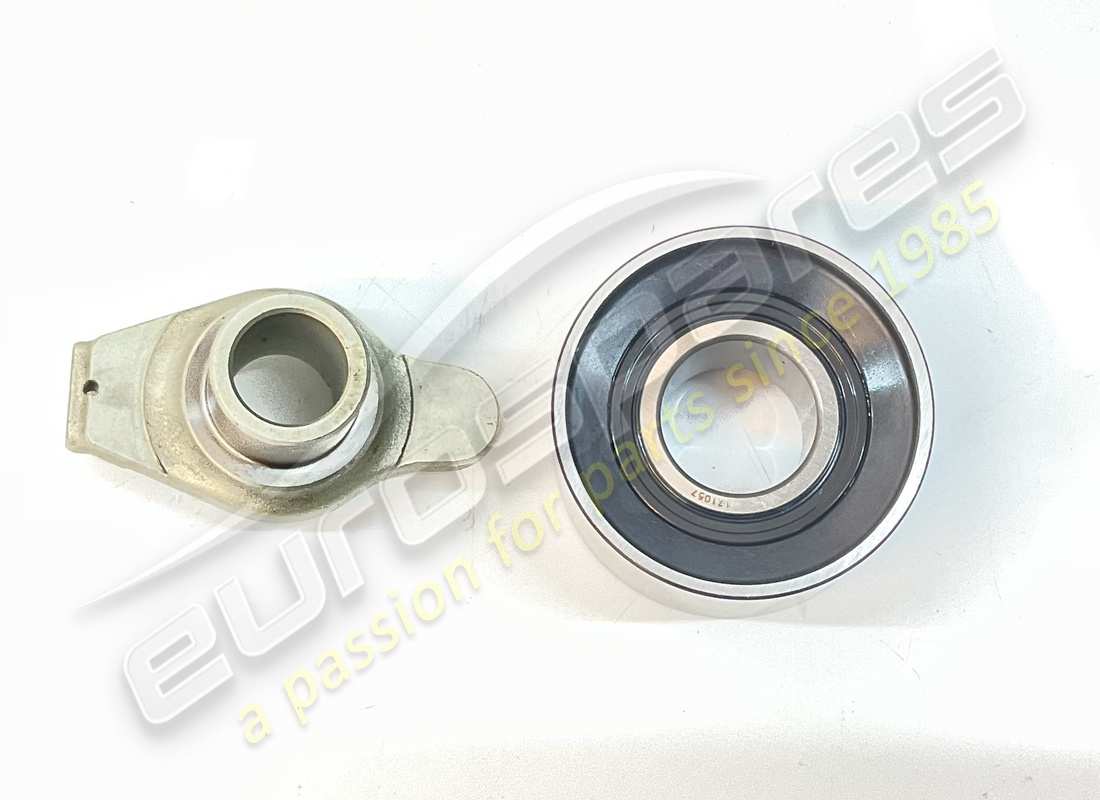

                                                  # 026
                                                  MPN: 70000933
                                                  TIMING PULLEY KIT
                                                  (quantity required = 2)
                                                  from £137.49
                                                  from £137.49
                                                  This part replaces part number 130872
                                                  # 027
                                                  MPN: 111460
                                                  SPACER
                                                  from £12.77
                                                  from £12.77
                                                  # 028
                                                  MPN: 102824
                                                  WASHER
                                                  from £14.96
                                                  from £14.96
                                                  # 029
                                                  MPN: 149461
                                                  SCREW
                                                  from £57.75
                                                  from £57.75
                                                  # 030
                                                  MPN: 125717
                                                  CENTERING DOWEL
                                                  from £1.55
                                                  from £1.55
                                                  # 031
                                                  MPN: 121045
                                                  PLATE
                                                  - Valid till Ass. Nr. 28613
                                                  from £315.57
                                                  from £315.57
                                                  # 031
                                                  MPN: 171060
                                                  PLATE
                                                  - Valid from Ass. Nr. 28614
                                                  from £51.36
                                                  from £51.36
                                                  # 032
                                                  MPN: 14306424
                                                  SCREW
                                                  from £0.47
                                                  from £0.47
                                                  This part replaces part number 14306324 - and 2 more. Click to view details
                                                  # 033
                                                  MPN: 11193874
                                                  WASHER
                                                  from £0.47
                                                  from £0.47
                                                  This part replaces part number 11193879 which we have in stock
                                                  # 034
                                                  MPN: 70000876
                                                  PINION KIT GEAR
                                                  - Substitutes 154297, 168702, 154298 and 168701
                                                  from £1,747.25
                                                  from £1,747.25
                                                  This part replaces part number 154297 which we have in stock - and 3 more. Click to view details
