ferrari 456 gt/gta crankcase - covers parts diagram

002 - crankcase - covers

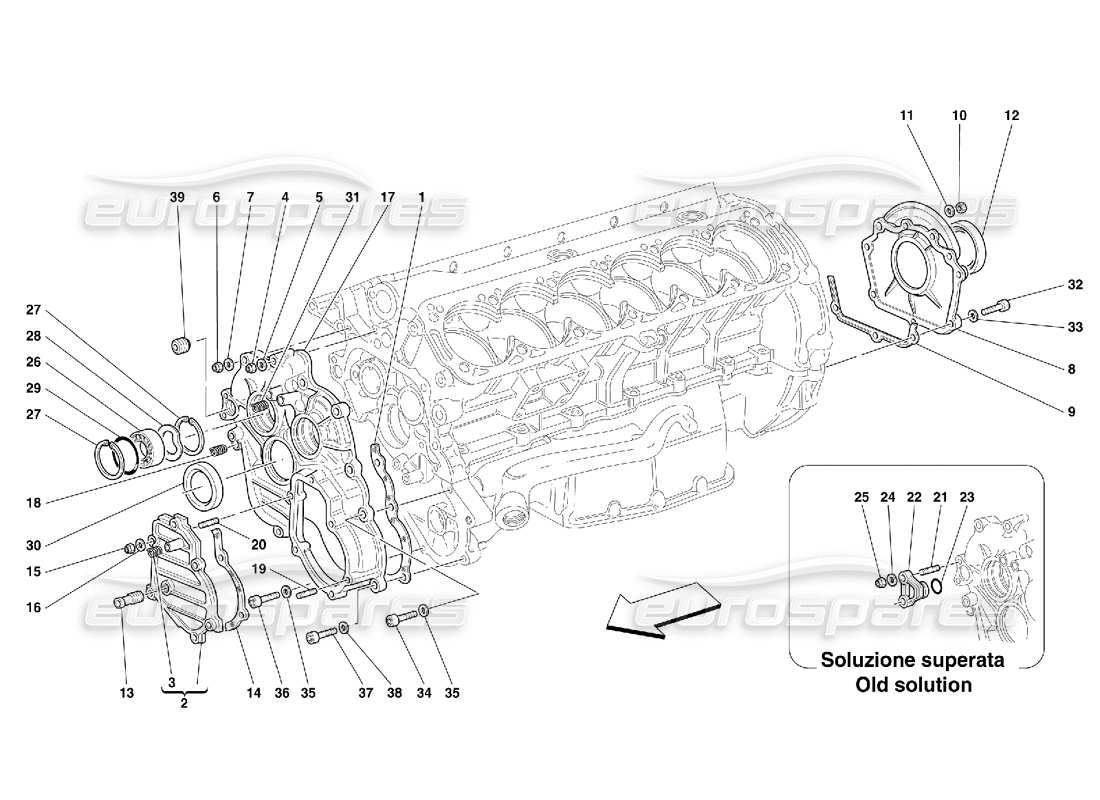

Ferrari 456 GT/GTA Crankcase - Covers Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Price
                                      # 001
                                      MPN: 154527

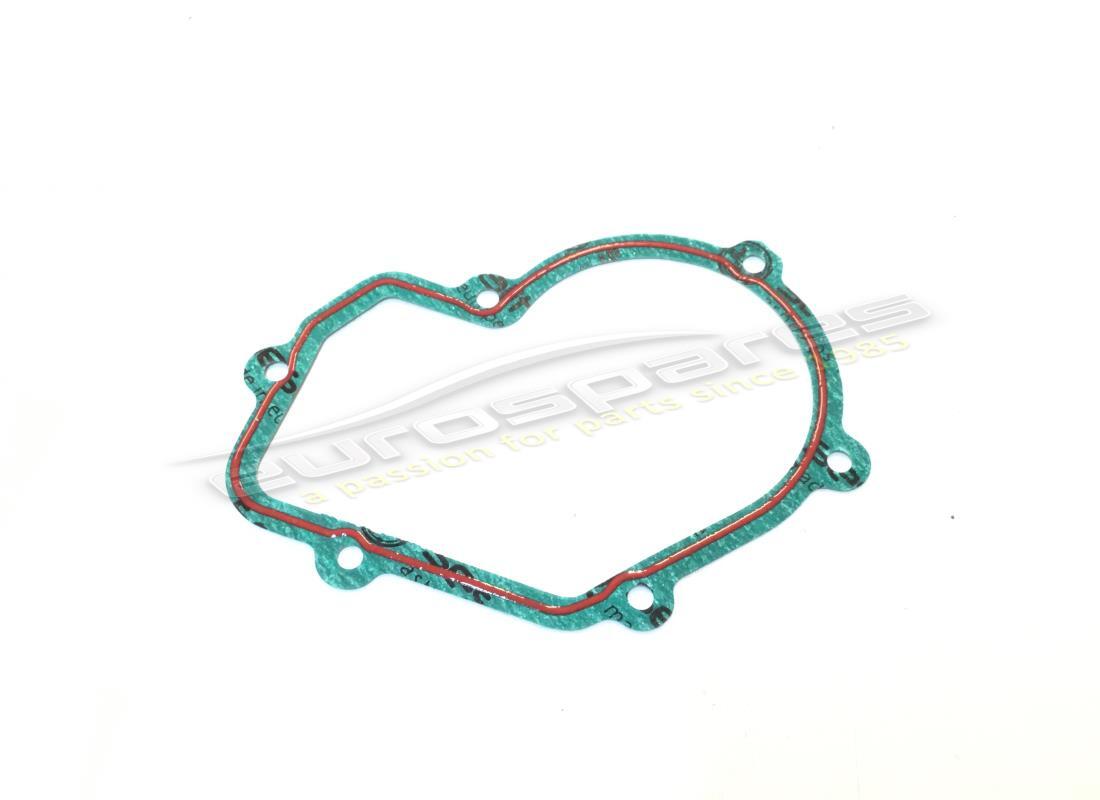

                                      GASKET
                                      from £28.18
                                      from £28.18
                                      # 002
                                      MPN: 154549

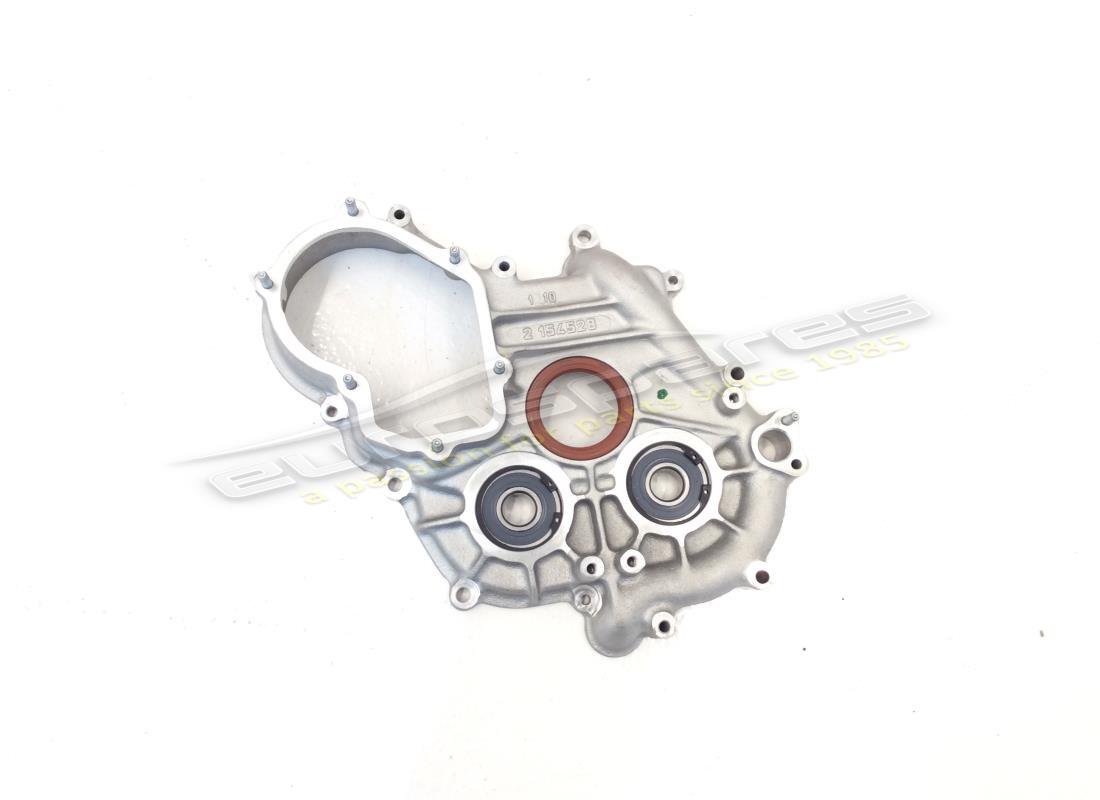

                                      SMALL FRONT COVER
                                      - (Nr. 5 fixages)
                                      # 002
                                      MPN: 157120
                                      SMALL FRONT COVER
                                      - (Nr. 6 fixages) - For front cover 153212
                                      from £55.94
                                      from £55.94
                                      This part replaces part number 153212 - and 2 more. Click to view details
                                      # 003
                                      MPN: 13525570

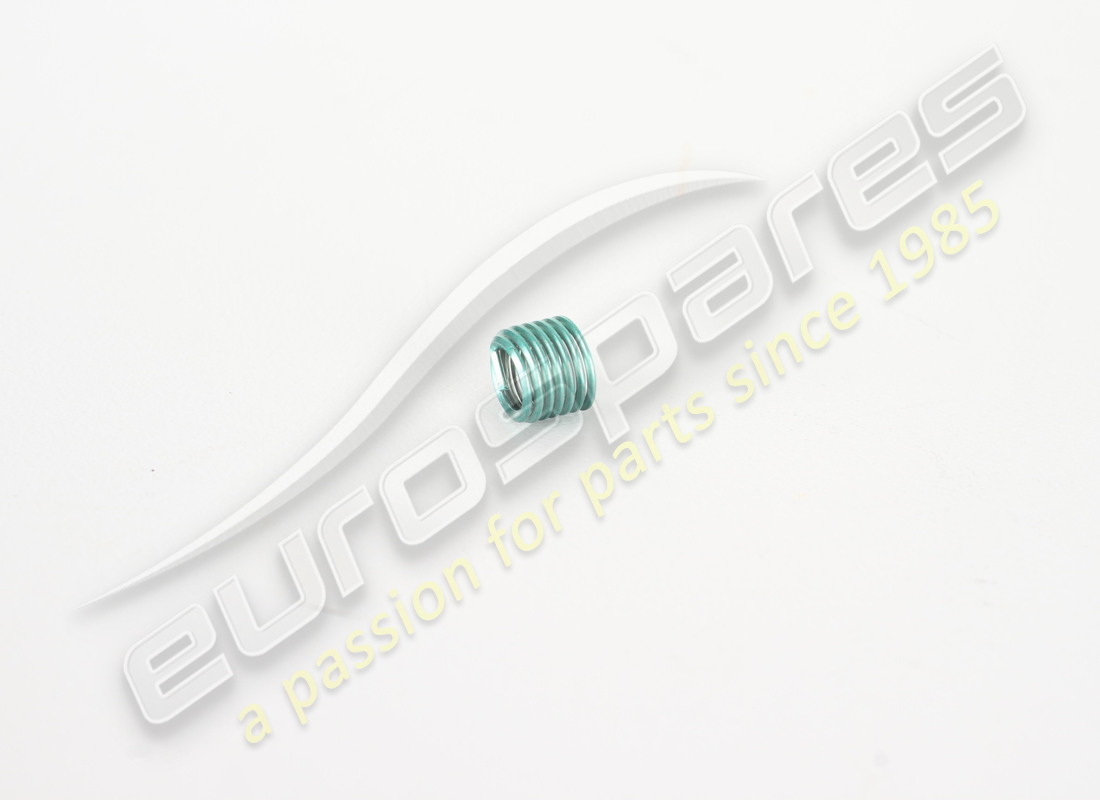

                                      THREADED INSERT
                                      from £3.26
                                      from £3.26
                                      This part replaces part number 109668
                                      # 004
                                      MPN: 147985
                                      NUT
                                      - From engine Nr. 36183 q.ty 4
                                      from £0.47
                                      from £0.47
                                      # 005
                                      MPN: 12601374
                                      WASHER
                                      - From engine Nr. 36183 q.ty 4
                                      from £0.47
                                      from £0.47
                                      This part replaces part number 10615474 - and 6 more. Click to view details
                                      # 006
                                      MPN: 12575411
                                      NUT
                                      - From engine Nr. 36183 q.ty 3
                                      Supersession
                                      Supersession
                                      # 007
                                      MPN: 12601274
                                      WASHER
                                      - From engine Nr. 36183 q.ty 3
                                      from £0.47
                                      from £0.47
                                      This part replaces part number 12601221 - and 5 more. Click to view details
                                      # 008
                                      MPN: 141343

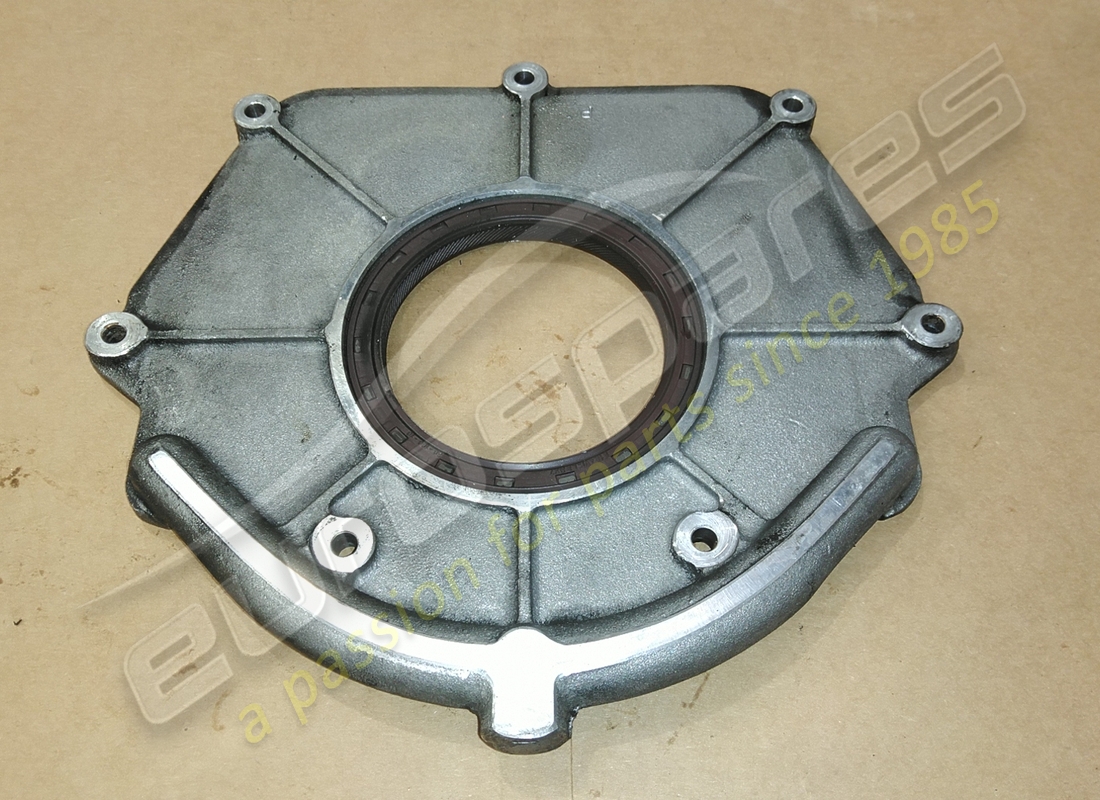

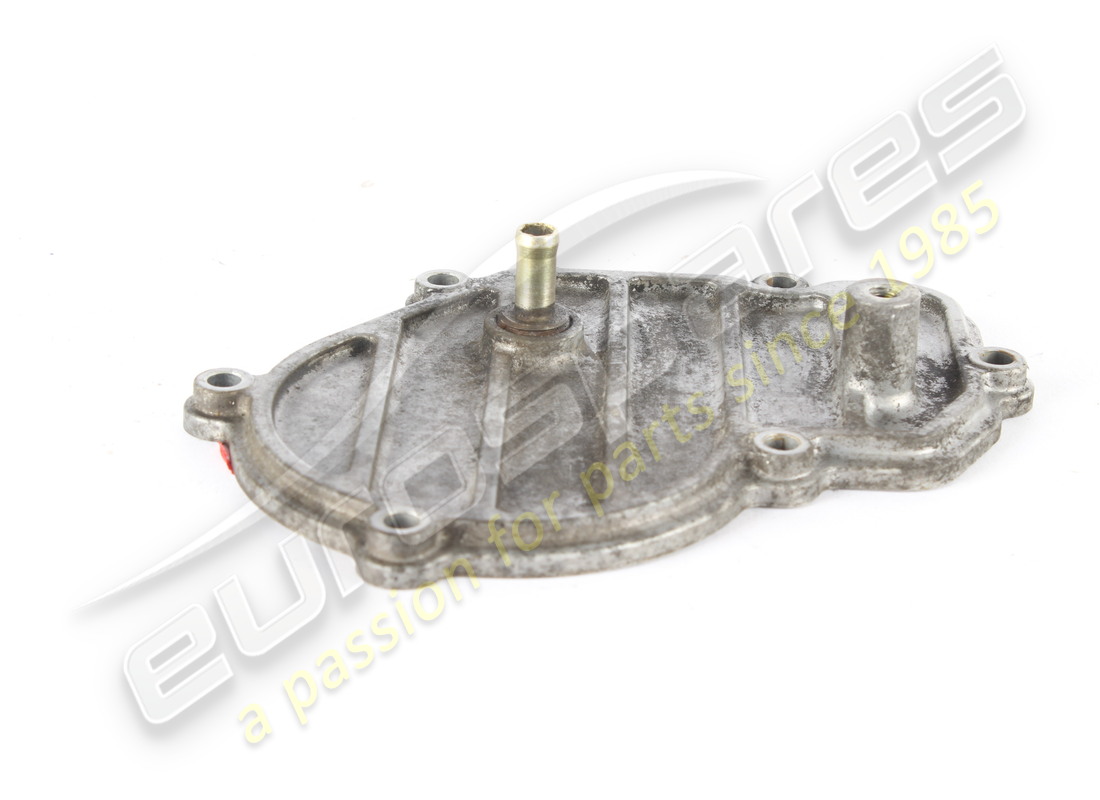

                                      REAR COVER
                                      from £146.48
                                      from £146.48
                                      # 009
                                      MPN: 141291

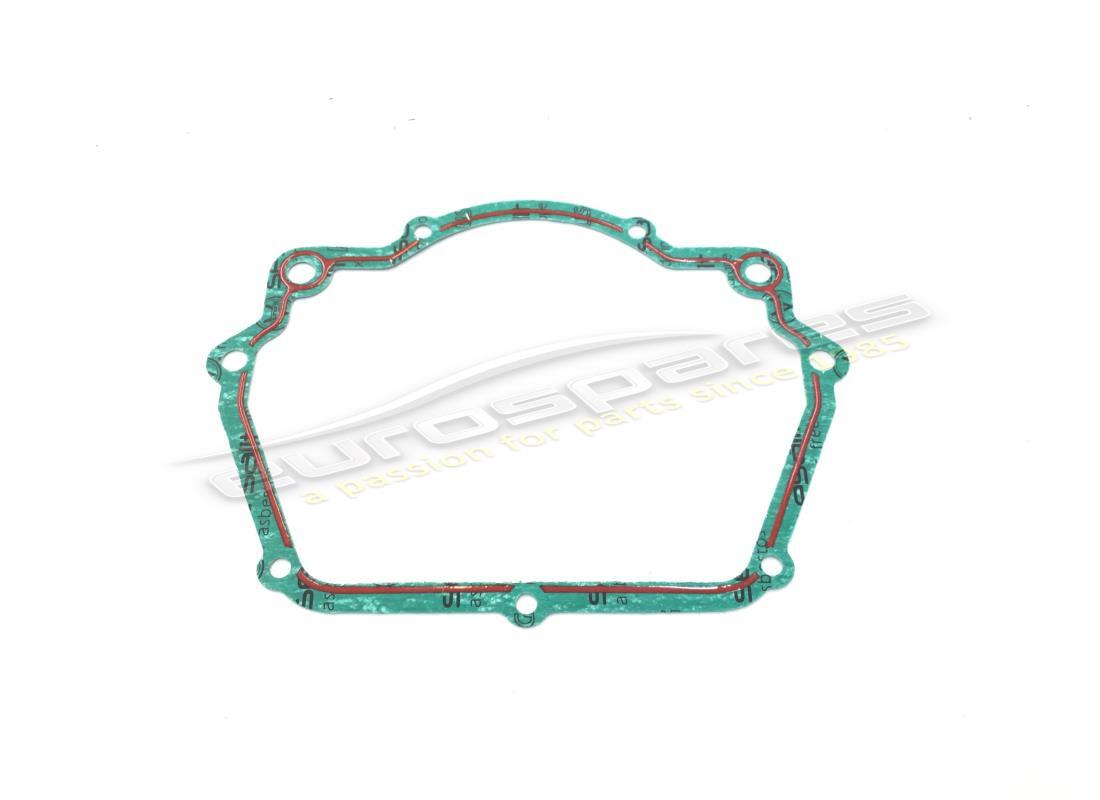

                                      GASKET
                                      from £20.73
                                      from £20.73
                                      # 010
                                      MPN: 15896211
                                      NUT
                                      - From engine Nr. 36183 q.ty 4
                                      Supersession
                                      Supersession
                                      This part replaces part number 15896210
                                      # 011
                                      MPN: 12620479
                                      WASHER
                                      - From engine Nr. 36183 q.ty 4
                                      Supersession
                                      Supersession
                                      # 012
                                      MPN: 200323

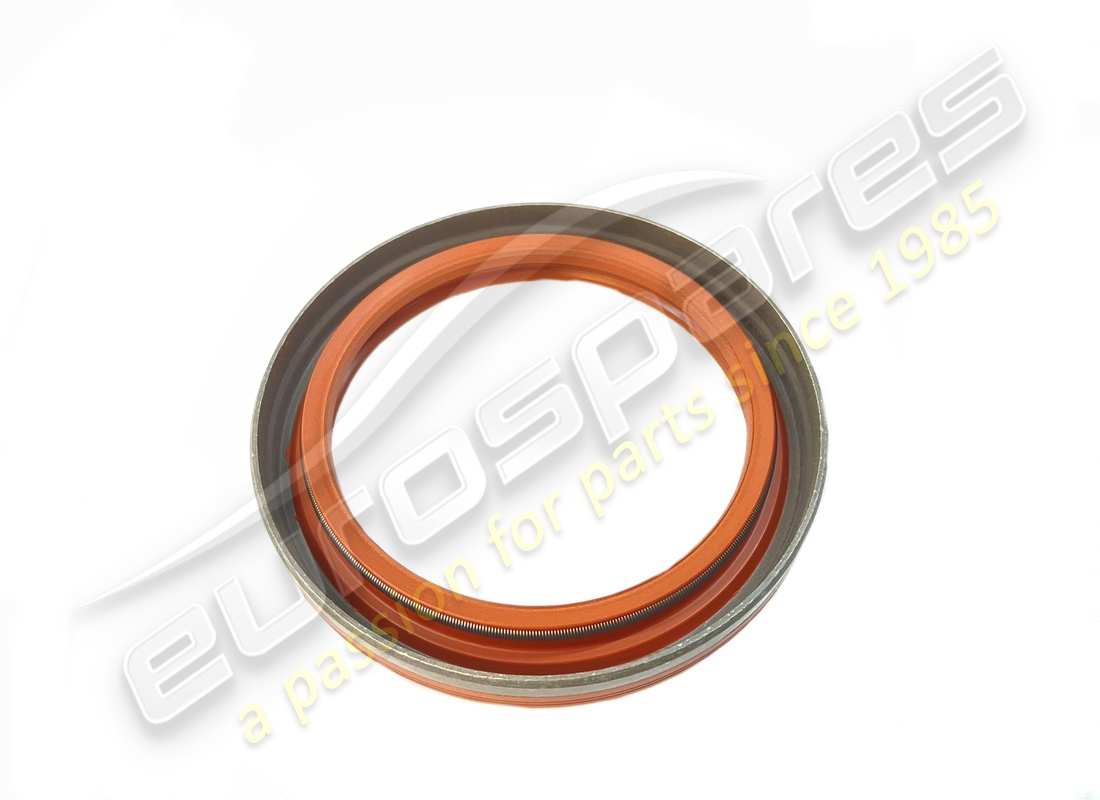

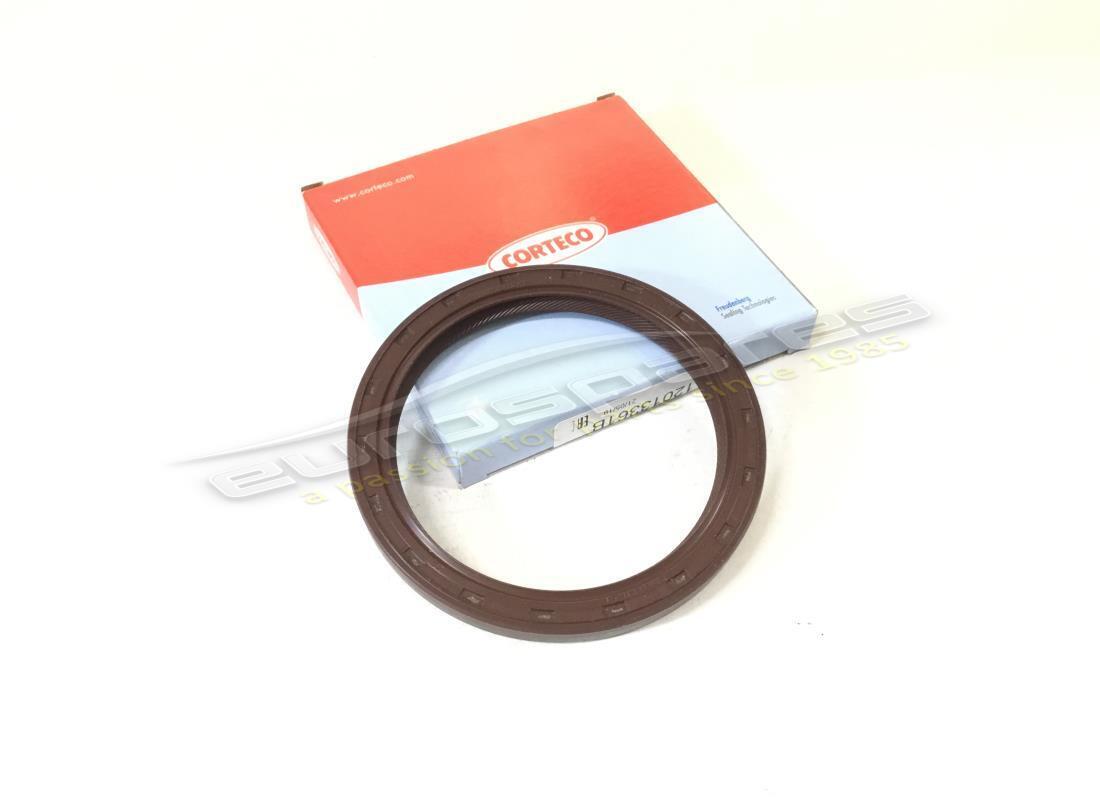

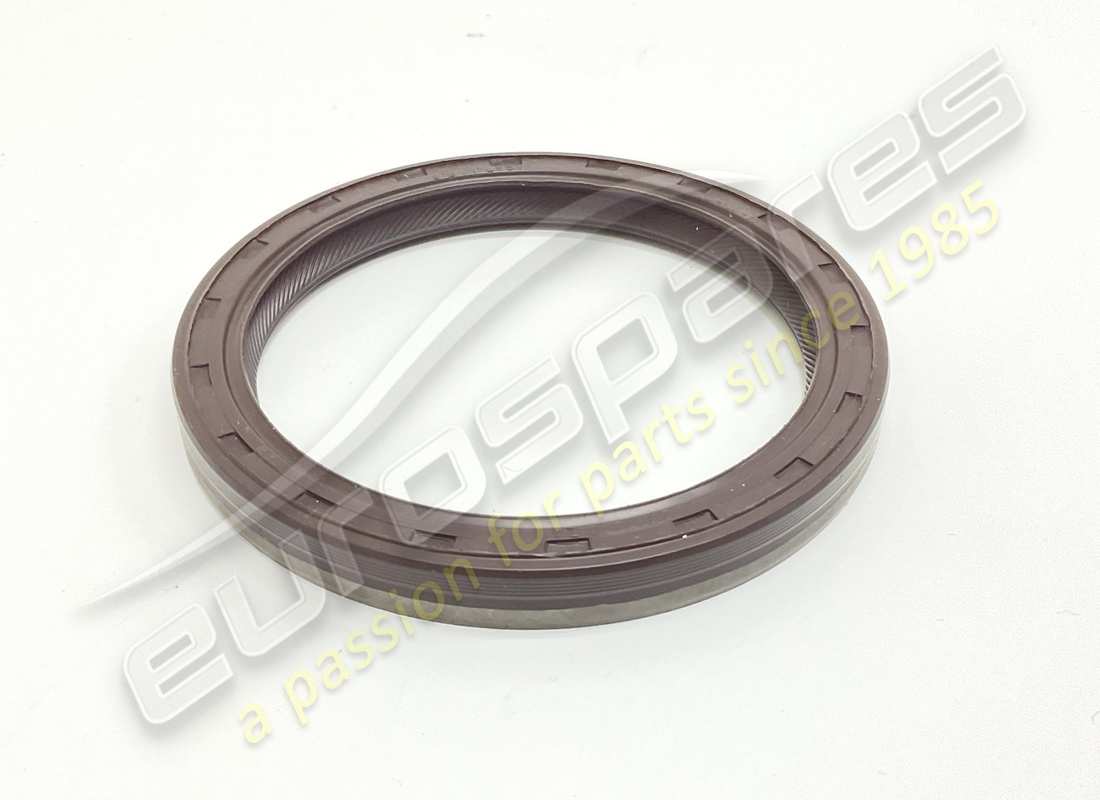

                                      REAR MAIN OIL SEAL
                                      from £20.59
                                      from £20.59
                                      This part replaces part number 163989 - and 1 more. Click to view details
                                      # 013
                                      MPN: 154525
                                      UNION
                                      from £25.54
                                      from £25.54
                                      # 014
                                      MPN: 154543

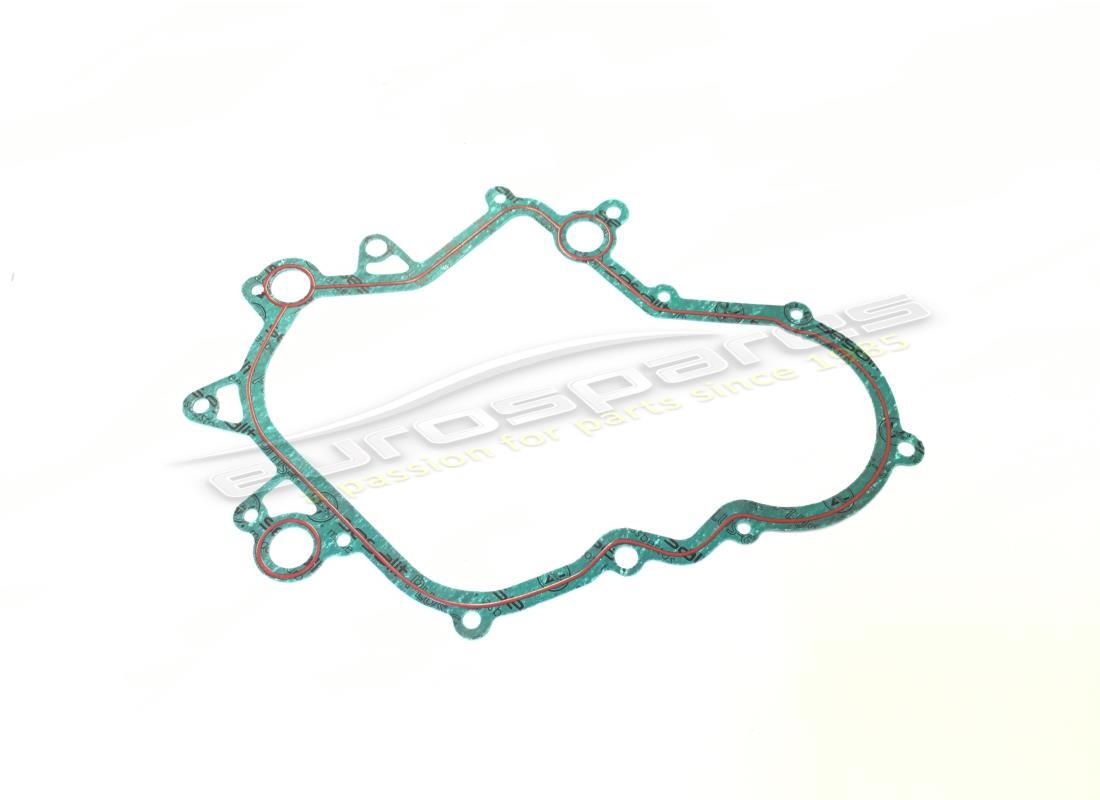

                                      GASKET
                                      - For 5 fixages small cover
                                      from £13.60
                                      from £13.60
                                      # 014
                                      MPN: 157121
                                      GASKET
                                      - For 6 fixages small cover
                                      from £5.36
                                      from £5.36
                                      # 016
                                      MPN: 12601274
                                      WASHER
                                      from £0.47
                                      from £0.47
                                      This part replaces part number 12601221 - and 5 more. Click to view details
                                      # 017
                                      MPN: 153212
                                      COMPLETE FRONT COVER
                                      - (6 fixages small cover) - Valid till engine Nr. 39699 - For USA till engine Nr. 38753 - For CH till engine Nr. 38733
                                      Supersession
                                      Supersession
                                      # 017
                                      MPN: 154528
                                      FRONT COVER
                                      - (5 fixages small cover) - Not as spare part - Replace by 157119
                                      from £703.50
                                      from £703.50
                                      # 017
                                      MPN: 157119
                                      FRONT COVER
                                      - (6 fixages small cover) - With the complete cover 153212
                                      from £900.93
                                      from £900.93
                                      This part replaces part number 154528 which we have in stock
                                      # 017
                                      MPN: 159346
                                      FRONT COVER
                                      - (6 fixages small cover) - With the complete cover 178601
                                      Supersession
                                      Supersession
                                      # 017
                                      MPN: 178601
                                      COMPLETE FRONT COVER
                                      - (6 fixages small cover) - Valid from engine Nr. 39700, for - USA from engine Nr. 38754, for - CH from engine Nr. 38734
                                      from £864.27
                                      from £864.27
                                      This part replaces part number 159346
                                      # 018
                                      MPN: 13525470
                                      THREADED INSERT
                                      - Replace the 13525570
                                      from £0.53
                                      from £0.53
                                      This part replaces part number 107333
                                      # 018
                                      MPN: 13525570
                                      THREADED INSERT
                                      - Not as spare part replaced by 13525470
                                      from £3.26
                                      from £3.26
                                      This part replaces part number 109668
                                      # 019
                                      MPN: 13541024
                                      STUD
                                      from £0.47
                                      from £0.47
                                      This part replaces part number 13541021
                                      # 020
                                      MPN: 13540824
                                      STUD
                                      from £14.21
                                      from £14.21
                                      This part replaces part number 13540821
                                      # 021
                                      MPN: 13541024
                                      STUD
                                      - Valid till engine Nr. 39699 - For USA till engine Nr. 38753 - For CH till engine Nr. 38733
                                      from £0.47
                                      from £0.47
                                      This part replaces part number 13541021
                                      # 022
                                      MPN: 151159
                                      PLUG
                                      - Valid till engine Nr. 39699 - For USA till engine Nr. 38753 - For CH till engine Nr. 38733
                                      from £10.50
                                      from £10.50
                                      PLUG Genuine Ferrari Part - Used In stock
                                      Removed from 550 engine 50818
                                      # 023
                                      MPN: 109724

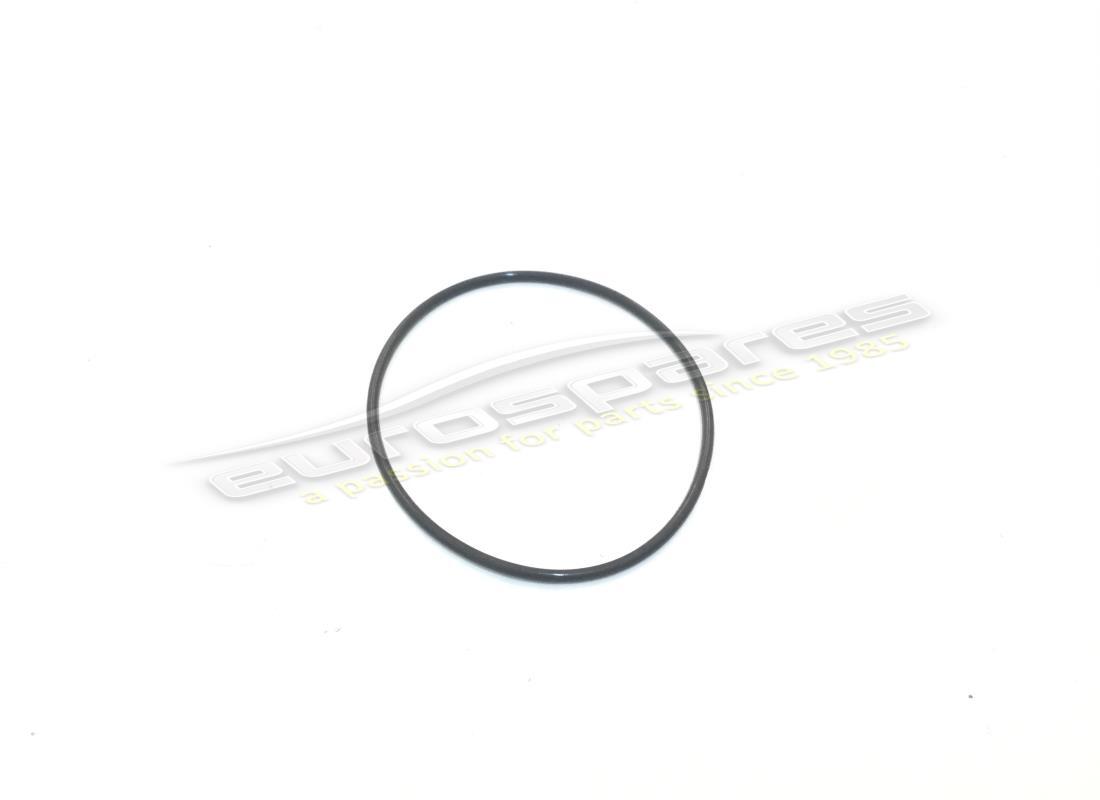

                                      O.R. GASKET
                                      - Valid till engine Nr. 39699 - For USA till engine Nr. 38753 - For CH till engine Nr. 38733
                                      from £0.65
                                      from £0.65
                                      # 024
                                      MPN: 12601274
                                      WASHER
                                      - Valid till engine Nr. 39699 - For USA till engine Nr. 38753 - For CH till engine Nr. 38733
                                      from £0.47
                                      from £0.47
                                      This part replaces part number 12601221 - and 5 more. Click to view details
                                      # 025
                                      MPN: 12575411
                                      NUT
                                      - Valid till engine Nr. 39699 - For USA till engine Nr. 38753 - For CH till engine Nr. 38733
                                      Supersession
                                      Supersession
                                      # 026
                                      MPN: 170787

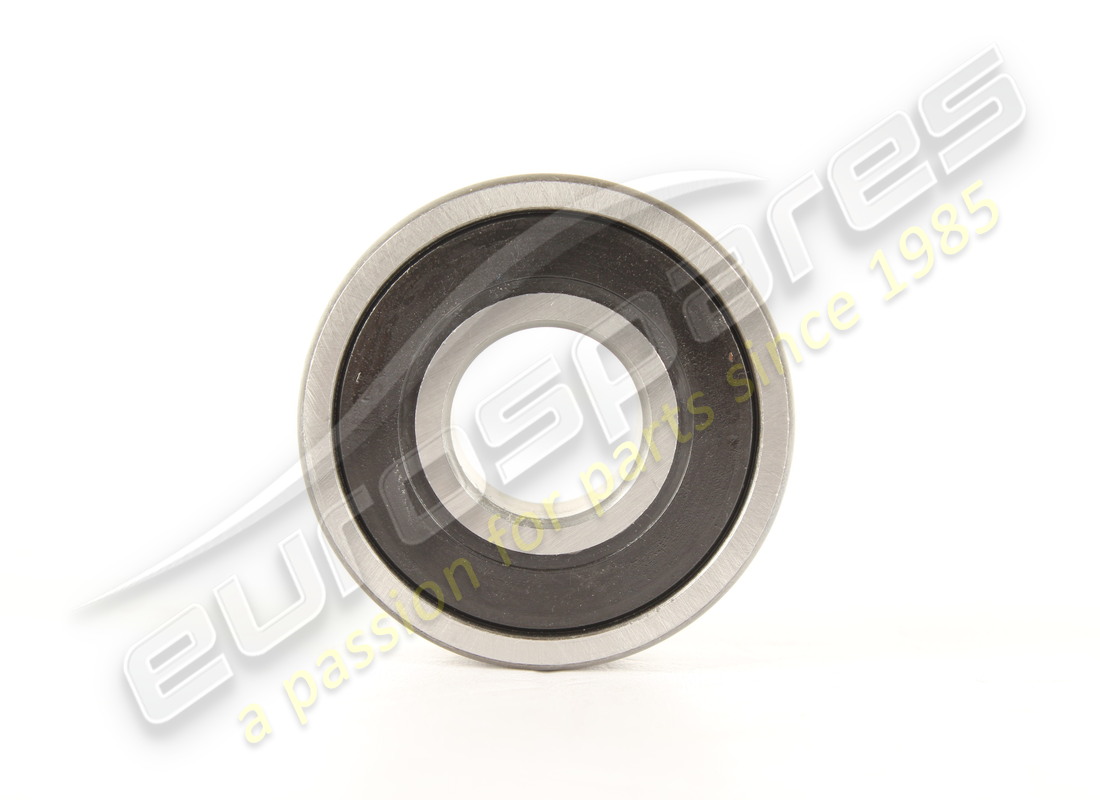

                                      BEARING
                                      from £34.92
                                      from £34.92
                                      This part replaces part number 144690 - and 2 more. Click to view details
                                      # 026
                                      MPN: 170787
                                      BEARING
                                      - Valid after stock exhaustion of 144690
                                      from £34.92
                                      from £34.92
                                      This part replaces part number 144690 - and 2 more. Click to view details
                                      # 027
                                      MPN: 11060576
                                      FLEXIBLE RING
                                      from £1.08
                                      from £1.08
                                      This part replaces part number 11060575
                                      # 028
                                      MPN: 133377
                                      WASHER
                                      from £8.35
                                      from £8.35
                                      # 029
                                      MPN: 136140

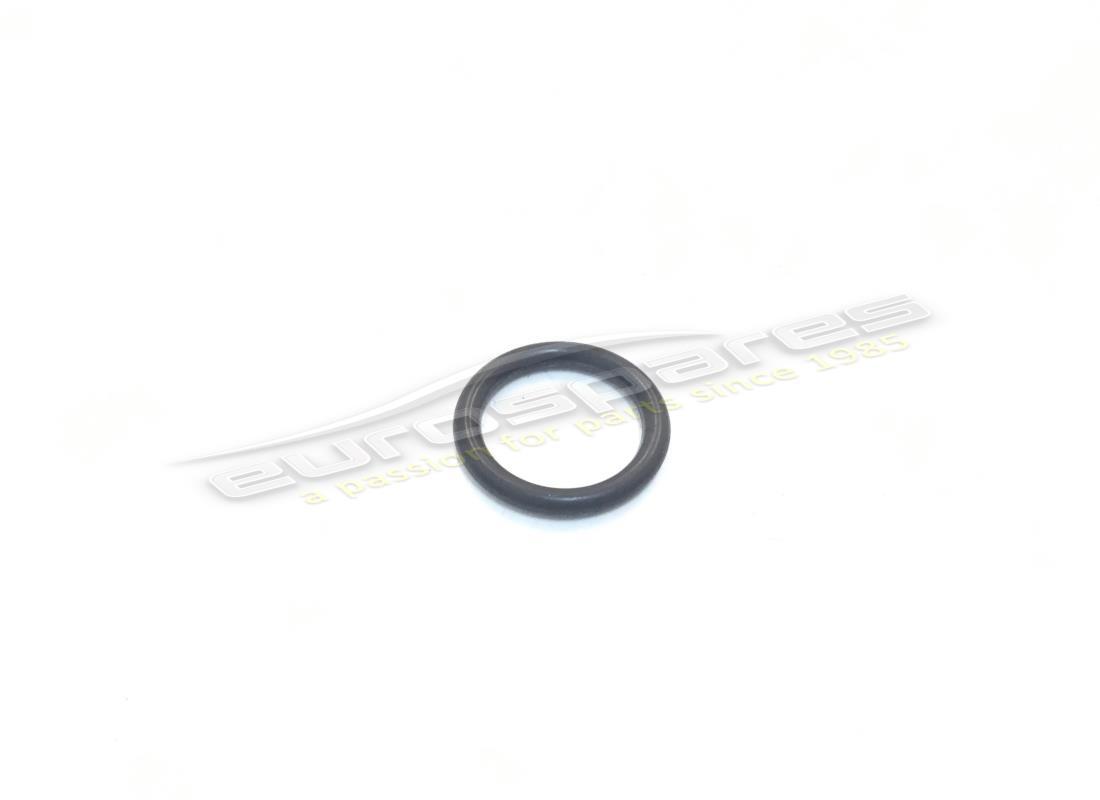

                                      O.R. GASKET
                                      from £0.70
                                      from £0.70
                                      # 030
                                      MPN: 134714

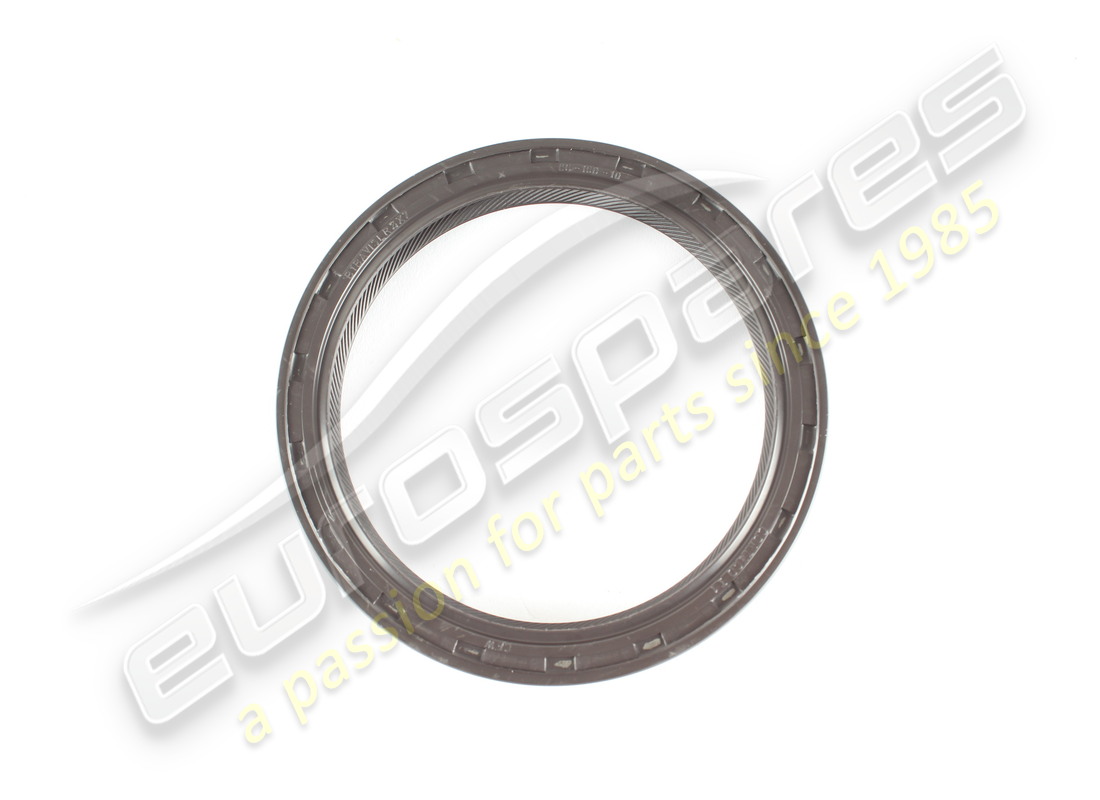

                                      OIL SEAL
                                      from £10.35
                                      from £10.35
                                      This part replaces part number 110314
                                      # 031
                                      MPN: 13525570
                                      THREADED INSERT
                                      from £3.26
                                      from £3.26
                                      This part replaces part number 109668
                                      # 032
                                      MPN: 14305424

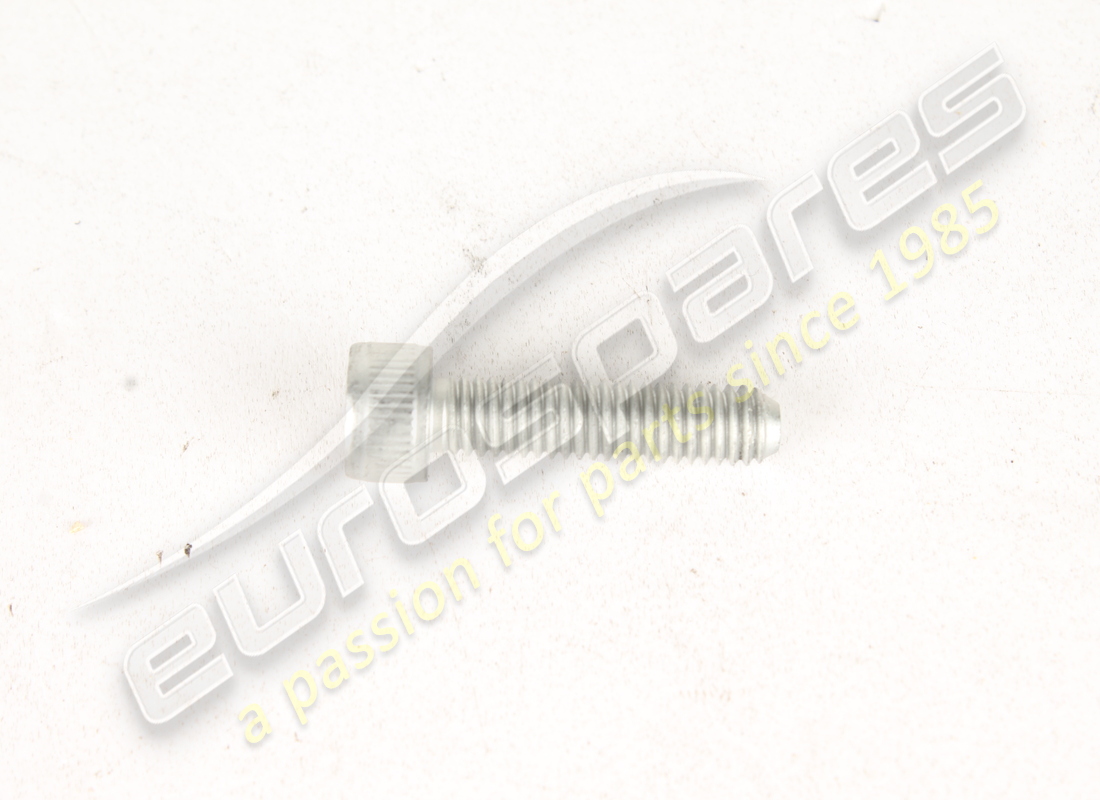

                                      SCREW
                                      - Valid from engine Nr. 36183
                                      from £0.47
                                      from £0.47
                                      This part replaces part number 14305421 - and 2 more. Click to view details
                                      # 033
                                      MPN: 12601374
                                      WASHER
                                      - Valid from engine Nr. 36183 - Valid from engine Nr. 36183
                                      from £0.47
                                      from £0.47
                                      This part replaces part number 10615474 - and 6 more. Click to view details
                                      # 034
                                      MPN: 14305424

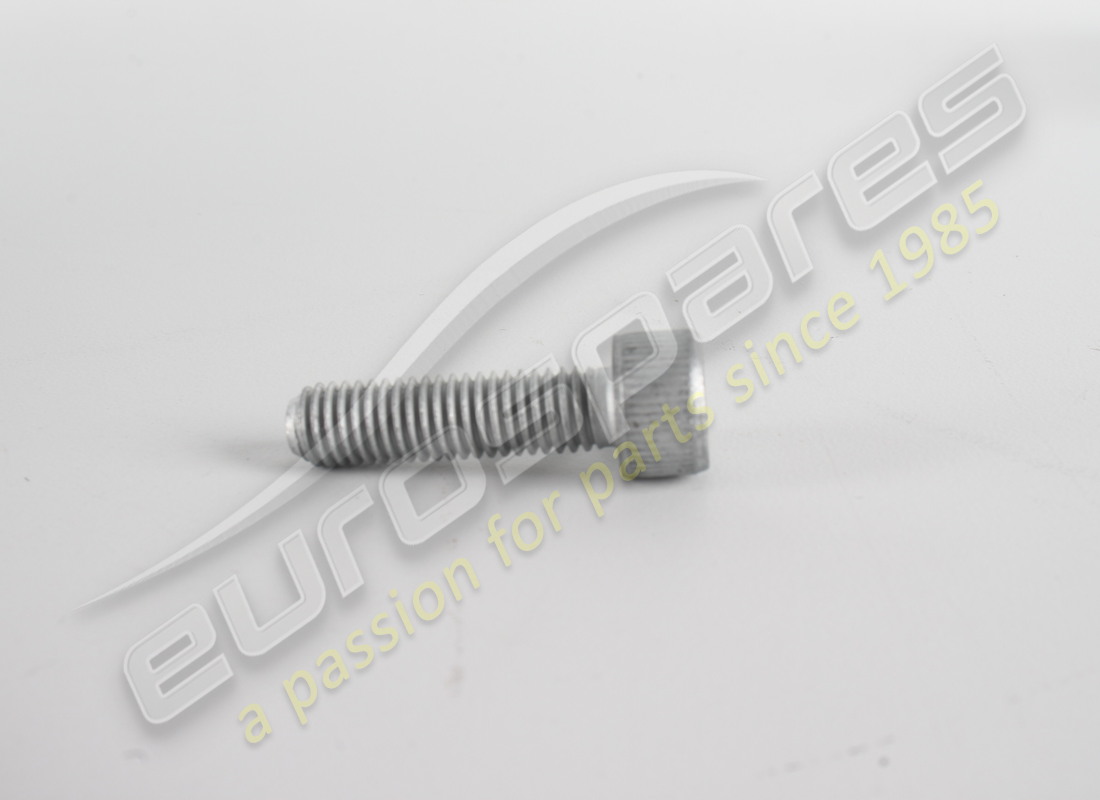

                                      SCREW
                                      from £0.47
                                      from £0.47
                                      This part replaces part number 14305421 - and 2 more. Click to view details
                                      # 035
                                      MPN: 12601374
                                      WASHER
                                      - Valid from engine Nr. 36183 - Valid from engine Nr. 36183 - Valid from engine Nr. 36183
                                      from £0.47
                                      from £0.47
                                      This part replaces part number 10615474 - and 6 more. Click to view details
                                      # 037
                                      MPN: 14306524
                                      SCREW
                                      from £0.47
                                      from £0.47
                                      This part replaces part number 14306521
                                      # 038
                                      MPN: 11193874
                                      WASHER
                                      - Valid from engine Nr. 36183
                                      from £0.47
                                      from £0.47
                                      This part replaces part number 11193879 which we have in stock
                                      # 039
                                      MPN: 163528
                                      THREADED PLUG
                                      - Valid from engine Nr. 39700, for - USA from engine Nr. 38754, for - CH from engine Nr. 38734
                                      from £2.11
                                      from £2.11
                                      This part replaces part number 10268450 - and 1 more. Click to view details
