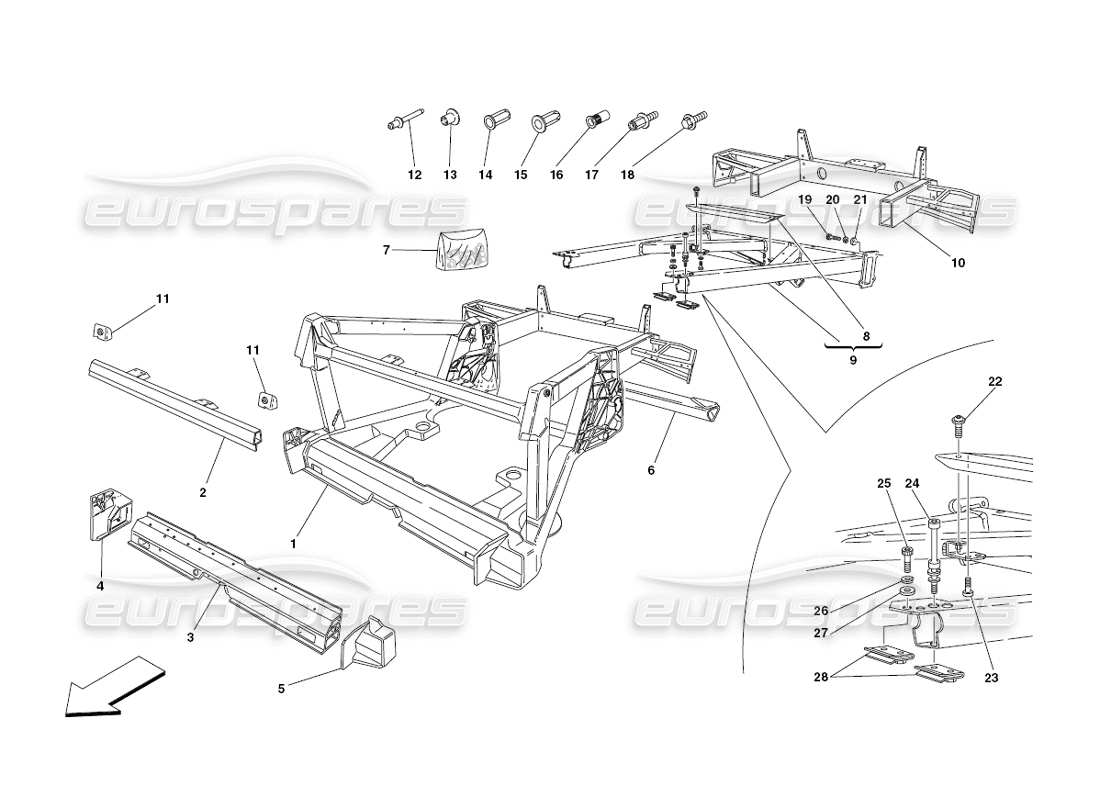

104 - Frame - Rear Elements and Plates

Ferrari 430 Challenge (2006) Frame - Rear Elements and Plates Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Price
                                                        # 001
                                                        MPN: 68886911
                                                        COMPLETE REAR FRAME
                                                        from £5,489.51
                                                        from £5,489.51
                                                        This part replaces part number 68886900 - and 1 more. Click to view details
                                                        # 001
                                                        MPN: 68886911A
                                                        COMPLETE REAR END
                                                        INCLUDES BODY PANELS AND ENGINE CRADLE
                                                        # 002
                                                        MPN: 211682
                                                        COMPLETE TAIL REAR WINDOW CROSSPIECE
                                                        from £134.62
                                                        from £134.62
                                                        This part replaces part number 985211682
                                                        # 003
                                                        MPN: 68887000
                                                        REAR CROSS MEMBER
                                                        Supersession
                                                        Supersession
                                                        # 004
                                                        MPN: 199984
                                                        RH LOWER REAR CASTING
                                                        from £41.88
                                                        from £41.88
                                                        # 005
                                                        MPN: 199983
                                                        LH LOWER REAR CASTING
                                                        from £41.88
                                                        from £41.88
                                                        # 006
                                                        MPN: 207991
                                                        COMPLETE LOWER CROSS MSMBER
                                                        Supersession
                                                        Supersession
                                                        # 007
                                                        MPN: 70000950
                                                        INSERTS KIT FOR REPAIR
                                                        from £957.91
                                                        from £957.91

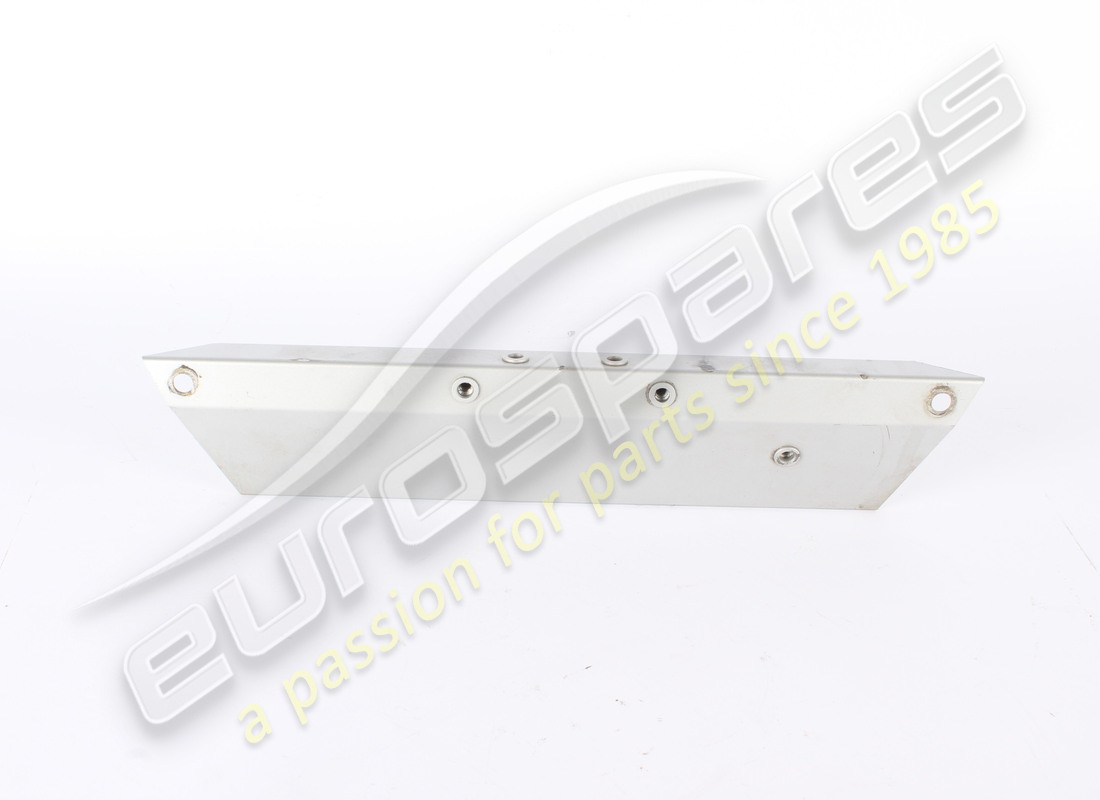

                                                        # 008
                                                        MPN: 208610
                                                        CROSS MEMBER
                                                        from £32.48
                                                        from £32.48
                                                        This part replaces part number 166320 which we have in stock - and 5 more. Click to view details
                                                        # 009
                                                        MPN: 68887111
                                                        COMPLETE REAR REMOVIBLE FRAME
                                                        from £822.90
                                                        from £822.90
                                                        This part replaces part number 68887100 - and 1 more. Click to view details
                                                        # 010
                                                        MPN: 68887211
                                                        COMPLETE REAR FRAME
                                                        Supersession
                                                        Supersession
                                                        # 011
                                                        MPN: 67608200
                                                        REAR BRACKET
                                                        from £8.43
                                                        from £8.43
                                                        This part replaces part number 67608211
                                                        # 012
                                                        MPN: 14642891
                                                        POP RIVET L. 14 MM
                                                        from £0.71
                                                        from £0.71
                                                        # 013
                                                        MPN: 65133800
                                                        RIVET L. 6,4 MM
                                                        from £0.47
                                                        from £0.47
                                                        # 014
                                                        MPN: 15180411
                                                        BLIND HEXAGONAL RIVET
                                                        from £0.81
                                                        from £0.81
                                                        # 014
                                                        MPN: 15624211
                                                        HEXAGONAL RIVET M4
                                                        from £0.81
                                                        from £0.81
                                                        # 014
                                                        MPN: 15624311
                                                        HEXAGONAL RIVET M5
                                                        from £1.85
                                                        from £1.85
                                                        # 014
                                                        MPN: 15624411
                                                        HEXAGONAL RIVET M6
                                                        from £0.84
                                                        from £0.84
                                                        # 014
                                                        MPN: 15624511
                                                        HEXAGONAL RIVET M8
                                                        from £0.71
                                                        from £0.71
                                                        # 015
                                                        MPN: 65151200
                                                        RIVET M6
                                                        from £0.47
                                                        from £0.47
                                                        # 016
                                                        MPN: 166101
                                                        RIVET M4
                                                        from £0.73
                                                        from £0.73
                                                        # 016
                                                        MPN: 60853400
                                                        RIVET M10 BLIND
                                                        from £0.87
                                                        from £0.87
                                                        # 016
                                                        MPN: 65135000
                                                        RIVET M8
                                                        from £0.62
                                                        from £0.62
                                                        # 016
                                                        MPN: 65319800
                                                        RIVET M8 BLIND
                                                        from £0.47
                                                        from £0.47
                                                        # 016
                                                        MPN: 65930400
                                                        RIVET M6
                                                        from £0.50
                                                        from £0.50
                                                        # 017
                                                        MPN: 65065400
                                                        STUD HEXAGONAL HEAD M6
                                                        from £1.66
                                                        from £1.66
                                                        # 018
                                                        MPN: 13836771
                                                        SCREW
                                                        from £1.08
                                                        from £1.08
                                                        # 019
                                                        MPN: 14306374
                                                        SCREW
                                                        from £0.48
                                                        from £0.48
                                                        This part replaces part number 14306334
                                                        # 020
                                                        MPN: 127496
                                                        WASHER
                                                        from £0.53
                                                        from £0.53
                                                        This part replaces part number 10516671 - and 2 more. Click to view details
                                                        # 021
                                                        MPN: 10519601
                                                        WASHER
                                                        from £0.48
                                                        from £0.48
                                                        # 022
                                                        MPN: 62940900
                                                        SCREW
                                                        from £0.73
                                                        from £0.73
                                                        This part replaces part number 67352400
                                                        # 023
                                                        MPN: 62940900
                                                        SCREW
                                                        from £0.73
                                                        from £0.73
                                                        This part replaces part number 67352400
                                                        # 024
                                                        MPN: 183554
                                                        COMPLETE SCREW
                                                        from £14.69
                                                        from £14.69
                                                        # 025
                                                        MPN: 13028734
                                                        SCREW
                                                        from £0.47
                                                        from £0.47
                                                        This part replaces part number 14814434 which we have in stock
                                                        # 026
                                                        MPN: 127496
                                                        WASHER
                                                        from £0.53
                                                        from £0.53
                                                        This part replaces part number 10516671 - and 2 more. Click to view details
                                                        # 027
                                                        MPN: 10519601
                                                        WASHER
                                                        from £0.51
                                                        from £0.51
                                                        # 028
                                                        MPN: 179268
                                                        LH BRACKET
                                                        from £34.90
                                                        from £34.90
                                                        This part replaces part number 985179268
                                                        # 028
                                                        MPN: 179269
                                                        RH BRACKET
                                                        from £30.50
                                                        from £30.50
                                                        This part replaces part number 985179269
