ferrari 430 challenge (2006) fuel tanks parts diagram

010 - Fuel Tanks

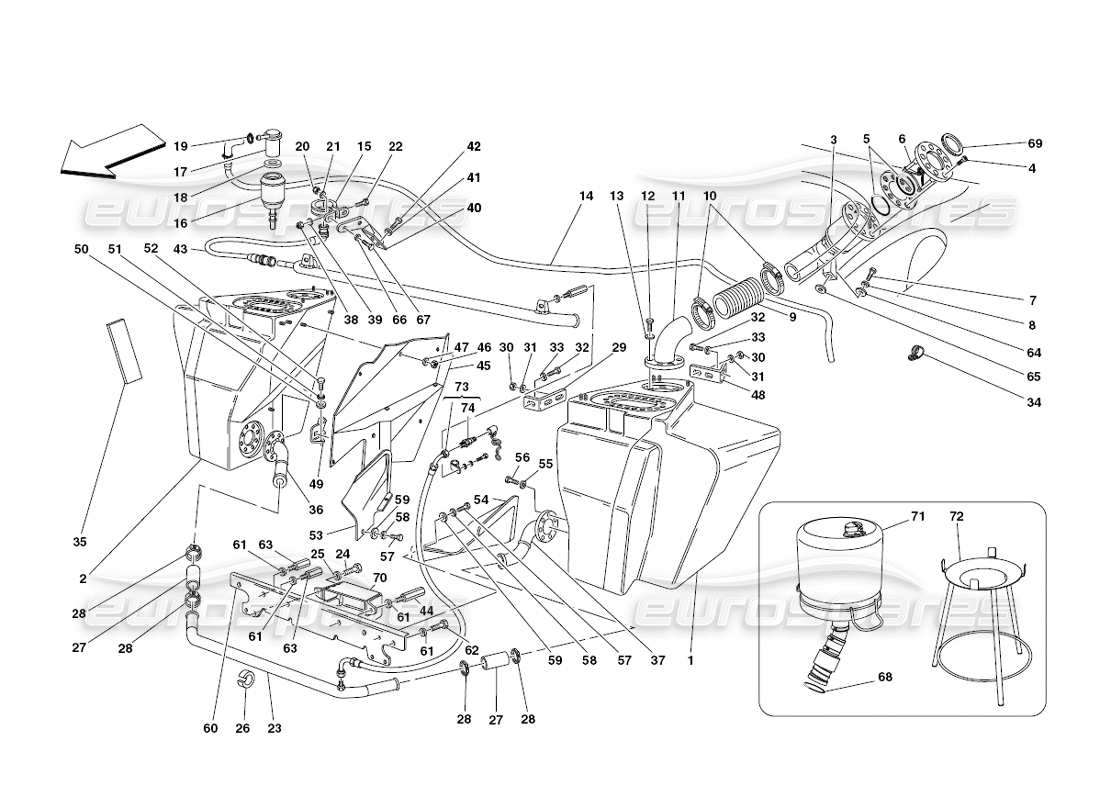

Ferrari 430 Challenge (2006) Fuel Tanks Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                                #
                                                                                                                                                Part number
                                                                                                                                                Description
                                                                                                                                                Price
                                                                                                                                                # 001
                                                                                                                                                MPN: 184735
                                                                                                                                                COMPLETE LH FUEL TANK CONTAINER
                                                                                                                                                from £11,394.51
                                                                                                                                                from £11,394.51
                                                                                                                                                # 002
                                                                                                                                                MPN: 184736
                                                                                                                                                COMPLETE RH FUEL TANK CONTAINER
                                                                                                                                                from £10,314.36
                                                                                                                                                from £10,314.36
                                                                                                                                                # 003
                                                                                                                                                MPN: 221247
                                                                                                                                                RH UNION
                                                                                                                                                from £149.25
                                                                                                                                                from £149.25
                                                                                                                                                # 003
                                                                                                                                                MPN: 221248
                                                                                                                                                LH UNION
                                                                                                                                                from £149.25
                                                                                                                                                from £149.25
                                                                                                                                                # 004
                                                                                                                                                MPN: 14440724
                                                                                                                                                SCREW
                                                                                                                                                from £0.47
                                                                                                                                                from £0.47

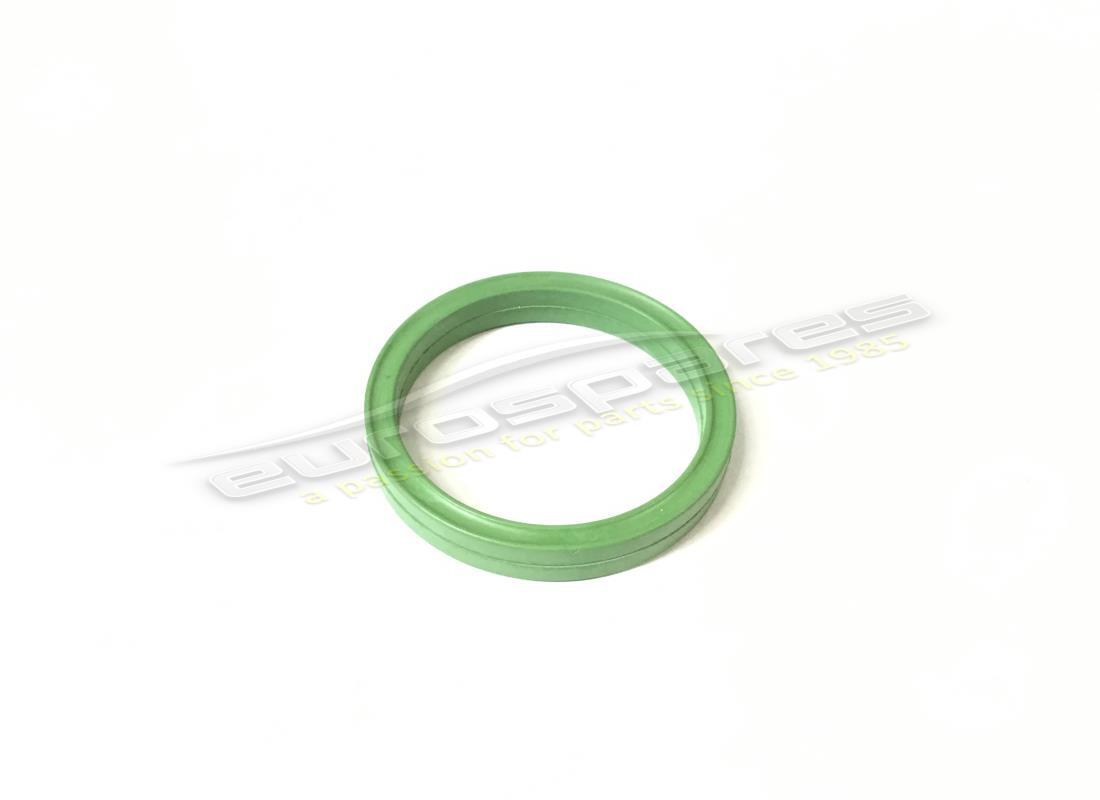

                                                                                                                                                # 005
                                                                                                                                                MPN: 183487
                                                                                                                                                OR-RING
                                                                                                                                                from £6.07
                                                                                                                                                from £6.07
                                                                                                                                                # 006
                                                                                                                                                MPN: 182506
                                                                                                                                                CHALLENGE FUEL PLUG
                                                                                                                                                from £637.46
                                                                                                                                                from £637.46
                                                                                                                                                # 007
                                                                                                                                                MPN: 10902424
                                                                                                                                                SCREW
                                                                                                                                                from £0.53
                                                                                                                                                from £0.53
                                                                                                                                                This part replaces part number 10902324 which we have in stock - and 3 more. Click to view details
                                                                                                                                                # 008
                                                                                                                                                MPN: 127494
                                                                                                                                                WASHER
                                                                                                                                                (minimum order quantity = 20)
                                                                                                                                                from £0.53
                                                                                                                                                from £0.53
                                                                                                                                                This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                                                                                # 009
                                                                                                                                                MPN: 182911
                                                                                                                                                CONNECTION SLEEVE
                                                                                                                                                from £87.42
                                                                                                                                                from £87.42
                                                                                                                                                # 010
                                                                                                                                                MPN: 13000890
                                                                                                                                                SCREW COLLAR
                                                                                                                                                from £0.61
                                                                                                                                                from £0.61
                                                                                                                                                This part replaces part number 12173290 - and 2 more. Click to view details
                                                                                                                                                # 011
                                                                                                                                                MPN: 111829
                                                                                                                                                RH INLET TUBE
                                                                                                                                                # 011
                                                                                                                                                MPN: 182902
                                                                                                                                                LH INLET TUBE
                                                                                                                                                from £81.12
                                                                                                                                                from £81.12
                                                                                                                                                # 012
                                                                                                                                                MPN: 10902224
                                                                                                                                                SCREW
                                                                                                                                                from £0.48
                                                                                                                                                from £0.48
                                                                                                                                                # 013
                                                                                                                                                MPN: 12601274
                                                                                                                                                WASHER
                                                                                                                                                from £0.47
                                                                                                                                                from £0.47
                                                                                                                                                This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                                                                # 014
                                                                                                                                                MPN: 222208
                                                                                                                                                VENT PIPE
                                                                                                                                                from £10.46
                                                                                                                                                from £10.46

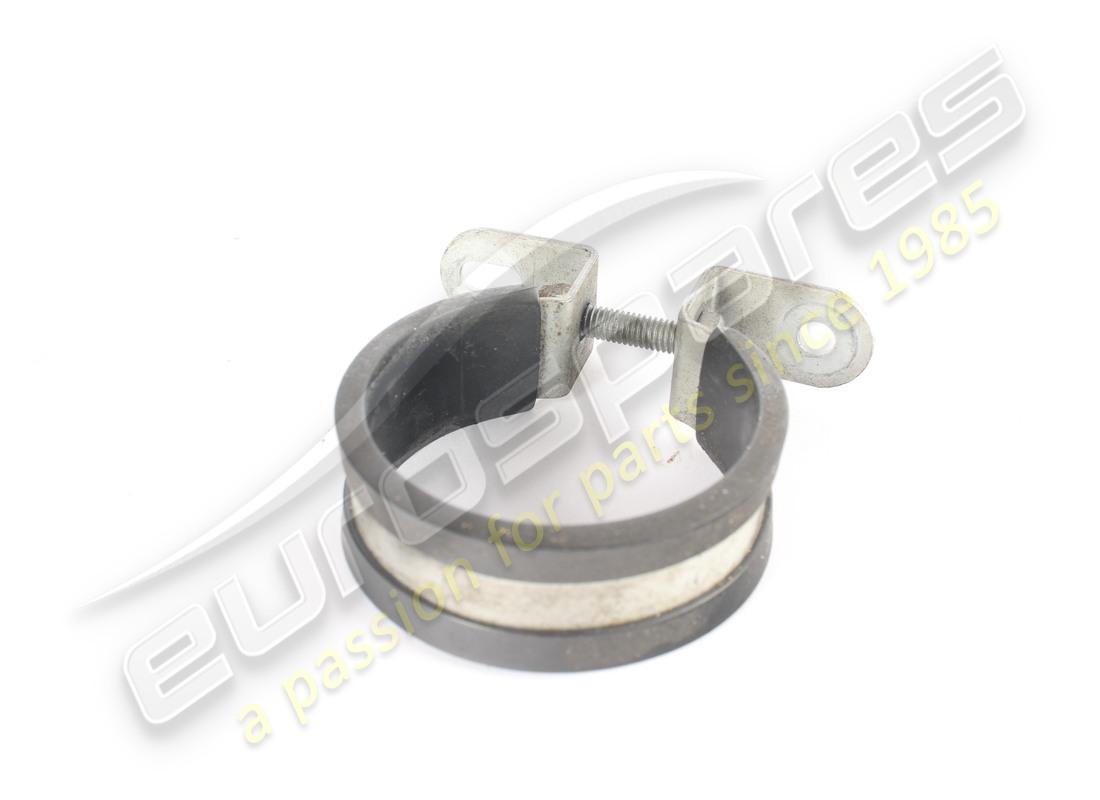

                                                                                                                                                # 015
                                                                                                                                                MPN: 176393
                                                                                                                                                BRACKET WITH SHEATH
                                                                                                                                                from £14.44
                                                                                                                                                from £14.44
                                                                                                                                                # 016
                                                                                                                                                MPN: 175967
                                                                                                                                                MULTIFUNTIONAL VALVE CONTAINER
                                                                                                                                                from £12.22
                                                                                                                                                from £12.22
                                                                                                                                                # 017
                                                                                                                                                MPN: 180030
                                                                                                                                                MULTIFUNTIONAL VALVE
                                                                                                                                                from £88.12
                                                                                                                                                from £88.12
                                                                                                                                                This part replaces part number 179716
                                                                                                                                                # 018
                                                                                                                                                MPN: 195049
                                                                                                                                                GASKET
                                                                                                                                                from £2.55
                                                                                                                                                from £2.55
                                                                                                                                                This part replaces part number 169938
                                                                                                                                                # 019
                                                                                                                                                MPN: 13432070
                                                                                                                                                SCREW COLLAR
                                                                                                                                                from £0.53
                                                                                                                                                from £0.53
                                                                                                                                                This part replaces part number 13125570
                                                                                                                                                # 020
                                                                                                                                                MPN: 10720124
                                                                                                                                                NUT
                                                                                                                                                from £0.47
                                                                                                                                                from £0.47
                                                                                                                                                # 021
                                                                                                                                                MPN: 12644424
                                                                                                                                                WASHER
                                                                                                                                                from £0.47
                                                                                                                                                from £0.47
                                                                                                                                                This part replaces part number 12644401 - and 1 more. Click to view details
                                                                                                                                                # 022
                                                                                                                                                MPN: 10902834
                                                                                                                                                SCREW
                                                                                                                                                from £0.53
                                                                                                                                                from £0.53
                                                                                                                                                # 023
                                                                                                                                                MPN: 221438
                                                                                                                                                TANKS CONNECTION PIPE
                                                                                                                                                from £45.39
                                                                                                                                                from £45.39
                                                                                                                                                # 024
                                                                                                                                                MPN: 10902424
                                                                                                                                                SCREW
                                                                                                                                                from £0.53
                                                                                                                                                from £0.53
                                                                                                                                                This part replaces part number 10902324 which we have in stock - and 3 more. Click to view details
                                                                                                                                                # 025
                                                                                                                                                MPN: 12644424
                                                                                                                                                WASHER
                                                                                                                                                from £0.47
                                                                                                                                                from £0.47
                                                                                                                                                This part replaces part number 12644401 - and 1 more. Click to view details
                                                                                                                                                # 026
                                                                                                                                                MPN: 177437
                                                                                                                                                RUBBER THICKNESS
                                                                                                                                                from £21.66
                                                                                                                                                from £21.66
                                                                                                                                                # 027
                                                                                                                                                MPN: 114277
                                                                                                                                                RUBBER HOSE
                                                                                                                                                from £68.86
                                                                                                                                                from £68.86
                                                                                                                                                This part replaces part number 101468 - and 1 more. Click to view details
                                                                                                                                                # 028
                                                                                                                                                MPN: 168220
                                                                                                                                                SCREW COLLAR
                                                                                                                                                from £0.85
                                                                                                                                                from £0.85
                                                                                                                                                # 029
                                                                                                                                                MPN: 65986900
                                                                                                                                                RH FRONT BRACKET
                                                                                                                                                from £4.62
                                                                                                                                                from £4.62
                                                                                                                                                # 029
                                                                                                                                                MPN: 65987000
                                                                                                                                                LH FRONT BRACKET
                                                                                                                                                from £4.62
                                                                                                                                                from £4.62
                                                                                                                                                # 030
                                                                                                                                                MPN: 102948
                                                                                                                                                NUT
                                                                                                                                                from £0.47
                                                                                                                                                from £0.47
                                                                                                                                                This part replaces part number 12574211 - and 3 more. Click to view details
                                                                                                                                                # 031
                                                                                                                                                MPN: 12644477
                                                                                                                                                WASHER
                                                                                                                                                from £0.71
                                                                                                                                                from £0.71
                                                                                                                                                This part replaces part number 12644406
                                                                                                                                                # 032
                                                                                                                                                MPN: 10902424
                                                                                                                                                SCREW
                                                                                                                                                from £0.51
                                                                                                                                                from £0.51
                                                                                                                                                This part replaces part number 10902324 which we have in stock - and 3 more. Click to view details
                                                                                                                                                # 033
                                                                                                                                                MPN: 12643724
                                                                                                                                                WASHER
                                                                                                                                                from £0.47
                                                                                                                                                from £0.47
                                                                                                                                                This part replaces part number 109684 - and 4 more. Click to view details
                                                                                                                                                # 034
                                                                                                                                                MPN: 10441590
                                                                                                                                                BRACKET WITH SHEATH
                                                                                                                                                from £0.47
                                                                                                                                                from £0.47
                                                                                                                                                This part replaces part number 10113600
                                                                                                                                                # 035
                                                                                                                                                MPN: 159147
                                                                                                                                                RUBBER THICKNESS
                                                                                                                                                from £0.47
                                                                                                                                                from £0.47
                                                                                                                                                # 036
                                                                                                                                                MPN: 182906
                                                                                                                                                RH PIPE
                                                                                                                                                from £79.99
                                                                                                                                                from £79.99
                                                                                                                                                # 037
                                                                                                                                                MPN: 182907
                                                                                                                                                LH PIPE
                                                                                                                                                from £91.56
                                                                                                                                                from £91.56
                                                                                                                                                # 038
                                                                                                                                                MPN: 102741
                                                                                                                                                NUT
                                                                                                                                                from £0.47
                                                                                                                                                from £0.47
                                                                                                                                                This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                                                                                # 039
                                                                                                                                                MPN: 12639724
                                                                                                                                                WASHER
                                                                                                                                                from £0.47
                                                                                                                                                from £0.47
                                                                                                                                                This part replaces part number 12639725 - and 1 more. Click to view details
                                                                                                                                                # 040
                                                                                                                                                MPN: 183399
                                                                                                                                                SUPPORTING BRACKET
                                                                                                                                                from £30.10
                                                                                                                                                from £30.10
                                                                                                                                                # 041
                                                                                                                                                MPN: 12644424
                                                                                                                                                WASHER
                                                                                                                                                from £0.47
                                                                                                                                                from £0.47
                                                                                                                                                This part replaces part number 12644401 - and 1 more. Click to view details
                                                                                                                                                # 042
                                                                                                                                                MPN: 10902224
                                                                                                                                                SCREW
                                                                                                                                                from £0.53
                                                                                                                                                from £0.53
                                                                                                                                                # 043
                                                                                                                                                MPN: 180373
                                                                                                                                                PIPE FROM MULTIFUNTIONAL VALVE TO DISAREATOR
                                                                                                                                                from £46.58
                                                                                                                                                from £46.58
                                                                                                                                                This part replaces part number 175965
                                                                                                                                                # 044
                                                                                                                                                MPN: 182363
                                                                                                                                                STUD
                                                                                                                                                from £15.70
                                                                                                                                                from £15.70
                                                                                                                                                # 045
                                                                                                                                                MPN: 182519
                                                                                                                                                RH FRONT PANEL
                                                                                                                                                from £192.46
                                                                                                                                                from £192.46
                                                                                                                                                # 045
                                                                                                                                                MPN: 182520
                                                                                                                                                LH FRONT PANEL
                                                                                                                                                from £192.46
                                                                                                                                                from £192.46
                                                                                                                                                # 046
                                                                                                                                                MPN: 169180
                                                                                                                                                NUT
                                                                                                                                                from £0.47
                                                                                                                                                from £0.47
                                                                                                                                                This part replaces part number 12574121
                                                                                                                                                # 047
                                                                                                                                                MPN: 12638178
                                                                                                                                                WASHER
                                                                                                                                                from £0.47
                                                                                                                                                from £0.47
                                                                                                                                                This part replaces part number 10519578 - and 3 more. Click to view details
                                                                                                                                                # 048
                                                                                                                                                MPN: 65987100
                                                                                                                                                RH REAR BRACKET
                                                                                                                                                from £12.37
                                                                                                                                                from £12.37
                                                                                                                                                # 048
                                                                                                                                                MPN: 65987200
                                                                                                                                                LH REAR BRACKET
                                                                                                                                                from £12.37
                                                                                                                                                from £12.37
                                                                                                                                                # 049
                                                                                                                                                MPN: 183622
                                                                                                                                                LOWER BRACKET FOR RH TANK FIXING
                                                                                                                                                from £13.72
                                                                                                                                                from £13.72
                                                                                                                                                # 049
                                                                                                                                                MPN: 183623
                                                                                                                                                LOWER BRACKET FOR LH TANK FIXING
                                                                                                                                                from £13.72
                                                                                                                                                from £13.72
                                                                                                                                                # 050
                                                                                                                                                MPN: 12643724
                                                                                                                                                WASHER
                                                                                                                                                from £0.47
                                                                                                                                                from £0.47
                                                                                                                                                This part replaces part number 109684 - and 4 more. Click to view details
                                                                                                                                                # 051
                                                                                                                                                MPN: 12605374
                                                                                                                                                WASHER
                                                                                                                                                from £0.71
                                                                                                                                                from £0.71
                                                                                                                                                This part replaces part number 12605370 which we have in stock - and 1 more. Click to view details
                                                                                                                                                # 052
                                                                                                                                                MPN: 10902424
                                                                                                                                                SCREW
                                                                                                                                                from £0.53
                                                                                                                                                from £0.53
                                                                                                                                                This part replaces part number 10902324 which we have in stock - and 3 more. Click to view details
                                                                                                                                                # 053
                                                                                                                                                MPN: 182521
                                                                                                                                                LOWER RH ANTI-HEAT SHIELD
                                                                                                                                                from £59.33
                                                                                                                                                from £59.33
                                                                                                                                                # 054
                                                                                                                                                MPN: 222654
                                                                                                                                                LOWER LH ANTI-HEAT SHIELD
                                                                                                                                                from £140.42
                                                                                                                                                from £140.42
                                                                                                                                                # 055
                                                                                                                                                MPN: 12601274
                                                                                                                                                WASHER
                                                                                                                                                from £0.47
                                                                                                                                                from £0.47
                                                                                                                                                This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                                                                # 056
                                                                                                                                                MPN: 10977524
                                                                                                                                                SCREW
                                                                                                                                                from £0.48
                                                                                                                                                from £0.48
                                                                                                                                                # 057
                                                                                                                                                MPN: 10902424
                                                                                                                                                SCREW
                                                                                                                                                from £0.51
                                                                                                                                                from £0.51
                                                                                                                                                This part replaces part number 10902324 which we have in stock - and 3 more. Click to view details
                                                                                                                                                # 058
                                                                                                                                                MPN: 12605374
                                                                                                                                                WASHER
                                                                                                                                                from £0.71
                                                                                                                                                from £0.71
                                                                                                                                                This part replaces part number 12605370 which we have in stock - and 1 more. Click to view details
                                                                                                                                                # 059
                                                                                                                                                MPN: 14499324
                                                                                                                                                WASHER
                                                                                                                                                from £0.47
                                                                                                                                                from £0.47
                                                                                                                                                This part replaces part number 14499301 which we have in stock
                                                                                                                                                # 060
                                                                                                                                                MPN: 198222
                                                                                                                                                PROTECTION PLATE
                                                                                                                                                from £22.94
                                                                                                                                                from £22.94
                                                                                                                                                # 061
                                                                                                                                                MPN: 12644424
                                                                                                                                                WASHER
                                                                                                                                                from £0.47
                                                                                                                                                from £0.47
                                                                                                                                                This part replaces part number 12644401 - and 1 more. Click to view details
                                                                                                                                                # 062
                                                                                                                                                MPN: 10902424
                                                                                                                                                SCREW
                                                                                                                                                from £0.49
                                                                                                                                                from £0.49
                                                                                                                                                This part replaces part number 10902324 which we have in stock - and 3 more. Click to view details
                                                                                                                                                # 063
                                                                                                                                                MPN: 178772
                                                                                                                                                STUD
                                                                                                                                                from £5.72
                                                                                                                                                from £5.72
                                                                                                                                                # 064
                                                                                                                                                MPN: 12643724
                                                                                                                                                WASHER
                                                                                                                                                from £0.47
                                                                                                                                                from £0.47
                                                                                                                                                This part replaces part number 109684 - and 4 more. Click to view details
                                                                                                                                                # 065
                                                                                                                                                MPN: 12643724
                                                                                                                                                WASHER
                                                                                                                                                -Possible fitting-
                                                                                                                                                from £0.47
                                                                                                                                                from £0.47
                                                                                                                                                This part replaces part number 109684 - and 4 more. Click to view details
                                                                                                                                                # 066
                                                                                                                                                MPN: 127494
                                                                                                                                                WASHER
                                                                                                                                                (minimum order quantity = 20)
                                                                                                                                                from £0.53
                                                                                                                                                from £0.53
                                                                                                                                                This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                                                                                # 067
                                                                                                                                                MPN: 10977524
                                                                                                                                                SCREW
                                                                                                                                                from £0.53
                                                                                                                                                from £0.53
                                                                                                                                                # 068
                                                                                                                                                MPN: 189897
                                                                                                                                                OR-RING
                                                                                                                                                from £10.18
                                                                                                                                                from £10.18
                                                                                                                                                # 069
                                                                                                                                                MPN: 189878
                                                                                                                                                RUBBER RING FOR UNION
                                                                                                                                                from £37.39
                                                                                                                                                from £37.39
                                                                                                                                                # 070
                                                                                                                                                MPN: 186045
                                                                                                                                                Frame
                                                                                                                                                from £18.71
                                                                                                                                                from £18.71
                                                                                                                                                This part replaces part number 176994 - and 1 more. Click to view details
                                                                                                                                                # 071
                                                                                                                                                MPN: 183914
                                                                                                                                                TANKS FILLING KIT
                                                                                                                                                from £3,846.68
                                                                                                                                                from £3,846.68
                                                                                                                                                # 072
                                                                                                                                                MPN: 183915
                                                                                                                                                TANK SUPPORT
                                                                                                                                                from £298.61
                                                                                                                                                from £298.61
                                                                                                                                                # 073
                                                                                                                                                MPN: 221439
                                                                                                                                                PUMP-DOWN PIPE
                                                                                                                                                from £816.32
                                                                                                                                                from £816.32
                                                                                                                                                # 074
                                                                                                                                                MPN: 221916
                                                                                                                                                COUPLING
                                                                                                                                                from £157.06
                                                                                                                                                from £157.06
