ferrari 430 challenge (2006) rh cylinder head parts diagram

003 - RH cylinder head

Ferrari 430 Challenge (2006) RH cylinder head Parts Diagram

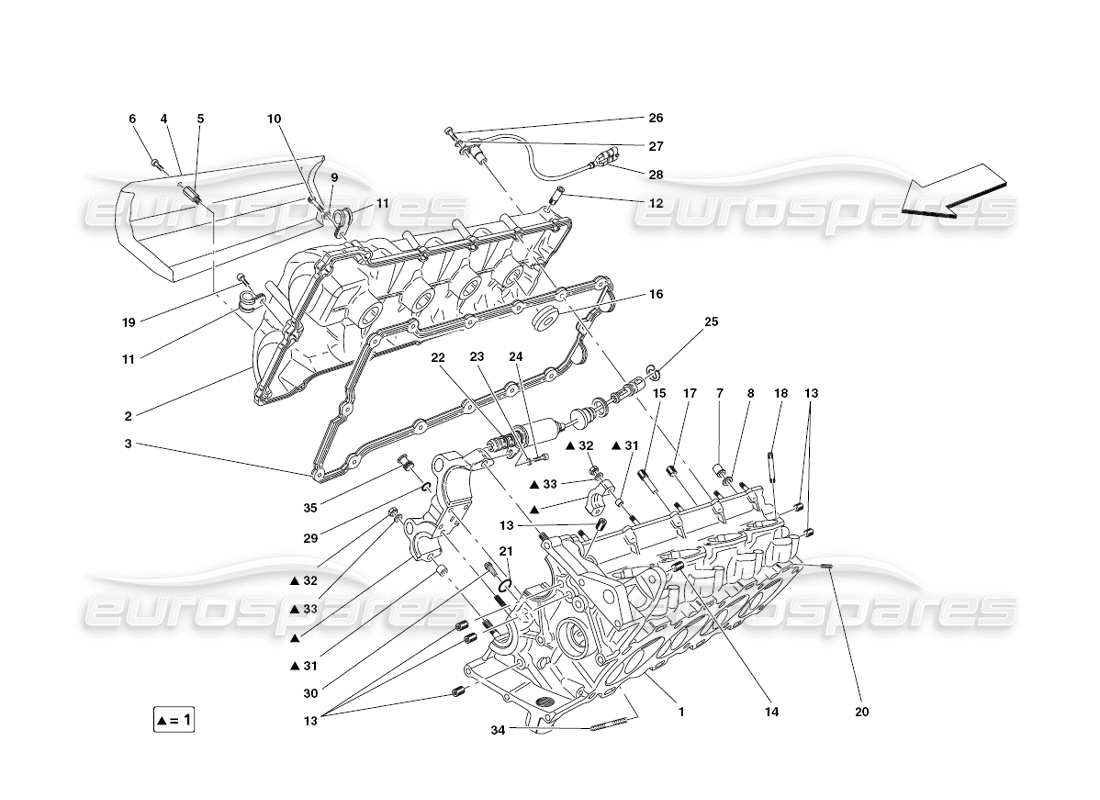

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                        #
                                                                        Part number
                                                                        Description
                                                                        Price
                                                                        # 001
                                                                        MPN: 221076
                                                                        COMPLETE RH HEAD
                                                                        from £958.88
                                                                        from £958.88
                                                                        # 002
                                                                        MPN: 197575
                                                                        RH CYLINDERS HEAD COVER
                                                                        Supersession
                                                                        Supersession
                                                                        # 004
                                                                        MPN: 220405
                                                                        ANTI-HEAT SHIELD
                                                                        Supersession
                                                                        Supersession
                                                                        # 005
                                                                        MPN: 220417

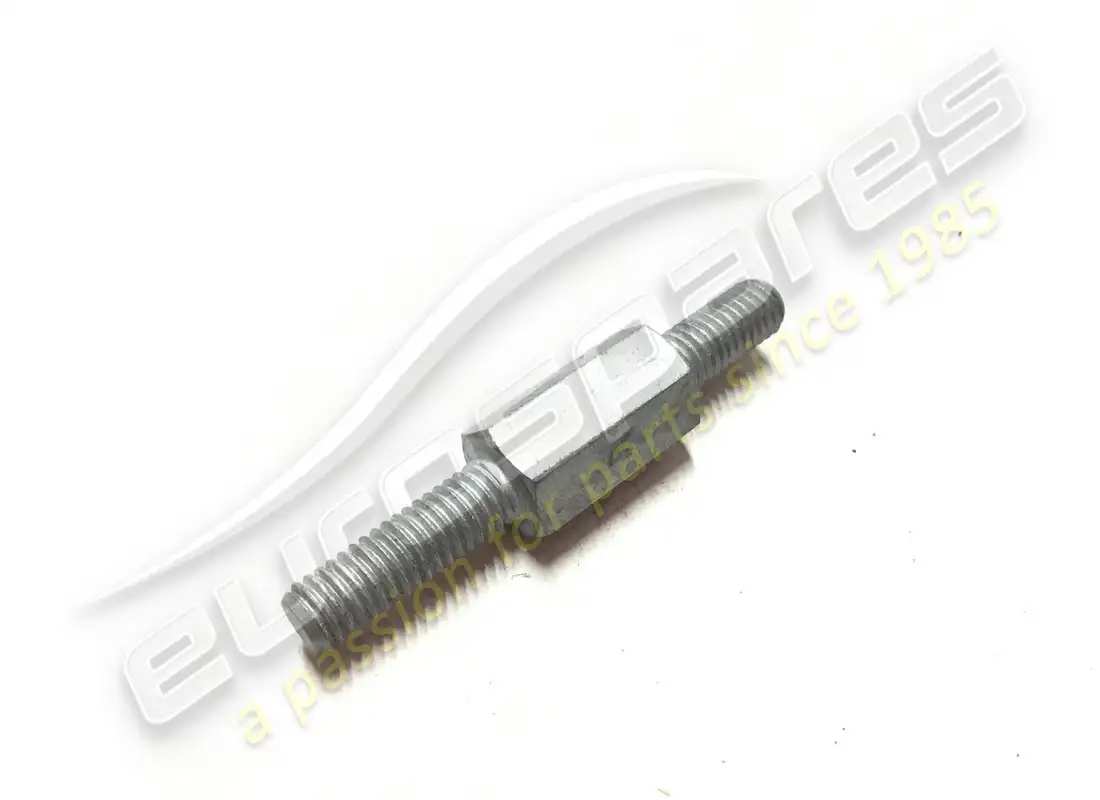

                                                                        STUD
                                                                        from £47.73
                                                                        from £47.73
                                                                        # 006
                                                                        MPN: 14305324
                                                                        SCREW
                                                                        from £0.53
                                                                        from £0.53
                                                                        This part replaces part number 14305321
                                                                        # 007
                                                                        MPN: 183524
                                                                        NUT
                                                                        from £1.20
                                                                        from £1.20
                                                                        # 008
                                                                        MPN: 151117
                                                                        WASHER
                                                                        from £0.31
                                                                        from £0.31
                                                                        # 009
                                                                        MPN: 11197774
                                                                        WASHER
                                                                        from £0.52
                                                                        from £0.52
                                                                        This part replaces part number 11197770 - and 3 more. Click to view details
                                                                        # 010
                                                                        MPN: 156834
                                                                        SCREW
                                                                        from £1.55
                                                                        from £1.55
                                                                        # 010
                                                                        MPN: 223838
                                                                        HOLED SCREW
                                                                        from £0.65
                                                                        from £0.65
                                                                        # 011
                                                                        MPN: 10441490
                                                                        BRACKET WITH SHEATH
                                                                        from £0.51
                                                                        from £0.51
                                                                        # 012
                                                                        MPN: 124342
                                                                        UNION
                                                                        from £3.56
                                                                        from £3.56
                                                                        # 013
                                                                        MPN: 14326001
                                                                        THREADED PLUG
                                                                        from £0.50
                                                                        from £0.50
                                                                        This part replaces part number 194495
                                                                        # 014
                                                                        MPN: 140135
                                                                        THREADED INSERT
                                                                        from £1.74
                                                                        from £1.74
                                                                        # 015
                                                                        MPN: 183447
                                                                        THREADED PLUG
                                                                        from £4.63
                                                                        from £4.63
                                                                        # 016
                                                                        MPN: 187706
                                                                        GASKET
                                                                        from £3.24
                                                                        from £3.24
                                                                        # 017
                                                                        MPN: 164400
                                                                        THREADED PLUG
                                                                        from £2.16
                                                                        from £2.16
                                                                        This part replaces part number 194490
                                                                        # 018
                                                                        MPN: 13541334
                                                                        STUD
                                                                        from £0.51
                                                                        from £0.51
                                                                        # 019
                                                                        MPN: 14305124
                                                                        SCREW
                                                                        from £0.53
                                                                        from £0.53
                                                                        This part replaces part number 14305121
                                                                        # 020
                                                                        MPN: 199760
                                                                        THREADED PLUG
                                                                        from £0.53
                                                                        from £0.53
                                                                        # 021
                                                                        MPN: 134233
                                                                        GASKET
                                                                        from £0.53
                                                                        from £0.53
                                                                        # 022
                                                                        MPN: 250646
                                                                        VARIATOR CONTROL SOLENOID VALVE
                                                                        from £523.08
                                                                        from £523.08
                                                                        This part replaces part number 212422
                                                                        # 022
                                                                        MPN: 250646
                                                                        VARIATOR CONTROL SOLENOID VALVE
                                                                        from £523.08
                                                                        from £523.08
                                                                        This part replaces part number 212422
                                                                        # 023
                                                                        MPN: 11197774
                                                                        WASHER
                                                                        from £0.54
                                                                        from £0.54
                                                                        This part replaces part number 11197770 - and 3 more. Click to view details
                                                                        # 024
                                                                        MPN: 14433124
                                                                        CREW
                                                                        from £0.53
                                                                        from £0.53
                                                                        This part replaces part number 14433121
                                                                        # 025
                                                                        MPN: 11087374
                                                                        FLEXIBLE RING
                                                                        from £1.55
                                                                        from £1.55
                                                                        # 026
                                                                        MPN: 14305224
                                                                        SCREW
                                                                        from £0.53
                                                                        from £0.53
                                                                        # 027
                                                                        MPN: 11197774
                                                                        WASHER
                                                                        from £0.54
                                                                        from £0.54
                                                                        This part replaces part number 11197770 - and 3 more. Click to view details
                                                                        # 028
                                                                        MPN: 219864

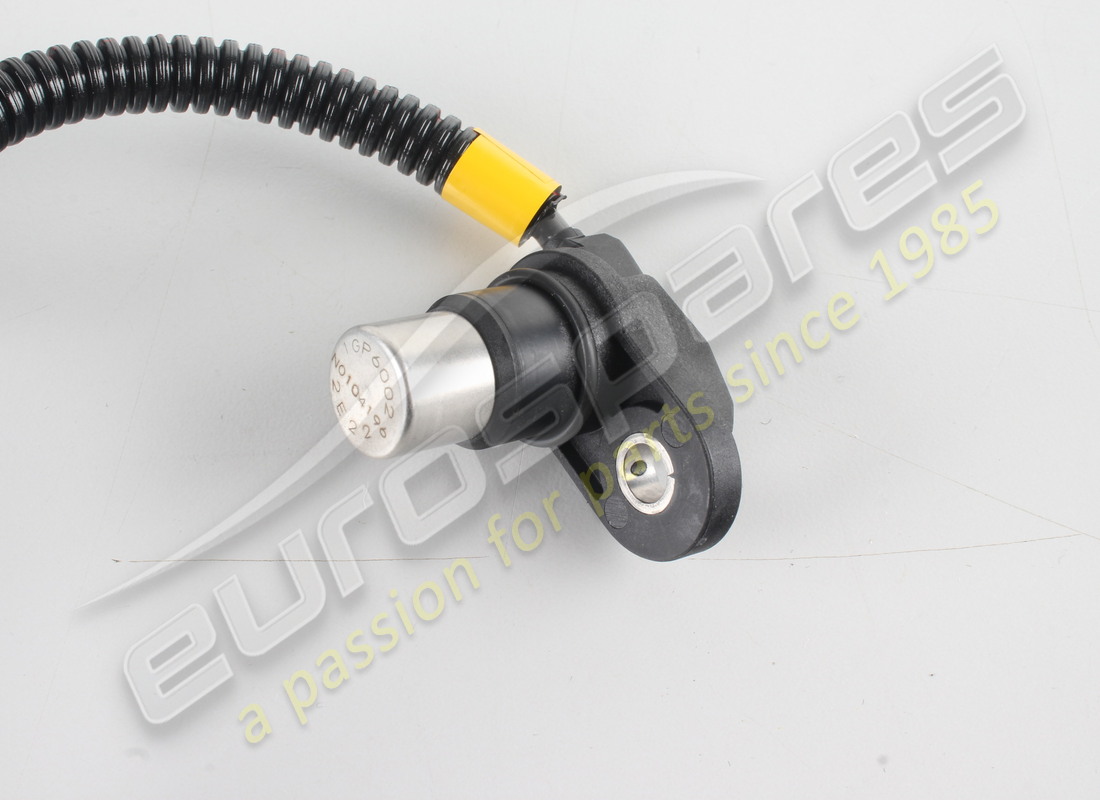

                                                                        RH INDUCTION SHAFT PHASE SENSOR
                                                                        from £102.83
                                                                        from £102.83
                                                                        # 028
                                                                        MPN: 219865
                                                                        RH EXHAUST SHAFT PHASE SENSOR
                                                                        from £169.03
                                                                        from £169.03
                                                                        # 029
                                                                        MPN: 220245
                                                                        GASKET
                                                                        from £4.15
                                                                        from £4.15
                                                                        # 030
                                                                        MPN: 180266
                                                                        OIL FILTER
                                                                        Supersession
                                                                        Supersession
                                                                        # 031
                                                                        MPN: 102725
                                                                        CENTERING DOWEL
                                                                        from £0.60
                                                                        from £0.60
                                                                        # 032
                                                                        MPN: 15896211
                                                                        NUT
                                                                        Supersession
                                                                        Supersession
                                                                        This part replaces part number 15896210 which we have in stock
                                                                        # 033
                                                                        MPN: 11197774
                                                                        WASHER
                                                                        from £0.51
                                                                        from £0.51
                                                                        This part replaces part number 11197770 - and 3 more. Click to view details
                                                                        # 034
                                                                        MPN: 211641
                                                                        STUD
                                                                        from £0.65
                                                                        from £0.65
                                                                        # 035
                                                                        MPN: 220239
                                                                        PLUG
                                                                        from £3.97
                                                                        from £3.97
