ferrari 412 (mechanical) rear suspension - levers and shock absorbers parts diagram

052 - Rear Suspension - Levers and Shock Absorbers

Ferrari 412 (Mechanical) Rear Suspension - Levers and Shock Absorbers Parts Diagram

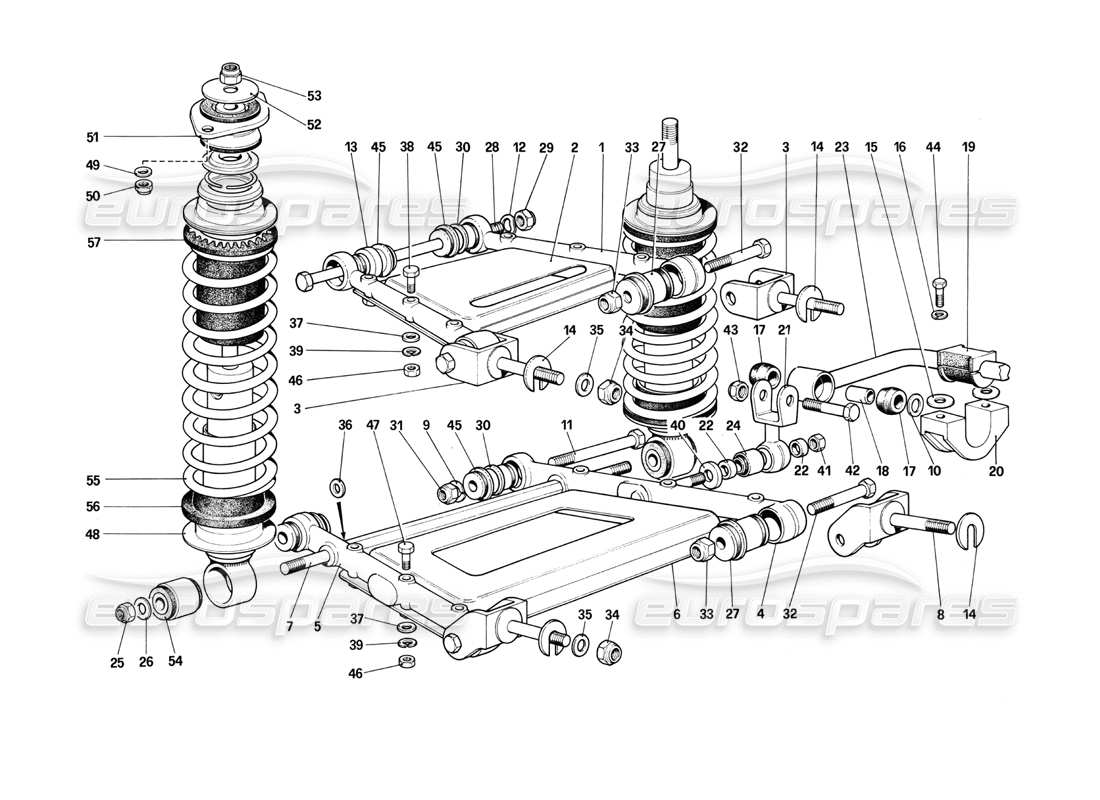

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                    #
                                                                                                                    Part number
                                                                                                                    Description
                                                                                                                    Price
                                                                                                                    # 001
                                                                                                                    MPN: 119328
                                                                                                                    ARM FOR UPPER LEVER
                                                                                                                    from £106.86
                                                                                                                    from £106.86
                                                                                                                    # 002
                                                                                                                    MPN: 100782
                                                                                                                    PLATE FOR UPPER LEVER
                                                                                                                    from £90.89
                                                                                                                    from £90.89
                                                                                                                    This part replaces part number 601637
                                                                                                                    # 003
                                                                                                                    MPN: 101054
                                                                                                                    FORK FOR UPPER LEVERS
                                                                                                                    from £56.43
                                                                                                                    from £56.43
                                                                                                                    This part replaces part number 601644 - and 1 more. Click to view details
                                                                                                                    # 004
                                                                                                                    MPN: 119329
                                                                                                                    REAR LOWER LEVER
                                                                                                                    from £138.55
                                                                                                                    from £138.55
                                                                                                                    # 005
                                                                                                                    MPN: 119330
                                                                                                                    FRONT ARM FOR FRONT LEVER
                                                                                                                    from £226.38
                                                                                                                    from £226.38
                                                                                                                    # 006
                                                                                                                    MPN: 100783
                                                                                                                    PLATE FOR LOWER LEVER
                                                                                                                    from £199.40
                                                                                                                    from £199.40
                                                                                                                    This part replaces part number 601641
                                                                                                                    # 007
                                                                                                                    MPN: 100806
                                                                                                                    PIN FOR SHOCK ABSORBERS
                                                                                                                    from £63.13
                                                                                                                    from £63.13
                                                                                                                    This part replaces part number 601642 - and 1 more. Click to view details
                                                                                                                    # 008
                                                                                                                    MPN: 159399
                                                                                                                    LOWER FORK
                                                                                                                    from £202.65
                                                                                                                    from £202.65
                                                                                                                    This part replaces part number 100784 - and 2 more. Click to view details
                                                                                                                    # 009
                                                                                                                    MPN: 12601571
                                                                                                                    SPRING WASHER
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    This part replaces part number 12601574
                                                                                                                    # 010
                                                                                                                    MPN: 105334
                                                                                                                    WASHER
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 011
                                                                                                                    MPN: 120760
                                                                                                                    BOLT
                                                                                                                    from £49.41
                                                                                                                    from £49.41
                                                                                                                    # 012
                                                                                                                    MPN: 12601571
                                                                                                                    WASHER
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    This part replaces part number 12601574
                                                                                                                    # 013
                                                                                                                    MPN: 111634
                                                                                                                    SPACER
                                                                                                                    from £4.35
                                                                                                                    from £4.35
                                                                                                                    # 014
                                                                                                                    MPN: 101039
                                                                                                                    SHIM, THICKNESS 1 MM.
                                                                                                                    from £1.78
                                                                                                                    from £1.78
                                                                                                                    This part replaces part number 107025 - and 1 more. Click to view details
                                                                                                                    # 014
                                                                                                                    MPN: 107338
                                                                                                                    SHIM, THICKNESS 1 .5 MM.
                                                                                                                    from £12.97
                                                                                                                    from £12.97
                                                                                                                    This part replaces part number 107418
                                                                                                                    # 014
                                                                                                                    MPN: 107339
                                                                                                                    SHIM, THICKNESS 2 MM.
                                                                                                                    from £1.17
                                                                                                                    from £1.17
                                                                                                                    This part replaces part number 107419
                                                                                                                    # 014
                                                                                                                    MPN: 107340
                                                                                                                    SHIM, THICKNESS 2.5 MM.
                                                                                                                    from £1.11
                                                                                                                    from £1.11
                                                                                                                    This part replaces part number 107420
                                                                                                                    # 014
                                                                                                                    MPN: 107341
                                                                                                                    SHIM, THICKNESS 3 MM.
                                                                                                                    from £2.84
                                                                                                                    from £2.84
                                                                                                                    This part replaces part number 107421
                                                                                                                    # 014
                                                                                                                    MPN: 107342
                                                                                                                    SHIM, THICKNESS 3.25 MM.
                                                                                                                    from £0.48
                                                                                                                    from £0.48
                                                                                                                    This part replaces part number 107422
                                                                                                                    # 015
                                                                                                                    MPN: 100812
                                                                                                                    SHIM
                                                                                                                    from £1.05
                                                                                                                    from £1.05
                                                                                                                    This part replaces part number 94724
                                                                                                                    # 016
                                                                                                                    MPN: 127497
                                                                                                                    WASHER
                                                                                                                    from £0.53
                                                                                                                    from £0.53
                                                                                                                    This part replaces part number 10516871 - and 2 more. Click to view details
                                                                                                                    # 017
                                                                                                                    MPN: 100984
                                                                                                                    RUBBER FOR LINK
                                                                                                                    from £6.56
                                                                                                                    from £6.56
                                                                                                                    This part replaces part number 126097 - and 1 more. Click to view details
                                                                                                                    # 018
                                                                                                                    MPN: 100985
                                                                                                                    SPACER FOR LINK
                                                                                                                    from £21.06
                                                                                                                    from £21.06
                                                                                                                    This part replaces part number 64431
                                                                                                                    # 019
                                                                                                                    MPN: 108745
                                                                                                                    RUBBER FOR STABILIZER BAR
                                                                                                                    from £22.26
                                                                                                                    from £22.26
                                                                                                                    This part replaces part number 100802
                                                                                                                    # 020
                                                                                                                    MPN: 100805
                                                                                                                    BRACKET FOR STABILIZER BAR
                                                                                                                    from £139.33
                                                                                                                    from £139.33
                                                                                                                    This part replaces part number 601743 - and 1 more. Click to view details
                                                                                                                    # 021
                                                                                                                    MPN: 104420
                                                                                                                    ANTI ROLL BAR LINK
                                                                                                                    from £377.69
                                                                                                                    from £377.69
                                                                                                                    This part replaces part number 64543 - and 1 more. Click to view details
                                                                                                                    # 022
                                                                                                                    MPN: 100771
                                                                                                                    SPACER
                                                                                                                    from £33.42
                                                                                                                    from £33.42
                                                                                                                    This part replaces part number 64544
                                                                                                                    # 023
                                                                                                                    MPN: 118300
                                                                                                                    STABILIZER BAR
                                                                                                                    from £271.21
                                                                                                                    from £271.21
                                                                                                                    # 024
                                                                                                                    MPN: 100773
                                                                                                                    SILENTBLOCK FOR LINK
                                                                                                                    from £19.87
                                                                                                                    from £19.87
                                                                                                                    This part replaces part number 60220 - and 1 more. Click to view details
                                                                                                                    # 025
                                                                                                                    MPN: 150238
                                                                                                                    NUT
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 12575821 - and 2 more. Click to view details
                                                                                                                    # 026
                                                                                                                    MPN: 103024
                                                                                                                    WASHER
                                                                                                                    from £1.99
                                                                                                                    from £1.99
                                                                                                                    # 027
                                                                                                                    MPN: 134883
                                                                                                                    BUSH, CONNECTING SUSPENSION TO CHASSIS
                                                                                                                    from £39.95
                                                                                                                    from £39.95
                                                                                                                    This part replaces part number 101091 - and 1 more. Click to view details
                                                                                                                    # 028
                                                                                                                    MPN: 120524
                                                                                                                    BOLT
                                                                                                                    from £49.41
                                                                                                                    from £49.41
                                                                                                                    # 029
                                                                                                                    MPN: 148020
                                                                                                                    NUT
                                                                                                                    from £2.53
                                                                                                                    from £2.53
                                                                                                                    This part replaces part number 102825 - and 3 more. Click to view details
                                                                                                                    # 030
                                                                                                                    MPN: 111633
                                                                                                                    SPACER
                                                                                                                    from £5.87
                                                                                                                    from £5.87
                                                                                                                    # 031
                                                                                                                    MPN: 148020
                                                                                                                    NUT
                                                                                                                    from £2.53
                                                                                                                    from £2.53
                                                                                                                    This part replaces part number 102825 - and 3 more. Click to view details
                                                                                                                    # 032
                                                                                                                    MPN: 106422
                                                                                                                    BOLT
                                                                                                                    from £8.37
                                                                                                                    from £8.37
                                                                                                                    # 033
                                                                                                                    MPN: 150238
                                                                                                                    NUT
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 12575821 - and 2 more. Click to view details
                                                                                                                    # 034
                                                                                                                    MPN: 150238
                                                                                                                    NUT
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 12575821 - and 2 more. Click to view details
                                                                                                                    # 035
                                                                                                                    MPN: 13550621
                                                                                                                    WASHER
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 680874
                                                                                                                    # 036
                                                                                                                    MPN: 100794
                                                                                                                    SHIM
                                                                                                                    from £0.69
                                                                                                                    from £0.69
                                                                                                                    This part replaces part number 95320
                                                                                                                    # 037
                                                                                                                    MPN: 10730514
                                                                                                                    WASHER
                                                                                                                    from £0.50
                                                                                                                    from £0.50
                                                                                                                    This part replaces part number 10730521
                                                                                                                    # 038
                                                                                                                    MPN: 11243721
                                                                                                                    BOLT
                                                                                                                    # 039
                                                                                                                    MPN: 127497
                                                                                                                    WASHER
                                                                                                                    from £0.51
                                                                                                                    from £0.51
                                                                                                                    This part replaces part number 10516871 - and 2 more. Click to view details
                                                                                                                    # 040
                                                                                                                    MPN: 105334
                                                                                                                    WASHER
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 041
                                                                                                                    MPN: 148020
                                                                                                                    NUT
                                                                                                                    from £2.53
                                                                                                                    from £2.53
                                                                                                                    This part replaces part number 102825 - and 3 more. Click to view details
                                                                                                                    # 042
                                                                                                                    MPN: 105962
                                                                                                                    BOLT
                                                                                                                    from £1.58
                                                                                                                    from £1.58
                                                                                                                    This part replaces part number 15540921 - and 1 more. Click to view details
                                                                                                                    # 043
                                                                                                                    MPN: 148020
                                                                                                                    NUT
                                                                                                                    from £2.53
                                                                                                                    from £2.53
                                                                                                                    This part replaces part number 102825 - and 3 more. Click to view details
                                                                                                                    # 044
                                                                                                                    MPN: 11288021
                                                                                                                    BOLT
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 045
                                                                                                                    MPN: 154536
                                                                                                                    FLAMBLOCK
                                                                                                                    from £73.44
                                                                                                                    from £73.44
                                                                                                                    This part replaces part number 103170 - and 1 more. Click to view details
                                                                                                                    # 046
                                                                                                                    MPN: 12164721
                                                                                                                    NUT
                                                                                                                    from £0.61
                                                                                                                    from £0.61
                                                                                                                    # 047
                                                                                                                    MPN: 11343821
                                                                                                                    BOLT
                                                                                                                    from £0.57
                                                                                                                    from £0.57
                                                                                                                    # 048
                                                                                                                    MPN: 117722
                                                                                                                    SHOCK ABSORBER
                                                                                                                    from £637.64
                                                                                                                    from £637.64
                                                                                                                    # 049
                                                                                                                    MPN: 12601471
                                                                                                                    WASHER
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 050
                                                                                                                    MPN: 12575611
                                                                                                                    NUT
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 051
                                                                                                                    MPN: 117720
                                                                                                                    HYPERBLOCK FOR SHOCK ABSORBER
                                                                                                                    from £66.04
                                                                                                                    from £66.04
                                                                                                                    # 052
                                                                                                                    MPN: 114815
                                                                                                                    WASHER
                                                                                                                    from £0.86
                                                                                                                    from £0.86
                                                                                                                    # 053
                                                                                                                    MPN: 148020
                                                                                                                    NUT
                                                                                                                    from £2.46
                                                                                                                    from £2.46
                                                                                                                    This part replaces part number 102825 - and 3 more. Click to view details
                                                                                                                    # 054
                                                                                                                    MPN: 100810
                                                                                                                    ESTENBLOCK
                                                                                                                    from £20.70
                                                                                                                    from £20.70
                                                                                                                    This part replaces part number 601352
                                                                                                                    # 055
                                                                                                                    MPN: 118233
                                                                                                                    SPRING FOR SHOCK ABSORBER
                                                                                                                    from £253.24
                                                                                                                    from £253.24
                                                                                                                    # 056
                                                                                                                    MPN: 117724
                                                                                                                    LOWER SPACER
                                                                                                                    from £41.23
                                                                                                                    from £41.23
                                                                                                                    # 057
                                                                                                                    MPN: 118747
                                                                                                                    UPPER SPACER
                                                                                                                    from £42.66
                                                                                                                    from £42.66
                                                                                                                    This part replaces part number 100776
