ferrari 412 (mechanical) front suspension - levers parts diagram

048 - Front Suspension - Levers

Ferrari 412 (Mechanical) Front Suspension - Levers Parts Diagram

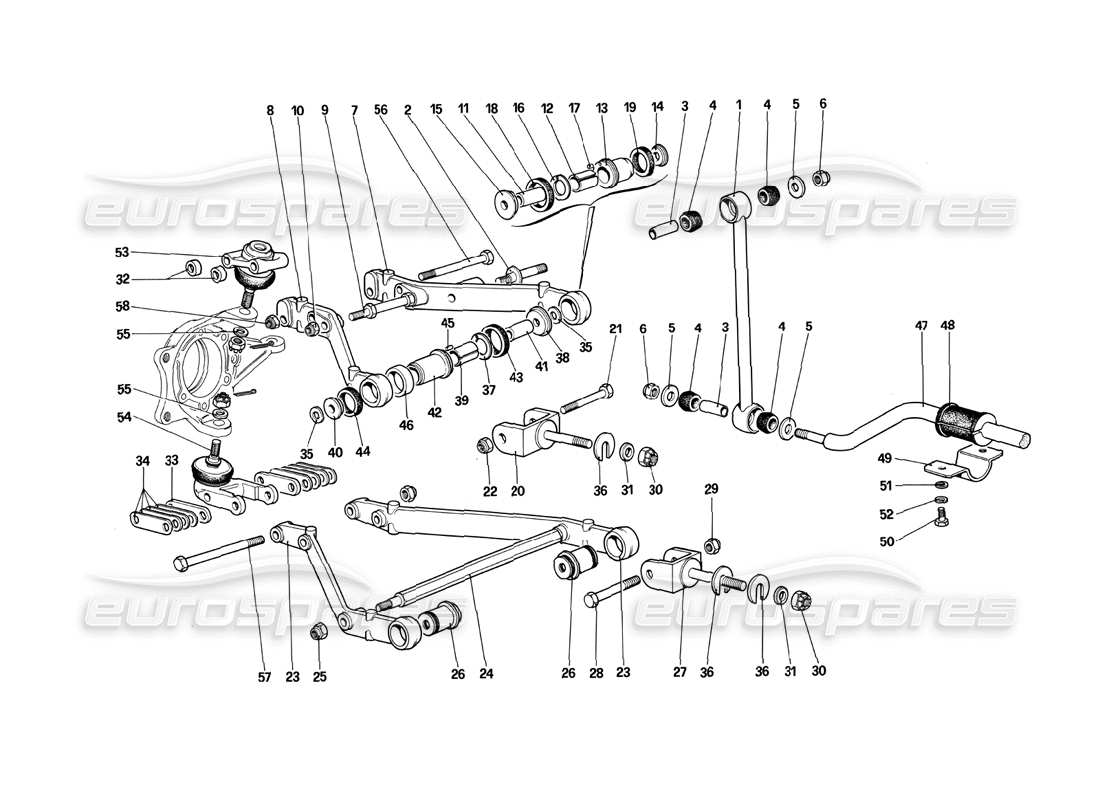

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                      #
                                                                                                      Part number
                                                                                                      Description
                                                                                                      Price
                                                                                                      # 001
                                                                                                      MPN: 100986
                                                                                                      ROD LINK
                                                                                                      from £78.74
                                                                                                      from £78.74
                                                                                                      This part replaces part number 641182 - and 1 more. Click to view details
                                                                                                      # 002
                                                                                                      MPN: 100979
                                                                                                      PIN
                                                                                                      from £75.75
                                                                                                      from £75.75
                                                                                                      This part replaces part number 641181
                                                                                                      # 003
                                                                                                      MPN: 100985
                                                                                                      SPACER
                                                                                                      from £21.06
                                                                                                      from £21.06
                                                                                                      This part replaces part number 64431
                                                                                                      # 004
                                                                                                      MPN: 100984
                                                                                                      GROMMET
                                                                                                      from £6.48
                                                                                                      from £6.48
                                                                                                      This part replaces part number 126097 - and 1 more. Click to view details
                                                                                                      # 005
                                                                                                      MPN: 105334
                                                                                                      WASHER
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 006
                                                                                                      MPN: 148020
                                                                                                      NUT
                                                                                                      from £2.46
                                                                                                      from £2.46
                                                                                                      This part replaces part number 102825 - and 3 more. Click to view details

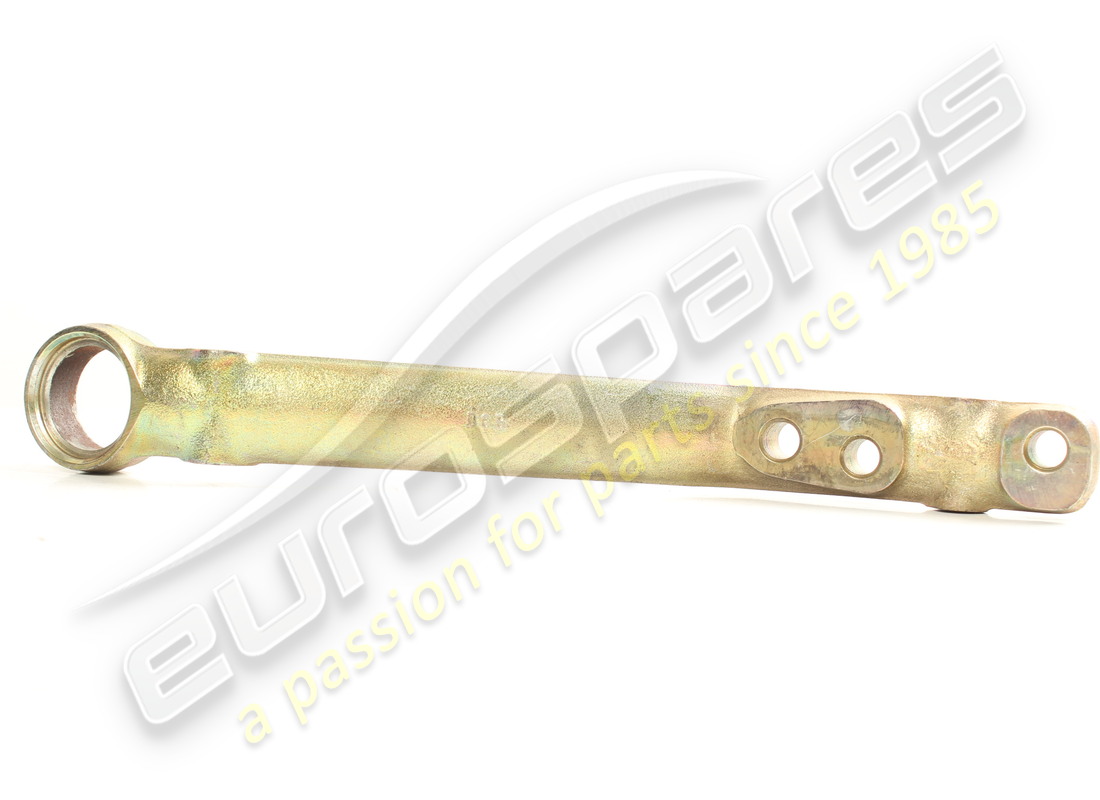

                                                                                                      # 007
                                                                                                      MPN: 125682
                                                                                                      LH FRONT ARM
                                                                                                      from £290.59
                                                                                                      from £290.59

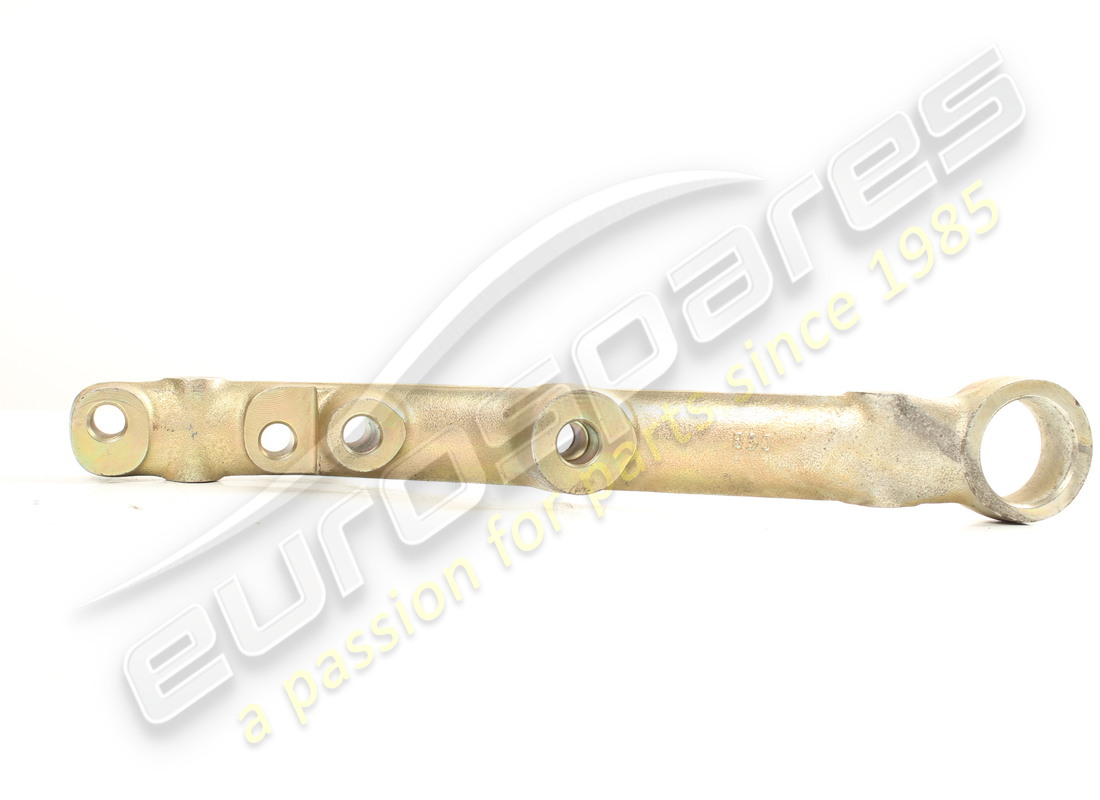

                                                                                                      # 007
                                                                                                      MPN: 125683
                                                                                                      RH FRONT ARM
                                                                                                      from £290.59
                                                                                                      from £290.59

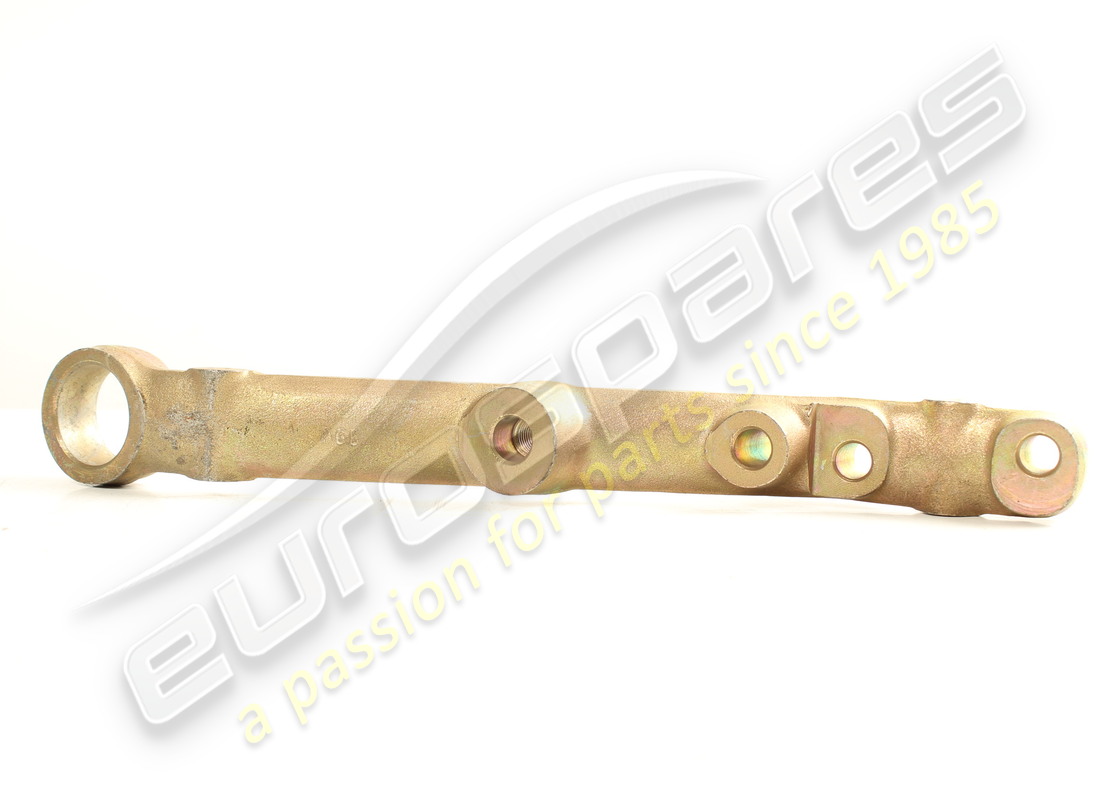

                                                                                                      # 008
                                                                                                      MPN: 125681
                                                                                                      LH REAR ARM
                                                                                                      from £290.59
                                                                                                      from £290.59
                                                                                                      # 008

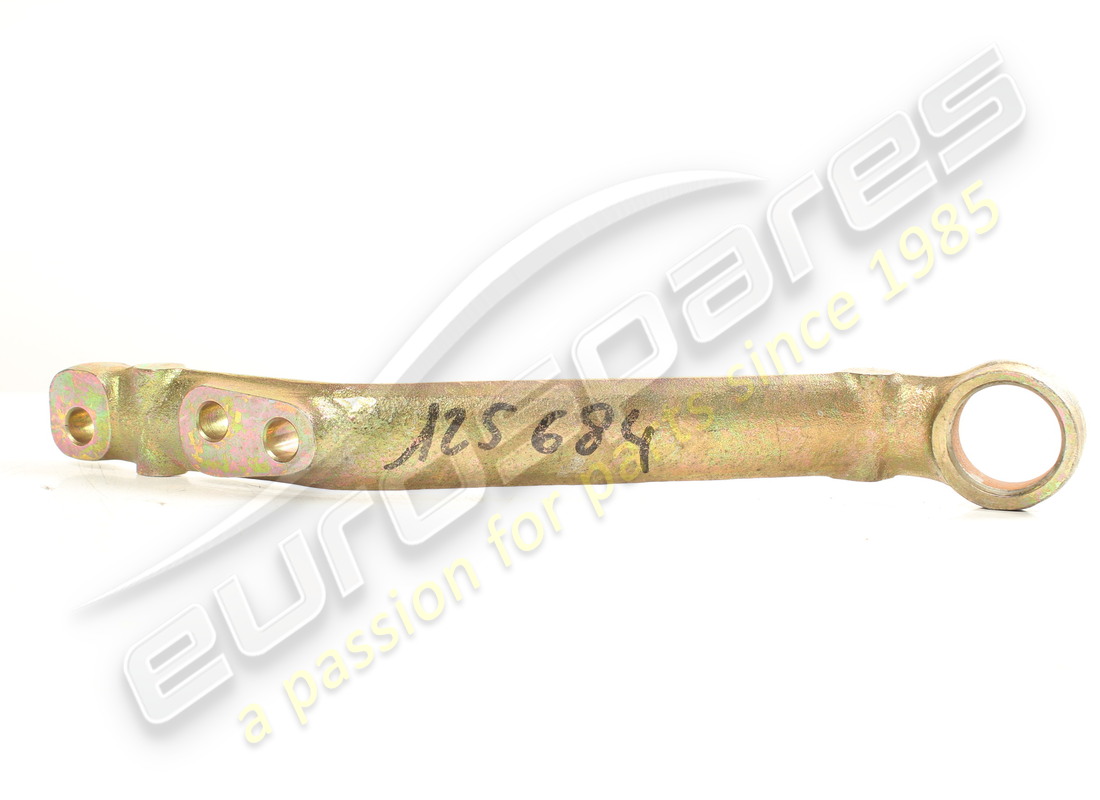

                                                                                                      MPN: 125684
                                                                                                      RH REAR ARM
                                                                                                      from £290.59
                                                                                                      from £290.59
                                                                                                      # 009
                                                                                                      MPN: 125905
                                                                                                      SPACER FOR UPPER ARMS
                                                                                                      from £50.53
                                                                                                      from £50.53
                                                                                                      # 010
                                                                                                      MPN: 12575621
                                                                                                      SELF LOCKING NUT
                                                                                                      from £1.31
                                                                                                      from £1.31
                                                                                                      # 011
                                                                                                      MPN: 109904
                                                                                                      SPACER
                                                                                                      from £40.42
                                                                                                      from £40.42
                                                                                                      This part replaces part number 105445 - and 1 more. Click to view details
                                                                                                      # 013
                                                                                                      MPN: 105446
                                                                                                      BUSH
                                                                                                      from £47.64
                                                                                                      from £47.64
                                                                                                      This part replaces part number 641220
                                                                                                      # 014
                                                                                                      MPN: 105443
                                                                                                      WASHER
                                                                                                      from £13.78
                                                                                                      from £13.78
                                                                                                      This part replaces part number 641222
                                                                                                      # 015
                                                                                                      MPN: 109901
                                                                                                      WASHER
                                                                                                      from £56.80
                                                                                                      from £56.80
                                                                                                      # 016
                                                                                                      MPN: 101009
                                                                                                      WASHER
                                                                                                      from £7.52
                                                                                                      from £7.52
                                                                                                      This part replaces part number 600771
                                                                                                      # 017
                                                                                                      MPN: 100796
                                                                                                      DOWEL
                                                                                                      from £2.51
                                                                                                      from £2.51
                                                                                                      This part replaces part number 94943
                                                                                                      # 018

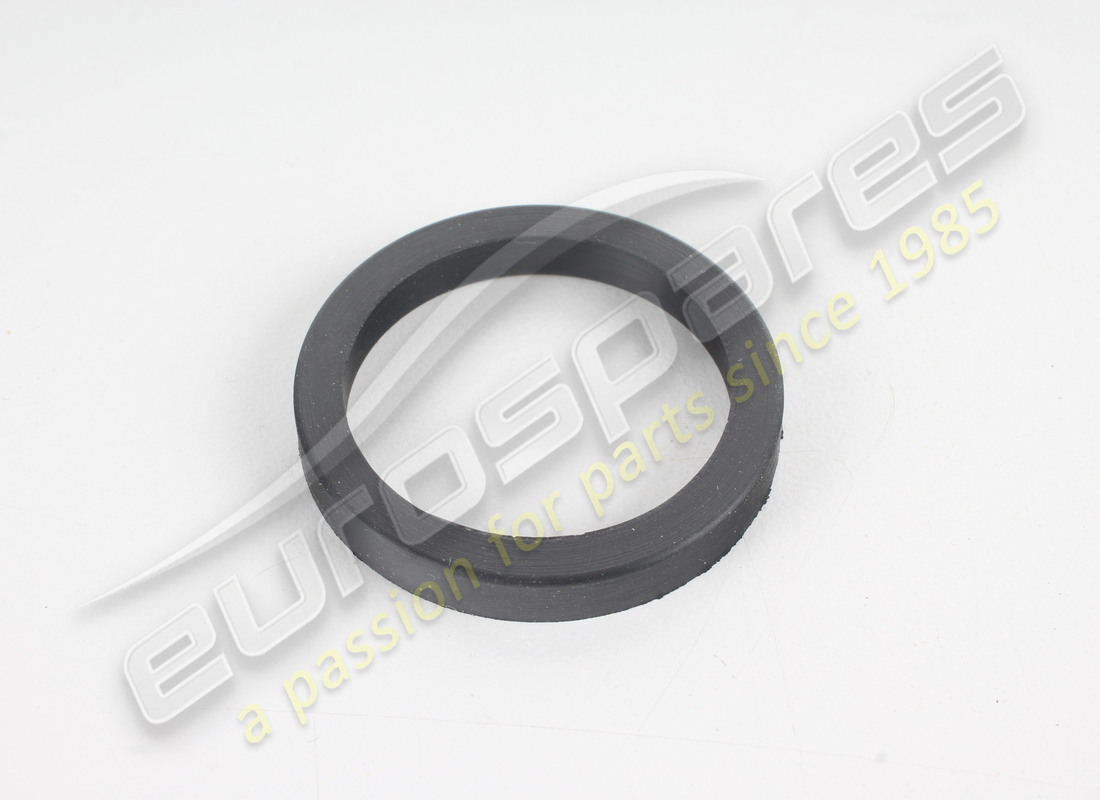

                                                                                                      MPN: 105342
                                                                                                      LARGE RUBBER DUST EXCLUDED
                                                                                                      from £17.91
                                                                                                      from £17.91
                                                                                                      This part replaces part number 641216

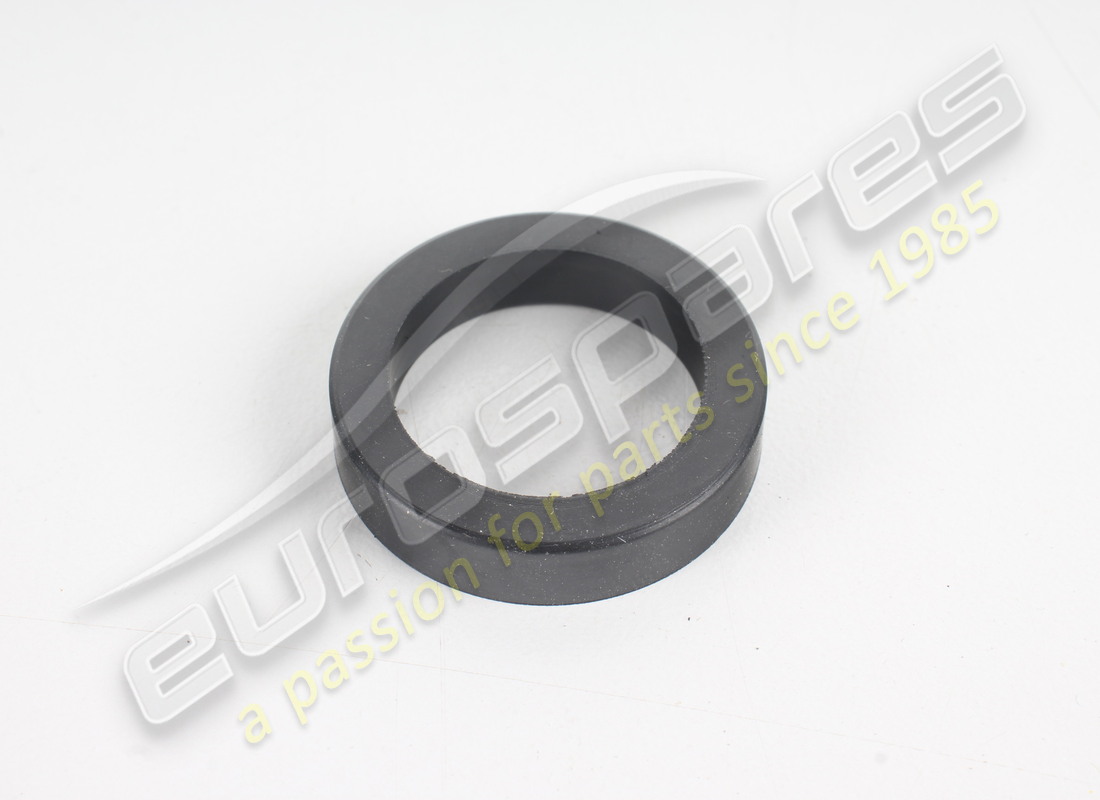

                                                                                                      # 019
                                                                                                      MPN: 105343
                                                                                                      LITTLE RUBBER DUST EXCLUDED
                                                                                                      from £14.00
                                                                                                      from £14.00
                                                                                                      This part replaces part number 641217
                                                                                                      # 020
                                                                                                      MPN: 128173
                                                                                                      FORK
                                                                                                      from £76.73
                                                                                                      from £76.73
                                                                                                      # 021
                                                                                                      MPN: 15541321
                                                                                                      SCREW
                                                                                                      from £19.11
                                                                                                      from £19.11
                                                                                                      This part replaces part number 15541311
                                                                                                      # 022
                                                                                                      MPN: 148020
                                                                                                      NUT
                                                                                                      from £2.53
                                                                                                      from £2.53
                                                                                                      This part replaces part number 102825 - and 3 more. Click to view details
                                                                                                      # 023
                                                                                                      MPN: 125685
                                                                                                      LEVER ARM
                                                                                                      Up to 3 1.3.86
                                                                                                      from £290.59
                                                                                                      from £290.59

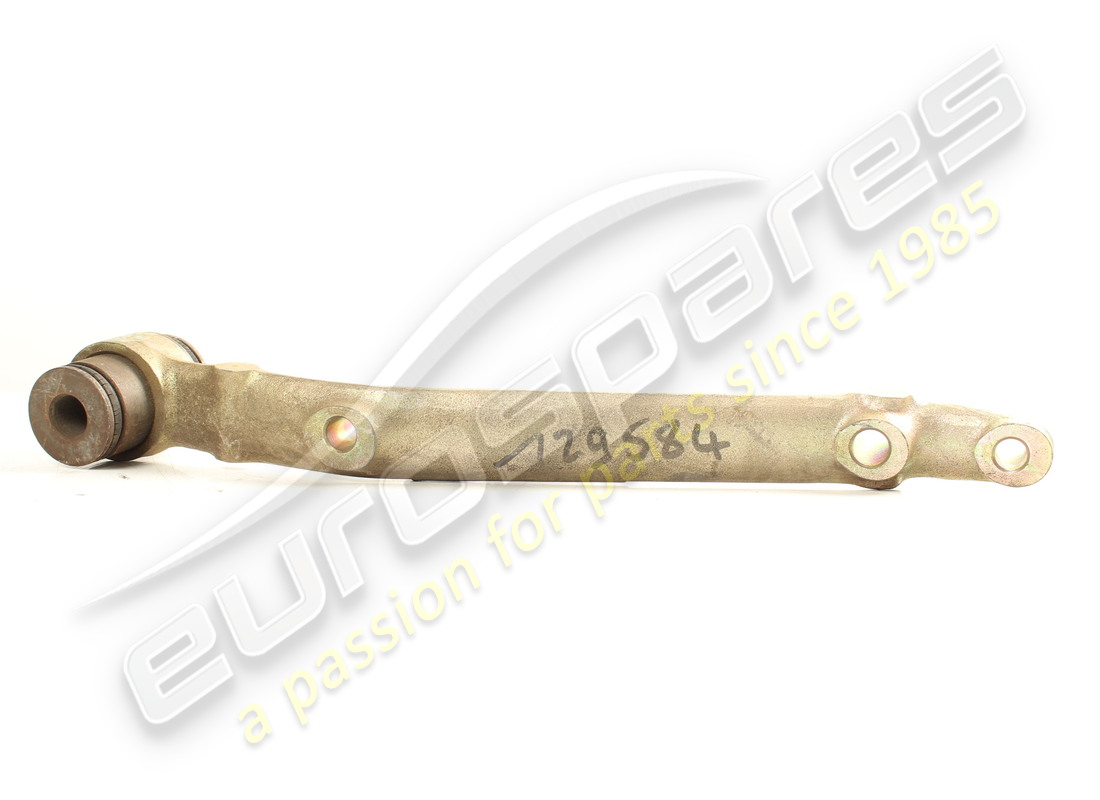

                                                                                                      # 023
                                                                                                      MPN: 129584
                                                                                                      LEVER ARM
                                                                                                      From to 1.4.86
                                                                                                      from £173.28
                                                                                                      from £173.28
                                                                                                      # 024
                                                                                                      MPN: 125909
                                                                                                      SPACER FOR LOWER ARMS
                                                                                                      from £91.88
                                                                                                      from £91.88
                                                                                                      # 025
                                                                                                      MPN: 12575621
                                                                                                      NUT
                                                                                                      from £1.31
                                                                                                      from £1.31
                                                                                                      # 026
                                                                                                      MPN: 134883
                                                                                                      FLAMBLOCK
                                                                                                      With lever no. 129584
                                                                                                      from £39.95
                                                                                                      from £39.95
                                                                                                      This part replaces part number 101091 - and 1 more. Click to view details
                                                                                                      # 026
                                                                                                      MPN: 154537
                                                                                                      FLAMBLOCK
                                                                                                      USE : 163038/154536
                                                                                                      from £26.71
                                                                                                      from £26.71
                                                                                                      This part replaces part number 104398 - and 1 more. Click to view details
                                                                                                      # 027
                                                                                                      MPN: 101035

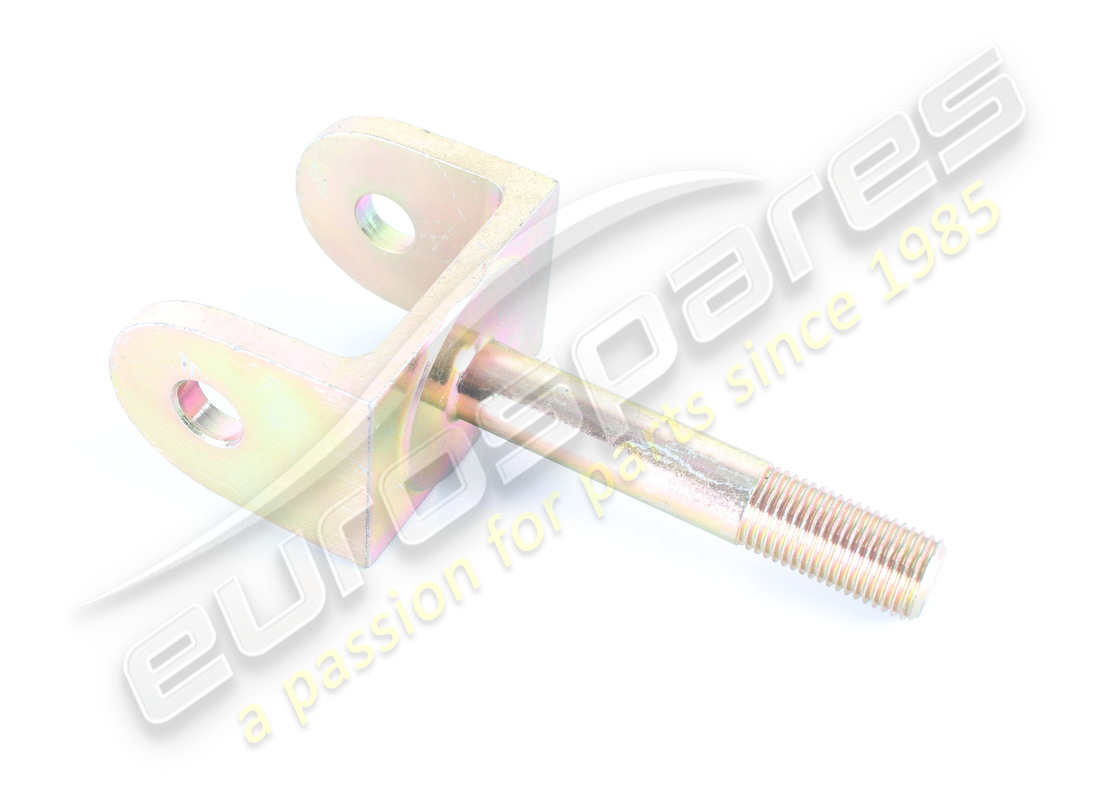

                                                                                                      FORK
                                                                                                      With lever no. 125685
                                                                                                      from £140.12
                                                                                                      from £140.12
                                                                                                      This part replaces part number 641304
                                                                                                      # 027
                                                                                                      MPN: 177707
                                                                                                      FORK
                                                                                                      With lever no. 129584
                                                                                                      from £267.31
                                                                                                      from £267.31
                                                                                                      This part replaces part number 116690 which we have in stock - and 3 more. Click to view details
                                                                                                      # 028
                                                                                                      MPN: 150238
                                                                                                      SCREW
                                                                                                      With lever no. 129584
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 12575821 - and 2 more. Click to view details
                                                                                                      # 028
                                                                                                      MPN: 15541321
                                                                                                      SCREW
                                                                                                      With lever no 125685
                                                                                                      from £19.11
                                                                                                      from £19.11
                                                                                                      This part replaces part number 15541311
                                                                                                      # 029
                                                                                                      MPN: 106422
                                                                                                      SELF LOCKING NUT
                                                                                                      With lever no. 129584
                                                                                                      from £8.37
                                                                                                      from £8.37
                                                                                                      # 029
                                                                                                      MPN: 148020
                                                                                                      SELF LOCKING NUT
                                                                                                      With lever no. 125685
                                                                                                      from £2.46
                                                                                                      from £2.46
                                                                                                      This part replaces part number 102825 - and 3 more. Click to view details
                                                                                                      # 030
                                                                                                      MPN: 101040
                                                                                                      NUT
                                                                                                      from £12.35
                                                                                                      from £12.35
                                                                                                      # 031
                                                                                                      MPN: 101041
                                                                                                      WASHER
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 10730821
                                                                                                      # 032
                                                                                                      MPN: 128172
                                                                                                      SPACER
                                                                                                      from £7.08
                                                                                                      from £7.08
                                                                                                      # 033
                                                                                                      MPN: 101021
                                                                                                      PLATE
                                                                                                      from £6.29
                                                                                                      from £6.29
                                                                                                      This part replaces part number 640585
                                                                                                      # 034
                                                                                                      MPN: 101022
                                                                                                      PLATE FOR CASTER ADJUSTEMENT
                                                                                                      from £1.22
                                                                                                      from £1.22
                                                                                                      This part replaces part number 153963
                                                                                                      # 035
                                                                                                      MPN: 101004
                                                                                                      SHIM
                                                                                                      Eventual fitting
                                                                                                      from £1.18
                                                                                                      from £1.18
                                                                                                      This part replaces part number 641187
                                                                                                      # 035
                                                                                                      MPN: 113324
                                                                                                      DITTO, THICKNESS 3,8 MM.
                                                                                                      # 035
                                                                                                      MPN: 113325
                                                                                                      DITTO, THICKNESS 3,6 MM.
                                                                                                      from £5.03
                                                                                                      from £5.03
                                                                                                      # 035
                                                                                                      MPN: 113326
                                                                                                      DITTO, THICKNESS 3,4 MM.
                                                                                                      from £5.65
                                                                                                      from £5.65
                                                                                                      # 035
                                                                                                      MPN: 113327
                                                                                                      DITTO, THICKNESS 3,2 MM.
                                                                                                      from £5.03
                                                                                                      from £5.03
                                                                                                      # 035
                                                                                                      MPN: 113328
                                                                                                      DITTO, THICKNESS 3 MM.
                                                                                                      from £5.03
                                                                                                      from £5.03
                                                                                                      # 035
                                                                                                      MPN: 113329
                                                                                                      DITTO, THICKNESS 2,8 MM.
                                                                                                      from £5.03
                                                                                                      from £5.03
                                                                                                      # 035
                                                                                                      MPN: 113330
                                                                                                      DITTO, THICKNESS 2,6 MM.
                                                                                                      from £5.03
                                                                                                      from £5.03
                                                                                                      # 035
                                                                                                      MPN: 113331
                                                                                                      DITTO, THICKNESS 2,5 MM.
                                                                                                      from £5.03
                                                                                                      from £5.03
                                                                                                      # 035
                                                                                                      MPN: 113332
                                                                                                      DITTO, THICKNESS 2,2 MM.
                                                                                                      from £6.28
                                                                                                      from £6.28
                                                                                                      # 035
                                                                                                      MPN: 113333
                                                                                                      DITTO, THICKNESS 2 MM.
                                                                                                      from £5.98
                                                                                                      from £5.98
                                                                                                      # 036
                                                                                                      MPN: 101038
                                                                                                      DITTO, THICKNESS 1,5 MM.
                                                                                                      from £9.09
                                                                                                      from £9.09
                                                                                                      # 036
                                                                                                      MPN: 101039
                                                                                                      DITTO, THICKNESS 1 MM.
                                                                                                      from £1.78
                                                                                                      from £1.78
                                                                                                      This part replaces part number 107025 - and 1 more. Click to view details
                                                                                                      # 036
                                                                                                      MPN: 107339
                                                                                                      DITTO, THICKNESS 2 MM.
                                                                                                      from £1.16
                                                                                                      from £1.16
                                                                                                      This part replaces part number 107419
                                                                                                      # 036
                                                                                                      MPN: 107340
                                                                                                      SHIM THICKNESS 2,5 MM.
                                                                                                      Eventual fitting
                                                                                                      from £1.11
                                                                                                      from £1.11
                                                                                                      This part replaces part number 107420
                                                                                                      # 036
                                                                                                      MPN: 107341
                                                                                                      DITTO, THICKNESS 3 MM.
                                                                                                      from £2.84
                                                                                                      from £2.84
                                                                                                      This part replaces part number 107421
                                                                                                      # 036
                                                                                                      MPN: 107342
                                                                                                      DITTO, THICKNESS 3,25 MM.
                                                                                                      from £0.48
                                                                                                      from £0.48
                                                                                                      This part replaces part number 107422
                                                                                                      # 037
                                                                                                      MPN: 101009
                                                                                                      WASHER
                                                                                                      from £7.52
                                                                                                      from £7.52
                                                                                                      This part replaces part number 600771
                                                                                                      # 038
                                                                                                      MPN: 109901
                                                                                                      WASHER
                                                                                                      from £56.80
                                                                                                      from £56.80
                                                                                                      # 039
                                                                                                      MPN: 101010
                                                                                                      BUSH
                                                                                                      from £4.86
                                                                                                      from £4.86
                                                                                                      This part replaces part number 600786
                                                                                                      # 040
                                                                                                      MPN: 105443
                                                                                                      WASHER
                                                                                                      from £13.78
                                                                                                      from £13.78
                                                                                                      This part replaces part number 641222
                                                                                                      # 041
                                                                                                      MPN: 109903
                                                                                                      BUSH
                                                                                                      from £89.29
                                                                                                      from £89.29
                                                                                                      This part replaces part number 105441 - and 2 more. Click to view details
                                                                                                      # 042
                                                                                                      MPN: 105442
                                                                                                      BUSH
                                                                                                      from £74.57
                                                                                                      from £74.57
                                                                                                      This part replaces part number 641214
                                                                                                      # 043
                                                                                                      MPN: 105342
                                                                                                      LARGE RUBBER DUST EXCLUDED
                                                                                                      from £17.91
                                                                                                      from £17.91
                                                                                                      This part replaces part number 641216
                                                                                                      # 044
                                                                                                      MPN: 105343
                                                                                                      LITTLE RUBBER DUST EXCLUDED
                                                                                                      from £14.00
                                                                                                      from £14.00
                                                                                                      This part replaces part number 641217
                                                                                                      # 045
                                                                                                      MPN: 100796
                                                                                                      DOWEL
                                                                                                      from £2.51
                                                                                                      from £2.51
                                                                                                      This part replaces part number 94943
                                                                                                      # 046
                                                                                                      MPN: 128174
                                                                                                      SPACER
                                                                                                      from £41.88
                                                                                                      from £41.88
                                                                                                      # 047
                                                                                                      MPN: 125670
                                                                                                      STABILIZED ROD
                                                                                                      from £198.45
                                                                                                      from £198.45
                                                                                                      # 048
                                                                                                      MPN: 108744
                                                                                                      ROLL BAR BUSH
                                                                                                      from £19.25
                                                                                                      from £19.25
                                                                                                      This part replaces part number 101047 - and 2 more. Click to view details
                                                                                                      # 049
                                                                                                      MPN: 101050
                                                                                                      SUPPORT
                                                                                                      from £8.02
                                                                                                      from £8.02
                                                                                                      This part replaces part number 640008
                                                                                                      # 050
                                                                                                      MPN: 106002
                                                                                                      SCREW
                                                                                                      from £0.89
                                                                                                      from £0.89
                                                                                                      # 051
                                                                                                      MPN: 12625621
                                                                                                      WASHER
                                                                                                      # 052
                                                                                                      MPN: 101010
                                                                                                      BUSH
                                                                                                      from £4.86
                                                                                                      from £4.86
                                                                                                      This part replaces part number 600786
                                                                                                      # 052
                                                                                                      MPN: 127496
                                                                                                      WASHER
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                                      # 053
                                                                                                      MPN: 116280
                                                                                                      UPPER BALL JOINT
                                                                                                      from £40.00
                                                                                                      from £40.00
                                                                                                      This part replaces part number 101441 - and 17 more. Click to view details
                                                                                                      # 054
                                                                                                      MPN: 133944
                                                                                                      LOWER BALL JOINT
                                                                                                      from £50.00
                                                                                                      from £50.00
                                                                                                      This part replaces part number 114462 - and 13 more. Click to view details
                                                                                                      # 055
                                                                                                      MPN: 101445
                                                                                                      WASHER
                                                                                                      from £0.59
                                                                                                      from £0.59
                                                                                                      # 056
                                                                                                      MPN: 121660
                                                                                                      SCREW
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 057
                                                                                                      MPN: 126276
                                                                                                      SCREW
                                                                                                      from £14.01
                                                                                                      from £14.01
                                                                                                      # 058
                                                                                                      MPN: 12575621
                                                                                                      SELF LOCKING NUT
                                                                                                      from £1.36
                                                                                                      from £1.36
                                                                                                      Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
