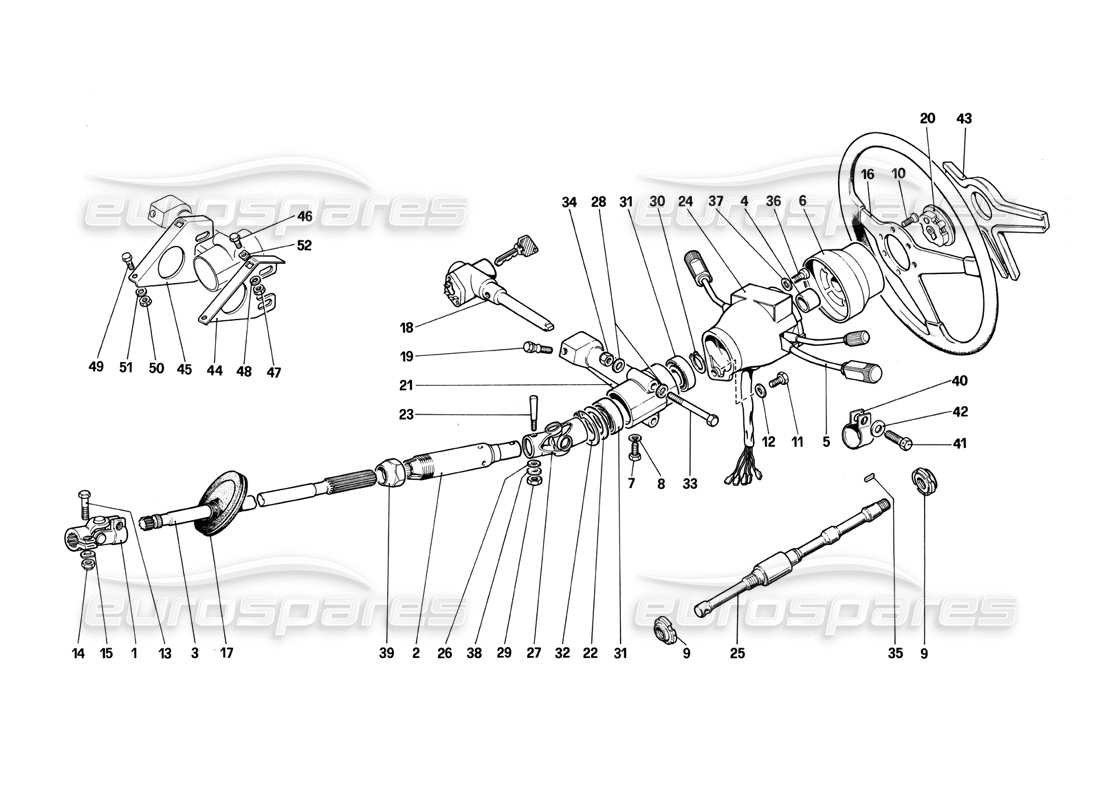

046 - Steering Control

Ferrari 412 (Mechanical) Steering Control Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                    #
                                                                                                    Part number
                                                                                                    Description
                                                                                                    Price
                                                                                                    # 001
                                                                                                    MPN: 101062
                                                                                                    JOINT FOR STEERING TUBE END
                                                                                                    from £273.00
                                                                                                    from £273.00
                                                                                                    # 002
                                                                                                    MPN: 117379
                                                                                                    STEERING TUBE
                                                                                                    from £208.27
                                                                                                    from £208.27
                                                                                                    # 003
                                                                                                    MPN: 101066
                                                                                                    STEERING SHAFT
                                                                                                    from £219.59
                                                                                                    from £219.59
                                                                                                    This part replaces part number 740532 - and 1 more. Click to view details
                                                                                                    # 004
                                                                                                    MPN: 101094
                                                                                                    BUSH
                                                                                                    from £43.60
                                                                                                    from £43.60
                                                                                                    This part replaces part number 740077

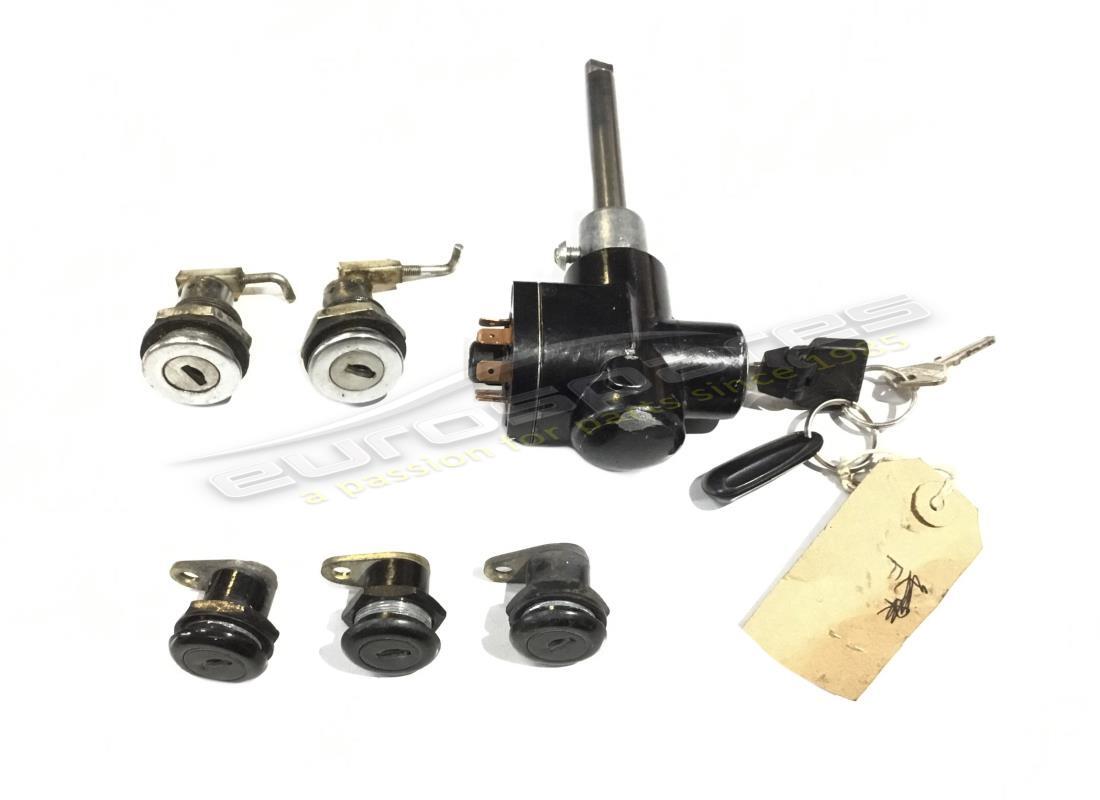

                                                                                                    # 005
                                                                                                    MPN: 119317
                                                                                                    MAINSWITCH
                                                                                                    from £1,486.96
                                                                                                    from £1,486.96
                                                                                                    # 006
                                                                                                    MPN: 109447
                                                                                                    STEERING WHEEL HUB
                                                                                                    With wheel assembly
                                                                                                    from £262.50
                                                                                                    from £262.50
                                                                                                    # 007
                                                                                                    MPN: 10979421
                                                                                                    BOLT
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    # 008
                                                                                                    MPN: 10414170
                                                                                                    WASHER
                                                                                                    # 009

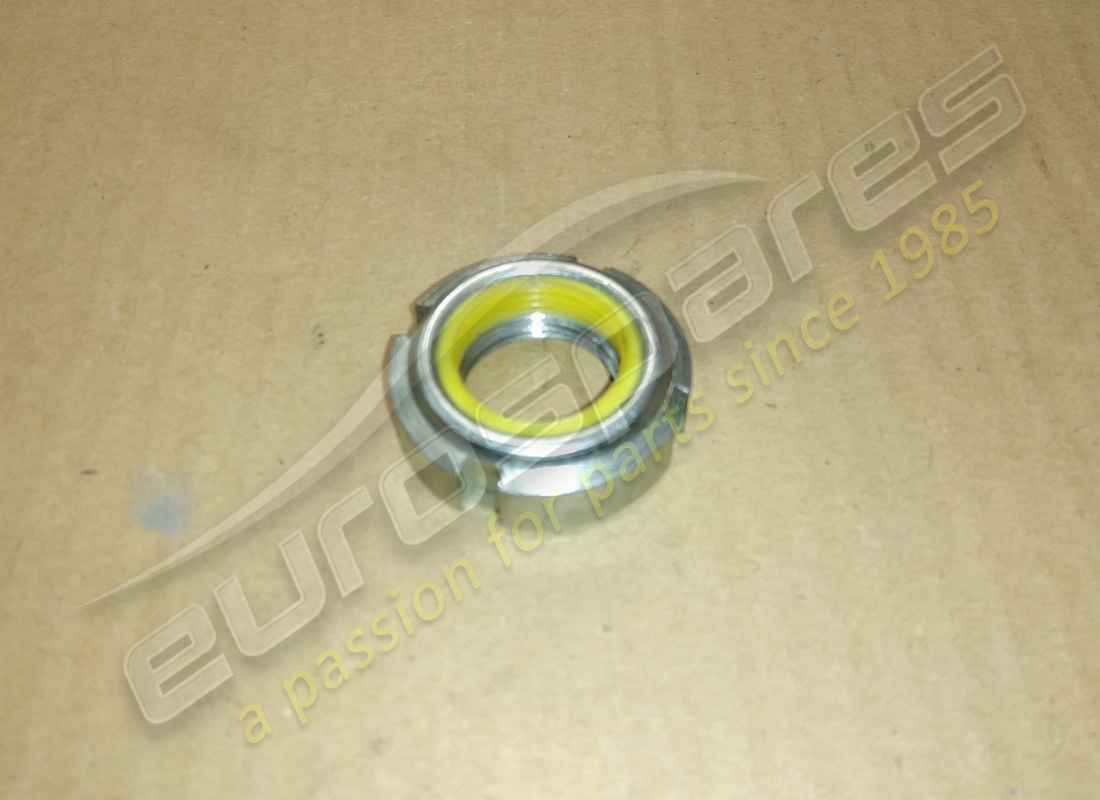

                                                                                                    MPN: 106610
                                                                                                    RING NUT
                                                                                                    from £19.32
                                                                                                    from £19.32
                                                                                                    # 010
                                                                                                    MPN: 111189
                                                                                                    SCREW, OVAL-HEADED
                                                                                                    from £2.65
                                                                                                    from £2.65
                                                                                                    # 011
                                                                                                    MPN: 111883
                                                                                                    BOLT
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    # 012
                                                                                                    MPN: 12601271
                                                                                                    WASHER
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    This part replaces part number 103372 - and 1 more. Click to view details
                                                                                                    # 013
                                                                                                    MPN: 16044021
                                                                                                    BOLT
                                                                                                    from £1.62
                                                                                                    from £1.62
                                                                                                    This part replaces part number 119631
                                                                                                    # 014
                                                                                                    MPN: 16100824
                                                                                                    NUT
                                                                                                    from £0.53
                                                                                                    from £0.53
                                                                                                    This part replaces part number 16100814 - and 1 more. Click to view details
                                                                                                    # 015
                                                                                                    MPN: 127496
                                                                                                    WASHER
                                                                                                    from £0.54
                                                                                                    from £0.54
                                                                                                    This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                                    # 016
                                                                                                    MPN: 128179
                                                                                                    STEERING WHEEL ASSEMBLY
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    This part replaces part number 120179 which we have in stock - and 2 more. Click to view details
                                                                                                    # 016
                                                                                                    MPN: 128180
                                                                                                    STEERING WHEEL
                                                                                                    With wheel assembly
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    # 017
                                                                                                    MPN: 101100
                                                                                                    GASKET FOR STEERING SHAFT
                                                                                                    from £22.39
                                                                                                    from £22.39
                                                                                                    This part replaces part number 740419
                                                                                                    # 018
                                                                                                    MPN: 127297
                                                                                                    ANTITHEFT DEVICE
                                                                                                    from £2,995.00
                                                                                                    from £2,995.00
                                                                                                    This part replaces part number 127279 - and 5 more. Click to view details
                                                                                                    # 019
                                                                                                    MPN: 168045
                                                                                                    BOLT
                                                                                                    from £40.92
                                                                                                    from £40.92
                                                                                                    This part replaces part number 106615
                                                                                                    # 020
                                                                                                    MPN: 130899
                                                                                                    HORN BUTTON AND RETAINER
                                                                                                    from £28.62
                                                                                                    from £28.62
                                                                                                    This part replaces part number 101071 - and 1 more. Click to view details
                                                                                                    # 021
                                                                                                    MPN: 109448
                                                                                                    SUPPORT FOR UPPER STEERING SHAFT
                                                                                                    from £179.64
                                                                                                    from £179.64
                                                                                                    # 022
                                                                                                    MPN: 101101
                                                                                                    DITTO, THICKNESS 0,5 MM.
                                                                                                    Possible fitting
                                                                                                    from £0.98
                                                                                                    from £0.98
                                                                                                    This part replaces part number 740333
                                                                                                    # 022
                                                                                                    MPN: 107488
                                                                                                    DITTO, THICKNESS 0,4 MM.
                                                                                                    Possible fitting
                                                                                                    from £1.81
                                                                                                    from £1.81
                                                                                                    # 022
                                                                                                    MPN: 107489
                                                                                                    DITTO, THICKNESS 0,3 MM.
                                                                                                    Possible fitting
                                                                                                    from £5.53
                                                                                                    from £5.53
                                                                                                    # 022
                                                                                                    MPN: 107490
                                                                                                    SHIM, THICKNESS 0,2 MM.
                                                                                                    Possible fitting
                                                                                                    from £5.53
                                                                                                    from £5.53
                                                                                                    # 023
                                                                                                    MPN: 112573
                                                                                                    TAPER PIN
                                                                                                    from £31.90
                                                                                                    from £31.90
                                                                                                    This part replaces part number 108416
                                                                                                    # 024
                                                                                                    MPN: 126701
                                                                                                    MAIN SWITCH HOUSING
                                                                                                    from £157.50
                                                                                                    from £157.50
                                                                                                    # 025
                                                                                                    MPN: 111184
                                                                                                    UPPER SHAFT, STEERING CONTROL
                                                                                                    from £420.00
                                                                                                    from £420.00
                                                                                                    This part replaces part number 109446 - and 1 more. Click to view details
                                                                                                    # 026
                                                                                                    MPN: 112571
                                                                                                    SPACER
                                                                                                    from £5.57
                                                                                                    from £5.57
                                                                                                    # 027
                                                                                                    MPN: 112572
                                                                                                    UNIVERSAL JOING
                                                                                                    from £210.00
                                                                                                    from £210.00
                                                                                                    This part replaces part number 108415 - and 1 more. Click to view details
                                                                                                    # 028
                                                                                                    MPN: 10519624
                                                                                                    WASHER
                                                                                                    from £0.53
                                                                                                    from £0.53
                                                                                                    This part replaces part number 10519601 - and 3 more. Click to view details
                                                                                                    # 029
                                                                                                    MPN: 12574221
                                                                                                    SEIFLOCKING NUT
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    This part replaces part number 125519 which we have in stock - and 1 more. Click to view details
                                                                                                    # 030
                                                                                                    MPN: 11067376
                                                                                                    CIRCLIP
                                                                                                    from £1.08
                                                                                                    from £1.08
                                                                                                    This part replaces part number 11067375
                                                                                                    # 031

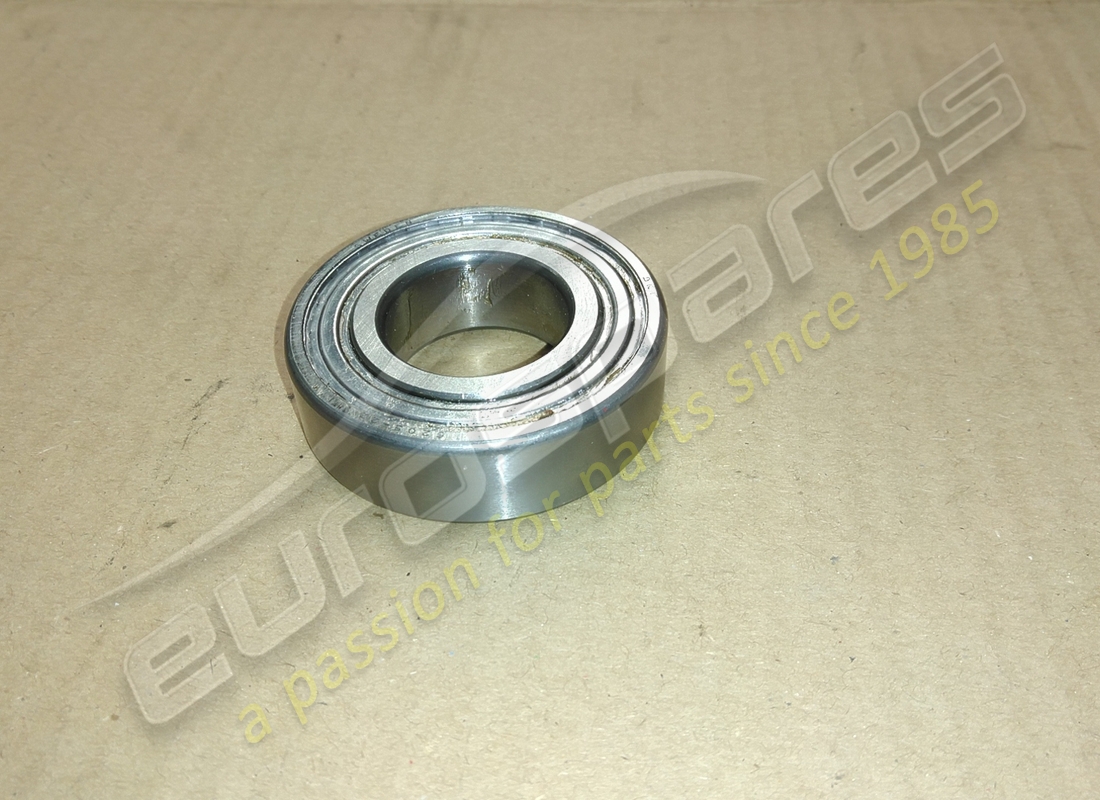

                                                                                                    MPN: 101104
                                                                                                    BALL BEARING
                                                                                                    from £4.32
                                                                                                    from £4.32
                                                                                                    This part replaces part number 114751 - and 1 more. Click to view details
                                                                                                    # 032
                                                                                                    MPN: 11060576
                                                                                                    STOP RING
                                                                                                    from £1.08
                                                                                                    from £1.08
                                                                                                    This part replaces part number 11060575
                                                                                                    # 033
                                                                                                    MPN: 16044821
                                                                                                    BOLT
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    # 034
                                                                                                    MPN: 101139
                                                                                                    NUT
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    This part replaces part number 16104425
                                                                                                    # 035
                                                                                                    MPN: 101106
                                                                                                    TONGUE
                                                                                                    from £4.55
                                                                                                    from £4.55
                                                                                                    This part replaces part number 94628
                                                                                                    # 036
                                                                                                    MPN: 10389901
                                                                                                    SCREW
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    # 037
                                                                                                    MPN: 12544171
                                                                                                    WASHER
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    # 038
                                                                                                    MPN: 10519401
                                                                                                    WASHER
                                                                                                    from £0.71
                                                                                                    from £0.71
                                                                                                    # 039
                                                                                                    MPN: 106870
                                                                                                    NUT FOR ADJUSTER
                                                                                                    from £9.52
                                                                                                    from £9.52
                                                                                                    # 040
                                                                                                    MPN: 10418901
                                                                                                    STRAP
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    # 041
                                                                                                    MPN: 110105
                                                                                                    SCREW
                                                                                                    from £0.62
                                                                                                    from £0.62
                                                                                                    # 042
                                                                                                    MPN: 12642801
                                                                                                    WASHER
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    This part replaces part number 12642824
                                                                                                    # 043
                                                                                                    MPN: 128181
                                                                                                    STEERING WHEEL COVER
                                                                                                    from £195.00
                                                                                                    from £195.00
                                                                                                    # 044
                                                                                                    MPN: 102125
                                                                                                    LEFT MOUNTING FOR STEERING COLUM
                                                                                                    from £35.50
                                                                                                    from £35.50
                                                                                                    # 045
                                                                                                    MPN: 111045
                                                                                                    RIGHT MOUNTING FOR STEERING COLUM
                                                                                                    from £25.82
                                                                                                    from £25.82
                                                                                                    # 046
                                                                                                    MPN: 10902124
                                                                                                    SCREW
                                                                                                    from £0.53
                                                                                                    from £0.53
                                                                                                    This part replaces part number 10902111 - and 1 more. Click to view details
                                                                                                    # 047
                                                                                                    MPN: 15896211
                                                                                                    NUT
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    This part replaces part number 15896210
                                                                                                    # 048
                                                                                                    MPN: 106850
                                                                                                    WASHER
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    This part replaces part number 10516473 - and 1 more. Click to view details
                                                                                                    # 049
                                                                                                    MPN: 106005
                                                                                                    SCREW
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    # 050
                                                                                                    MPN: 103181
                                                                                                    NUT
                                                                                                    from £1.94
                                                                                                    from £1.94
                                                                                                    This part replaces part number 95209 - and 1 more. Click to view details
                                                                                                    # 051
                                                                                                    MPN: 127496
                                                                                                    WASHER
                                                                                                    from £0.54
                                                                                                    from £0.54
                                                                                                    This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                                    # 052
                                                                                                    MPN: 106425
                                                                                                    PLATE
                                                                                                    from £12.98
                                                                                                    from £12.98
                                                                                                    Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
