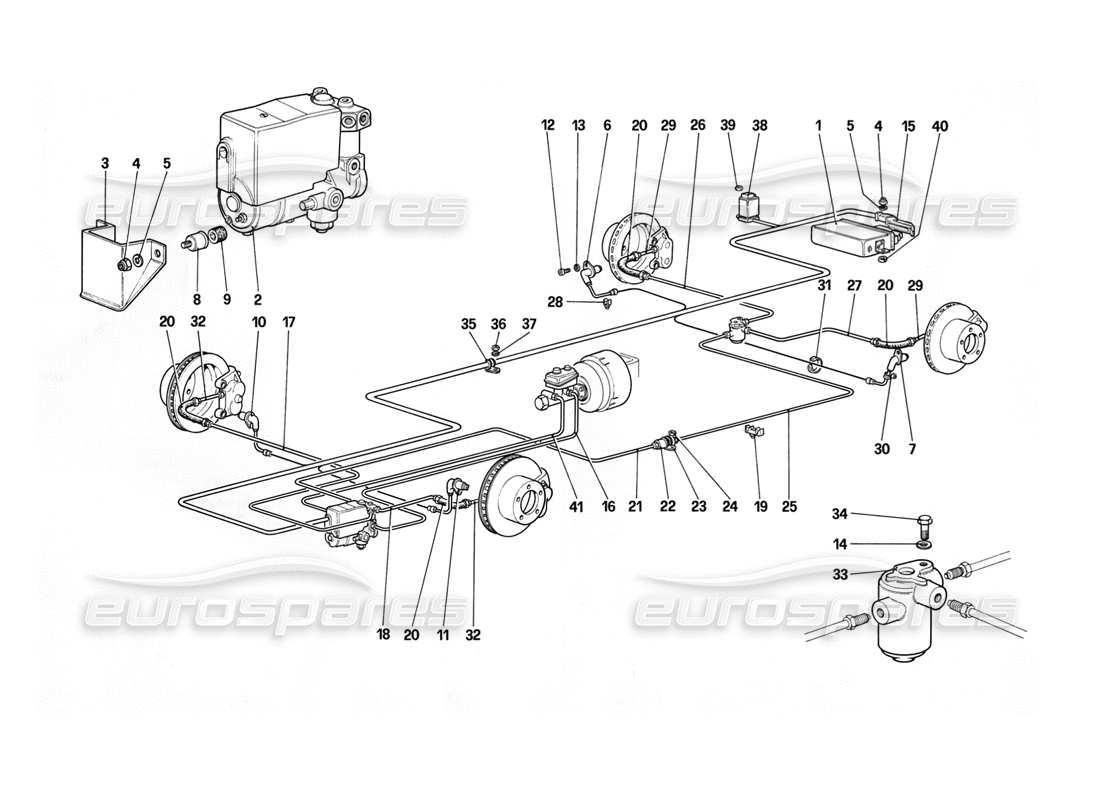

Ferrari 412 (Mechanical) ABS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                #
                                                                                Part number
                                                                                Description
                                                                                Price
                                                                                # 001
                                                                                MPN: 126057
                                                                                ELECTRONIC CONTROL UNIT FOR A.B.S.
                                                                                from £439.52
                                                                                from £439.52
                                                                                # 002
                                                                                MPN: 126056
                                                                                IDRAULIC CONTROL UNIT FOR A.B.S.
                                                                                from £1,232.36
                                                                                from £1,232.36
                                                                                # 003
                                                                                MPN: 127624
                                                                                SHIELD PANEL
                                                                                from £93.67
                                                                                from £93.67
                                                                                # 004
                                                                                MPN: 12574211
                                                                                SELF LOCKING NUT
                                                                                from £0.71
                                                                                from £0.71
                                                                                # 005
                                                                                MPN: 14496401
                                                                                WASHER
                                                                                Supersession
                                                                                Supersession
                                                                                # 006
                                                                                MPN: 126058
                                                                                SENSOR, REAR RH
                                                                                from £137.00
                                                                                from £137.00
                                                                                # 007
                                                                                MPN: 126059
                                                                                SENSOR, REAR LH
                                                                                from £67.26
                                                                                from £67.26
                                                                                # 008
                                                                                MPN: 127614
                                                                                CUP
                                                                                from £1.40
                                                                                from £1.40
                                                                                # 009
                                                                                MPN: 127613
                                                                                PAD
                                                                                from £1.76
                                                                                from £1.76
                                                                                # 010
                                                                                MPN: 126112
                                                                                SENSOR/FRONT RH
                                                                                from £128.63
                                                                                from £128.63
                                                                                # 011
                                                                                MPN: 126113
                                                                                SENSOR, FRONT LH
                                                                                # 012
                                                                                MPN: 14305121
                                                                                SCREW
                                                                                from £0.47
                                                                                from £0.47
                                                                                # 013
                                                                                MPN: 12601271
                                                                                WASHER
                                                                                Supersession
                                                                                Supersession
                                                                                This part replaces part number 103372 - and 1 more. Click to view details
                                                                                # 014
                                                                                MPN: 127496
                                                                                WASHER
                                                                                from £0.54
                                                                                from £0.54
                                                                                This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                # 015
                                                                                MPN: 124372
                                                                                CABLE FOR A.B.S.
                                                                                from £1,078.38
                                                                                from £1,078.38
                                                                                # 016
                                                                                MPN: 118611
                                                                                PIPE FROM PUMP TO FRONT CONTROL UNIT
                                                                                For RHD use no. 128784
                                                                                Supersession
                                                                                Supersession
                                                                                # 017
                                                                                MPN: 127467
                                                                                PIPE FROM CONTROL UNIT TO HOSE RH FRONT
                                                                                from £8.25
                                                                                from £8.25
                                                                                # 018
                                                                                MPN: 118611
                                                                                PIPE FROM CONTROL UNIT TO HOSE LH FRONT
                                                                                Supersession
                                                                                Supersession
                                                                                # 019
                                                                                MPN: 127515
                                                                                CLIP
                                                                                from £0.47
                                                                                from £0.47
                                                                                # 019
                                                                                MPN: 127516
                                                                                CLIP
                                                                                from £0.47
                                                                                from £0.47
                                                                                # 020
                                                                                MPN: 137313
                                                                                HOSE
                                                                                from £45.00
                                                                                from £45.00
                                                                                # 021
                                                                                MPN: 106970
                                                                                PIPE FROM CONTROL UNIT TO 2 WAY UNION
                                                                                from £10.05
                                                                                from £10.05
                                                                                # 022
                                                                                MPN: 127505
                                                                                2 WAY UNION
                                                                                from £8.38
                                                                                from £8.38
                                                                                # 023
                                                                                MPN: 10441490
                                                                                STRAP
                                                                                from £0.47
                                                                                from £0.47
                                                                                # 024
                                                                                MPN: 102948
                                                                                NUT
                                                                                from £0.47
                                                                                from £0.47
                                                                                This part replaces part number 12574211 - and 3 more. Click to view details
                                                                                # 025
                                                                                MPN: 101408
                                                                                PIPE FROM 2 WAY UNION TO PRESSURE REGULATOR
                                                                                This part replaces part number 680844
                                                                                # 026
                                                                                MPN: 101407
                                                                                PIPE FROM PRESSURE REGULATOR TO RIGHT HOSE
                                                                                from £26.03
                                                                                from £26.03
                                                                                This part replaces part number 680683
                                                                                # 027
                                                                                MPN: 107366
                                                                                PIPE FROM PRESSURE REGULATOR TO LEFT HOSE
                                                                                from £8.75
                                                                                from £8.75
                                                                                This part replaces part number 101409 - and 2 more. Click to view details
                                                                                # 028
                                                                                MPN: 128292
                                                                                CLIP
                                                                                from £1.36
                                                                                from £1.36
                                                                                # 029
                                                                                MPN: 143699
                                                                                PIPE FROM HOSE TO REAR CALIPER
                                                                                from £74.76
                                                                                from £74.76
                                                                                This part replaces part number 106671 - and 2 more. Click to view details
                                                                                # 030
                                                                                MPN: 10450090
                                                                                STRAP
                                                                                from £1.58
                                                                                from £1.58
                                                                                # 031
                                                                                MPN: 40135402
                                                                                STRAP
                                                                                from £2.45
                                                                                from £2.45
                                                                                This part replaces part number 111193
                                                                                # 032
                                                                                MPN: 101395
                                                                                PIPE FROM HOSE TO FRONT CALIPER
                                                                                Supersession
                                                                                Supersession
                                                                                This part replaces part number 680839
                                                                                # 033
                                                                                MPN: 110833
                                                                                PRESSURE REGULATOR
                                                                                from £564.18
                                                                                from £564.18
                                                                                # 034
                                                                                MPN: 16043021
                                                                                SCREW
                                                                                from £0.53
                                                                                from £0.53
                                                                                # 035
                                                                                MPN: 10441490
                                                                                BRACKET
                                                                                from £0.47
                                                                                from £0.47
                                                                                # 035
                                                                                MPN: 10441790
                                                                                BRACKET
                                                                                from £0.47
                                                                                from £0.47
                                                                                # 036
                                                                                MPN: 102948
                                                                                NUT
                                                                                from £0.47
                                                                                from £0.47
                                                                                This part replaces part number 12574211 - and 3 more. Click to view details
                                                                                # 037
                                                                                MPN: 12639701
                                                                                WASHER
                                                                                Supersession
                                                                                Supersession
                                                                                This part replaces part number 12639704
                                                                                # 038
                                                                                MPN: 61766200
                                                                                RELAY
                                                                                from £279.54
                                                                                from £279.54
                                                                                # 039
                                                                                MPN: 13831801
                                                                                NUT
                                                                                from £0.54
                                                                                from £0.54
                                                                                # 040
                                                                                MPN: 61286900
                                                                                SPACER
                                                                                from £4.61
                                                                                from £4.61
                                                                                # 041
                                                                                MPN: 118611
                                                                                PIPE FROM PUMP TO REAR CONTROL UNIT
                                                                                For RHD use no. 128783
                                                                                Supersession
                                                                                Supersession
