ferrari 412 (mechanical) inside and outside gearbox controls - 412 m. parts diagram

030 - Inside and Outside Gearbox Controls - 412 M.

Ferrari 412 (Mechanical) Inside and Outside Gearbox Controls - 412 M. Parts Diagram

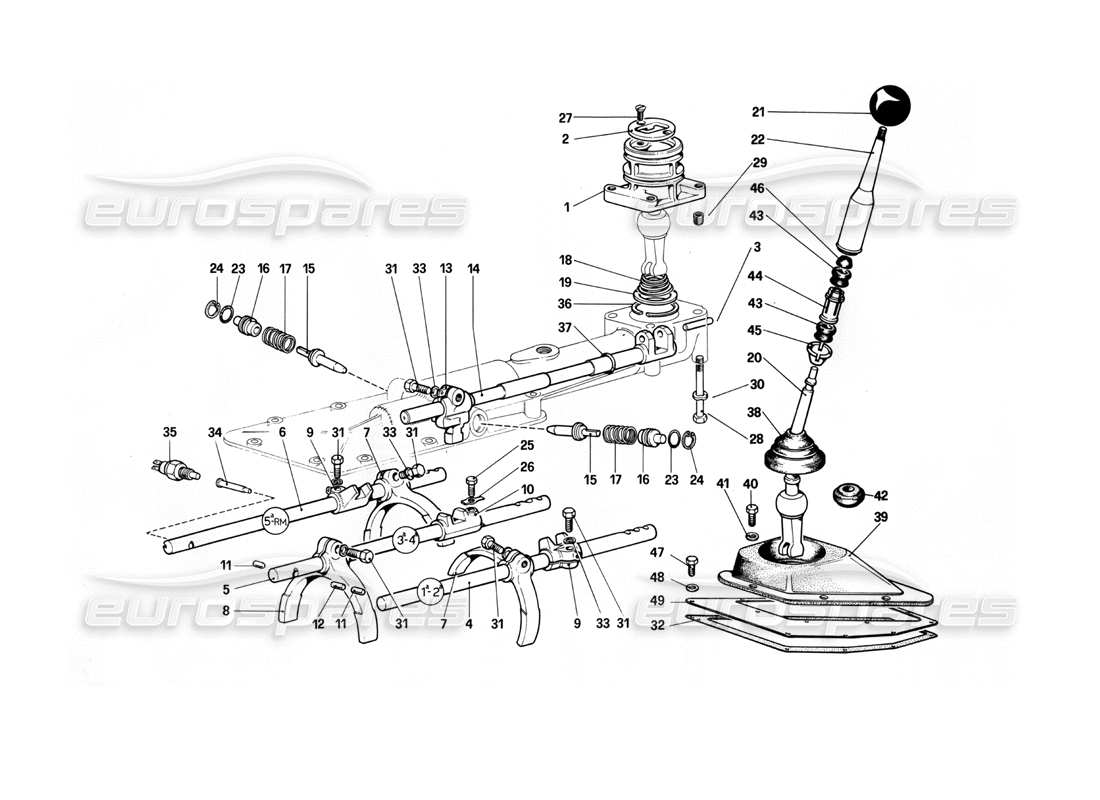

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                    #
                                                                                                    Part number
                                                                                                    Description
                                                                                                    Price
                                                                                                    # 001
                                                                                                    MPN: 104826
                                                                                                    TURRET
                                                                                                    from £274.96
                                                                                                    from £274.96
                                                                                                    # 002
                                                                                                    MPN: 100684
                                                                                                    SPEED SELECTOR
                                                                                                    from £124.65
                                                                                                    from £124.65
                                                                                                    This part replaces part number 524016
                                                                                                    # 003
                                                                                                    MPN: 100737
                                                                                                    PIN
                                                                                                    from £25.52
                                                                                                    from £25.52
                                                                                                    This part replaces part number 523760
                                                                                                    # 004
                                                                                                    MPN: 120937
                                                                                                    CONTROL ROD, 1ST AND 2ND SPEEDS
                                                                                                    from £94.85
                                                                                                    from £94.85
                                                                                                    # 005
                                                                                                    MPN: 120938
                                                                                                    CONTROL ROD, 3RD AND 4TH SPEEDS
                                                                                                    from £116.09
                                                                                                    from £116.09
                                                                                                    # 006
                                                                                                    MPN: 120939
                                                                                                    CONTROL ROD, 5TH SPEED AND REVERSE
                                                                                                    from £121.69
                                                                                                    from £121.69
                                                                                                    # 007
                                                                                                    MPN: 104068
                                                                                                    FORK FOR 1ST, 2ND, 5TH SPEEDS, REVERSE
                                                                                                    from £288.13
                                                                                                    from £288.13
                                                                                                    # 008
                                                                                                    MPN: 104069
                                                                                                    FORK FOR 3RD AND 4TH SPEEDS
                                                                                                    from £326.81
                                                                                                    from £326.81
                                                                                                    # 009
                                                                                                    MPN: 100745
                                                                                                    SMALL FORK FOR 1ST, 2ND, 5TH SPEEDS,
                                                                                                    from £158.22
                                                                                                    from £158.22
                                                                                                    This part replaces part number 524520
                                                                                                    # 010
                                                                                                    MPN: 100746
                                                                                                    SMALL FORK FOR 3RD AND 4TH SPEEDS
                                                                                                    from £130.09
                                                                                                    from £130.09
                                                                                                    This part replaces part number 523612
                                                                                                    # 011
                                                                                                    MPN: 100747
                                                                                                    STOP PIN FOR LATERAL RODS
                                                                                                    from £17.39
                                                                                                    from £17.39
                                                                                                    This part replaces part number 520146
                                                                                                    # 012
                                                                                                    MPN: 100748
                                                                                                    STOP PIN FOR CENTRAL ROD
                                                                                                    from £22.36
                                                                                                    from £22.36
                                                                                                    This part replaces part number 53126
                                                                                                    # 013
                                                                                                    MPN: 105313
                                                                                                    CONTROL LEVER FOR GEAR SELECTOR RODS
                                                                                                    from £218.14
                                                                                                    from £218.14
                                                                                                    This part replaces part number 523607
                                                                                                    # 014
                                                                                                    MPN: 100752
                                                                                                    GEAR CONTROL ROD
                                                                                                    from £285.66
                                                                                                    from £285.66
                                                                                                    This part replaces part number 523759
                                                                                                    # 015
                                                                                                    MPN: 105635
                                                                                                    PIN FOR LEVER
                                                                                                    from £114.11
                                                                                                    from £114.11
                                                                                                    This part replaces part number 100758 - and 1 more. Click to view details
                                                                                                    # 016
                                                                                                    MPN: 100753
                                                                                                    BUSH FOR PIN
                                                                                                    from £28.84
                                                                                                    from £28.84
                                                                                                    This part replaces part number 523605 - and 1 more. Click to view details
                                                                                                    # 017
                                                                                                    MPN: 100754

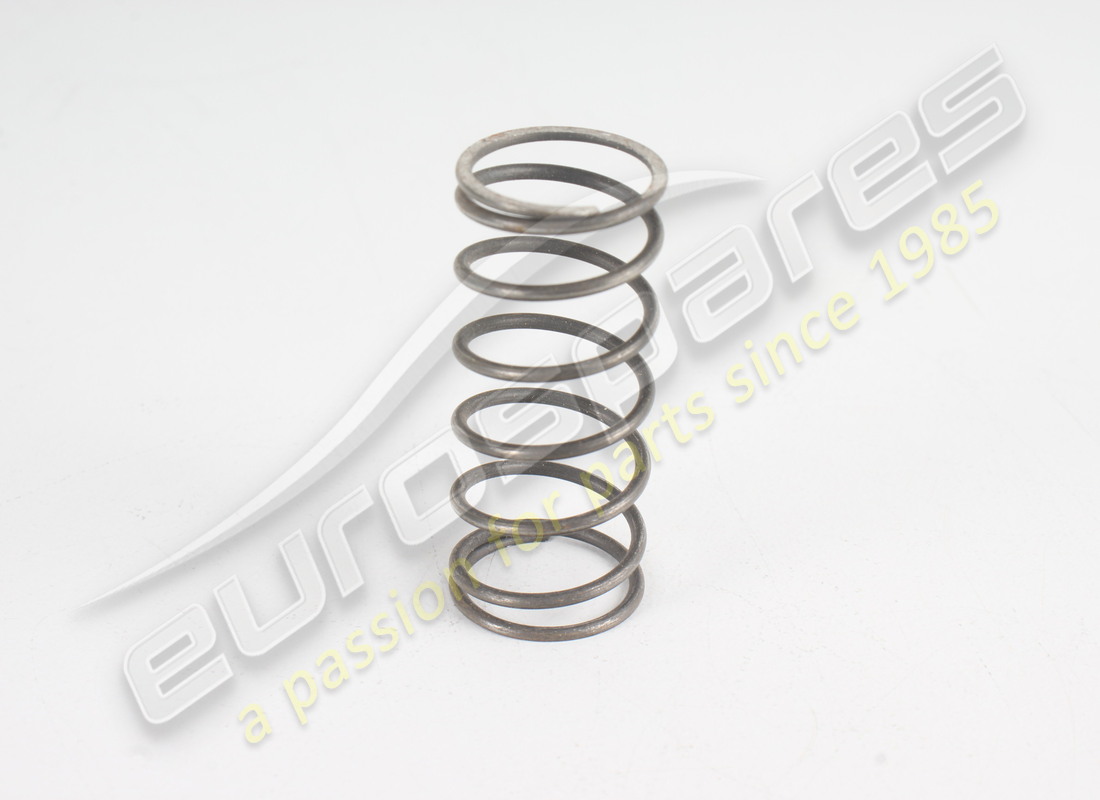

                                                                                                    SPRING FOR PIN
                                                                                                    from £13.20
                                                                                                    from £13.20
                                                                                                    This part replaces part number 523606
                                                                                                    # 018
                                                                                                    MPN: 100756

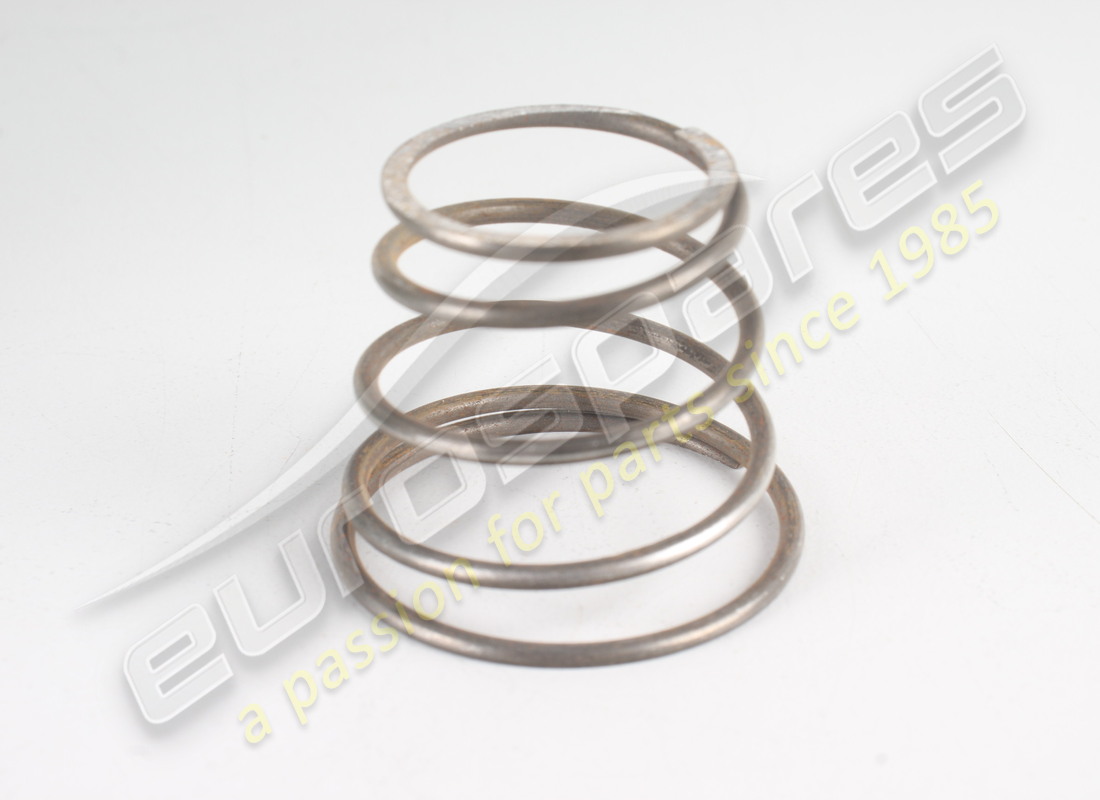

                                                                                                    RETURN SPRING FOR LEVER
                                                                                                    from £29.32
                                                                                                    from £29.32
                                                                                                    This part replaces part number 523600
                                                                                                    # 019
                                                                                                    MPN: 104829
                                                                                                    RING
                                                                                                    from £16.48
                                                                                                    from £16.48
                                                                                                    # 020
                                                                                                    MPN: 100757
                                                                                                    CONTROL LEVER (LH D.)
                                                                                                    from £471.97
                                                                                                    from £471.97
                                                                                                    This part replaces part number 523766
                                                                                                    # 020
                                                                                                    MPN: 104447
                                                                                                    CONTROL LEVER (RH D.)
                                                                                                    from £367.16
                                                                                                    from £367.16
                                                                                                    This part replaces part number 524624
                                                                                                    # 021
                                                                                                    MPN: 100912
                                                                                                    GEAR KNOB
                                                                                                    from £155.87
                                                                                                    from £155.87
                                                                                                    This part replaces part number 524272
                                                                                                    # 022
                                                                                                    MPN: 106133
                                                                                                    CONTROL ROD
                                                                                                    This part replaces part number 100910 - and 2 more. Click to view details
                                                                                                    # 023
                                                                                                    MPN: 101616
                                                                                                    SEALING RING
                                                                                                    from £1.51
                                                                                                    from £1.51
                                                                                                    # 024
                                                                                                    MPN: 11057675
                                                                                                    STOP RING
                                                                                                    # 025
                                                                                                    MPN: 104279
                                                                                                    BOLT
                                                                                                    from £20.23
                                                                                                    from £20.23
                                                                                                    This part replaces part number 95176 - and 1 more. Click to view details
                                                                                                    # 026
                                                                                                    MPN: 103587
                                                                                                    WASHER
                                                                                                    from £5.85
                                                                                                    from £5.85
                                                                                                    This part replaces part number 92692 - and 1 more. Click to view details
                                                                                                    # 027
                                                                                                    MPN: 101619
                                                                                                    SCREW
                                                                                                    from £9.27
                                                                                                    from £9.27
                                                                                                    This part replaces part number 95940228
                                                                                                    # 028
                                                                                                    MPN: 16136721
                                                                                                    SCREW, SECURING TURRET
                                                                                                    # 029
                                                                                                    MPN: 13525770
                                                                                                    HELI - COIL FOR SCREW
                                                                                                    from £1.55
                                                                                                    from £1.55
                                                                                                    This part replaces part number 103830
                                                                                                    # 030
                                                                                                    MPN: 12601371
                                                                                                    WASHER
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    # 031
                                                                                                    MPN: 16043621
                                                                                                    BOLT
                                                                                                    from £1.08
                                                                                                    from £1.08
                                                                                                    # 032
                                                                                                    MPN: 109230
                                                                                                    GASKET FOR PLATE
                                                                                                    from £50.38
                                                                                                    from £50.38
                                                                                                    # 033
                                                                                                    MPN: 10516677
                                                                                                    WASHER
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    # 034
                                                                                                    MPN: 100738
                                                                                                    PIN FOR REVERSE LIGHT SWITCH
                                                                                                    from £31.30
                                                                                                    from £31.30
                                                                                                    This part replaces part number 524513
                                                                                                    # 035
                                                                                                    MPN: 100946
                                                                                                    SWITCH FOR REVERSE LIGHT
                                                                                                    from £44.72
                                                                                                    from £44.72
                                                                                                    This part replaces part number 524510
                                                                                                    # 036
                                                                                                    MPN: 103096
                                                                                                    CIRCLIP
                                                                                                    from £1.47
                                                                                                    from £1.47
                                                                                                    This part replaces part number 104835
                                                                                                    # 037
                                                                                                    MPN: 105140
                                                                                                    RING FOR GEAR CONTROL ROD
                                                                                                    from £2.88
                                                                                                    from £2.88
                                                                                                    # 038
                                                                                                    MPN: 104828
                                                                                                    BELLOWS ON TURRET
                                                                                                    from £83.96
                                                                                                    from £83.96
                                                                                                    # 039
                                                                                                    MPN: 104830
                                                                                                    BELLOWS ON TUNNEL
                                                                                                    from £288.89
                                                                                                    from £288.89
                                                                                                    # 040
                                                                                                    MPN: 10902421
                                                                                                    BOLT, SECURING BELLOWS
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    # 041
                                                                                                    MPN: 106850
                                                                                                    WASHER
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    This part replaces part number 10516473 - and 1 more. Click to view details
                                                                                                    # 042
                                                                                                    MPN: 106502
                                                                                                    RUBBER RING FOR LEVER
                                                                                                    from £7.12
                                                                                                    from £7.12
                                                                                                    # 043
                                                                                                    MPN: 106134
                                                                                                    BUSH
                                                                                                    from £1.47
                                                                                                    from £1.47
                                                                                                    This part replaces part number 524995
                                                                                                    # 044
                                                                                                    MPN: 106135
                                                                                                    SPACER
                                                                                                    from £1.95
                                                                                                    from £1.95
                                                                                                    This part replaces part number 524996
                                                                                                    # 045
                                                                                                    MPN: 106136
                                                                                                    CIRCLIP
                                                                                                    from £1.04
                                                                                                    from £1.04
                                                                                                    This part replaces part number 4137843 - and 1 more. Click to view details
                                                                                                    # 046
                                                                                                    MPN: 106137
                                                                                                    SMALL BLOCK
                                                                                                    from £3.25
                                                                                                    from £3.25
                                                                                                    This part replaces part number 524998
                                                                                                    # 047
                                                                                                    MPN: 10902221
                                                                                                    SCREW
                                                                                                    from £0.52
                                                                                                    from £0.52
                                                                                                    # 048
                                                                                                    MPN: 106850
                                                                                                    WASHER
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    This part replaces part number 10516473 - and 1 more. Click to view details
                                                                                                    # 049
                                                                                                    MPN: 109229
                                                                                                    PLATE FOR BELLOWS
                                                                                                    from £25.21
                                                                                                    from £25.21
