ferrari 412 (mechanical) gearbox- 412 m. parts diagram

027 - Gearbox- 412 M.

Ferrari 412 (Mechanical) Gearbox- 412 M. Parts Diagram

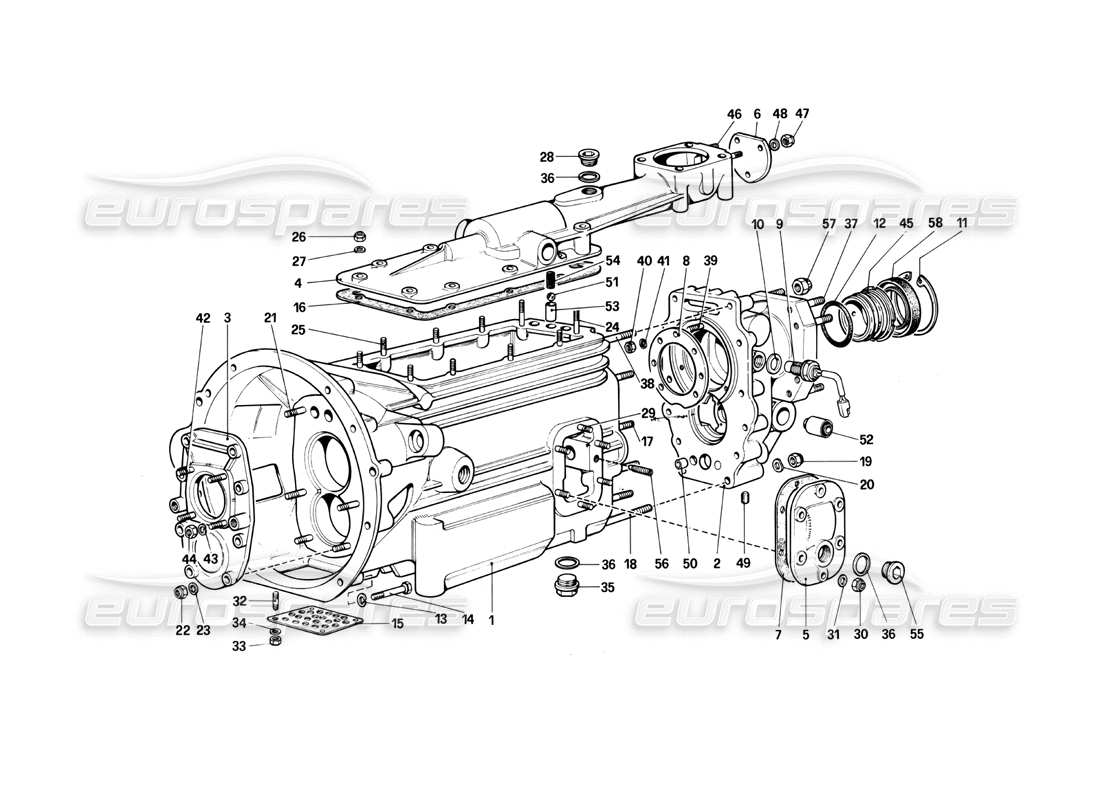

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                  #
                                                                                                                  Part number
                                                                                                                  Description
                                                                                                                  Price
                                                                                                                  # 001
                                                                                                                  MPN: 125911
                                                                                                                  GEARBOX CASING
                                                                                                                  With unit no. 126574
                                                                                                                  # 001
                                                                                                                  MPN: 125971
                                                                                                                  GEARBOX CASING
                                                                                                                  With unit no. 130564
                                                                                                                  # 001
                                                                                                                  MPN: 126574
                                                                                                                  GEARBOX CASING, COMPLETE (LHD)
                                                                                                                  from £3,870.55
                                                                                                                  from £3,870.55
                                                                                                                  # 001
                                                                                                                  MPN: 130564
                                                                                                                  GEARBOX CASING, COMPLETE (RHD)
                                                                                                                  from £3,850.78
                                                                                                                  from £3,850.78
                                                                                                                  # 001
                                                                                                                  MPN: 130565
                                                                                                                  GEARBOX COMPLETE 412M-RHD
                                                                                                                  N Gearbox Manual 412 Rhd
                                                                                                                  from £8,043.52
                                                                                                                  from £8,043.52
                                                                                                                  # 002
                                                                                                                  MPN: 119222
                                                                                                                  REAR COVER
                                                                                                                  from £741.70
                                                                                                                  from £741.70
                                                                                                                  # 003
                                                                                                                  MPN: 100676
                                                                                                                  FRONT COVER
                                                                                                                  To exhaustion
                                                                                                                  from £279.06
                                                                                                                  from £279.06
                                                                                                                  This part replaces part number 523372
                                                                                                                  # 003
                                                                                                                  MPN: 126573
                                                                                                                  FRONT COVER
                                                                                                                  After exhaustion PN 100676
                                                                                                                  # 004
                                                                                                                  MPN: 104825
                                                                                                                  UPPER COVER
                                                                                                                  from £718.65
                                                                                                                  from £718.65
                                                                                                                  # 005
                                                                                                                  MPN: 100679
                                                                                                                  LATERAL COVER
                                                                                                                  from £589.39
                                                                                                                  from £589.39
                                                                                                                  This part replaces part number 523375
                                                                                                                  # 006
                                                                                                                  MPN: 104827
                                                                                                                  COVER, CLOSING HOLE FOR ROD
                                                                                                                  from £6.60
                                                                                                                  from £6.60
                                                                                                                  # 007
                                                                                                                  MPN: 147627

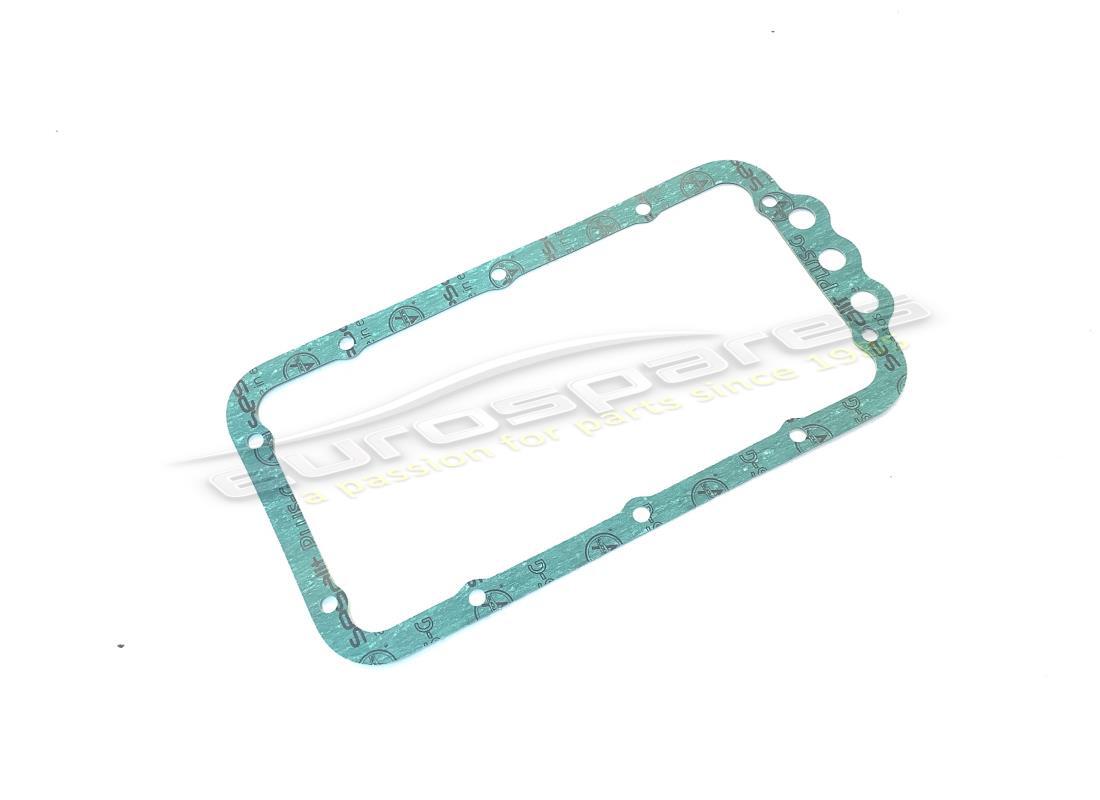

                                                                                                                  GASKET
                                                                                                                  from £2.64
                                                                                                                  from £2.64
                                                                                                                  This part replaces part number 100682
                                                                                                                  # 008
                                                                                                                  MPN: 100685
                                                                                                                  FLANGE, HOLDING BEARING
                                                                                                                  from £123.99
                                                                                                                  from £123.99
                                                                                                                  This part replaces part number 523582
                                                                                                                  # 009
                                                                                                                  MPN: 116987
                                                                                                                  IMPULSE DETECTOR
                                                                                                                  from £95.60
                                                                                                                  from £95.60
                                                                                                                  This part replaces part number 113962 - and 2 more. Click to view details
                                                                                                                  # 010
                                                                                                                  MPN: 10263460
                                                                                                                  GASKET
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  This part replaces part number 95119
                                                                                                                  # 011
                                                                                                                  MPN: 11061576
                                                                                                                  STOP RING
                                                                                                                  from £0.92
                                                                                                                  from £0.92
                                                                                                                  This part replaces part number 11061575

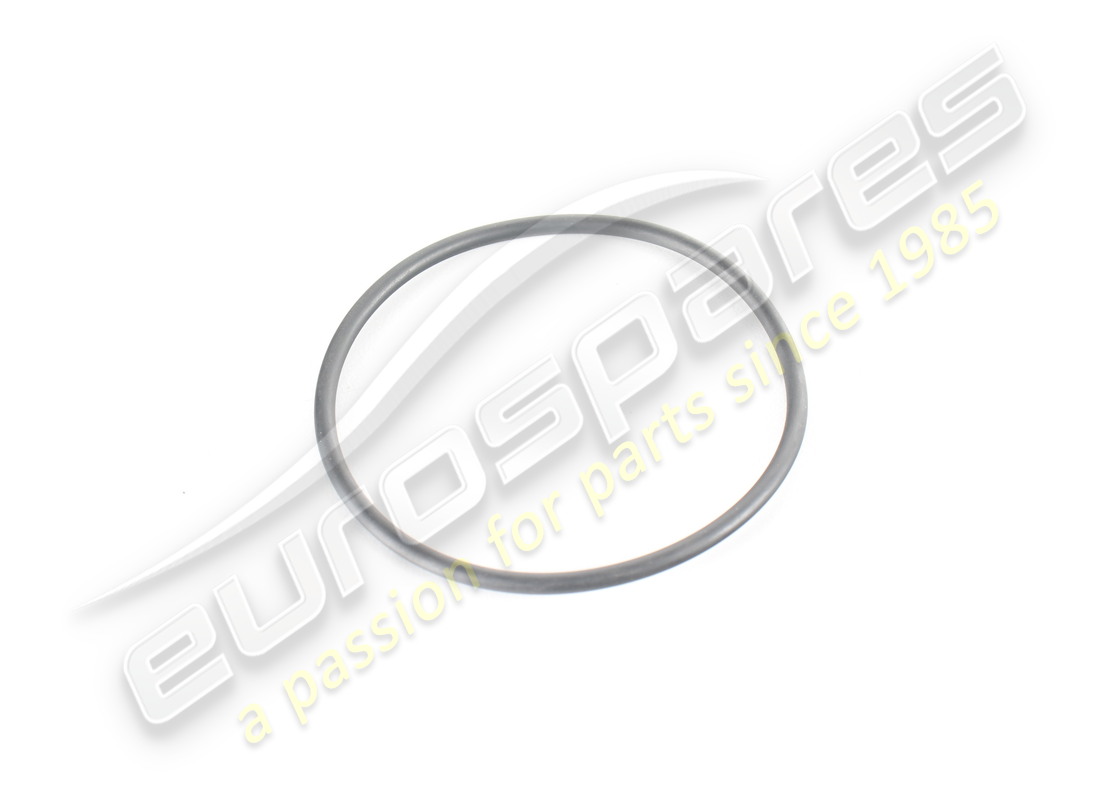

                                                                                                                  # 012
                                                                                                                  MPN: 109650
                                                                                                                  SEALING RING
                                                                                                                  from £3.31
                                                                                                                  from £3.31
                                                                                                                  # 013
                                                                                                                  MPN: 11198074
                                                                                                                  WASHER
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
                                                                                                                  # 014
                                                                                                                  MPN: 16044224
                                                                                                                  BOLT
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  This part replaces part number 16044221 which we have in stock
                                                                                                                  # 015
                                                                                                                  MPN: 100687
                                                                                                                  LOWER COVER
                                                                                                                  from £61.16
                                                                                                                  from £61.16
                                                                                                                  This part replaces part number 50820
                                                                                                                  # 016
                                                                                                                  MPN: 147628
                                                                                                                  GASKET
                                                                                                                  from £18.04
                                                                                                                  from £18.04
                                                                                                                  This part replaces part number 100686
                                                                                                                  # 017
                                                                                                                  MPN: 13517221
                                                                                                                  STUD
                                                                                                                  Supersession
                                                                                                                  Supersession
                                                                                                                  # 018
                                                                                                                  MPN: 13517821
                                                                                                                  STUD
                                                                                                                  Supersession
                                                                                                                  Supersession
                                                                                                                  # 019
                                                                                                                  MPN: 104030
                                                                                                                  NUT
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  This part replaces part number 16104125
                                                                                                                  # 020
                                                                                                                  MPN: 12601371
                                                                                                                  WASHER
                                                                                                                  Supersession
                                                                                                                  Supersession
                                                                                                                  # 021
                                                                                                                  MPN: 13517321
                                                                                                                  STUD
                                                                                                                  from £16.90
                                                                                                                  from £16.90
                                                                                                                  This part replaces part number 13517320
                                                                                                                  # 022
                                                                                                                  MPN: 104030
                                                                                                                  NUT
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  This part replaces part number 16104125
                                                                                                                  # 023
                                                                                                                  MPN: 12601371
                                                                                                                  WASHER
                                                                                                                  Supersession
                                                                                                                  Supersession
                                                                                                                  # 024
                                                                                                                  MPN: 11501221
                                                                                                                  STUD
                                                                                                                  from £2.66
                                                                                                                  from £2.66
                                                                                                                  # 025
                                                                                                                  MPN: 11500521
                                                                                                                  STUD
                                                                                                                  Supersession
                                                                                                                  Supersession
                                                                                                                  # 026
                                                                                                                  MPN: 12574221
                                                                                                                  NUT
                                                                                                                  Supersession
                                                                                                                  Supersession
                                                                                                                  This part replaces part number 125519 which we have in stock - and 1 more. Click to view details
                                                                                                                  # 027
                                                                                                                  MPN: 12601271
                                                                                                                  WASHER
                                                                                                                  Supersession
                                                                                                                  Supersession
                                                                                                                  This part replaces part number 103372 - and 1 more. Click to view details
                                                                                                                  # 028
                                                                                                                  MPN: 100759
                                                                                                                  PLUG FOR BREATHER
                                                                                                                  from £10.95
                                                                                                                  from £10.95
                                                                                                                  This part replaces part number 523668
                                                                                                                  # 029
                                                                                                                  MPN: 11500621
                                                                                                                  STUD
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  This part replaces part number 11500620
                                                                                                                  # 030
                                                                                                                  MPN: 12574221
                                                                                                                  NUT
                                                                                                                  Supersession
                                                                                                                  Supersession
                                                                                                                  This part replaces part number 125519 which we have in stock - and 1 more. Click to view details
                                                                                                                  # 031
                                                                                                                  MPN: 12601271
                                                                                                                  WASHER
                                                                                                                  Supersession
                                                                                                                  Supersession
                                                                                                                  This part replaces part number 103372 - and 1 more. Click to view details
                                                                                                                  # 032
                                                                                                                  MPN: 11000821
                                                                                                                  STUD
                                                                                                                  from £0.71
                                                                                                                  from £0.71
                                                                                                                  # 033
                                                                                                                  MPN: 15896421
                                                                                                                  NUT
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  # 034
                                                                                                                  MPN: 12601171
                                                                                                                  WASHER
                                                                                                                  Supersession
                                                                                                                  Supersession

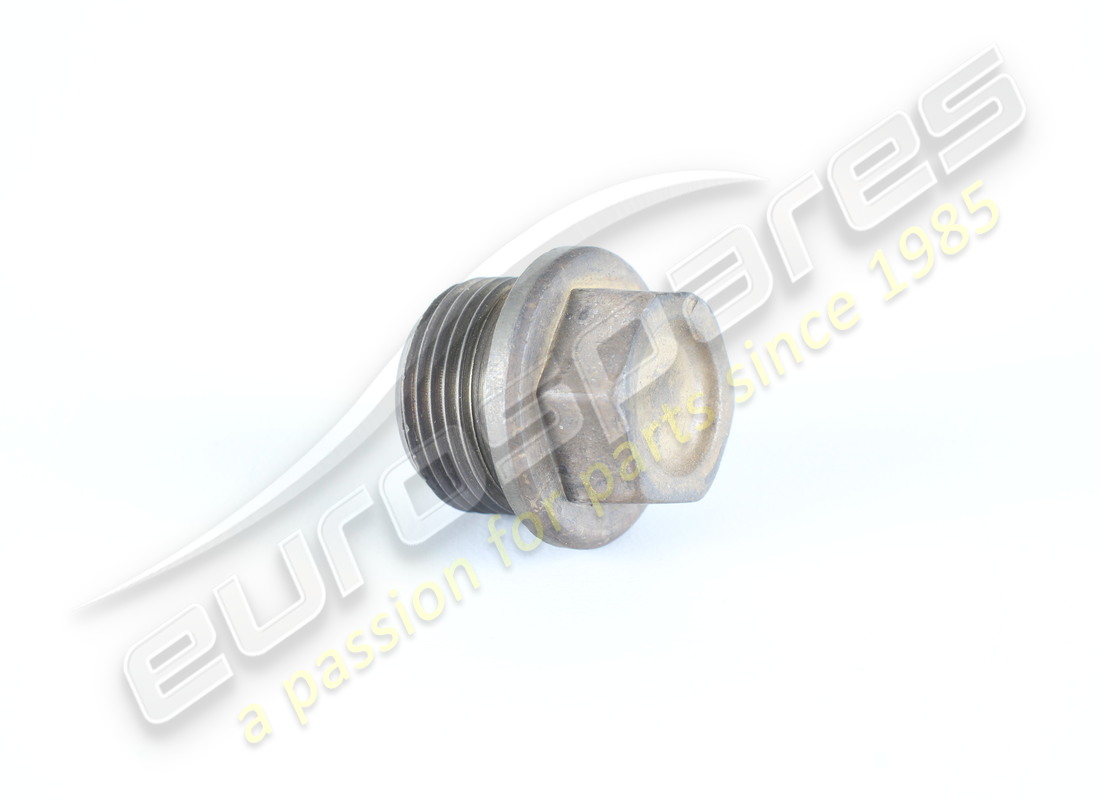

                                                                                                                  # 035
                                                                                                                  MPN: 14326540
                                                                                                                  DRAIN PLUG
                                                                                                                  from £35.89
                                                                                                                  from £35.89
                                                                                                                  # 036
                                                                                                                  MPN: 10263460
                                                                                                                  GASKET
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  This part replaces part number 95119
                                                                                                                  # 037
                                                                                                                  MPN: 13546331
                                                                                                                  STUD
                                                                                                                  Supersession
                                                                                                                  Supersession
                                                                                                                  # 038
                                                                                                                  MPN: 13517521
                                                                                                                  STUD
                                                                                                                  from £6.77
                                                                                                                  from £6.77
                                                                                                                  # 039
                                                                                                                  MPN: 13540821
                                                                                                                  STUD
                                                                                                                  Supersession
                                                                                                                  Supersession
                                                                                                                  # 040
                                                                                                                  MPN: 15896221
                                                                                                                  NUT
                                                                                                                  from £0.71
                                                                                                                  from £0.71
                                                                                                                  This part replaces part number 15896225
                                                                                                                  # 041
                                                                                                                  MPN: 10516471
                                                                                                                  WASHER
                                                                                                                  Supersession
                                                                                                                  Supersession
                                                                                                                  # 042
                                                                                                                  MPN: 11500021
                                                                                                                  STUD
                                                                                                                  from £9.50
                                                                                                                  from £9.50
                                                                                                                  # 043
                                                                                                                  MPN: 10516471
                                                                                                                  WASHER
                                                                                                                  Supersession
                                                                                                                  Supersession
                                                                                                                  # 044
                                                                                                                  MPN: 15896221
                                                                                                                  NUT
                                                                                                                  from £0.71
                                                                                                                  from £0.71
                                                                                                                  This part replaces part number 15896225
                                                                                                                  # 045
                                                                                                                  MPN: 109647
                                                                                                                  BUSH
                                                                                                                  from £106.52
                                                                                                                  from £106.52
                                                                                                                  # 046
                                                                                                                  MPN: 11000921
                                                                                                                  STUD
                                                                                                                  from £2.00
                                                                                                                  from £2.00
                                                                                                                  # 047
                                                                                                                  MPN: 12574121
                                                                                                                  NUT
                                                                                                                  Supersession
                                                                                                                  Supersession
                                                                                                                  This part replaces part number 12574111 - and 2 more. Click to view details
                                                                                                                  # 048
                                                                                                                  MPN: 12601171
                                                                                                                  WASHER
                                                                                                                  Supersession
                                                                                                                  Supersession
                                                                                                                  # 049
                                                                                                                  MPN: 14326050
                                                                                                                  PLUG
                                                                                                                  from £1.00
                                                                                                                  from £1.00
                                                                                                                  # 050
                                                                                                                  MPN: 102692
                                                                                                                  CENTERING DOWEL
                                                                                                                  from £4.94
                                                                                                                  from £4.94
                                                                                                                  # 051
                                                                                                                  MPN: 101612
                                                                                                                  BALL FOR PIN Ø 5/16
                                                                                                                  from £0.70
                                                                                                                  from £0.70
                                                                                                                  This part replaces part number 93309
                                                                                                                  # 052
                                                                                                                  MPN: 105634
                                                                                                                  SILENBLOCK FOR TIE-ROD
                                                                                                                  from £58.96
                                                                                                                  from £58.96
                                                                                                                  # 053
                                                                                                                  MPN: 115376
                                                                                                                  BUSH FOR PIN
                                                                                                                  from £29.06
                                                                                                                  from £29.06
                                                                                                                  # 054
                                                                                                                  MPN: 124246
                                                                                                                  SPRING FOR PIN
                                                                                                                  from £10.21
                                                                                                                  from £10.21
                                                                                                                  This part replaces part number 121805

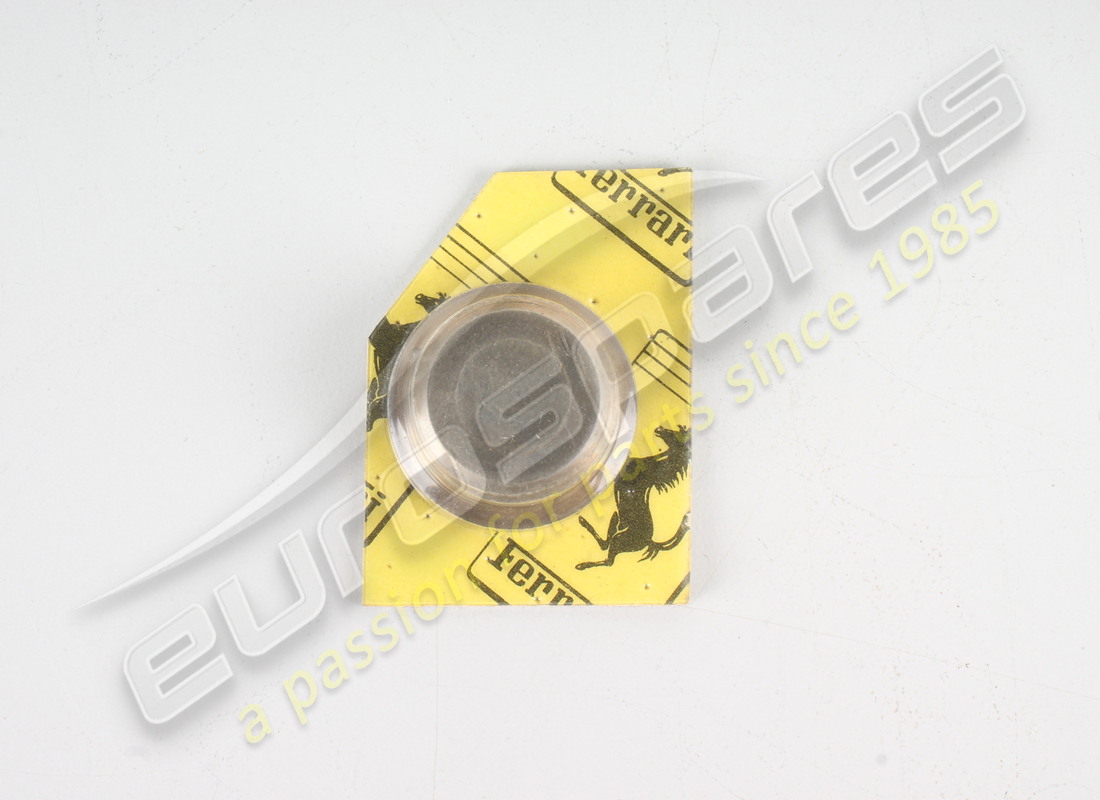

                                                                                                                  # 055
                                                                                                                  MPN: 10275011
                                                                                                                  PLUG
                                                                                                                  from £1.05
                                                                                                                  from £1.05
                                                                                                                  This part replaces part number 10275001 - and 3 more. Click to view details
                                                                                                                  # 056
                                                                                                                  MPN: 101620
                                                                                                                  DOWEL, SECURING PIN FOR REVERSE IDLE GEAR
                                                                                                                  from £1.52
                                                                                                                  from £1.52
                                                                                                                  # 057
                                                                                                                  MPN: 13598021
                                                                                                                  NUT
                                                                                                                  from £0.71
                                                                                                                  from £0.71
                                                                                                                  This part replaces part number 13598011
                                                                                                                  # 058
                                                                                                                  MPN: 106778
                                                                                                                  SEALING RING
                                                                                                                  from £52.80
                                                                                                                  from £52.80
                                                                                                                  This part replaces part number 104872 - and 1 more. Click to view details
