ferrari 412 (mechanical) cylinder head (left) parts diagram

005 - cylinder head (left)

Ferrari 412 (Mechanical) Cylinder Head (Left) Parts Diagram

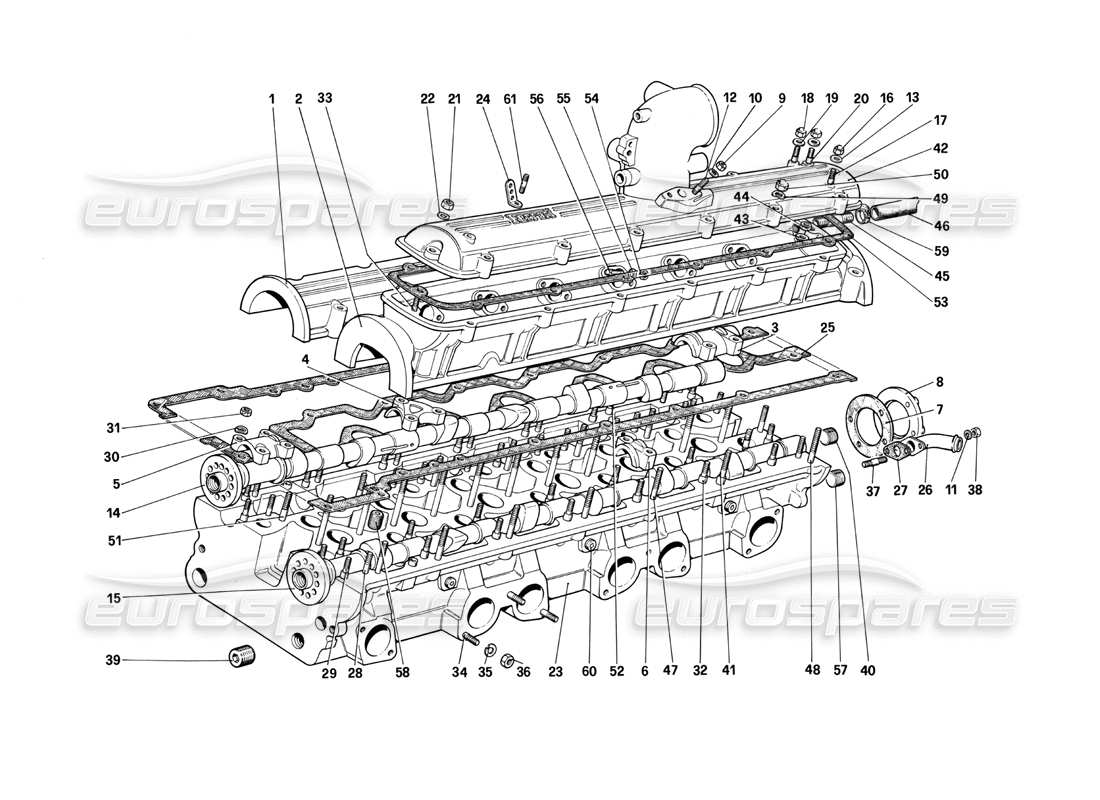

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                #
                                                                                                Part number
                                                                                                Description
                                                                                                Price
                                                                                                # 001
                                                                                                MPN: 125155
                                                                                                INNER COVER FOR LH HEAD
                                                                                                from £535.90
                                                                                                from £535.90
                                                                                                # 001
                                                                                                MPN: 127894
                                                                                                OUTER COVER FOR LH HEAD COMPLETE
                                                                                                from £1,411.75
                                                                                                from £1,411.75
                                                                                                # 002
                                                                                                MPN: 127895
                                                                                                OUTER COVER
                                                                                                With assembly no. 127894
                                                                                                # 003
                                                                                                MPN: 100231
                                                                                                REAR CAP
                                                                                                With cylinder head no. 126511
                                                                                                # 003
                                                                                                MPN: 125437
                                                                                                REAR CAP
                                                                                                With cylinder head no. 125278 and 127959
                                                                                                # 004
                                                                                                MPN: 100226
                                                                                                INTERMEDIATE CAP
                                                                                                With cylinder head no. 126512
                                                                                                # 004
                                                                                                MPN: 125432
                                                                                                INTERMEDIATE CAP
                                                                                                # 005
                                                                                                MPN: 100230
                                                                                                FRONT CAP
                                                                                                With cylinder head no. 126513
                                                                                                # 005
                                                                                                MPN: 125436
                                                                                                FRONT CAP
                                                                                                # 006
                                                                                                MPN: 100227
                                                                                                INTERMEDIATE CAP
                                                                                                With cylinder head no. 126514
                                                                                                # 006
                                                                                                MPN: 125433
                                                                                                INTERMEDIATE CAP
                                                                                                # 007
                                                                                                MPN: 147706

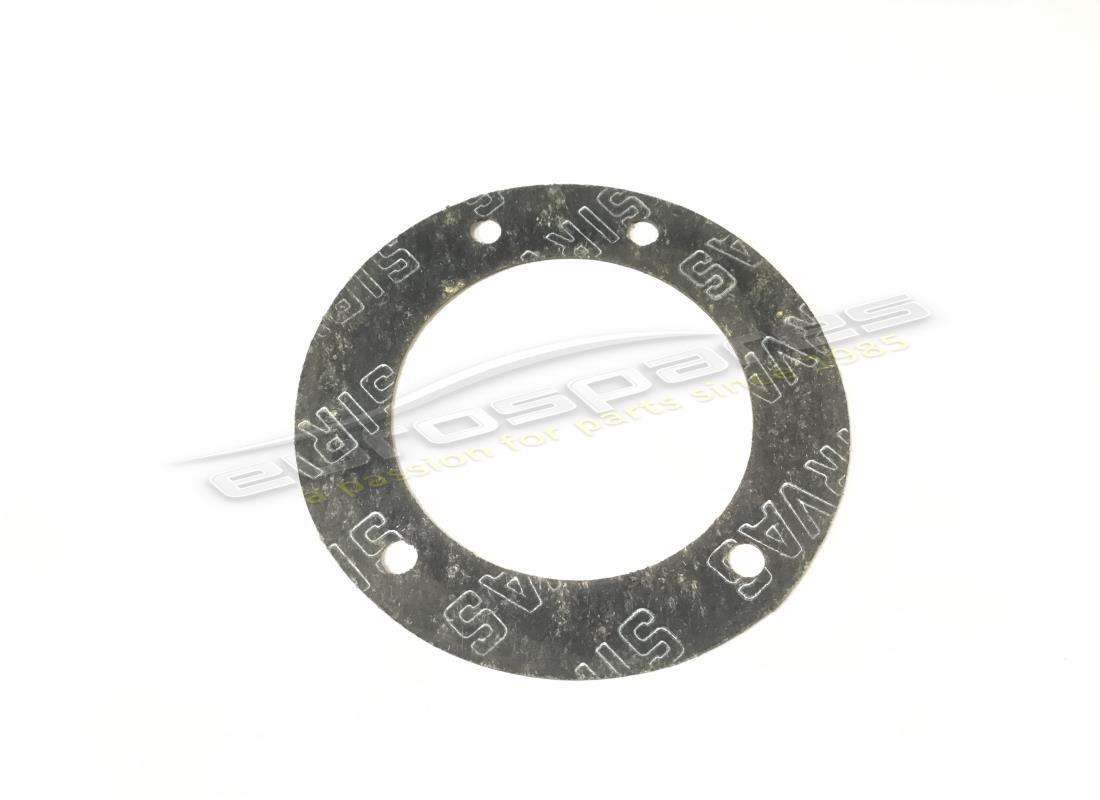

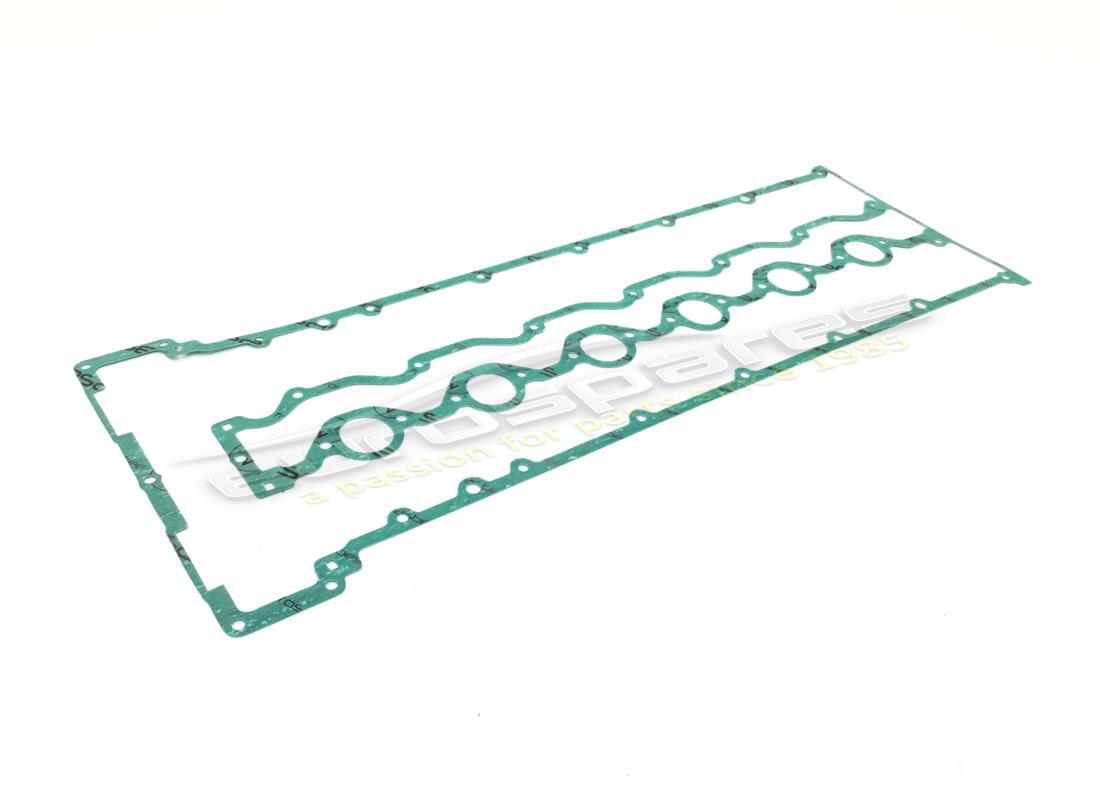

                                                                                                GASKET
                                                                                                from £4.02
                                                                                                from £4.02
                                                                                                This part replaces part number 113510
                                                                                                # 007
                                                                                                MPN: 147706
                                                                                                GASKET
                                                                                                USE 147706
                                                                                                from £4.02
                                                                                                from £4.02
                                                                                                This part replaces part number 113510
                                                                                                # 008
                                                                                                MPN: 113509
                                                                                                REAR COVER
                                                                                                from £59.11
                                                                                                from £59.11
                                                                                                # 009
                                                                                                MPN: 101239
                                                                                                NUT
                                                                                                from £1.60
                                                                                                from £1.60
                                                                                                This part replaces part number 92310
                                                                                                # 010
                                                                                                MPN: 10519401
                                                                                                WASHER
                                                                                                from £0.71
                                                                                                from £0.71
                                                                                                # 011
                                                                                                MPN: 12601271
                                                                                                WASHER
                                                                                                Supersession
                                                                                                Supersession
                                                                                                This part replaces part number 103372 - and 1 more. Click to view details
                                                                                                # 012
                                                                                                MPN: 13540721
                                                                                                STUD
                                                                                                Supersession
                                                                                                Supersession
                                                                                                # 013
                                                                                                MPN: 12643701
                                                                                                WASHER
                                                                                                Supersession
                                                                                                Supersession
                                                                                                This part replaces part number 12643704 - and 1 more. Click to view details
                                                                                                # 014
                                                                                                MPN: 126454

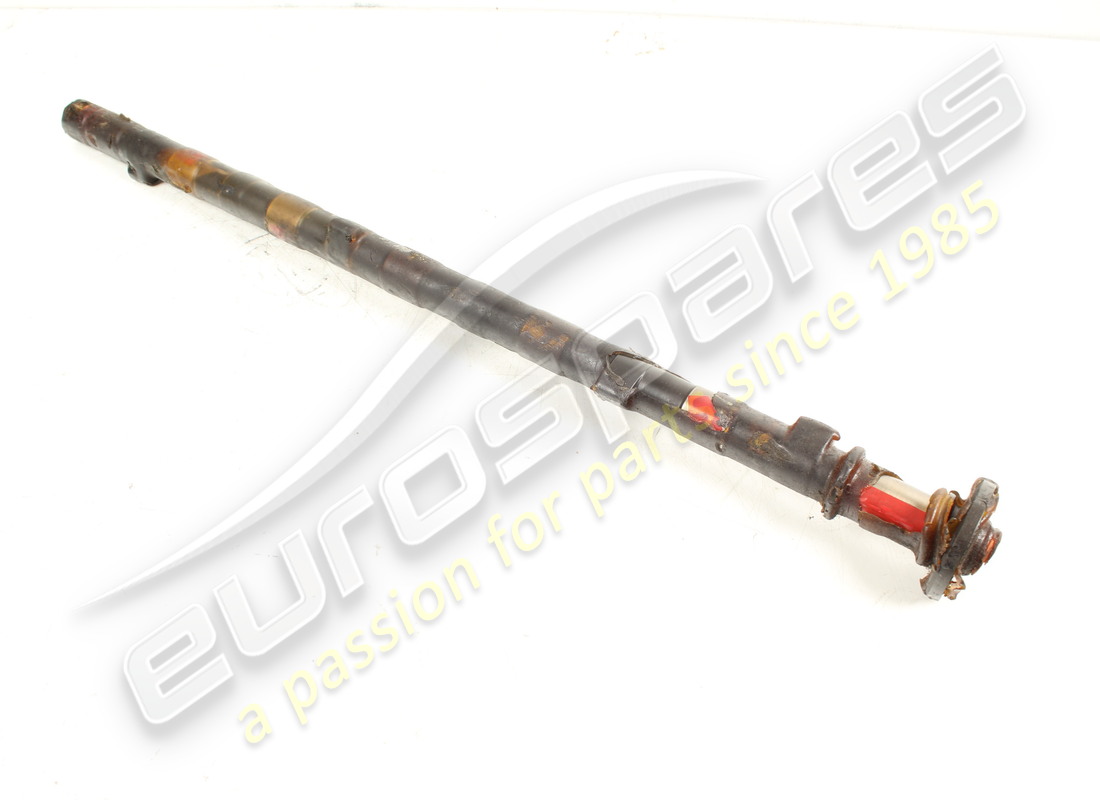

                                                                                                LEFT INTAKE CAMSHAFT COMPLETE
                                                                                                Not for CH - Up to engine No. 127
                                                                                                from £1,286.63
                                                                                                from £1,286.63
                                                                                                # 014
                                                                                                MPN: 129213
                                                                                                LEFT INTAKE CAMSHAFT COMPLETE
                                                                                                Not for CH - From engine No. 128
                                                                                                from £1,363.19
                                                                                                from £1,363.19
                                                                                                # 014
                                                                                                MPN: 129229
                                                                                                LEFT INTAKE CAMSHAFT COMPLETE
                                                                                                For CH - From engine No. 128
                                                                                                from £1,151.64
                                                                                                from £1,151.64
                                                                                                # 014
                                                                                                MPN: 129311
                                                                                                LEFT INTAKE CAMSHAFT COMPLETE
                                                                                                For CH - Up to engine no.127
                                                                                                from £955.67
                                                                                                from £955.67
                                                                                                # 015
                                                                                                MPN: 113959
                                                                                                LEFT EXHAUST CAMSHAFT COMPLETE
                                                                                                Up to engine no.127
                                                                                                from £1,224.89
                                                                                                from £1,224.89
                                                                                                # 015
                                                                                                MPN: 129217
                                                                                                LEFT EXHAUST CAMSHAFT COMPLETE
                                                                                                From engine no. 128
                                                                                                from £1,363.19
                                                                                                from £1,363.19
                                                                                                # 016
                                                                                                MPN: 101239
                                                                                                NUT
                                                                                                from £1.60
                                                                                                from £1.60
                                                                                                This part replaces part number 92310
                                                                                                # 017
                                                                                                MPN: 11500511
                                                                                                STUD
                                                                                                from £0.49
                                                                                                from £0.49
                                                                                                # 018
                                                                                                MPN: 101239
                                                                                                NUT
                                                                                                from £1.60
                                                                                                from £1.60
                                                                                                This part replaces part number 92310
                                                                                                # 019
                                                                                                MPN: 12601271
                                                                                                WASHER
                                                                                                Supersession
                                                                                                Supersession
                                                                                                This part replaces part number 103372 - and 1 more. Click to view details
                                                                                                # 020
                                                                                                MPN: 11500021
                                                                                                STUD
                                                                                                from £9.50
                                                                                                from £9.50
                                                                                                # 021
                                                                                                MPN: 101239
                                                                                                NUT
                                                                                                from £1.60
                                                                                                from £1.60
                                                                                                This part replaces part number 92310
                                                                                                # 022
                                                                                                MPN: 12601271
                                                                                                WASHER
                                                                                                Supersession
                                                                                                Supersession
                                                                                                This part replaces part number 103372 - and 1 more. Click to view details
                                                                                                # 023
                                                                                                MPN: 125153

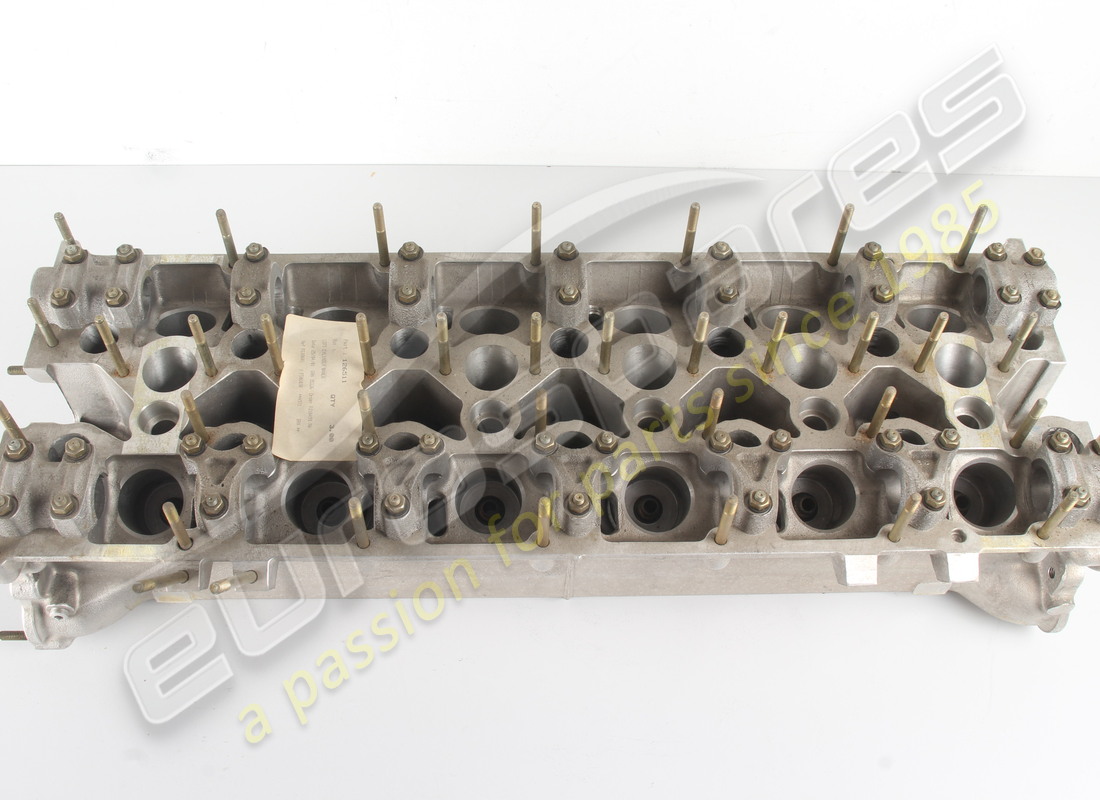

                                                                                                LEFT CYLINDER HEAD, COMPLETE
                                                                                                From engine no. 128
                                                                                                from £9,064.71
                                                                                                from £9,064.71
                                                                                                This part replaces part number 127878
                                                                                                # 023
                                                                                                MPN: 125278
                                                                                                left cylinder head
                                                                                                With assembly no. 125153
                                                                                                # 023
                                                                                                MPN: 126509
                                                                                                left cylinder head
                                                                                                With assembly no. 126511
                                                                                                # 023
                                                                                                MPN: 126511
                                                                                                LEFT CYLINDER HEAD, COMPLETE
                                                                                                Up to engine no. 127
                                                                                                from £8,729.50
                                                                                                from £8,729.50
                                                                                                # 023
                                                                                                MPN: 126925
                                                                                                left cylinder head
                                                                                                With assembly no. 127959
                                                                                                # 023
                                                                                                MPN: 127959
                                                                                                LEFT CYLINDER HEAD, COMPLETE
                                                                                                For CH
                                                                                                from £9,731.46
                                                                                                from £9,731.46
                                                                                                # 024
                                                                                                MPN: 127532
                                                                                                BRACKET
                                                                                                from £13.02
                                                                                                from £13.02
                                                                                                # 025
                                                                                                MPN: 113568
                                                                                                GASKET
                                                                                                USE 147716
                                                                                                Supersession
                                                                                                Supersession
                                                                                                # 025
                                                                                                MPN: 147716
                                                                                                GASKET
                                                                                                from £40.95
                                                                                                from £40.95
                                                                                                This part replaces part number 113568
                                                                                                # 026
                                                                                                MPN: 127972
                                                                                                UNION FOR WATER PLUG OF HEATER
                                                                                                from £17.31
                                                                                                from £17.31
                                                                                                # 027
                                                                                                MPN: 104291
                                                                                                GASKET
                                                                                                from £3.75
                                                                                                from £3.75
                                                                                                This part replaces part number 401009 - and 1 more. Click to view details
                                                                                                # 028
                                                                                                MPN: 102735
                                                                                                STUD
                                                                                                from £11.07
                                                                                                from £11.07
                                                                                                This part replaces part number 4146561
                                                                                                # 029
                                                                                                MPN: 104188
                                                                                                STUD
                                                                                                from £4.87
                                                                                                from £4.87
                                                                                                # 030
                                                                                                MPN: 11197773
                                                                                                WASHER
                                                                                                Supersession
                                                                                                Supersession
                                                                                                # 031
                                                                                                MPN: 15896211
                                                                                                NUT
                                                                                                Supersession
                                                                                                Supersession
                                                                                                This part replaces part number 15896210
                                                                                                # 032
                                                                                                MPN: 102725
                                                                                                DOWEL
                                                                                                from £0.60
                                                                                                from £0.60
                                                                                                # 033
                                                                                                MPN: 11500821
                                                                                                STUD
                                                                                                from £19.05
                                                                                                from £19.05
                                                                                                # 034
                                                                                                MPN: 13543324
                                                                                                STUD SECURING MANIFOLDS
                                                                                                from £0.83
                                                                                                from £0.83
                                                                                                This part replaces part number 13543321
                                                                                                # 035
                                                                                                MPN: 127496
                                                                                                WASHER
                                                                                                ONLY FOR 105938
                                                                                                from £0.51
                                                                                                from £0.51
                                                                                                This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                                # 036
                                                                                                MPN: 114748
                                                                                                NUT
                                                                                                As option to no. 124525
                                                                                                from £8.69
                                                                                                from £8.69
                                                                                                # 037
                                                                                                MPN: 11500224
                                                                                                STUD FOR UNION
                                                                                                from £0.51
                                                                                                from £0.51
                                                                                                This part replaces part number 11500221 - and 1 more. Click to view details
                                                                                                # 038
                                                                                                MPN: 12574211
                                                                                                NUT
                                                                                                from £0.71
                                                                                                from £0.71
                                                                                                # 039
                                                                                                MPN: 14325240
                                                                                                PLUG
                                                                                                from £3.47
                                                                                                from £3.47
                                                                                                # 040
                                                                                                MPN: 10269750
                                                                                                PLUG
                                                                                                from £0.91
                                                                                                from £0.91
                                                                                                This part replaces part number 95184
                                                                                                # 041
                                                                                                MPN: 13542021
                                                                                                LONG STUD ON DOWEL
                                                                                                Supersession
                                                                                                Supersession
                                                                                                # 042
                                                                                                MPN: 126546
                                                                                                UPPER COVER WITH COMPLETE THROTTLE BODY
                                                                                                from £1,636.47
                                                                                                from £1,636.47
                                                                                                # 042
                                                                                                MPN: 128341
                                                                                                UPPER COVER WITH COMPLETE THROTTLE BODY
                                                                                                For CH
                                                                                                from £1,544.28
                                                                                                from £1,544.28
                                                                                                # 043
                                                                                                MPN: 10297760
                                                                                                WASHER
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                # 044
                                                                                                MPN: 12574211
                                                                                                NUT
                                                                                                from £0.71
                                                                                                from £0.71
                                                                                                # 045
                                                                                                MPN: 100610
                                                                                                SLEEVE
                                                                                                from £45.95
                                                                                                from £45.95
                                                                                                # 046
                                                                                                MPN: 110747
                                                                                                TUBE CONNECTING INTAKE MANIFOLD TO VACUUM SERVE CHECK VALVE
                                                                                                For RH D. use no. 110748
                                                                                                from £31.46
                                                                                                from £31.46
                                                                                                # 047
                                                                                                MPN: 13541921
                                                                                                STUD, SECURING COVER
                                                                                                Supersession
                                                                                                Supersession
                                                                                                # 048
                                                                                                MPN: 13541721
                                                                                                STUD
                                                                                                Supersession
                                                                                                Supersession
                                                                                                # 049
                                                                                                MPN: 12601271
                                                                                                WASHER
                                                                                                Supersession
                                                                                                Supersession
                                                                                                This part replaces part number 103372 - and 1 more. Click to view details
                                                                                                # 050
                                                                                                MPN: 101239
                                                                                                NUT
                                                                                                from £1.60
                                                                                                from £1.60
                                                                                                This part replaces part number 92310
                                                                                                # 051
                                                                                                MPN: 104185
                                                                                                STUD FOR INNER COVER
                                                                                                from £18.79
                                                                                                from £18.79
                                                                                                This part replaces part number P1
                                                                                                # 052
                                                                                                MPN: 102935
                                                                                                STUD ON DOWEL
                                                                                                from £1.33
                                                                                                from £1.33
                                                                                                This part replaces part number 4161959
                                                                                                # 053
                                                                                                MPN: 147717
                                                                                                GASKET
                                                                                                from £14.36
                                                                                                from £14.36
                                                                                                This part replaces part number 113572
                                                                                                # 054
                                                                                                MPN: 15896221
                                                                                                NUT
                                                                                                from £0.71
                                                                                                from £0.71
                                                                                                This part replaces part number 15896225
                                                                                                # 055
                                                                                                MPN: 11197774
                                                                                                WASHER
                                                                                                from £0.52
                                                                                                from £0.52
                                                                                                This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                                # 056
                                                                                                MPN: 11499921
                                                                                                STUD
                                                                                                from £6.43
                                                                                                from £6.43
                                                                                                # 057
                                                                                                MPN: 14325240
                                                                                                PLUG
                                                                                                from £3.47
                                                                                                from £3.47
                                                                                                # 058
                                                                                                MPN: 14325040
                                                                                                PLUG
                                                                                                from £3.15
                                                                                                from £3.15
                                                                                                # 059
                                                                                                MPN: 13000490
                                                                                                CLAMP
                                                                                                from £0.53
                                                                                                from £0.53
                                                                                                This part replaces part number 10169090 - and 3 more. Click to view details
                                                                                                # 060
                                                                                                MPN: 10269550
                                                                                                THREADED PLUG
                                                                                                from £1.56
                                                                                                from £1.56
                                                                                                # 061
                                                                                                MPN: 11501021
                                                                                                STUD
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                This part replaces part number 11501020
