007 - Doors & Fixings

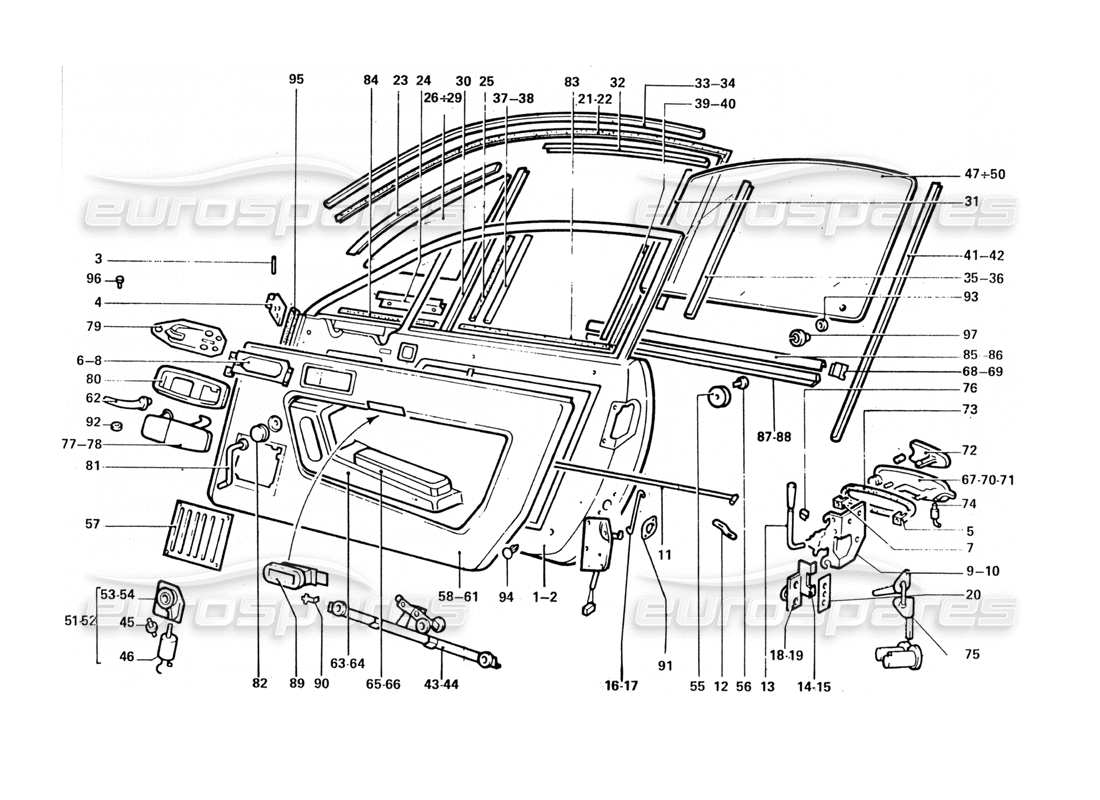

Ferrari 412 (Coachwork) Doors & Fixings Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001

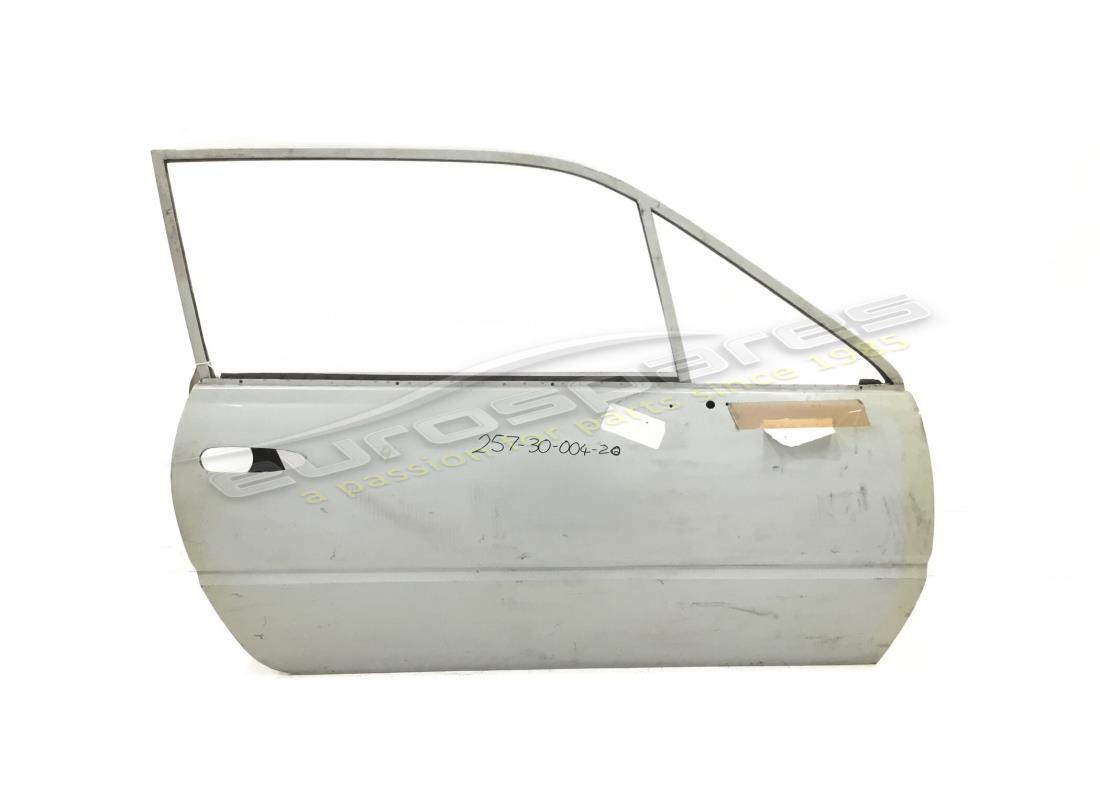

MPN: 257-30-004-20

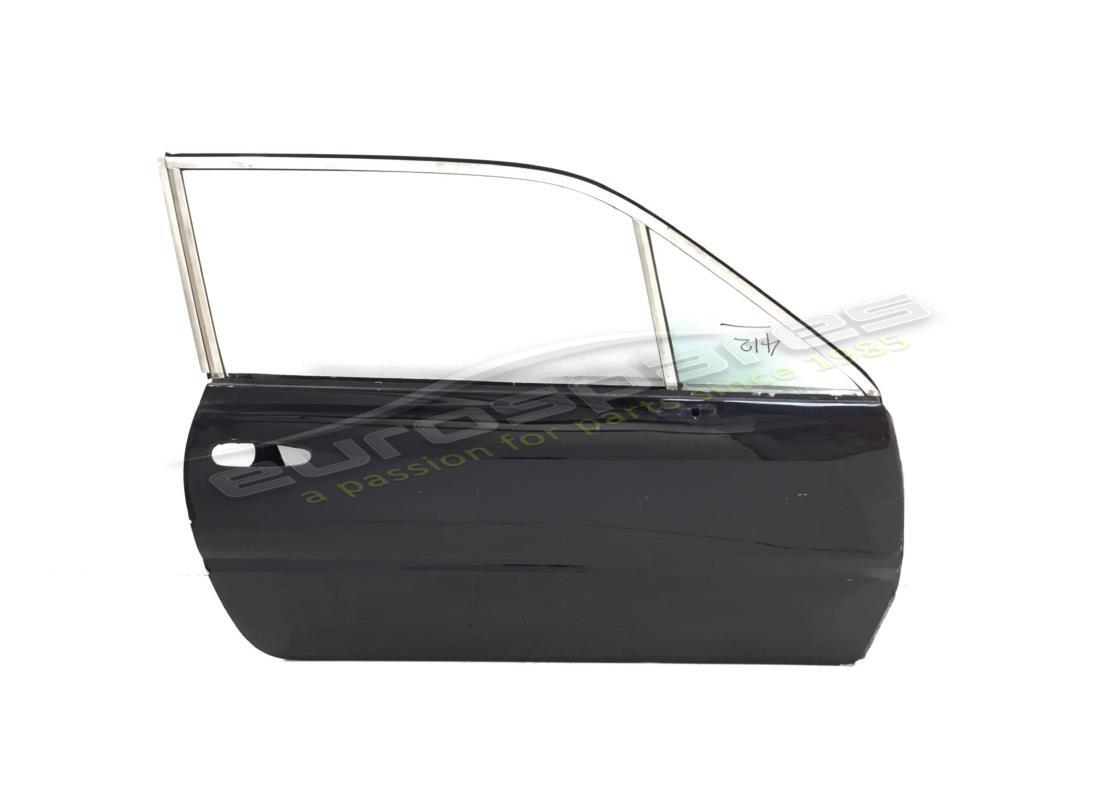

PORT D. COM PI. FRAME AND COVERING
from £1,296.89
from £1,296.89
# 002
MPN: 257-30-005-20
PORTA S. COMPL. OSSATURA'E RIVESTIM.
from £2,138.76
from £2,138.76
# 003
-
PIVOT
# 003
MPN: 253-30-068-00
PIVOT
F.180 -
from £15.07
from £15.07
# 004
MPN: 255-30-074-00
CERNIERA MOBILE PORTA
from £74.18
from £74.18
# 005
MPN: 806-30-152-01
FIXED BRIDGE POSTER, EXTERNAL DOOR HANDLE
from £1.50
from £1.50
# 006
MPN: 257-30-158-05
INTERNAL DOOR HANDLE ATTACHMENT BRACKET
from £17.14
from £17.14
# 007
MPN: 806-30-158-01
PONTICELLO F ISS. ANTER. MANIGLIA ESTERNA PORTA
from £1.58
from £1.58
# 008
MPN: 257-30-159-05
BRACKET / SUPPORT
from £16.65
from £16.65
# 009
MPN: 255-30-170-01
DOOR LOCK P.
from £210.00
from £210.00
This part replaces part number 20170809 which we have in stock - and 3 more. Click to view details
# 010
MPN: 255-30-171-01
L. DOOR LOCK
from £231.99
from £231.99
This part replaces part number 20170908 - and 8 more. Click to view details
# 011
MPN: 257-30-176-01
ADJUSTABLE DOOR OPENING CONTROL ROD COMPLETE
from £8.43
from £8.43
# 012
MPN: 410-30-180-01
MO I READ DOOR LOCK CONTROL ROD
from £0.67
from £0.67
# 013
MPN: 257-30-190-01
ASTA COMANDO SICUREZZA SERRATURA COMPL.
from £19.29
from £19.29
# 014
MPN: 253-20-204-02
R. DOOR LOCK COVERING GASKETS.
# 015
MPN: 253-30-205-02
LH PLATE
from £7.96
from £7.96
# 016
MPN: 257-30-206-05
ROD FOR ELECTRIC LOCK CONNECTION R.
from £5.44
from £5.44
# 017
MPN: 257-30-207-05
ROD FOR ELECTRIC LOCK CONNECTION S.
from £2.00
from £2.00
# 018
MPN: 152-30-212-01
SCOHTRINO SERRATURA PORTA D.
from £44.76
from £44.76
This part replaces part number 20019105 - and 1 more. Click to view details
# 019
MPN: 152-30-213-01
S. DOOR LOCK RECEIPT.
from £102.03
from £102.03
# 020
MPN: 253-30-216-00
THICKNESS UNDER THE DOOR LOCK RECEIPT
from £2.21
from £2.21
# 021
MPN: 255-30-244-00
RUBBER TRIM DOOR FRAME R.
from £141.81
from £141.81
# 022
MPN: 255-30-245-00
COMMA STOPPED DOOR FRAME S.
from £141.81
from £141.81
# 023
MPN: 255-30-312-00
CANALIN PERIMETRALE CRISTALLO VOLETTE PORTA
from £4.35
from £4.35
# 024
MPN: 255-30-316-01
BASE VOLETTA FISSA PORTA COMPL.
from £5.44
from £5.44
# 025
MPN: 255-30-348-00
RUBBER COLUMN DOOR FLAPS
from £2.62
from £2.62
# 026
MPN: 257-30-366-00
R. DOOR VOLETTO CRYSTAL. BRONZE COLOR - TROPICAL ONLY
from £107.86
from £107.86
# 027

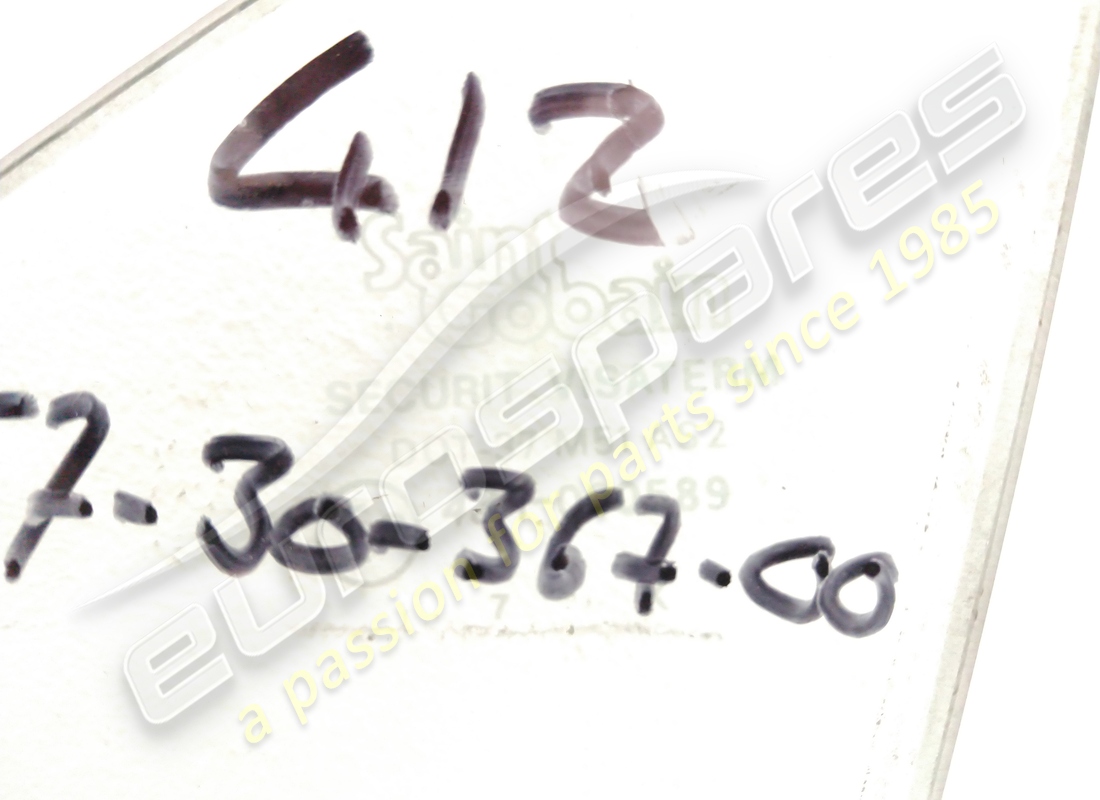

MPN: 257-30-367-00
CRISTALLO VOLETTO PORTA S. COLORE BRONZO - SOLO TROPICO
from £40.95
from £40.95
# 028
MPN: 257-30-368-00
CRISTANO ATERMICO D. VOLETTO FISSA PORTA
from £41.29
from £41.29
# 029
MPN: 257-30-369-00
ATHERMIC DOOR FIXED S. VOLETTO GLASS
from £35.71
from £35.71
# 030
MPN: 255-30-450-00
CANAL INO SCORRIMENTO ANTERIORE CRISTALLO PORTA
from £7.28
from £7.28
# 031
MPN: 255-30-452-00
CANALINO SCORRIMENTO POSTERIORE CRISTALLO PORTA
from £6.44
from £6.44
# 032
MPN: 255-30-454-00
CANALINO SCORRIMENTO SUPERIORE CRISTALLO PORTA
from £7.28
from £7.28
# 033
MPN: 255-30-464-08
CRYSTAL CONTOUR FRAME COVERING R.
from £43.30
from £43.30
# 034
MPN: 255-30-465-08
CRYSTAL CONTOUR FRAME COVERING S.
from £80.15
from £80.15
# 035
MPN: 255-30-466-08
REAR DOOR FRAME COVERING R.
from £20.26
from £20.26
# 036
MPN: 255-30-467-08
REAR COVERING OF THE S. DOOR FRAME.
from £30.48
from £30.48
# 037
MPN: 255-30-468-08
RICOPRIMENTO PIANTONE VOLETTO PORTA D.
from £23.05
from £23.05
# 038
MPN: 255-30-469-08
RICOPRIMENTO PIANTONE VOLETTO PORTA S.
from £86.51
from £86.51
# 039
MPN: 255-30-476-08
DEF REAR AIR READER R. DOOR FRAME.
from £25.52
from £25.52
# 040
MPN: 255-30-477-08
DEF REAR AIR READER L. DOOR FRAME
from £25.52
from £25.52
# 041
MPN: 255-30-510-01
REAR GUIDE CRYSTAL RIGHT DOOR COMPLETE
from £26.85
from £26.85
# 042
MPN: 255-30-511-01
REAR GLASS GUIDE S. DOOR CBMPL.
from £26.85
from £26.85
# 043
MPN: 255-30-520-01
LOWER CROSSBAR D. COMPLETE PULLEY RETAINER
from £76.09
from £76.09
# 044
MPN: 255-30-521-01
LOWER CROSSPIECE WITHOUT COMPLETE PULLEY RETAINER
from £72.61
from £72.61
# 045
MPN: 410-30-534-00
GIUNTO PER MOTOR IDUTTORE
from £26.25
from £26.25
# 046
MPN: 251-30-542-10
ELECTRIC WINDOW MOTOR
from £413.45
from £413.45
# 047
MPN: 257-30-552-00

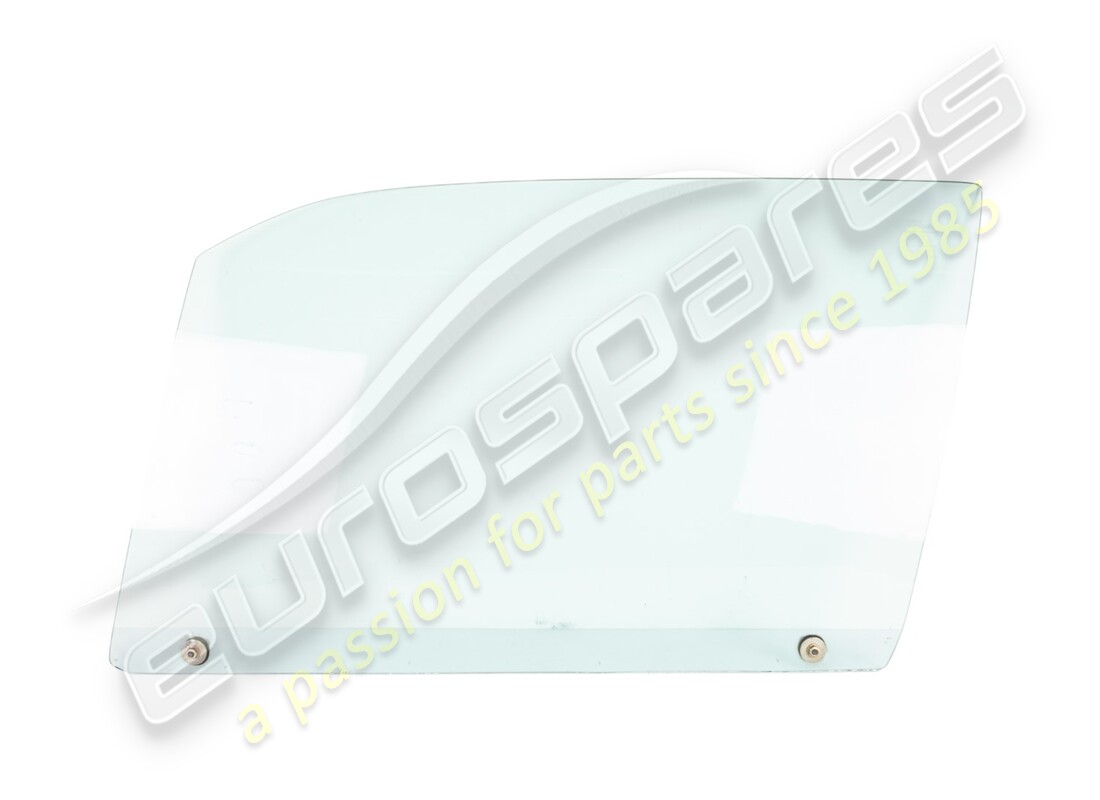

ATHERMIC GLASS DESCENDING DOOR R.
from £83.78
from £83.78
# 048
MPN: 257-30-553-00
ATHERMIC GLASS DESCENDING L. DOOR.
from £94.99
from £94.99
This part replaces part number 255-30-551-00 - and 2 more. Click to view details
# 049
MPN: 257-30-554-00
DOOR CRYSTAL R. BRONZE COLOR - TROPIC ONLY
from £236.28
from £236.28
# 050
MPN: 257-30-555-00
DOOR CRYSTAL S. BRONZE COLOR - TROPIC ONLY
from £236.28
from £236.28
# 051
MPN: 255-30-570-01
ELECTRIC WINDOW REGULATOR R. OVERALL
from £209.49
from £209.49
This part replaces part number 95403523
# 052
MPN: 255-30-571-01
ELECTRIC WINDOW REGULATOR L. ASSEMBLY
from £409.23
from £409.23
This part replaces part number 95403524
# 053
MPN: 255-30-574-01
WINDOW REGULATOR DEVICE R. WITHOUT ELECTRIC MOTOR
from £107.53
from £107.53
# 054
MPN: 255-30-575-01
WINDOW REGULATOR DEVICE S. WITHOUT ELECTRIC MOTOR
from £107.02
from £107.02
# 055
MPN: 802-30-576-00
UPPER WINDOW CABLE SLIDING PULLEY
from £0.71
from £0.71
# 056
MPN: 251-30-578-01
PIVOT
from £5.44
from £5.44
# 057
MPN: 253-30-628-17
SPEAKER GRILLE ON BREAKDOWN NO DOOR
Supersession
Supersession
This part replaces part number 253-30-628-00
# 058
MPN: 257-30-630-20
PANNELLO RIVEST. INTER, PORTA D. CONFEZ. G.S.
Specify the color
# 059
MPN: 258-30-630-10
PANNELLO RFVEST. INTER, PORTA D CONFEZ. G.D.
Specify the color
# 060
MPN: 257-30-631-20
PANNELLO RIVEST. INTER, PORTA S. CONFEZ. G.S.
Specify the color
from £1,916.04
from £1,916.04
# 061
MPN: 258-30-631-10
PANNELLO RIVEST. INTER, PORTA D. CONFEZ. G.D.
Specify the color
from £812.98
from £812.98
# 062
MPN: 257-30-680-00
TIE ROD
Supersession
Supersession
# 063
MPN: 257-30-700-00
APPOGGIABRACCIA PORTA D.
Specify the color
# 064
MPN: 257-30-701-00
APPOGGIABRACCIA PORTA S.
Specify the color
from £1,441.73
from £1,441.73
# 065
MPN: 257-30-720-00
PARTE SUPERIORE APPOGGIABRACCIA PORTA D.
Specify the color
from £255.20
from £255.20
# 066
MPN: 257-30-721-00
PARTE SUPERIORE APPOGGIABRACCIA PORTA S.
Specify the color
from £243.04
from £243.04
# 067
MPN: 257-30-740-02
SERIES OF RIGHT AND LH DOOR HANDLES WITH BLOCKS
from £256.83
from £256.83
# 068
MPN: 257-30-748-00
GOMMINI INTESTATURA MOL. DAVANZALE D.
from £5.44
from £5.44
# 069
MPN: 257-30-749-00
GOMMINI INTESTATURA MOL. DAVANZALE S.
from £5.44
from £5.44
# 070
MPN: 257-30-750-09
EXTERNAL R. DOOR HANDLE - WITHOUT BLOCK
from £130.00
from £130.00
This part replaces part number 253-30-750-09 - and 1 more. Click to view details
# 072
MPN: 251-30-752-02
LEVER
# 073
MPN: 253-30-780-00
GASKET OR SEAL
Supersession
Supersession
# 074
MPN: 152-30-784-01
TIE ROD
from £34.75
from £34.75
# 075
MPN: 60719100
DOOR LOCK SET
from £159.89
from £159.89
This part replaces part number 257-30-790-09
# 076
MPN: 152-30-807-00
CLIP
from £2.66
from £2.66
This part replaces part number 500-02-302-04
# 077
MPN: 257-30-810-02
INTERNAL DOOR OPENING HANDLE COMPLETE R.
from £156.12
from £156.12
# 078
MPN: 257-30-811-02
INTERNAL DOOR OPENING HANDLE L. COMPLETE
from £160.53
from £160.53
# 079
MPN: 152-30-818-00
GASKET OR SEAL
from £1.56
from £1.56
# 080
MPN: 152-30-830-02
INTERNAL DOOR OPENING HANDLE PLATE
from £20.67
from £20.67
# 081
MPN: 410-30-880-00
RESCUE HANDLE FOR ELECTRIC WINDOW
# 082
MPN: 257-30-886-00
CLOSING CAPS FOR THE RESCUE HANDLE HOLE
from £32.94
from £32.94
# 083
MPN: 255-30-910-00
GASKET OR SEAL
from £22.12
from £22.12
# 084
MPN: 255-30-911-00
GASKET OR SEAL
from £7.05
from £7.05
# 085
MPN: 257-30-920-08
MODANATURA CINTURA PORTA D. COMPL.
from £158.47
from £158.47
# 086
MPN: 257-30-921-08
MODANATURA CINTURA PORTA S. COMPL.
# 087
MPN: 257-30-926-00
GASKET OR SEAL
from £73.50
from £73.50
# 088
MPN: 257-30-927-00
GASKET OR SEAL
from £73.48
from £73.48
# 089
MPN: 257-80-834-00
INTERRUTTORE COMANDO SPEECH! ESTER, SU PANNELLO PORTA ( LATO GUIDA)
Supersession
Supersession
# 090
MPN: 257-80-836-03
CLIP
from £2.00
from £2.00
This part replaces part number 257-80-836-00
# 091
MPN: 696-82-546-00
GUARNIZ. PER FANALINO PORTA APERTA
from £2.66
from £2.66
# 092
MPN: 0-147-1-003-5
NUT
# 093
MPN: 0-214-8-045-0
RING
from £0.57
from £0.57
# 094
MPN: 0-216-8-031-0
CLIP
from £0.47
from £0.47
# 095
MPN: 0-902-8-030-0
FRONT DOOR SEAL PARAGRAPH
from £2.05
from £2.05
# 096
MPN: 0-918-1-055-1
SCREW
# 097
MPN: 0-977-1-012-5
BUSH
from £8.48
from £8.48
-part-diagram-008.webp "FERRARI 412 (COACHWORK) REAR BOOT LID PARTS DIAGRAM")
-part-diagram-008a.webp "FERRARI 412 (COACHWORK) REAR BOOT LID (VARIATIONS) PARTS DIAGRAM")
-part-diagram-009.webp "FERRARI 412 (COACHWORK) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-010.webp "FERRARI 412 (COACHWORK) REAR BUMPER & UNDER TRAY PARTS DIAGRAM")
-part-diagram-011.webp "FERRARI 412 (COACHWORK) FRONT GRILL PARTS DIAGRAM")
-part-diagram-012.webp "FERRARI 412 (COACHWORK) FRONT SCREEN & TRIMS PARTS DIAGRAM")
-part-diagram-013.webp "FERRARI 412 (COACHWORK) REAR SCREEN & TRIMS PARTS DIAGRAM")
-part-diagram-014.webp "FERRARI 412 (COACHWORK) EXTERNAL FINISHING TRIMS & BADGES PARTS DIAGRAM")
-part-diagram-015.webp "FERRARI 412 (COACHWORK) CENTRE CONSOLE & GAUGES PARTS DIAGRAM")
-part-diagram-016.webp "FERRARI 412 (COACHWORK) CENTRE CONSOLE (SWITZERLAND) PARTS DIAGRAM")
-part-diagram-017.webp "FERRARI 412 (COACHWORK) CENTRE CONSOLE SWITCHES PARTS DIAGRAM")
-part-diagram-018.webp "FERRARI 412 (COACHWORK) CENTRE CONSOLE PANEL VALID (G.D.) PARTS DIAGRAM")
-part-diagram-019.webp "FERRARI 412 (COACHWORK) CARPETS & INNER TRIMS PARTS DIAGRAM")
-part-diagram-020.webp "FERRARI 412 (COACHWORK) SEAT BELTS & SUN VISORS PARTS DIAGRAM")
-part-diagram-021.webp "FERRARI 412 (COACHWORK) INNER ROOF PANEL PARTS DIAGRAM")
-part-diagram-022.webp "FERRARI 412 (COACHWORK) SEATS PARTS DIAGRAM")
-part-diagram-022a.webp "FERRARI 412 (COACHWORK) SEATS (VARIATIONS) PARTS DIAGRAM")
-part-diagram-023.webp "FERRARI 412 (COACHWORK) REAR SEATS PARTS DIAGRAM")
-part-diagram-023a.webp "FERRARI 412 (COACHWORK) REAR SEATS (VARIATIONS) PARTS DIAGRAM")
-part-diagram-024.webp "FERRARI 412 (COACHWORK) NUMBER PLATE HOLDER PARTS DIAGRAM")
-part-diagram-025.webp "FERRARI 412 (COACHWORK) DASHBOARD & INSTRUMENTS PARTS DIAGRAM")
-part-diagram-026.webp "FERRARI 412 (COACHWORK) WIPER MEC PARTS DIAGRAM")
-part-diagram-026a.webp "FERRARI 412 (COACHWORK) WIPER MEC (VARIATIONS) PARTS DIAGRAM")
-part-diagram-027.webp "FERRARI 412 (COACHWORK) CAR LOOM PARTS DIAGRAM")
-part-diagram-028.webp "FERRARI 412 (COACHWORK) FRONT LIGHTS PARTS DIAGRAM")
-part-diagram-028a.webp "FERRARI 412 (COACHWORK) REAR LIGHTS PARTS DIAGRAM")
-part-diagram-029.webp "FERRARI 412 (COACHWORK) AIR HEATERS & BLOWERS PARTS DIAGRAM")
-part-diagram-030.webp "FERRARI 412 (COACHWORK) INNER REAR AC UNIT PARTS DIAGRAM")
-part-diagram-001.webp "FERRARI 412 (COACHWORK) FRONT INNER SHIELDS & PANELS PARTS DIAGRAM")
-part-diagram-002.webp "FERRARI 412 (COACHWORK) REAR INNER SHIELDS & PANELS PARTS DIAGRAM")
-part-diagram-003.webp "FERRARI 412 (COACHWORK) ROOF PANELS PARTS DIAGRAM")
-part-diagram-004.webp "FERRARI 412 (COACHWORK) FRONT END PANELS PARTS DIAGRAM")
-part-diagram-005.webp "FERRARI 412 (COACHWORK) REAR END PANELS PARTS DIAGRAM")
-part-diagram-006.webp "FERRARI 412 (COACHWORK) FRONT BONNET PARTS DIAGRAM")
-part-diagram-006a.webp "FERRARI 412 (COACHWORK) FRONT BONNET (VARIATIONS) PARTS DIAGRAM")
